CompletableFuture函数allOf和anyOf原理

0 阅读5分钟

allOf函数会等待所有的异步任务执行完成之后统一返回结果.anyOf函数会优先返回最先完成的任务结果.

运用:

public class alofDemo01 {
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        CompletableFuture<String> future = CompletableFuture.supplyAsync(() -> {

            try {
                System.out.println("我已经执行了");
                TimeUnit.SECONDS.sleep(3);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return "hello";
        });

        CompletableFuture<String> future1 = CompletableFuture.supplyAsync(() -> {
            try {
                TimeUnit.SECONDS.sleep(2);
                System.out.println("我已经执行了第二次");
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return "test";
        });

        CompletableFuture<Void> allOf = CompletableFuture.allOf(future, future1);
        allOf.thenRun(() -> {
            try {
                String s = future.get();
                System.out.println(System.currentTimeMillis() + s);
            } catch (InterruptedException e) {
                e.printStackTrace();
            } catch (ExecutionException e) {
                e.printStackTrace();
            }
            try {
                String s = future1.get();
                System.out.println(System.currentTimeMillis() + s);
            } catch (InterruptedException e) {
                e.printStackTrace();
            } catch (ExecutionException e) {
                e.printStackTrace();
            }
        });
        System.out.println("测试阻塞");
        allOf.get();
    }
}

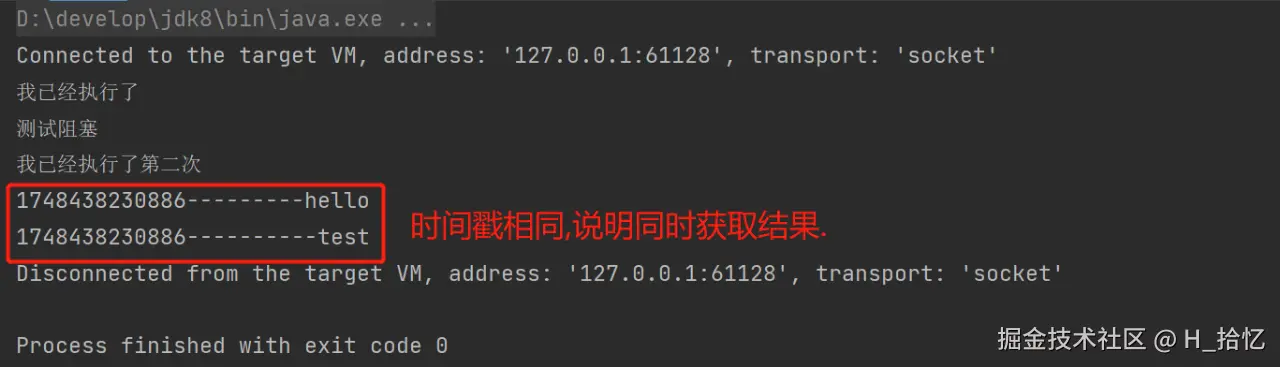

执行结果:

除了时间戳以外,我们还可以看到输出日志.可以得出任务是异步执行的.然后主线程会被阻塞在get方法中,等待异步任务的完成.get方法为什么会阻塞,可以参考前面文章.

supplyAsync方法:

可以参考前面文章,有详细讲解.

allOf方法:

    /**
     * Returns a new CompletableFuture that is completed when all of
     * the given CompletableFutures complete.  If any of the given
     * CompletableFutures complete exceptionally, then the returned
     * CompletableFuture also does so, with a CompletionException
     * holding this exception as its cause.  Otherwise, the results,
     * if any, of the given CompletableFutures are not reflected in
     * the returned CompletableFuture, but may be obtained by
     * inspecting them individually. If no CompletableFutures are
     * provided, returns a CompletableFuture completed with the value
     * {@code null}.
     *
     * <p>Among the applications of this method is to await completion
     * of a set of independent CompletableFutures before continuing a
     * program, as in: {@code CompletableFuture.allOf(c1, c2,
     * c3).join();}.
     *
     * @param cfs the CompletableFutures
     * @return a new CompletableFuture that is completed when all of the
     * given CompletableFutures complete
     * @throws NullPointerException if the array or any of its elements are
     * {@code null}
     */
    public static CompletableFuture<Void> allOf(CompletableFuture<?>... cfs) {
        return andTree(cfs, 0, cfs.length - 1);
    }

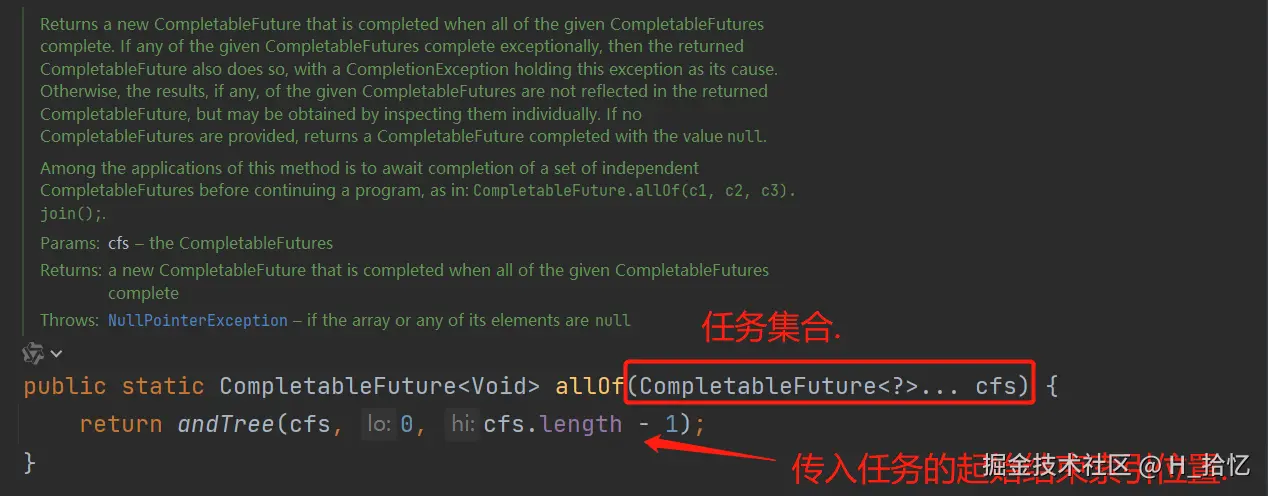

allOf方法理解:

andTree方法:

    /** Recursively constructs a tree of completions. */
    static CompletableFuture<Void> andTree(CompletableFuture<?>[] cfs,
                                           int lo, int hi) {
        CompletableFuture<Void> d = new CompletableFuture<Void>();
        if (lo > hi) // empty
            d.result = NIL;
        else {
            CompletableFuture<?> a, b;
            int mid = (lo + hi) >>> 1;
            if ((a = (lo == mid ? cfs[lo] :
                      andTree(cfs, lo, mid))) == null ||
                (b = (lo == hi ? a : (hi == mid+1) ? cfs[hi] :
                      andTree(cfs, mid+1, hi)))  == null)
                throw new NullPointerException();
            if (!d.biRelay(a, b)) {
                BiRelay<?,?> c = new BiRelay<>(d, a, b);
                a.bipush(b, c);
                c.tryFire(SYNC);
            }
        }
        return d;
    }

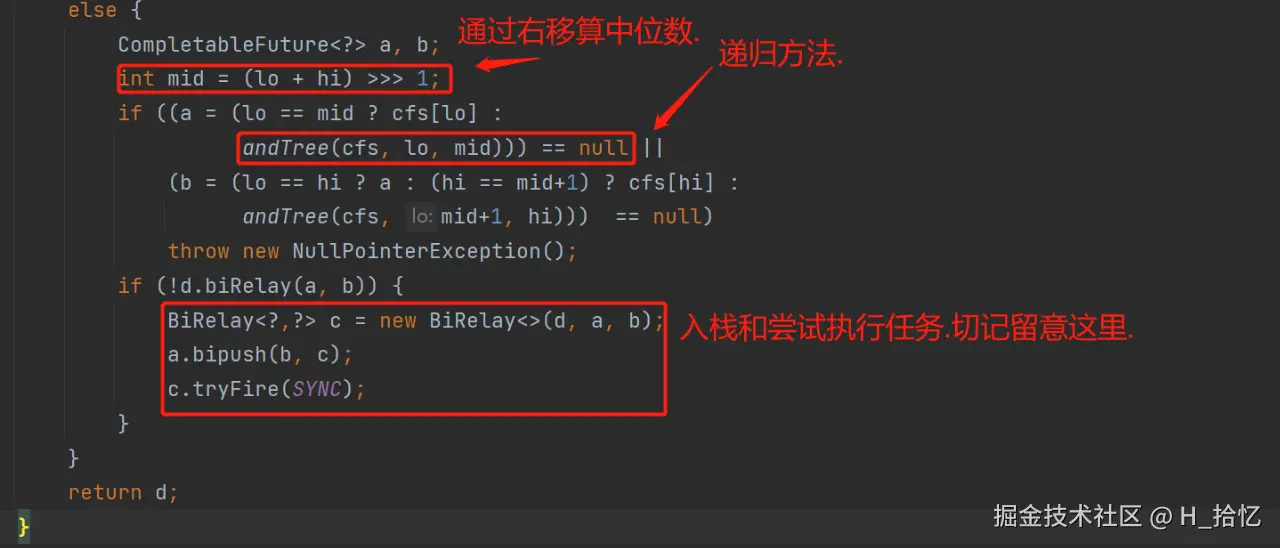

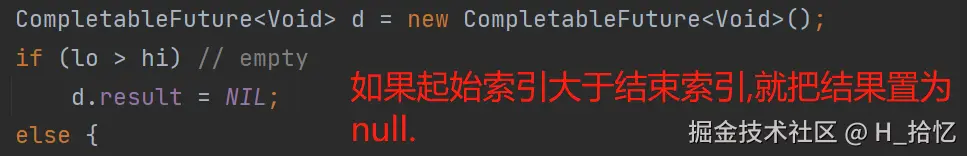

andTree方法理解:

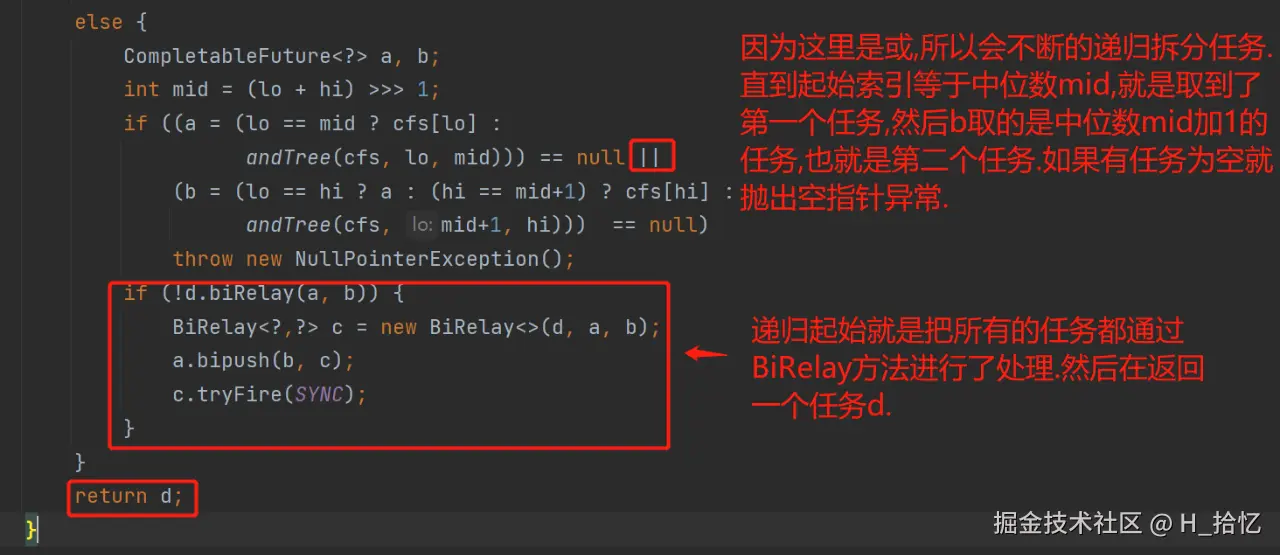

andTree递归理解:

biRelay方法:

 boolean biRelay(CompletableFuture<?> a, CompletableFuture<?> b) {
        Object r, s; Throwable x;
        if (a == null || (r = a.result) == null ||
            b == null || (s = b.result) == null)
            return false;
        if (result == null) {
            if (r instanceof AltResult && (x = ((AltResult)r).ex) != null)
                completeThrowable(x, r);
            else if (s instanceof AltResult && (x = ((AltResult)s).ex) != null)
                completeThrowable(x, s);
            else
                completeNull();
        }
        return true;
    }

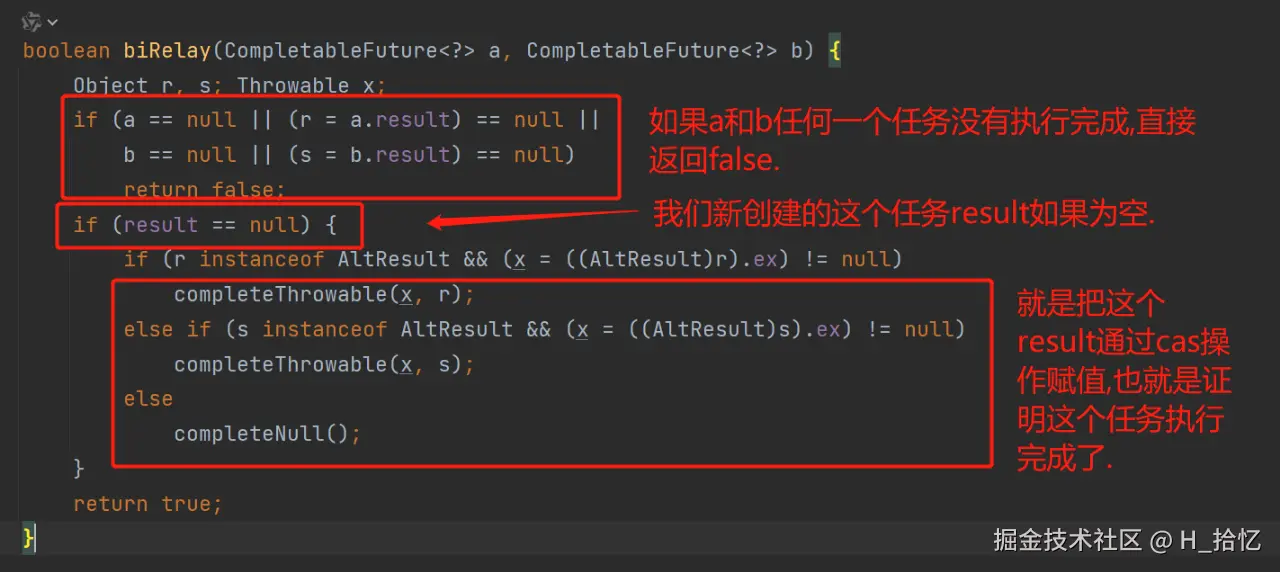

biRelay方法理解:

如果上面结果都是空,返回false,就会进入所有任务同时拿到结果的核心处理地方了.下面看如果返回false做的事.

BiRelay构造方法:

留意下传入参数,d就是新创建的异步任务.a从数组取出的第一个任务,b从数组取出的第二个任务.

 BiRelay(CompletableFuture<Void> dep,
                CompletableFuture<T> src,
                CompletableFuture<U> snd) {
            super(null, dep, src, snd);
        }

可以亲自点一下这个类的实现,最终还是继承了Completion.所以还是前面讲解的链式调用的思路.(我就不贴源码了.可以自己点一下)

异步任务的bipush方法:

    /** Pushes completion to this and b unless both done. */
    final void bipush(CompletableFuture<?> b, BiCompletion<?,?,?> c) {
        if (c != null) {
            Object r;
            while ((r = result) == null && !tryPushStack(c))
                lazySetNext(c, null); // clear on failure
            if (b != null && b != this && b.result == null) {
                Completion q = (r != null) ? c : new CoCompletion(c);
                while (b.result == null && !b.tryPushStack(q))
                    lazySetNext(q, null); // clear on failure
            }
        }
    }

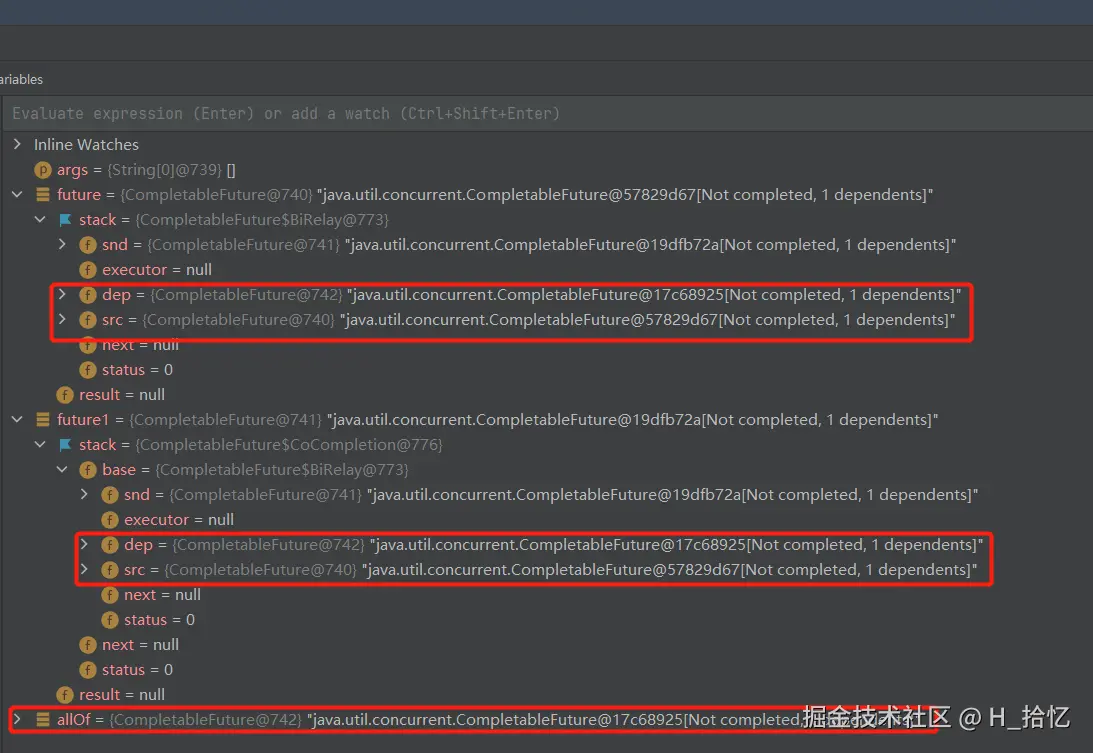

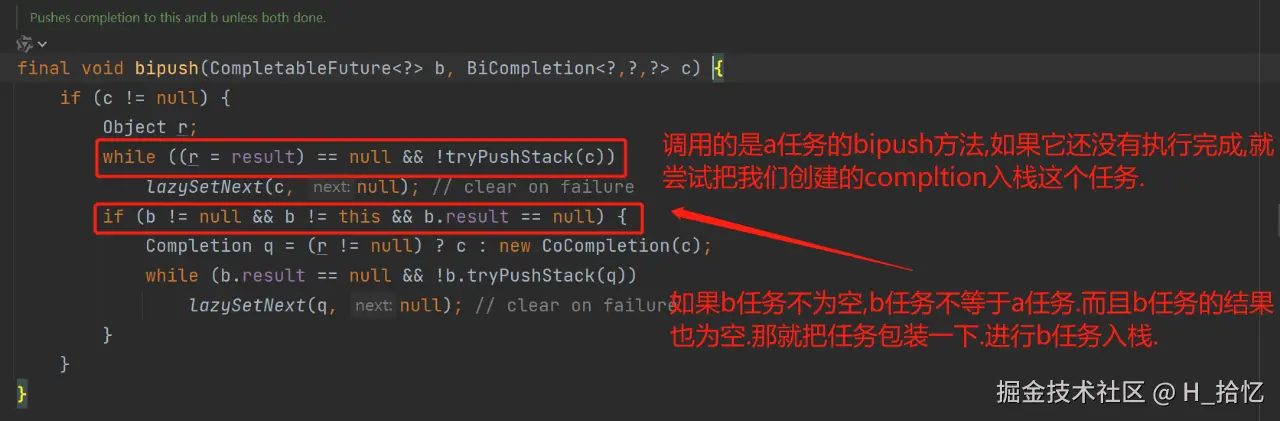

异步任务的bipush方法理解:

这里还有个需要注意的地方就是lazySetNext(c,null)和lazySetNext(q,null),如果入栈失败就会把他们置为空.

BiRelay的tryFire方法:

 final CompletableFuture<Void> tryFire(int mode) {
            CompletableFuture<Void> d;
            CompletableFuture<T> a;
            CompletableFuture<U> b;
            if ((d = dep) == null || !d.biRelay(a = src, b = snd))
                return null;
            src = null; snd = null; dep = null;
            return d.postFire(a, b, mode);
        }

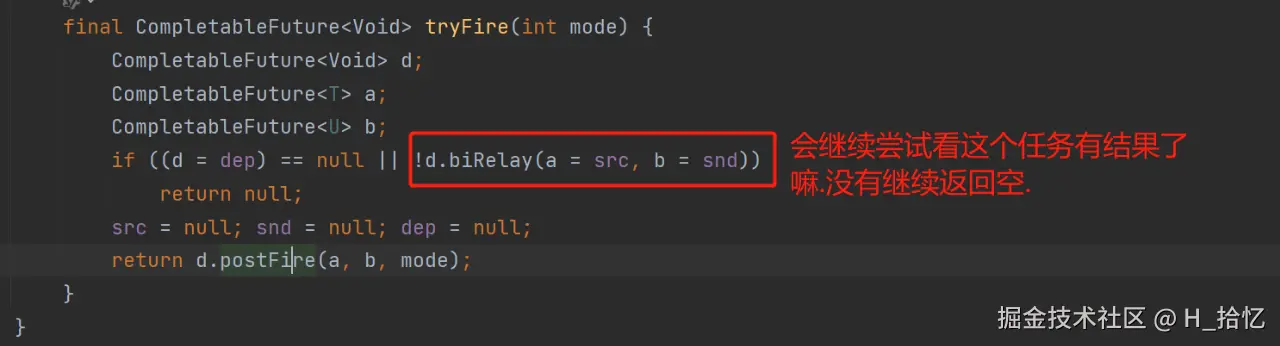

BiRelay的tryFire方法理解:

下面的postFire方法就是前面链式调用的思路,具体可以参考前面文章.allOf方法该做就就已经完成了.所有的任务最终都会一个异步任务,然后我们通过thenRun来获取结果.

thenRun方法:

  public CompletableFuture<Void> thenRun(Runnable action) {
        return uniRunStage(null, action);
    }

接受了一个Runnable任务.

uniRunStage方法:

  private CompletableFuture<Void> uniRunStage(Executor e, Runnable f) {
        if (f == null) throw new NullPointerException();
        CompletableFuture<Void> d = new CompletableFuture<Void>();
        if (e != null || !d.uniRun(this, f, null)) {
            UniRun<T> c = new UniRun<T>(e, d, this, f);
            push(c);
            c.tryFire(SYNC);
        }
        return d;
    }

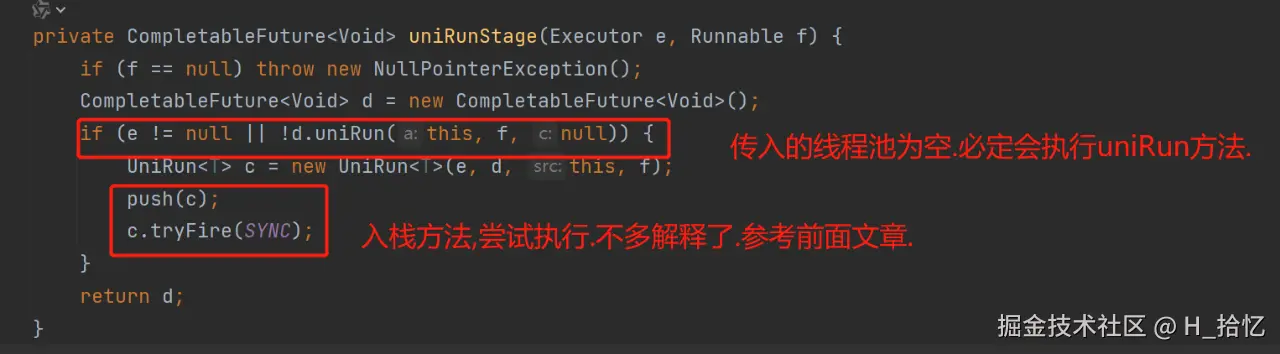

uniRunStage方法理解:

uniRun方法:

 final boolean uniRun(CompletableFuture<?> a, Runnable f, UniRun<?> c) {
        Object r; Throwable x;
        if (a == null || (r = a.result) == null || f == null)
            return false;
        if (result == null) {
            if (r instanceof AltResult && (x = ((AltResult)r).ex) != null)
                completeThrowable(x, r);
            else
                try {
                    if (c != null && !c.claim())
                        return false;
                    f.run();
                    completeNull();
                } catch (Throwable ex) {
                    completeThrowable(ex);
                }
        }
        return true;
    }

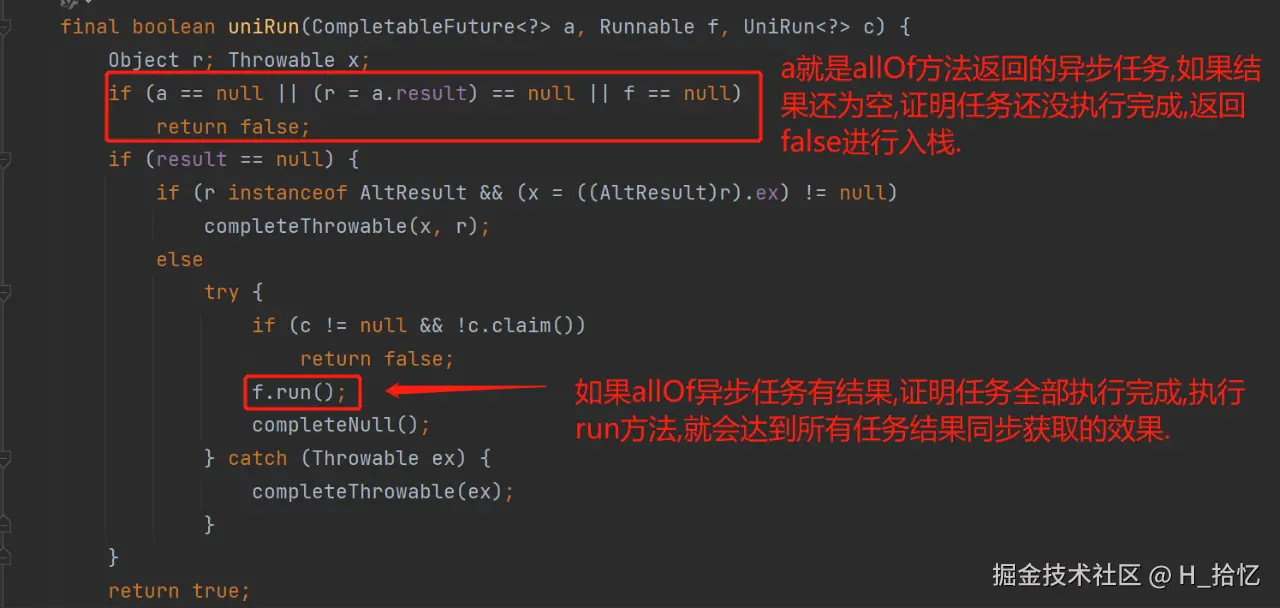

uniRun方法理解:

这就是allOf方法为什么可以同步获取所有结果的原因.


anyOF方法运用:

public class alofDemo01 {
    public static void main(String[] args) throws ExecutionException, InterruptedException {
        CompletableFuture<String> future = CompletableFuture.supplyAsync(() -> {

            try {
                System.out.println("我已经执行了");
                TimeUnit.SECONDS.sleep(3000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return "hello";
        });

        CompletableFuture<String> future1 = CompletableFuture.supplyAsync(() -> {
            try {
                TimeUnit.SECONDS.sleep(2);
                System.out.println("我已经执行了第二次");
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            return "test";
        });

        CompletableFuture<Object> anyOf = CompletableFuture.anyOf(future, future1);
        anyOf.handle((s, throwable) -> {
            System.out.println(s);
            return s;
        });

        anyOf.get();


    }
}

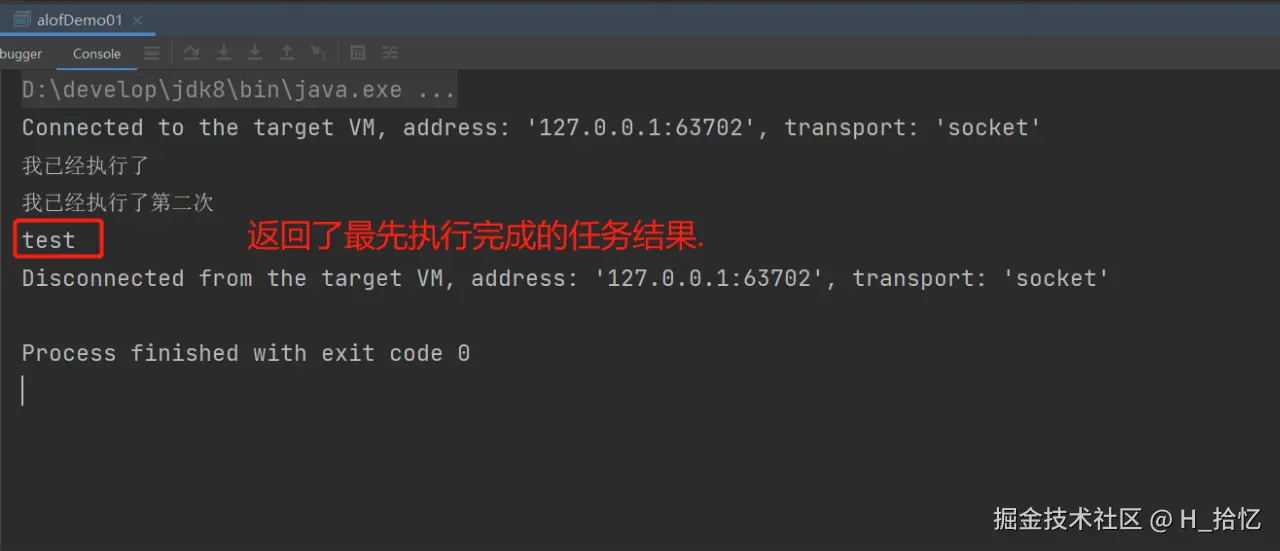

执行结果:

anyOf方法:

    /**
     * Returns a new CompletableFuture that is completed when any of
     * the given CompletableFutures complete, with the same result.
     * Otherwise, if it completed exceptionally, the returned
     * CompletableFuture also does so, with a CompletionException
     * holding this exception as its cause.  If no CompletableFutures
     * are provided, returns an incomplete CompletableFuture.
     *
     * @param cfs the CompletableFutures
     * @return a new CompletableFuture that is completed with the
     * result or exception of any of the given CompletableFutures when
     * one completes
     * @throws NullPointerException if the array or any of its elements are
     * {@code null}
     */
    public static CompletableFuture<Object> anyOf(CompletableFuture<?>... cfs) {
        return orTree(cfs, 0, cfs.length - 1);
    }

orTree方法:

    /** Recursively constructs a tree of completions. */
    static CompletableFuture<Object> orTree(CompletableFuture<?>[] cfs,
                                            int lo, int hi) {
        CompletableFuture<Object> d = new CompletableFuture<Object>();
        if (lo <= hi) {
            CompletableFuture<?> a, b;
            int mid = (lo + hi) >>> 1;
            if ((a = (lo == mid ? cfs[lo] :
                      orTree(cfs, lo, mid))) == null ||
                (b = (lo == hi ? a : (hi == mid+1) ? cfs[hi] :
                      orTree(cfs, mid+1, hi)))  == null)
                throw new NullPointerException();
            if (!d.orRelay(a, b)) {
                OrRelay<?,?> c = new OrRelay<>(d, a, b);
                a.orpush(b, c);
                c.tryFire(SYNC);
            }
        }
        return d;
    }

orRelay方法:

 final boolean orRelay(CompletableFuture<?> a, CompletableFuture<?> b) {
        Object r;
        if (a == null || b == null ||
            ((r = a.result) == null && (r = b.result) == null))
            return false;
        if (result == null)
            completeRelay(r);
        return true;
    }

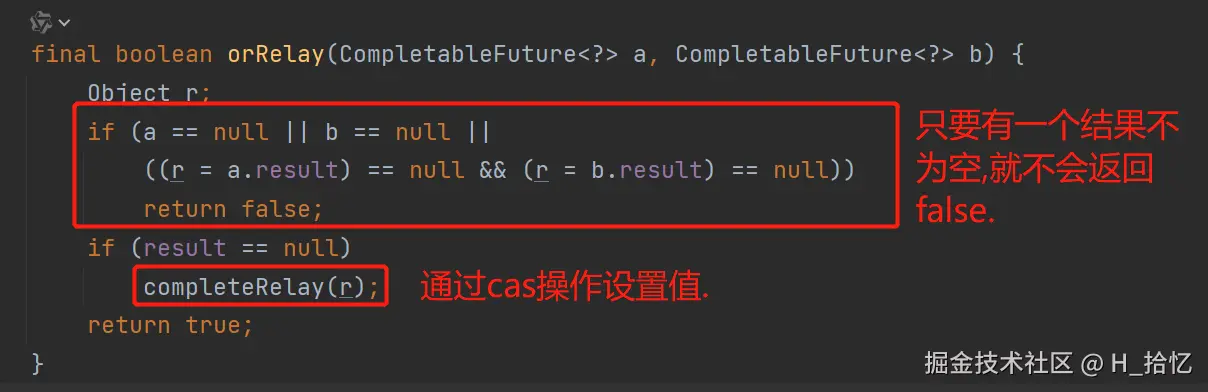

orRelay方法理解:

返回false后OrRelay构造方法:

 OrRelay(CompletableFuture<Object> dep, CompletableFuture<T> src,
                CompletableFuture<U> snd) {
            super(null, dep, src, snd);
        }

OrRelay的orpush方法:

    /** Pushes completion to this and b unless either done. */
    final void orpush(CompletableFuture<?> b, BiCompletion<?,?,?> c) {
        if (c != null) {
            while ((b == null || b.result == null) && result == null) {
                if (tryPushStack(c)) {
                    if (b != null && b != this && b.result == null) {
                        Completion q = new CoCompletion(c);
                        while (result == null && b.result == null &&
                               !b.tryPushStack(q))
                            lazySetNext(q, null); // clear on failure
                    }
                    break;
                }
                lazySetNext(c, null); // clear on failure
            }
        }
    }

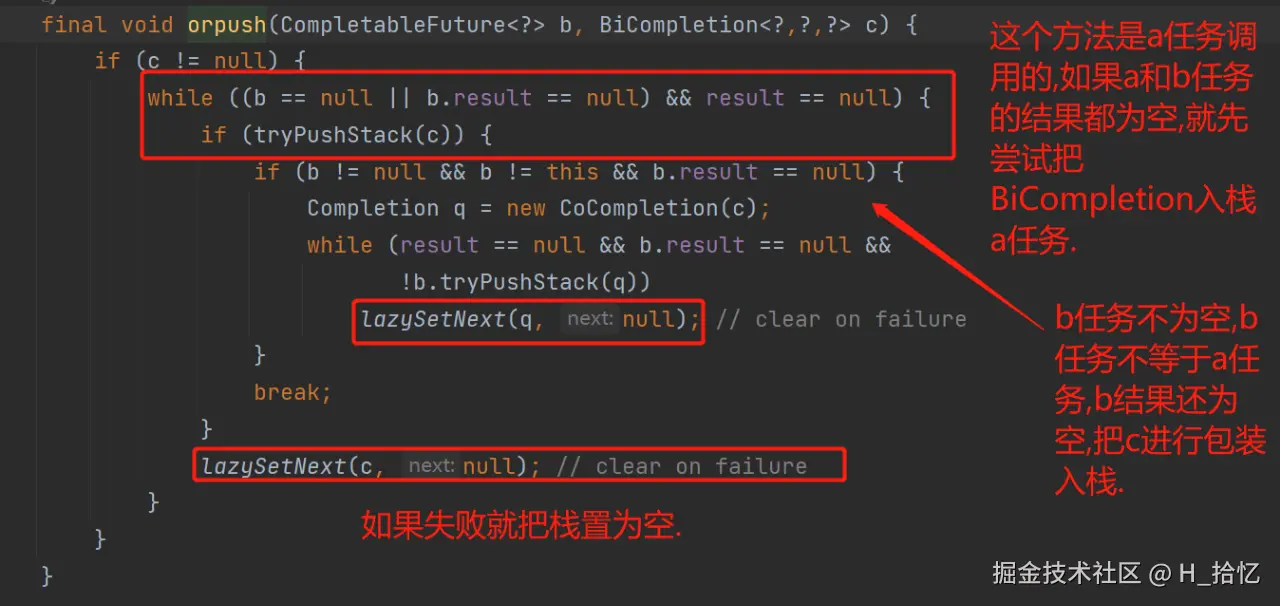

OrRelay的orpush方法理解:

最后就是返回一个异步任务,执行handle方法.

handle方法:

public <U> CompletableFuture<U> handle(
        BiFunction<? super T, Throwable, ? extends U> fn) {
        return uniHandleStage(null, fn);
    }

uniHandleStage方法:

private <V> CompletableFuture<V> uniHandleStage(
        Executor e, BiFunction<? super T, Throwable, ? extends V> f) {
        if (f == null) throw new NullPointerException();
        CompletableFuture<V> d = new CompletableFuture<V>();
        if (e != null || !d.uniHandle(this, f, null)) {
            UniHandle<T,V> c = new UniHandle<T,V>(e, d, this, f);
            push(c);
            c.tryFire(SYNC);
        }
        return d;
    }

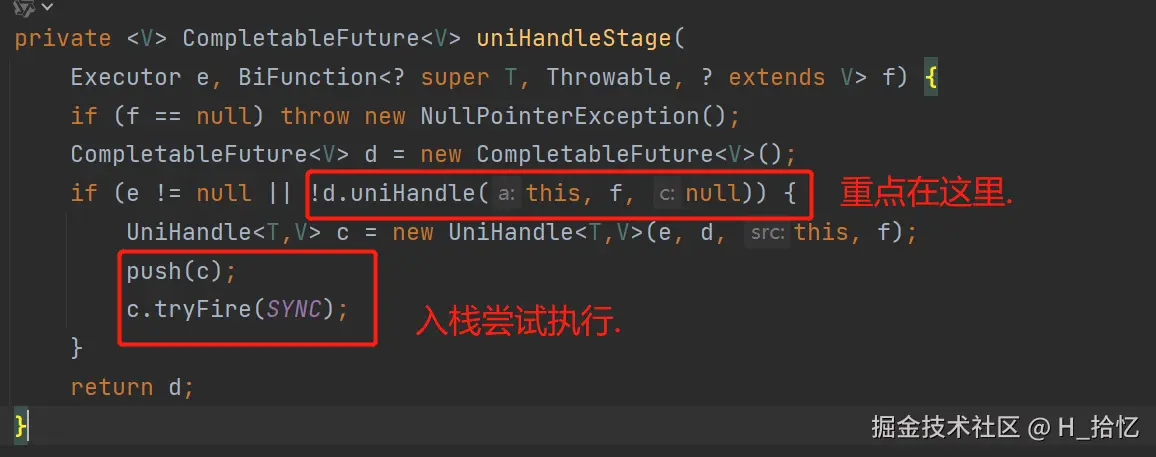

uniHandleStage方法理解:

uniHandle方法:

   final <S> boolean uniHandle(CompletableFuture<S> a,
                                BiFunction<? super S, Throwable, ? extends T> f,
                                UniHandle<S,T> c) {
        Object r; S s; Throwable x;
        if (a == null || (r = a.result) == null || f == null)
            return false;
        if (result == null) {
            try {
                if (c != null && !c.claim())
                    return false;
                if (r instanceof AltResult) {
                    x = ((AltResult)r).ex;
                    s = null;
                } else {
                    x = null;
                    @SuppressWarnings("unchecked") S ss = (S) r;
                    s = ss;
                }
                completeValue(f.apply(s, x));
            } catch (Throwable ex) {
                completeThrowable(ex);
            }
        }
        return true;
    }

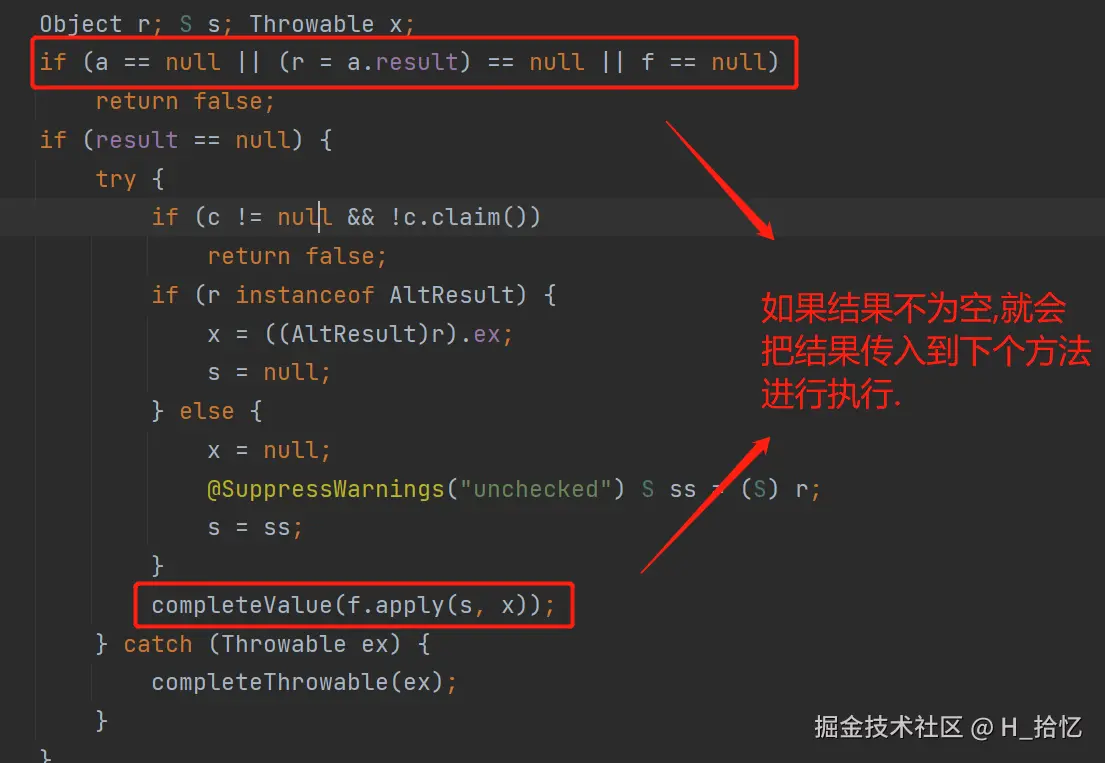

uniHandle方法理解:

uniHandle方法理解:

因为前面有讲过handle方法,所以注释比较粗糙.不懂得可以参考前面文章,

这就是anyOf方法的思路.其实也是链式调用实现的.
