1.1 快速掌握Bootstrap核心概念:告别前端开发选型焦虑

一、Bootstrap 概述

1. 什么是 Bootstrap?

Bootstrap 是一个基于 HTML、CSS 和 JavaScript 的 开源前端框架,用于快速开发响应式、移动优先的 Web 项目。它提供了一套标准化的组件库(如按钮、导航栏、表单等)和响应式网格系统,帮助开发者简化页面布局和样式设计,提高开发效率。

2. 核心特点

  • 响应式设计:自动适配不同屏幕尺寸(手机、平板、桌面),无需手动编写复杂媒体查询。
  • 移动优先:优先针对移动端布局,再逐步适配更大屏幕,符合现代用户访问习惯。
  • 丰富的组件库:包含按钮、导航、模态框、表单、表格等数十种可复用组件,支持自定义样式。
  • 插件系统:基于 jQuery 的交互功能(如轮播图、选项卡、提示框等),方便实现动态效果。
  • 轻量且灵活:支持自定义组件和样式,可按需引入核心模块,减少文件体积。

3. 版本演进

  • Bootstrap 5(当前稳定版):移除 jQuery 依赖,全面支持原生 JavaScript,增强了自定义属性和 CSS 变量,优化了网格系统和可访问性。
  • Bootstrap 4:奠定响应式和移动优先的基础,引入 Flexbox 布局。

二、环境搭建

以下是在项目中使用 Bootstrap 的三种主流方式,可根据需求选择:

1. 方式一:CDN 引入(推荐新手)

通过内容分发网络(CDN)直接加载 Bootstrap 的 CSS 和 JS 文件,无需本地安装,适合快速原型开发。

步骤

  1. 在 HTML 的 <head> 标签中引入 Bootstrap CSS:
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.6/dist/css/bootstrap.min.css" rel="stylesheet">

  2. 在 HTML 的末尾(</body> 标签前)引入 Bootstrap JS 和依赖项(Bootstrap 5 已内置 Popper,无需单独引入 jQuery):
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.3.6/dist/js/bootstrap.bundle.min.js"></script>


优势:无需配置环境,直接使用;自动获取最新版本。
注意:若需使用旧版(如 Bootstrap 4),只需修改 CDN 路径中的版本号(如 bootstrap@4.6.2)。

2. 方式二:本地文件引入

下载 Bootstrap 源文件到本地项目,适合没有网络或需要离线开发的场景。

步骤

  1. 访问 Bootstrap 官网下载页,选择预编译版本(包含编译好的 CSS/JS 文件)或源代码。
  2. 解压下载的文件,将 dist 目录中的 css/js/ 文件夹复制到项目静态资源目录(如 static/assets/)。
  3. 在 HTML 中引入本地文件:
    <link rel="stylesheet" href="static/css/bootstrap.min.css">
    <script src="static/js/bootstrap.bundle.min.js"></script>


3. 方式三:通过包管理器安装(适用于构建工具项目)

如果使用 npmyarn 管理项目依赖(如配合 Webpack、Vite 等构建工具),可通过命令行安装。

步骤

  1. 初始化项目(若未初始化):
    npm init -y  # 或 yarn init -y

  2. 安装 Bootstrap(以 npm 为例):
    npm install bootstrap

  3. 在项目中按需引入:
    • CSS 引入(在主样式文件中):
      @import 'bootstrap/dist/css/bootstrap.min.css';

    • JS 引入(在主 JavaScript 文件中):
      import 'bootstrap/dist/js/bootstrap.bundle.min.js';

    • 按需引入单个组件(如只使用按钮和模态框):
      import { Button, Modal } from 'bootstrap';


环境验证:第一个 Bootstrap 页面

创建一个简单的 HTML 文件,验证环境是否搭建成功:

<!DOCTYPE html>
<html lang="zh-CN">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Bootstrap 入门示例</title>
  <!-- 引入 Bootstrap CSS -->
  <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.6/dist/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
  <!-- Bootstrap 组件示例:响应式按钮 -->
  <div class="container mt-4">
    <button class="btn btn-primary btn-lg">点击我</button>
    <p class="mt-3">在小屏幕设备上查看按钮是否自动适配</p>
  </div>

  <!-- 引入 Bootstrap JS -->
  <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.3.6/dist/js/bootstrap.bundle.min.js"></script>
</body>
</html>

将上述代码保存为 index.html,用浏览器打开,应看到一个带蓝色样式的响应式按钮,缩放浏览器窗口时布局会自动调整。

总结

  • 新手推荐:直接使用 CDN 引入,快速体验组件效果。
  • 项目开发:本地文件引入,或者是通过结合 npm + 构建工具(如 Webpack),实现模块化开发和按需加载。
  • 核心概念:后续学习可重点关注 网格系统(Grid)响应式工具类组件文档官方文档 提供详细示例)。

2.1 Bootstrap快速上手:了解常用组件的用法

Bootstrap 是一个功能强大的前端框架,提供了丰富的 UI 组件和响应式布局系统。下面重点介绍 Bootstrap 中常用的组件和布局功能。

按钮(Button)

Bootstrap 提供了多种样式的按钮,支持不同颜色、尺寸和状态。

基本用法

<button type="button" class="btn btn-primary">Primary</button>
<button type="button" class="btn btn-secondary">Secondary</button>
<button type="button" class="btn btn-success">Success</button>
<button type="button" class="btn btn-danger">Danger</button>
<button type="button" class="btn btn-warning">Warning</button>
<button type="button" class="btn btn-info">Info</button>
<button type="button" class="btn btn-light">Light</button>
<button type="button" class="btn btn-dark">Dark</button>
<button type="button" class="btn btn-link">Link</button>

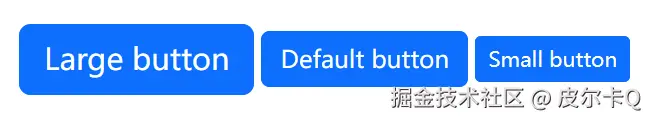

按钮尺寸

<button type="button" class="btn btn-primary btn-lg">Large button</button>
<button type="button" class="btn btn-primary">Default button</button>
<button type="button" class="btn btn-primary btn-sm">Small button</button>


按钮状态

<button type="button" class="btn btn-primary" disabled>Disabled button</button>
<button type="button" class="btn btn-primary active">Active button</button>

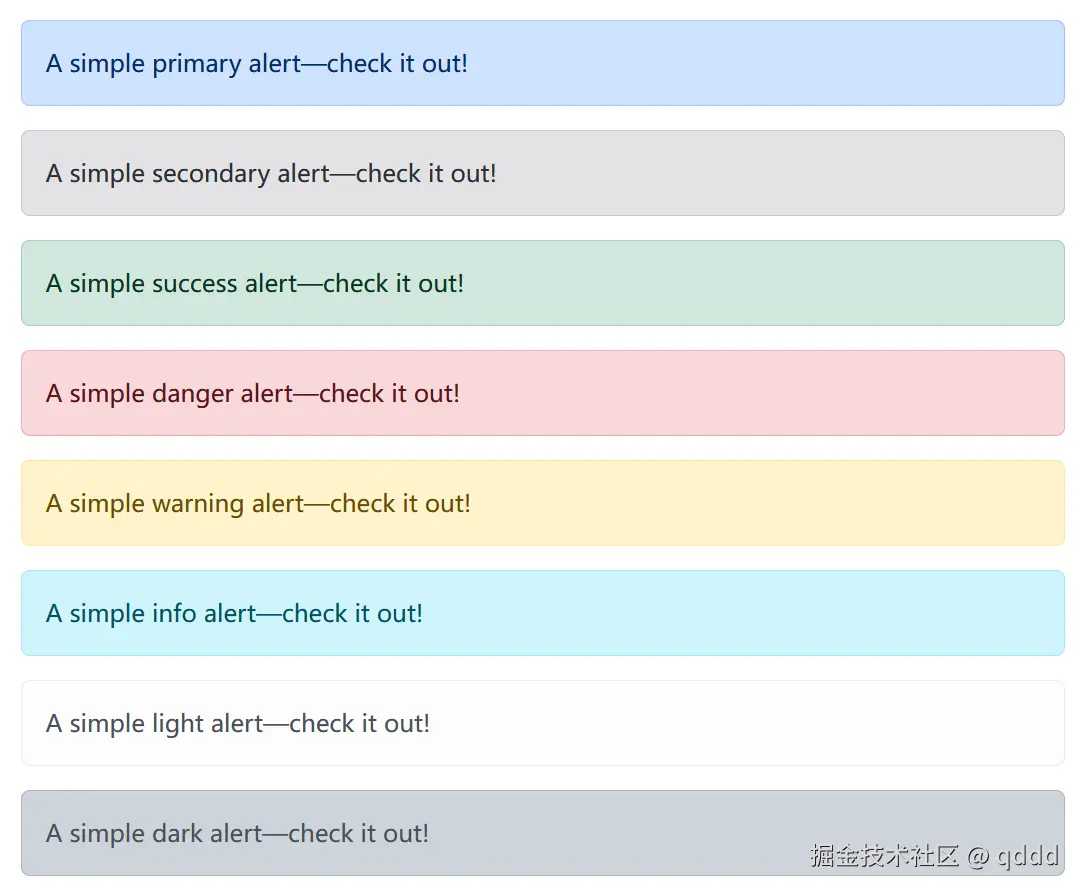

告警(Alert)

为典型的用户操作提供上下文反馈消息,并提供少量可用和灵活的警报消息。

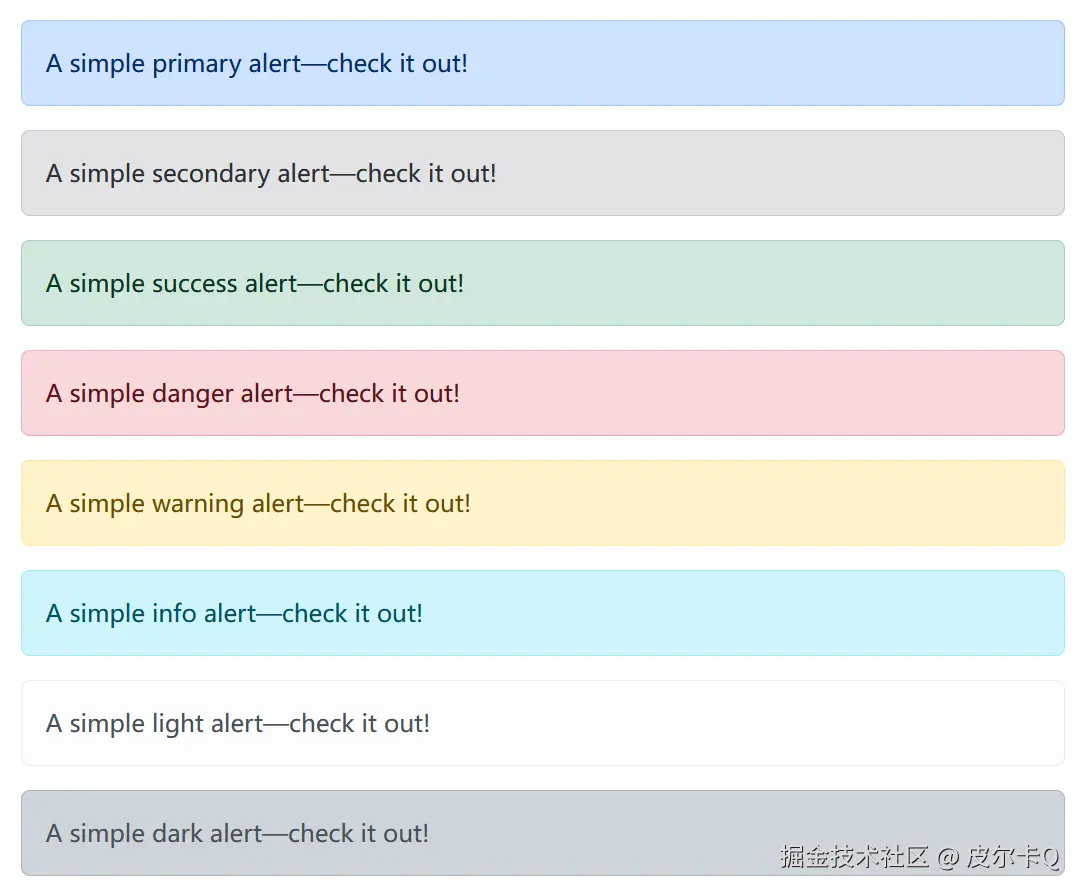

基本用法

<div class="alert alert-primary" role="alert">
  A simple primary alert—check it out!
</div>
<div class="alert alert-secondary" role="alert">
  A simple secondary alert—check it out!
</div>
<div class="alert alert-success" role="alert">
  A simple success alert—check it out!
</div>
<div class="alert alert-danger" role="alert">
  A simple danger alert—check it out!
</div>
<div class="alert alert-warning" role="alert">
  A simple warning alert—check it out!
</div>
<div class="alert alert-info" role="alert">
  A simple info alert—check it out!
</div>
<div class="alert alert-light" role="alert">
  A simple light alert—check it out!
</div>
<div class="alert alert-dark" role="alert">
  A simple dark alert—check it out!
</div>

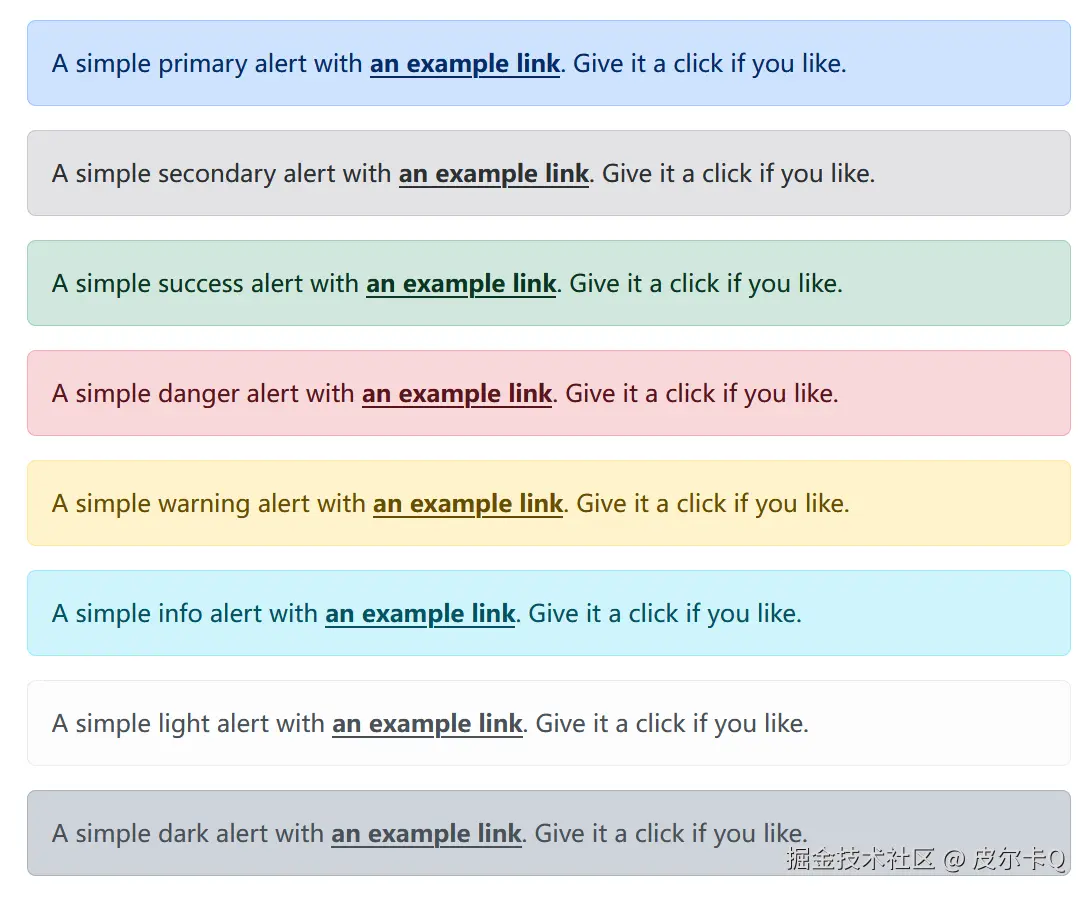

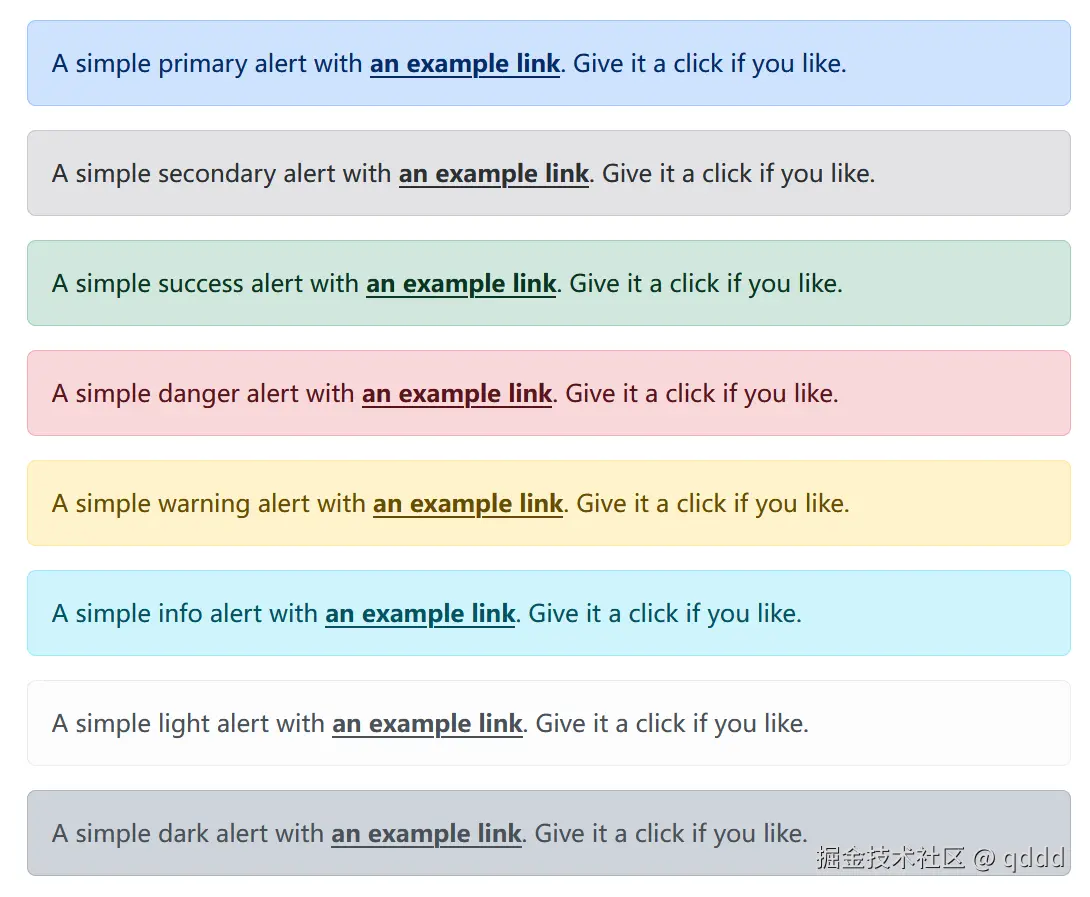

链接

使用.alert-link实用程序类可以在任何警报中快速提供匹配的彩色链接

<div class="alert alert-primary" role="alert">
  A simple primary alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-secondary" role="alert">
  A simple secondary alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-success" role="alert">
  A simple success alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-danger" role="alert">
  A simple danger alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-warning" role="alert">
  A simple warning alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-info" role="alert">
  A simple info alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-light" role="alert">
  A simple light alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
<div class="alert alert-dark" role="alert">
  A simple dark alert with <a href="#" class="alert-link">an example link</a>. Give it a click if you like.
</div>
</di>

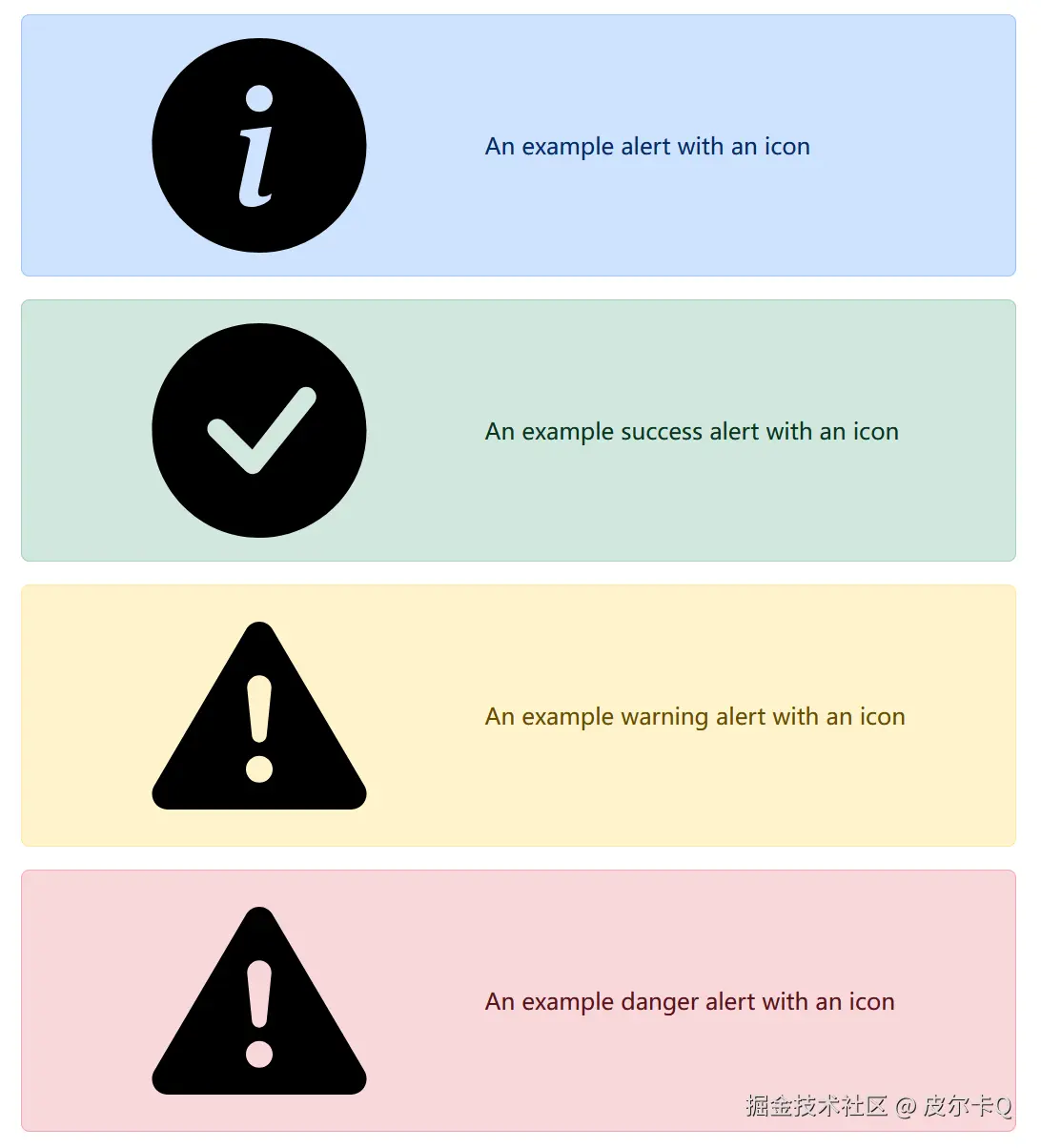

图标

使用图标来创建带有图标的警报。

<svg xmlns="http://www.w3.org/2000/svg" class="d-none">
  <symbol id="check-circle-fill" viewBox="0 0 16 16">
    <path
      d="M16 8A8 8 0 1 1 0 8a8 8 0 0 1 16 0zm-3.97-3.03a.75.75 0 0 0-1.08.022L7.477 9.417 5.384 7.323a.75.75 0 0 0-1.06 1.06L6.97 11.03a.75.75 0 0 0 1.079-.02l3.992-4.99a.75.75 0 0 0-.01-1.05z" />
  </symbol>
  <symbol id="info-fill" viewBox="0 0 16 16">
    <path
      d="M8 16A8 8 0 1 0 8 0a8 8 0 0 0 0 16zm.93-9.412-1 4.705c-.07.34.029.533.304.533.194 0 .487-.07.686-.246l-.088.416c-.287.346-.92.598-1.465.598-.703 0-1.002-.422-.808-1.319l.738-3.468c.064-.293.006-.399-.287-.47l-.451-.081.082-.381 2.29-.287zM8 5.5a1 1 0 1 1 0-2 1 1 0 0 1 0 2z" />
  </symbol>
  <symbol id="exclamation-triangle-fill" viewBox="0 0 16 16">
    <path
      d="M8.982 1.566a1.13 1.13 0 0 0-1.96 0L.165 13.233c-.457.778.091 1.767.98 1.767h13.713c.889 0 1.438-.99.98-1.767L8.982 1.566zM8 5c.535 0 .954.462.9.995l-.35 3.507a.552.552 0 0 1-1.1 0L7.1 5.995A.905.905 0 0 1 8 5zm.002 6a1 1 0 1 1 0 2 1 1 0 0 1 0-2z" />
  </symbol>
</svg>

<div class="alert alert-primary d-flex align-items-center" role="alert">
  <svg class="bi flex-shrink-0 me-2" role="img" aria-label="Info:">
    <use xlink:href="#info-fill" />
  </svg>
  <div>
    An example alert with an icon
  </div>
</div>
<div class="alert alert-success d-flex align-items-center" role="alert">
  <svg class="bi flex-shrink-0 me-2" role="img" aria-label="Success:">
    <use xlink:href="#check-circle-fill" />
  </svg>
  <div>
    An example success alert with an icon
  </div>
</div>
<div class="alert alert-warning d-flex align-items-center" role="alert">
  <svg class="bi flex-shrink-0 me-2" role="img" aria-label="Warning:">
    <use xlink:href="#exclamation-triangle-fill" />
  </svg>
  <div>
    An example warning alert with an icon
  </div>
</div>
<div class="alert alert-danger d-flex align-items-center" role="alert">
  <svg class="bi flex-shrink-0 me-2" role="img" aria-label="Danger:">
    <use xlink:href="#exclamation-triangle-fill" />
  </svg>
  <div>
    An example danger alert with an icon
  </div>
</div>

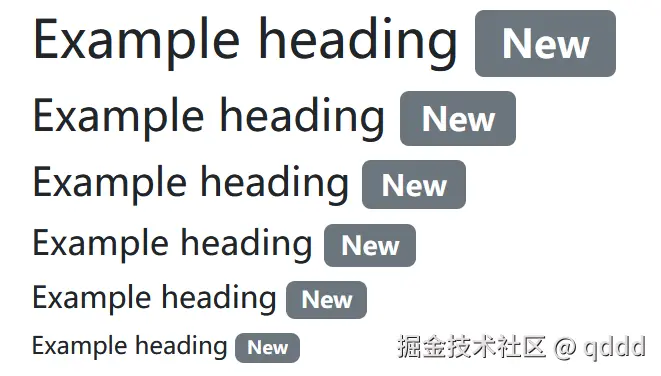

徽章(Badge)

徽章可以作为小计数器和标签组件。

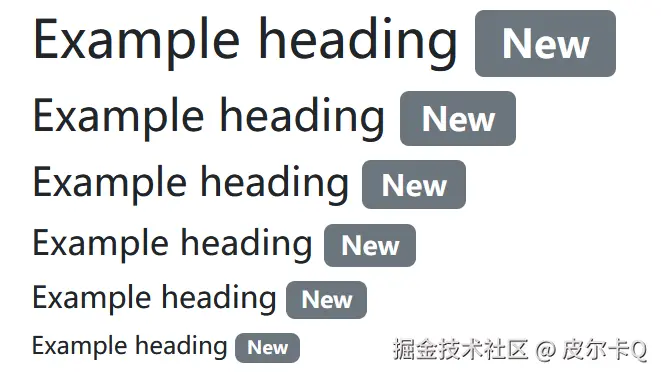

基本用法

徽章通过使用相对字体大小和单位来缩放以匹配直接父元素的大小。从v5开始,徽章不再具有链接的焦点或悬停样式。

<h1>Example heading <span class="badge text-bg-secondary">New</span></h1>
<h2>Example heading <span class="badge text-bg-secondary">New</span></h2>
<h3>Example heading <span class="badge text-bg-secondary">New</span></h3>
<h4>Example heading <span class="badge text-bg-secondary">New</span></h4>
<h5>Example heading <span class="badge text-bg-secondary">New</span></h5>
<h6>Example heading <span class="badge text-bg-secondary">New</span></h6>


用作链接或按钮的一部分

徽章可以用作链接或按钮的一部分,以提供计数器。

<button type="button" class="btn btn-primary">
  Notifications <span class="badge text-bg-secondary">4</span>
</button>


定位

将徽章放置在链接或按钮的角落。

<button type="button" class="btn btn-primary position-relative">
  Inbox
  <span class="position-absolute top-0 start-100 translate-middle badge rounded-pill bg-danger">
    99+
    <span class="visually-hidden">unread messages</span>
  </span>
</button>

<br>
<br>

<button type="button" class="btn btn-primary position-relative">
  Profile
  <span class="position-absolute top-0 start-100 translate-middle p-2 bg-danger border border-light rounded-circle">
    <span class="visually-hidden">New alerts</span>
  </span>
</button>

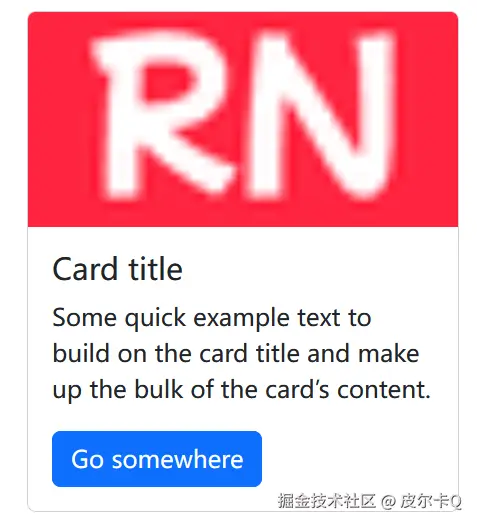

卡片(Card)

Bootstrap的卡片提供了一个灵活的、可扩展的内容容器,具有多个变体和选项。

<div class="card" style="width: 18rem;">
  <img src="../assets/images/rn_logo.png" class="card-img-top" alt="...">
  <div class="card-body">
    <h5 class="card-title">Card title</h5>
    <p class="card-text">Some quick example text to build on the card title and make up the bulk of the card’s
      content.</p>
    <a href="#" class="btn btn-primary">Go somewhere</a>
  </div>
</div>

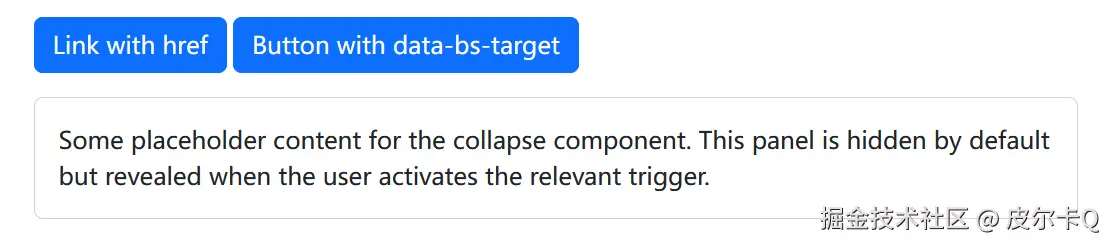

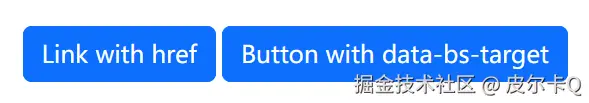

Collapse

Collapse用于切换项目中内容的可见性。其工作原理是,按钮或锚点用作触发器,将其映射到所切换的特定元素。折叠一个元素将使其高度从当前值变为0。

点击下面的按钮,通过类的改变来显示和隐藏另一个元素:

  • .collapse隐藏内容
  • .collapsing在过渡期间应用
  • .collapse.show显示内容

通常,建议使用带有data-bs-target属性的<button>。虽然不建议,但也可以使用带有href属性的<a>链接(以及role="button")。在这两种情况下,都需要data-bs-toggle="collapse"

<p class="d-inline-flex gap-1">
  <a class="btn btn-primary" data-bs-toggle="collapse" href="#collapseExample" role="button" aria-expanded="false"
    aria-controls="collapseExample">
    Link with href
  </a>
  <button class="btn btn-primary" type="button" data-bs-toggle="collapse" data-bs-target="#collapseExample"
    aria-expanded="false" aria-controls="collapseExample">
    Button with data-bs-target
  </button>
</p>
<div class="collapse" id="collapseExample">
  <div class="card card-body">
    Some placeholder content for the collapse component. This panel is hidden by default but revealed when the user
    activates the relevant trigger.
  </div>
</div>

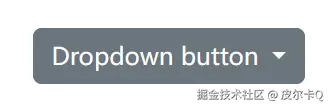

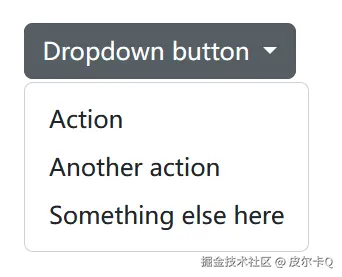

下拉(Dropdown)

使用Bootstrap下拉切换上下文覆盖以显示链接列表和更多内容。

<div class="dropdown">
  <button class="btn btn-secondary dropdown-toggle" type="button" data-bs-toggle="dropdown" aria-expanded="false">
    Dropdown button
  </button>
  <ul class="dropdown-menu">
    <li><a class="dropdown-item" href="#">Action</a></li>
    <li><a class="dropdown-item" href="#">Another action</a></li>
    <li><a class="dropdown-item" href="#">Something else here</a></li>
  </ul>
</div>

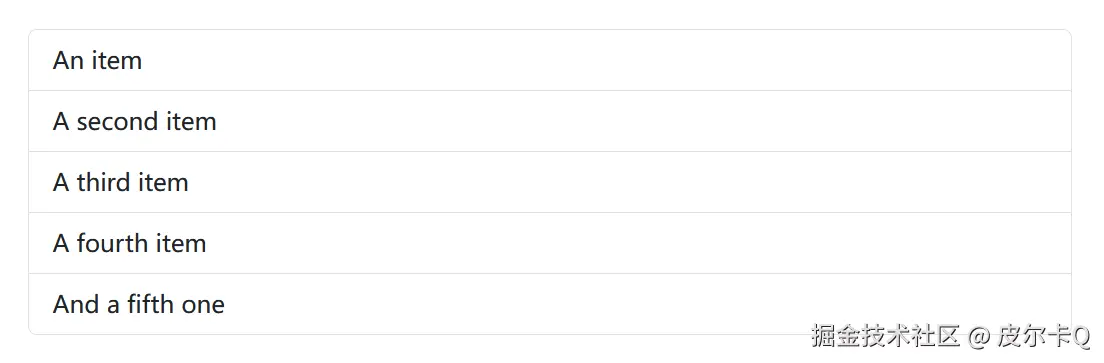

列表组(List group)

列表组是显示一系列内容的灵活而强大的组件。修改和扩展它们以支持其中的任何内容。

基本用法

<ul class="list-group">
  <li class="list-group-item">An item</li>
  <li class="list-group-item">A second item</li>
  <li class="list-group-item">A third item</li>
  <li class="list-group-item">A fourth item</li>
  <li class="list-group-item">And a fifth one</li>
</ul>

图3-15 基本用法转存失败,建议直接上传图片文件

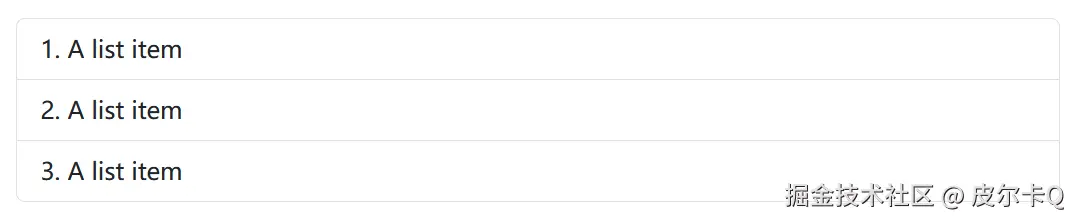

编号

添加.list-group-numbered修饰符类(并可选择使用<ol>元素)来选择编号列表组项。

<ol class="list-group list-group-numbered">
  <li class="list-group-item">A list item</li>
  <li class="list-group-item">A list item</li>
  <li class="list-group-item">A list item</li>
</ol>

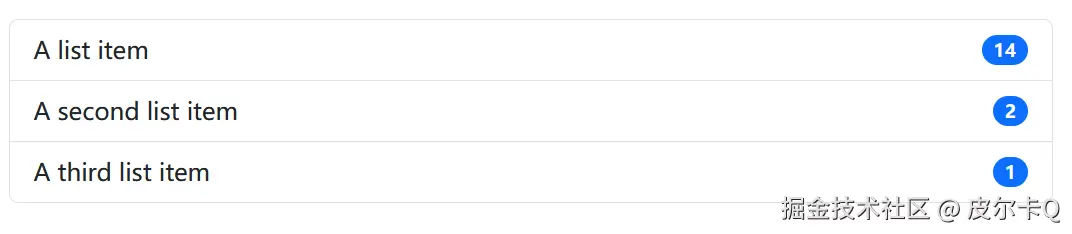

带徽章

向任何列表组项添加徽章,以显示未读计数、活动等。

<ul class="list-group">
  <li class="list-group-item d-flex justify-content-between align-items-center">
    A list item
    <span class="badge text-bg-primary rounded-pill">14</span>
  </li>
  <li class="list-group-item d-flex justify-content-between align-items-center">
    A second list item
    <span class="badge text-bg-primary rounded-pill">2</span>
  </li>
  <li class="list-group-item d-flex justify-content-between align-items-center">
    A third list item
    <span class="badge text-bg-primary rounded-pill">1</span>
  </li>
</ul>

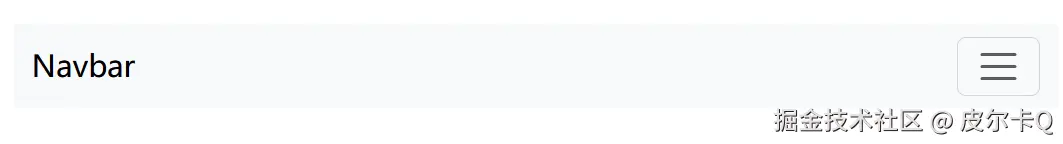

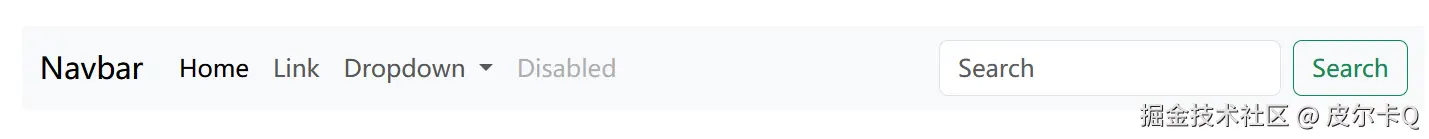

导航条(Navbar)

Bootstrap强大的、响应式导航页头、导航栏,能对品牌,导航等的进行支持。

<nav class="navbar navbar-expand-lg bg-body-tertiary">
  <div class="container-fluid">
    <a class="navbar-brand" href="#">Navbar</a>
    <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarSupportedContent"
      aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
      <span class="navbar-toggler-icon"></span>
    </button>
    <div class="collapse navbar-collapse" id="navbarSupportedContent">
      <ul class="navbar-nav me-auto mb-2 mb-lg-0">
        <li class="nav-item">
          <a class="nav-link active" aria-current="page" href="#">Home</a>
        </li>
        <li class="nav-item">
          <a class="nav-link" href="#">Link</a>
        </li>
        <li class="nav-item dropdown">
          <a class="nav-link dropdown-toggle" href="#" role="button" data-bs-toggle="dropdown"
            aria-expanded="false">
            Dropdown
          </a>
          <ul class="dropdown-menu">
            <li><a class="dropdown-item" href="#">Action</a></li>
            <li><a class="dropdown-item" href="#">Another action</a></li>
            <li>
              <hr class="dropdown-divider">
            </li>
            <li><a class="dropdown-item" href="#">Something else here</a></li>
          </ul>
        </li>
        <li class="nav-item">
          <a class="nav-link disabled" aria-disabled="true">Disabled</a>
        </li>
      </ul>
      <form class="d-flex" role="search">
        <input class="form-control me-2" type="search" placeholder="Search" aria-label="Search" />
        <button class="btn btn-outline-success" type="submit">Search</button>
      </form>
    </div>
  </div>
</nav>



分页(Pagination)

分页以指示跨多个页面存在一系列相关内容。

基本用法

<nav aria-label="Page navigation example">
  <ul class="pagination">
    <li class="page-item"><a class="page-link" href="#">Previous</a></li>
    <li class="page-item"><a class="page-link" href="#">1</a></li>
    <li class="page-item"><a class="page-link" href="#">2</a></li>
    <li class="page-item"><a class="page-link" href="#">3</a></li>
    <li class="page-item"><a class="page-link" href="#">Next</a></li>
  </ul>
</nav>


图标

<nav aria-label="Page navigation example">
  <ul class="pagination">
    <li class="page-item">
      <a class="page-link" href="#" aria-label="Previous">
        <span aria-hidden="true">&laquo;</span>
      </a>
    </li>
    <li class="page-item"><a class="page-link" href="#">1</a></li>
    <li class="page-item"><a class="page-link" href="#">2</a></li>
    <li class="page-item"><a class="page-link" href="#">3</a></li>
    <li class="page-item">
      <a class="page-link" href="#" aria-label="Next">
        <span aria-hidden="true">&raquo;</span>
      </a>
    </li>
  </ul>
</nav>


2.2 Bootstrap进阶:熟悉常用布局的用法

断点(Breakpoint)

断点是可自定义的宽度,它决定了你的响应式布局在Bootstrap中跨设备或视口大小的行为。

核心概念

  • 断点是响应式设计的基石。使用它们来控制何时可以根据特定的视口或设备尺寸调整布局。
  • 使用媒体查询通过断点来构建CSS。媒体查询是CSS的一个特性,它允许您根据一组浏览器和操作系统参数有条件地应用样式。我们最常在媒体查询中使用最小宽度。
  • 移动优先,响应式设计是目标。Bootstrap的CSS旨在应用最少的样式,使布局在最小的断点上工作,然后在样式上进行分层,以调整设计以适应更大的设备。这优化了你的CSS,改善了渲染时间,并为你的访问者提供了一个很好的体验。

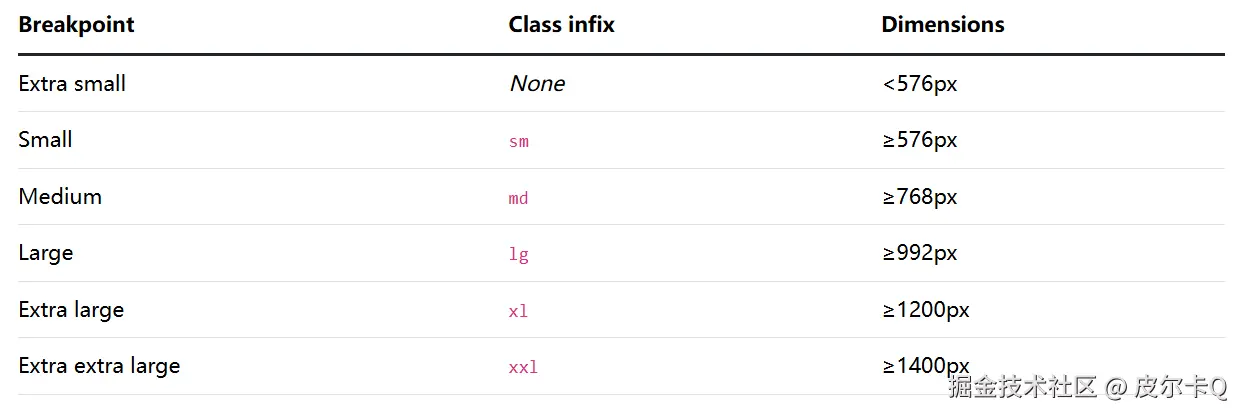

可用断点

Bootstrap包括六个默认断点,有时称为网格层,用于响应式构建。如果您使用的是源Sass文件,则可以自定义这些断点。


容器(Container)

容器是Bootstrap的基本构建块,它可以在给定的设备或视口中包含、填充和对齐内容。

基本原理

容器是Bootstrap中最基本的布局元素,在使用默认网格系统时是必需的。容器用于容纳、填充和(有时)居中其中的内容。虽然容器可以嵌套,但大多数布局不需要嵌套容器。

Bootstrap带有三种不同的容器:

  • .container,在每个响应断点处设置最大宽度
  • .container-{breakpoint},宽度:100%,直到指定的断点
  • .container-fluid,在所有断点处宽度为100%

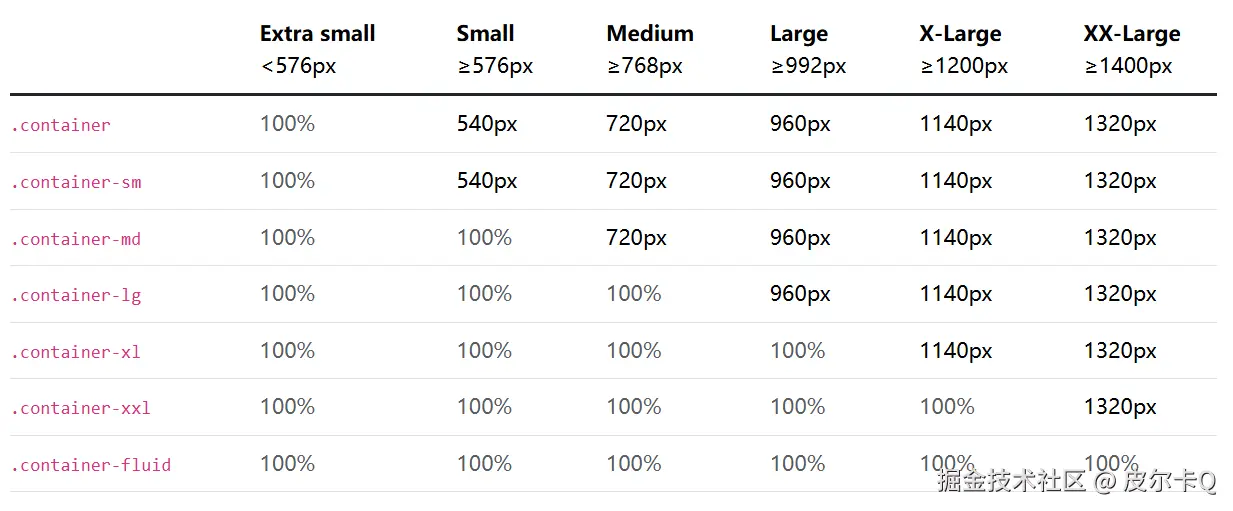

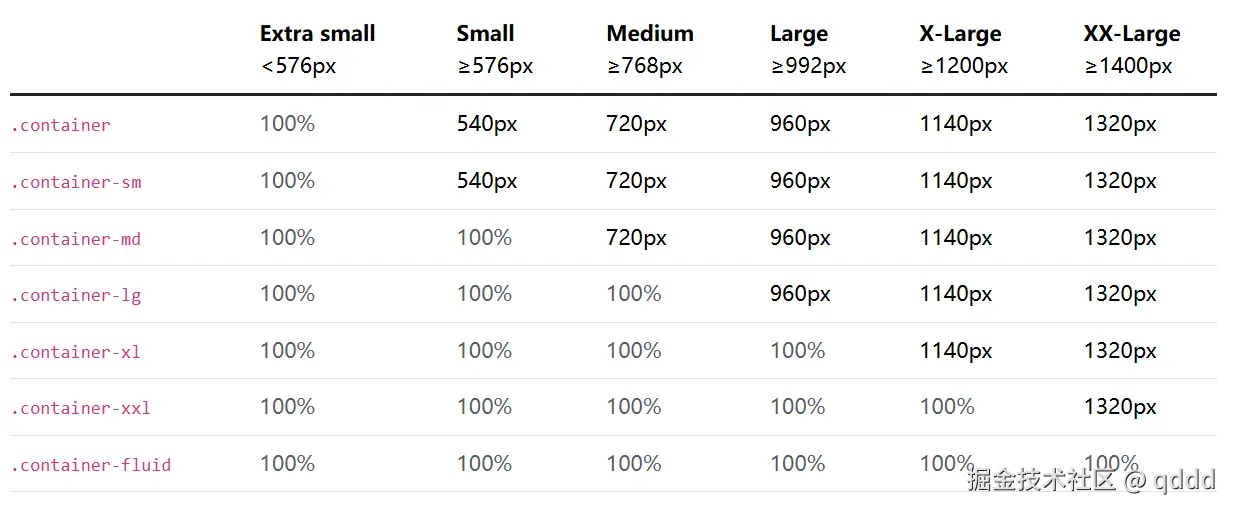

下表说明了每个容器的最大宽度如何在每个断点上与原始的 .container.container-fluid进行比较。

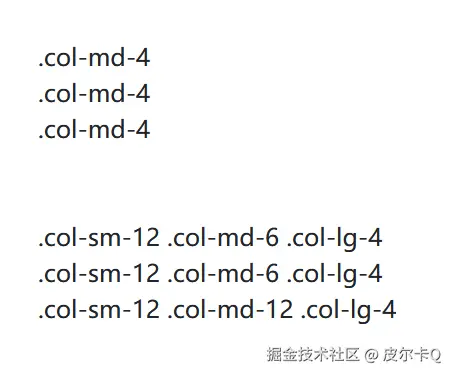

网格系统(Grid)

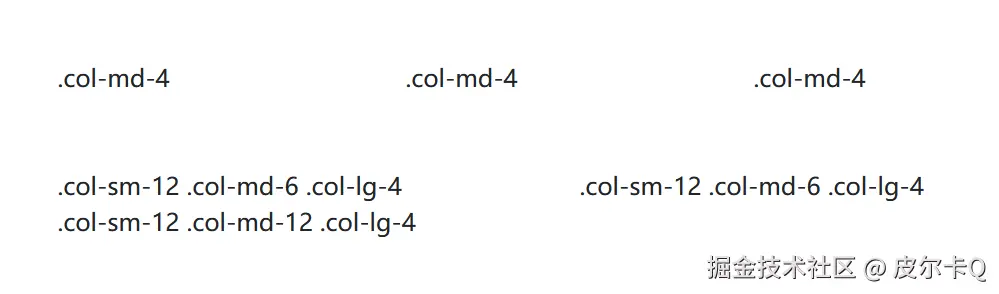

Bootstrap 的网格系统基于 12 列布局,支持响应式设计。

<div class="container">
  <div class="row">
    <div class="col-md-4">.col-md-4</div>
    <div class="col-md-4">.col-md-4</div>
    <div class="col-md-4">.col-md-4</div>
  </div>
</div>

<br>
<br>
<div class="container">
  <div class="row">
    <div class="col-sm-12 col-md-6 col-lg-4">.col-sm-12 .col-md-6 .col-lg-4</div>
    <div class="col-sm-12 col-md-6 col-lg-4">.col-sm-12 .col-md-6 .col-lg-4</div>
    <div class="col-sm-12 col-md-12 col-lg-4">.col-sm-12 .col-md-12 .col-lg-4</div>
  </div>
</div>




列(Column)

了解如何通过一些用于对齐、排序和偏移的选项来修改列,这要归功于我们的弹性盒网格系统。此外,了解如何使用列类来管理非网格元素的宽度。

工作原理

列建立在网格的弹性盒(Flexbox)架构之上。弹性盒意味着我们可以选择更改单个列以及在行级别修改列组。你可以选择列如何拉伸、收缩或进行其他更改。

在构建网格布局时,所有内容都放在列中。Bootstrap 网格的层次结构是从容器到行,再到列,最后到你的内容。在极少数情况下,你可能会将内容和列结合起来,但要注意这可能会产生意想不到的后果。

Bootstrap 包含用于创建快速、响应式布局的预定义类。每个网格层有六个断点和十二个列,我们已经为你构建了数十个类来创建你想要的布局。如果需要,你可以通过 Sass 禁用它。

对齐

使用弹性盒对齐工具类来垂直和水平对齐列。

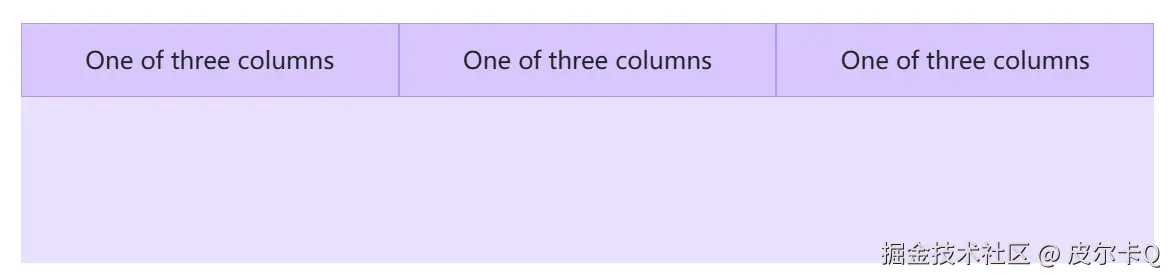

垂直对齐

使用任何响应式 align-items-* 类更改垂直对齐方式。

<div class="container text-center">
  <div class="row align-items-start">
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
  </div>
</div>

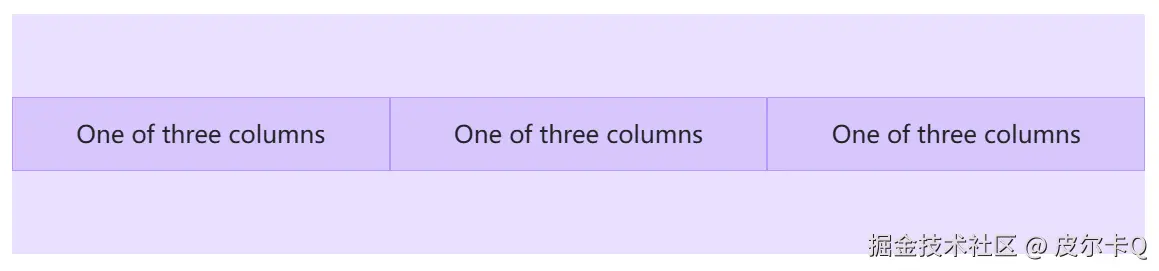

<div class="container text-center">
  <div class="row align-items-center">
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
  </div>
</div>

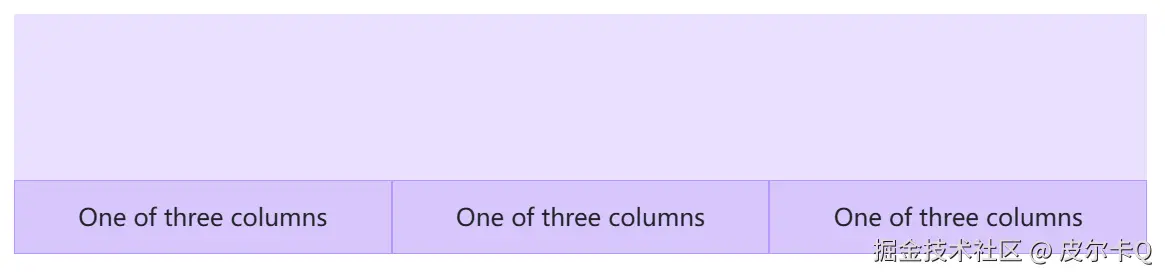

<div class="container text-center">
  <div class="row align-items-end">
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
    <div class="col">
      One of three columns
    </div>
  </div>
</div>

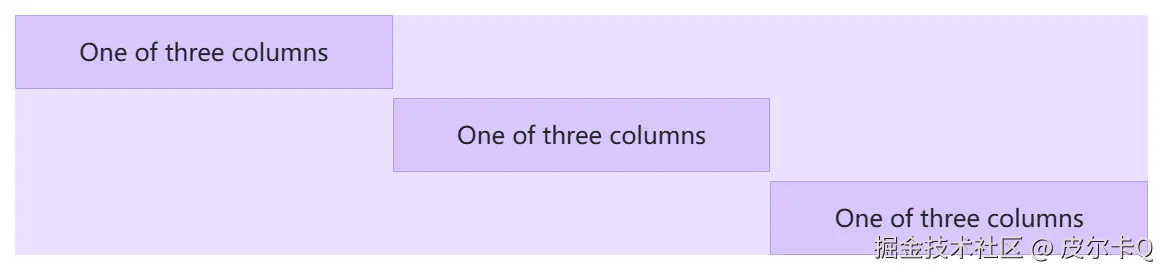

或者,使用任何响应式 .align-self-* 类分别更改每个列的对齐方式。

<div class="container text-center">
  <div class="row">
    <div class="col align-self-start">
      One of three columns
    </div>
    <div class="col align-self-center">
      One of three columns
    </div>
    <div class="col align-self-end">
      One of three columns
    </div>
  </div>
</div>

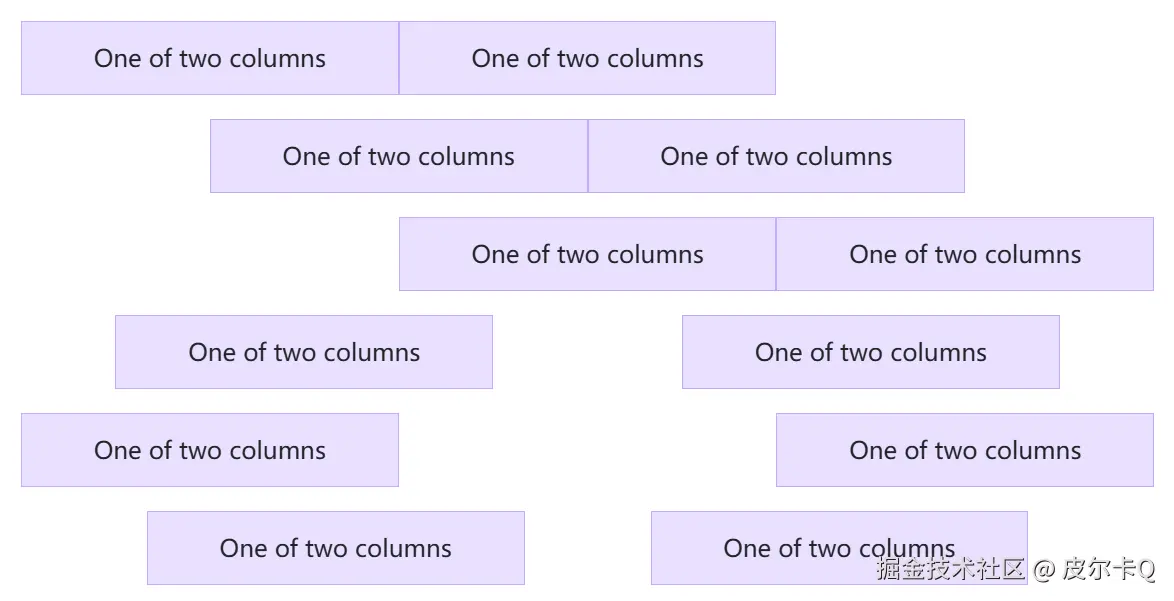

水平对齐

使用任何响应式 justify-content-* 类更改水平对齐方式。

<div class="container text-center">
  <div class="row justify-content-start">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-center">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-end">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-around">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-between">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
  <div class="row justify-content-evenly">
    <div class="col-4">
      One of two columns
    </div>
    <div class="col-4">
      One of two columns
    </div>
  </div>
</div>


3.1 Bootstrap表格组件:快速掌握复杂数据场景下的高效呈现

Bootstrap 表格支持多种样式和功能,包括条纹、边框、悬停效果等。

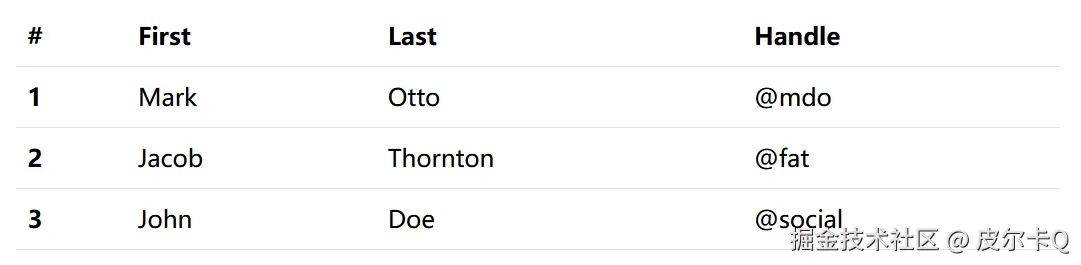

基本表格

<table class="table">
  <thead>
    <tr>
      <th scope="col">#</th>
      <th scope="col">First</th>
      <th scope="col">Last</th>
      <th scope="col">Handle</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th scope="row">1</th>
      <td>Mark</td>
      <td>Otto</td>
      <td>@mdo</td>
    </tr>
    <tr>
      <th scope="row">2</th>
      <td>Jacob</td>
      <td>Thornton</td>
      <td>@fat</td>
    </tr>
    <tr>
      <th scope="row">3</th>
      <td>John</td>
      <td>Doe</td>
      <td>@social</td>
    </tr>
  </tbody>
</table>

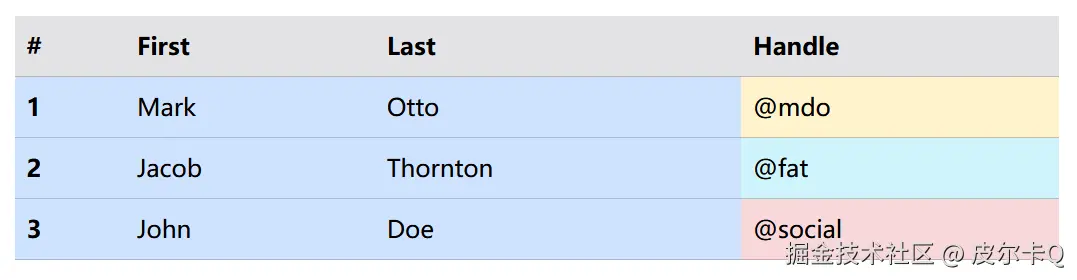

上色

使用上下文类为表格、表格行或单个单元格上色。

<table class="table table-primary">
  <thead>
    <tr class="table-secondary">
      <th scope="col">#</th>
      <th scope="col">First</th>
      <th scope="col">Last</th>
      <th scope="col">Handle</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th scope="row">1</th>
      <td>Mark</td>
      <td>Otto</td>
      <td class="table-warning">@mdo</td>
    </tr>
    <tr>
      <th scope="row">2</th>
      <td>Jacob</td>
      <td>Thornton</td>
      <td class="table-info">@fat</td>
    </tr>
    <tr>
      <th scope="row">3</th>
      <td>John</td>
      <td>Doe</td>
      <td class="table-danger">@social</td>
    </tr>
  </tbody>
</table>

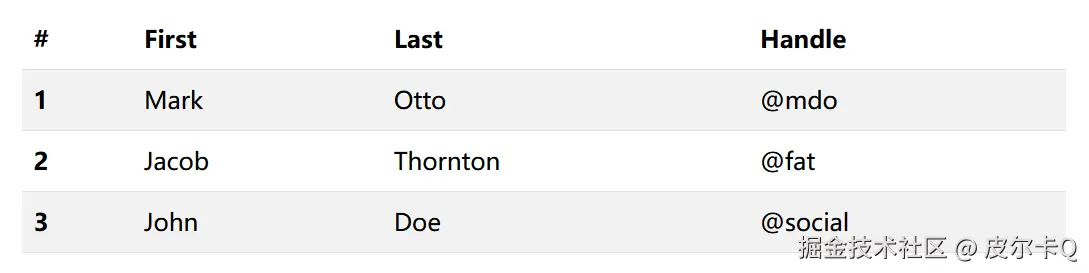

条纹行

使用.table-striped将斑马条纹添加到<tbody>中的任何表行。

<table class="table table-striped">
  <thead>
    <tr>
      <th scope="col">#</th>
      <th scope="col">First</th>
      <th scope="col">Last</th>
      <th scope="col">Handle</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th scope="row">1</th>
      <td>Mark</td>
      <td>Otto</td>
      <td>@mdo</td>
    </tr>
    <tr>
      <th scope="row">2</th>
      <td>Jacob</td>
      <td>Thornton</td>
      <td>@fat</td>
    </tr>
    <tr>
      <th scope="row">3</th>
      <td>John</td>
      <td>Doe</td>
      <td>@social</td>
    </tr>
  </tbody>
</table>

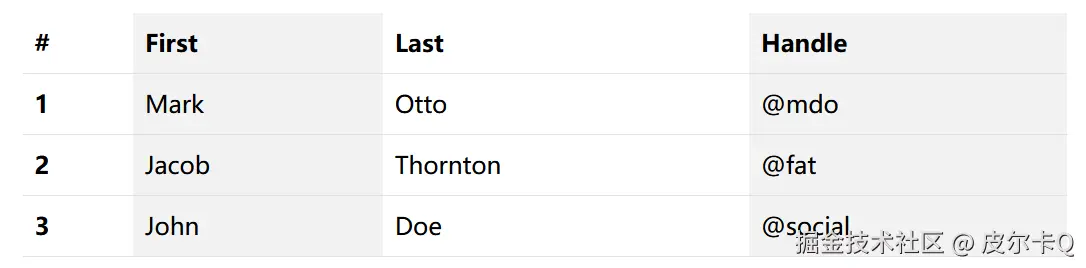

条纹柱

使用.table-striped-columns为任何表列添加斑马条纹。

<table class="table table-striped-columns">
  <thead>
    <tr>
      <th scope="col">#</th>
      <th scope="col">First</th>
      <th scope="col">Last</th>
      <th scope="col">Handle</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th scope="row">1</th>
      <td>Mark</td>
      <td>Otto</td>
      <td>@mdo</td>
    </tr>
    <tr>
      <th scope="row">2</th>
      <td>Jacob</td>
      <td>Thornton</td>
      <td>@fat</td>
    </tr>
    <tr>
      <th scope="row">3</th>
      <td>John</td>
      <td>Doe</td>
      <td>@social</td>
    </tr>
  </tbody>
</table>

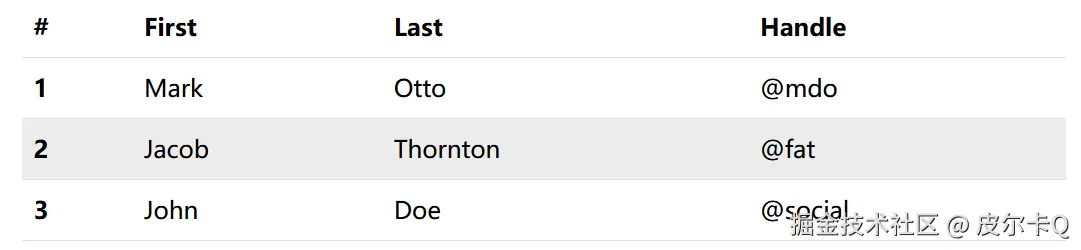

可悬浮行

添加.table-hover以在<tbody>中的表行上启用悬停状态。

<table class="table table-hover">
  <thead>
    <tr>
      <th scope="col">#</th>
      <th scope="col">First</th>
      <th scope="col">Last</th>
      <th scope="col">Handle</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th scope="row">1</th>
      <td>Mark</td>
      <td>Otto</td>
      <td>@mdo</td>
    </tr>
    <tr>
      <th scope="row">2</th>
      <td>Jacob</td>
      <td>Thornton</td>
      <td>@fat</td>
    </tr>
    <tr>
      <th scope="row">3</th>
      <td>John</td>
      <td>Doe</td>
      <td>@social</td>
    </tr>
  </tbody>
</table>


3.2 Bootstrap表单组件:实现用户体验与业务逻辑的完美平衡

表单(Form)用于创建各种表单的表单控件样式、布局选项和自定义组件的示例和使用指南。

表单控件(Form control)

为文本表单控件(如<input><textarea>)提供一个升级,使其具有自定义样式、大小、焦点状态等。

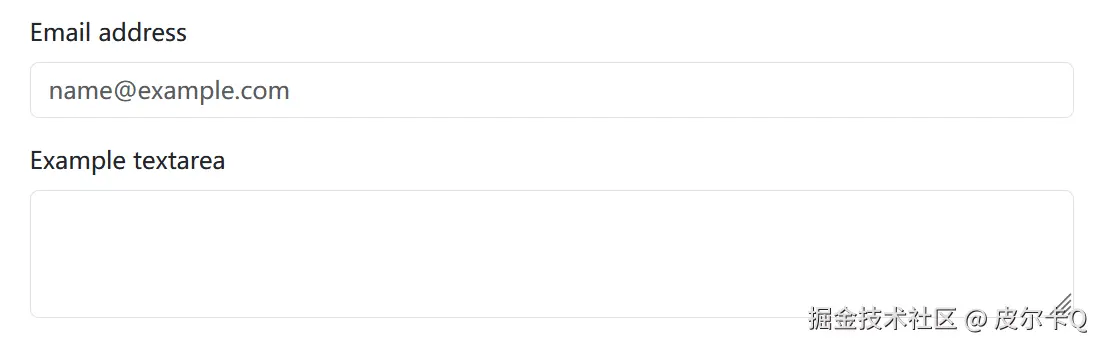

基本用法

表单控件使用Sass和CSS变量的混合样式,允许它们适应颜色模式并支持任何自定义方法。

<div class="mb-3">
  <label for="exampleFormControlInput1" class="form-label">Email address</label>
  <input type="email" class="form-control" id="exampleFormControlInput1" placeholder="name@example.com">
</div>
<div class="mb-3">
  <label for="exampleFormControlTextarea1" class="form-label">Example textarea</label>
  <textarea class="form-control" id="exampleFormControlTextarea1" rows="3"></textarea>
</div>

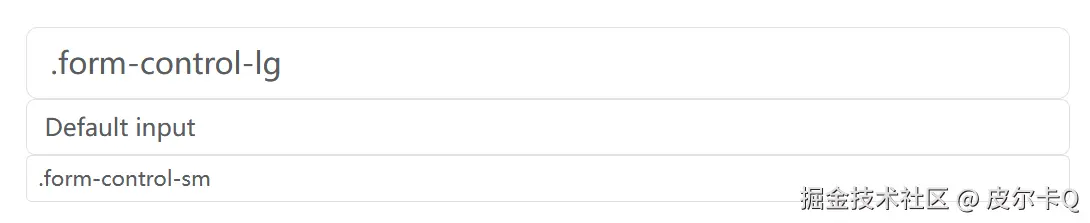

大小

使用.form-control-lg.form-control-sm类设置高度。

<input class="form-control form-control-lg" type="text" placeholder=".form-control-lg"
  aria-label=".form-control-lg example">
<input class="form-control" type="text" placeholder="Default input" aria-label="default input example">
<input class="form-control form-control-sm" type="text" placeholder=".form-control-sm"
  aria-label=".form-control-sm example">

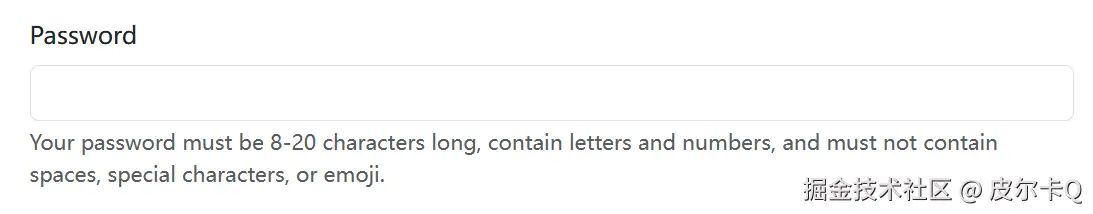

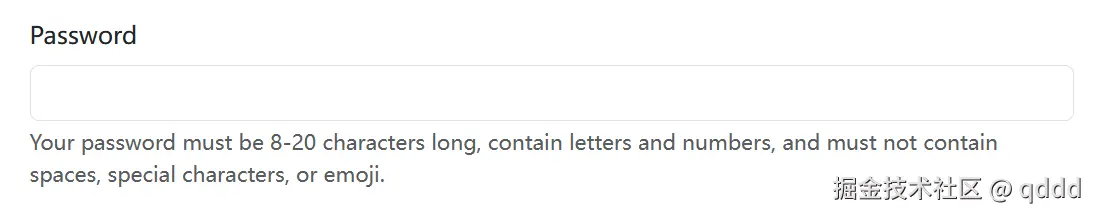

表单文本

可以使用.form-text创建块级或内联级表单文本。

输入下面的表单文本可以使用.form-text样式。如果使用块级元素,则添加顶部边距,以便与上面的输入保持距离。

<label for="inputPassword5" class="form-label">Password</label>
<input type="password" id="inputPassword5" class="form-control" aria-describedby="passwordHelpBlock">
<div id="passwordHelpBlock" class="form-text">
  Your password must be 8-20 characters long, contain letters and numbers, and must not contain spaces, special
  characters, or emoji.
</div>

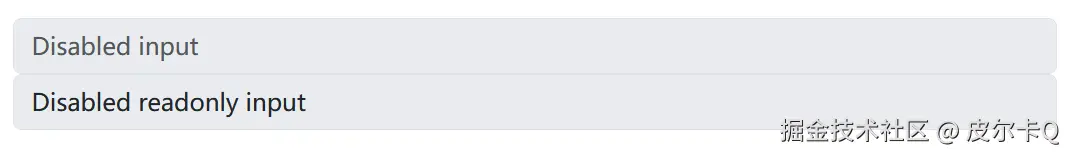

禁用

在输入上添加disabled的布尔属性,使其呈现灰色外观,删除指针事件,并防止聚焦。

<input class="form-control" type="text" placeholder="Disabled input" aria-label="Disabled input example" disabled>
<input class="form-control" type="text" value="Disabled readonly input" aria-label="Disabled input example" disabled
  readonly>


只读

在输入上添加readonly布尔属性,以防止修改输入的值。只读输入仍然可以聚焦和选择,而禁用输入则不能。

<div class="mb-3 row">
  <label for="staticEmail" class="col-sm-2 col-form-label">Email</label>
  <div class="col-sm-10">
    <input type="text" readonly class="form-control-plaintext" id="staticEmail" value="email@example.com">
  </div>
</div>
<div class="mb-3 row">
  <label for="inputPassword" class="col-sm-2 col-form-label">Password</label>
  <div class="col-sm-10">
    <input type="password" class="form-control" id="inputPassword">
  </div>
</div>

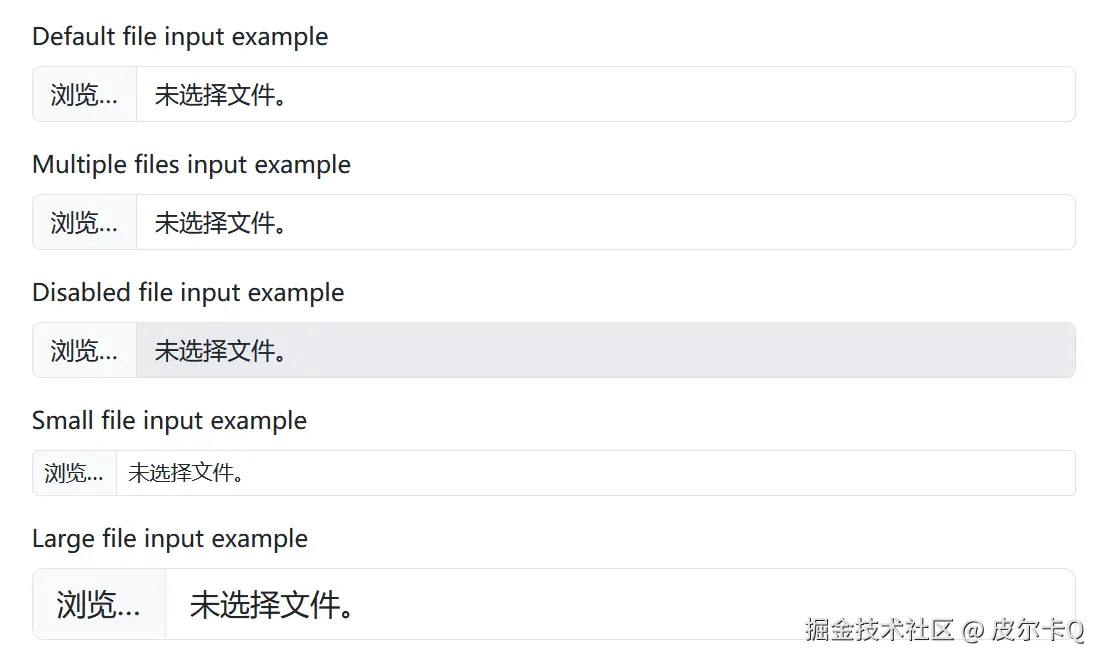

文件

<div class="mb-3">
  <label for="formFile" class="form-label">Default file input example</label>
  <input class="form-control" type="file" id="formFile">
</div>
<div class="mb-3">
  <label for="formFileMultiple" class="form-label">Multiple files input example</label>
  <input class="form-control" type="file" id="formFileMultiple" multiple>
</div>
<div class="mb-3">
  <label for="formFileDisabled" class="form-label">Disabled file input example</label>
  <input class="form-control" type="file" id="formFileDisabled" disabled>
</div>
<div class="mb-3">
  <label for="formFileSm" class="form-label">Small file input example</label>
  <input class="form-control form-control-sm" id="formFileSm" type="file">
</div>
<div>
  <label for="formFileLg" class="form-label">Large file input example</label>
  <input class="form-control form-control-lg" id="formFileLg" type="file">
</div>

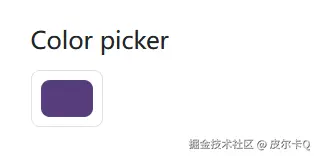

颜色

设置type="color",并将.form-control-color添加到<input>,实现颜色选择。

<label for="exampleColorInput" class="form-label">Color picker</label>
<input type="color" class="form-control form-control-color" id="exampleColorInput" value="#563d7c"
  title="Choose your color">

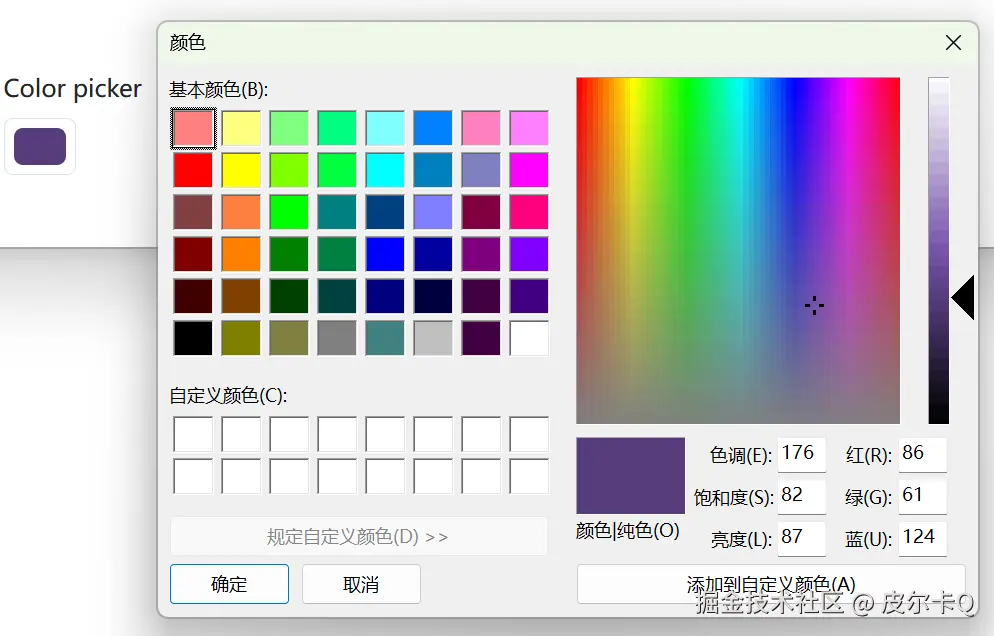

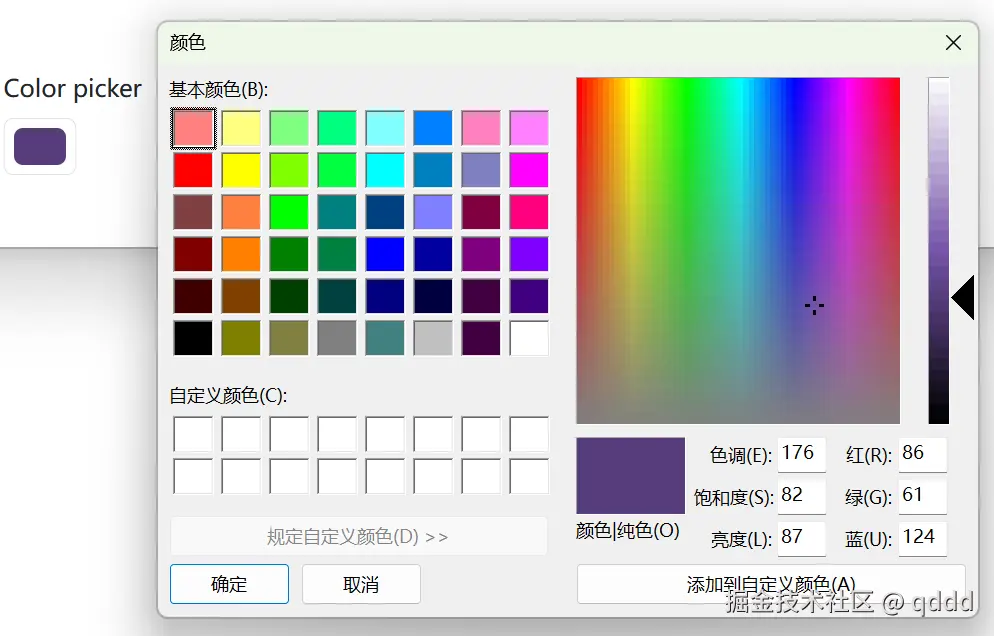

弹出的颜色选择器,取决于平台。比如,以下是Windows平台的颜色选择器。

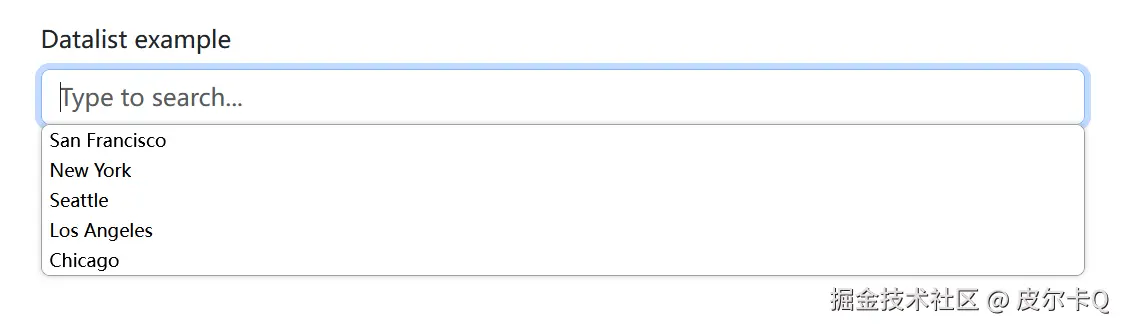

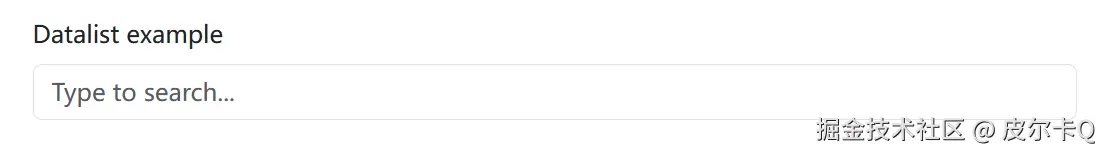

数据列

数据允许创建一组<option>,这些<option>可以在<input>中访问(并自动完成)。这些元素类似于<select>元素,但是有更多的菜单样式限制和差异。虽然大多数浏览器和操作系统都包括对<datalist>元素的一些支持,但它们的样式充其量是不一致的。

<label for="exampleDataList" class="form-label">Datalist example</label>
<input class="form-control" list="datalistOptions" id="exampleDataList" placeholder="Type to search...">
<datalist id="datalistOptions">
  <option value="San Francisco">
  <option value="New York">
  <option value="Seattle">
  <option value="Los Angeles">
  <option value="Chicago">
</datalist>


点击输入框,可以展示数据列表,并可以选择数据项。


Checkbox

Bootstrap使用我们完全重写的检查组件创建一致的跨浏览器和跨设备的Checkbox。

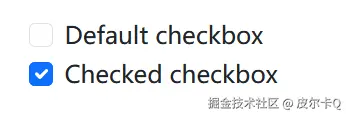

基本用法

<div class="form-check">
  <input class="form-check-input" type="checkbox" value="" id="checkDefault">
  <label class="form-check-label" for="checkDefault">
    Default checkbox
  </label>
</div>
<div class="form-check">
  <input class="form-check-input" type="checkbox" value="" id="checkChecked" checked>
  <label class="form-check-label" for="checkChecked">
    Checked checkbox
  </label>
</div>

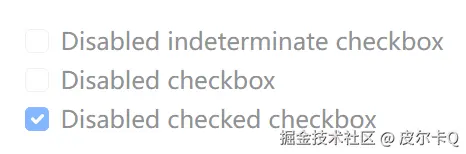

禁用

添加disabled属性和关联的<label>将自动使用较浅的颜色进行样式匹配,以帮助指示输入的状态。

<div class="form-check">
  <input class="form-check-input" type="checkbox" value="" id="checkIndeterminateDisabled" disabled>
  <label class="form-check-label" for="checkIndeterminateDisabled">
    Disabled indeterminate checkbox
  </label>
</div>
<div class="form-check">
  <input class="form-check-input" type="checkbox" value="" id="checkDisabled" disabled>
  <label class="form-check-label" for="checkDisabled">
    Disabled checkbox
  </label>
</div>
<div class="form-check">
  <input class="form-check-input" type="checkbox" value="" id="checkCheckedDisabled" checked disabled>
  <label class="form-check-label" for="checkCheckedDisabled">
    Disabled checked checkbox
  </label>
</div>


Radio

Bootstrap使用我们完全重写的检查组件创建一致的跨浏览器和跨设备的Radio。

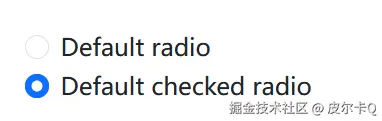

基本用法

<div class="form-check">
  <input class="form-check-input" type="radio" name="radioDefault" id="radioDefault1">
  <label class="form-check-label" for="radioDefault1">
    Default radio
  </label>
</div>
<div class="form-check">
  <input class="form-check-input" type="radio" name="radioDefault" id="radioDefault2" checked>
  <label class="form-check-label" for="radioDefault2">
    Default checked radio
  </label>
</div>

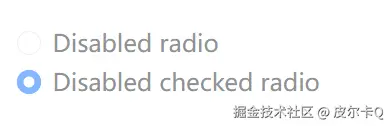

禁用

添加disabled属性和关联的<label>将自动使用较浅的颜色进行样式匹配,以帮助指示输入的状态。

<div class="form-check">
  <input class="form-check-input" type="radio" name="radioDisabled" id="radioDisabled" disabled>
  <label class="form-check-label" for="radioDisabled">
    Disabled radio
  </label>
</div>
<div class="form-check">
  <input class="form-check-input" type="radio" name="radioDisabled" id="radioCheckedDisabled" checked disabled>
  <label class="form-check-label" for="radioCheckedDisabled">
    Disabled checked radio
  </label>
</div>

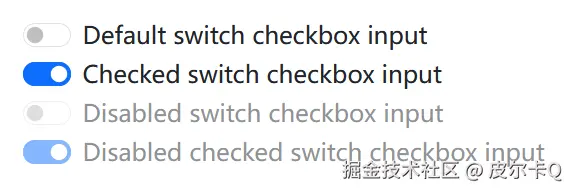

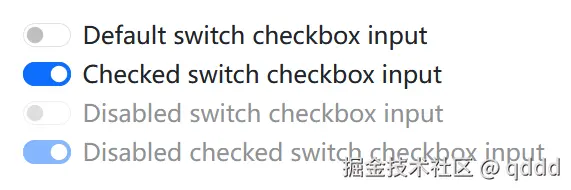

Switch

Switch具有自定义checkbox的标记,但使用.form-switch类来呈现切换开关。考虑使用role="switch"来更准确地将控件的性质传达给支持此角色的辅助技术。在旧的辅助技术中,它只是作为一个常规的复选框作为备用。交换机也支持disabled属性。

<div class="form-check form-switch">
  <input class="form-check-input" type="checkbox" role="switch" id="switchCheckDefault">
  <label class="form-check-label" for="switchCheckDefault">Default switch checkbox input</label>
</div>
<div class="form-check form-switch">
  <input class="form-check-input" type="checkbox" role="switch" id="switchCheckChecked" checked>
  <label class="form-check-label" for="switchCheckChecked">Checked switch checkbox input</label>
</div>
<div class="form-check form-switch">
  <input class="form-check-input" type="checkbox" role="switch" id="switchCheckDisabled" disabled>
  <label class="form-check-label" for="switchCheckDisabled">Disabled switch checkbox input</label>
</div>
<div class="form-check form-switch">
  <input class="form-check-input" type="checkbox" role="switch" id="switchCheckCheckedDisabled" checked disabled>
  <label class="form-check-label" for="switchCheckCheckedDisabled">Disabled checked switch checkbox input</label>
</div>


输入组(Input group)

通过在文本输入、自定义选择和自定义文件输入的两侧添加文本、按钮或按钮组,轻松扩展表单控件。

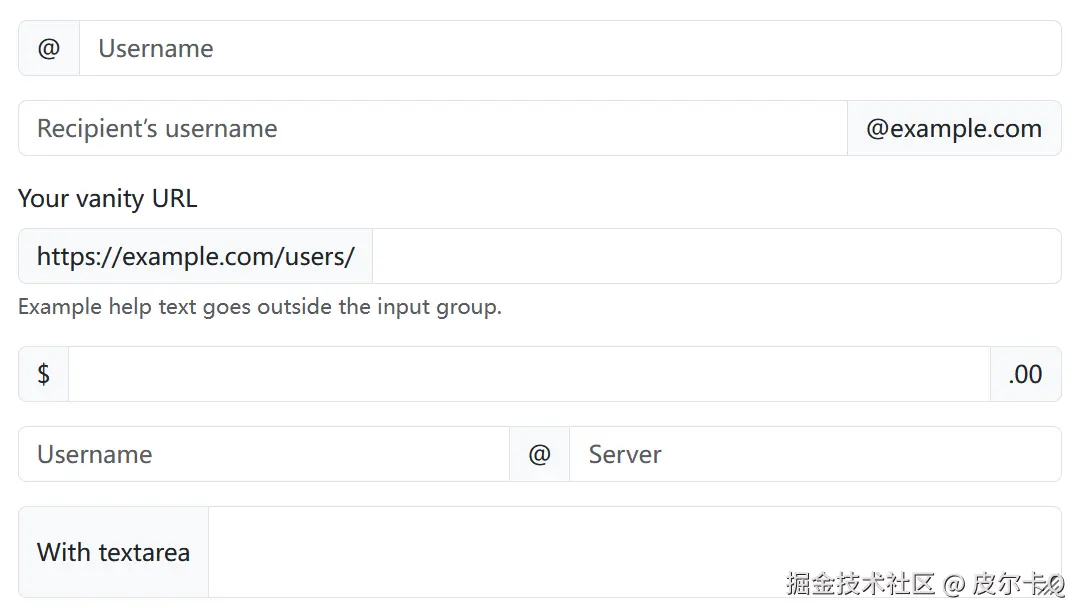

基本用法

在输入的两侧放置一个附加组件或按钮。也可以在输入的两侧放置一个。记住在输入组之外放置<label>

<div class="input-group mb-3">
  <span class="input-group-text" id="basic-addon1">@</span>
  <input type="text" class="form-control" placeholder="Username" aria-label="Username" aria-describedby="basic-addon1">
</div>

<div class="input-group mb-3">
  <input type="text" class="form-control" placeholder="Recipient’s username" aria-label="Recipient’s username" aria-describedby="basic-addon2">
  <span class="input-group-text" id="basic-addon2">@example.com</span>
</div>

<div class="mb-3">
  <label for="basic-url" class="form-label">Your vanity URL</label>
  <div class="input-group">
    <span class="input-group-text" id="basic-addon3">https://example.com/users/</span>
    <input type="text" class="form-control" id="basic-url" aria-describedby="basic-addon3 basic-addon4">
  </div>
  <div class="form-text" id="basic-addon4">Example help text goes outside the input group.</div>
</div>

<div class="input-group mb-3">
  <span class="input-group-text">$</span>
  <input type="text" class="form-control" aria-label="Amount (to the nearest dollar)">
  <span class="input-group-text">.00</span>
</div>

<div class="input-group mb-3">
  <input type="text" class="form-control" placeholder="Username" aria-label="Username">
  <span class="input-group-text">@</span>
  <input type="text" class="form-control" placeholder="Server" aria-label="Server">
</div>

<div class="input-group">
  <span class="input-group-text">With textarea</span>
  <textarea class="form-control" aria-label="With textarea"></textarea>
</div>

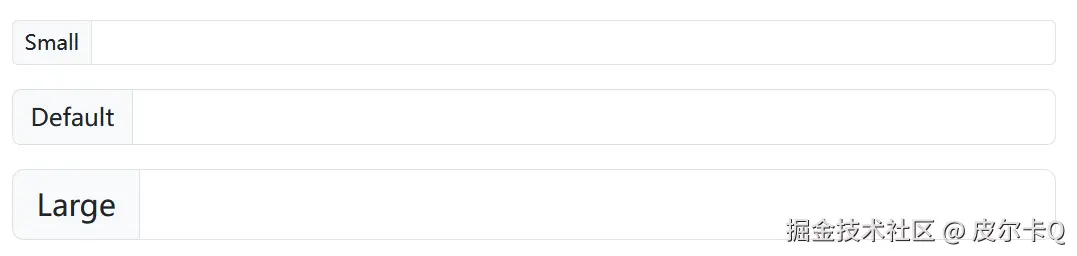

大小

将相对表单大小类添加到.input-group本身,其中的内容将自动调整大小—无需在每个元素上重复表单控件大小类。 不支持单个输入组元素的大小调整。

<div class="input-group input-group-sm mb-3">
  <span class="input-group-text" id="inputGroup-sizing-sm">Small</span>
  <input type="text" class="form-control" aria-label="Sizing example input" aria-describedby="inputGroup-sizing-sm">
</div>

<div class="input-group mb-3">
  <span class="input-group-text" id="inputGroup-sizing-default">Default</span>
  <input type="text" class="form-control" aria-label="Sizing example input" aria-describedby="inputGroup-sizing-default">
</div>

<div class="input-group input-group-lg">
  <span class="input-group-text" id="inputGroup-sizing-lg">Large</span>
  <input type="text" class="form-control" aria-label="Sizing example input" aria-describedby="inputGroup-sizing-lg">
</div>
