H3C ADVPN Hub-Spoke 配置实验本文基于 H3C ADVPN Hub-Spoke 架构，详细讲解从 VA

网络规划

目标：部署一个 HUB + 两个 Spoke（SITE1、SITE2）环境，实现分支间互通和 Hub-Spoke 私网路由传递。

节点	Loopback	Tunnel IP	公网/HUB IP
HUB	172.16.100.1/32	10.10.10.1/24	15.1.1.1
SITE1	172.16.100.11/32	10.10.10.2/24	NAT/15.1.1.2
SITE2	172.16.100.12/32	10.10.10.3/24	NAT/15.1.1.3

ADVPN 一定程度缓解了多站点IPSECVPN 的实施难度

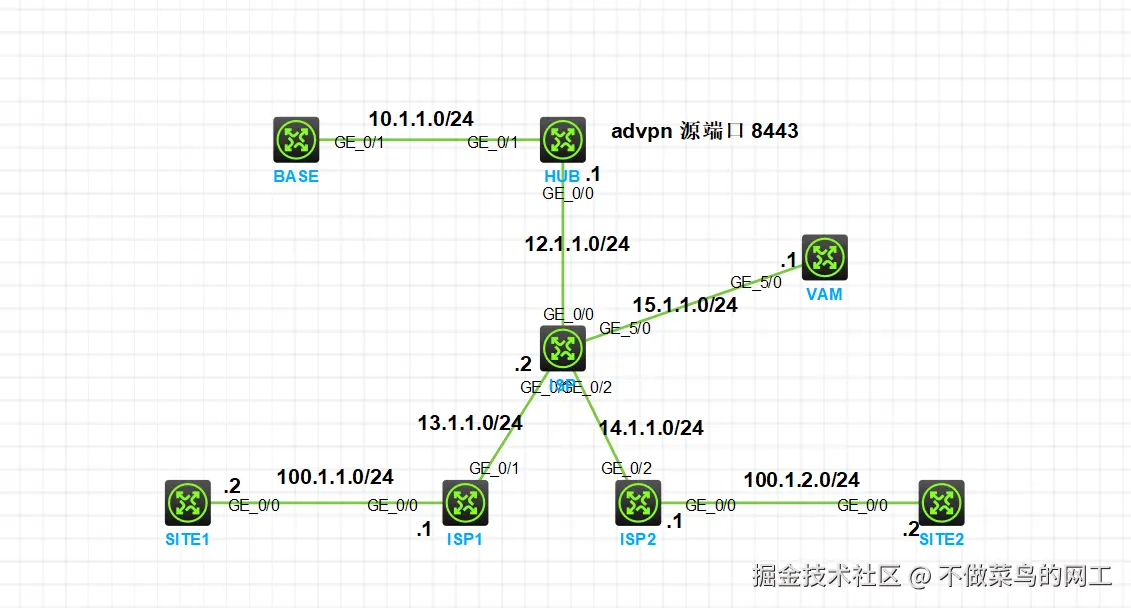

拓扑示意：

实施步骤

1 VAM Server 配置（HUB）

# 静态路由到 HUB 公网出口
ip route-static 0.0.0.0 0 15.1.1.2

# ADVPN Domain 配置
domain advpn
 authentication advpn local
 domain default enable advpn

# 用户配置
local-user HUB class network
 password simple HUB
 service-type advpn

local-user SITE1 class network
 password simple SITE1
 service-type advpn

local-user SITE2 class network
 password simple SITE2
 service-type advpn

# VAM Server Hub/Spoke 配置
vam server advpn-domain ADVPN id 1
 hub-group HUB
 hub private-address 10.10.10.1
 #hub private-address 10.10.10.2
 #hub private-address 10.10.10.3
 spoke private-address range 10.10.10.0 10.10.10.255

vam server advpn-domain ADVPN id 1
 pre-shared-key simple ADVPN
 authentication-method chap
 server enable

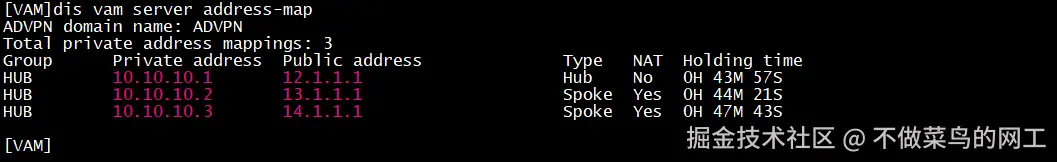

说明：Hub Group 中 Hub Tunnel IP 可多地址，形成 Full-Mesh；Spoke 使用私有IP 范围配置。

2 HUB Client 配置

# Loopback 配置
interface Loopback0
 ip address 172.16.100.1 32

# VAM Client
vam client name HUB
 advpn-domain ADVPN
 server primary ip-address 15.1.1.1
 pre-shared-key simple ADVPN
 user HUB password simple HUB
 client enable

# IKE 配置
ike keychain ADVPN
 pre-shared-key address 0.0.0.0 0.0.0.0 key simple ADVPN

ike profile ADVPN
 keychain ADVPN

# IPsec 配置
ipsec transform-set ADVPN
 encapsulation-mode transport
 esp encryption-algorithm des-cbc
 esp authentication-algorithm sha1

ipsec profile ADVPN isakmp
 transform-set ADVPN
 ike-profile ADVPN

# OSPF 配置
ospf 1 router-id 172.16.100.1
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 10.10.10.0 0.0.0.255
  network 172.16.100.1 0.0.0.0

# Tunnel 接口配置
interface Tunnel1 mode advpn gre
 ip address 10.10.10.1 255.255.255.0
 ospf network-type p2mp
 source GigabitEthernet0/0
 tunnel protection ipsec profile ADVPN
 vam client HUB

# 可替换为udp封装 效果类似
interface Tunnel1 mode advpn udp
 ip address 10.10.10.1 255.255.255.0
 ospf network-type p2mp
 source GigabitEthernet0/0
 tunnel protection ipsec profile ADVPN
 vam client HUB

3 Spoke 配置（SITE1 & SITE2）

# Loopback
interface Loopback0
 ip address 172.16.100.11 32

# VAM Client
vam client name SITE1
 advpn-domain ADVPN
 server primary ip-address 15.1.1.1
 pre-shared-key simple ADVPN
 user SITE1 password simple SITE1
 client enable

# IKE/IPsec
ike keychain ADVPN
 pre-shared-key address 0.0.0.0 0.0.0.0 key simple ADVPN

ike profile ADVPN
 keychain ADVPN

ipsec transform-set ADVPN
 encapsulation-mode transport
 esp encryption-algorithm des-cbc
 esp authentication-algorithm sha1

ipsec profile ADVPN isakmp
 transform-set ADVPN
 ike-profile ADVPN

# OSPF
ospf 1 router-id 172.16.100.11
 area 0.0.0.0
  network 10.10.10.0 0.0.0.255
  network 172.16.100.11 0.0.0.0

# Tunnel 接口
interface Tunnel1 mode advpn gre
 ip address 10.10.10.2 255.255.255.0
 ospf network-type p2mp
 source GigabitEthernet0/0
 tunnel protection ipsec profile ADVPN
 vam client SITE1

# 可替换为udp封装 效果类似
interface Tunnel1 mode advpn udp
 ip address 10.10.10.2 255.255.255.0
 ospf network-type p2mp
 source GigabitEthernet0/0
 tunnel protection ipsec profile ADVPN
 vam client SITE1
