K8S 部署 EFK 并设置中文

关注公众号「Linux 容器运维」，回复【对应关键词】（如 docker/k8s/linux/ 面试），即可获取完整版干货，复制到生产环境直接使用～ 更多内容已同步至【公众号官方合集】，点击公众号主页「合集」→「kubernetes」，即可查看全部最新内容，持续更新中～

---

安装说明

系统版本为 Centos7.9 内核版本为 6.3.5-1.el7 K8S版本为 v1.26.14 ES官网

开始安装

本次安装使用官方ECK方式部署 EFK，部署的是当前的最新版本。

在 Kubernetes 集群中部署 ECK

安装自定义资源

如果能打开这个网址的话直接用这个命令安装,打不开的话可能需要挂梯子。

kubectl create -f https://download.elastic.co/downloads/eck/2.13.0/crds.yaml

安装operator 和 RBAC 规则

kubectl apply -f https://download.elastic.co/downloads/eck/2.13.0/operator.yaml

安装好以后查看

[root@master01 ~]# kubectl get po -n elastic-system
NAME                 READY   STATUS    RESTARTS   AGE
elastic-operator-0   1/1     Running   0          2d18h

安装ES集群

apiVersion: elasticsearch.k8s.elastic.co/v1
kind: Elasticsearch
metadata:
  name: quickstart
  namespace: elastic-system
spec:
  version: 8.14.1
  nodeSets:
  - name: masters
    count: 1
    config:
      node.roles: ["master"]
      xpack.ml.enabled: true
    podTemplate:
      spec:
        initContainers:
        - name: sysctl
          securityContext:
            privileged: true
            runAsUser: 0
          command: ['sh', '-c', 'sysctl -w vm.max_map_count=262144']
    volumeClaimTemplates:
    - metadata:
        name: elasticsearch-data
      spec:
        storageClassName: rook-ceph-rbd
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 50Gi
  - name: data
    count: 1
    config:
      node.roles: ["data", "ingest", "ml", "transform"]
    podTemplate:
      spec:
        initContainers:
        - name: sysctl
          securityContext:
            privileged: true
            runAsUser: 0
          command: ['sh', '-c', 'sysctl -w vm.max_map_count=262144']
    volumeClaimTemplates:
    - metadata:
        name: elasticsearch-data
      spec:
        storageClassName: rook-ceph-rbd
        accessModes:
        - ReadWriteOnce
        resources:
          requests:
            storage: 50Gi

保存好以后开始创建，更多详细的设置可以在官网查看。

[root@master01 ~]# kubectl get po,svc -n elastic-system
NAME                                 READY   STATUS    RESTARTS   AGE
pod/elastic-operator-0               1/1     Running   0          3d18h
pod/quickstart-es-data-0             1/1     Running   0          18h
pod/quickstart-es-masters-0          1/1     Running   0          18h

NAME                                  TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)    AGE
service/elastic-webhook-server        ClusterIP   10.103.148.79    <none>        443/TCP    3d18h
service/quickstart-es-data            ClusterIP   None             <none>        9200/TCP   18h
service/quickstart-es-http            ClusterIP   10.110.193.147   <none>        9200/TCP   18h
service/quickstart-es-internal-http   ClusterIP   10.103.26.226    <none>        9200/TCP   18h
service/quickstart-es-masters         ClusterIP   None             <none>        9200/TCP   18h
service/quickstart-es-transport       ClusterIP   None             <none>        9300/TCP   18h

安装好以后测试ES运行是否正常

## 打开两个终端测试或者后台运行一个命令。
kubectl port-forward -n elastic-system services/quickstart-es-http 9200

## 获取密码
PASSWORD=$(kubectl get secret -n elastic-system quickstart-es-elastic-user -o go-template='{{.data.elastic | base64decode}}')

## 访问一下测试
curl -u "elastic:$PASSWORD" -k "https://localhost:9200"

{
  "name" : "quickstart-es-masters-0",
  "cluster_name" : "quickstart",
  "cluster_uuid" : "BDraWsuUQS6z83H0L-cYHA",
  "version" : {
    "number" : "8.14.1",
    "build_flavor" : "default",
    "build_type" : "docker",
    "build_hash" : "93a57a1a76f556d8aee6a90d1a95b06187501310",
    "build_date" : "2024-06-10T23:35:17.114581191Z",
    "build_snapshot" : false,
    "lucene_version" : "9.10.0",
    "minimum_wire_compatibility_version" : "7.17.0",
    "minimum_index_compatibility_version" : "7.0.0"
  },
  "tagline" : "You Know, for Search"
}

安装 Filebeat

下面两个是修改过的文件，如果用第一个文件安装的时候再 kibana 页面看不到K8S相关标签就是用第二个再试试 ，基本都是权限的问题。

## 第一个部署文件
#
apiVersion: beat.k8s.elastic.co/v1beta1
kind: Beat
metadata:
  name: quickstart
  namespace: elastic-system
spec:
  type: filebeat
  version: 8.14.1
  elasticsearchRef:
    name: quickstart
    namespace: elastic-system
  config:
    filebeat:
      inputs:
        - type: container
          paths:
            - /var/log/containers/*.log
          processors:
            - add_kubernetes_metadata:
                in_cluster: true
                host: ${NODE_NAME}
                # 启用默认 indexers/matchers，同时显式保留 logs_path matcher
                default_indexers:
                  enabled: true
                default_matchers:
                  enabled: true
                matchers:
                  - logs_path:
                      logs_path: "/var/log/containers/"
        - type: log
          paths:
            - /var/log/pods/**/*.log
          processors:
            - add_kubernetes_metadata:
                in_cluster: true
                host: ${NODE_NAME}
                default_indexers:
                  enabled: true
                default_matchers:
                  enabled: true
                matchers:
                  - logs_path:
                      logs_path: "/var/log/pods/"
        - type: log
          paths:
            - /var/log/messages
          processors:
            - add_cloud_metadata: {}
            - add_host_metadata: {}
  daemonSet:
    podTemplate:
      spec:
        # 关键：在 pod spec 层开启 automount（这样 /var/run/secrets/kubernetes.io/serviceaccount/token 会被 mount）
        automountServiceAccountToken: true
        serviceAccountName: elastic-beat-filebeat-quickstart
        dnsPolicy: ClusterFirstWithHostNet
        hostNetwork: true
        securityContext:
          runAsUser: 0
        containers:
        - name: filebeat
          image: docker.elastic.co/beats/filebeat:8.14.1
          imagePullPolicy: IfNotPresent
          env:
          - name: HOSTNAME
            valueFrom:
              fieldRef:
                fieldPath: spec.nodeName
          - name: NODE_NAME
            valueFrom:
              fieldRef:
                fieldPath: spec.nodeName
          resources:
            limits:
              memory: 512Mi
              cpu: 500m
            requests:
              memory: 256Mi
              cpu: 250m
          volumeMounts:
          - name: varlogcontainers
            mountPath: /var/log/containers
          - name: varlogpods
            mountPath: /var/log/pods
          - name: varlibdockercontainers
            mountPath: /var/lib/containerd
          - name: varlogmessages
            mountPath: /var/log/messages
          - name: varlibkubelet
            mountPath: /var/lib/kubelet
            readOnly: true
        volumes:
        - name: varlogcontainers
          hostPath:
            path: /var/log/containers
        - name: varlogpods
          hostPath:
            path: /var/log/pods
        - name: varlibdockercontainers
          hostPath:
            path: /var/lib/containerd
        - name: varlogmessages
          hostPath:
            path: /var/log/messages
        - name: varlibkubelet
          hostPath:
            path: /var/lib/kubelet
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: elastic-beat-filebeat-quickstart
  namespace: elastic-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: elastic-beat-autodiscover
  namespace: elastic-system
rules:
  - apiGroups: [""]
    resources:
      - nodes
      - namespaces
      - events
      - pods
    verbs:
      - get
      - list
      - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: elastic-beat-autodiscover-binding
  namespace: elastic-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: elastic-beat-autodiscover
subjects:
  - kind: ServiceAccount
    name: elastic-beat-filebeat-quickstart
    namespace: elastic-system

这是第二个 filebeat 部署文件

apiVersion: beat.k8s.elastic.co/v1beta1
kind: Beat
metadata:
  name: quickstart
  namespace: elastic-system
spec:
  type: filebeat
  version: 8.14.1
  elasticsearchRef:
    name: quickstart
    namespace: elastic-system
  config:
    filebeat:
      inputs:
        - type: container
          paths:
            - /var/log/containers/*.log
          processors:
            - add_kubernetes_metadata:
                in_cluster: true
                host: ${HOSTNAME}
                matchers:
                  - logs_path:
                      logs_path: "/var/log/containers/"
        - type: log
          paths:
            - /var/log/messages

          processors:
            - add_cloud_metadata:
            - add_host_metadata:

  daemonSet:
    podTemplate:
      spec:
        serviceAccountName: elastic-beat-filebeat-quickstart
        dnsPolicy: ClusterFirstWithHostNet
        hostNetwork: true
        securityContext:
          runAsUser: 0
        containers:
        - name: filebeat
          env: # 必须设置环境变量，才能在日志收集时获取 k8s 相关值
          - name: HOSTNAME
            valueFrom:
              fieldRef:
                fieldPath: spec.nodeName
          resources:
            limits:
              memory: 512Mi
              cpu: 500m
            requests:
              memory: 256Mi
              cpu: 250m
          volumeMounts:
          - name: varlogcontainers
            mountPath: /var/log/containers
          - name: varlogpods
            mountPath: /var/log/pods
          - name: varlibdockercontainers
            mountPath: /var/lib/containerd
          - name: varlogmessages
            mountPath: /var/log/messages
          - name: varlibkubelet
            mountPath: /var/lib/kubelet
            readOnly: true
        volumes:
        - name: varlogcontainers
          hostPath:
            path: /var/log/containers
        - name: varlogpods
          hostPath:
            path: /var/log/pods
        - name: varlibdockercontainers
          hostPath:
            path: /var/lib/containerd
        - name: varlogmessages
          hostPath:
            path: /var/log/messages
        - name: varlibkubelet
          hostPath:
            path: /var/lib/kubelet
---
# 下述为官方文档未设置功能，但需要设置相应权限才能读取 k8s 参数
apiVersion: v1
kind: ServiceAccount
metadata:
  name: elastic-beat-filebeat-quickstart
  namespace: elastic-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: elastic-beat-autodiscover-binding
  namespace: elastic-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: elastic-beat-autodiscover
subjects:
- kind: ServiceAccount
  name: elastic-beat-filebeat-quickstart
  namespace: elastic-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: elastic-beat-autodiscover
  namespace: elastic-system
rules:
- apiGroups:
  - ""
  resources:
  - nodes
  - namespaces
  - events
  - pods
  verbs:
  - get
  - list
  - watch

部署成功以后查看

[root@master01 ~]# kubectl get po -n elastic-system
NAME                             READY   STATUS    RESTARTS   AGE
elastic-operator-0               1/1     Running   0          3d23h
quickstart-beat-filebeat-bwr7n   1/1     Running   0          9m9s
quickstart-beat-filebeat-ccw7b   1/1     Running   0          33m
quickstart-beat-filebeat-pwsmg   1/1     Running   0          33m
quickstart-es-data-0             1/1     Running   0          24h
quickstart-es-masters-0          1/1     Running   0          24h
quickstart-kb-7b59b957c5-qxgss   1/1     Running   0          22h

测试

PASSWORD=$(kubectl get secret -n elastic-system quickstart-es-elastic-user -o go-template='{{.data.elastic | base64decode}}')
curl -u "elastic:$PASSWORD" -k "https://localhost:9200/filebeat-*/_search"

安装 kibana

apiVersion: kibana.k8s.elastic.co/v1
kind: Kibana
metadata:
  name: quickstart
  namespace: elastic-system
spec:
  version: 8.14.1
  count: 1
  elasticsearchRef:
    name: quickstart
    namespace: elastic-system
  http:
    tls:
      selfSignedCertificate:
        disabled: true
  config:  ##   删除这两行默认就是英文界面
    i18n.locale: "zh-CN" # 添加中文支持
  podTemplate:
    spec:
      containers:
      - name: kibana
        env:
          - name: NODE_OPTIONS
            value: "--max-old-space-size=2048"

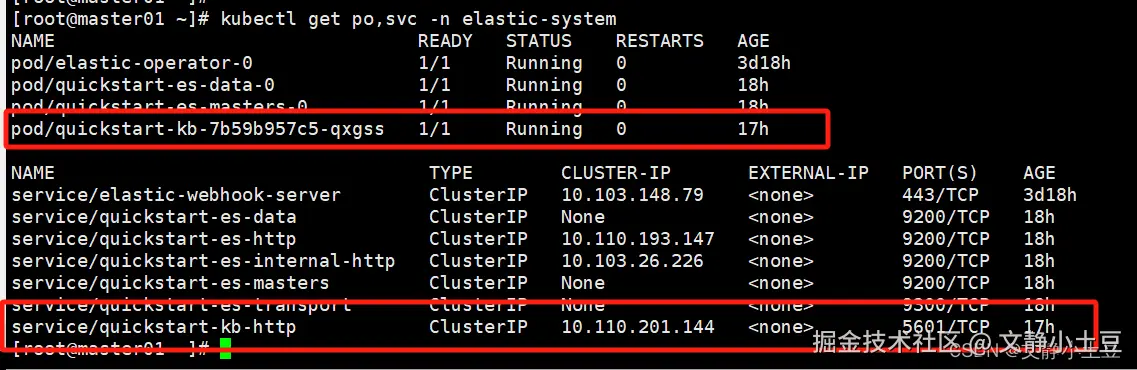

部署成功后查看 根据svc 创建ingress方式的服务暴露

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: kibana-ingress
  namespace: elastic-system
spec:
  ingressClassName: nginx
  rules:
  - host: kibana.exp.cn
    http:
      paths:
      - backend:
          service:
            name: quickstart-kb-http
            port:
              name: http
        path: /
        pathType: Prefix
  tls:
  - hosts:
    - kibana.exp.cn
    secretName: kibana.exp.cn

创建Ingress

[root@master01 ~]# kubectl get ing -n elastic-system
NAME             CLASS   HOSTS                 ADDRESS          PORTS     AGE
kibana-ingress   nginx   kibana.exp.cn   10.102.233.134   80, 443   17h

获取账号密码，账号是：elastic

## 获取密码
kubectl get secret -n elastic-system quickstart-es-elastic-user -o=jsonpath='{.data.elastic}' | base64 --decode; echo

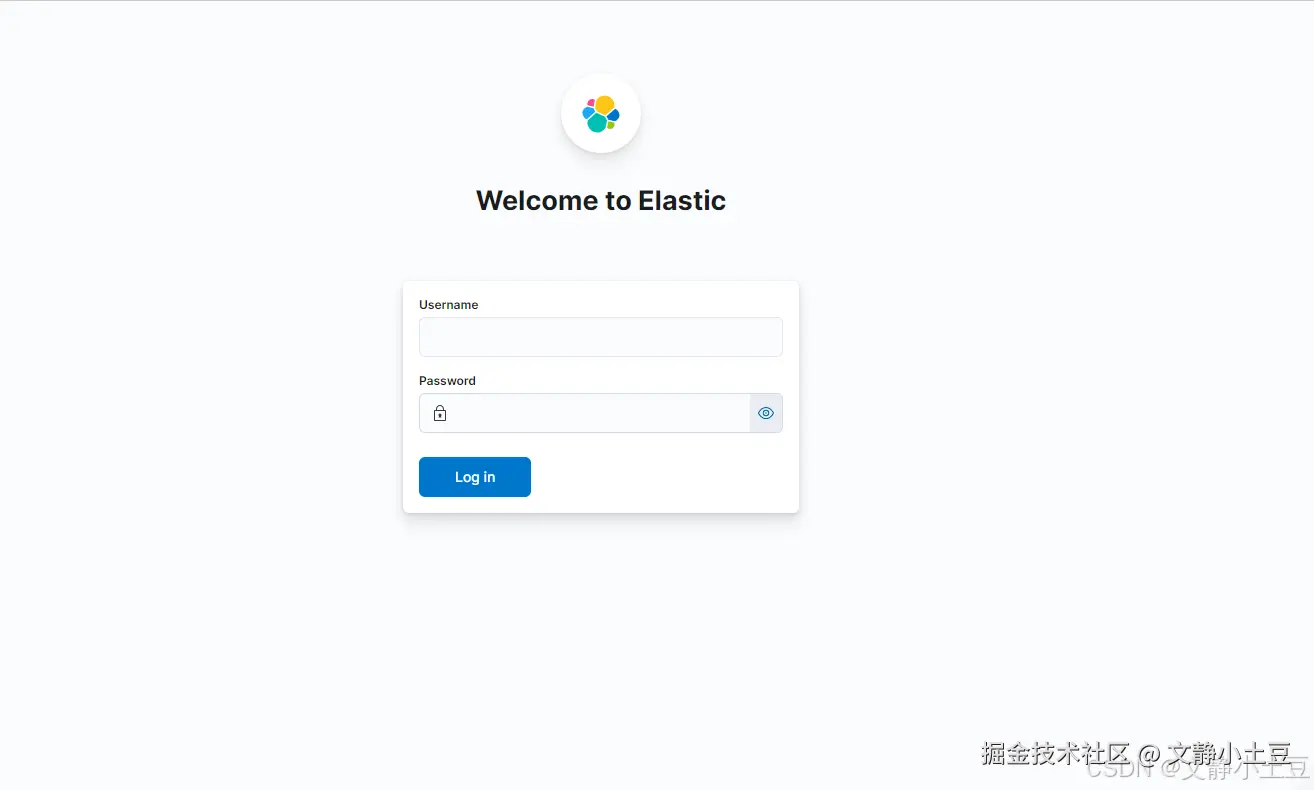

配置host 登陆即可！
