Vue 甘特图组件 vxe-gantt 如何精准定位到行、列与任务视图
在项目管理系统中，甘特图是展示任务时间线的重要工具。当项目数据量庞大时，手动滚动查找特定任务或日期列会非常低效。vxe-gantt 组件提供了 scrollToRow、scrollToColumn 和 scrollToTaskView 等 API，允许我们通过代码控制视图滚动，将目标行、列或任务条精确显示在可视区域内，极大提升用户体验。
实现这三种定位功能的方式主要是以下方法。
调用方法说明
scrollToColumn(field) 滚动表格，使指定字段（列）显示在可视区。 scrollToRow(row) 滚动表格，使指定行数据显示在可视区。 scrollToStartRow() 滚动表格至第一行。 scrollToEndRow() 滚动表格至最后一行。 scrollToTaskView(row) 滚动甘特图的任务视图区域，使指定行对应的任务条显示在可视区。
代码

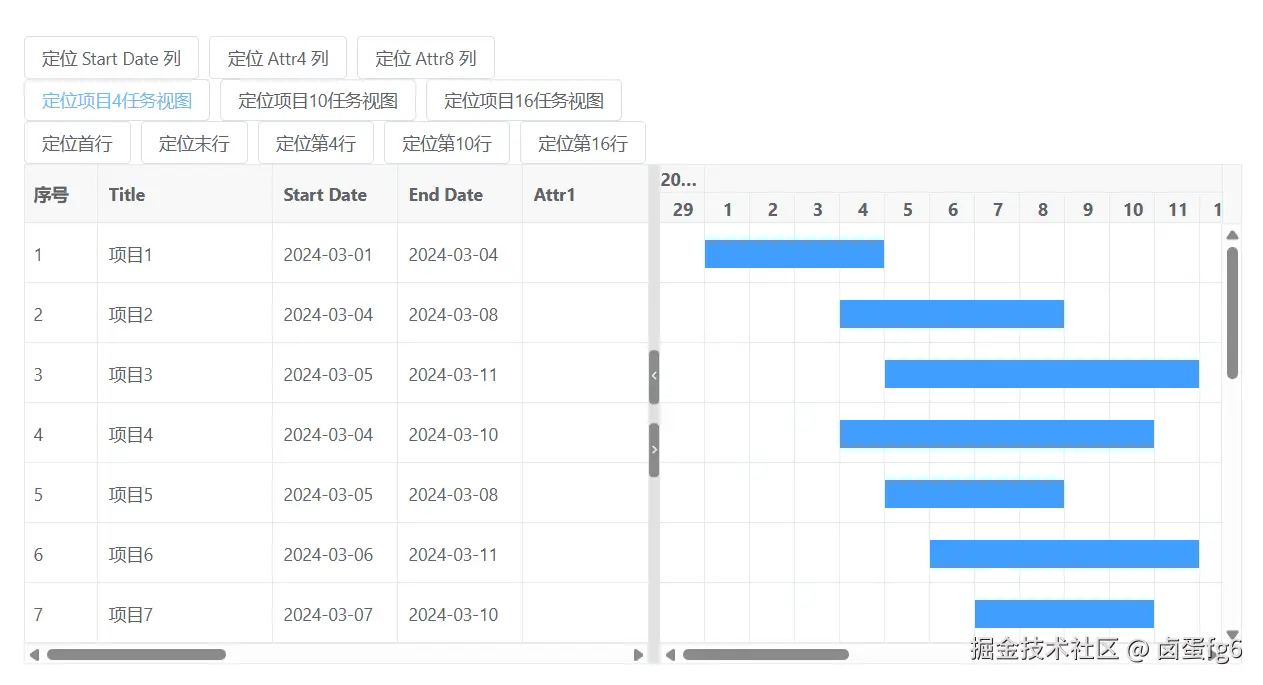

展示了如何通过按钮触发不同的定位操作
<template>
<div>
<div>
<vxe-button @click="scrollColEvent('start')">定位 Start Date 列</vxe-button>
<vxe-button @click="scrollColEvent('attr4')">定位 Attr4 列</vxe-button>
<vxe-button @click="scrollColEvent('attr8')">定位 Attr8 列</vxe-button>
</div>
<div>
<vxe-button @click="scrollTaskViewEvent(ganttOptions.data[3])">定位项目4任务视图</vxe-button>
<vxe-button @click="scrollTaskViewEvent(ganttOptions.data[9])">定位项目10任务视图</vxe-button>
<vxe-button @click="scrollTaskViewEvent(ganttOptions.data[15])">定位项目16任务视图</vxe-button>
</div>
<div>
<vxe-button @click="scrollStartRowEvent()">定位首行</vxe-button>
<vxe-button @click="scrollEndRowEvent()">定位末行</vxe-button>
<vxe-button @click="scrollRowEvent(ganttOptions.data[3])">定位第4行</vxe-button>
<vxe-button @click="scrollRowEvent(ganttOptions.data[9])">定位第10行</vxe-button>
<vxe-button @click="scrollRowEvent(ganttOptions.data[15])">定位第16行</vxe-button>
</div>
<vxe-gantt ref="ganttRef" v-bind="ganttOptions"></vxe-gantt>
</div>
</template>
<script setup>
import { ref, reactive } from 'vue'
// 获取组件实例引用
const ganttRef = ref()
// 甘特图配置
const ganttOptions = reactive({
border: true,
showOverflow: true,
height: 400,
taskViewConfig: {
tableStyle: {
width: 500 // 左侧表格区域宽度
}
},
columns: [
{ type: 'seq', width: 60, fixed: 'left' },
{ field: 'title', title: 'Title', fixed: 'left', width: 140 },
{ field: 'start', title: 'Start Date', width: 100 },
{ field: 'end', title: 'End Date', width: 100 },
{ field: 'attr1', title: 'Attr1', width: 120 },
{ field: 'attr2', title: 'Attr2', width: 200 },
{ field: 'attr3', title: 'Attr3', width: 140 },
{ field: 'attr4', title: 'Attr4', width: 120 },
{ field: 'attr5', title: 'Attr5', width: 100 },
{ field: 'attr6', title: 'Attr6', width: 80 },
{ field: 'attr7', title: 'Attr7', width: 60 },
{ field: 'attr8', title: 'Attr8', width: 100 },
{ field: 'attr9', title: 'Attr9', width: 90 },
{ field: 'attr10', title: 'Attr10', width: 110 },
{ field: 'progress', title: 'Progress', width: 100 }
],
data: [
{ id: 10001, title: '项目1', start: '2024-03-01', end: '2024-03-04', progress: 80, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10002, title: '项目2', start: '2024-03-04', end: '2024-03-08', progress: 50, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10003, title: '项目3', start: '2024-03-05', end: '2024-03-11', progress: 100, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10004, title: '项目4', start: '2024-03-04', end: '2024-03-10', progress: 70, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10005, title: '项目5', start: '2024-03-05', end: '2024-03-08', progress: 80, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10006, title: '项目6', start: '2024-03-06', end: '2024-03-11', progress: 100, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10007, title: '项目7', start: '2024-03-07', end: '2024-03-10', progress: 90, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10008, title: '项目8', start: '2024-03-08', end: '2024-03-15', progress: 80, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10009, title: '项目9', start: '2024-03-09', end: '2024-03-12', progress: 100, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10010, title: '项目10', start: '2024-03-10', end: '2024-03-15', progress: 60, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10011, title: '项目11', start: '2024-03-08', end: '2024-03-14', progress: 50, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10012, title: '项目12', start: '2024-03-13', end: '2024-03-19', progress: 70, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10013, title: '项目13', start: '2024-03-10', end: '2024-03-18', progress: 50, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10014, title: '项目14', start: '2024-03-16', end: '2024-03-21', progress: 80, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10015, title: '项目15', start: '2024-03-12', end: '2024-03-22', progress: 100, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10016, title: '项目16', start: '2024-03-19', end: '2024-03-27', progress: 90, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10017, title: '项目17', start: '2024-03-17', end: '2024-03-22', progress: 50, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10018, title: '项目18', start: '2024-03-26', end: '2024-04-06', progress: 100, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10019, title: '项目19', start: '2024-03-21', end: '2024-03-24', progress: 60, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' },
{ id: 10020, title: '项目20', start: '2024-03-25', end: '2024-04-04', progress: 70, attr1: '', attr2: '', attr3: '', attr4: '', attr5: '', attr6: '', attr7: '', attr8: '', attr9: '', attr10: '' }
]
})
// 定位到指定列
const scrollColEvent = (field) => {
const $gantt = ganttRef.value
if ($gantt) {
$gantt.scrollToColumn(field)
}
}
// 定位到首行
const scrollStartRowEvent = () => {
const $gantt = ganttRef.value
if ($gantt) {
$gantt.scrollToStartRow()
}
}
// 定位到尾行
const scrollEndRowEvent = () => {
const $gantt = ganttRef.value
if ($gantt) {
$gantt.scrollToEndRow()
}
}
// 定位到指定行
const scrollRowEvent = (row) => {
const $gantt = ganttRef.value
if ($gantt) {
$gantt.scrollToRow(row)
}
}
// 定位到指定行的任务视图（任务条）
const scrollTaskViewEvent = (row) => {
const $gantt = ganttRef.value
if ($gantt) {
$gantt.scrollToTaskView(row)
}
}
</script>
应用场景
任务快速导航：在任务列表中，点击某行即可自动滚动到甘特图中对应的任务条。 关键日期列聚焦：当甘特图横向列数很多时，可提供按钮快速定位到“开始日期”“结束日期”等核心列。 进度审查：审查人员可以一键跳转到特定项目的甘特图位置，无需手动拖拽查找。
