4.11 2D Array Creation and Access

1. Exam Points

• create and initialize 2D arrays: use the new keyword or an initializer list.
• access elements in a 2D array: arrayName[rowIndex][columnIndex]
• Get the number of rows: arrayName.length
• Get the number of columns in one row: arrayName[rowIndex].length
• default values for uninitialized elements:
  • int: 0
  • double: 0.0
  • boolean: false
  • referece type: null
• Index out of range: ArrayIndexOutOfBoundsException.

2. Knowledge Points

(1) 1D Array vs. 2D Arrays

• 1D Array
  • One row, multiple columns:
  • Use one index(starting at 0) to represent the position of an element.
  • Example:



  int[] nums = {1, 2, 3};

  System.out.println(nums[0]);
  System.out.println(nums[1]);


• 2D Array: An array of arrays (数组的数组).

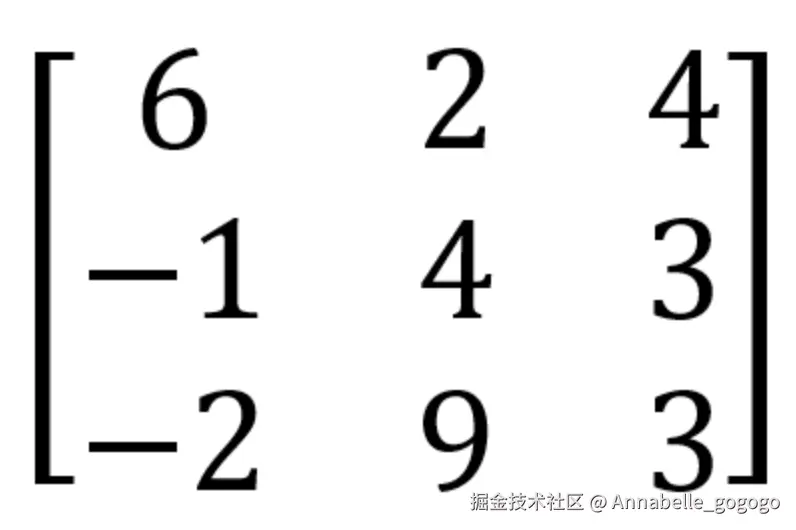

  • Multiple rows, multiple columns. Like a matrix.

  • Example:


  int[][] nums =
  {
      {1,  2,  3,  4},
      {5,  6,  7,  8},
      {9, 19, 11, 12},
  };
  System.out.println(nums[0][0]);
  System.out.println(nums[1][0]);
  System.out.println(nums[2][3]);


  • Use two indexes, the first is the row index, and the second the column index. And both the row index and the column index starts from 0.
    • nums[0][0] means 1st row, 1st column.
    • nums[2][3] means 3rd row, 4th column.

(2) Create 2D Arrays

• Similar to 1D arrays, 2D arrays can store either primitive data or object references.
• Similar to 1D arrays, the size of a 2D array is established at the time of creation and cannot be changed.
• Two ways of creating a 2D array:

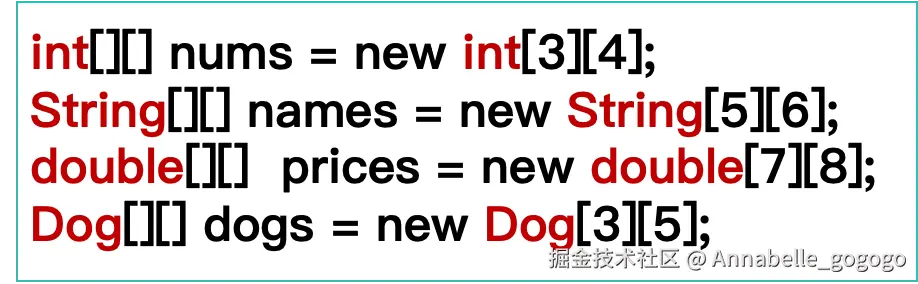

  • Use the new keyword:

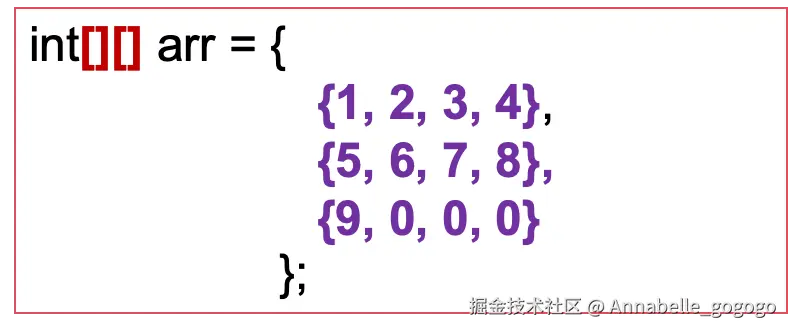

  • Use an initializer list:

• Similar to 1D arrays, when a 2D array is created using the keyword new, all of its elements are initialized to the default values for the element data type.
  • int: 0
  • double: 0.0
  • boolean: false
  • reference type(String, Dog): null

(3) Access Elements of 2D Arrays

• Similar to 1D arrays, we use "arrayName + index" to access elements in a 2D array.
  • Syntax: arrayName[rowIndex][columnIndex]
  • Example:


  int[][] nums = new int[3][4];
  nums[0][0] = 1;
  nums[0][1] = 2;

  System.out.println(nums[0][1]); // print 2
  System.out.println(nums[2][3]); // print the default value for int: 0

  System.out.println(nums[3][3]); // ArrayIndexOutOfBoundsException


• If either the row index or column index is out of range, an ArrayIndexOutOfBoundsException rises.

(4) Get number of rows and columns

• In 1D arrays, the length attribute can be used to get the size (number of elements) of an 1D array.
  • Example:


  int[] nums = {1, 2, 3};
  System.out.println(nums.length); // print 3 (number of elements)


• In 2D arrays, arrayName.length returns the number of rows of a 2D array.
• In 2D arrays, the number of columns can be accessed using the length attribute of each row.
• Example:


  int[][] nums = {
      {1,  2,  3},
      {5,  6,  7, 8}
  };

  System.out.println(nums.length); // print 2, number of rows in the 2D array
  System.out.println(nums[0].length); // print 3, number of columns in the 1st row
  System.out.println(nums[1].length); // print 4, number of columns in the 2nd row


(5) 2D Arrays as parameters or return types

• Similar to 1D arrays, 2D arrays can be used as parameters or return types.
• Example:



  // a method to print a specified element of a given 2D array.
  public static void print(int[][] arr, int rowIndex, int colIndex) {
      System.out.println(arr[rowIndex][colIndex]);
  }

  public static void main(String[] args) {

      int[][] nums = {
          { 1, 2, 3, 4 },
          { 5, 6, 7, 8 },
          { 9, 10, 11, 12 }
      };

      // 1. print the first element in a 2D array
      print(nums, 0, 0);

      // 2. print the element in the second row, first column
      print(nums, 1, 0);

      // 2. print the last element in a 2D array
      print(nums,2, 3);
      print(nums,nums.length-1, nums[0].length-1);


3. Exercises

• Practice
• Solution
