从 Workflow 到 Agentic 的演进
如今 AI 的发展速度已经远超我们大多数人的预期，仿佛就在一夜之间，我们已经完全进入了 Agent 时代。
但你有没有注意到，在 Agent 快速发展的过程中，它的含义也在悄然发生变化？
最早的 Agent，更多只是 Workflow（工作流） 的形式 —— 预设好每一步的调用链路，大模型按照既定的流程一步步执行。然而，随着 ReAct（Reasoning + Acting）范式的兴起，业界逐渐形成了共识：真正具有自主性的 Agent，应该是能够自主决定使用什么工具、如何推理的智能体。
Anthropic基于他们toB场景下的实践，提出了将 Workflow 和 Agent 共同纳入Agentic这个范畴。
- Agent 形式：适合复杂多变、需要灵活推理的场景
- Workflow 形式：适合需要高效、稳定、可预测结果的场景
所以说我们在开发企业级Agent应用时，有时候也不是盲目追求"越智能越好"。
打破 Workflow 的刻板印象
然而，我们多数人一提及 Workflow 之后，第一印象可能还是类似一个链式调用的简单流程：
输入 → LLM1 → LLM2 → LLM3 → 输出
这确实非常直观，但和实际我们真实工作中的现状不太一致。
实际上，各大AI框架提供商比如Anthropic、LangChain、Vercel等都已经明确了 5 类经典的工作流模式，它们比简单的链式调用要强大得多，也更能应对真实的业务场景。
今天就以LangGraph为例，带大家逐一拆解这 5 个经典模式。
（顺便提一句，如果是AI开发框架的选型，除了LangChain还是有其他方案可以选择的，后期有空给大家单独分析一下）
一、Prompt Chaining（提示词链式）
核心思想：将一个复杂任务拆解为多个步骤，每个 LLM 调用处理前一个调用的输出。
这种模式适用于可以明确分解为多个可验证步骤的任务，常见场景包括：
- 文档翻译（初译 → 校对 → 润色）
- 内容审核（检测 → 分类 → 处置）
- 多轮对话摘要
// Graph state
const State = new StateSchema({
topic: z.string(),
joke: z.string(),
improvedJoke: z.string(),
finalJoke: z.string(),
});
// Define node functions
// First LLM call to generate initial joke
const generateJoke: GraphNode<typeof State> = async (state) => {
const msg = await llm.invoke(`Write a short joke about ${state.topic}`);
return { joke: msg.content };
};
// Gate function to check if the joke has a punchline
const checkPunchline: ConditionalEdgeRouter<typeof State, "improveJoke"> = (state) => {
// Simple check - does the joke contain "?" or "!"
if (state.joke?.includes("?") || state.joke?.includes("!")) {
return "Pass";
}
return "Fail";
};
// Second LLM call to improve the joke
const improveJoke: GraphNode<typeof State> = async (state) => {
const msg = await llm.invoke(
`Make this joke funnier by adding wordplay: ${state.joke}`
);
return { improvedJoke: msg.content };
};
// Third LLM call for final polish
const polishJoke: GraphNode<typeof State> = async (state) => {
const msg = await llm.invoke(
`Add a surprising twist to this joke: ${state.improvedJoke}`
);
return { finalJoke: msg.content };
};
// Build workflow
const chain = new StateGraph(State)
.addNode("generateJoke", generateJoke)
.addNode("improveJoke", improveJoke)
.addNode("polishJoke", polishJoke)
.addEdge("__start__", "generateJoke")
.addConditionalEdges("generateJoke", checkPunchline, {
Pass: "improveJoke",
Fail: "__end__"
})
.addEdge("improveJoke", "polishJoke")
.addEdge("polishJoke", "__end__")
.compile();
这种模式的优势在于可控性强，每一步都可以添加校验逻辑，一旦某一步出现问题，可以及时干预或回滚。

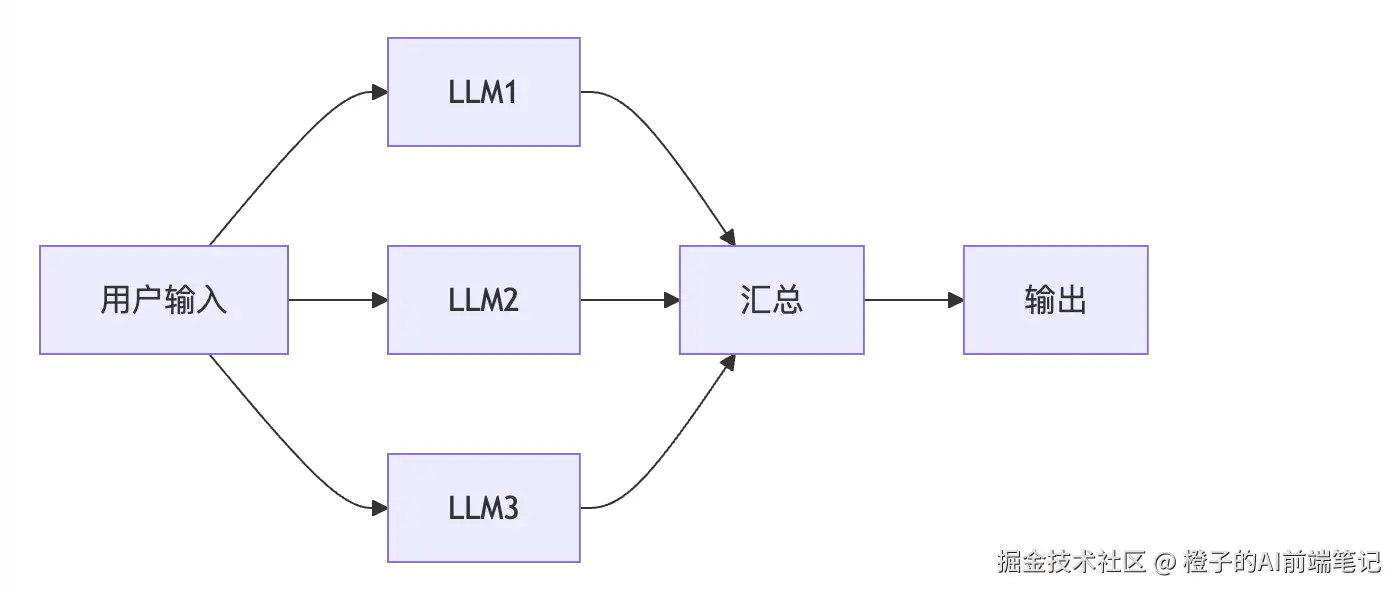

二、Parallelization（并行化）
核心思想：多个 LLM 同时处理不同的子任务，最后将结果汇总。
并行化有两种常见形式：
- 子任务并行：将一个大任务拆分为多个独立子任务，同时执行
- 多次执行：同一个任务运行多次，从多个结果中选择最优
典型场景：
- 同时生成文案、配图、标题等多个营销素材
- 对同一内容进行多维度的质量评估
- 并行调用多个 API 获取不同来源的信息
// Graph state
const State = new StateSchema({
topic: z.string(),
joke: z.string(),
story: z.string(),
poem: z.string(),
combinedOutput: z.string(),
});
// Nodes
// First LLM call to generate initial joke
const callLlm1: GraphNode<typeof State> = async (state) => {
const msg = await llm.invoke(`Write a joke about ${state.topic}`);
return { joke: msg.content };
};
// Second LLM call to generate story
const callLlm2: GraphNode<typeof State> = async (state) => {
const msg = await llm.invoke(`Write a story about ${state.topic}`);
return { story: msg.content };
};
// Third LLM call to generate poem
const callLlm3: GraphNode<typeof State> = async (state) => {
const msg = await llm.invoke(`Write a poem about ${state.topic}`);
return { poem: msg.content };
};
// Combine the joke, story and poem into a single output
const aggregator: GraphNode<typeof State> = async (state) => {
const combined = `Here's a story, joke, and poem about ${state.topic}!\n\n` +
`STORY:\n${state.story}\n\n` +
`JOKE:\n${state.joke}\n\n` +
`POEM:\n${state.poem}`;
return { combinedOutput: combined };
};
// Build workflow
const parallelWorkflow = new StateGraph(State)
.addNode("callLlm1", callLlm1)
.addNode("callLlm2", callLlm2)
.addNode("callLlm3", callLlm3)
.addNode("aggregator", aggregator)
.addEdge("__start__", "callLlm1")
.addEdge("__start__", "callLlm2")
.addEdge("__start__", "callLlm3")
.addEdge("callLlm1", "aggregator")
.addEdge("callLlm2", "aggregator")
.addEdge("callLlm3", "aggregator")
.addEdge("aggregator", "__end__")
.compile();
这种模式可以显著提升响应速度，特别是在需要多维度输出的场景中效果明显。

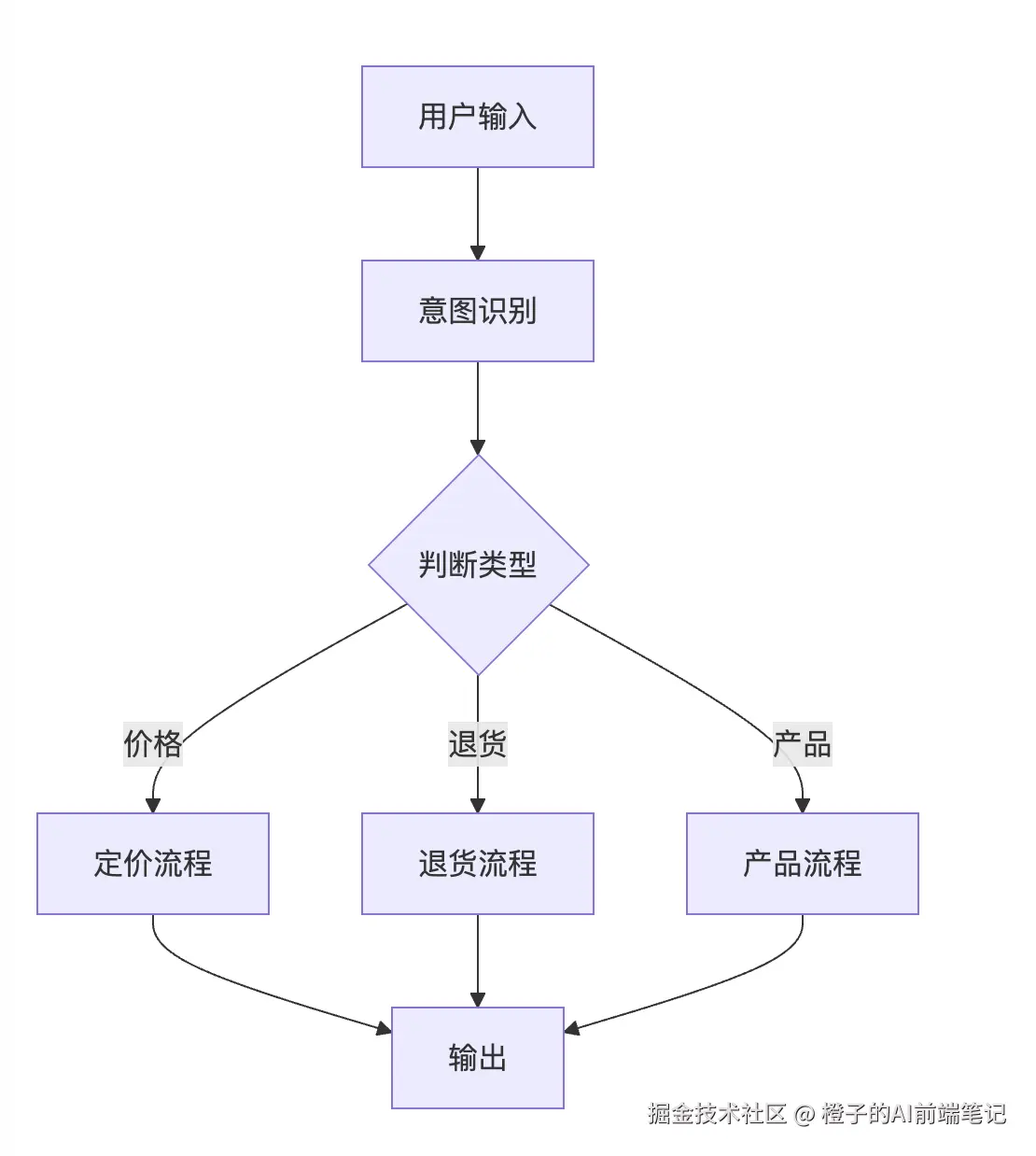

三、Routing（路由）
核心思想：根据输入的内容和上下文，动态决定接下来应该调用哪个处理流程。
这是企业级应用中最常用的模式之一。想象一个客服系统：
- 用户问价格 → 路由到定价流程
- 用户问退货 → 路由到退货流程
- 用户问产品功能 → 路由到产品介绍流程
// Schema for structured output to use as routing logic
const routeSchema = z.object({
step: z.enum(["poem", "story", "joke"]).describe(
"The next step in the routing process"
),
});
// Augment the LLM with schema for structured output
const router = llm.withStructuredOutput(routeSchema);
// Graph state
const State = new StateSchema({
input: z.string(),
decision: z.string(),
output: z.string(),
});
// Nodes
// Write a story
const llmCall1: GraphNode<typeof State> = async (state) => {
const result = await llm.invoke([{
role: "system",
content: "You are an expert storyteller.",
}, {
role: "user",
content: state.input
}]);
return { output: result.content };
};
// Write a joke
const llmCall2: GraphNode<typeof State> = async (state) => {
const result = await llm.invoke([{
role: "system",
content: "You are an expert comedian.",
}, {
role: "user",
content: state.input
}]);
return { output: result.content };
};
// Write a poem
const llmCall3: GraphNode<typeof State> = async (state) => {
const result = await llm.invoke([{
role: "system",
content: "You are an expert poet.",
}, {
role: "user",
content: state.input
}]);
return { output: result.content };
};
const llmCallRouter: GraphNode<typeof State> = async (state) => {
// Route the input to the appropriate node
const decision = await router.invoke([
{
role: "system",
content: "Route the input to story, joke, or poem based on the user's request."
},
{
role: "user",
content: state.input
},
]);
return { decision: decision.step };
};
// Conditional edge function to route to the appropriate node
const routeDecision: ConditionalEdgeRouter<typeof State, "llmCall1" | "llmCall2" | "llmCall3"> = (state) => {
// Return the node name you want to visit next
if (state.decision === "story") {
return "llmCall1";
} else if (state.decision === "joke") {
return "llmCall2";
} else {
return "llmCall3";
}
};
// Build workflow
const routerWorkflow = new StateGraph(State)
.addNode("llmCall1", llmCall1)
.addNode("llmCall2", llmCall2)
.addNode("llmCall3", llmCall3)
.addNode("llmCallRouter", llmCallRouter)
.addEdge("__start__", "llmCallRouter")
.addConditionalEdges(
"llmCallRouter",
routeDecision,
["llmCall1", "llmCall2", "llmCall3"]
)
.addEdge("llmCall1", "__end__")
.addEdge("llmCall2", "__end__")
.addEdge("llmCall3", "__end__")
.compile();
路由可以是基于规则的（关键词匹配），也可以是基于 LLM 的（让模型判断应该走哪个分支）。后者更加灵活，但成本也略高。

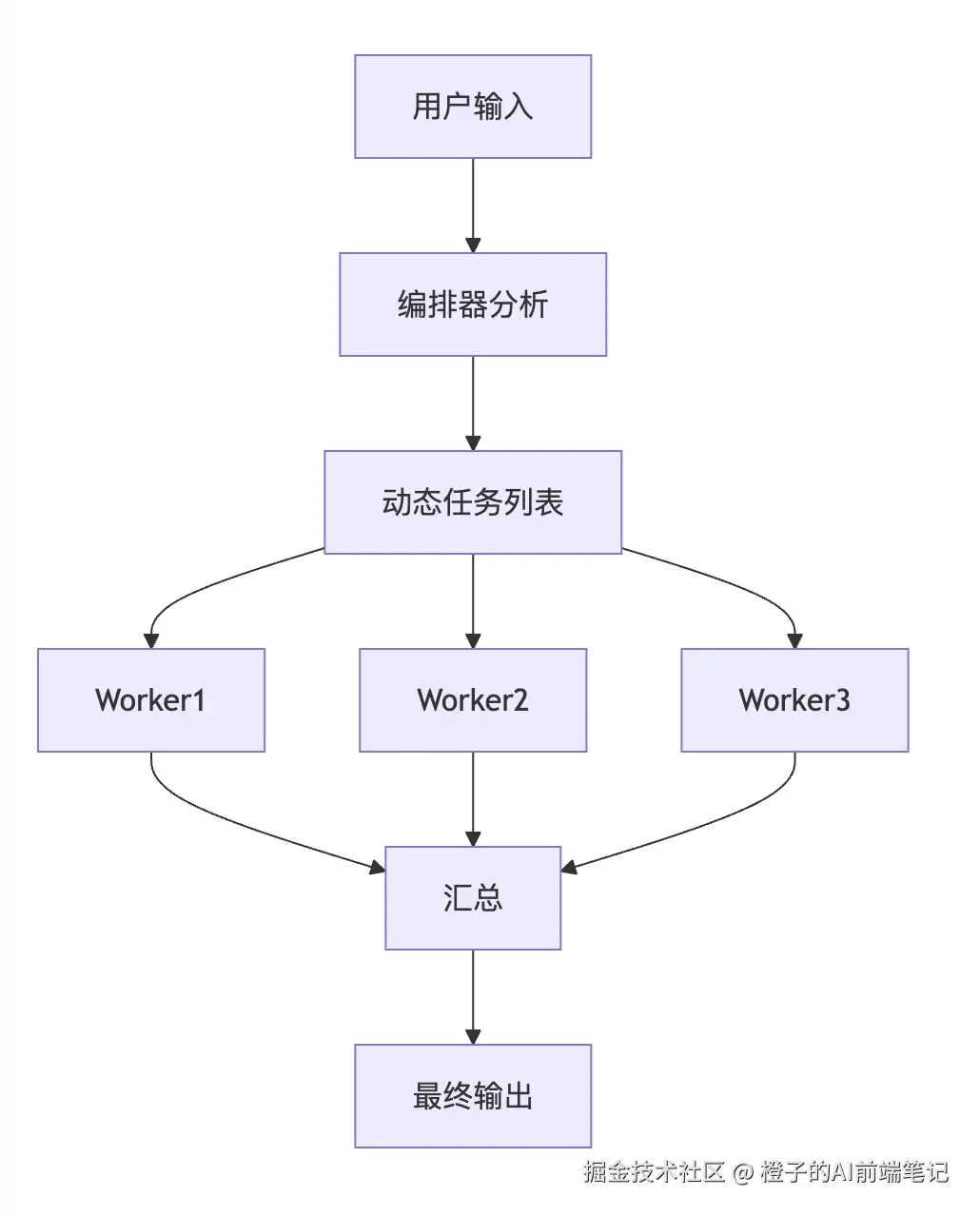

四、Orchestrator-Worker（编排器-工作者）
核心思想：一个中央编排器负责分解任务、分发给多个 Worker，最后汇总结果。
这与并行化的区别在于：编排器不是预先知道要处理多少个子任务，而是在执行过程中动态决定。
典型场景：
- 代码生成：先分析需要生成哪些文件，每个文件交给一个 Worker
- 多文档处理：先分析有多少个文档需要处理，再分发给 Workers
- 复杂报告生成：先规划大纲，再分章节撰写
type SectionSchema = {
name: string;
description: string;
}
type SectionsSchema = {
sections: SectionSchema[]
}
// Augment the LLM with schema for structured output
const planner = llm.withStructuredOutput(sectionsSchema);
// Graph state
const State = new StateSchema({
topic: z.string(),
sections: z.array(z.custom<SectionsSchema>()),
completedSections: new ReducedValue(
z.array(z.string()).default(() => []),
{ reducer: (a, b) => a.concat(b) }
),
finalReport: z.string(),
});
// Worker state
const WorkerState = new StateSchema({
section: z.custom<SectionsSchema>(),
completedSections: new ReducedValue(
z.array(z.string()).default(() => []),
{ reducer: (a, b) => a.concat(b) }
),
});
// Nodes
const orchestrator: GraphNode<typeof State> = async (state) => {
// Generate queries
const reportSections = await planner.invoke([
{ role: "system", content: "Generate a plan for the report." },
{ role: "user", content: `Here is the report topic: ${state.topic}` },
]);
return { sections: reportSections.sections };
};
const llmCall: GraphNode<typeof WorkerState> = async (state) => {
// Generate section
const section = await llm.invoke([
{
role: "system",
content: "Write a report section following the provided name and description. Include no preamble for each section. Use markdown formatting.",
},
{
role: "user",
content: `Here is the section name: ${state.section.name} and description: ${state.section.description}`,
},
]);
// Write the updated section to completed sections
return { completedSections: [section.content] };
};
const synthesizer: GraphNode<typeof State> = async (state) => {
// List of completed sections
const completedSections = state.completedSections;
// Format completed section to str to use as context for final sections
const completedReportSections = completedSections.join("\n\n---\n\n");
return { finalReport: completedReportSections };
};
// Conditional edge function to create llm_call workers that each write a section of the report
const assignWorkers: ConditionalEdgeRouter<typeof State, "llmCall"> = (state) => {
// Kick off section writing in parallel via Send() API
return state.sections.map((section) =>
new Send("llmCall", { section })
);
};
// Build workflow
const orchestratorWorker = new StateGraph(State)
.addNode("orchestrator", orchestrator)
.addNode("llmCall", llmCall)
.addNode("synthesizer", synthesizer)
.addEdge("__start__", "orchestrator")
.addConditionalEdges(
"orchestrator",
assignWorkers,
["llmCall"]
)
.addEdge("llmCall", "synthesizer")
.addEdge("synthesizer", "__end__")
.compile();
这种模式的灵活性最高，但也最复杂，需要处理好状态管理和错误处理。

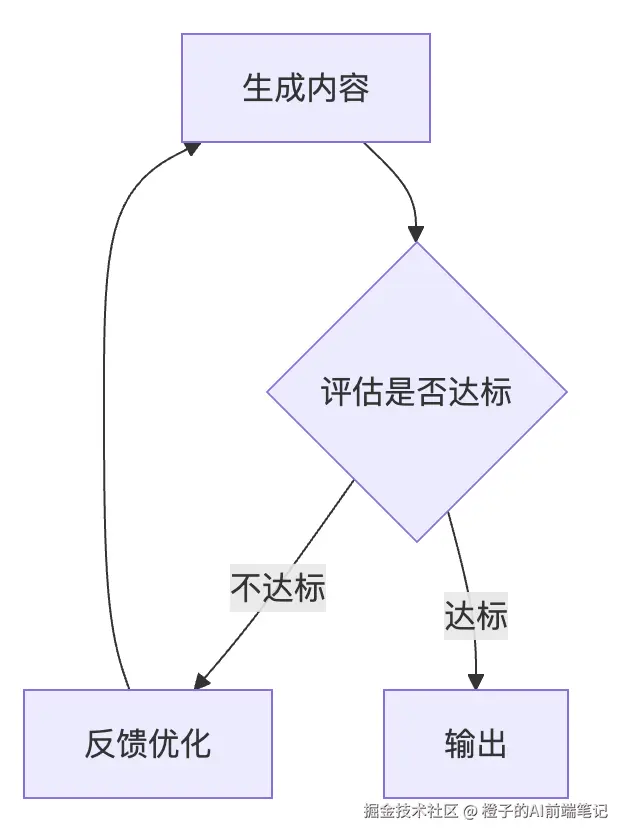

五、Evaluator-Optimizer（评估-优化）
核心思想：一个 LLM 生成内容，另一个 LLM 评估内容质量，如果不达标则循环优化，直到满足标准。
这是 LLM 原生的一种迭代机制，特别适合那些"没有标准答案，但有评判标准"的场景。
典型场景：
- 翻译质量优化（信达雅的标准）
- 代码审查与优化
- 文案润色（直到读起来满意为止）
- 搜索结果排序
// Graph state
const State = new StateSchema({
joke: z.string(),
topic: z.string(),
feedback: z.string(),
funnyOrNot: z.string(),
});
// Schema for structured output to use in evaluation
const feedbackSchema = z.object({
grade: z.enum(["funny", "not funny"]).describe(
"Decide if the joke is funny or not."
),
feedback: z.string().describe(
"If the joke is not funny, provide feedback on how to improve it."
),
});
// Augment the LLM with schema for structured output
const evaluator = llm.withStructuredOutput(feedbackSchema);
// Nodes
const llmCallGenerator: GraphNode<typeof State> = async (state) => {
// LLM generates a joke
let msg;
if (state.feedback) {
msg = await llm.invoke(
`Write a joke about ${state.topic} but take into account the feedback: ${state.feedback}`
);
} else {
msg = await llm.invoke(`Write a joke about ${state.topic}`);
}
return { joke: msg.content };
};
const llmCallEvaluator: GraphNode<typeof State> = async (state) => {
// LLM evaluates the joke
const grade = await evaluator.invoke(`Grade the joke ${state.joke}`);
return { funnyOrNot: grade.grade, feedback: grade.feedback };
};
// Conditional edge function to route back to joke generator or end based upon feedback from the evaluator
const routeJoke: ConditionalEdgeRouter<typeof State, "llmCallGenerator"> = (state) => {
// Route back to joke generator or end based upon feedback from the evaluator
if (state.funnyOrNot === "funny") {
return "Accepted";
} else {
return "Rejected + Feedback";
}
};
// Build workflow
const optimizerWorkflow = new StateGraph(State)
.addNode("llmCallGenerator", llmCallGenerator)
.addNode("llmCallEvaluator", llmCallEvaluator)
.addEdge("__start__", "llmCallGenerator")
.addEdge("llmCallGenerator", "llmCallEvaluator")
.addConditionalEdges(
"llmCallEvaluator",
routeJoke,
{
// Name returned by routeJoke : Name of next node to visit
"Accepted": "__end__",
"Rejected + Feedback": "llmCallGenerator"
}
)
.compile();
这种模式模拟了人类"写-改-写"的创作过程，可以让输出质量更稳定。但需要注意设置最大迭代次数，避免陷入无限循环。
总结
上述 5 种模式，就是最经典的 Workflow 范式。它们并不是相互排斥的，而是在实际业务中往往会组合使用。
我们在企业级开发中，会根据实际的应用场景进行更进一步的融合和升级，从而在垂直领域实现更加高效和稳定的 Agentic 应用。
