Flexbox 后台盒子布局设计

0 阅读2分钟

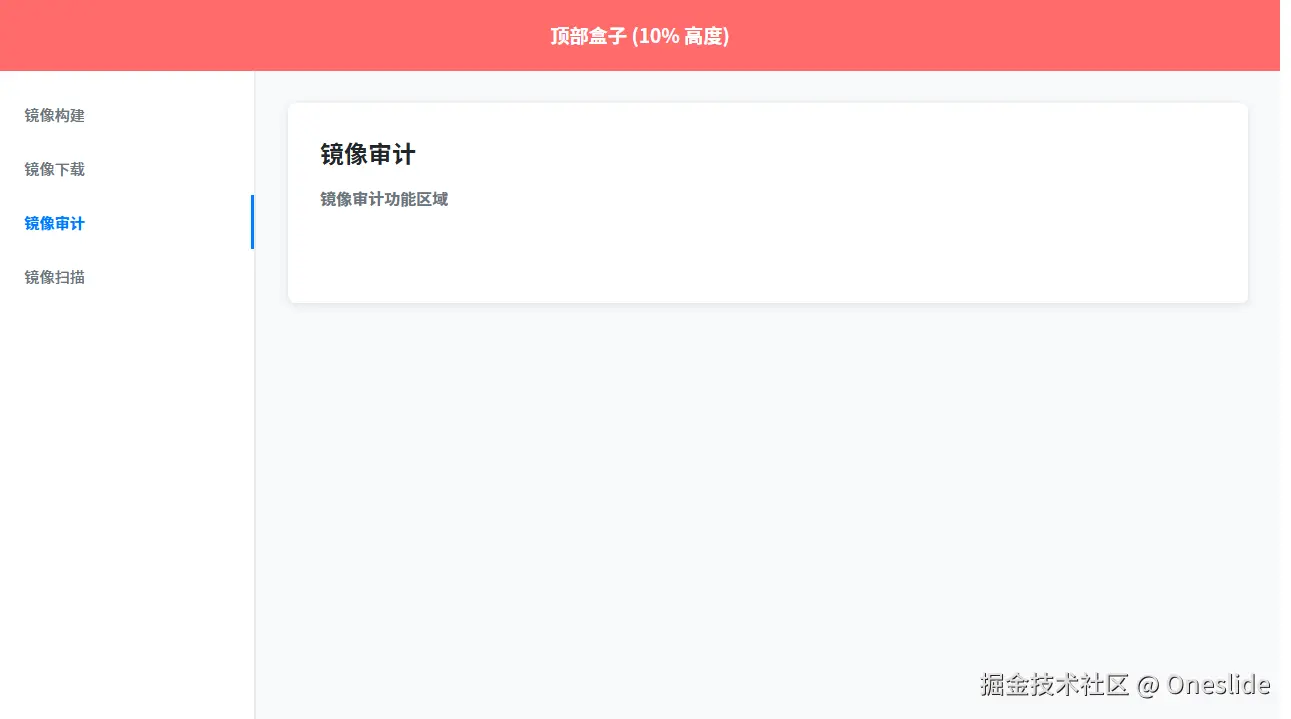

项目布局结构


┌─────────────────────────────────────┐
│         顶部盒子 (10% 高度)        │
├──────────────┬──────────────────────┤
│   盒子A     │      盒子B         │
│   (20% 宽度) │     (80% 宽度)      │
│   导航区域    │     内容区域         │
└──────────────┴──────────────────────┘

HTML 结构

<div class="container">
  <div class="box box-top">顶部盒子 (10% 高度)</div>
  <div class="row-bottom">
    <div class="box box-a">
      <TabHeader :active-tab="activeTab" @tab-change="handleTabChange" />
    </div>
    <div class="box box-b">
      <TabContent :active-tab="activeTab" />
    </div>
  </div>
</div>

CSS 实现

1. 全屏容器

.container {
  display: flex;
  flex-direction: column;
  width: 100vw;
  height: 100vh;
}

说明:

  • display: flex:启用 flexbox 布局
  • flex-direction: column:子元素垂直排列
  • 100vw:占满视口宽度
  • 100vh:占满视口高度

2. 顶部盒子

.box-top {
  height: 10vh;
  width: 100vw;
  background-color: #ff6b6b;
  display: flex;
  align-items: center;
  justify-content: center;
  color: white;
  font-weight: bold;
  font-size: 1.2rem;
}

说明:

  • height: 10vh:占视口高度的 10%
  • display: flex:启用 flexbox
  • align-items: center:垂直居中
  • justify-content: center:水平居中

3. 底部行容器

.row-bottom {
  display: flex;
  height: 90vh;
  width: 100vw;
}

说明:

  • display: flex:启用 flexbox
  • flex-direction: row(默认):子元素水平排列
  • height: 90vh:占视口高度的 90%
  • width: 100vw:占满视口宽度

4. 左侧盒子(导航区域)

.box-a {
  width: 20vw;
  height: 90vh;
  background-color: #4ecdc4;
  padding: 0;
  overflow: hidden;
}

说明:

  • width: 20vw:占视口宽度的 20%
  • height: 90vh:占视口高度的 90%
  • overflow: hidden:隐藏超出内容

5. 右侧盒子(内容区域)

.box-b {
  width: 80vw;
  height: 90vh;
  background-color: #45b7d1;
  display: flex;
  align-items: center;
  justify-content: center;
  color: white;
  font-weight: bold;
  font-size: 1.2rem;
}

说明:

  • width: 80vw:占视口宽度的 80%
  • height: 90vh:占视口高度的 90%
  • display: flex:启用 flexbox
  • align-items: center:垂直居中
  • justify-content: center:水平居中

视口单位

vw(Viewport Width)

width: 100vw;  /* 视口宽度的 100% */
width: 20vw;   /* 视口宽度的 20% */
width: 80vw;   /* 视口宽度的 80% */

特点:

  • 1vw = 视口宽度的 1%
  • 随浏览器窗口大小变化
  • 适用于响应式水平布局

vh(Viewport Height)

height: 100vh;  /* 视口高度的 100% */
height: 10vh;   /* 视口高度的 10% */
height: 90vh;   /* 视口高度的 90% */

特点:

  • 1vh = 视口高度的 1%
  • 随浏览器窗口大小变化
  • 适用于响应式垂直布局
