通用管理后台组件库-13-页签组件

页签组件

说明：实现头部页签相关功能，包括关闭、右键刷新/关闭右侧/关闭其他。

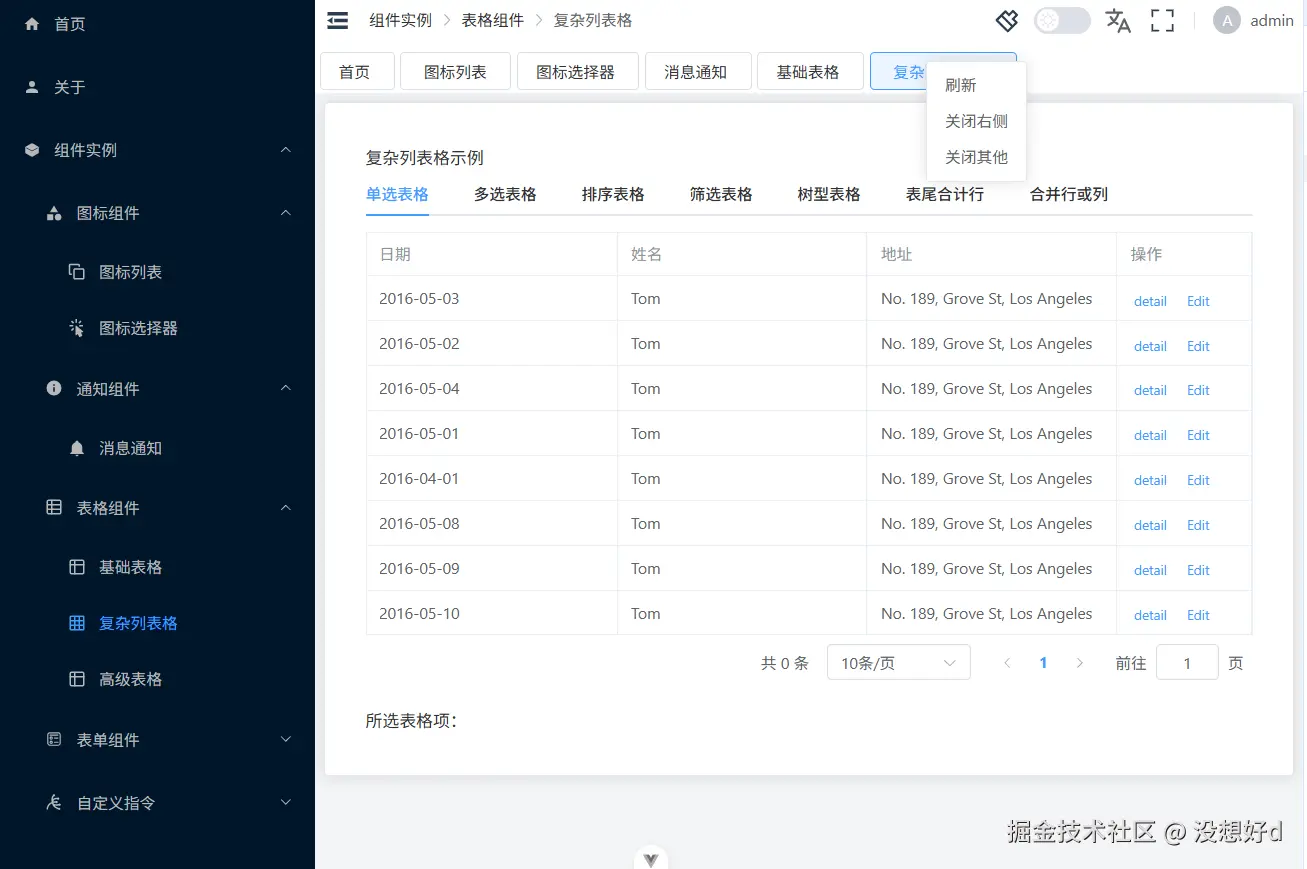

1.实现效果

2.页签组件HeaderTabs.vue

<template>
  <el-tabs closable type="card" class="my-tabs" v-on="forwardEvents" v-model="modelValue">
    <el-tab-pane v-for="item in data" :key="item.name" :name="item?.name as string">
      <template #label>
        <span class="custom-tab-label" @contextmenu.prevent="handleContextMenu($event, item)">
          {{ item.meta && $t(item.meta?.title as string) }}
        </span>
      </template>
    </el-tab-pane>
  </el-tabs>
  <el-dropdown
    ref="dropdownRef"
    :virtual-ref="triggerRef"
    :show-arrow="false"
    :popper-options="{
      modifiers: [{ name: 'offset', options: { offset: [0, 0] } }]
    }"
    virtual-triggering
    trigger="contextmenu"
    placement="bottom-start"
    @command="commandHandler"
  >
    <template #dropdown>
      <el-dropdown-menu>
        <el-dropdown-item command="refresh">刷新</el-dropdown-item>
        <el-dropdown-item command="closeRight">关闭右侧</el-dropdown-item>
        <el-dropdown-item command="closeOther">关闭其他</el-dropdown-item>
      </el-dropdown-menu>
    </template>
  </el-dropdown>
</template>

<script setup lang="ts">
import type { TabsPaneContext, TabsProps, DropdownInstance } from 'element-plus'
import type { AppRouteMenuItem } from '../menu/type'
import { forwardEventsUtils } from '@/utils/format'

interface HeaderTabsProps extends Partial<TabsProps> {
  data: AppRouteMenuItem[]
}
type TabPaneName = string | number
type HeaderTabsEvents = {
  tabClick: [pane: TabsPaneContext, event: Event]
  tabChange: [name: TabPaneName]
  tabRemove: [name: TabPaneName]
  tabAdd: []
  edit: [paneName: TabPaneName, action: 'add' | 'remove']
}
type TabAction = 'refresh' | 'closeRight' | 'closeOther'
type contextMenuCommand = {
  tabActions: [paneName: AppRouteMenuItem, action: TabAction]
}
defineProps<HeaderTabsProps>()

// 定义事件名称数组，包含标签页可能触发的所有事件类型
const eventName = ['tabClick', 'tabChange', 'tabRemove', 'tabAdd', 'edit', 'tabActions']

// 使用 defineEmits 定义组件可以触发的事件，类型为 HeaderTabsEvents
const emit = defineEmits<HeaderTabsEvents&contextMenuCommand>()
// 使用 forwardEventsUtils 函数处理事件转发，将 eventName 数组中定义的事件进行转发
const forwardEvents = forwardEventsUtils(emit, eventName)

const modelValue = defineModel<string>()

// 右键页签操作
const dropdownRef = ref<DropdownInstance>()
const position = ref({
  top: 0,
  left: 0,
  bottom: 0,
  right: 0
} as DOMRect)

const triggerRef = ref({
  getBoundingClientRect: () => position.value
})

const contextMenuTab = ref<AppRouteMenuItem>()
const handleContextMenu = (event: MouseEvent, tab: AppRouteMenuItem) => {
  const { clientX, clientY } = event
  position.value = DOMRect.fromRect({
    x: clientX,
    y: clientY
  })
  event.preventDefault()
  dropdownRef.value?.handleOpen()
  contextMenuTab.value = tab
}
const commandHandler = (command: TabAction) => {
  if (contextMenuTab.value) {
    emit('tabActions', contextMenuTab.value, command)
  }
}
</script>

<style scoped lang="scss">
.my-tabs {
  :deep(.el-tabs__header) {
    @apply p-0 m-0 border-b-none pl-1;
    .el-tabs__nav {
      @apply border-none;
    }
  }
  :deep(.el-tabs__item) {
    @apply py-0 h-[34px] px-4 mt-0!;
    border-radius: 4px;
    border: 1px solid var(--el-border-color) !important;
    transition: padding 0.3s cubic-bezier(0.645, 0.045, 0.355, 1) !important;
    margin-right: 5px;
    &.is-active {
      color: var(--el-color-primary) !important;
      background: var(--el-color-primary-light-9) !important;
      border: 1px solid var(--el-color-primary) !important;
    }
  }
  :deep(.el-tabs__nav-next, .el-tabs__nav-prev) {
    line-height: 35px !important;
  }
}
.el-dropdown {
  display: none !important;
}
</style>

3.tab状态存放在store中，tabs.ts

import type { AppRouteMenuItem } from '@/components/menu/type'
import { defineStore } from 'pinia'

export const useTabsStore = defineStore('tabs', {
  state: () => ({
    tabs: [] as AppRouteMenuItem[],
    current: ''
  }),
  actions: {
    addRoute(route: AppRouteMenuItem) {
      if (this.tabs.some((item) => item.name === route.name)) return
      this.tabs.push({ ...route })
    },
    removeRoute(path: string) {
      this.tabs = this.tabs.filter((item) => item.name !== path)
    },
    closeOther(path: string) {
      this.tabs = this.tabs.filter((item) => item.name === path)
    },
    closeRight(path: string) {
      const findIndex = this.tabs.findIndex((item) => item.name === path)
      this.tabs = this.tabs.slice(0, findIndex + 1)
    }
  },
  persist: true
})

4.在默认布局中引用，default.vue

<template>
  <div
    class="w-full h-full position-absolute left-0 top-0 overflow-hidden flex"
    :style="{ '--el-color-primary': setting?.theme }"
  >
    <!-- 左右布局 -->
    <!-- sidebar -->
    <div
      :style="{
        width: mixbarMenuWidth,
        backgroundColor: setting?.backgroundColor
      }"
      class="h-full transition-width shrink-0"
      v-if="setting?.mode !== 'top'"
    >
      <el-row class="h-full">
        <el-scrollbar
          v-if="setting?.mode !== 'mix'"
          :class="[setting?.mode !== 'mixbar' ? 'flex-1' : 'w-[64px] py-4']"
          :style="{
            backgroundColor:
              setting?.mode !== 'mixbar' ? 'auto' : darkenColor(setting?.backgroundColor, 10)
          }"
        >
          <!-- 左侧菜单和左侧菜单混合模式的布局-->
          <Menu
            :class="[{ mixbar: setting?.mode === 'mixbar' }]"
            v-if="setting?.mode === 'siderbar' || setting?.mode === 'mixbar'"
            mode="vertical"
            :data="mixbarMenus"
            :collapse="setting?.mode !== 'mixbar' && localSettings.collapse"
            text-color="#b8b8b8"
            :active-text-color="setting?.theme"
            :background-color="
              setting?.mode !== 'mixbar' ? setting?.backgroundColor : 'transparent'
            "
            @select="handleMenuSelect"
          ></Menu>
        </el-scrollbar>
        <el-scrollbar v-if="setting?.mode === 'mix' || setting?.mode === 'mixbar'" class="flex-1">
          <!-- 左侧菜单混合和顶部左侧菜单混合模式的二级menu -->
          <Menu
            mode="vertical"
            :data="getSubMenus(menus)"
            :collapse="localSettings.collapse"
            text-color="#b8b8b8"
            :active-text-color="setting?.theme"
            :background-color="setting?.backgroundColor"
            @select="handleMenuSelect"
          ></Menu
        ></el-scrollbar>
      </el-row>
    </div>
    <!-- content -->
    <div
      :class="['w-full h-full flex-1 overflow-hidden', setting?.fixedHead ? '' : 'overflow-y-auto']"
    >
      <!-- header -->
      <Header
        :locales="locales"
        :username="username"
        :src="avatar"
        :data="avatarMenu"
        :setting="setting"
        v-model:collapse="localSettings.collapse"
        @setting-change="handleSettingChange"
        @select="handleMenuSelect"
        :class="[setting?.fixedHead ? 'fixed top-0 left-0 right-0 z-10' : '']"
      >
        <template #menu>
          <!-- 顶部菜单和混合模式布局 -->
          <Menu
            v-if="setting?.mode === 'top' || setting?.mode === 'mix'"
            mode="horizontal"
            :data="setting?.mode === 'mix' ? getTopMenus(menus) : menus"
            :collapse="false"
            @select="handleMenuSelect"
            :active-text-color="setting?.theme"
          ></Menu>
        </template>
      </Header>
      <HeaderTabs
        v-model="tabsStore.current"
        :data="tabsStore.tabs"
        @tab-click="handleTabClick"
        @tab-remove="handleRemoveTab"
        @tab-actions="handleTabActions"
      ></HeaderTabs>
      <!-- main -->
      <div :class="[setting?.fixedHead ? 'overflow-y-auto h-full p-2 pb-25 bg-gray-100' : '']">
        <el-card>
          <router-view :key="routerKey"></router-view>
        </el-card>
      </div>
    </div>
    <!-- 移动端菜单抽屉 -->
    <el-drawer
      direction="ltr"
      class="w-full!"
      :style="{ backgroundColor: setting?.backgroundColor }"
      v-if="isMobile"
      :model-value="!localSettings.collapse"
      @close="localSettings.collapse = true"
    >
      <Menu
        text-color="#b8b8b8"
        :active-text-color="setting?.theme"
        :data="menus"
        :background-color="setting?.backgroundColor"
        @select="handleMenuSelect"
      ></Menu>
    </el-drawer>
  </div>
</template>

<script setup lang="ts">
import type { DropMenuItem } from '@/components/Avatar/types'
import HeaderTabs from '@/components/Layouts/HeaderTabs.vue'
import type { HeaderProps } from '@/components/Layouts/types'
import type { ThemeSettingProps } from '@/components/Themes/type'
import type { AppRouteMenuItem } from '@/components/menu/type'
import { useMenu } from '@/components/menu/useMenu'
import { useTabsStore } from '@/stores/tabs'
import { darkenColor } from '@/utils'
import type { RouteRecordRaw } from 'vue-router/auto'
import { routes } from 'vue-router/auto-routes'

interface ThemeSettingsOptions extends HeaderProps {
  username: string
  avatar: string
  avatarMenu: DropMenuItem[]
}
const router = useRouter()
const route = useRoute()
const tabsStore = useTabsStore()

// 设置配置默认数据
const localSettings = reactive<ThemeSettingsOptions>({
  username: 'admin',
  locales: [
    {
      name: 'zh-CN',
      text: '中文',
      icon: 'uil:letter-chinese-a'
    },
    {
      text: '英文',
      name: 'en',
      icon: 'ri:english-input'
    }
  ],
  avatarMenu: [
    {
      key: '1',
      value: '个人中心'
    },
    {
      key: '2',
      value: '修改密码'
    },
    {
      key: 'divider',
      value: ''
    },
    {
      key: '4',
      value: '退出登录'
    }
  ],
  avatar: '',
  collapse: false,
  setting: { menuWidth: 280 } as ThemeSettingProps
})
const { locales, avatarMenu, username, avatar } = toRefs(localSettings)

// 菜单和路由配置类型不相同，转换一下
const genrateMenuData = (routes: RouteRecordRaw[]): AppRouteMenuItem[] => {
  const menuData: AppRouteMenuItem[] = []
  routes.forEach((route) => {
    if (route.meta?.hideMenu) return
    let menuItem: AppRouteMenuItem = {
      name: route.name,
      path: route.path,
      meta: route.meta,
      alias: typeof route.redirect === 'string' ? route.redirect : undefined,
      component: route.component
    }
    // 判断是否有子路由，递归转换
    if (route.children && Array.isArray(route.children) && route.children.length > 0) {
      menuItem.children = genrateMenuData(route.children)
    }
    menuData.push(menuItem)
  })
  return menuData
}
// 路由类型数据转换为菜单类型数据
const menus = computed(() => genrateMenuData(routes))
const isMobile = ref(false)
// 设置主题
const handleSettingChange = (themeSettings: ThemeSettingProps) => {
  localSettings.setting = themeSettings
}
// 获取菜单宽度
const menuWidth = computed(() => (localSettings.setting ? localSettings.setting.menuWidth : 240))
// 获取设置菜单
const setting = computed(() => localSettings.setting)

// 获取mixbar和mix模式下的一二级菜单
const { getTopMenus, getSubMenus } = useMenu()

onMounted(() => {
  console.log(getTopMenus(menus.value))
  console.log(getSubMenus(menus.value))
})

// 混合mixbar模式下的菜单
const mixbarMenus = computed(() =>
  setting.value?.mode === 'mixbar' ? getTopMenus(menus.value) : menus.value
)
// 混合mixbar模式下的二级菜单是否都设置了icon，判断收起的显示情况
const isFullIcons = computed(() => {
  return getSubMenus(menus.value).every(
    (item) => typeof item.meta?.icon !== 'undefined' && item.meta?.icon
  )
})
// 混合mixbar模式下的菜单宽度
const mixbarMenuWidth = computed(() => {
  if (isMobile.value) return 0
  if (setting.value?.mode === 'mixbar' && isFullIcons.value) {
    return localSettings.collapse ? 'auto' : menuWidth.value + 'px'
  } else {
    return localSettings.collapse ? '64px' : menuWidth.value + 'px'
  }
})
// 选择menu事件
const handleMenuSelect = (menuItem: AppRouteMenuItem) => {
  if (menuItem && menuItem.name) {
    router.push(menuItem.name as string)
    if (isMobile.value) {
      localSettings.collapse = true
    }
  }
}

// 菜单抽屉展开折叠，屏幕宽度适配
const tmpWidth = ref(0)
const changeWidthFlag = ref(false)
useResizeObserver(document.body, (entries) => {
  // 获取浏览器宽度
  const { width } = entries[0].contentRect
  if (tmpWidth.value === 0) {
    // 记录初始宽度
    tmpWidth.value = width
  }
  if (width > tmpWidth.value) {
    // 扩大屏幕
    changeWidthFlag.value = width < 640
  } else {
    // 缩小屏幕
    changeWidthFlag.value = width > 1200
  }
  if (width < 640 && !changeWidthFlag.value) {
    localSettings.collapse = true
  }
  if (width > 1200 && !changeWidthFlag.value) {
    localSettings.collapse = false
  }
  // 是否是移动端屏幕宽度
  isMobile.value = width < 440
  tmpWidth.value = width
})
onBeforeMount(() => {
  // 是否是移动端屏幕
  if (
    navigator.userAgent.match(
      /(phone|pad|pod|iPhone|iPod|ios|iPad|Android|Mobile|BlackBerry|IEMobile|MQQBrowser|JUC|Fennec|wOSBrowser|BrowserNG|WebOS|Symbian|Windows Phone)/i
    )
  ) {
    isMobile.value = true
    localSettings.collapse = true
  }
})
// 路由监听,tabsStore添加路由
watch(
  route,
  () => {
    tabsStore.addRoute(route)
    tabsStore.current = route.name
  },
  {
    immediate: true
  }
)
// 点击tab切换路由页面
const handleTabClick = (tab) => {
  const { index } = tab
  const route = tabsStore.tabs[index]
  router.push(route.name as string)
}
// 关闭tab,激活上一个tab
const handleRemoveTab = (tab) => {
  tabsStore.removeRoute(tab)
  if (tabsStore.current === tab) {
    if (tabsStore.tabs.length !== 0) {
      tabsStore.current = tabsStore.tabs[tabsStore.tabs.length - 1].name as string
    } else {
      // 删除最后一个tab,跳转到首页
      const tmpRoute = menus.value.filter((item) => item.path === '/')[0]
      tabsStore.addRoute(tmpRoute)
      tabsStore.current = tmpRoute.name as string
    }
    router.push(tabsStore.current as string)
  }
}

// 如果需要手动刷新，可以修改 key 的依赖，例如增加一个刷新计数器
const refreshKey = ref(0)
const routerKey = computed(() => route.fullPath + refreshKey.value)
// 页签操作
const handleTabActions = (tab, action) => {
  if (action === 'refresh') {
    router.push(tab.name as string)
    refreshKey.value++
  } else if(action === 'closeRight') {
    tabsStore.closeRight(tab.name as string)
  } else if(action === 'closeOther') {
    tabsStore.closeOther(tab.name as string)
  }
}
</script>

<style lang="scss" scoped>
.mixbar {
  :deep(.el-menu-item) {
    height: auto;
    line-height: unset !important;
    flex-direction: column;
    margin-bottom: 15px;
    padding: 4px 0 !important;
    svg {
      margin-right: 0;
      margin-bottom: 10px;
    }
  }
}
</style>
