前言
在之前的博客中，我曾介绍过一款我自主研发的AI驱动在线协作绘图平台——IntelliDraw（在线访问地址：https://www.intellidraw.top）。经过持续优化与创新，IntelliDraw现已升级为一个功能更为强大的开发辅助工具，能够：

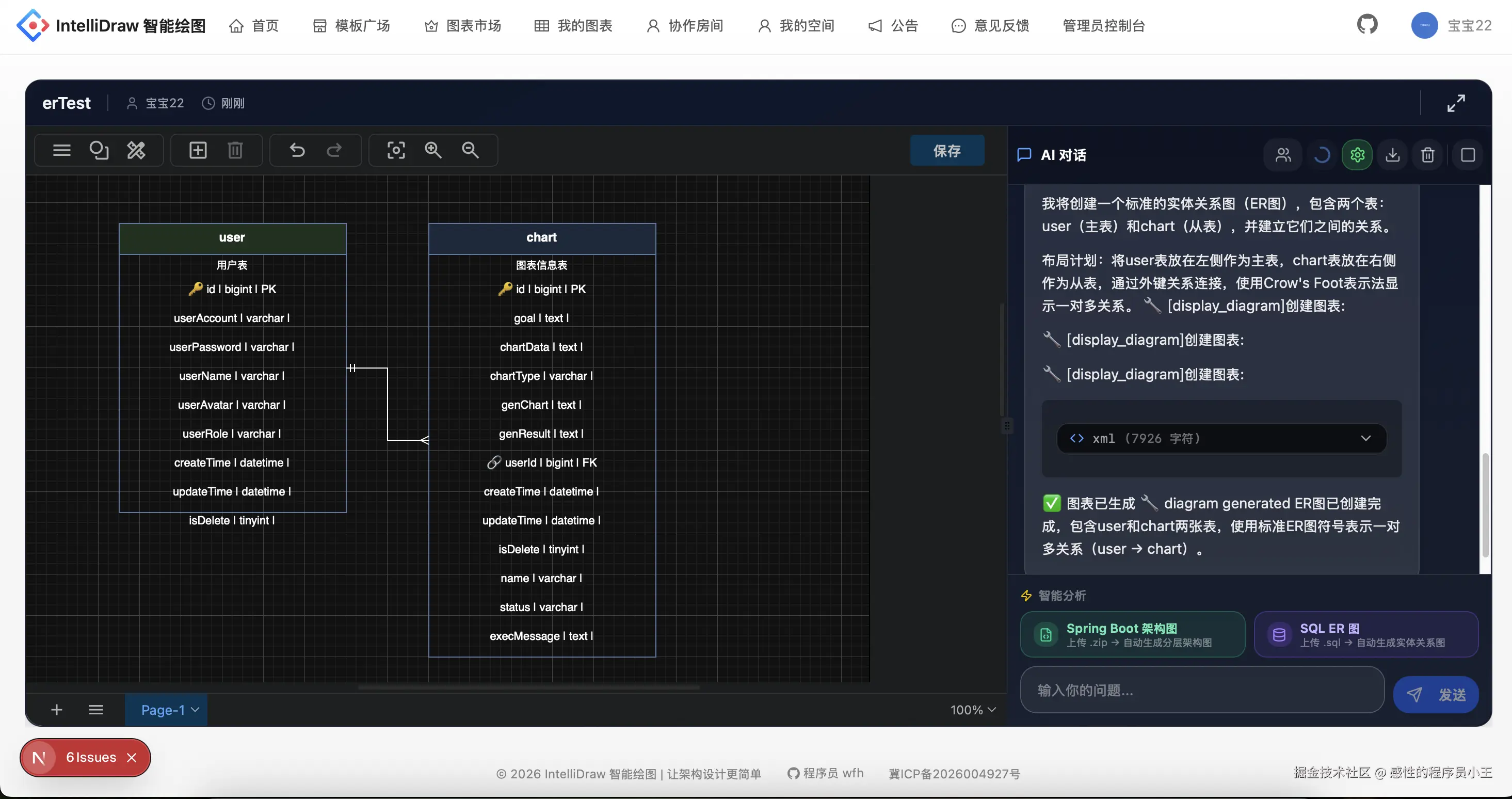

- 基于用户上传的数据库SQL文件自动生成实体关系图（ER Diagram）

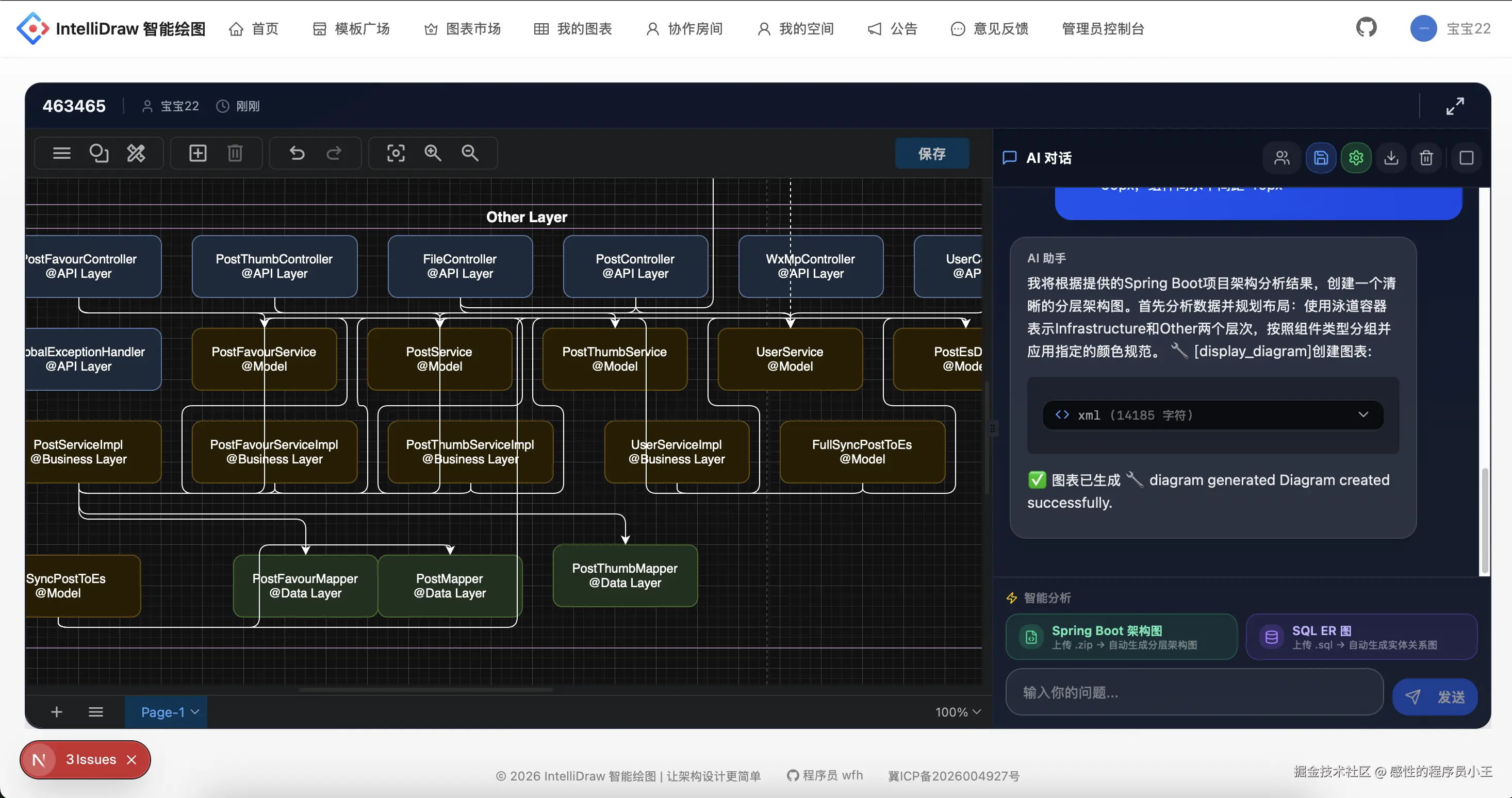

- 支持Java Spring Boot项目代码分析，可一键上传项目ZIP包并生成完整的项目架构图，清晰展示各层级间的调用关系
本次更新不仅带来了功能上的扩展，还对系统性能进行了全面优化： - 通过改进后端提示词（Prompt）算法，将模型调用的token消耗降低了60%
- 引入了先进的RAG（Retrieval-Augmented Generation）功能
这些升级让IntelliDraw在技术开发和团队协作场景中展现出更大的应用价值。如果您对这个工具感兴趣或有试用体验，欢迎随时交流！
技术实现
Spring Boot 项目解析
使用了 JavaParser 库实现的 Java 类的解析，maven 依赖如下
<!-- Source: https://mvnrepository.com/artifact/com.github.javaparser/javaparser-core -->
<dependency>
<groupId>com.github.javaparser</groupId>
<artifactId>javaparser-core</artifactId>
<version>3.25.8</version>
<scope>compile</scope>
</dependency>
<dependency>
<groupId>com.github.javaparser</groupId>
<artifactId>javaparser-symbol-solver-core</artifactId>
<version>3.25.8</version>
<scope>compile</scope>
</dependency>
通过JavaParser库解析Java代码，生成抽象语法树（AST），以便分析Spring Boot项目的结构和依赖关系。AST是计算机理解代码的逻辑结构，类似于将代码分解为语法节点。例如，int x = 10 + 10;的AST包括变量声明、赋值和加法运算节点。解析整个项目时，需识别包、类、方法、字段、注解及依赖关系，特别是Spring Bean的注解。生成项目架构图时，AST需包含模块划分、层次结构、依赖关系和调用链路，以展示项目的组织和功能流程。
抽象语法树（AST）的定义与作用
抽象语法树（AST）是编程语言源代码的抽象语法结构的树形表示。它帮助计算机理解代码的结构，使代码能够被分析和处理。AST忽略了代码中的语法细节，专注于代码的逻辑结构。
AST示例解析
- 加法运算的AST结构
代码：int x = 10 + 10;
AST分解：
○ 变量声明节点：int x
○ 赋值操作节点：=
○ 加法运算节点：+，包含两个子节点10和10 - If语句的AST结构
代码：if (a > 10) { break; }
AST分解：
○ 条件判断节点：if
○ 条件表达式节点：a > 10
○ 代码块节点：break;
JavaParser在Spring Boot项目中的应用
使用JavaParser库解析整个Spring Boot项目时，需要解析以下内容： - 包和类结构
○ 包名
○ 类名
○ 类的修饰符（如public、final） - 类成员
○ 方法：包括方法名、参数、返回类型、访问修饰符
○ 字段：包括字段名、类型、访问修饰符 - 注解
○ 特别是Spring相关的注解，如@Component、@Service、@Autowired等，用于识别Spring Bean及其依赖关系 - 依赖关系
○ 通过注解和依赖注入机制，解析类之间的依赖关系，如@Autowired注入的字段或方法参数 - 调用关系
○ 分析方法之间的调用，构建方法调用链路
生成项目架构图所需的AST特征
为了生成清晰的项目架构图，AST需要包含以下信息： - 模块划分
○ 根据包名或注解信息，将项目划分为不同的模块或层（如Controller、Service、Repository） - 层次结构
○ 展示模块之间的层次关系，如分层架构（表现层、业务逻辑层、数据访问层） - 依赖关系
○ 通过注解和依赖注入信息，展示类之间的依赖关系，帮助识别高耦合模块 - 调用链路
○ 展示方法之间的调用顺序，帮助理解功能流程 - 接口和实现
○ 展示接口与其实现类之间的关系，帮助理解抽象与具体实现的对应
这里我设计了几个通用的 DTO
package com.wfh.drawio.core.model;
import lombok.Data;
import java.util.List;
/**
* 1. 架构图中的“节点” (比如一个类、一个表、一个微服务)
* @author fenghuanwang
*/
@Data
public class ArchNode {
private String id; // 唯一标识 (e.g., "com.example.UserService")
private String name; // 显示名称 (e.g., "UserService")
private String type; // 类型 (e.g., "CLASS", "INTERFACE", "TABLE", "SERVICE")
private String stereotype; // 构造型/注解 (e.g., "@Controller", "@Repository")
private List<String> fields; // 关键字段
// 新增字段：用于存放 API 路由列表、SQL 表名或其他备注
private String description;
// 建议新增：用于分组（比如按包名分组，画出子图）
private String group;
private List<String> methods; // 关键方法
}
这个就类似于架构图中的一个节点，或者说是一个服务。
package com.wfh.drawio.core.model;
import lombok.Data;
/**
* 2. 架构图中的“连线” (比如继承、调用、外键)
* @author fenghuanwang
*/
@Data
public class ArchRelationship {
private String sourceId; // 起点
private String targetId; // 终点
private String type; // 关系类型 (e.g., "DEPENDS_ON", "INHERITS", "CALLS", "FOREIGN_KEY")
private String label; // 连线上的文字 (e.g., "findUserById")
}
这个就是架构图中的连线，放到代码中就是服务之间的相互调用之类的。
/**
* 3. 完整的分析结果
* @author fenghuanwang
*/
@Data
public class ProjectAnalysisResult {
private List<ArchNode> nodes;
private List<ArchRelationship> relationships;
}
而这个就是完整的分析结果了，也就是要返回给前端的东西
那这个 Java 解析器具体代码逻辑是怎么样的呢
下面是完整的代码，这段代码是使用了 Java 的 SPI 机制实现的，具体什么是 SPI 机制，可以去我的上一篇文章中寻找
package com.wfh.drawio.spi.parser;
import com.github.javaparser.JavaParser;
import com.github.javaparser.ParserConfiguration;
import com.github.javaparser.ast.CompilationUnit;
import com.github.javaparser.ast.ImportDeclaration;
import com.github.javaparser.ast.body.ClassOrInterfaceDeclaration;
import com.github.javaparser.ast.comments.Comment;
import com.github.javaparser.ast.expr.AnnotationExpr;
import com.github.javaparser.ast.type.ClassOrInterfaceType;
import com.github.javaparser.symbolsolver.JavaSymbolSolver;
import com.github.javaparser.symbolsolver.resolution.typesolvers.CombinedTypeSolver;
import com.github.javaparser.symbolsolver.resolution.typesolvers.JavaParserTypeSolver;
import com.github.javaparser.symbolsolver.resolution.typesolvers.ReflectionTypeSolver;
import com.wfh.drawio.core.model.ArchNode;
import com.wfh.drawio.core.model.ArchRelationship;
import com.wfh.drawio.core.model.ProjectAnalysisResult;
import com.wfh.drawio.spi.LanguageParser;
import lombok.extern.slf4j.Slf4j;
import org.springframework.util.StringUtils;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.*;
import java.util.stream.Collectors;
import java.util.stream.Stream;
/**
* @Title: JavaSpringParser
* @Author wangfenghuan
* @description: 极致优化的 Spring Boot 项目解析器 (支持 Javadoc 提取)
*/
@Slf4j
public class JavaSpringParser implements LanguageParser {
private static final Map<String, String> STEREOTYPE_MAPPING = Map.of(
"RestController", "API Layer",
"Controller", "API Layer",
"Service", "Business Layer",
"Repository", "Data Layer",
"Mapper", "Data Layer",
"Component", "Infrastructure",
"Configuration", "Infrastructure",
"Entity", "Data Layer",
"Table", "Data Layer"
);
private static final Set<String> IGNORED_SUFFIXES = Set.of(
"Test", "Tests", "DTO", "VO", "Request", "Response", "Exception", "Constant", "Config", "Utils", "Properties"
);
private static final Set<String> IGNORED_PACKAGES = Set.of(
"java.", "javax.", "jakarta.",
"org.springframework.", "org.slf4j.", "org.apache.",
"com.baomidou.", "lombok.", "com.fasterxml."
);
@Override
public String getName() {
return "Java-Spring-Doc-Enhanced";
}
@Override
public boolean canParse(String projectDir) {
Path rootPath = Paths.get(projectDir);
if (!Files.exists(rootPath) || !Files.isDirectory(rootPath)) return false;
try (Stream<Path> stream = Files.walk(rootPath, 2)) {
return stream.filter(Files::isRegularFile).anyMatch(p -> {
String name = p.getFileName().toString();
return name.equals("pom.xml") || name.equals("build.gradle") || name.equals("build.gradle.kts");
});
} catch (IOException e) {
return false;
}
}
@Override
public ProjectAnalysisResult parse(String projectDir) {
log.info("Starting Analysis with Javadoc Extraction: {}", projectDir);
JavaParser javaParser = initializeSymbolSolver(projectDir);
List<ArchNode> rawNodes = new ArrayList<>();
List<ArchRelationship> rawRelationships = new ArrayList<>();
Set<String> processedClasses = new HashSet<>();
try {
List<Path> javaFiles = findJavaFiles(projectDir);
for (Path javaFile : javaFiles) {
try {
CompilationUnit cu = javaParser.parse(javaFile).getResult().orElse(null);
if (cu == null) continue;
String packageName = cu.getPackageDeclaration().map(pd -> pd.getNameAsString()).orElse("");
cu.findAll(ClassOrInterfaceDeclaration.class).forEach(clazz -> {
String className = clazz.getNameAsString();
if (isIgnoredClass(className)) return;
String fullClassName = getFullyQualifiedName(clazz, packageName);
if (processedClasses.contains(fullClassName)) return;
ArchNode node = analyzeClass(clazz, fullClassName);
if (node != null) rawNodes.add(node);
rawRelationships.addAll(analyzeRelationships(clazz, fullClassName, cu));
processedClasses.add(fullClassName);
});
} catch (Exception e) {
log.warn("Parse error: {}", e.getMessage());
}
}
} catch (IOException e) {
log.error("IO Error", e);
}
return optimizeResult(rawNodes, rawRelationships);
}
private ArchNode analyzeClass(ClassOrInterfaceDeclaration clazz, String id) {
ArchNode node = new ArchNode();
node.setId(id);
node.setName(clazz.getNameAsString());
// 1. 提取 Javadoc 注释 (新增功能)
String comment = extractClassComment(clazz);
String type = "Class";
String stereotype = "Model";
if (clazz.isInterface()) type = "Interface";
List<String> annotations = clazz.getAnnotations().stream().map(a -> a.getNameAsString()).collect(Collectors.toList());
if (clazz.getNameAsString().endsWith("Mapper") || annotations.contains("Mapper")) {
type = "Interface";
stereotype = "Data Layer";
}
for (Map.Entry<String, String> entry : STEREOTYPE_MAPPING.entrySet()) {
if (annotations.stream().anyMatch(a -> a.contains(entry.getKey()))) {
type = entry.getKey().toUpperCase();
stereotype = entry.getValue();
break;
}
}
node.setType(type);
node.setStereotype(stereotype);
// 2. 构建 Description (合并 注释 + 技术细节)
List<String> descParts = new ArrayList<>();
// Part A: 中文注释
if (comment != null && !comment.isEmpty()) {
descParts.add(comment);
}
// Part B: 技术细节 (API 路由 或 表名)
if ("API Layer".equals(stereotype)) {
List<String> routes = extractApiRoutes(clazz);
if (!routes.isEmpty()) {
descParts.add("APIs:\n" + String.join("\n", routes));
}
} else if (clazz.getNameAsString().endsWith("Entity") || annotations.contains("TableName")) {
extractTableName(clazz).ifPresent(t -> descParts.add("Table: " + t));
}
if (!descParts.isEmpty()) {
node.setDescription(String.join("\n\n", descParts));
}
node.setFields(Collections.emptyList());
node.setMethods(Collections.emptyList());
return node;
}
/**
* 新增：提取并清洗 Javadoc
*/
private String extractClassComment(ClassOrInterfaceDeclaration clazz) {
return clazz.getComment()
.map(Comment::getContent)
.map(this::cleanJavadoc)
.orElse("");
}
/**
* 清洗 Javadoc：去除 * 号、@author 等标签
*/
private String cleanJavadoc(String content) {
if (content == null) return "";
String[] lines = content.split("\n");
StringBuilder sb = new StringBuilder();
for (String line : lines) {
// 去除开头的 * 和空格
String cleanLine = line.trim().replaceAll("^\*+\s?", "").trim();
// 遇到 @ 标签（如 @author, @date）停止读取，或者跳过
// 这里策略是：只读取第一段描述，遇到 @ 就停止，通常第一段是核心描述
if (cleanLine.startsWith("@")) {
break;
}
// 忽略空行
if (!cleanLine.isEmpty()) {
sb.append(cleanLine).append(" "); // 将多行描述合并为一行
}
}
return sb.toString().trim();
}
private ProjectAnalysisResult optimizeResult(List<ArchNode> nodes, List<ArchRelationship> relationships) {
Set<String> validNodeIds = nodes.stream().map(ArchNode::getId).collect(Collectors.toSet());
List<ArchRelationship> cleanRelationships = relationships.stream()
.filter(r -> validNodeIds.contains(r.getSourceId()) && validNodeIds.contains(r.getTargetId()))
.filter(r -> !r.getSourceId().equals(r.getTargetId()))
.collect(Collectors.toList());
Set<String> connectedNodes = new HashSet<>();
cleanRelationships.forEach(r -> {
connectedNodes.add(r.getSourceId());
connectedNodes.add(r.getTargetId());
});
List<ArchNode> cleanNodes = nodes.stream()
.filter(n -> {
if ("API Layer".equals(n.getStereotype())) return true;
return connectedNodes.contains(n.getId());
})
.collect(Collectors.toList());
ProjectAnalysisResult result = new ProjectAnalysisResult();
result.setNodes(cleanNodes);
result.setRelationships(cleanRelationships);
return result;
}
private List<ArchRelationship> analyzeRelationships(ClassOrInterfaceDeclaration clazz, String sourceId, CompilationUnit cu) {
List<ArchRelationship> rels = new ArrayList<>();
clazz.getExtendedTypes().forEach(t -> addRel(rels, sourceId, resolveType(t, cu), "EXTENDS"));
clazz.getImplementedTypes().forEach(t -> addRel(rels, sourceId, resolveType(t, cu), "IMPLEMENTS"));
clazz.getFields().forEach(field -> {
if (field.isAnnotationPresent("Autowired") || field.isAnnotationPresent("Resource") || field.isAnnotationPresent("Inject")) {
field.getVariables().forEach(v -> addRel(rels, sourceId, resolveType(field.getElementType(), cu), "DEPENDS_ON"));
}
});
clazz.getConstructors().forEach(c -> c.getParameters().forEach(p -> addRel(rels, sourceId, resolveType(p.getType(), cu), "DEPENDS_ON")));
return rels;
}
private boolean isIgnoredClass(String className) {
return IGNORED_SUFFIXES.stream().anyMatch(className::endsWith);
}
private boolean isIgnoredPackage(String typeName) {
if (typeName == null) return true;
return IGNORED_PACKAGES.stream().anyMatch(typeName::startsWith);
}
private void addRel(List<ArchRelationship> rels, String src, String target, String type) {
if (target == null || target.equals(src) || isIgnoredPackage(target)) return;
ArchRelationship rel = new ArchRelationship();
rel.setSourceId(src);
rel.setTargetId(target);
rel.setType(type);
rels.add(rel);
}
private JavaParser initializeSymbolSolver(String projectDir) {
CombinedTypeSolver combinedSolver = new CombinedTypeSolver();
combinedSolver.add(new ReflectionTypeSolver());
Path srcPath = Paths.get(projectDir, "src", "main", "java");
if (Files.exists(srcPath)) {
combinedSolver.add(new JavaParserTypeSolver(srcPath));
} else {
combinedSolver.add(new JavaParserTypeSolver(new File(projectDir)));
}
ParserConfiguration config = new ParserConfiguration();
config.setSymbolResolver(new JavaSymbolSolver(combinedSolver));
return new JavaParser(config);
}
private String resolveType(ClassOrInterfaceType type, CompilationUnit cu) {
try {
return type.resolve().asReferenceType().getQualifiedName();
} catch (Exception e) {
return inferFullyQualifiedNameFromImports(type.getNameAsString(), cu);
}
}
private String resolveType(com.github.javaparser.ast.type.Type type, CompilationUnit cu) {
try {
if (type.isClassOrInterfaceType()) return type.asClassOrInterfaceType().resolve().asReferenceType().getQualifiedName();
return null;
} catch (Exception e) {
return inferFullyQualifiedNameFromImports(type.asString(), cu);
}
}
private String inferFullyQualifiedNameFromImports(String simpleName, CompilationUnit cu) {
Optional<ImportDeclaration> match = cu.getImports().stream()
.filter(i -> !i.isAsterisk() && i.getNameAsString().endsWith("." + simpleName))
.findFirst();
if (match.isPresent()) return match.get().getNameAsString();
String packageName = cu.getPackageDeclaration().map(pd -> pd.getNameAsString()).orElse("");
return packageName.isEmpty() ? simpleName : packageName + "." + simpleName;
}
private String getFullyQualifiedName(ClassOrInterfaceDeclaration clazz, String packageName) {
return packageName.isEmpty() ? clazz.getNameAsString() : packageName + "." + clazz.getNameAsString();
}
private List<String> extractApiRoutes(ClassOrInterfaceDeclaration clazz) {
List<String> routes = new ArrayList<>();
String basePath = "";
Optional<AnnotationExpr> classMapping = clazz.getAnnotationByName("RequestMapping");
if (classMapping.isPresent()) basePath = extractPath(classMapping.get());
String finalBasePath = basePath;
clazz.getMethods().forEach(m -> {
Stream.of("GetMapping", "PostMapping", "PutMapping", "DeleteMapping", "RequestMapping").forEach(methodType -> {
m.getAnnotationByName(methodType).ifPresent(ann -> {
String methodPath = extractPath(ann);
String httpMethod = methodType.replace("Mapping", "").toUpperCase();
if ("REQUEST".equals(httpMethod)) httpMethod = "ALL";
routes.add("[" + httpMethod + "] " + (finalBasePath + methodPath).replaceAll("//", "/"));
});
});
});
return routes;
}
private String extractPath(AnnotationExpr ann) {
if (ann.isSingleMemberAnnotationExpr()) {
return ann.asSingleMemberAnnotationExpr().getMemberValue().toString().replace(""", "");
} else if (ann.isNormalAnnotationExpr()) {
return ann.asNormalAnnotationExpr().getPairs().stream()
.filter(p -> p.getNameAsString().equals("value") || p.getNameAsString().equals("path"))
.findFirst().map(p -> p.getValue().toString().replace(""", "")).orElse("");
}
return "";
}
private Optional<String> extractTableName(ClassOrInterfaceDeclaration clazz) {
return clazz.getAnnotationByName("TableName").map(this::extractPath)
.or(() -> clazz.getAnnotationByName("Table").map(this::extractPath));
}
private List<Path> findJavaFiles(String projectPath) throws IOException {
try (Stream<Path> paths = Files.walk(Paths.get(projectPath))) {
return paths.filter(Files::isRegularFile).filter(p -> p.toString().endsWith(".java")).collect(Collectors.toList());
}
}
}
SQL 语句解析
在实现SQL解析功能时，我选择了使用阿里巴巴开源的Druid（德鲁伊）项目中的SQLUtil模块。这一选择是基于Druid在SQL解析领域的强大功能和良好性能，同时其丰富的API和活跃的开源社区也为项目开发提供了有力支持。
在具体实现上，我采用了插件化（Service Provider Interface, SPI）的设计模式。通过定义统一的接口规范，
解析器代码如下
package com.wfh.drawio.spi.parser;
import com.alibaba.druid.sql.SQLUtils;
import com.alibaba.druid.sql.ast.SQLStatement;
import com.alibaba.druid.sql.ast.statement.*;
import com.alibaba.druid.util.JdbcConstants;
import com.wfh.drawio.core.model.ArchNode;
import com.wfh.drawio.core.model.ArchRelationship;
import com.wfh.drawio.core.model.ProjectAnalysisResult;
import com.wfh.drawio.spi.LanguageParser;
import lombok.extern.slf4j.Slf4j;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.*;
import java.util.stream.Collectors;
import java.util.stream.Stream;
/**
* @Title: SqlParser
* @Author wangfenghuan
* @description: 优化版 SQL 解析器 (已修复 Lambda 变量 Final 问题)
*/
@Slf4j
public class SqlParser implements LanguageParser {
private static final Set<String> IGNORED_COLUMNS = Set.of(
"create_time", "update_time", "create_at", "update_at",
"created_time", "updated_time", "created_at", "updated_at",
"is_delete", "is_deleted", "version", "revision"
);
@Override
public String getName() {
return "SQL-DDL-Enhanced";
}
@Override
public boolean canParse(String projectDir) {
File file = new File(projectDir);
if (!file.exists()) {
return false;
}
if (file.isFile()) {
return file.getName().toLowerCase().endsWith(".sql");
}
try (Stream<Path> paths = Files.walk(Paths.get(projectDir), 3)) {
return paths.anyMatch(p -> p.toString().toLowerCase().endsWith(".sql"));
} catch (IOException e) {
return false;
}
}
@Override
public ProjectAnalysisResult parse(String projectDir) {
log.info("Starting SQL analysis: {}", projectDir);
ProjectAnalysisResult result = new ProjectAnalysisResult();
List<ArchNode> nodes = new ArrayList<>();
List<ArchRelationship> relationships = new ArrayList<>();
Set<String> tableNames = new HashSet<>();
try {
List<Path> sqlFiles = findSqlFiles(projectDir);
for (Path sqlFile : sqlFiles) {
String content = Files.readString(sqlFile);
parseSqlContent(content, nodes, relationships, tableNames);
}
inferLogicalRelationships(nodes, relationships, tableNames);
} catch (Exception e) {
log.error("Error parsing SQL files", e);
}
result.setNodes(nodes);
result.setRelationships(relationships);
return result;
}
private void parseSqlContent(String content, List<ArchNode> nodes, List<ArchRelationship> relationships, Set<String> tableNames) {
List<SQLStatement> statements = parseWithFallback(content);
for (SQLStatement stmt : statements) {
if (stmt instanceof SQLCreateTableStatement) {
SQLCreateTableStatement createTable = (SQLCreateTableStatement) stmt;
ArchNode node = processCreateTable(createTable, relationships);
if (node != null) {
nodes.add(node);
tableNames.add(node.getId());
}
}
}
}
private List<SQLStatement> parseWithFallback(String content) {
try {
return SQLUtils.parseStatements(content, JdbcConstants.MYSQL);
} catch (Exception e1) {
try {
return SQLUtils.parseStatements(content, JdbcConstants.POSTGRESQL);
} catch (Exception e2) {
try {
return SQLUtils.parseStatements(content, JdbcConstants.ORACLE);
} catch (Exception e3) {
return Collections.emptyList();
}
}
}
}
private ArchNode processCreateTable(SQLCreateTableStatement createTable, List<ArchRelationship> relationships) {
String tableName = cleanName(createTable.getTableName());
ArchNode node = new ArchNode();
node.setId(tableName);
node.setName(tableName);
node.setType("TABLE");
node.setStereotype("Database Table");
if (createTable.getComment() != null) {
node.setDescription(cleanComment(createTable.getComment().toString()));
}
List<String> fields = new ArrayList<>();
for (SQLTableElement element : createTable.getTableElementList()) {
if (element instanceof SQLColumnDefinition) {
SQLColumnDefinition column = (SQLColumnDefinition) element;
String colName = cleanName(column.getName().getSimpleName());
if (IGNORED_COLUMNS.contains(colName.toLowerCase())) {
continue;
}
String colType = column.getDataType().getName();
StringBuilder fieldStr = new StringBuilder(colName).append(": ").append(colType);
if (column.isPrimaryKey()) {
fieldStr.append(" (PK)");
} else if (createTable.findColumn(colName) != null && isPrimaryKeyInConstraints(createTable, colName)) {
fieldStr.append(" (PK)");
}
if (column.getComment() != null) {
String comment = cleanComment(column.getComment().toString());
if (!comment.isEmpty()) {
fieldStr.append(" // ").append(comment);
}
}
fields.add(fieldStr.toString());
} else if (element instanceof SQLForeignKeyConstraint) {
SQLForeignKeyConstraint fk = (SQLForeignKeyConstraint) element;
String targetTable = cleanName(fk.getReferencedTableName().getSimpleName());
ArchRelationship rel = new ArchRelationship();
rel.setSourceId(tableName);
rel.setTargetId(targetTable);
rel.setType("FOREIGN_KEY");
String colName = fk.getReferencingColumns().stream()
.map(c -> cleanName(c.getSimpleName()))
.collect(Collectors.joining(","));
rel.setLabel("FK: " + colName);
relationships.add(rel);
}
}
node.setFields(fields);
node.setMethods(Collections.emptyList());
return node;
}
/**
* 修复点：inferLogicalRelationships 方法
* 引入 finalTarget 变量，解决 Lambda 表达式报错
*/
private void inferLogicalRelationships(List<ArchNode> nodes, List<ArchRelationship> relationships, Set<String> allTables) {
for (ArchNode node : nodes) {
if (node.getFields() == null) continue;
for (String fieldStr : node.getFields()) {
String colName = fieldStr.split(":")[0].trim();
if (colName.toLowerCase().endsWith("_id")) {
String potentialTableName = colName.substring(0, colName.length() - 3);
String tempTarget = matchTable(potentialTableName, allTables);
if (tempTarget == null) {
tempTarget = matchTable(potentialTableName + "s", allTables);
}
// ✅ 关键修复：将可能变化的 tempTarget 赋值给一个 final 变量
String finalTarget = tempTarget;
if (finalTarget != null && !finalTarget.equals(node.getId())) {
// 在 Lambda 中只使用 finalTarget
boolean exists = relationships.stream().anyMatch(r ->
r.getSourceId().equals(node.getId()) && r.getTargetId().equals(finalTarget)
);
if (!exists) {
ArchRelationship rel = new ArchRelationship();
rel.setSourceId(node.getId());
rel.setTargetId(finalTarget);
rel.setType("LOGICAL_KEY");
rel.setLabel("Link: " + colName);
relationships.add(rel);
}
}
}
}
}
}
private String matchTable(String guess, Set<String> tables) {
for (String table : tables) {
if (table.equalsIgnoreCase(guess)) return table;
}
return null;
}
private boolean isPrimaryKeyInConstraints(SQLCreateTableStatement table, String colName) {
if (table.getTableElementList() == null) return false;
for (SQLTableElement element : table.getTableElementList()) {
if (element instanceof SQLPrimaryKey) {
SQLPrimaryKey pk = (SQLPrimaryKey) element;
return pk.getColumns().stream().anyMatch(c -> cleanName(c.getExpr().toString()).equals(colName));
}
}
return false;
}
private String cleanName(String name) {
if (name == null) return "";
return name.replace("`", "").replace(""", "").replace("'", "").trim();
}
private String cleanComment(String comment) {
if (comment == null) return "";
return comment.replace("'", "").trim();
}
private List<Path> findSqlFiles(String projectPath) throws IOException {
Path startPath = Paths.get(projectPath);
if (Files.isRegularFile(startPath) && startPath.toString().toLowerCase().endsWith(".sql")) {
return List.of(startPath);
}
try (Stream<Path> paths = Files.walk(startPath)) {
return paths
.filter(Files::isRegularFile)
.filter(path -> path.toString().toLowerCase().endsWith(".sql"))
.collect(Collectors.toList());
}
}
}
刚才定义的一系列 DTO 是对于任何的图表都适用的，因为节点和连线就是构成一个不管是结构图还有 ER 图的主要元素。
好了，本期的分享就到这里。欢迎各位贡献代码
