一. 什么是雪碧图 简单解释，就是把很多小图集中到一起，做到一张大图片上。 今天来说下如何显示雪碧图。 原雪碧图:

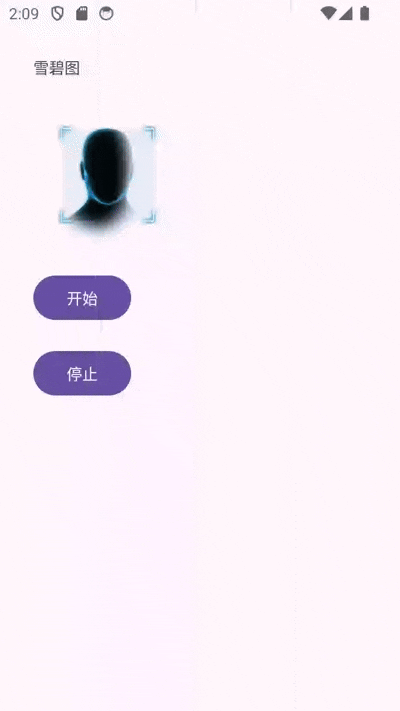

使用雪碧图实现的动画效果
二.雪碧图的用法
- 读取雪碧图
public static Bitmap getBitmapFromAssets(@NonNull Context context, @NonNull String filePath){
AssetManager assetManager = context.getAssets();
InputStream inputStream = null;
Bitmap spriteBitmap = null;
try {
inputStream = assetManager.open(filePath);
spriteBitmap = BitmapFactory.decodeStream(inputStream);
} catch (IOException e) {
e.printStackTrace();
}finally {
if(inputStream!=null){
try{
inputStream.close();
}catch (IOException ioException){
ioException.printStackTrace();
}
}
}
return spriteBitmap;
}
2. 获取雪碧图后，将图片切割后，放到数组中
public static ArrayList<Bitmap> getPlayArrayList(@NonNull Bitmap spriteBitmap,
int bitmapFrameNum, int bitmapFrameW, int bitmapFrameH, int countX, int countY,
boolean isScale, int scaleFactor){
ArrayList<Bitmap> bitmaps = new ArrayList<>();
for(int i=0;i<countY;i++){
for(int j=0;j<countX;j++){
Bitmap currentFrame = Bitmap.createBitmap(spriteBitmap,bitmapFrameW*j,bitmapFrameH*i,
bitmapFrameW,bitmapFrameH);
if(isScale){
currentFrame = Bitmap.createScaledBitmap(currentFrame,bitmapFrameW*scaleFactor,
bitmapFrameH*scaleFactor,true);
}
bitmaps.add(currentFrame);
if(bitmaps.size()>=bitmapFrameNum){
break;
}
}
}
return bitmaps;
}
3. 动画
public static void startImageAnimation(@NonNull Context context,@NonNull AnimationDrawable animation,ImageView imageView,ArrayList<Bitmap> bitmaps,int duration){
// create animation programmatically
animation.setOneShot(false); // repeat animation
for(int i=0;i<bitmaps.size();i++){
animation.addFrame(new BitmapDrawable(context.getResources(),bitmaps.get(i)),duration);
}
// load animation on image
if (Build.VERSION.SDK_INT < 16) {
imageView.setBackgroundDrawable(animation);
} else {
imageView.setBackground(animation);
}
// start animation on image
imageView.post(new Runnable() {
@Override
public void run() {
animation.start();
}
});
}
public static void stopImageAnimation(@NonNull ImageView imageView,@NonNull AnimationDrawable animation){
imageView.post(new Runnable() {
@Override
public void run() {
animation.stop();
}
});
}
4. 使用ImageView 进行展示
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/main"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<TextView
android:id="@+id/display_text_id"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="雪碧图"
android:layout_marginTop="50dp"
android:layout_marginStart="30dp"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent" />
<ImageView
android:id="@+id/image_id"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="20dp"
android:layout_marginStart="30dp"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/display_text_id" />
<Button
android:id="@+id/start_play_id"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="开始"
android:layout_marginTop="20dp"
android:layout_marginStart="30dp"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/image_id" />
<Button
android:id="@+id/stop_play_id"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="停止"
android:layout_marginTop="20dp"
android:layout_marginStart="30dp"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toBottomOf="@+id/start_play_id" />
</androidx.constraintlayout.widget.ConstraintLayout>
package com.example.spriteapplication;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.drawable.AnimationDrawable;
import android.os.Bundle;
import android.os.Handler;
import android.widget.ImageView;
import androidx.activity.EdgeToEdge;
import androidx.appcompat.app.AppCompatActivity;
import com.aomomo.sprite.SpriteBitmapUtils;
import com.example.spriteapplication.databinding.ActivityMainBinding;
import java.util.ArrayList;
public class MainActivity extends AppCompatActivity {
private ActivityMainBinding mBinding;
public static ArrayList<Bitmap> mBitmaps;
private AnimationDrawable animation;
// frame width
private static final int FRAME_W = 400;
// frame height
private static final int FRAME_H = 400;
// number of frames
private static final int NB_FRAMES = 65;
// nb of frames in x
private static final int COUNT_X = 8;
// nb of frames in y
private static final int COUNT_Y = 9;
// scale factor for each frame
private static final int SCALE_FACTOR = 3;
// frame duration
private static final int FRAME_DURATION = 40; // in ms !
private Context mContext = null;
private Handler mHandler = null;
private ImageView mImageView;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
EdgeToEdge.enable(this);
mBinding = ActivityMainBinding.inflate(getLayoutInflater());
setContentView(mBinding.getRoot());
mImageView = mBinding.imageId;
mContext = this;
animation = new AnimationDrawable();
mHandler = new Handler(getMainLooper()){
@Override
public void handleMessage(android.os.Message msg) {
super.handleMessage(msg);
switch (msg.what){
case 0:
if(mBitmaps != null) {
mBinding.imageId.setImageBitmap(mBitmaps.get(0));
}
break;
}
}
};
Runnable runnable = new Runnable() {
@Override
public void run() {
initBitmapsResource(mContext);
mHandler.sendEmptyMessage(0);
}
};
new Thread(runnable).start();
mBinding.startPlayId.setOnClickListener(v -> {
if(mBitmaps != null) {
mBinding.imageId.setImageBitmap(null);
SpriteBitmapUtils.getInstance().startImageAnimation(mContext, animation, mImageView, mBitmaps, FRAME_DURATION);
}
});
mBinding.stopPlayId.setOnClickListener(v -> {
if(mBitmaps != null) {
SpriteBitmapUtils.getInstance().stopImageAnimation(mImageView,animation);
mBinding.imageId.setImageBitmap(mBitmaps.get(0));
mBinding.imageId.setBackground(null);
}
});
}
public static void initBitmapsResource(Context context){
// load bitmap from assets
String spriteFilePath = "sprite_pictures.webp";
Bitmap birdBmp = SpriteBitmapUtils.getInstance().getBitmapFromAssets(context, spriteFilePath);
mBitmaps = SpriteBitmapUtils.getInstance().getPlayArrayList(birdBmp, NB_FRAMES, FRAME_W, FRAME_H, COUNT_X,
COUNT_Y, false, SCALE_FACTOR);
}
}
三. 完整代码 完整代码参考: github.com/lixiangdeba…
