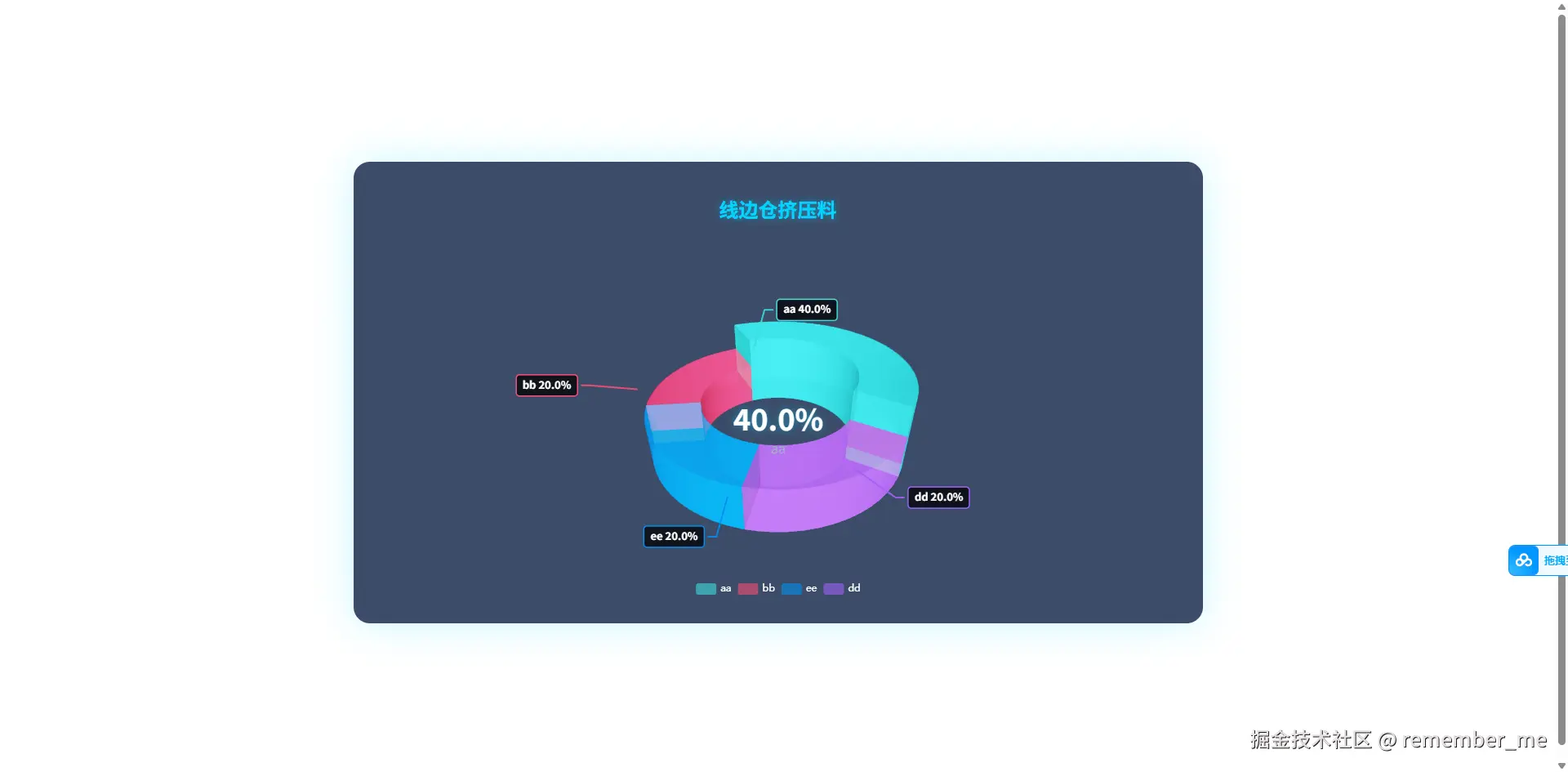

3D环形图

import React, { useRef, useEffect, useState, useCallback } from 'react';
import ReactECharts from 'echarts-for-react';
import * as echarts from 'echarts';
import 'echarts-gl';

// 生成参数方程
function getParametricEquation(startRatio, endRatio, isSelected, isHovered, k, h) {
    let midRatio = (startRatio + endRatio) / 2;
    let startRadian = startRatio * Math.PI * 2;
    let endRadian = endRatio * Math.PI * 2;
    let midRadian = midRatio * Math.PI * 2;

    if (startRatio === 0 && endRatio === 1) {
        isSelected = false;
    }

    k = typeof k !== 'undefined' ? k : 1 / 3;

    let offsetX = isSelected ? Math.cos(midRadian) * 0.1 : 0;
    let offsetY = isSelected ? Math.sin(midRadian) * 0.1 : 0;
    let hoverRate = isHovered ? 1.05 : 1;

    return {
        u: {
            min: -Math.PI,
            max: Math.PI * 3,
            step: Math.PI / 32
        },
        v: {
            min: 0,
            max: Math.PI * 2,
            step: Math.PI / 20
        },
        x: function (u, v) {
            if (u < startRadian) {
                return offsetX + Math.cos(startRadian) * (1 + Math.cos(v) * k) * hoverRate;
            }
            if (u > endRadian) {
                return offsetX + Math.cos(endRadian) * (1 + Math.cos(v) * k) * hoverRate;
            }
            return offsetX + Math.cos(u) * (1 + Math.cos(v) * k) * hoverRate;
        },
        y: function (u, v) {
            if (u < startRadian) {
                return offsetY + Math.sin(startRadian) * (1 + Math.cos(v) * k) * hoverRate;
            }
            if (u > endRadian) {
                return offsetY + Math.sin(endRadian) * (1 + Math.cos(v) * k) * hoverRate;
            }
            return offsetY + Math.sin(u) * (1 + Math.cos(v) * k) * hoverRate;
        },
        z: function (u, v) {
            if (u < -Math.PI * 0.5) {
                return Math.sin(u);
            }
            if (u > Math.PI * 2.5) {
                return Math.sin(u) * h * 0.1;
            }
            return Math.sin(v) > 0 ? 1 * h * 0.1 : -1;
        }
    };
}

// 辅助函数：Hex 转 RGBA
function hexToRgba(hex, alpha) {
    let r, g, b;

    if (hex.startsWith('#')) {
        hex = hex.slice(1);
    }

    if (hex.length === 3) {
        r = parseInt(hex[0] + hex[0], 16);
        g = parseInt(hex[1] + hex[1], 16);
        b = parseInt(hex[2] + hex[2], 16);
    } else if (hex.length === 6) {
        r = parseInt(hex.slice(0, 2), 16);
        g = parseInt(hex.slice(2, 4), 16);
        b = parseInt(hex.slice(4, 6), 16);
    } else {
        const canvas = document.createElement('canvas');
        const ctx = canvas.getContext('2d');
        ctx.fillStyle = hex;
        const computed = ctx.fillStyle;
        if (computed.startsWith('rgb')) {
            return computed.replace('rgb', 'rgba').replace(')', `, ${alpha})`);
        }
        return hex;
    }

    return `rgba(${r}, ${g}, ${b}, ${alpha})`;
}

// 生成 3D 饼图配置
function getPie3D(pieData, internalDiameterRatio) {
    let series = [];
    let sumValue = 0;
    let startValue = 0;
    let endValue = 0;
    let legendData = [];
    let k = typeof internalDiameterRatio !== 'undefined'
        ? (1 - internalDiameterRatio) / (1 + internalDiameterRatio)
        : 1 / 3;

    // 找出最大值用于中心显示
    const maxItem = pieData.reduce((max, item) => item.value > max.value ? item : max, pieData[0]);
    const total = pieData.reduce((sum, item) => sum + item.value, 0);
    const maxPercent = ((maxItem.value / total) * 100).toFixed(1);

    for (let i = 0; i < pieData.length; i++) {
        sumValue += pieData[i].value;

        let seriesItem = {
            name: typeof pieData[i].name === 'undefined' ? `series${i}` : pieData[i].name,
            type: 'surface',
            parametric: true,
            wireframe: { show: false },
            pieData: pieData[i],
            pieStatus: { selected: false, hovered: false, k: k }
        };

        // 设置半透明颜色
        let itemStyle = {};
        if (typeof pieData[i].itemStyle !== 'undefined') {
            const color = pieData[i].itemStyle.color;
            itemStyle.color = hexToRgba(color, 0.85);
            if (typeof pieData[i].itemStyle.opacity !== 'undefined') {
                itemStyle.opacity = pieData[i].itemStyle.opacity;
            }
        }
        seriesItem.itemStyle = itemStyle;

        series.push(seriesItem);
    }

    // 计算每个扇区的起始和结束比例
    for (let i = 0; i < series.length; i++) {
        endValue = startValue + series[i].pieData.value;
        series[i].pieData.startRatio = startValue / sumValue;
        series[i].pieData.endRatio = endValue / sumValue;
        series[i].parametricEquation = getParametricEquation(
            series[i].pieData.startRatio,
            series[i].pieData.endRatio,
            false,
            false,
            k,
            series[i].pieData.value
        );
        startValue = endValue;
        legendData.push(series[i].name);
    }

    // 透明圆环，用于支撑高亮功能
    series.push({
        name: 'mouseoutSeries',
        type: 'surface',
        parametric: true,
        wireframe: { show: false },
        itemStyle: { opacity: 0 },
        parametricEquation: {
            u: { min: 0, max: Math.PI * 2, step: Math.PI / 20 },
            v: { min: 0, max: Math.PI, step: Math.PI / 20 },
            x: function (u, v) { return Math.sin(v) * Math.sin(u) + Math.sin(u); },
            y: function (u, v) { return Math.sin(v) * Math.cos(u) + Math.cos(u); },
            z: function (u, v) { return Math.cos(v) > 0 ? 0.1 : -0.1; }
        }
    });

    return {
        legend: {
            data: legendData,
            textStyle: { color: '#fff' },
            bottom: 10
        },
        tooltip: {
            formatter: params => {
                if (params.seriesName !== 'mouseoutSeries' && params.seriesIndex < series.length - 1) {
                    return `${params.seriesName}<br/>
            <span style="display:inline-block;margin-right:5px;border-radius:10px;width:10px;height:10px;background-color:${params.color};"></span>
            ${series[params.seriesIndex].pieData.value}`;
                }
                return '';
            }
        },
        // 中心文字
        graphic: [
            {
                type: 'text',
                left: 'center',
                top: '45%',
                style: {
                    text: maxPercent + '%',
                    textAlign: 'center',
                    fill: '#fff',
                    fontSize: 36,
                    fontWeight: 'bold',
                    textShadowBlur: 10,
                    textShadowColor: 'rgba(0, 212, 255, 0.5)'
                }
            },
            {
                type: 'text',
                left: 'center',
                top: '55%',
                style: {
                    text: maxItem.name,
                    textAlign: 'center',
                    fill: '#a0b3c6',
                    fontSize: 16
                }
            }
        ],
        xAxis3D: { min: -1, max: 1 },
        yAxis3D: { min: -1, max: 1 },
        zAxis3D: { min: -1, max: 1 },
        grid3D: {
            show: false,
            boxHeight: 15,
            viewControl: {
                // 限制视角旋转角度
                alpha: 35,
                beta: 30,
                rotateSensitivity: 0,
                zoomSensitivity: 0,
                panSensitivity: 0,
                autoRotate: false,
                distance: 200
            },
            light: {
                main: {
                    intensity: 1.2,
                    shadow: true,
                    alpha: 30,
                    beta: 30
                },
                ambient: {
                    intensity: 0.3
                }
            },
            postEffect: {
                enable: true,
                bloom: {
                    enable: true,
                    bloomIntensity: 0.15
                },
                SSAO: {
                    enable: true,
                    quality: 'medium',
                    radius: 2
                }
            }
        },
        series: series
    };
}

const Pie3DChart = ({
    data = [
        { name: 'cc', value: 80, itemStyle: { color: 'red' } },
        { name: 'aa', value: 44, itemStyle: { color: '#3edce0' } },
        { name: 'bb', value: 44, itemStyle: { color: '#f94e76' } },
        { name: 'ee', value: 44, itemStyle: { color: '#018ef1' } },
        { name: 'dd', value: 44, itemStyle: { color: '#9e60f9' } }
    ],
    internalDiameterRatio = 0.59,
    style = { width: '100%', height: '600px' },
    showLabels = true,
    labelDistance = 1.4
}) => {
    const chartRef = useRef(null);
    const [option, setOption] = useState(null);
    const selectedIndexRef = useRef('');
    const hoveredIndexRef = useRef('');
    const labelsRef = useRef([]); // 存储标签元素的引用

    // 计算扇区外侧中点的 3D 坐标
    const calculateLabelPosition = useCallback((pieData, index, k, isSelected, isHovered) => {
        const item = pieData[index];
        const startRatio = item.startRatio;
        const endRatio = item.endRatio;
        const midRatio = (startRatio + endRatio) / 2;
        const midRadian = midRatio * Math.PI * 2;

        // 基础半径（hover 时会放大）
        const hoverRate = isHovered ? 1.05 : 1;
        const radius = (1 + k) * hoverRate * labelDistance;

        // 计算中心点偏移（选中效果）
        let offsetX = 0, offsetY = 0;
        if (isSelected) {
            offsetX = Math.cos(midRadian) * 0.1;
            offsetY = Math.sin(midRadian) * 0.1;
        }

        // 计算 3D 坐标 (x, y, z)
        // 注意：z 坐标设为 pieData.value * 0.05 以在扇区中部高度
        const x = offsetX + Math.cos(midRadian) * radius;
        const y = offsetY + Math.sin(midRadian) * radius;
        const z = item.value * 0.05; // 中等高度

        return { x, y, z, midRadian, color: item.itemStyle?.color || '#fff' };
    }, [labelDistance]);

    // 将 3D 坐标转换为屏幕坐标
    const project3DToScreen = useCallback((chart, x3d, y3d, z3d) => {
        if (!chart) return { x: 0, y: 0 };

        // 获取当前的 viewControl 状态
        const option = chart.getOption();
        const viewControl = option.grid3D[0].viewControl;
        const alpha = (viewControl.alpha || 35) * Math.PI / 180; // 绕 x 轴旋转
        const beta = (viewControl.beta || 30) * Math.PI / 180;   // 绕 z 轴旋转

        // 简化的 3D 投影计算（正交投影近似）
        // 旋转矩阵：先绕 Z 轴(beta)，再绕 X 轴(alpha)
        const cosA = Math.cos(alpha), sinA = Math.sin(alpha);
        const cosB = Math.cos(beta), sinB = Math.sin(beta);

        // 应用旋转
        const x1 = x3d * cosB - y3d * sinB;
        const y1 = x3d * sinB + y3d * cosB;
        const z1 = z3d;

        const y2 = y1 * cosA - z1 * sinA;
        const z2 = y1 * sinA + z1 * cosA;

        // 投影到 XY 平面，并应用缩放
        const scale = 120; // 缩放因子，需要根据 distance 调整
        const x2d = x1 * scale;
        const y2d = -y2 * scale; // Y 轴翻转（屏幕坐标系）

        // 获取图表容器中心点
        const rect = chart.getDom().getBoundingClientRect();
        const centerX = rect.width / 2 - 40;
        const centerY = rect.height / 2 - 80;

        return {
            x: centerX + x2d,
            y: centerY + y2d,
            z2: z2 // 保留深度信息用于排序
        };
    }, []);

    // 创建或更新标签和指示线
    const updateLabels = useCallback(() => {
        const chart = chartRef.current;
        if (!chart || !showLabels) return;

        const currentOption = chart.getOption();
        const series = currentOption.series;

        labelsRef.current.forEach(el => el.remove());
        labelsRef.current = [];

        const chartDom = chart.getDom();

        series.forEach((s, index) => {
            if (s.name === 'mouseoutSeries' || !s.pieData) return;

            const pos = calculateLabelPosition(
                data,
                index,
                s.pieStatus.k,
                s.pieStatus.selected,
                s.pieStatus.hovered
            );

            const screenPos = project3DToScreen(chart, pos.x, pos.y, pos.z);

            // 计算扇区边缘的起点（用于指示线）
            const edgeRate = s.pieStatus.hovered ? 1.05 : 1.0;
            const edgeX = pos.x / labelDistance * edgeRate;
            const edgeY = pos.y / labelDistance * edgeRate;
            const edgeScreenPos = project3DToScreen(chart, edgeX, edgeY, pos.z);

            // 判断左右
            const isRight = pos.x > 0;

            // ========== 关键修改：添加旋转修正 ==========
            // 获取容器中心
            const rect = chartDom.getBoundingClientRect();
            const centerX = rect.width / 2;
            const centerY = rect.height / 2;

            // 将坐标相对于中心旋转 -30 度（抵消 beta 旋转或对齐视觉）
            const rotatePoint = (x, y, angleDeg) => {
                const angle = angleDeg * Math.PI / 180;
                const dx = x - centerX;
                const dy = y - centerY;
                const rx = dx * Math.cos(angle) - dy * Math.sin(angle);
                const ry = dx * Math.sin(angle) + dy * Math.cos(angle);
                return {
                    x: centerX + rx,
                    y: centerY + ry
                };
            };

            // 对关键点应用旋转修正（顺时针30度）
            const rotationAngle = 30; // 顺时针30度
            const rotatedEdge = rotatePoint(edgeScreenPos.x, edgeScreenPos.y, rotationAngle);
            const rotatedScreen = rotatePoint(screenPos.x, screenPos.y, rotationAngle);

            const elbowX = isRight ? rotatedScreen.x + 10 : rotatedScreen.x - 10;

            // 创建 SVG 容器
            const group = document.createElementNS('http://www.w3.org/2000/svg', 'svg');
            group.style.cssText = `
            position: absolute;
            left: 0;
            top: 0;
            width: 100%;
            height: 100%;
            pointer-events: none;
            z-index: 100;
            overflow: visible;
        `;

            // 使用旋转后的坐标绘制指示线
            const line = document.createElementNS('http://www.w3.org/2000/svg', 'polyline');
            const points = `${rotatedEdge.x},${rotatedEdge.y} ${rotatedScreen.x},${rotatedScreen.y} ${elbowX},${rotatedScreen.y}`;

            line.setAttribute('points', points);
            line.setAttribute('fill', 'none');
            line.setAttribute('stroke', pos.color);
            line.setAttribute('stroke-width', '2');
            line.setAttribute('stroke-linecap', 'round');
            line.setAttribute('stroke-linejoin', 'round');
            line.setAttribute('opacity', '0.9');
            group.appendChild(line);

            // 标签背景（使用旋转后的坐标）
            const percent = ((s.pieData.value / data.reduce((sum, item) => sum + item.value, 0)) * 100).toFixed(1);
            const textContent = `${s.name} ${percent}%`;

            const tempText = document.createElement('span');
            tempText.style.cssText = 'position:absolute;visibility:hidden;font-size:13px;font-weight:bold;';
            tempText.innerText = textContent;
            document.body.appendChild(tempText);
            const textWidth = tempText.offsetWidth + 16;
            const textHeight = 26;
            document.body.removeChild(tempText);

            const labelPadding = 8;
            const labelX = isRight ? elbowX + 5 : elbowX - textWidth - 5;
            const labelY = rotatedScreen.y - textHeight / 2;

            const bg = document.createElementNS('http://www.w3.org/2000/svg', 'rect');
            bg.setAttribute('x', labelX);
            bg.setAttribute('y', labelY);
            bg.setAttribute('width', textWidth);
            bg.setAttribute('height', textHeight);
            bg.setAttribute('rx', '4');
            bg.setAttribute('fill', 'rgba(0,0,0,0.75)');
            bg.setAttribute('stroke', pos.color);
            bg.setAttribute('stroke-width', '1.5');
            group.appendChild(bg);

            const text = document.createElementNS('http://www.w3.org/2000/svg', 'text');
            text.setAttribute('x', isRight ? labelX + labelPadding : labelX + textWidth - labelPadding);
            text.setAttribute('y', labelY + textHeight / 2 + 4);
            text.setAttribute('fill', '#fff');
            text.setAttribute('font-size', '13');
            text.setAttribute('font-weight', 'bold');
            text.setAttribute('text-anchor', isRight ? 'start' : 'end');
            text.textContent = textContent;
            group.appendChild(text);

            chartDom.appendChild(group);
            labelsRef.current.push(group);
        });
    }, [data, showLabels, labelDistance, calculateLabelPosition, project3DToScreen]);

    useEffect(() => {
        const initialOption = getPie3D(data, internalDiameterRatio);
        setOption(initialOption);
    }, [data, internalDiameterRatio]);

    // 标签更新定时器
    useEffect(() => {
        if (!option || !showLabels) return;

        // 延迟一点等待渲染完成
        const timer = setTimeout(updateLabels, 500);

        // 监听窗口大小变化
        const handleResize = () => {
            updateLabels();
        };
        window.addEventListener('resize', handleResize);

        return () => {
            clearTimeout(timer);
            window.removeEventListener('resize', handleResize);
            labelsRef.current.forEach(el => el.remove());
        };
    }, [option, showLabels, updateLabels]);

    const onChartReady = (chart) => {
        chartRef.current = chart;

        // 点击事件 - 选中效果
        chart.on('click', function (params) {
            if (params.seriesIndex >= option.series.length - 1) return;

            let currentOption = chart.getOption();
            let series = currentOption.series;

            let isSelected = !series[params.seriesIndex].pieStatus.selected;
            let isHovered = series[params.seriesIndex].pieStatus.hovered;
            let k = series[params.seriesIndex].pieStatus.k;
            let startRatio = series[params.seriesIndex].pieData.startRatio;
            let endRatio = series[params.seriesIndex].pieData.endRatio;

            // 取消之前选中的
            if (selectedIndexRef.current !== '' && selectedIndexRef.current !== params.seriesIndex) {
                series[selectedIndexRef.current].parametricEquation = getParametricEquation(
                    series[selectedIndexRef.current].pieData.startRatio,
                    series[selectedIndexRef.current].pieData.endRatio,
                    false,
                    false,
                    k,
                    series[selectedIndexRef.current].pieData.value
                );
                series[selectedIndexRef.current].pieStatus.selected = false;
            }

            // 设置当前选中状态
            series[params.seriesIndex].parametricEquation = getParametricEquation(
                startRatio, endRatio, isSelected, isHovered, k, series[params.seriesIndex].pieData.value
            );
            series[params.seriesIndex].pieStatus.selected = isSelected;

            if (isSelected) {
                selectedIndexRef.current = params.seriesIndex;
            } else {
                selectedIndexRef.current = '';
            }

            chart.setOption(currentOption);

            // 更新标签位置
            setTimeout(updateLabels, 100);
        });

        // mouseover - 高亮效果
        chart.on('mouseover', function (params) {
            if (params.seriesName === 'mouseoutSeries') return;
            if (hoveredIndexRef.current === params.seriesIndex) return;

            let currentOption = chart.getOption();
            let series = currentOption.series;

            // 取消之前的高亮
            if (hoveredIndexRef.current !== '') {
                let idx = hoveredIndexRef.current;
                let isSelected = series[idx].pieStatus.selected;
                let k = series[idx].pieStatus.k;
                series[idx].parametricEquation = getParametricEquation(
                    series[idx].pieData.startRatio,
                    series[idx].pieData.endRatio,
                    isSelected,
                    false,
                    k,
                    series[idx].pieData.value
                );
                series[idx].pieStatus.hovered = false;
            }

            // 设置新的高亮
            let isSelected = series[params.seriesIndex].pieStatus.selected;
            let k = series[params.seriesIndex].pieStatus.k;
            series[params.seriesIndex].parametricEquation = getParametricEquation(
                series[params.seriesIndex].pieData.startRatio,
                series[params.seriesIndex].pieData.endRatio,
                isSelected,
                true,
                k,
                series[params.seriesIndex].pieData.value + 5
            );
            series[params.seriesIndex].pieStatus.hovered = true;
            hoveredIndexRef.current = params.seriesIndex;

            chart.setOption(currentOption);
            setTimeout(updateLabels, 50);
        });

        // globalout - 取消高亮
        chart.on('globalout', function () {
            if (hoveredIndexRef.current === '') return;

            let currentOption = chart.getOption();
            let series = currentOption.series;
            let idx = hoveredIndexRef.current;

            let isSelected = series[idx].pieStatus.selected;
            let k = series[idx].pieStatus.k;

            series[idx].parametricEquation = getParametricEquation(
                series[idx].pieData.startRatio,
                series[idx].pieData.endRatio,
                isSelected,
                false,
                k,
                series[idx].pieData.value
            );
            series[idx].pieStatus.hovered = false;
            hoveredIndexRef.current = '';

            chart.setOption(currentOption);
            setTimeout(updateLabels, 50);
        });

        // 初始更新标签
        setTimeout(updateLabels, 300);
    };

    if (!option) return null;

    return (
        <div style={{ position: 'relative', ...style }}>
            <ReactECharts
                option={option}
                style={{ width: '100%', height: '100%' }}
                onChartReady={onChartReady}
                opts={{ renderer: 'canvas' }}
            />
        </div>
    );
};

export default Pie3DChart;
