一.Glide基本使用
//加载图片到ImageView，并指定缓存策略
RequestOptions requestOptions = new RequestOptions();
requestOptions.placeholder(loadingResId) //设置“加载中”状态时显示的图片
.error(errorResId); //设置“加载失败”状态时显示的图片
Glide.with(context)
.load(url)
.apply(requestOptions)
.into(imageView);
//加载图片到ImageView，并指定占位图
RequestOptions requestOptions = new RequestOptions();
requestOptions.placeholder(loadingResId) //设置“加载中”状态时显示的图片
.error(errorResId); //设置“加载失败”状态时显示的图片
Glide.with(context)
.load(url)
.apply(requestOptions)
.into(imageView);
二.glide生命周期源码分析
1.with流程分析
(1).with()方法
-
如果传入的是ApplicationContext 或者当前线程在子线程中，就创建一个能感知应用生命周期的RequestManager(new ApplicationLifeCycle()).
-
如果传入的是 Activity或者Fragment且是在主线程中，则会创建一个空白无UI的SupportRequestManagerFragment【Androidx.app.Fragemnt】or RequestManagerFragment【Android.app.Fragemnt】.
-
同时会在Fragment构造方法中，实例化ActivityFragmentLifeCycle【被观察者】 , 在Fragment的生命周期方法中，通过ActivityFragmentLifeCycle调用对应onStart,onStop,onDestory对应的方法。
-
同时也会创建一个对应的RequestManager（current.getGlideLifeCycle())，并把SuportRequestManagerFragment中的ActivityFragmentLifeCycle被观察者实例作为参数传入，然后添加观察者lifecycle.add(this)，并且每一个RequestManager都实现了LifeCycleListener观察者接口。
-
所以当Fragment的生命周期发生变化时， 会调用被观察者ActivityFramentLifeCycle中对应的自定义方法onStart(),onStop()，onDestory()，并且遍历实现了LifeCycleListener接口的观察者【RequestManager】列表
-
调用RequestManager中的onStart(),onSto(),onDestory()方法，最后通过调用RequestTracker中的resumeRequests(), pauseRequest,clearRequest来恢复，暂停，清除所有的请求。
//1.
public static RequestManager with(@NonNull FragmentActivity activity) {
return getRetriever(activity).get(activity);
}
//2.
public RequestManager get(@NonNull Context context) {
if (context == null) {
throw new IllegalArgumentException("You cannot start a load on a null Context");
} else if (Util.isOnMainThread() && !(context instanceof Application)) {
if (context instanceof FragmentActivity) {
return get((FragmentActivity) context);
} else if (context instanceof Activity) {
return get((Activity) context);
} else if (context instanceof ContextWrapper&& ((ContextWrapper)
context).getBaseContext().getApplicationContext() != null) {
return get(((ContextWrapper) context).getBaseContext());
}
}
return getApplicationManager(context);
}
//3.
public RequestManager get(@NonNull FragmentActivity activity) {
if (Util.isOnBackgroundThread()) {
return getApplicationManager(activity.getApplicationContext());
} else {
assertNotDestroyed(activity);
frameWaiter.registerSelf(activity);
FragmentManager fm = activity.getSupportFragmentManager();
return supportFragmentGet(activity, fm, /*parentHint=*/ null, isActivityVisible(activity));
}
}
/*创建一个RequestManager,并没有创建空白的Fragment，直接 new ApplicationLifecycle() 被观察者，和应用的生命周期绑定.*/
private RequestManager getApplicationManager(Context context) {
if (applicationManager == null) {
synchronized (this) {
if (applicationManager == null) {
Glide glide = Glide.get(context.getApplicationContext());
applicationManager =new RequestManager(new ApplicationLifecycle());
}
}
}
return applicationManager;
}
//【被观察者】实现类 ApplicationLifecycle实现了Lifecycle接口,无自定义onStart(),onStop(),onDestory()方法，不会绑定生命周期.
class ApplicationLifecycle implements Lifecycle {
@Override
public void addListener(@NonNull LifecycleListener listener) {
listener.onStart();
}
@Override
public void removeListener(@NonNull LifecycleListener listener) {
// Do nothing.
}
}
private RequestManager supportFragmentGet(
Context context,
FragmentManager fm,
Fragment parentHint,
boolean isParentVisible) {
//创建空白无UI的Fragment
SupportRequestManagerFragment current = getSupportRequestManagerFragment(fm, parentHint);
RequestManager requestManager = current.getRequestManager();
if (requestManager == null) {
Glide glide = Glide.get(context);
/*current.getGlideLifecycle()把Fragment中的ActivityFragmentLifeCycle被观察者对象传递给
RequestManager 用来添加观察者 */
requestManager =new RequestManager( current.getGlideLifecycle());//简化过
if (isParentVisible) {
requestManager.onStart();
}
current.setRequestManager(requestManager);
}
return requestManager;
}
(2).观察者接口LifecycleListener,被观察者接口Lifecycle
public interface LifecycleListener {
void onStart();
void onStop();
void onDestroy();
}
public interface Lifecycle {
void addListener(@NonNull LifecycleListener listener); //添加观察者
void removeListener(@NonNull LifecycleListener listener); //移除观察者
}
(3). 每一个RequestManager就是一个实现了LifeCycleListener接口的观察者
public class RequestManager implements LifeCycleListener{
RequestManager(Lifecycle lifecycle) {
lifecycle.addListener(this); //添加观察者
}
synchronized void track(@NonNull Target<?> target, @NonNull Request request) {
targetTracker.track(target);
requestTracker.runRequest(request);
}
public synchronized void onStart() {
requestTracker.resumeRequests(); //启动所有请求
targetTracker.onStart();
}
public synchronized void onStop() {
requestTracker.pauseRequests(); //暂停所有请求
targetTracker.onStop();
}
public synchronized void onDestroy() {
requestTracker.clearRequests(); //移除所有的请求
lifecycle.removeListener(this); //移除观察者
}
}
(4).被观察者实现类ActivityFramentLifeCycle实现了Lifecycle接口,自定义onStart(),onStop(),onDestory()方法.
class ActivityFragmentLifecycle implements Lifecycle {
private final Set<LifecycleListener> lifecycleListeners =
Collections.newSetFromMap(new WeakHashMap<LifecycleListener, Boolean>());
@Override
public void addListener(LifecycleListener listener) {
lifecycleListeners.add(listener);
}
@Override
public void removeListener(@NonNull LifecycleListener listener) {
lifecycleListeners.remove(listener);
}
//遍历所有实现了LifeCycleListener接口的RequestManager ,调用其中onStart()方法
void onStart() {
for (LifecycleListener lifecycleListener : lifecycleListeners) {
lifecycleListener.onStart();
}
}
//遍历所有实现了LifeCycleListener接口的RequestManager ,调用其中onStop()方法
void onStop() {
for (LifecycleListener lifecycleListener : lifecycleListeners)) {
lifecycleListener.onStop();
}
}
//遍历所有实现了LifeCycleListener接口的RequestManager ,调用其中onDestroy()方法
void onDestroy() {
for (LifecycleListener lifecycleListener : lifecycleListeners) {
lifecycleListener.onDestroy();
}
}
}
(5).空白无UI的SupportRequestManagerFragment 或者RequestManagerFragment（观察者模式的调用者）
public class SupportRequestManagerFragment extends Fragment {
private final ActivityFragmentLifecycle lifecycle;
public SupportRequestManagerFragment() {
this.lifecycle=new ActivityFragmentLifecycle()); //构造方法新建一个被观察者对象
}
//获取被观察者对象//在创建RequestManager时传递进去。
ActivityFragmentLifecycle getGlideLifecycle() {
return lifecycle;
}
public void onStart() {
lifecycle.onStart(); //调用被观察者对象中的onStart()方法
}
public void onStop() {
lifecycle.onStop();//调用被观察者对象中的onStop()方法
}
public void onDestroy() {
lifecycle.onDestroy();//调用被观察者对象中的onDestroy()方法
}
}
(6).RequestTracker 请求跟踪类
public class RequestTracker {
private final Set<Request> requests = Collections.newSetFromMap(new WeakHashMap<Request, Boolean>());
private final List<Request> pendingRequests = new ArrayList<>();
public void runRequest(@NonNull Request request) { //启动当前请求.
requests.add(request);
if (!isPaused) {
request.begin();
} else {
request.clear();
pendingRequests.add(request);
}
}
public void resumeRequests() { //启动所有请求
for (Request request : requests) {
if (!request.isComplete() && !request.isRunning()) {
request.begin();
}
}
pendingRequests.clear();
}
public void pauseRequests() { //暂停所有的请求
for (Request request : requests) {
if (request.isRunning()) {
request.pause();
pendingRequests.add(request);
}
}
public void clearRequests() { //清除所有的请求
for (Request request : requests) {
requests.remove(request)
}
pendingRequests.clear();
}
}
2.load流程分析 (最终返回一个RequestBuilder对象，内部持有图片URL)
public RequestBuilder<Drawable> load(@Nullable String string) {
return asDrawable().load(string);
}
public RequestBuilder<TranscodeType> load(@Nullable String string) {
return loadGeneric(string);
}
private RequestBuilder<TranscodeType> loadGeneric(@Nullable Object model) {
this.model = model;
isModelSet = true;
return this;
}

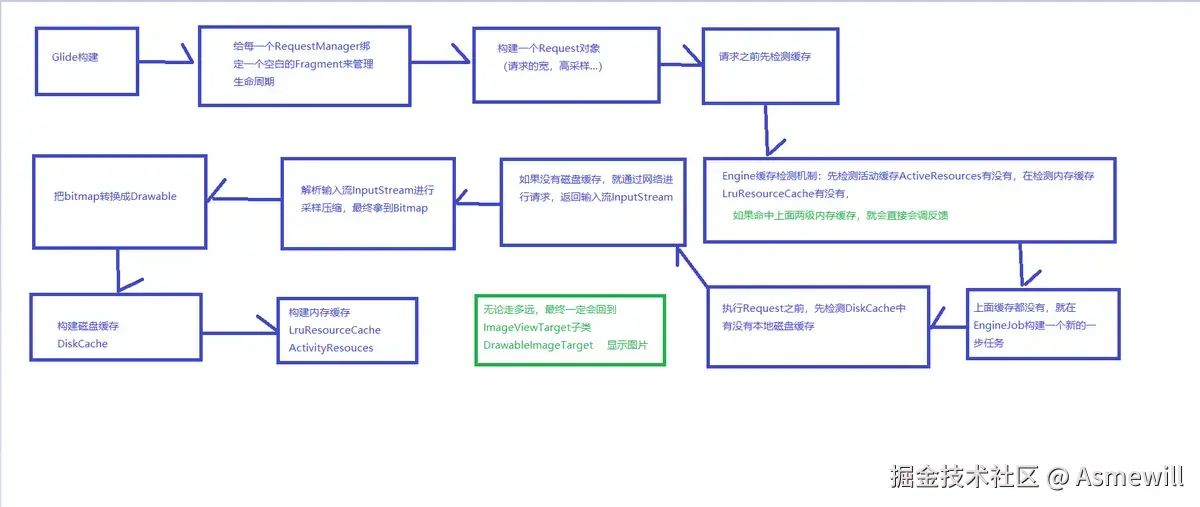

三.glide三级缓存机制源码分析
(1).Glide.into()主流程源码分析
private <Y extends Target<TranscodeType>> Y into(
@NonNull Y target,
@Nullable RequestListener<TranscodeType> targetListener,
BaseRequestOptions<?> options,
Executor callbackExecutor) {
//构建Request请求，实现类是SingleRequest
Request request = buildRequest(target, targetListener, options, callbackExecutor);
requestManager.track(target, request);// 调用RequestTrack中的runRequest()---> request.begin()
return target;
}
(2).调用SingleRequest中begin()
public void begin() {
if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
onSizeReady(overrideWidth, overrideHeight);
} else {
target.getSize(this);
}
}
public void onSizeReady(int width, int height) {
loadStatus =
engine.load(
glideContext,
model,
requestOptions.getSignature(),
this.width,
this.height,
requestOptions.getResourceClass(),
transcodeClass,
priority,
requestOptions.getDiskCacheStrategy(),
requestOptions.getTransformations(),
requestOptions.isTransformationRequired(),
requestOptions.isScaleOnlyOrNoTransform(),
requestOptions.getOptions(),
requestOptions.isMemoryCacheable(),
requestOptions.getUseUnlimitedSourceGeneratorsPool(),
requestOptions.getUseAnimationPool(),
requestOptions.getOnlyRetrieveFromCache(),
this,
callbackExecutor);
}
}
(3).调用Engine中的load方法
public <R> LoadStatus load(
GlideContext glideContext,
Object model,
Key signature,
int width,
int height,
Class<?> resourceClass,
Class<R> transcodeClass,
Priority priority,
DiskCacheStrategy diskCacheStrategy,
Map<Class<?>, Transformation<?>> transformations,
boolean isTransformationRequired,
boolean isScaleOnlyOrNoTransform,
Options options,
boolean isMemoryCacheable,
boolean useUnlimitedSourceExecutorPool,
boolean useAnimationPool,
boolean onlyRetrieveFromCache,
ResourceCallback cb,
Executor callbackExecutor) {
long startTime = VERBOSE_IS_LOGGABLE ? LogTime.getLogTime() : 0;
EngineKey key =
keyFactory.buildKey(
model,
signature,
width,
height,
transformations,
resourceClass,
transcodeClass,
options);
EngineResource<?> memoryResource;
synchronized (this) {
memoryResource = loadFromMemory(key, isMemoryCacheable, startTime);
if (memoryResource == null) {
return waitForExistingOrStartNewJob(
glideContext,
model,
signature,
width,
height,
resourceClass,
transcodeClass,
priority,
diskCacheStrategy,
transformations,
isTransformationRequired,
isScaleOnlyOrNoTransform,
options,
isMemoryCacheable,
useUnlimitedSourceExecutorPool,
useAnimationPool,
onlyRetrieveFromCache,
cb,
callbackExecutor,
key,
startTime);
}
}
cb.onResourceReady(
memoryResource, DataSource.MEMORY_CACHE, /* isLoadedFromAlternateCacheKey= */ false);
return null;
}
//从内存中查找缓存
private EngineResource<?> loadFromMemory(
EngineKey key, boolean isMemoryCacheable, long startTime) {
if (!isMemoryCacheable) {
return null;
}
EngineResource<?> active = loadFromActiveResources(key); //从活动资源中查找缓存
if (active != null) {
if (VERBOSE_IS_LOGGABLE) {
logWithTimeAndKey("Loaded resource from active resources", startTime, key);
}
return active;
}
EngineResource<?> cached = loadFromCache(key);
if (cached != null) {
if (VERBOSE_IS_LOGGABLE) {
logWithTimeAndKey("Loaded resource from cache", startTime, key);
}
return cached;
}
return null;
}
//从活动缓存中找
private EngineResource<?> loadFromActiveResources(Key key) {
EngineResource<?> active = activeResources.get(key);
if (active != null) {
active.acquire();
}
return active;
}
synchronized EngineResource<?> get(Key key) {
Map<Key, ResourceWeakReference> activeEngineResources = new HashMap<>();//弱引用
ResourceWeakReference activeRef = activeEngineResources.get(key);
if (activeRef == null) {
return null;
}
EngineResource<?> active = activeRef.get();
if (active == null) {
cleanupActiveReference(activeRef);
}
return active;
}
//从活动缓存中找，实际是从内存缓存中移除，然后添加到活动缓存
private EngineResource<?> loadFromCache(Key key) {
EngineResource<?> cached = getEngineResourceFromCache(key); //cache
if (cached != null) {
cached.acquire();
activeResources.activate(key, cached);
}
return cached;
}
//从内存缓存中移除，然后添加到活动缓存
/*此处的cache是 memoryCache = new LruResourceCache(memorySizeCalculator.getMemoryCacheSize());*/
private EngineResource<?> getEngineResourceFromCache(Key key) {
Resource<?> cached = cache.remove(key);
final EngineResource<?> result =
new EngineResource<>(
cached, /*isMemoryCacheable=*/ true, /*isRecyclable=*/ true, key, /*listener=*/ this);
return result;
}
(4).没有内存缓存，就通过EngineJob启动线程池，然后执行DecodeJob中的run()方法
public synchronized void start(DecodeJob<R> decodeJob) {
this.decodeJob = decodeJob;
GlideExecutor executor =
decodeJob.willDecodeFromCache() ? diskCacheExecutor : getActiveSourceExecutor();
executor.execute(decodeJob);
}
//执行DecodeJob中的run()方法
public void run() {
runWrapped();
}
private void runWrapped() {
switch (runReason) {
case INITIALIZE:
stage = getNextStage(Stage.INITIALIZE);
currentGenerator = getNextGenerator();
runGenerators();
break;
}
}
private DataFetcherGenerator getNextGenerator() {
switch (stage) {
case SOURCE:
return new SourceGenerator(decodeHelper, this);
}
}
public boolean startNext() {
while (!started && hasNextModelLoader()) {
loadData = helper.getLoadData().get(loadDataListIndex++);
//检测磁盘缓存
if (loadData != null
&& (helper.getDiskCacheStrategy().isDataCacheable(loadData.fetcher.getDataSource())
|| helper.hasLoadPath(loadData.fetcher.getDataClass()))) {
started = true;
startNextLoad(loadData);
}
}
return started;
}
(5).没有找到DiskCache缓存，就通过HttpUrlFetcher中的HttpURLConnection进行网络请求，返回一个 InputStream输入流，对InputStream进行采样压缩，最终拿到bitmap，然后把bitmap转换成Drawable， 然后构建磁盘缓存DiskCache,构建内存缓存LruResourceCache，然后构建ActivityResource活动缓存，并从活动缓存中取出图片资源，调用ImageViewTarget子类DrawableImageTarget中的onResourceReady()方法展示图片
public void loadData(Priority priority,DataCallback<? super InputStream> callback) {
long startTime = LogTime.getLogTime();
try {
//返回输入流
InputStream result = loadDataWithRedirects(glideUrl.toURL(), 0, null, glideUrl.getHeaders());
callback.onDataReady(result);
} catch (IOException e) {
callback.onLoadFailed(e);
} finally {}
}
(6).ImageViewTarget和DrawableImageViewTarget的调用流程
public void onResourceReady(@NonNull Z resource, @Nullable Transition<? super Z> transition) {
if (transition == null || !transition.transition(resource, this)) {
setResource(resource); // protected abstract void setResource(@Nullable Z resource); 抽象方法
} else {
maybeUpdateAnimatable(resource);
}
}
public class DrawableImageViewTarget extends ImageViewTarget<Drawable> {
public DrawableImageViewTarget(ImageView view) {
super(view);
}
@SuppressWarnings({"unused", "deprecation"})
@Deprecated
public DrawableImageViewTarget(ImageView view, boolean waitForLayout) {
super(view, waitForLayout);
}
@Override
protected void setResource(@Nullable Drawable resource) {
view.setImageDrawable(resource); //显示图片
}
}
Glide.with()的时候会根据context类型和当前线程，返回一个对应的RequestManager，并创建了一个空白的SupoortRequestManagerFragment来管理生命周期，然后调用load方法，设置加载地址，返回的是一个RequestBuilder对象，然后调用Into方法，构建一个Request对象，并requestManager.track(target,request)跟踪这个请求，同时通过requestTracker.runRequest(request)来启动这个请求，调用SigleRequest --->begin()方法,然后通过Eegine --->load () 缓存检测机制，先检测活动缓存有没有，在检测LruResourceCache有没有，如果命中上面的二级内存缓存，直接调用onResourceReady()返回即可,如果上面的二级缓存都没有加载EngineJob中，使用GlideExecutor 构建一个新的异步任务，在执行Request请求之前，先检测DiskCache中有没有磁盘缓存
glide从网络上加载图片：Glide在调用load方法加载图片的时候，检测如果资源存在，直接调用onResourceReady（）方法直接加载图片，如果资源不存在，首先从网络下载图片，并开启二个线程池，用于缓存图片。 内存缓存和磁盘缓存，网络缓存.
-
DiskCacheStrategy.NONE 不缓存文件
-
DiskCacheStrategy.SOURCE 只缓存原图
-
DiskCacheStrategy.RESULT 只缓存最终加载的图（默认的缓存策略）
-
DiskCacheStrategy.ALL 同时缓存原图和结果图
默认的磁盘缓存目录：data/data/包名/cache/image_manager_disk_cache 自定义外部缓存路径：
builder.setDiskCache(new ExternalCacheDiskCacheFactory(context, "egatee", 100 * 1024 * 1024));
磁盘缓存目录：Android/data/包名/cache/egatee/
四.GLide和Picasso的对比：
-
1.Glide可以加载Gif，picasso不能.
-
2.glide默认的解码格式是RGB_565(4bit) ,Picasso默认的解码格式是ARGB888（8bit）更清晰.
-
3.pacasso的with方法只接受context作为参数，但是glide可以接受context，fragment，activity，这样，glide加载图片的时候，能够和组件的生命周期保持一致。
