在 Kubernetes 环境中部署 Hyperledger Fabric，看起来是一件“顺理成章”的事，但真正动手后你会发现：
- 靠着完全手撸部署Fabric MSP / CA / Orderer / Peer 的生命周期管理非常复杂
- 多组织、多通道场景几乎无法靠脚本长期维护
因此，本篇文章的主角Hyperledger-Bevel ： 一个面向企业级 Fabric 网络的自动化部署与治理框架。
Hyperledger Bevel 能解决什么？
- 可以负责Fabric的网络编排
- 管理证书与MSP的生命周期
- 多组织，多通道的自动化
- 与k8s生态完全无缝衔接

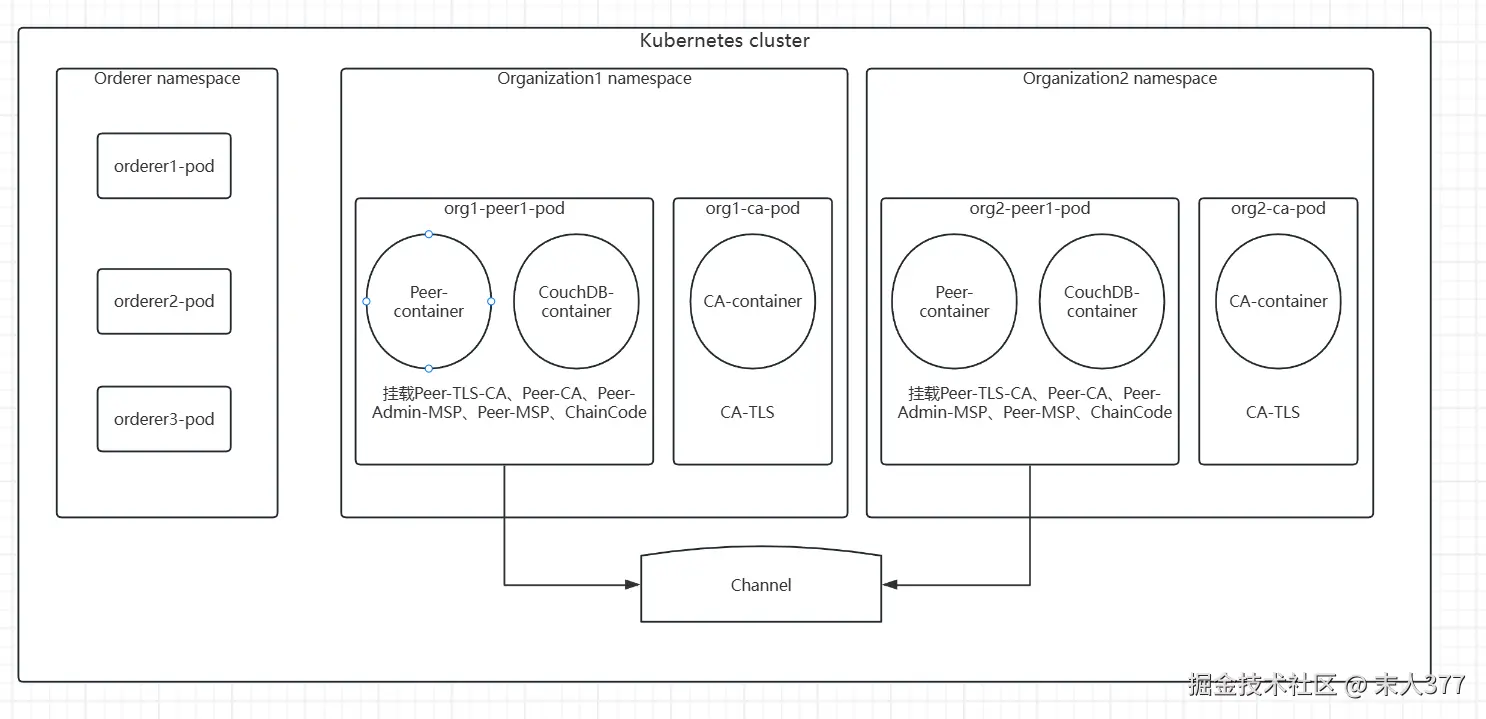

实际上每个组织都会运行一个ca服务，该服务充当其他组织，orderer，用户交互颁发CA。也被称作中间CA，直接办法PeerMSP,OdererMSP等等
准备环境
- 准备Hyperledge Bevel源码Hyperledge Bevel
- 准备krew-linux_amd64.tar.gz、hlf-operator_v1.9.0_linux_amd64.zip
- istio helm仓库
- k8s环境
- harbor仓库
开始部署
目标k8s集群
/var/lib/krew/plugins/hlf.yaml
apiVersion: krew.googlecontainertools.github.com/v1alpha2
kind: Plugin
metadata:
name: hlf
spec:
version: "v1.9.0"
homepage: https://github.com/hyperledger-bevel/bevel-operator-fabric
shortDescription: "Deploy and manage Hyperledger Fabric components"
description: |
The kubectl-hlf plugin wraps the HLF Operator and provides a simple
interface to create and manage Hyperledger Fabric Peers,
Orderers and Certificate authorities
caveats: |
* For resources that are not in default namespace, currently you must
specify -n/--namespace explicitly (the current namespace setting is not
yet used).
platforms:
- selector:
matchLabels:
os: linux
arch: amd64
uri: http://192.168.31.253:8081/hlf/plugins/hlf-operator_v1.9.0_linux_amd64.zip
sha256: d9fc43b51384df295462abe1d4c5d1349fc3e2ad47413f0f4bc279080e158b6b
bin: kubectl-hlf
/home/hlf/hlf_install.sh
#!/usr/bin/env bash
set -euo pipefail
cd "$(mktemp -d)"
curl -fsSLO "http://192.168.31.253:8081/istio/krew-linux_amd64.tar.gz"
tar -zxvf krew-linux_amd64.tar.gz
# 2) 手动“安装”krew：把可执行文件放到 ~/.krew/bin，下名必须是 kubectl-krew
mkdir -p "/var/lib/krew-root/bin"
cp ./krew-linux_amd64 "/var/lib/krew-root/bin/kubectl-krew"
chmod +x "/var/lib/krew-root/bin/kubectl-krew"
# 3) 加 PATH（当前会话立即生效，并追加到 bashrc）
export PATH="/var/lib/krew-root/bin:${PATH}"
grep -q '.krew/bin' ~/.bashrc || echo 'export PATH="/var/lib/krew-root/bin:$PATH"' >> ~/.bashrc
mkdir -p /var/lib/krew/plugins/
curl http://192.168.31.253:8081/hlf/plugins/hlf-operator_v1.9.0_linux_amd64.zip -o /var/lib/krew/plugins/hlf-operator_v1.9.0_linux_amd64.zip
kubectl krew install --manifest=/var/lib/krew/plugins/hlf.yaml --archive=/var/lib/krew/plugins/hlf-operator_v1.9.0_linux_amd64.zip
helm repo add kfs http://192.168.31.253:8081/hlf --force-update
helm install hlf-operator --version=1.9.0 -- kfs/hlf-operator
# ====== 必填项（按需修改）======
helm repo add istio http://192.168.31.253:8081/istio-1.23.3
helm repo update
kubectl create ns istio-system --dry-run=client -o yaml | kubectl apply -f -
helm upgrade --install istio-base istio/base -n istio-system
helm upgrade --install istiod istio/istiod \
-n istio-system --version 1.23.3 \
--set global.hub=192.168.31.253:80/istio-release \
--set global.tag=1.23.3 \
--set global.imagePullSecrets[0]=harbor-creds
helm upgrade --install istio-ingressgateway istio/gateway -n istio-system --version 1.23.3 \
--set global.hub=192.168.31.253:80/istio-release \
--set global.tag=1.23.3 \
--set global.imagePullSecrets[0]=harbor-creds \
--set service.type=NodePort \
--set service.ports[0].name=http2 --set service.ports[0].port=80 --set service.ports[0].targetPort=8080 --set service.ports[0].nodePort=30080 \
--set service.ports[1].name=https --set service.ports[1].port=443 --set service.ports[1].targetPort=8443 --set service.ports[1].nodePort=30443
/home/istio-system/fabric-gw.yaml
apiVersion: networking.istio.io/v1beta1
kind: Gateway
metadata:
name: fabric-gw
namespace: istio-system
spec:
selector:
istio: ingressgateway
servers:
- port:
number: 443
name: tls
protocol: TLS
tls:
mode: PASSTHROUGH
hosts:
- "*"
/home/local-path/local-path-sc.yaml
apiVersion: v1
kind: Namespace
metadata:
name: local-path-storage
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: local-path-provisioner-service-account
namespace: local-path-storage
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
name: local-path-provisioner-role
namespace: local-path-storage
rules:
- apiGroups: [""]
resources: ["pods"]
verbs: ["get", "list", "watch", "create", "patch", "update", "delete"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: local-path-provisioner-role
rules:
- apiGroups: [""]
resources: ["nodes", "persistentvolumeclaims", "configmaps", "pods", "pods/log"]
verbs: ["get", "list", "watch"]
- apiGroups: [""]
resources: ["persistentvolumes"]
verbs: ["get", "list", "watch", "create", "patch", "update", "delete"]
- apiGroups: [""]
resources: ["events"]
verbs: ["create", "patch"]
- apiGroups: ["storage.k8s.io"]
resources: ["storageclasses"]
verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
name: local-path-provisioner-bind
namespace: local-path-storage
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: Role
name: local-path-provisioner-role
subjects:
- kind: ServiceAccount
name: local-path-provisioner-service-account
namespace: local-path-storage
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: local-path-provisioner-bind
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: local-path-provisioner-role
subjects:
- kind: ServiceAccount
name: local-path-provisioner-service-account
namespace: local-path-storage
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: local-path-provisioner
namespace: local-path-storage
spec:
replicas: 1
selector:
matchLabels:
app: local-path-provisioner
template:
metadata:
labels:
app: local-path-provisioner
spec:
serviceAccountName: local-path-provisioner-service-account
containers:
- name: local-path-provisioner
image: 192.168.31.253:80/rancher/local-path-provisioner:v0.0.32
imagePullPolicy: IfNotPresent
command:
- local-path-provisioner
- --debug
- start
- --config
- /etc/config/config.json
volumeMounts:
- name: config-volume
mountPath: /etc/config/
env:
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: CONFIG_MOUNT_PATH
value: /etc/config/
volumes:
- name: config-volume
configMap:
name: local-path-config
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: local-path
provisioner: rancher.io/local-path
volumeBindingMode: WaitForFirstConsumer
reclaimPolicy: Delete
---
kind: ConfigMap
apiVersion: v1
metadata:
name: local-path-config
namespace: local-path-storage
data:
config.json: |-
{
"nodePathMap":[
{
"node":"DEFAULT_PATH_FOR_NON_LISTED_NODES",
"paths":["/opt/local-path-provisioner"]
}
]
}
setup: |-
#!/bin/sh
set -eu
mkdir -m 0777 -p "$VOL_DIR"
teardown: |-
#!/bin/sh
set -eu
rm -rf "$VOL_DIR"
helperPod.yaml: |-
apiVersion: v1
kind: Pod
metadata:
name: helper-pod
spec:
priorityClassName: system-node-critical
tolerations:
- key: node.kubernetes.io/disk-pressure
operator: Exists
effect: NoSchedule
containers:
- name: helper-pod
image: 192.168.31.253:80/tools/busybox:stable
imagePullPolicy: IfNotPresent
bash /home/hlf/hlf_install.sh
echo 'export PATH="${KREW_ROOT:-$HOME/.krew}/bin:$PATH"' >> ~/.bashrc
source ~/.bashrc
kubectl apply -f /home/istio-system/fabric-gw.yaml
kubectl apply -f /home/local-path/local-path-sc.yaml
- 这里需要讲明的是，要在目标集群安装hlf(hlf-opeartor)（建议）
- Istio 并非 Hyperledger Fabric 的必需组件，而是作为一个统一的网络入口与流量治理层，用于对 Peer 和 Orderer 的访问进行集中管理。但在本架构中，istio需要安装，统一fabric网络入口跨集群 / 跨网络访问
- 推荐另外安装haporxy/nginx 将外部流量转发到30080（http）30443(https)端口。
部署机
准备事项（/var/lib/krew/plugins/hlf.yaml与目标集群中的一样，并需要准备hlf-operator_v1.9.0_linux_amd64.zip文件）
##安装helm
mkdir -p /tmp/helm && cd /tmp/helm
wget -q http://192.168.31.253:8081/debs/helm/helm-v3.14.4-linux-amd64.tar.gz
tar -zxvf helm-v3.14.4-linux-amd64.tar.gz sudo mv linux-amd64/helm /usr/local/bin/helm
sudo chmod +x /usr/local/bin/helm
##安装jq
apt-get install jq
##安装kubectl/或二进制方式安装
apt-get install -y kubectl=1.29.15
##安装ansible
pip install ansible==9.1.0
#安装kubernetes sdk
pip install "kubernetes>=26.1.0,<27"
ansible-galaxy collection install kubernetes.core
##安装hlf插件
export PATH="{KREW_ROOT:-HOME/.krew}/bin:$PATH"
kubectl krew install --manifest=/var/lib/krew/plugins/hlf.yaml --archive=/var/lib/krew/plugins/hlf-operator_v1.9.0_linux_amd64.zip
细则
- 解压/clone Hyperledge Bevel源码（/home/bevel2）
- 编写以下文件：将任何“192.168.31.135”改为你自己的外部ip地址，并且k8s.config_file为目标集群的config文件，需要自己替换掉
# inventories/fabric-operator/network-base.yaml
network:
type: fabric # 必填；fabric 网络类型
version: "2.5.4" # 必填；你这版 schema 支持 2.5.3/2.5.4 等
images:
ca: "1.5.11"
env: # 必填；operator + istio 的运行环境 :
type: operator
proxy: istio
external_dns: enabled
retry_count: 20
docker: # 必填；私有/本地镜像仓库。url 必填
url: "192.168.31.253:80"
username: "admin"
password: "Harbor12345"
channels:
- channel:
consortium: SupplyChainConsortium
channel_name: AllChannel
channel_status: new
osn_creator_org:
name: ordererorg
chaincodes: []
orderers:
- ordererorg
participants:
- organization:
name: carrier
type: creator
org_status: new
peers:
- peer:
name: peer0
type: anchor
gossipAddress: peer0.carrier-net.192.168.31.135.nip.io:443
peerAddress: peer0.carrier-net.192.168.31.135.nip.io:443
ordererAddress: orderer1.ordererorg.192.168.31.135.nip.io:443
orderers:
- name: orderer1
type: orderer
org_name: ordererorg
uri: "orderer1.ordererorg.192.168.31.135.nip.io:443"
certificate: /path/ordererorg/tlsca-orderer1-server.crt
#certificate: /path/ordererorg/server.crt
- name: orderer2
type: orderer
org_name: ordererorg
uri: "orderer2.ordererorg.192.168.31.135.nip.io:443"
certificate: /path/ordererorg/tlsca-orderer2-server.crt
# certificate: /path/ordererorg/server.crt
- name: orderer3
type: orderer
org_name: ordererorg
uri: "orderer3.ordererorg.192.168.31.135.nip.io:443"
certificate: /path/ordererorg/tlsca-orderer3-server.crt
# certificate: /path/ordererorg/server.crt
organizations:
- name: carrier
type: peer
external_url_suffix: "192.168.31.135.nip.io"
country: "DE"
state: "BW"
location: "Stuttgart"
subject: "/C=DE/ST=BW/L=Stuttgart/O=ca-carrier/OU=Fabric/CN=ca-carrier"
external_url_suffix: "192.168.31.135.nip.io"
cloud_provider: minikube
k8s:
context: "kubernetes-admin@kubernetes"
config_file: "/home/ansible-playbook/.kube/config"
services:
ca:
type: ca
name: ca-carrier
subject: "/C=DE/ST=BW/L=Stuttgart/O=carrier/OU=Fabric/CN=ca-carrier"
grpc: { port: 7054 } # 端口对象需含 port
peers:
- peer:
name: peer0
type: anchor
gossippeeraddress: peer0.carrier-net.192.168.31.135.nip.io:443
peerAddress: peer0.carrier-net.192.168.31.135.nip.io:443
cli: disabled
cactus_connector: disabled
grpc:
port: 7051
events:
port: 7053
couchdb:
port: 5984
restserver: # This is for the rest-api server
targetPort: 20001
port: 20001
expressapi: # This is for the express api server
targetPort: 3000
port: 3000
ca_data:
certificate: /path/carrier/server.crt
url: carrier-ca.192.168.31.135.nip.io
- name: ordererorg
type: orderer
# ↓↓↓ 这些都是 fabric_organization 的“强制项”
country: "DE"
state: "BW"
location: "Stuttgart"
subject: "/C=DE/ST=BW/L=Stuttgart/O=ordererorg/OU=Fabric/CN=ordererorg"
external_url_suffix: "192.168.31.135.nip.io"
# ↓↓↓ shared_organization 的强制项（非 AWS 时也必须声明）
cloud_provider: minikube
k8s:
context: "kubernetes-admin@kubernetes"
config_file: "/home/ansible-playbook/.kube/config" # 注意键名是 config_file
# ↓↓↓ fabric_services 的强制项：至少必须有 ca
services:
ca:
type: ca
name: ca-orderer
subject: "/C=DE/ST=BW/L=Stuttgart/O=ordererorg/OU=Fabric/CN=ca-orderer"
grpc: { port: 7054 } # 端口对象需含 port
orderers:
- orderer:
name: orderer1
type: orderer
consensus: raft
grpc:
port: 7050
ordererAddress: orderer1.ordererorg.192.168.31.135.nip.io:443
- orderer:
name: orderer2
type: orderer
grpc:
port: 7050
consensus: raft
ordererAddress: orderer2.ordererorg.192.168.31.135.nip.io:443
- orderer:
name: orderer3
grpc:
port: 7050
consensus: raft
type: orderer
ordererAddress: orderer3.ordererorg.192.168.31.135.nip.io:443
ca_data:
certificate: /path/ordererorg/server.crt
url: ordererorg-ca.192.168.31.135.nip.io
# inventory.ini
#这里是运行的python环境
[ansible_provisioners]
localhost ansible_connection=local ansible_python_interpreter=/root/bevel-venv/bin/python
[ansible_provisioners:vars]
# 你的 Bevel 根目录
bevel_repo_dir=/home/bevel2
# 默认 kubeconfig（network.yaml 会为每个组织指定各自的 kube.config_file 和 context，
# 替换掉自己的k8s 的配置文件
kubeconfig_default=/home/ansible-playbook/.kube/config
# 工具检查（可选，配合你的工作流）
verify_tools=true
use_krew=true
# Operator/Istio 相关（仅注释说明，真正的控制以 network.yaml 为准）
istio_namespace=istio-system
hlf_operator_namespace=default
[all:vars]
helm_components=[{"name":"istiod","namespace":"istio-system"},{"name":"istio-ingressgateway","namespace":"istio-system"}]
platforms/hyperledger-fabric/configuration/roles/operator/create/orderer/tasks/main.yaml platforms/hyperledger-fabric/configuration/roles/operator/create/peer/tasks/main.yaml platforms/hyperledger-fabric/configuration/roles/operator/create/ca/server/tasks/main.yaml
bevel源码中以上文件中需要修改自己的镜像地址
执行命令
ansible-playbook /home/bevel2/platforms/shared/configuration/site.yaml -i /home/bevel2/inventories/fabric-operator/inventory.ini -e @/home/bevel2/inventories/fabric-operator/119/network-base.yaml
本贴中用到的镜像/离线安装包 领取
藉此我们已经完成了fabric网络的初始化，并且已经创建了一个名为AllChannel的通道。
本人第一次发帖，有哪些不足欢迎指出
