效果

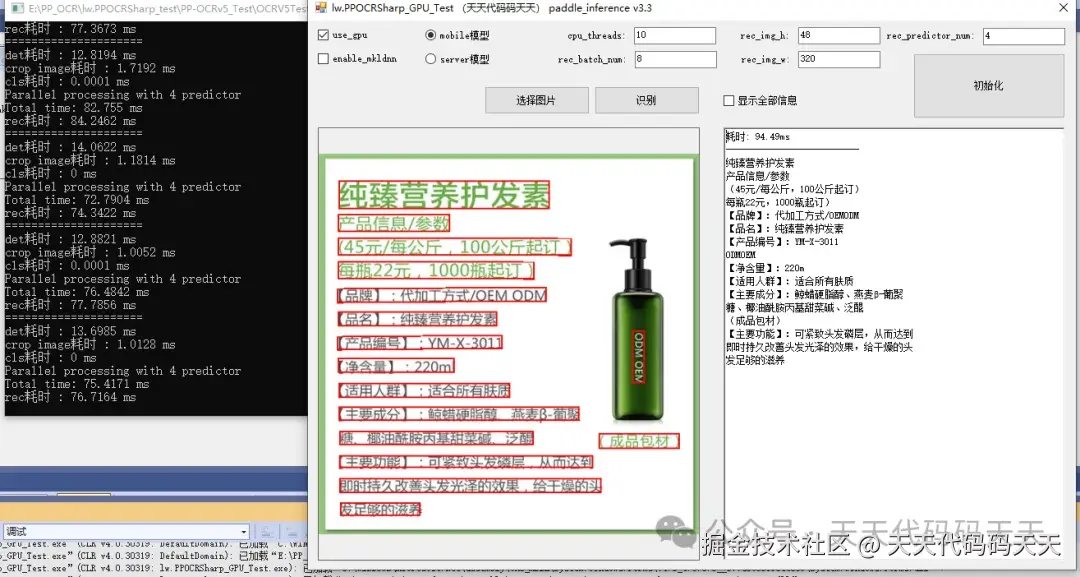

NVIDIA GeForce RTX 4060 Laptop GPU 效果

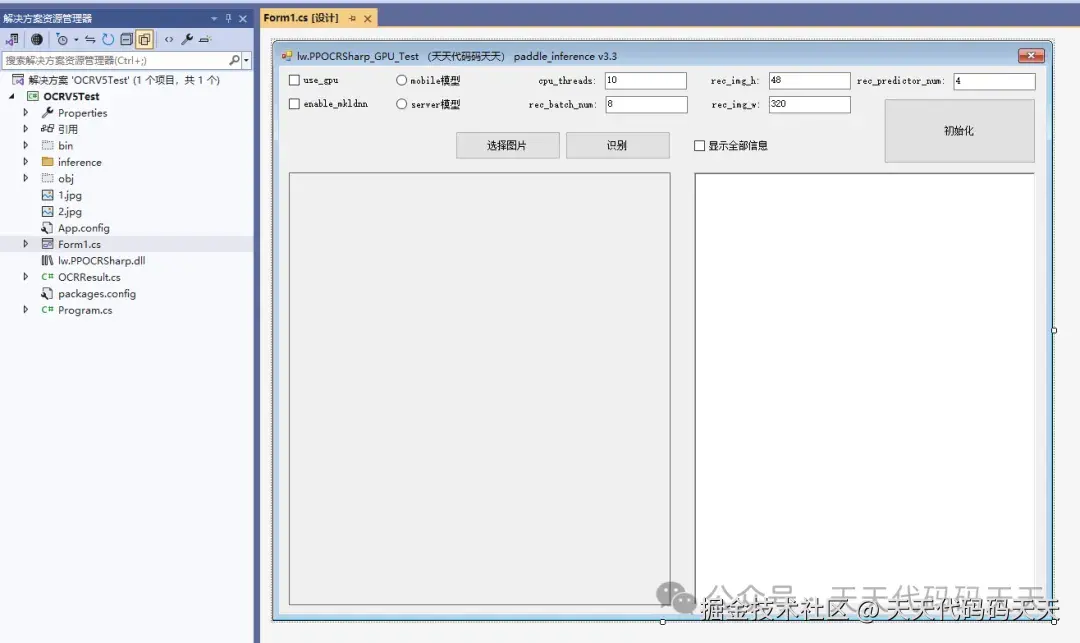

项目
代码
using Newtonsoft.Json;
using OpenCvSharp;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Drawing;
using System.Runtime.InteropServices;
using System.Text;
using System.Windows.Forms;
namespace OCRV5Test
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
const string DllName = "lw.PPOCRSharp.dll";
//初始化
[DllImport(DllName, EntryPoint = "init", CallingConvention = CallingConvention.Cdecl)]
public extern static int init(ref IntPtr engine
, bool use_gpu
, int gpu_id
, int gpu_mem
, int cpu_threads
, bool enable_mkldnn
, string det_model_dir
, int limit_side_len
, double det_db_thresh
, double det_db_box_thresh
, double det_db_unclip_ratio
, bool use_dilation
, bool cls
, bool use_angle_cls
, string cls_model_dir
, double cls_thresh
, double cls_batch_num
, string rec_model_dir
, string rec_char_dict_path
, int rec_batch_num
, int rec_img_h
, int rec_img_w
, int predictor_num
, StringBuilder msg);
//识别
[DllImport(DllName, EntryPoint = "ocr", CallingConvention = CallingConvention.Cdecl)]
public extern static int ocr(IntPtr engine, IntPtr image, StringBuilder msg, out IntPtr ocr_result, out int ocr_result_len);
//释放
[DllImport(DllName, EntryPoint = "destroy", CallingConvention = CallingConvention.Cdecl)]
public extern static int destroy(IntPtr engine, StringBuilder msg);
static IntPtr OCREngine;
private Bitmap bmp;
private String imgPath = null;
private List<OCRResult> ltOCRResult;
private string fileFilter = "*.*|*.bmp;*.jpg;*.jpeg;*.tiff;*.tif;*.png";
private StringBuilder OCRResultInfo = new StringBuilder();
private StringBuilder OCRResultAllInfo = new StringBuilder();
Pen pen = new Pen(Brushes.Red, 2f);
/// <summary>
/// 选择图片
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void button1_Click(object sender, EventArgs e)
{
OpenFileDialog ofd = new OpenFileDialog();
ofd.Filter = fileFilter;
if (ofd.ShowDialog() == DialogResult.OK)
{
imgPath = ofd.FileName;
bmp = new Bitmap(imgPath);
pictureBox1.Image = bmp;
richTextBox1.Clear();
button2_Click(null, null);
}
}
/// <summary>
/// 识别
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void button2_Click(object sender, EventArgs e)
{
if (OCREngine == IntPtr.Zero)
{
MessageBox.Show("请先初始化！！！");
return;
}
if (imgPath == null)
{
MessageBox.Show("请先选择图片！！！");
return;
}
button1.Enabled = false;
button2.Enabled = false;
richTextBox1.Clear();
OCRResultInfo.Clear();
OCRResultAllInfo.Clear();
Application.DoEvents();
Mat img = new Mat(imgPath);
StringBuilder msgTemp = new StringBuilder(128);
StringBuilder ocrResultStr = new StringBuilder(1024 * 100);
Stopwatch stopwatch = new Stopwatch();
stopwatch.Start();
IntPtr strPtr;
int ocr_result_len = 0;
int res = ocr(OCREngine, img.CvPtr, msgTemp, out strPtr, out ocr_result_len);
img.Dispose();
byte[] buffer = new byte[ocr_result_len];
Marshal.Copy(strPtr, buffer, 0, ocr_result_len);
string ocr_result = Encoding.UTF8.GetString(buffer);
Marshal.FreeCoTaskMem(strPtr);
stopwatch.Stop();
double totalTime = stopwatch.Elapsed.TotalMilliseconds;
OCRResultAllInfo.AppendLine($"耗时: {totalTime:F2}ms");
OCRResultAllInfo.AppendLine("---------------------------");
OCRResultInfo.AppendLine($"耗时: {totalTime:F2}ms");
OCRResultInfo.AppendLine("---------------------------");
if (res == 0)
{
ltOCRResult = Newtonsoft.Json.JsonConvert.DeserializeObject<List<OCRResult>>(ocr_result);
OCRResultAllInfo.Append(JsonConvert.SerializeObject(ltOCRResult, Newtonsoft.Json.Formatting.Indented));
Graphics graphics = Graphics.FromImage(bmp);
foreach (OCRResult item in ltOCRResult)
{
OCRResultInfo.AppendLine(item.text);
System.Drawing.Point[] pt = new System.Drawing.Point[] {
new System.Drawing.Point(item.x1, item.y1)
, new System.Drawing.Point(item.x2, item.y2)
, new System.Drawing.Point(item.x3, item.y3)
, new System.Drawing.Point(item.x4, item.y4)
};
graphics.DrawPolygon(pen, pt);
}
graphics.Dispose();
if (checkBox1.Checked)
{
richTextBox1.Text = OCRResultAllInfo.ToString();
}
else
{
richTextBox1.Text = OCRResultInfo.ToString();
}
pictureBox1.Image = null;
pictureBox1.Image = bmp;
}
else
{
MessageBox.Show("识别失败，" + msgTemp.ToString());
}
img.Release();
button1.Enabled = true;
button2.Enabled = true;
}
/// <summary>
/// 初始化
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Form1_Load(object sender, EventArgs e)
{
radioButton1.Checked = true;
chkUseGPU.Checked = true;
}
private void checkBox1_CheckedChanged(object sender, EventArgs e)
{
richTextBox1.Clear();
if (checkBox1.Checked)
{
richTextBox1.Text = OCRResultAllInfo.ToString();
}
else
{
richTextBox1.Text = OCRResultInfo.ToString();
}
}
private void radioButton1_CheckedChanged(object sender, EventArgs e)
{
RadioButton rb = sender as RadioButton;
}
private void Form1_FormClosing(object sender, FormClosingEventArgs e)
{
UnloadModel();
}
private void btnDestroy_Click(object sender, EventArgs e)
{
UnloadModel();
}
void UnloadModel()
{
if (OCREngine != IntPtr.Zero)
{
StringBuilder msgTemp = new StringBuilder(128);
destroy(OCREngine, msgTemp);
Console.WriteLine("释放成功:" + msgTemp.ToString());
OCREngine = IntPtr.Zero;
}
}
private void btnInit_Click(object sender, EventArgs e)
{
if (OCREngine != IntPtr.Zero)
{
StringBuilder msgTemp = new StringBuilder(128);
destroy(OCREngine, msgTemp);
Console.WriteLine("释放成功:" + msgTemp.ToString());
OCREngine = IntPtr.Zero;
LoadModel();
}
else {
LoadModel();
}
}
void LoadModel()
{
StringBuilder msgTemp = new StringBuilder(128);
string root_dir = Application.StartupPath + @"\inference";
bool use_gpu = true;
int gpu_id = 0;
int gpu_mem = 4000;
int cpu_threads = 10;
bool enable_mkldnn = true;
string det_model_dir = "";
int limit_side_len = 960;
double det_db_thresh = 0.3;
double det_db_box_thresh = 0.6;
double det_db_unclip_ratio = 1.2;
bool use_dilation = false;
bool cls = false;
bool use_angle_cls = true;
string cls_model_dir = "inference/ch_ppocr_mobile_v2.0_cls_infer/";
double cls_thresh = 0.9;
int cls_batch_num = 1;
string rec_model_dir = "";
string rec_char_dict_path = "inference/ppocrv5_dict.txt";
int rec_batch_num = 8;
int rec_img_h = 48;
int rec_img_w = 320;
int predictor_num = 4;
//赋值
if (chkUseGPU.Checked == true)
{
use_gpu = true;
}
else
{
use_gpu = false;
}
if (chkEnableMkldnn.Checked == true)
{
enable_mkldnn = true;
}
else
{
enable_mkldnn = false;
}
cpu_threads = Convert.ToInt32(txtcpu_threads.Text.ToString());
rec_batch_num = Convert.ToInt32(txtrec_batch_num.Text.ToString());
rec_img_h = Convert.ToInt32(txtrec_img_h.Text.ToString());
rec_img_w = Convert.ToInt32(txtrec_img_w.Text.ToString());
predictor_num = Convert.ToInt32(txtpredictor_num.Text.ToString());
if (radioButton1.Checked)
{
det_model_dir = "inference/PP-OCRv5_mobile_det_infer/";
rec_model_dir = "inference/PP-OCRv5_mobile_rec_infer/";
}
else
{
det_model_dir = "inference/PP-OCRv5_server_det_infer/";
rec_model_dir = "inference/PP-OCRv5_server_rec_infer/";
}
int res = init(ref OCREngine
, use_gpu
, gpu_id
, gpu_mem
, cpu_threads
, enable_mkldnn
, det_model_dir
, limit_side_len
, det_db_thresh
, det_db_box_thresh
, det_db_unclip_ratio
, use_dilation
, cls
, use_angle_cls
, cls_model_dir
, cls_thresh
, cls_batch_num
, rec_model_dir
, rec_char_dict_path
, rec_batch_num
, rec_img_h
, rec_img_w
, predictor_num
, msgTemp);
if (res == 0)
{
Console.WriteLine("模型加载成功！");
}
else
{
string msg = msgTemp.ToString();
Console.WriteLine("模型加载失败，" + msg);
}
}
}
}
下载
通过网盘分享的文件：lw.PPOCRSharp_GPU_Test （天天代码码天天） paddle_inference v3.3 链接: pan.baidu.com/s/1pdv7SEjJ… 提取码: 5bf8
