熔断限流从入门到实战：打造高可用微服务架构

熔断限流从入门到实战：打造高可用微服务架构

一、为什么需要熔断限流？

在分布式系统中，服务间的依赖关系日益复杂。当一个服务出现故障或响应过慢时，如果不及时隔离，会引发"雪崩效应"，导致整个系统瘫痪。

真实案例：某电商系统在大促期间，推荐服务因为数据库慢查询导致响应超时，调用方持续重试，最终使整个订单系统崩溃，造成数百万元损失。

熔断限流正是解决这类问题的核心手段：

• 熔断（Circuit Breaker）：当检测到下游服务故障率达到阈值时，自动切断调用，快速失败，保护系统稳定性
• 限流（Rate Limiting）：控制请求速率，防止系统过载

二、自定义实现熔断器

让我们从零开始，手动实现一个简单的熔断器，深入理解其核心原理。

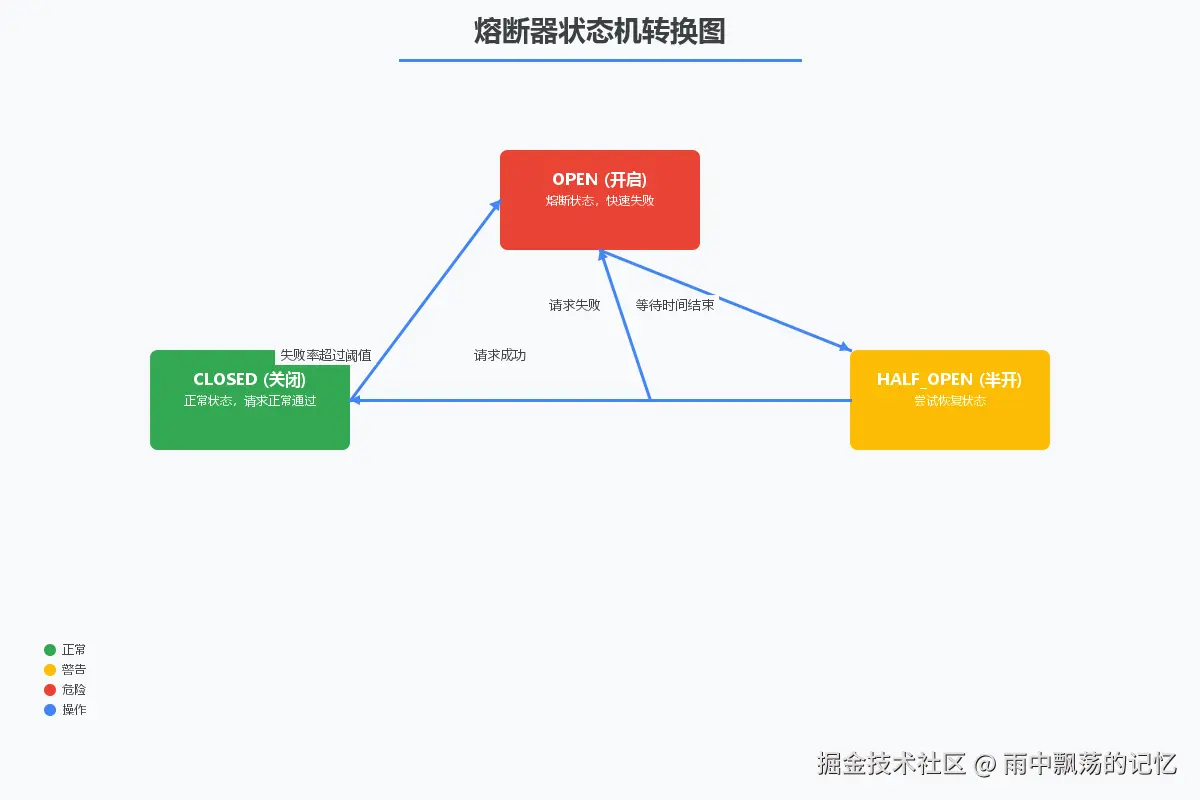

2.1 熔断器状态机

熔断器有三种状态：

1. 关闭（CLOSED）：正常状态，请求正常通过
2. 开启（OPEN）：熔断状态，直接返回失败，不调用下游服务
3. 半开（HALF_OPEN）：尝试恢复状态，允许少量请求通过探测服务是否恢复

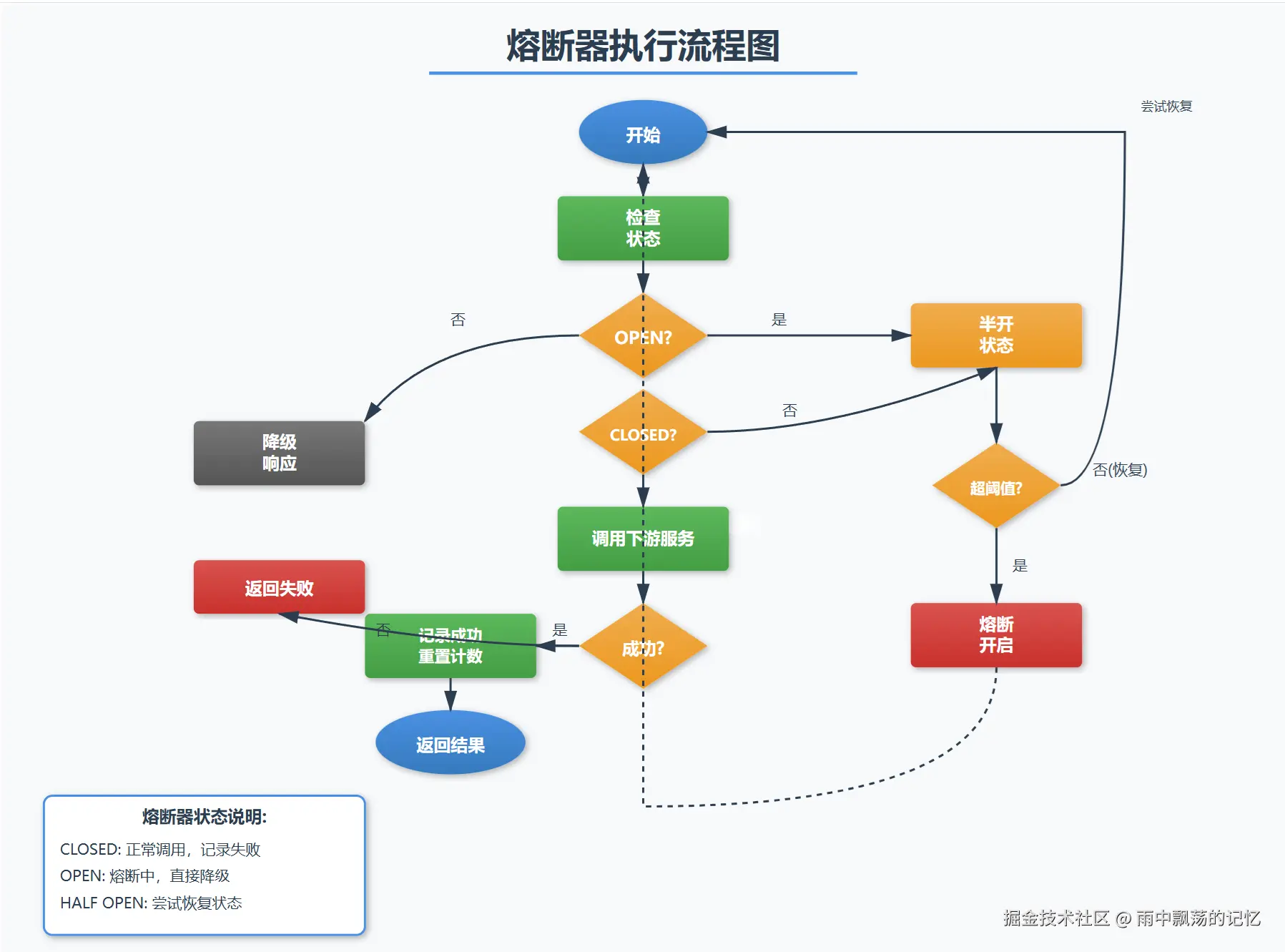

2.2 核心代码实现

package com.example.circuitbreaker;

import java.util.concurrent.atomic.AtomicInteger;
import java.util.concurrent.atomic.AtomicReference;
import java.util.concurrent.atomic.AtomicLong;

/**
 * 自定义熔断器实现
 *
 * @author 架构师
 * @version 1.0.0
 */
public class CircuitBreaker {

    // 熔断器状态枚举
    public enum State {
        CLOSED,    // 关闭状态 - 正常
        OPEN,      // 开启状态 - 熔断
        HALF_OPEN  // 半开状态 - 尝试恢复
    }

    // 配置参数
    private final int failureThreshold;      // 失败阈值
    private final long timeoutMillis;        // 超时时间（毫秒）
    private final long halfOpenWaitMillis;   // 半开状态等待时间

    // 状态变量
    private final AtomicReference<State> state = new AtomicReference<>(State.CLOSED);
    private final AtomicInteger failureCount = new AtomicInteger(0);
    private final AtomicLong lastFailureTime = new AtomicLong(0);
    private final AtomicLong nextAttemptTime = new AtomicLong(0);

    public CircuitBreaker(int failureThreshold, long timeoutMillis, long halfOpenWaitMillis) {
        this.failureThreshold = failureThreshold;
        this.timeoutMillis = timeoutMillis;
        this.halfOpenWaitMillis = halfOpenWaitMillis;
    }

    /**
     * 执行请求，带熔断保护
     */
    public <T> T execute(Supplier<T> supplier, Supplier<T> fallback) {
        // 检查是否可以执行请求
        if (!allowRequest()) {
            return fallback.get();
        }

        long startTime = System.currentTimeMillis();
        try {
            T result = supplier.get();
            // 记录成功
            onSuccess();
            return result;
        } catch (Exception e) {
            // 记录失败
            onFailure(startTime);
            return fallback.get();
        }
    }

    /**
     * 判断是否允许请求通过
     */
    private boolean allowRequest() {
        State currentState = state.get();

        switch (currentState) {
            case CLOSED:
                return true;

            case OPEN:
                // 检查是否可以尝试半开
                if (System.currentTimeMillis() >= nextAttemptTime.get()) {
                    if (state.compareAndSet(State.OPEN, State.HALF_OPEN)) {
                        System.out.println("熔断器进入半开状态，尝试恢复...");
                        return true;
                    }
                }
                return false;

            case HALF_OPEN:
                return true;

            default:
                return false;
        }
    }

    /**
     * 处理成功调用
     */
    private void onSuccess() {
        failureCount.set(0);

        if (state.get() == State.HALF_OPEN) {
            if (state.compareAndSet(State.HALF_OPEN, State.CLOSED)) {
                System.out.println("服务已恢复，熔断器关闭");
            }
        }
    }

    /**
     * 处理失败调用
     */
    private void onFailure(long startTime) {
        int currentFailures = failureCount.incrementAndGet();
        lastFailureTime.set(System.currentTimeMillis());

        // 超时也算失败
        long duration = System.currentTimeMillis() - startTime;
        if (duration > timeoutMillis) {
            System.out.println("请求超时: " + duration + "ms");
        }

        // 检查是否需要熔断
        if (currentFailures >= failureThreshold) {
            if (state.compareAndSet(State.CLOSED, State.OPEN) ||
                state.compareAndSet(State.HALF_OPEN, State.OPEN)) {

                long waitTime = halfOpenWaitMillis;
                nextAttemptTime.set(System.currentTimeMillis() + waitTime);

                System.out.println("失败次数达到阈值 " + failureThreshold + "，熔断器开启，等待 " +
                                 waitTime + "ms 后尝试恢复");
            }
        }
    }

    public State getState() {
        return state.get();
    }

    public int getFailureCount() {
        return failureCount.get();
    }

    @FunctionalInterface
    public interface Supplier<T> {
        T get() throws Exception;
    }
}

2.3 使用示例

package com.example.circuitbreaker;

/**
 * 熔断器使用示例
 */
public class CircuitBreakerExample {

    public static void main(String[] args) {
        // 创建熔断器：3次失败后熔断，超时2秒，半开等待5秒
        CircuitBreaker breaker = new CircuitBreaker(3, 2000, 5000);

        // 模拟远程服务调用
        for (int i = 0; i < 20; i++) {
            String result = breaker.execute(
                () -> {
                    // 模拟远程调用
                    if (Math.random() < 0.4) {
                        throw new RuntimeException("服务异常");
                    }
                    return "调用成功";
                },
                () -> {
                    return "降级处理";
                }
            );

            System.out.println("第" + (i + 1) + "次调用: " + result +
                             ", 熔断器状态: " + breaker.getState() +
                             ", 失败次数: " + breaker.getFailureCount());

            try {
                Thread.sleep(500);
            } catch (InterruptedException e) {
                Thread.currentThread().interrupt();
            }
        }
    }
}

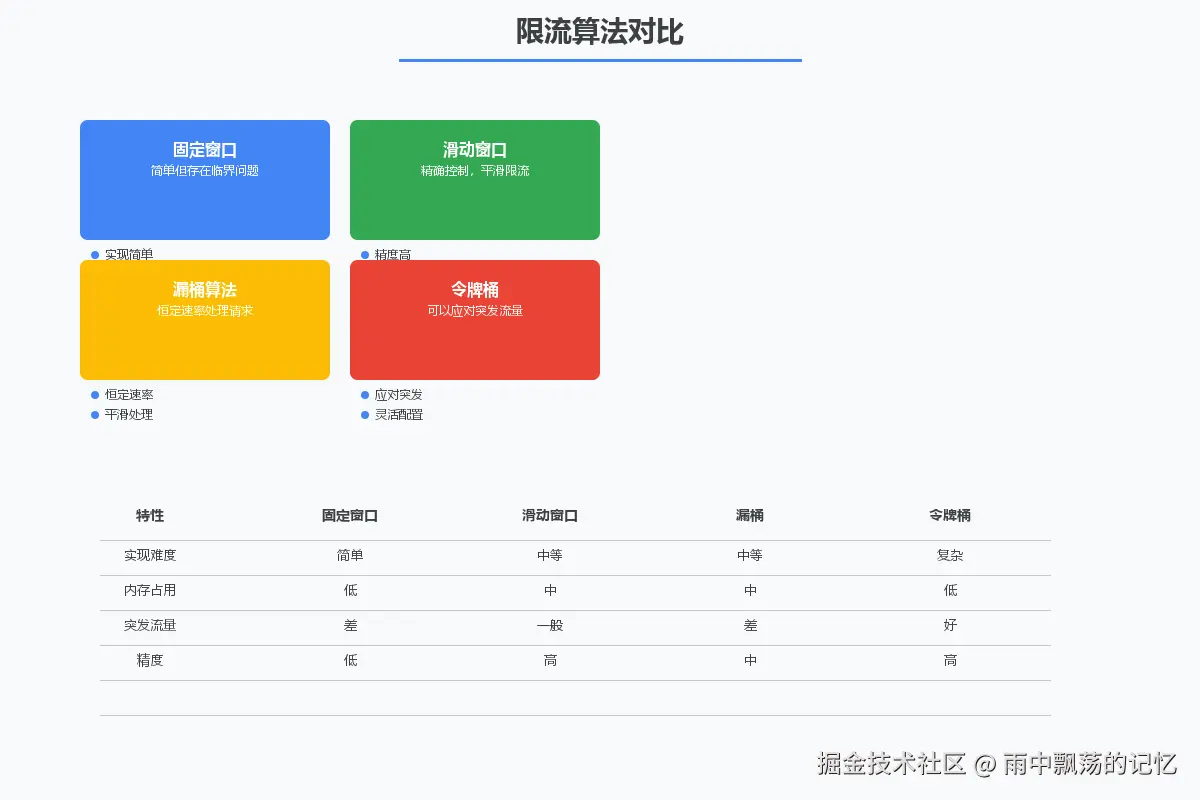

三、自定义限流器

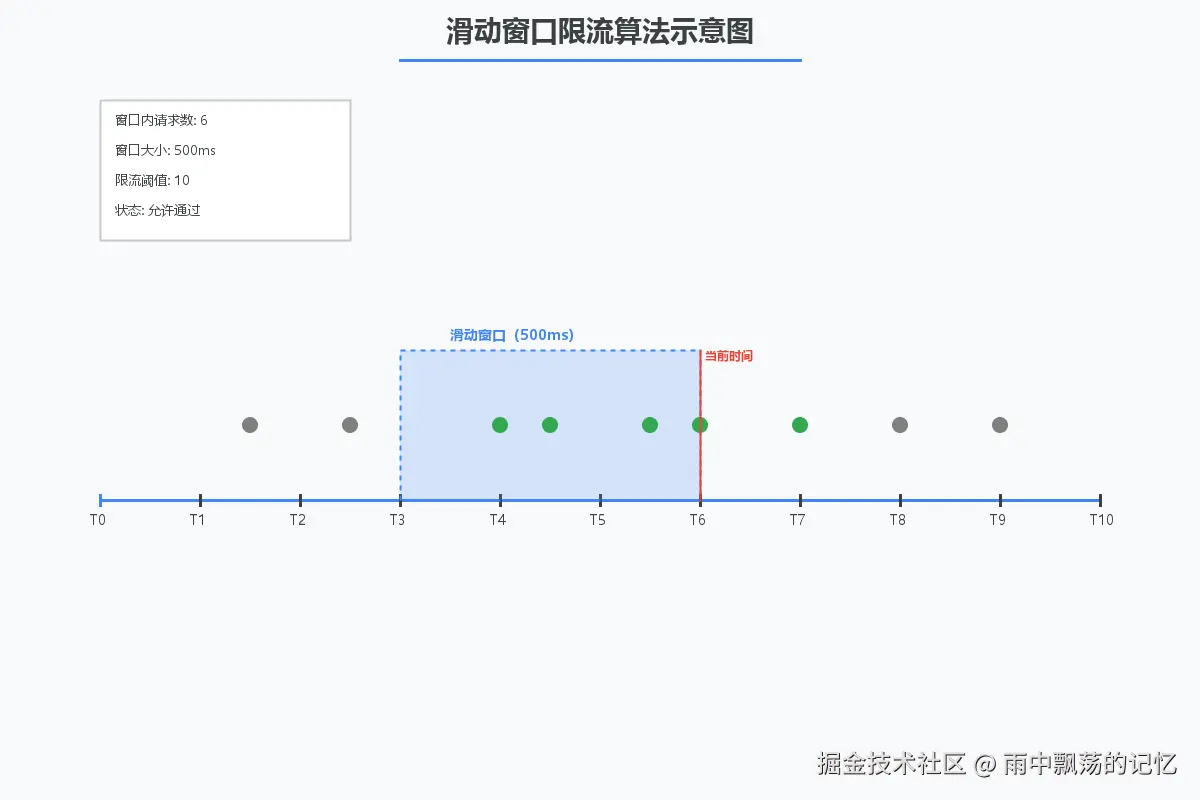

3.1 滑动窗口算法

滑动窗口算法可以更精确地控制请求速率。

package com.example.ratelimiter;

import java.util.concurrent.ConcurrentLinkedQueue;
import java.util.concurrent.atomic.AtomicInteger;

/**
 * 滑动窗口限流器
 *
 * @author 架构师
 */
public class SlidingWindowRateLimiter {

    private final int maxRequests;        // 窗口内最大请求数
    private final long windowSizeMillis;   // 窗口大小（毫秒）

    private final ConcurrentLinkedQueue<Long> requestTimestamps = new ConcurrentLinkedQueue<>();
    private final AtomicInteger currentCount = new AtomicInteger(0);

    public SlidingWindowRateLimiter(int maxRequests, long windowSizeMillis) {
        this.maxRequests = maxRequests;
        this.windowSizeMillis = windowSizeMillis;
    }

    /**
     * 尝试获取请求许可
     */
    public synchronized boolean tryAcquire() {
        long currentTime = System.currentTimeMillis();
        long windowStart = currentTime - windowSizeMillis;

        // 清理窗口外的旧记录
        while (!requestTimestamps.isEmpty() && requestTimestamps.peek() < windowStart) {
            requestTimestamps.poll();
            currentCount.decrementAndGet();
        }

        // 检查是否允许新请求
        if (currentCount.get() < maxRequests) {
            requestTimestamps.offer(currentTime);
            currentCount.incrementAndGet();
            return true;
        }

        return false;
    }

    public int getCurrentCount() {
        return currentCount.get();
    }
}

3.2 令牌桶算法

令牌桶算法可以应对突发流量。

package com.example.ratelimiter;

import java.util.concurrent.atomic.AtomicLong;

/**
 * 令牌桶限流器
 *
 * @author 架构师
 */
public class TokenBucketRateLimiter {

    private final long capacity;           // 桶容量
    private final long refillRate;         // 令牌填充速率（每秒）
    private final AtomicLong tokens;        // 当前令牌数
    private final AtomicLong lastRefillTime; // 上次填充时间

    public TokenBucketRateLimiter(long capacity, long refillRate) {
        this.capacity = capacity;
        this.refillRate = refillRate;
        this.tokens = new AtomicLong(capacity);
        this.lastRefillTime = new AtomicLong(System.currentTimeMillis());
    }

    /**
     * 尝试消费令牌
     */
    public synchronized boolean tryAcquire(int permits) {
        refillTokens();

        long currentTokens = tokens.get();
        if (currentTokens >= permits) {
            tokens.addAndGet(-permits);
            return true;
        }

        return false;
    }

    /**
     * 填充令牌
     */
    private void refillTokens() {
        long now = System.currentTimeMillis();
        long lastRefill = lastRefillTime.get();
        long elapsedMillis = now - lastRefill;

        if (elapsedMillis > 0) {
            long tokensToAdd = (elapsedMillis * refillRate) / 1000;

            if (tokensToAdd > 0) {
                long newTokens = Math.min(capacity, tokens.get() + tokensToAdd);
                tokens.set(newTokens);
                lastRefillTime.set(now);
            }
        }
    }

    public long getAvailableTokens() {
        refillTokens();
        return tokens.get();
    }
}

四、生产级解决方案：Resilience4j

自定义实现适合学习原理，但在生产环境中，我们推荐使用成熟的开源框架。Resilience4j是Java领域最流行的容错库。

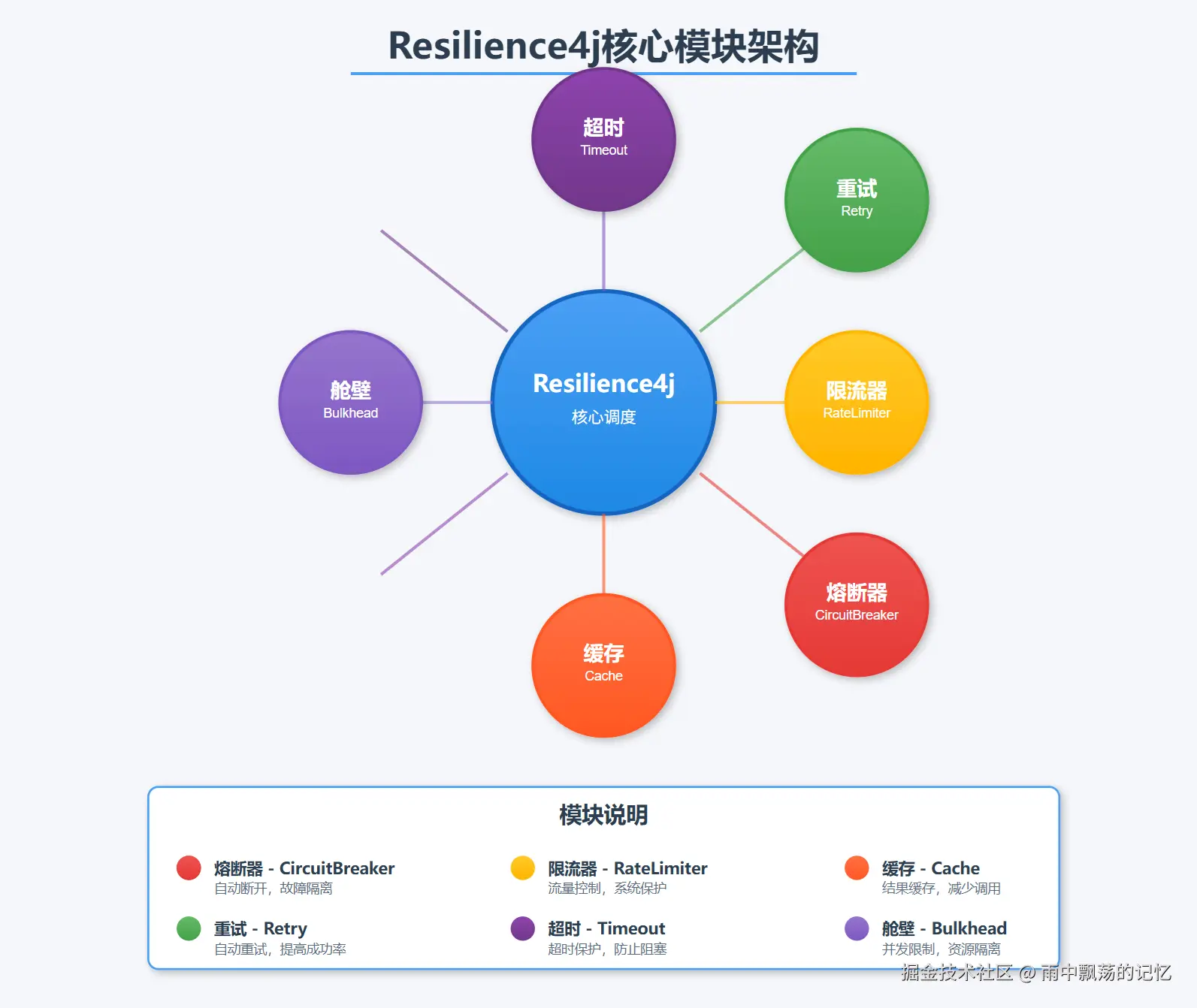

4.1 Resilience4j核心模块

Resilience4j提供多个模块，各司其职：

• Circuit Breaker：熔断器
• Rate Limiter：限流器
• Retry：重试机制
• Timeout：超时控制
• Bulkhead：舱壁隔离（限制并发数）
• Cache：结果缓存

4.2 快速集成

Maven依赖：

<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-spring-boot2</artifactId>
    <version>2.1.0</version>
</dependency>
<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-circuitbreaker</artifactId>
    <version>2.1.0</version>
</dependency>
<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-ratelimiter</artifactId>
    <version>2.1.0</version>
</dependency>
<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-retry</artifactId>
    <version>2.1.0</version>
</dependency>
<dependency>
    <groupId>io.github.resilience4j</groupId>
    <artifactId>resilience4j-bulkhead</artifactId>
    <version>2.1.0</version>
</dependency>

配置文件：

resilience4j:
  circuitbreaker:
    configs:
      default:
        failure-rate-threshold: 50              # 失败率阈值50%
        wait-duration-in-open-state: 10s       # 熔断开启等待时间
        sliding-window-size: 10                # 滑动窗口大小
        minimum-number-of-calls: 5             # 最小调用次数
        permitted-number-of-calls-in-half-open-state: 3  # 半开状态允许调用次数

    instances:
      remoteService:
        base-config: default

  ratelimiter:
    configs:
      default:
        limit-refresh-period: 1s               # 限流周期
        limit-for-period: 100                  # 每周期允许请求数
        register-health-indicator: true

    instances:
      remoteService:
        base-config: default

  retry:
    configs:
      default:
        max-attempts: 3                        # 最大重试次数
        wait-duration: 500ms                   # 重试等待时间
        retry-exceptions:
          - java.lang.RuntimeException

  bulkhead:
    configs:
      default:
        max-concurrent-calls: 50               # 最大并发调用数
        max-wait-duration: 0s                  # 最大等待时间

4.3 代码实现

package com.example.resilience;

import io.github.resilience4j.circuitbreaker.annotation.CircuitBreaker;
import io.github.resilience4j.ratelimiter.annotation.RateLimiter;
import io.github.resilience4j.retry.annotation.Retry;
import io.github.resilience4j.bulkhead.annotation.Bulkhead;
import org.springframework.stereotype.Service;

import java.util.Random;

/**
 * 远程服务代理类 - 使用Resilience4j增强
 *
 * @author 架构师
 */
@Service
public class RemoteServiceProxy {

    private final Random random = new Random();

    /**
     * 调用远程服务 - 组合使用多种容错机制
     */
    @CircuitBreaker(name = "remoteService", fallbackMethod = "fallback")
    @RateLimiter(name = "remoteService")
    @Retry(name = "remoteService")
    @Bulkhead(name = "remoteService", type = Bulkhead.Type.THREADPOOL)
    public String callRemoteService(String request) {
        // 模拟远程服务调用
        simulateRemoteCall();
        return "服务响应: " + request;
    }

    /**
     * 降级方法
     */
    private String fallback(String request, Exception exception) {
        return "[降级] 服务暂时不可用，请稍后再试";
    }

    /**
     * 模拟远程调用（可能失败）
     */
    private void simulateRemoteCall() {
        // 30%概率失败
        if (random.nextInt(10) < 3) {
            throw new RuntimeException("服务调用失败");
        }

        // 模拟网络延迟
        try {
            Thread.sleep(50 + random.nextInt(100));
        } catch (InterruptedException e) {
            Thread.currentThread().interrupt();
        }
    }
}

4.4 控制器层

package com.example.controller;

import com.example.resilience.RemoteServiceProxy;
import io.github.resilience4j.circuitbreaker.CircuitBreakerRegistry;
import io.github.resilience4j.circuitbreaker.CircuitBreaker;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

/**
 * API控制器
 *
 * @author 架构师
 */
@RestController
@RequestMapping("/api")
public class ApiController {

    @Autowired
    private RemoteServiceProxy remoteService;

    @Autowired
    private CircuitBreakerRegistry circuitBreakerRegistry;

    @GetMapping("/call/{request}")
    public String callService(@PathVariable String request) {
        return remoteService.callRemoteService(request);
    }

    @GetMapping("/circuit-breaker/state")
    public Object getCircuitBreakerState() {
        CircuitBreaker circuitBreaker = circuitBreakerRegistry
            .circuitBreaker("remoteService");

        return java.util.Collections.singletonMap("state",
            circuitBreaker.getState().name());
    }
}

五、生产环境实战

5.1 系统架构

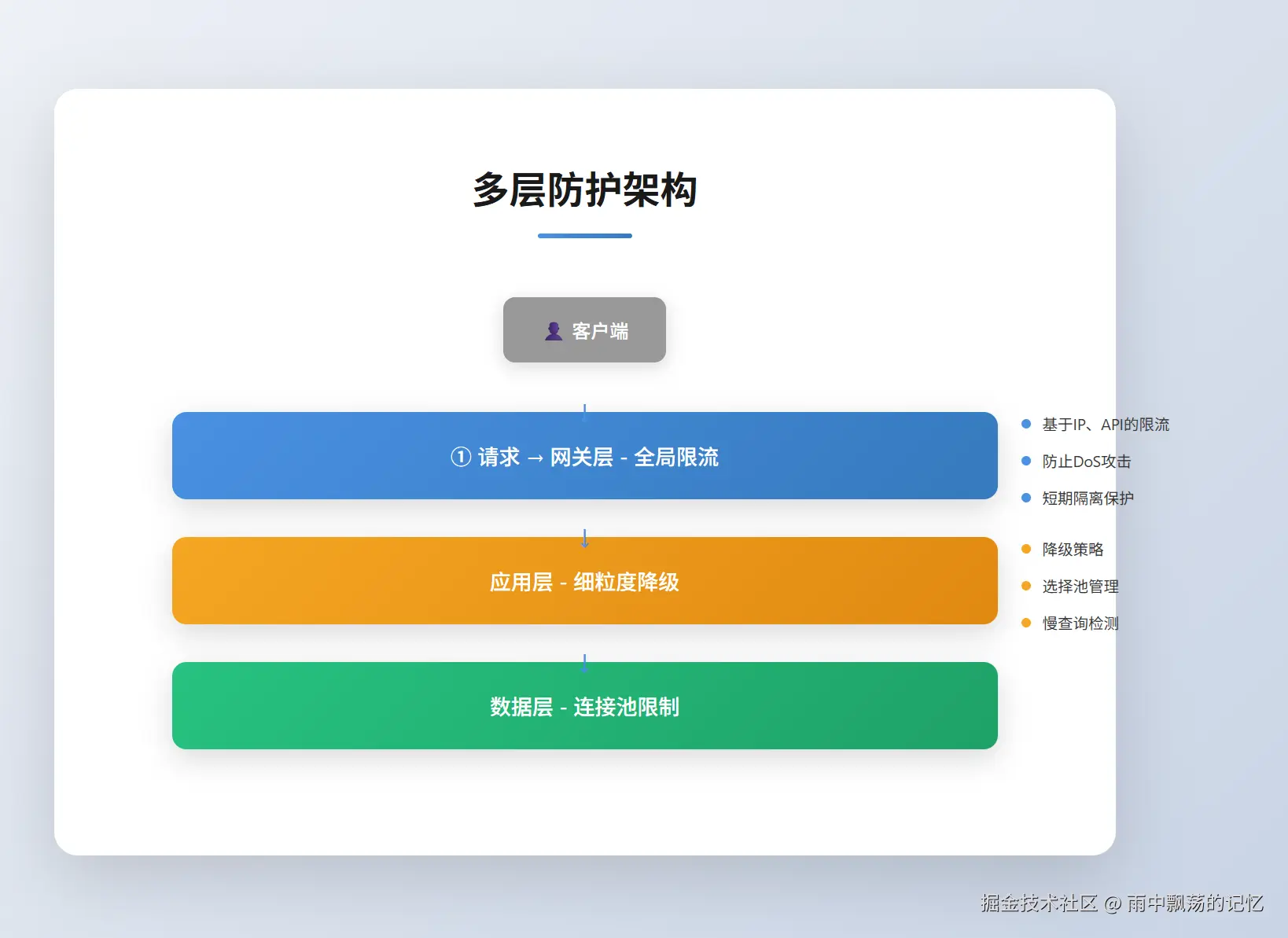

在高并发系统中，我们采用多层防护策略：

1. 网关层限流：基于IP、API路径的全局限流
2. 应用层熔断：针对每个下游服务的熔断保护
3. 数据库层连接池：限制数据库并发连接数

5.2 典型应用场景

场景1：第三方API调用

@Service
public class PaymentService {

    @CircuitBreaker(
        name = "paymentGateway",
        fallbackMethod = "localPaymentQueue"
    )
    @RateLimiter(name = "paymentGateway")
    public PaymentResult processPayment(PaymentRequest request) {
        // 调用第三方支付网关
        return paymentGatewayClient.charge(request);
    }

    private PaymentResult localPaymentQueue(PaymentRequest request, Exception ex) {
        // 降级：写入本地队列，稍后重试
        paymentQueueService.enqueue(request);
        return PaymentResult.pending();
    }
}

场景2：数据库查询保护

@Service
public class UserService {

    @Bulkhead(name = "databaseQuery", maxConcurrentCalls = 10)
    public List<User> getUsersByIds(List<Long> ids) {
        // 限制数据库并发查询数
        return userRepository.findAllById(ids);
    }
}

场景3：缓存穿透保护

@Service
public class ProductService {

    @CircuitBreaker(name = "productSearch", fallbackMethod = "searchFromCache")
    @Cacheable(value = "products", key = "#keyword")
    public List<Product> searchProducts(String keyword) {
        return productRepository.search(keyword);
    }

    private List<Product> searchFromCache(String keyword, Exception ex) {
        // 从缓存或ES中搜索
        return productCacheService.search(keyword);
    }
}

5.3 分布式限流

在微服务架构中，需要实现分布式限流：

@Service
public class DistributedRateLimiter {

    @Autowired
    private RedisTemplate<String, String> redisTemplate;

    /**
     * 基于Redis的分布式限流
     */
    public boolean tryAcquire(String key, int limit, int windowSeconds) {
        String redisKey = "rate:limit:" + key;

        // Lua脚本保证原子性
        String luaScript =
            "local current = redis.call('get', KEYS[1]) " +
            "if current == false then " +
            "    redis.call('set', KEYS[1], 1) " +
            "    redis.call('expire', KEYS[1], ARGV[1]) " +
            "    return 1 " +
            "elseif tonumber(current) < tonumber(ARGV[2]) then " +
            "    return redis.call('incr', KEYS[1]) " +
            "else " +
            "    return 0 " +
            "end";

        DefaultRedisScript<Long> script = new DefaultRedisScript<>(luaScript, Long.class);
        Long result = redisTemplate.execute(script,
            Collections.singletonList(redisKey),
            String.valueOf(windowSeconds),
            String.valueOf(limit));

        return result != null && result == 1L;
    }
}

六、最佳实践

6.1 配置原则

1. 失败率阈值：建议设置为50%，避免过于敏感
2. 熔断等待时间：根据服务恢复时间设置，一般10-30秒
3. 半开状态请求数：建议3-5个，避免过多请求冲击

6.2 常见陷阱

错误做法1：所有服务使用统一配置

// 不推荐：一刀切
@CircuitBreaker(name = "default")  // 所有服务用同一配置

✅ 正确做法：针对不同服务特点配置

// 推荐：个性化配置
@CircuitBreaker(name = "criticalService")  // 核心服务
@CircuitBreaker(name = "normalService")   // 普通服务

错误做法2：降级逻辑抛异常

// 不推荐：降级中抛异常
private String fallback(String req, Exception ex) {
    throw new RuntimeException("降级失败");
}

✅ 正确做法：降级返回安全值

// 推荐：返回默认值或缓存值
private String fallback(String req, Exception ex) {
    return getCachedValue(req);
}

七、总结

熔断限流是保障微服务高可用的核心手段。
