使用 Elastiflow 收集路由器日志操作指南

环境准备

# 服务器 IP：192.168.5.20
# 服务器环境：Centos 7.9
# 完成 docker 和 docker-compose 部署
https://juejin.cn/post/7373645836872531978

# 限制容器日志大小
cat > /etc/docker/daemon.json << 'EOF'
{
  "log-driver": "json-file",
  "log-opts": {
    "max-size": "500m",
    "max-file": "3"
  }
}
EOF

systemctl restart docker

# 申请 license。其他信息随便填，邮箱必须是真实的，需要接收邮件
https://www.elastiflow.com/basic-license

# 下载模板，选择 8.14-codex 版本
https://www.elastiflow.com/docs/data_platforms/elastic/kibana/

路由器配置

以思科路由器为例

# 对应填入服务器 IP
flow exporter ElastiFLow-FE
 destination 192.168.5.20
 transport udp 9995
 export-protocol netflow-v9
exit
flow monitor ElastiFLow-FM
 record netflow ipv4 original-input
 exporter ElastiFLow-FE
 cache timeout active 60
 cache timeout inactive 15
exit
! 此处示例是应用在 vlan6，自行修改
interface Vlan6
 ip flow monitor ElastiFLow-FM input
 ip flow monitor ElastiFLow-FM output

show flow exporter statistics
show flow monitor ElastiFLow-FM cache

创建部署文件

mkdir-p /opt/docker-compose.yaml && vim /opt/docker-compose.yaml

#---start---
services:
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:8.14.0
    container_name: elasticsearch
    environment:
      - discovery.type=single-node
      - xpack.security.enabled=true
      - xpack.security.http.ssl.enabled=false
      - xpack.security.transport.ssl.enabled=false
      - ELASTIC_PASSWORD=qqwwee123 # 修改密码
      - bootstrap.memory_lock=true
      - TZ=Asia/Shanghai
      - "ES_JAVA_OPTS=-Xms4g -Xmx8g"
    ulimits:
      memlock: -1
    volumes:
      - es-data:/usr/share/elasticsearch/data
    ports:
      - 9200:9200
      - 9300:9300
    networks:
      - elastic

  kibana:
    image: docker.elastic.co/kibana/kibana:8.14.0
    container_name: kibana
    environment:
      - ELASTICSEARCH_HOSTS=http://elasticsearch:9200
      - ELASTICSEARCH_SERVICEACCOUNTTOKEN=AAEAAWVsYXN0aWMva2 # 此处信息后续可获取
      - xpack.security.enabled=true
      - TZ=Asia/Shanghai
      - I18N_LOCALE=zh-CN
    volumes:
      - /etc/localtime:/etc/localtime:ro
    ports:
      - 5601:5601
    depends_on:
      - elasticsearch
    networks:
      - elastic
  elastiflow:
    image: elastiflow/flow-collector:7.20.0
    container_name: elastiflow
    restart: unless-stopped
    network_mode: host
    environment:
      - EF_OUTPUT_ELASTICSEARCH_ENABLE=true
      - EF_OUTPUT_ELASTICSEARCH_ADDRESSES=127.0.0.1:9200
      - EF_OUTPUT_ELASTICSEARCH_USERNAME=elastic
      - EF_OUTPUT_ELASTICSEARCH_PASSWORD=qqwwee123 # 修改密码
      - EF_FLOW_SERVER_UDP_PORT=9995
      - EF_ACCOUNT_ID=69424578ce # license 信息
      - EF_FLOW_LICENSE_KEY=eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9 # license 信息
      # snmp 相关的四条配置非必要，可删除
      - EF_PROCESSOR_ENRICH_NETIF_SNMP_COMMUNITIES=public
      - EF_PROCESSOR_ENRICH_NETIF_SNMP_VERSION=2
      - EF_PROCESSOR_ENRICH_NETIF_SNMP_TIMEOUT=15
      - EF_PROCESSOR_ENRICH_NETIF_SNMP_RETRIES=2
      - EF_LOGGER_LEVEL=info
      - EF_LICENSE_ACCEPTED=true
      - TZ=Asia/Shanghai
    volumes:
      - /etc/localtime:/etc/localtime:ro
    depends_on:
      - elasticsearch

volumes:
  es-data:
    driver: local
  fb-data:
    driver: local

networks:
  elastic:
    driver: bridge


#---end---

执行部署命令

docker-compose up -d elasticsearch

# 进入容器
docker exec -it elasticsearch /bin/bash

# 获取 token
bin/elasticsearch-service-tokens create elastic/kibana kibana-token

# 将输出的 token 填入 docker-compose.yaml 文件中，参考配置如下
- ELASTICSEARCH_SERVICEACCOUNTTOKEN=AAEAAWVsYXN0a

# 部署全部服务
docker-compose up -d

开放端口

# centos
firewall-cmd --permanent --add-port=9995/udp
firewall-cmd --zone=public --add-port=5601/tcp --permanent
firewall-cmd --reload

Kibana 导入对象

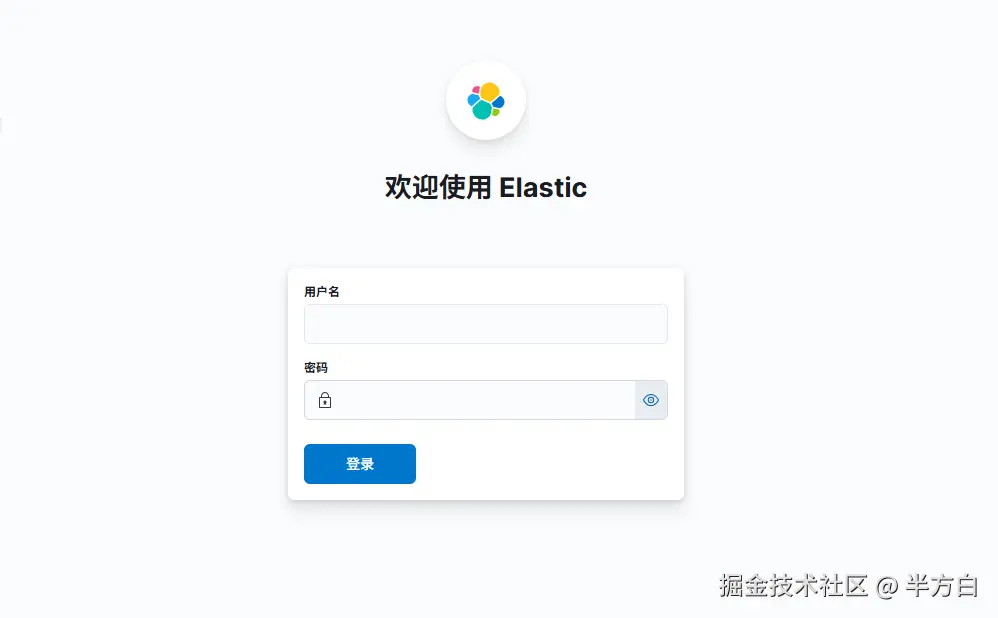

访问 webui，登录 kibana：http://服务器ip:5601

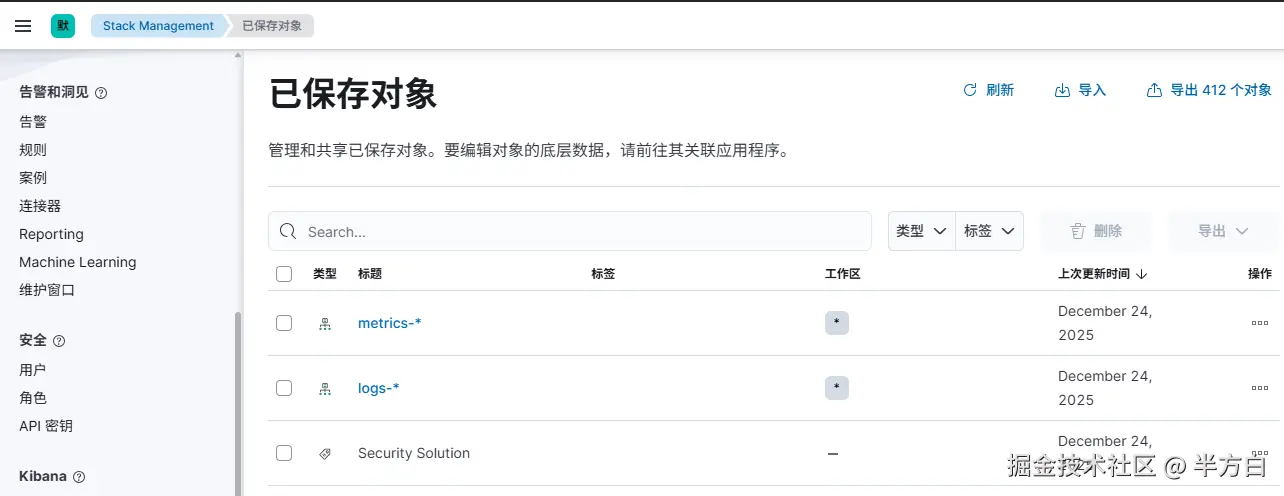

导航到以下路径：首页-> Stack Manager -> Kibana -> 已保存对象，导入下载好的模板文件

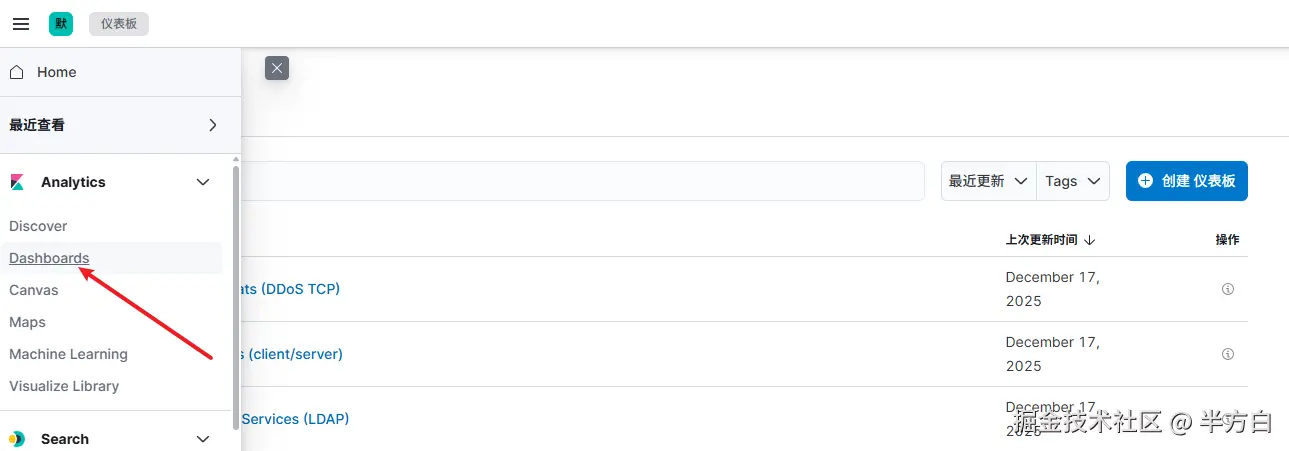

返回 Dashboard 查看信息

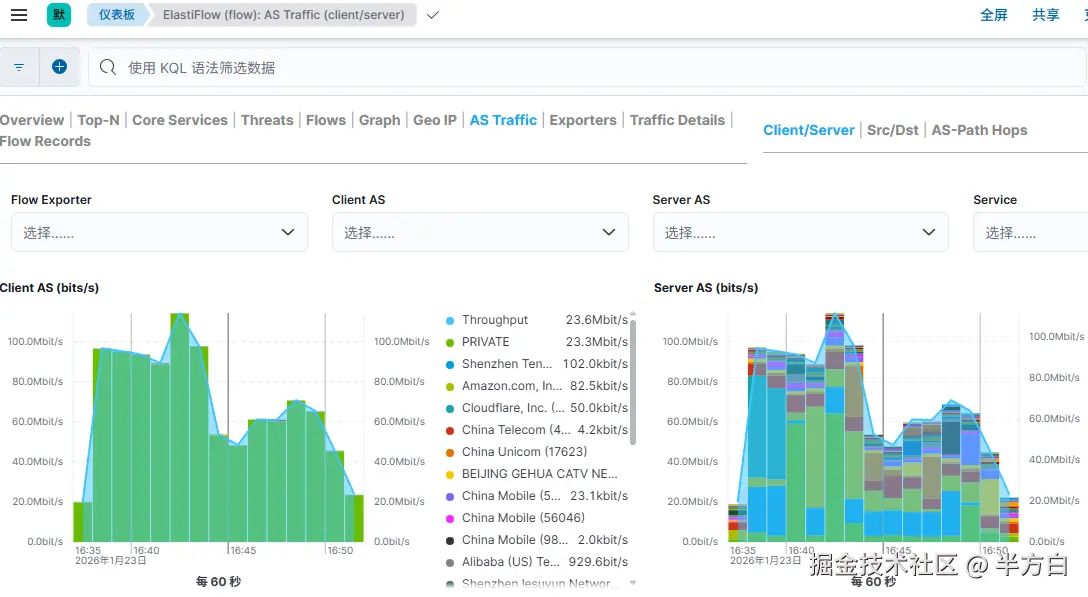

效果展示
