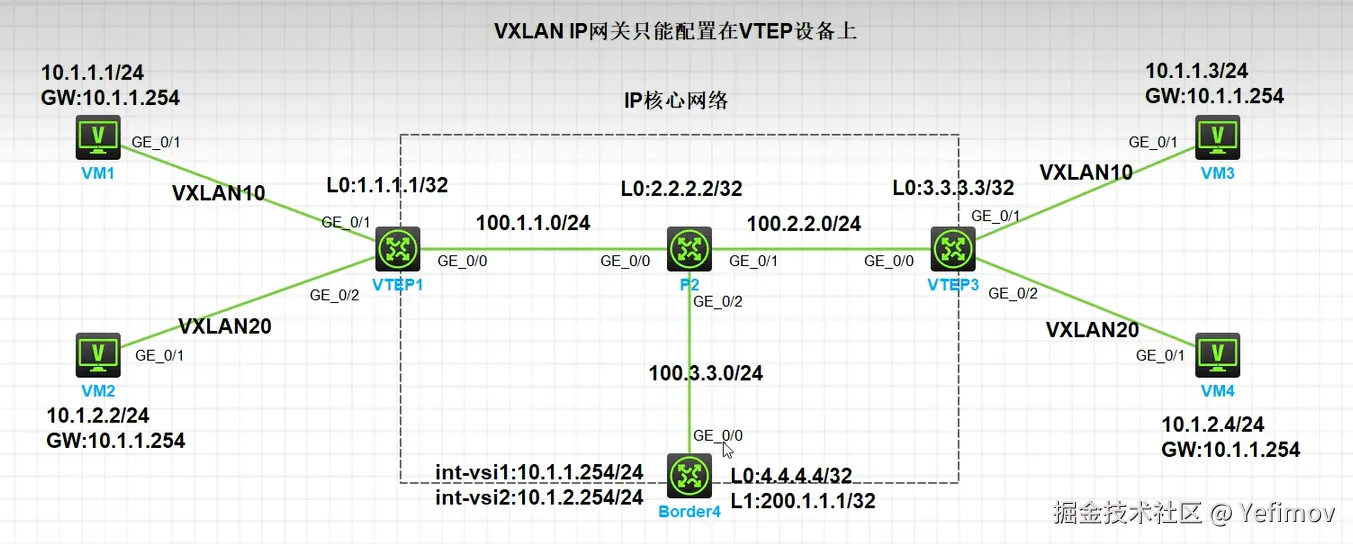

1.实验拓扑图
2 机器配置
2.1 vtep1
#
l2vpn enable
#
vsi vxlan10
vxlan 10
tunnel 0
tunnel 1
#
vsi vxlan20
vxlan 20
tunnel 0
tunnel 1
#
#
interface LoopBack0
ip address 1.1.1.1 255.255.255.255
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 100.1.1.1 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
combo enable copper
xconnect vsi vxlan10
#
interface GigabitEthernet0/2
port link-mode route
combo enable copper
xconnect vsi vxlan20
#
#
interface Tunnel0 mode vxlan
source 1.1.1.1
destination 3.3.3.3
#
interface Tunnel1 mode vxlan
source 1.1.1.1
destination 4.4.4.4
#
#
ospf 1 router-id 1.1.1.1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 100.1.1.0 0.0.0.255
#
2.2 P2
#
ospf 1 router-id 2.2.2.2
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 100.1.1.0 0.0.0.255
network 100.2.2.0 0.0.0.255
network 100.3.3.0 0.0.0.255
#
#
interface LoopBack0
ip address 2.2.2.2 255.255.255.255
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 100.1.1.2 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
combo enable copper
ip address 100.2.2.2 255.255.255.0
#
interface GigabitEthernet0/2
port link-mode route
combo enable copper
ip address 100.3.3.2 255.255.255.0
#
2.3 vtep3
#
ospf 1 router-id 3.3.3.3
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 100.2.2.0 0.0.0.255
#
#
l2vpn enable
#
vsi vxlan10
vxlan 10
tunnel 0
tunnel 1
#
vsi vxlan20
vxlan 20
tunnel 0
tunnel 1
#
#
interface LoopBack0
ip address 3.3.3.3 255.255.255.255
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 100.2.2.3 255.255.255.0
#
interface GigabitEthernet0/1
port link-mode route
combo enable copper
xconnect vsi vxlan10
#
interface GigabitEthernet0/2
port link-mode route
combo enable copper
xconnect vsi vxlan20
#
#
interface Tunnel0 mode vxlan
source 3.3.3.3
destination 1.1.1.1
#
interface Tunnel1 mode vxlan
source 3.3.3.3
destination 4.4.4.4
#
#
ospf 1 router-id 3.3.3.3
area 0.0.0.0
network 3.3.3.3 0.0.0.0
network 100.2.2.0 0.0.0.255
#
2.4 Border
#
l2vpn enable
#
vsi vxlan10
gateway vsi-interface 10
vxlan 10
tunnel 0
tunnel 1
#
vsi vxlan20
gateway vsi-interface 20
vxlan 20
tunnel 0
tunnel 1
#
#
interface LoopBack0
ip address 4.4.4.4 255.255.255.255
#
interface LoopBack1
ip address 200.1.1.1 255.255.255.255
#
interface GigabitEthernet0/0
port link-mode route
combo enable copper
ip address 100.3.3.4 255.255.255.0
#
#
interface Vsi-interface10
ip address 10.1.1.254 255.255.255.0
#
interface Vsi-interface20
ip address 10.1.2.254 255.255.255.0
#
interface Tunnel0 mode vxlan
source 4.4.4.4
destination 1.1.1.1
#
interface Tunnel1 mode vxlan
source 4.4.4.4
destination 3.3.3.3
#
#
ospf 1 router-id 4.4.4.4
area 0.0.0.0
network 4.4.4.4 0.0.0.0
network 100.3.3.0 0.0.0.255
#

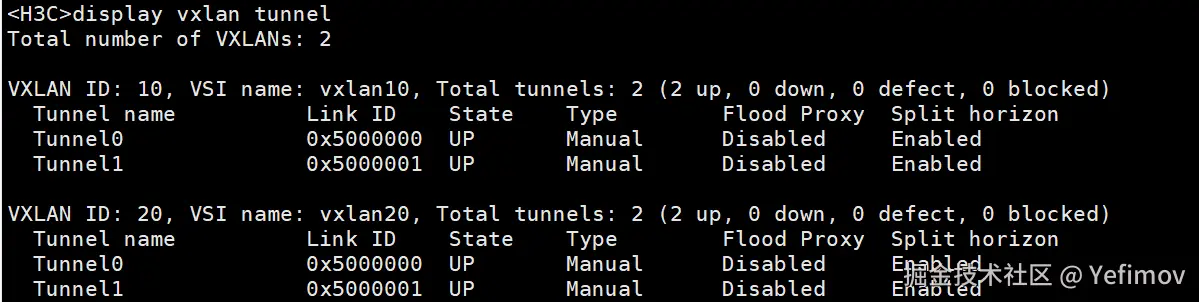

3. 实验结果

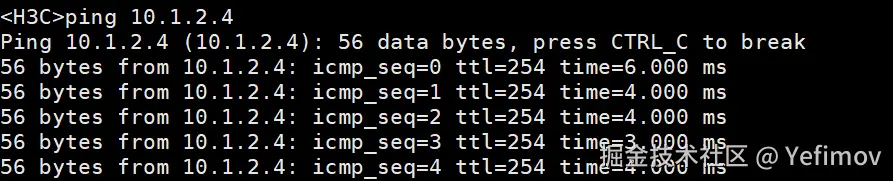

跨vxlan互通
