windows下Openmetadata源码搭建

windows下Openmetadata源码搭建

使用Openmetadata分支为main(版本为1.12.0-SNAPSHOT)。

源码地址：github.com/open-metada…

软件清单

• jdk21

• mysql

• elasticsearch

• node>=22.17.0

• yarn 1.22.0

• antlr4 4.9.2

Windows上安装ANTLR4

1. 下载 ANTLR4 工具

https://www.antlr.org/download/antlr-4.9.2-complete.jar

2. 设置环境变量

将 ANTLR4 添加到系统路径：

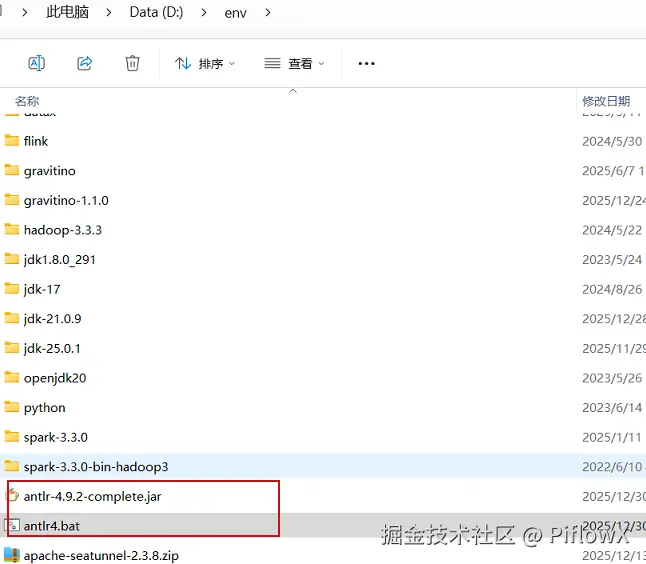

• 将下载的 antlr-4.9.2-complete.jar 文件复制到特定目录，如 D:/env

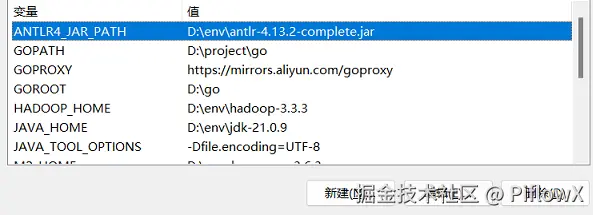

• 设置环境变量：

  • ANTLR4_JAR_PATH: D:/env/antlr-4.9.2-complete.jar

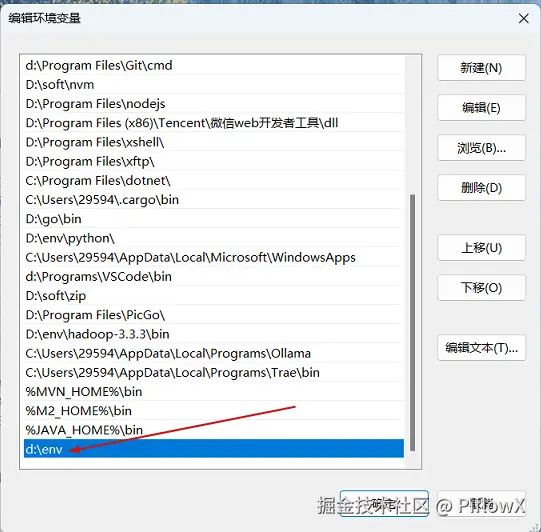

  • 将 d:/env 添加到 PATH 环境变量

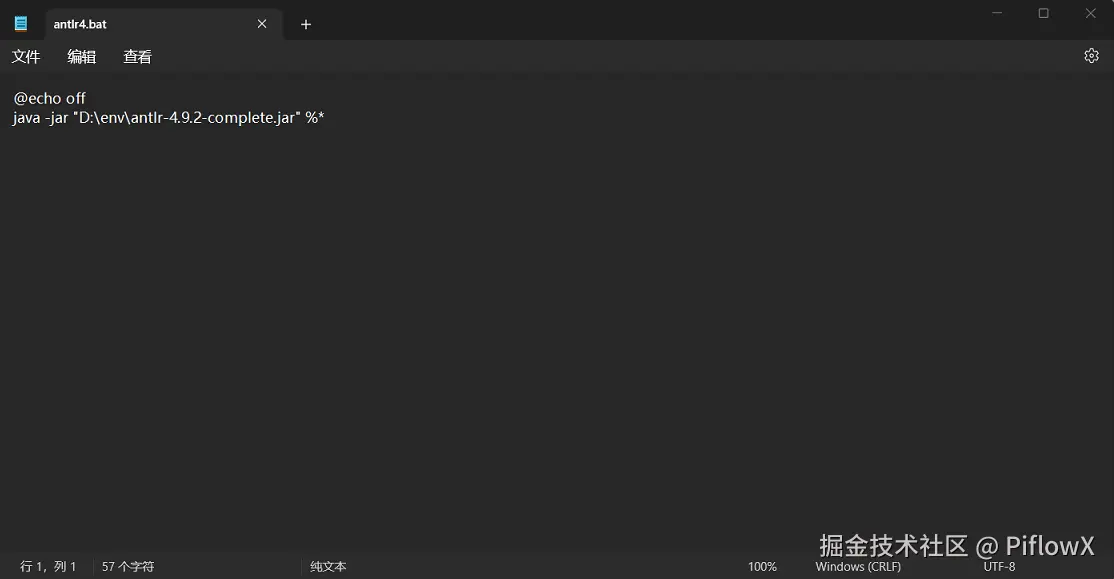

3.创建批处理脚本：

创建 antlr4.bat 文件（保存到 PATH 中的目录）：

@echo off
java -jar "D:/env/antlr-4.9.2-complete.jar" %*

后端编译

修改org.openmetadata.common.utils.CommonUtil#getResourcesFromDirectory方法

public static Collection<String> getResourcesFromDirectory(File file, Pattern pattern)
      throws IOException {
    final Path root = Path.of(file.getPath());
    try (Stream<Path> paths = Files.walk(Paths.get(file.getPath()))) {
      return paths
          .filter(Files::isRegularFile)
          .filter(path -> {
            // 适配windows 路径
            String parsedPath = path.toString().replace('\\', '/');
            return pattern.matcher(parsedPath).matches();
          })
          //.filter(path -> pattern.matcher(path.toString()).matches())
          .map(
              path -> {
                String relativePath = root.relativize(path).toString();
                LOG.debug("Adding directory file {}", relativePath);
                return relativePath;
              })
          .collect(Collectors.toSet());
    }
  }

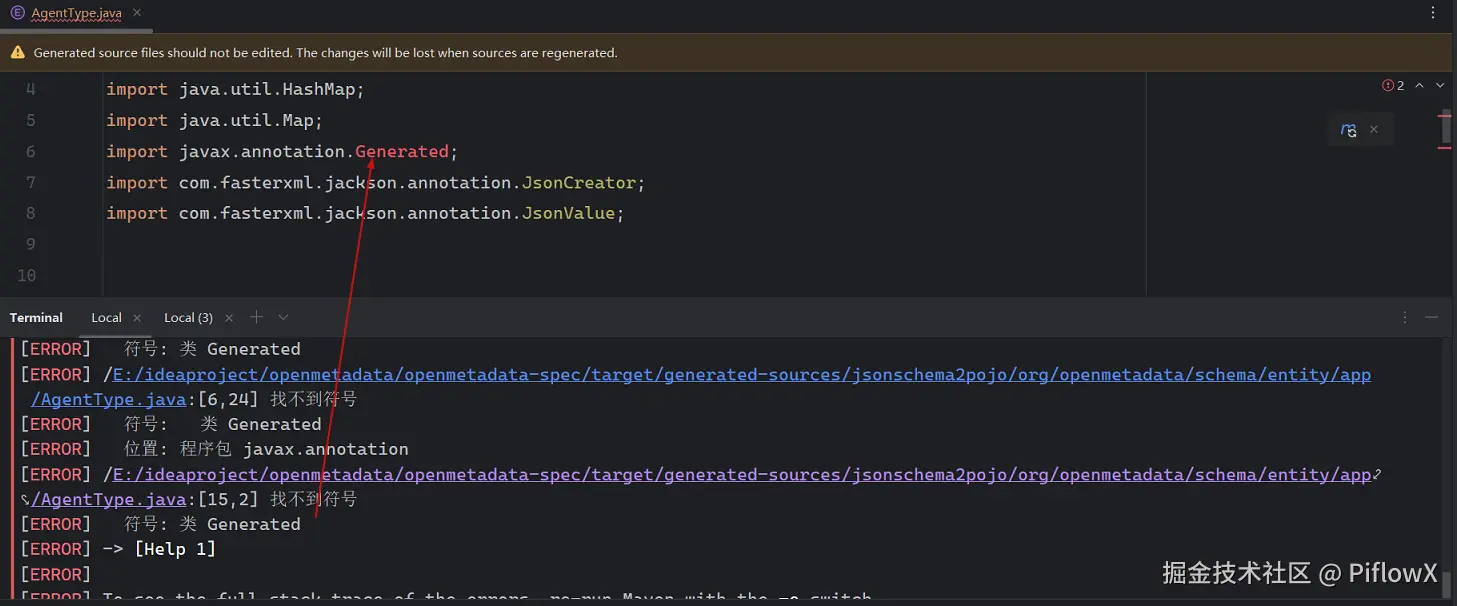

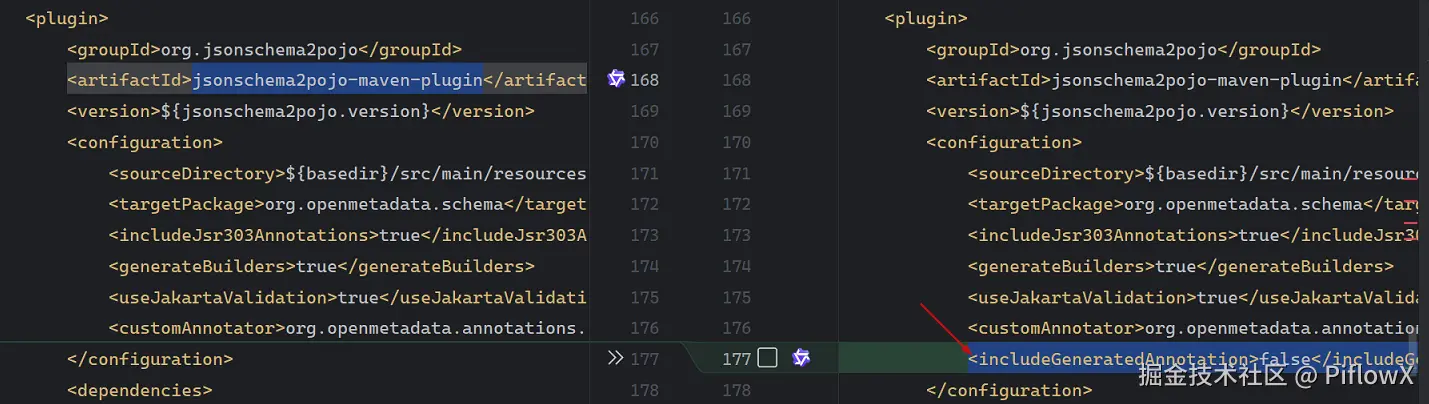

修改openmetadata-spec模块下pom.xml jsonschema2pojo-maven-plugin插件，添加以下代码（避免生成javax.annotation.Generated,造成编译异常）：

<includeGeneratedAnnotation>false</includeGeneratedAnnotation>

这里只编译后端代码，排除前端2个模块

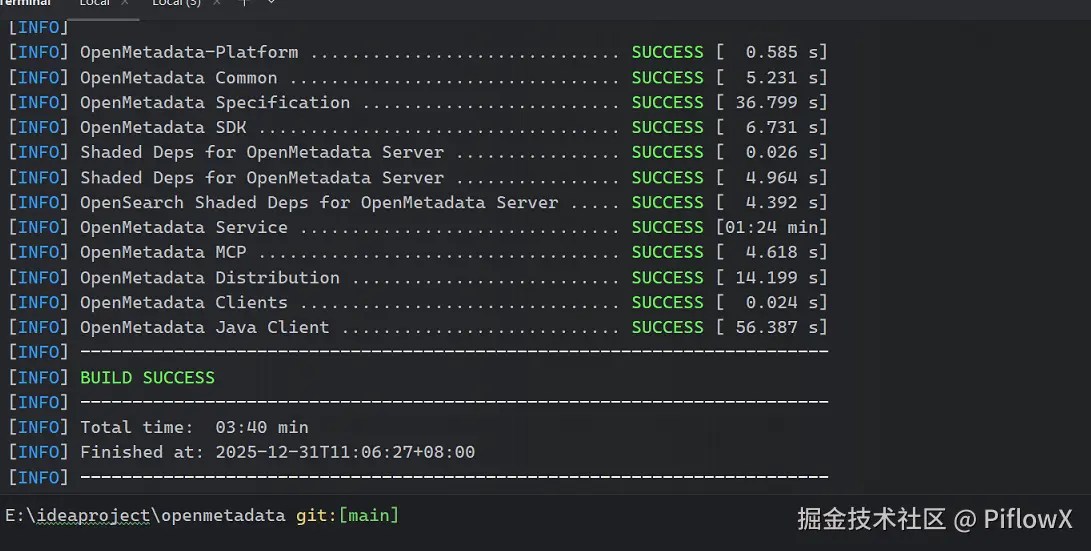

mvn clean package -DskipTests -DonlyBackend -pl !openmetadata-ui -pl !openmetadata-ui-core-components

运行openmetadata-server

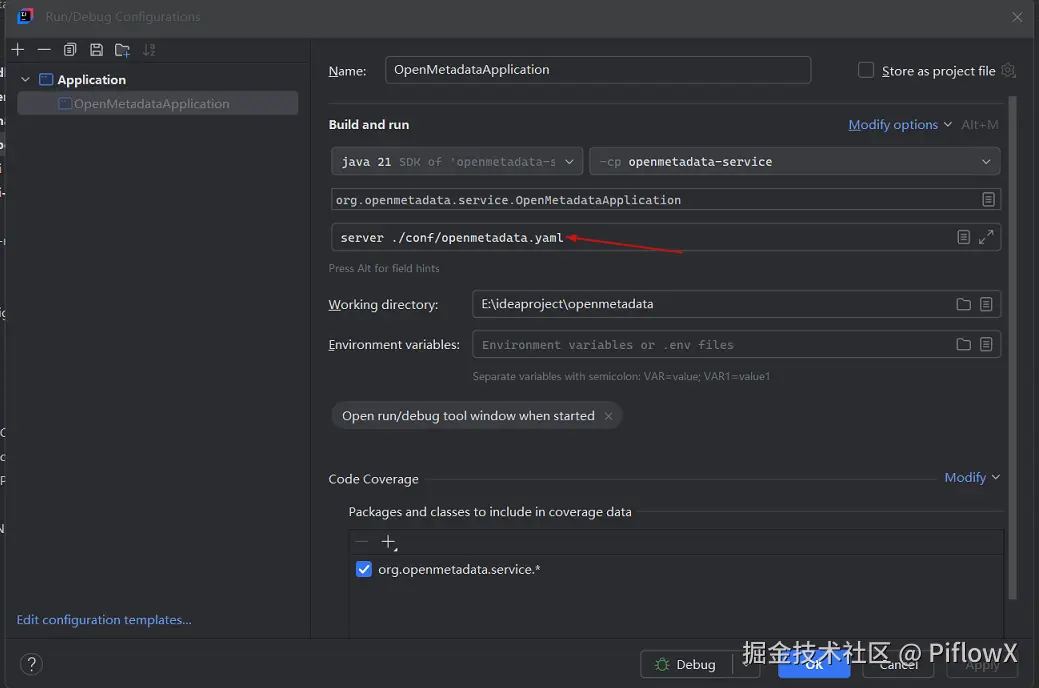

IDEA配置运行程序并启动

前端编译

• 由于前端package.json文件里面js-antlr是linux命令，所以需要修改一下源码

源码如下：

"build-check": "yarn run js-antlr && yarn run parse-schema",
"js-antlr": "PWD=$(echo $PWD) antlr4 -Dlanguage=JavaScript -o src/generated/antlr \"$PWD\"/../../../../../openmetadata-spec/src/main/antlr4/org/openmetadata/schema/*.g4",

修改如下：

  "build-check": "node -e \"const os = require('os'); const cmd = os.platform() === 'win32' ? 'js-antlr-windows' : 'js-antlr-linux'; require('child_process').execSync('yarn run ' + cmd, { stdio: 'inherit' });\" && yarn run parse-schema",
  "js-antlr-linux": "PWD=$(echo $PWD) antlr4 -Dlanguage=JavaScript -o src/generated/antlr \"$PWD\"/../../../../../openmetadata-spec/src/main/antlr4/org/openmetadata/schema/*.g4",
  "js-antlr-windows": "powershell -Command \"antlr4 -Dlanguage=JavaScript -o src/generated/antlr (Join-Path (Get-Location) '/../../../../../openmetadata-spec/src/main/antlr4/org/openmetadata/schema/*.g4')\"",

• 修改parseSchemas.js文件的traverseDirectory方法，解决文件路径分隔符的问题

源码如下：

async function traverseDirectory(
  Directory,
  playDir,
  destDir,
  shouldDereference = false
) {
  const Files = fs.readdirSync(Directory);
  for (const File of Files) {
    const Absolute = path.join(Directory, File);
    if (fs.statSync(Absolute).isDirectory()) {
      await traverseDirectory(Absolute, playDir, destDir, shouldDereference);

   } else {
      // 路径分隔符的问题，是的replace的结果不正确
      const name = Absolute.replace(playDir, destDir);
      await parseSchema(Absolute, name, shouldDereference);
    }
  }
}

修改如下：

// Function to traverse directories and parse files
async function traverseDirectory(
  Directory,
  playDir,
  destDir,
  shouldDereference = false
) {
  const Files = fs.readdirSync(Directory);
  for (const File of Files) {
    const Absolute = path.join(Directory, File);
    if (fs.statSync(Absolute).isDirectory()) {
      await traverseDirectory(Absolute, playDir, destDir, shouldDereference);
    } else {
      // 使用 path.normalize 确保路径分隔符与操作系统兼容
      const normalizedAbsolute = path.normalize(Absolute);
      const normalizedPlayDir = path.normalize(playDir);
      const normalizedDestDir = path.normalize(destDir);

      const name = normalizedAbsolute.replace(normalizedPlayDir, normalizedDestDir);
      await parseSchema(Absolute, name, shouldDereference);
    }
  }
}

编译运行

yarn install --frozen-lockfile
yarn start

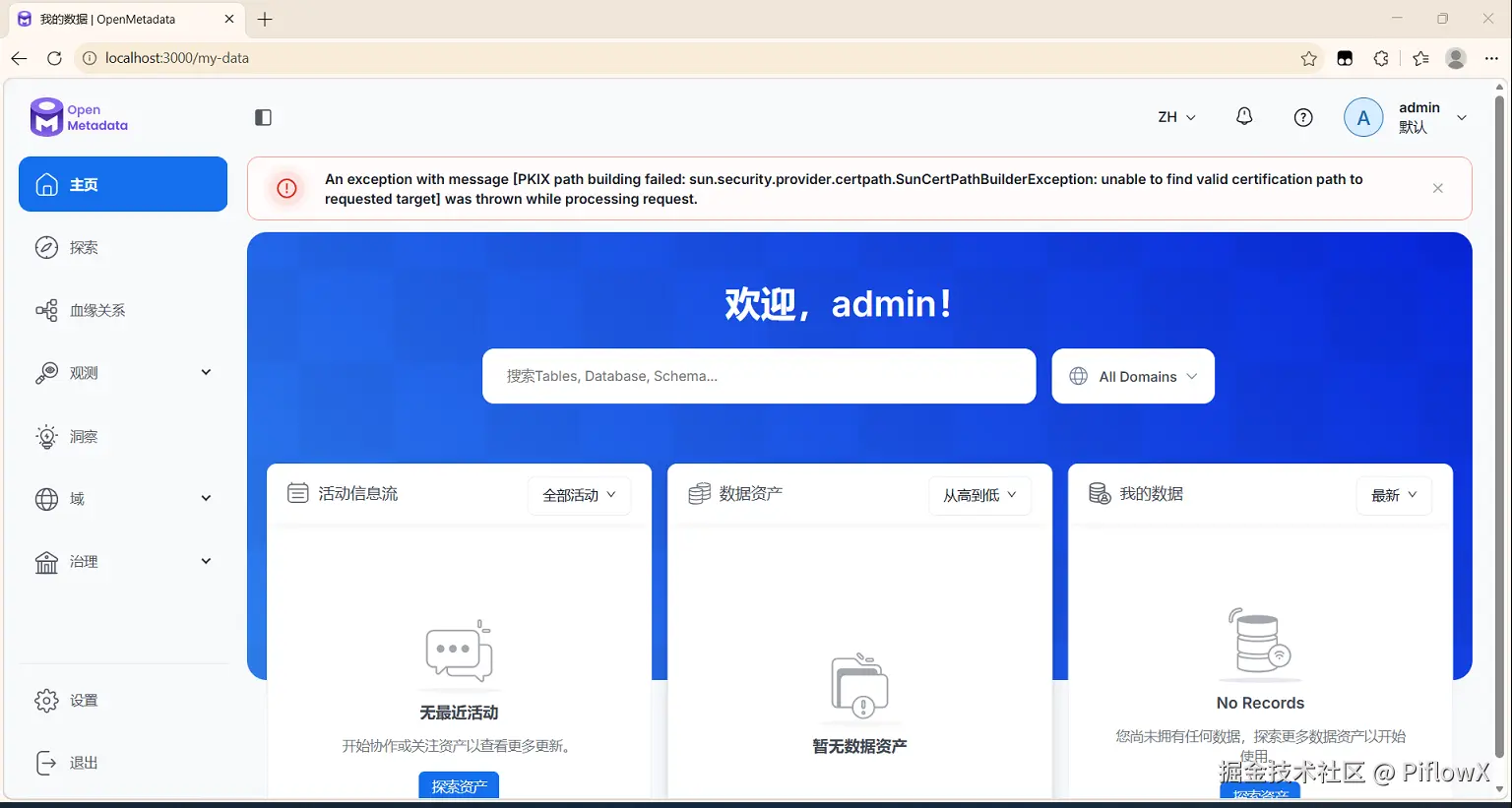

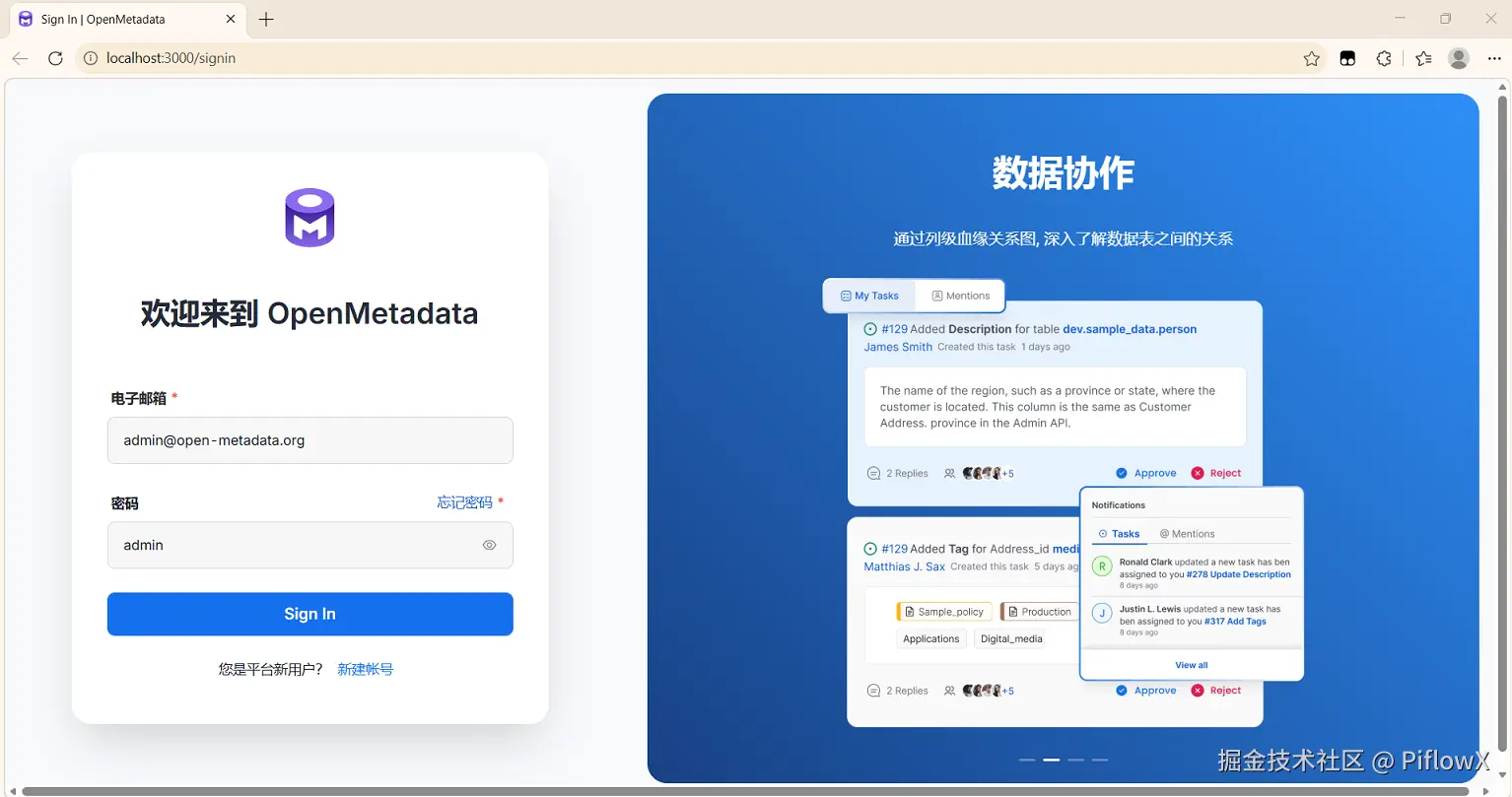

浏览器访问localhost:3000

Username:admin@open-metadata.org Password:admin

注：以上步骤省略了配置文件的配置和数据库初始化。
