数据库性能之旅(三)index skip scan

39 阅读2分钟

什么是index skip scan?

create index idx01 on tab1(name,id);


select xx from tab1 where id=xxx;

SQL

这条查询能用到索引idx01吗?****不一定

skip scan能解决什么问题?

简单说,如果id的选择度很高,又没有合适的索引。走index scan用上一个索引比全表性能更好的情况下skip scan也可以提高性能。看下不同数据库是怎么实现的?

如何实现的?

前导列拆分

create index idx02 on stadents(性别,name);
需求语句
select * from students where name='张三'

SQL

使用index会把上面的语句逻辑拆分

select * from students where 性别='男' and name='张三'
union
select * from students where 性别='女' and name='张三';

SQL

这样拆分后,查询只要走两次索引扫描,不用走全表扫描。

Oracle

CREATE TABLE test_objects AS

SELECT * FROM all_objects;



CREATE INDEX test_objects_i ON test_objects (owner, object_name, subobject_name);



EXEC DBMS_STATS.gather_table_stats(USER, 'TEST_OBJECTS', cascade => TRUE);


SQL> SET AUTOTRACE ON

SQL> SELECT owner, object_name

  2  FROM   test_objects

  3  WHERE  object_name = 'DBMS_OUTPUT';



OWNER                          OBJECT_NAME

------------------------------ ------------------------------

PUBLIC                         DBMS_OUTPUT

SYS                            DBMS_OUTPUT



2 rows selected.





Execution Plan

----------------------------------------------------------

Plan hash value: 1293870291



-----------------------------------------------------------------------------------

| Id  | Operation        | Name           | Rows  | Bytes | Cost (%CPU)| Time     |

-----------------------------------------------------------------------------------

|   0 | SELECT STATEMENT |                |     2 |    64 |    14   (0)| 00:00:01 |

|*  1 |  INDEX SKIP SCAN | TEST_OBJECTS_I |     2 |    64 |    14   (0)| 00:00:01 |

-----------------------------------------------------------------------------------

SQL

PostgreSQL

PostgreSQL18中引入了 index skip scan

                                                                    QUERY PLAN

----------------------------------------------------------------------------------------------------------------------------------------------------

 Limit  (cost=389.72..389.97 rows=100 width=50) (actual time=0.155..0.156 rows=0 loops=1)

   Buffers: shared hit=12

   ->  Sort  (cost=389.72..389.97 rows=100 width=50) (actual time=0.153..0.154 rows=0 loops=1)

         Sort Key: created_at

         Sort Method: quicksort  Memory: 25kB

         Buffers: shared hit=12

         ->  Index Scan using idx_users_status_created on users  (cost=0.43..386.40 rows=100 width=50) (actual time=0.145..0.146 rows=0 loops=1)

               Index Cond: (created_at > (CURRENT_DATE - '7 days'::interval))

               Index Searches: 4

               Buffers: shared hit=12

 Planning Time: 0.221 ms

 Execution Time: 0.204 ms

(12 rows)

SQL

PostgreSQL中使用了Index Scan using idx_users_status_created而不是单独的index skip,这里多了4次index searches,可以看出PostgreSQL把这当成了索引扫描的增强。最终是否选择skip scan还是要看代价的。

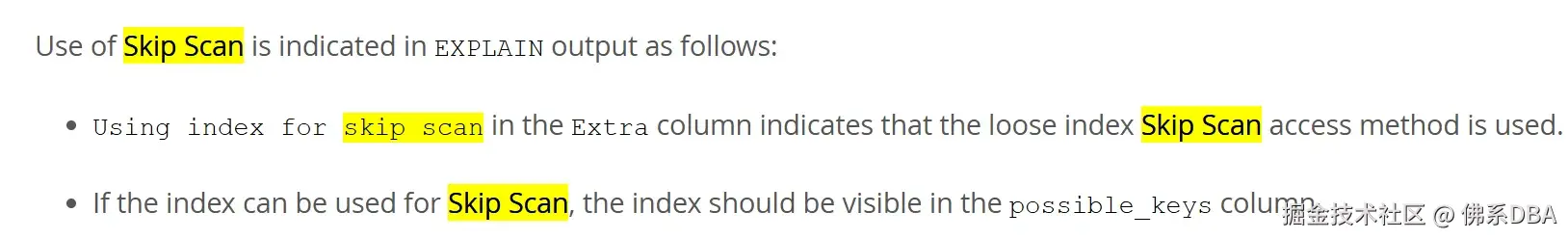

MySQL

MySQL 8.0引入了索引跳跃扫描

达梦

通过USE_INDEX_SKIP_SCAN支持

OceanBase支持

 www.oceanbase.com/knowledge-b…

参考链接:

 oracle-base.com/articles/9i…

 betterstack.com/community/g…

 dev.mysql.com/doc/refman/…

 eco.dameng.com/community/q…
