个人开发者接入拼多多开放平台

大家好，我是小悟。

一、拼多多开放平台概述

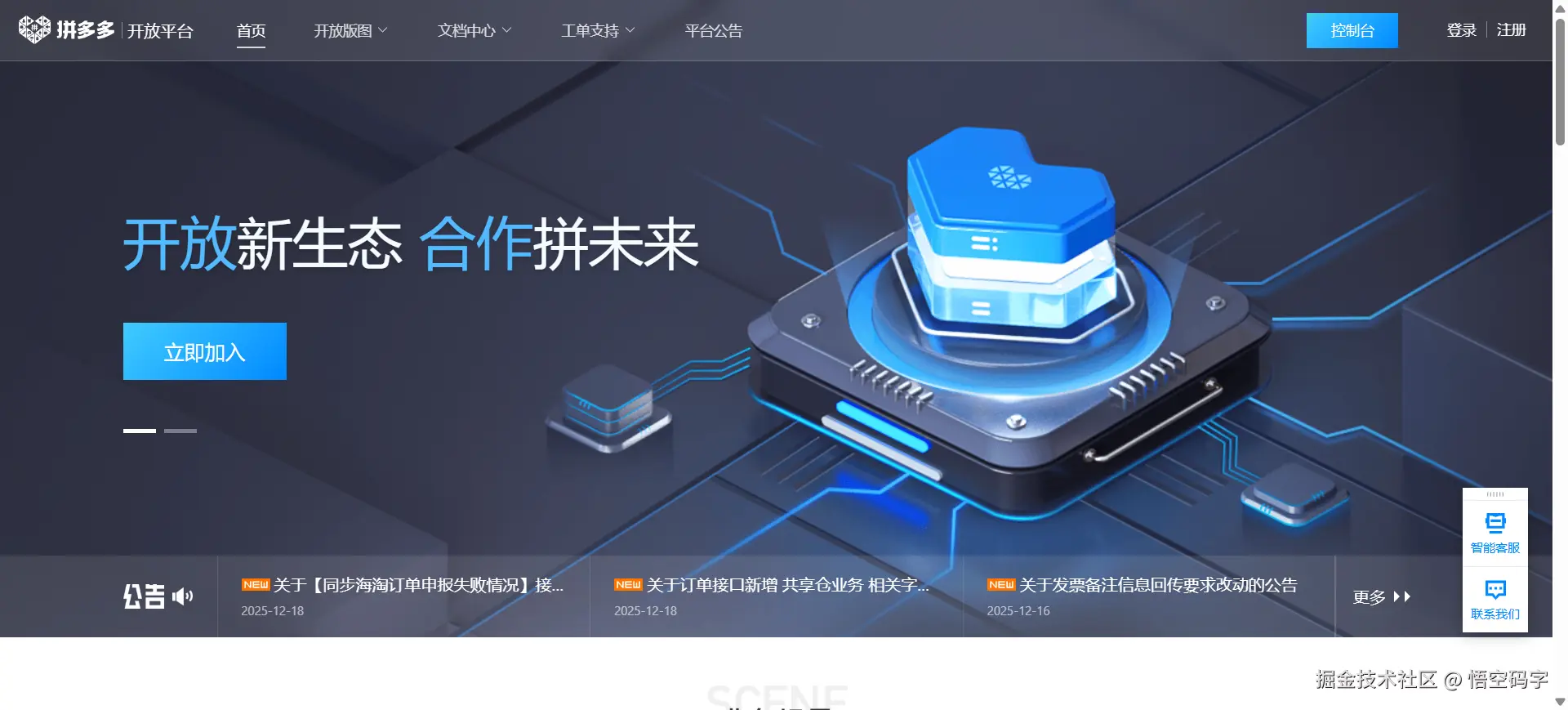

拼多多开放平台（Pinduoduo Open Platform）是拼多多为第三方开发者提供的一套API接口服务体系，允许开发者获取拼多多的商品、订单、物流、营销等数据，并实现与拼多多系统的集成。平台主要提供以下能力：

1.1 核心功能模块

• 商品管理：获取商品列表、详情、上下架商品等
• 订单管理：订单查询、发货、退款处理
• 物流管理：物流跟踪、电子面单
• 营销工具：优惠券、拼团活动管理
• 数据服务：店铺数据统计、商品分析

1.2 技术特性

• RESTful API设计
• 使用OAuth 2.0授权
• 支持HTTPS协议
• 数据格式为JSON
• 需要签名验证

二、详细实现步骤

2.1 前期准备

2.1.1 注册开发者账号

1. 访问拼多多开放平台官网
2. 注册个人开发者账号
3. 完成实名认证

2.1.2 创建应用

1. 在控制台创建新应用
2. 获取Client ID和Client Secret
3. 配置回调地址和权限

2.2 SpringBoot项目搭建

2.2.1 创建项目

<!-- pom.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.0</version>
    </parent>

    <groupId>com.pdd</groupId>
    <artifactId>pdd-open-platform</artifactId>
    <version>1.0.0</version>

    <properties>
        <java.version>11</java.version>
    </properties>

    <dependencies>
        <!-- SpringBoot Web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- HTTP客户端 -->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.5.13</version>
        </dependency>

        <!-- JSON处理 -->
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
        </dependency>

        <!-- 配置文件加密 -->
        <dependency>
            <groupId>com.github.ulisesbocchio</groupId>
            <artifactId>jasypt-spring-boot-starter</artifactId>
            <version>3.0.4</version>
        </dependency>

        <!-- 测试 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

2.3 核心配置类

server:
  port: 8080
  servlet:
    context-path: /pdd

spring:
  application:
    name: pdd-open-platform

# 拼多多开放平台配置
pdd:
  config:
    # 正式环境
    production:
      gateway: https://gw-api.pinduoduo.com/api/router
    # 应用配置
    app:
      client-id: ENC(你的ClientId加密值)
      client-secret: ENC(你的ClientSecret加密值)
      redirect-uri: http://localhost:8080/pdd/auth/callback

package com.pdd.config;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Data
@Component
@ConfigurationProperties(prefix = "pdd.config")
public class PddProperties {
    private Sandbox sandbox;
    private Production production;
    private App app;

    @Data
    public static class Sandbox {
        private String gateway;
    }

    @Data
    public static class Production {
        private String gateway;
    }

    @Data
    public static class App {
        private String clientId;
        private String clientSecret;
        private String redirectUri;
    }
}

2.4 签名工具类

package com.pdd.util;

import lombok.extern.slf4j.Slf4j;
import org.apache.commons.codec.digest.DigestUtils;
import org.springframework.stereotype.Component;

import java.util.*;

@Slf4j
@Component
public class PddSignUtil {

    /**
     * 生成拼多多API签名
     * @param params 请求参数
     * @param clientSecret 客户端密钥
     * @return 签名
     */
    public static String generateSign(Map<String, String> params, String clientSecret) {
        // 1. 参数排序
        List<String> keys = new ArrayList<>(params.keySet());
        Collections.sort(keys);

        // 2. 拼接字符串
        StringBuilder sb = new StringBuilder();
        sb.append(clientSecret);
        for (String key : keys) {
            String value = params.get(key);
            if (value != null && !value.isEmpty()) {
                sb.append(key).append(value);
            }
        }
        sb.append(clientSecret);

        // 3. MD5加密并转大写
        String signStr = sb.toString();
        String md5Hex = DigestUtils.md5Hex(signStr).toUpperCase();

        log.debug("生成签名, 原字符串: {}, 签名结果: {}", signStr, md5Hex);
        return md5Hex;
    }

    /**
     * 验证签名
     */
    public static boolean verifySign(Map<String, String> params, String clientSecret, String sign) {
        String generatedSign = generateSign(params, clientSecret);
        return generatedSign.equals(sign);
    }
}

2.5 HTTP客户端封装

package com.pdd.client;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.pdd.config.PddProperties;
import com.pdd.util.PddSignUtil;
import lombok.extern.slf4j.Slf4j;
import org.apache.http.HttpEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.nio.charset.StandardCharsets;
import java.util.HashMap;
import java.util.Map;

@Slf4j
@Component
public class PddHttpClient {

    @Autowired
    private PddProperties pddProperties;

    @Autowired
    private ObjectMapper objectMapper;

    /**
     * 执行API调用
     */
    public Map<String, Object> execute(String type, String version,
                                      String accessToken, Map<String, Object> bizParams) {
        try {
            // 构建基础参数
            Map<String, String> params = new HashMap<>();
            params.put("type", type);
            params.put("client_id", pddProperties.getApp().getClientId());
            params.put("access_token", accessToken);
            params.put("timestamp", String.valueOf(System.currentTimeMillis() / 1000));
            params.put("data_type", "JSON");
            params.put("version", version);

            // 添加业务参数
            if (bizParams != null && !bizParams.isEmpty()) {
                String dataJson = objectMapper.writeValueAsString(bizParams);
                params.put("data", dataJson);
            }

            // 生成签名
            String sign = PddSignUtil.generateSign(params,
                pddProperties.getApp().getClientSecret());
            params.put("sign", sign);

            // 发送请求
            String url = pddProperties.getProduction().getGateway();
            String response = doPost(url, params);

            // 解析响应
            return objectMapper.readValue(response, Map.class);

        } catch (Exception e) {
            log.error("调用拼多多API失败", e);
            throw new RuntimeException("API调用失败", e);
        }
    }

    /**
     * 执行POST请求
     */
    private String doPost(String url, Map<String, String> params) throws Exception {
        try (CloseableHttpClient httpClient = HttpClients.createDefault()) {
            HttpPost httpPost = new HttpPost(url);

            // 设置请求头
            httpPost.setHeader("Content-Type", "application/json;charset=UTF-8");

            // 设置请求体
            String jsonParams = objectMapper.writeValueAsString(params);
            StringEntity entity = new StringEntity(jsonParams, StandardCharsets.UTF_8);
            httpPost.setEntity(entity);

            // 执行请求
            try (CloseableHttpResponse response = httpClient.execute(httpPost)) {
                HttpEntity responseEntity = response.getEntity();
                return EntityUtils.toString(responseEntity, StandardCharsets.UTF_8);
            }
        }
    }
}

2.6 OAuth授权服务

package com.pdd.service;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.pdd.config.PddProperties;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;

import java.util.HashMap;
import java.util.Map;

@Slf4j
@Service
public class PddAuthService {

    @Autowired
    private PddProperties pddProperties;

    @Autowired
    private RestTemplate restTemplate;

    @Autowired
    private ObjectMapper objectMapper;

    /**
     * 获取授权URL
     */
    public String getAuthUrl(String state) {
        String clientId = pddProperties.getApp().getClientId();
        String redirectUri = pddProperties.getApp().getRedirectUri();

        return String.format("https://mai.pinduoduo.com/h5-login.html?" +
                "response_type=code&client_id=%s&redirect_uri=%s&state=%s",
                clientId, redirectUri, state);
    }

    /**
     * 通过授权码获取访问令牌
     */
    public Map<String, Object> getAccessToken(String code) {
        String url = "https://open-api.pinduoduo.com/oauth/token";

        Map<String, String> params = new HashMap<>();
        params.put("client_id", pddProperties.getApp().getClientId());
        params.put("client_secret", pddProperties.getApp().getClientSecret());
        params.put("grant_type", "authorization_code");
        params.put("code", code);
        params.put("redirect_uri", pddProperties.getApp().getRedirectUri());

        try {
            String response = restTemplate.postForObject(url, params, String.class);
            return objectMapper.readValue(response, Map.class);
        } catch (Exception e) {
            log.error("获取Access Token失败", e);
            throw new RuntimeException("授权失败", e);
        }
    }

    /**
     * 刷新访问令牌
     */
    public Map<String, Object> refreshToken(String refreshToken) {
        String url = "https://open-api.pinduoduo.com/oauth/token";

        Map<String, String> params = new HashMap<>();
        params.put("client_id", pddProperties.getApp().getClientId());
        params.put("client_secret", pddProperties.getApp().getClientSecret());
        params.put("grant_type", "refresh_token");
        params.put("refresh_token", refreshToken);

        try {
            String response = restTemplate.postForObject(url, params, String.class);
            return objectMapper.readValue(response, Map.class);
        } catch (Exception e) {
            log.error("刷新Token失败", e);
            throw new RuntimeException("刷新令牌失败", e);
        }
    }
}

2.7 业务API服务示例

package com.pdd.service;

import com.pdd.client.PddHttpClient;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Map;

@Slf4j
@Service
public class PddGoodsService {

    @Autowired
    private PddHttpClient pddHttpClient;

    /**
     * 获取商品列表
     */
    public Map<String, Object> getGoodsList(String accessToken,
                                          Integer page,
                                          Integer pageSize) {
        Map<String, Object> bizParams = new HashMap<>();
        bizParams.put("page", page);
        bizParams.put("page_size", pageSize);

        return pddHttpClient.execute(
            "pdd.goods.list.get",
            "v1",
            accessToken,
            bizParams
        );
    }

    /**
     * 获取商品详情
     */
    public Map<String, Object> getGoodsDetail(String accessToken, Long goodsId) {
        Map<String, Object> bizParams = new HashMap<>();
        bizParams.put("goods_id", goodsId);

        return pddHttpClient.execute(
            "pdd.goods.detail.get",
            "v1",
            accessToken,
            bizParams
        );
    }

    /**
     * 上架商品
     */
    public Map<String, Object> onSaleGoods(String accessToken, Long goodsId) {
        Map<String, Object> bizParams = new HashMap<>();
        bizParams.put("goods_id", goodsId);

        return pddHttpClient.execute(
            "pdd.goods.on.sale",
            "v1",
            accessToken,
            bizParams
        );
    }
}

2.8 控制器层

package com.pdd.controller;

import com.pdd.service.PddAuthService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import javax.servlet.http.HttpServletRequest;
import java.util.Map;

@Slf4j
@RestController
@RequestMapping("/auth")
public class AuthController {

    @Autowired
    private PddAuthService pddAuthService;

    /**
     * 跳转到授权页面
     */
    @GetMapping("/login")
    public String login(@RequestParam(required = false) String state) {
        String authUrl = pddAuthService.getAuthUrl(state != null ? state : "default");
        return "redirect:" + authUrl;
    }

    /**
     * 授权回调
     */
    @GetMapping("/callback")
    public Map<String, Object> callback(HttpServletRequest request) {
        String code = request.getParameter("code");
        String state = request.getParameter("state");

        log.info("收到授权回调，code: {}, state: {}", code, state);

        // 获取访问令牌
        Map<String, Object> tokenInfo = pddAuthService.getAccessToken(code);

        // 存储令牌信息（实际项目中应存入数据库）
        String accessToken = (String) tokenInfo.get("access_token");
        String refreshToken = (String) tokenInfo.get("refresh_token");
        Integer expiresIn = (Integer) tokenInfo.get("expires_in");

        log.info("获取Token成功，access_token: {}, expires_in: {}",
                accessToken, expiresIn);

        return tokenInfo;
    }
}

package com.pdd.controller;

import com.pdd.service.PddGoodsService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.Map;

@Slf4j
@RestController
@RequestMapping("/goods")
public class GoodsController {

    @Autowired
    private PddGoodsService pddGoodsService;

    /**
     * 获取商品列表
     */
    @GetMapping("/list")
    public Map<String, Object> getGoodsList(
            @RequestParam String accessToken,
            @RequestParam(defaultValue = "1") Integer page,
            @RequestParam(defaultValue = "20") Integer pageSize) {

        return pddGoodsService.getGoodsList(accessToken, page, pageSize);
    }

    /**
     * 获取商品详情
     */
    @GetMapping("/detail/{goodsId}")
    public Map<String, Object> getGoodsDetail(
            @RequestParam String accessToken,
            @PathVariable Long goodsId) {

        return pddGoodsService.getGoodsDetail(accessToken, goodsId);
    }
}

2.9 异常处理

package com.pdd.handler;

import com.pdd.exception.PddApiException;
import lombok.extern.slf4j.Slf4j;
import org.springframework.http.HttpStatus;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.ResponseStatus;
import org.springframework.web.bind.annotation.RestControllerAdvice;

import java.util.HashMap;
import java.util.Map;

@Slf4j
@RestControllerAdvice
public class GlobalExceptionHandler {

    /**
     * 处理拼多多API异常
     */
    @ExceptionHandler(PddApiException.class)
    @ResponseStatus(HttpStatus.BAD_REQUEST)
    public Map<String, Object> handlePddApiException(PddApiException e) {
        log.error("拼多多API调用异常", e);

        Map<String, Object> result = new HashMap<>();
        result.put("code", e.getCode());
        result.put("message", e.getMessage());
        result.put("success", false);

        return result;
    }

    /**
     * 处理通用异常
     */
    @ExceptionHandler(Exception.class)
    @ResponseStatus(HttpStatus.INTERNAL_SERVER_ERROR)
    public Map<String, Object> handleException(Exception e) {
        log.error("系统异常", e);

        Map<String, Object> result = new HashMap<>();
        result.put("code", 500);
        result.put("message", "系统内部错误");
        result.put("success", false);

        return result;
    }
}

2.10 定时任务（令牌刷新）

package com.pdd.task;

import com.pdd.service.PddAuthService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;

import java.util.Map;

@Slf4j
@Component
public class TokenRefreshTask {

    @Autowired
    private PddAuthService pddAuthService;

    /**
     * 每天凌晨刷新令牌（示例）
     */
    @Scheduled(cron = "0 0 0 * * ?")
    public void refreshTokens() {
        log.info("开始刷新拼多多访问令牌");

        // 从数据库获取需要刷新的令牌信息
        List<TokenInfo> tokens = tokenService.getExpiringTokens();

        for (TokenInfo token : tokens) {
            try {
                Map<String, Object> result = pddAuthService
                    .refreshToken(token.getRefreshToken());

                // 更新数据库中的令牌信息
                tokenService.updateToken(token.getId(), result);

                log.info("刷新令牌成功: {}", token.getId());
            } catch (Exception e) {
                log.error("刷新令牌失败: {}", token.getId(), e);
            }
         }

        log.info("拼多多令牌刷新任务完成");
    }
}

2.11 配置类

package com.pdd.config;

import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.SerializationFeature;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

import java.text.SimpleDateFormat;

@Configuration
public class AppConfig {

    @Bean
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }

    @Bean
    public ObjectMapper objectMapper() {
        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setDateFormat(new SimpleDateFormat("yyyy-MM-dd HH:mm:ss"));
        objectMapper.disable(SerializationFeature.FAIL_ON_EMPTY_BEANS);
        return objectMapper;
    }
}

三、使用示例

3.1 启动应用

package com.pdd;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.scheduling.annotation.EnableScheduling;

@SpringBootApplication
@EnableScheduling
public class PddOpenPlatformApplication {
    public static void main(String[] args) {
        SpringApplication.run(PddOpenPlatformApplication.class, args);
    }
}

3.2 测试API调用

// 测试类示例
package com.pdd.test;

import com.pdd.service.PddGoodsService;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.Map;

@SpringBootTest
public class PddApiTest {

    @Autowired
    private PddGoodsService pddGoodsService;

    @Test
    public void testGetGoodsList() {
        String accessToken = "your_access_token";
        Map<String, Object> result = pddGoodsService
            .getGoodsList(accessToken, 1, 20);

        System.out.println("API调用结果: " + result);
    }
}

四、总结

4.1 实现要点回顾

1. 认证授权流程：实现了完整的OAuth 2.0授权流程，包括获取授权码、交换访问令牌、刷新令牌等步骤。
2. API调用封装：统一封装了拼多多API的调用逻辑，包括参数构建、签名生成、请求发送和响应处理。
3. 安全性考虑：
   • 使用HTTPS协议保障传输安全
   • 实现签名验证防止请求篡改
   • 令牌定期刷新机制
   • 敏感信息加密存储
4. 可扩展性设计：
   • 模块化设计，便于新增API接口
   • 统一的异常处理机制
   • 配置外部化管理

4.2 开发注意事项

1. API限制：拼多多开放平台对API调用有频率限制，需要合理控制调用频率，必要时实现限流机制。
2. 错误处理：需要完善处理各种API错误，包括网络错误、业务错误、令牌过期等场景。
3. 数据安全：妥善保管Client Secret和访问令牌，建议使用加密存储，避免泄露。
4. 版本兼容：注意API版本更新，及时适配新版本接口。
5. 日志记录：详细记录API调用日志，便于问题排查和监控分析。

4.3 扩展建议

1. 缓存优化：对频繁调用的接口结果进行缓存，减少API调用次数。
2. 异步处理：对于耗时操作，可以采用异步方式处理，提高系统响应速度。
3. 监控告警：集成监控系统，对API调用成功率、响应时间等指标进行监控。
4. 重试机制：实现智能重试策略，处理网络抖动等临时性故障。
5. 多店铺支持：为支持多个拼多多店铺，需要设计多租户架构。

4.4 建议

1. 关注官方文档：拼多多开放平台会不定期更新，要及时关注官方文档变化。
2. 合理申请权限：根据实际需求申请API权限，避免过度申请。
3. 遵守平台规则：严格遵守拼多多开放平台的使用规范，避免违规操作。
4. 性能优化：考虑到个人服务器资源有限，需要特别注意代码性能和资源利用。

通过以上实现，个人开发者可以基于SpringBoot快速构建拼多多开放平台的集成应用，实现对拼多多平台商品、订单等数据的自动化管理，为后续业务开发奠定坚实基础。

谢谢你看我的文章，既然看到这里了，如果觉得不错，随手点个赞、转发、在看三连吧，感谢感谢。那我们，下次再见。

您的一键三连，是我更新的最大动力，谢谢

山水有相逢，来日皆可期，谢谢阅读，我们再会

我手中的金箍棒，上能通天，下能探海
