说明：
- 没有使用obshell进行运维管理

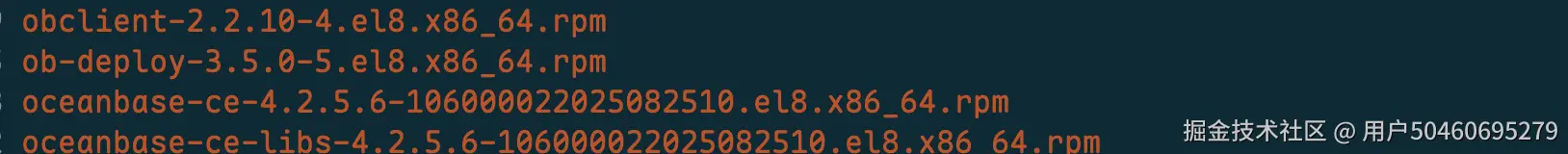

- 所需安装包
1. 硬件准备
1.1. 配置：
系统：Alibaba Cloud Linux release 3 (OpenAnolis Edition)
内核版本：5.10.134-19.1.al8.x86_64
CPU：4C
内存：32G
挂载盘：500G
1.2. 规划配置：
/data 200G --根据实际数据量
/home/admin/oceanbase 200G ---安装需求至少 200 G 空间以保存 7 天及以上的日志。
/redo 80G ----事务日志文件大小 = 增量数据内存上限的 3~4 倍。
2. 安装前准备：
2.1. 检查硬件：
- 查看操作系统：cat /etc/redhat-release。需满足
- 查看内核：uname -r 。OceanBase 数据库要求操作系统为 3.10.0 及以上。
- 查看内存：free -g。确保可用内存小于配置文件中的 memory_limit 值。
清理内存：sudo sysctl -w vm.drop_caches=3或sudo echo 3 > /proc/sys/vm/drop_caches
2.2. 创建用户：
创建用户：useradd -U admin -d /home/admin -s /bin/bash
设置密码：passwd admin
授权：chown -R admin:admin /redo
chown -R admin:admin /data/
chown -R admin:admin /home/admin
添加sudo权限：vim /etc/sudoers
Same thing without a password
%wheel ALL=(ALL) NOPASSWD: ALL
admin ALL=(ALL) NOPASSWD: ALL
2.3. 磁盘做LVM：
pvcreate /dev/nvme1n1
pvscan
vgcreate、vgscan

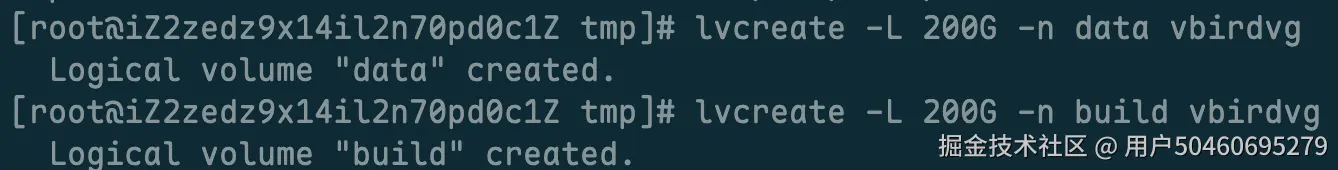

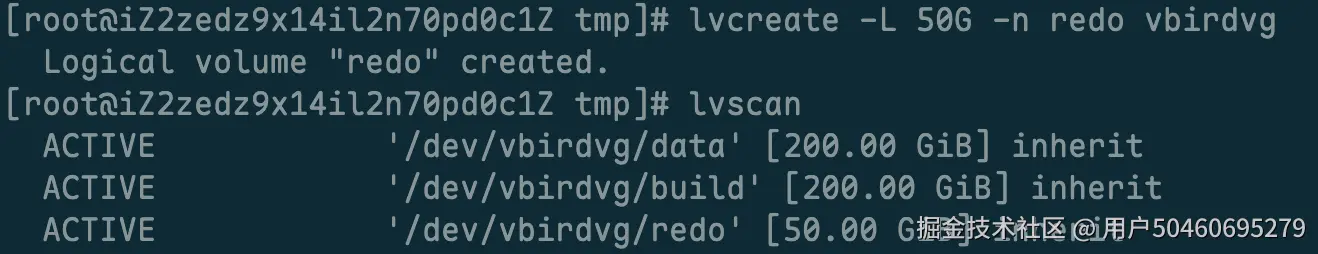

lvcreate、lvscan

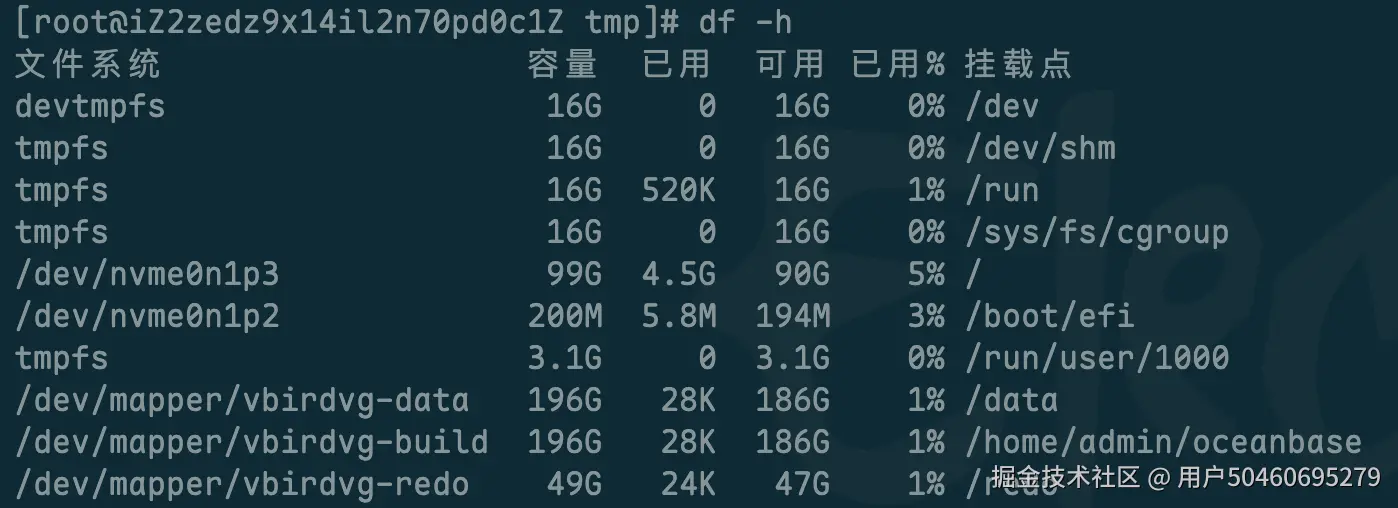

格式化、挂载
mkfs -t ext4 /dev/vbirdvg/data
mkfs -t ext4 /dev/vbirdvg/build
mkfs -t ext4 /dev/vbirdvg/redo
mkdir /data
mkdir /redo
mkdir -p /home/admin/oceanbase
mount /dev/vbirdvg/data /data
mount /dev/vbirdvg/build /home/admin/oceanbase
mount /dev/vbirdvg/redo /redo/
修改配置文件：
limits.conf
在 /etc/security/limits.conf 配置文件中添加以下内容：
root soft nofile 655350
root hard nofile 655350
* soft nofile 655350
* hard nofile 655350
* soft stack unlimited
* hard stack unlimited
* soft nproc 655360
* hard nproc 655360
* soft core unlimited
* hard core unlimited
退出重新登录后ulimit -a生效
sysctl.conf
#for oceanbase
#修改内核异步 I/O 限制
fs.aio-max-nr = 1048576
#网络优化
net.core.somaxconn = 2048
net.core.netdev_max_backlog = 10000
net.core.rmem_default = 16777216
net.core.wmem_default = 16777216
net.core.rmem_max = 16777216
net.core.wmem_max = 16777216
net.ipv4.ip_forward = 0
net.ipv4.conf.default.rp_filter = 1
net.ipv4.conf.default.accept_source_route = 0
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_rmem = 4096 87380 16777216
net.ipv4.tcp_wmem = 4096 65536 16777216
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.tcp_fin_timeout = 15
net.ipv4.tcp_slow_start_after_idle=0
vm.swappiness = 0
vm.min_free_kbytes = 2097152
vm.overcommit_memory = 0
fs.file-max = 6573688
fs.pipe-user-pages-soft = 0
#修改进程可以拥有的虚拟内存区域数量
vm.max_map_count = 655360
#此处为 OceanBase 数据库的 data 目录
kernel.core_pattern = /data/core-%e-%p-%t
2.4. 关闭防火墙
systemctl stop firewalld
systemctl status firewalld
2.5. 关闭selinux
vi /etc/selinux/config
修改：SELINUX=disabled
2.6. 配置时钟同步
单节点部署不需要
2.7. 互信
admin用户可登录自己
#ssh-keygen -t rsa
#ssh-copy-id -i id_rsa.pub admin@172.16.79.89
验证：admin用户执行ssh 'admin@172.16.79.89' --不需要输入密码表示成功
注意
1、不要更改/etc/hosts文件。
2、其中172.16.79.89为本主机的内网IP。
3. 安装
3.1. 安装OBD：
rpm -ivh ob-deploy-3.5.0-5.el8.x86_64.rpm
source /etc/profile.d/obd.sh
3.2. 配置OBD：
- 禁用远程仓库：obd mirror disable remote
- 将安装包添加至本地镜像库：obd mirror clone *.rpm
- 查看本地镜像库：obd mirror list local
- 修改参数文件
user:
username: admin
key_file: /home/admin/.ssh/authorized_keys
servers:
# Please don't use hostname, only IP can be supported
- 172.16.79.89
global:
# The working directory for OceanBase Database. OceanBase Database is started under this directory. This is a required field.
home_path: /home/admin/oceanbase/observer
# The directory for data storage. The default value is $home_path/store.
data_dir: /data
# The directory for clog, ilog, and slog. The default value is the same as the data_dir value.
redo_dir: /redo
# Starting from observer version 4.2, the network selection for the observer is based on the 'local_ip' parameter, and the 'devname' parameter is no longer mandatory.
# If the 'local_ip' parameter is set, the observer will first use this parameter for the configuration, regardless of the 'devname' parameter.
# If only the 'devname' parameter is set, the observer will use the 'devname' parameter for the configuration.
# If neither the 'devname' nor the 'local_ip' parameters are set, the 'local_ip' parameter will be automatically assigned the IP address configured above.
# devname: eth0
mysql_port: 2881 # External port for OceanBase Database. The default value is 2881. DO NOT change this value after the cluster is started.
rpc_port: 2882 # Internal port for OceanBase Database. The default value is 2882. DO NOT change this value after the cluster is started.
obshell_port: 2886 # Operation and maintenance port for Oceanbase Database. The default value is 2886. This parameter is valid only when the version of oceanbase-ce is 4.2.2.0 or later.
zone: zone1
# if current hardware's memory capacity is smaller than 50G, please use the setting of "mini-single-example.yaml" and do a small adjustment.
memory_limit: 0 # The maximum running memory for an observer
memory_limit_percentage: 70
# The reserved system memory. system_memory is reserved for general tenants. The default value is 30G.
system_memory: 0MB
datafile_size: 140GB # Size of the data file.
#cpu_count: 16
log_disk_size: 55GB # The size of disk space used by the clog files.
ob_sql_work_area_percentage: 10
#enable_syslog_wf: false # Print system logs whose levels are higher than WARNING to a separate log file. The default value is true.
max_syslog_file_count: 0 # The maximum number of reserved log files before enabling auto recycling. The default value is 0.
enable_syslog_recycle: true
# root_password: # root user password, can be empty
connect_timeout: 10000
ob_query_timeout: 300000000
ob_trx_timeout: 300000000
- 部署集群： obd cluster deploy obtest -c test-local.yaml
- 启动集群： obd cluster start obtest
- 查看集群列表：obd cluster list
- 查看集群及root初始密码：obd cluster display obtest
3.3. 连接集群：
命令行连接：(使用obclient或mysql命令都可以)
obclient -h127.1 -uroot@sys -p -A -C

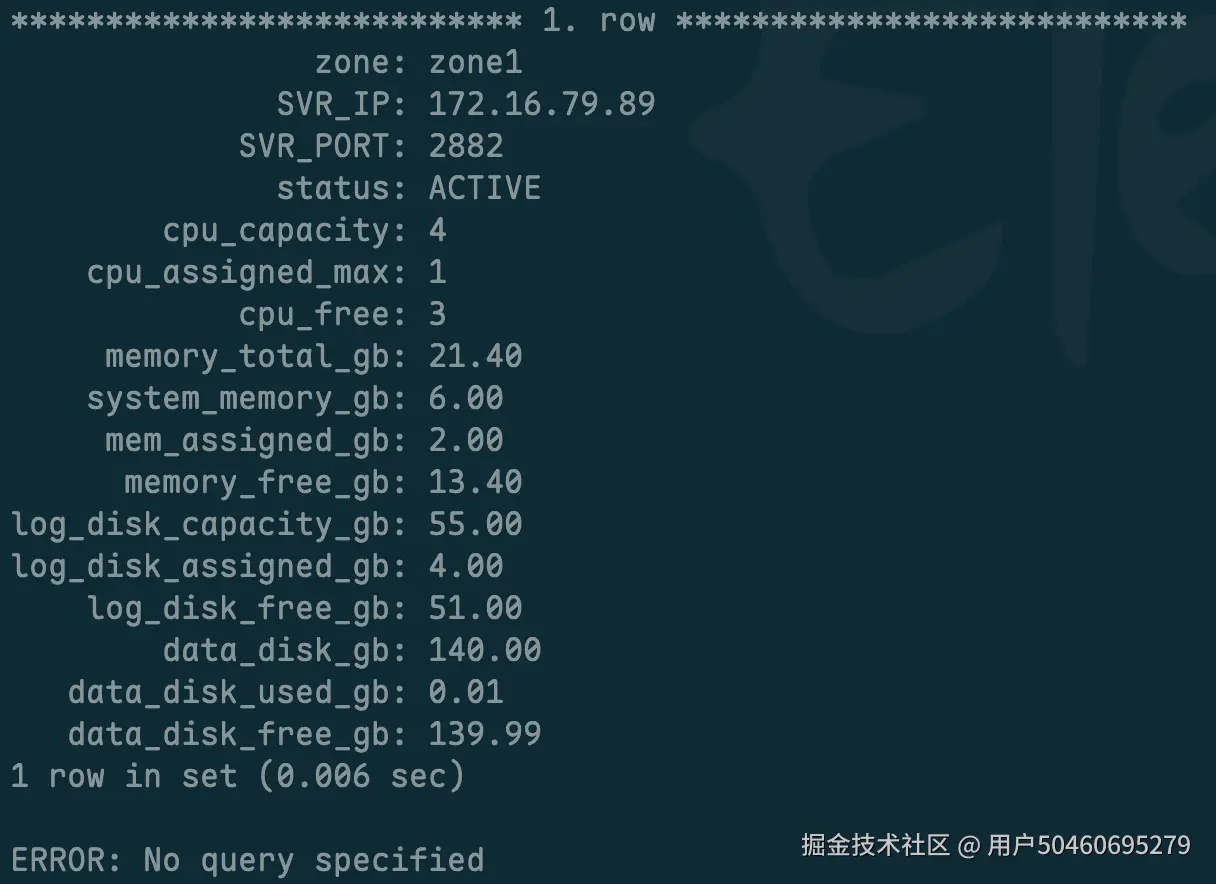

查看数据库可用资源
select a.zone, a.SVR_IP,a.SVR_PORT, b.status,
cpu_capacity,cpu_assigned_max,cpu_capacity-cpu_assigned_max as cpu_free,
round(memory_limit/1024/1024/1024,2) as memory_total_gb,
round((memory_limit-mem_capacity)/1024/1024/1024,2) as system_memory_gb,
round(mem_assigned/1024/1024/1024,2) as mem_assigned_gb,
round((mem_capacity-mem_assigned)/1024/1024/1024,2) as memory_free_gb,
round(log_disk_capacity/1024/1024/1024,2) as log_disk_capacity_gb,
round(log_disk_assigned/1024/1024/1024,2) as log_disk_assigned_gb,
round((log_disk_capacity-log_disk_assigned)/1024/1024/1024,2) as log_disk_free_gb,
round((data_disk_capacity/1024/1024/1024),2) as data_disk_gb,
round((data_disk_in_use/1024/1024/1024),2) as data_disk_used_gb,
round((data_disk_capacity-data_disk_in_use)/1024/1024/1024,2) as data_disk_free_gb
from gv$ob_servers a join oceanbase.DBA_OB_SERVERS b on a.zone=b.zone\G;
租户可用资源：
CPU:3 C，内存：13GB，日志磁盘空间51GB， 数据磁盘空间139.99GB。
4. 数据库管理
4.1. 建议：
OceanBase 创建资源池默认只允许大于 5G（包括 5G）内存规格，如果创建小规格的unit需要手动修改下参数__min_full_resource_pool_memory为1G：
alter system set __min_full_resource_pool_memory=1073741824;
验证：
select * from __all_virtual_sys_parameter_stat where name='__min_full_resource_pool_memory';
4.2. 创建租户：
1、创建unit规格：
create resource unit if not exists sp_trans_test MAX_CPU=1, MEMORY_SIZE='2G';
---可修改unit规格：
alter RESOURCE UNIT sp_trans_test MAX_CPU=1, MEMORY_SIZE='2G' MAX_IOPS=128000000, MIN_IOPS=128000000, LOG_DISK_SIZE='5G';
---查看unit
select * from __all_unit;
2、创建资源池：
create resource pool if not exists sp_trans_test unit='sp_trans_test', unit_num=1;
--查看资源池
select * from __all_resource_pool\G;
3、创建租户：
create tenant if not exists sp_trans_test RESOURCE_POOL_LIST=('sp_trans_test') set ob_tcp_invited_nodes='%';

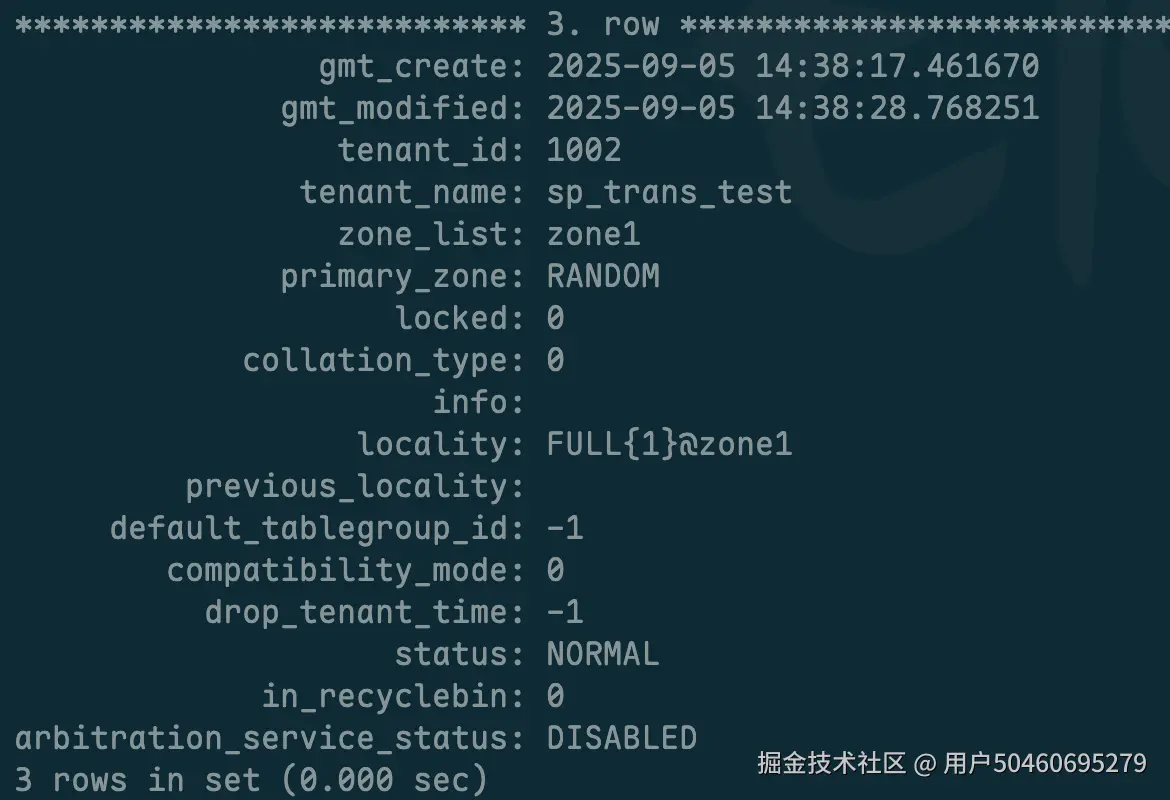

--查看租户：select * from __all_tenant\G;
5. 主机重启后：
需要admin用户手动启动，命令：
/home/admin/oceanbase/bin/obshell admin start --takeover 0 --ob
或
obd cluster start obtest
网页访问：http://39.97.32.230:2886/ 可以白屏管理租户。
