C# 界面设计的秘密武器 TabControl + GroupBox 布局技巧

前言

在WinForm 开发中，随着功能的不断丰富，窗体上的控件数量往往会迅速膨胀。用户面对密密麻麻、毫无逻辑分组的界面时，极易产生认知负担和操作困惑。如何优雅地组织复杂的用户界面，成为提升软件可用性与专业感的关键。

本文将深入探讨 WinForm 中两个核心布局控件——TabControl 与 GroupBox，不仅涵盖其基础用法，还将通过实战代码、高级技巧及避坑指南，帮助开发大家开发清晰、高效、可维护的用户界面。

一、为什么界面组织如此重要？

良好的界面组织不仅仅是"看起来整洁"，更是用户体验的核心组成部分。常见问题包括：

• 信息过载：所有控件堆砌在一个窗体上，用户无从下手；

• 逻辑混乱：相关功能分散，操作路径冗长；

• 视觉疲劳：缺乏层次与分组，降低用户使用意愿。

而 TabControl 和 GroupBox 正是解决这些问题的"界面整理大师"。

二、TabControl：多页面管理的利器

1、核心属性与基本用法

TabControl 允许在有限空间内展示多个逻辑页面，通过标签页切换实现内容分区。

namespace AppWinformTabControlAndGroupBox
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
            var tabControl = new TabControl
            {
                Location = new Point(10, 10),
                Size = new Size(500, 350),
                Alignment = TabAlignment.Top,  // 标签位置
                Multiline = false,             // 单行显示标签
                Appearance = TabAppearance.Normal
            };

            // 动态添加标签页
            var userTab = new TabPage("用户管理");
            var productTab = new TabPage("商品管理");
            var orderTab = new TabPage("订单管理");

            tabControl.TabPages.AddRange(new[] { userTab, productTab, orderTab });

            this.Controls.Add(tabControl);
        }
    }
}

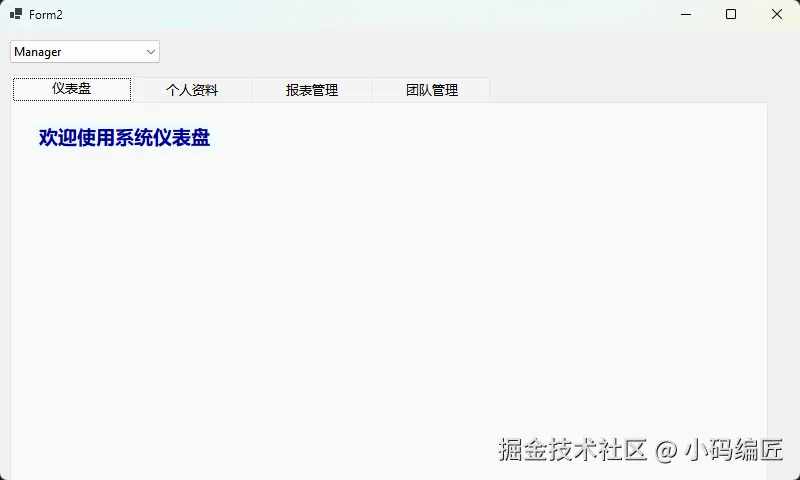

2、实战技巧：动态标签页管理

根据用户角色动态加载标签页，是企业级应用的常见需求。

以下是一个完整的 DynamicTabManager 类，支持权限控制、缓存复用与事件监听：

namespace AppWinformTabControlAndGroupBox
{
    public enum UserRole
    {
        Guest,
        User,
        Manager,
        Admin
    }

    public class DynamicTabManager : IDisposable
    {
        private TabControl mainTabControl;
        private Dictionary<string, TabPage> tabPageCache;
        private Dictionary<UserRole, List<string>> roleTabMapping;
        private bool disposed = false;

        public DynamicTabManager(TabControl tabControl)
        {
            mainTabControl = tabControl ?? throw new ArgumentNullException(nameof(tabControl));
            tabPageCache = new Dictionary<string, TabPage>();
            InitializeRoleMapping();
            SetupTabControlAppearance();
        }

        private void InitializeRoleMapping()
        {
            roleTabMapping = new Dictionary<UserRole, List<string>>
            {
                [UserRole.Guest] = new List<string> { "Dashboard" },
                [UserRole.User] = new List<string> { "Dashboard", "Profile" },
                [UserRole.Manager] = new List<string> { "Dashboard", "Profile", "Reports", "Team" },
                [UserRole.Admin] = new List<string> { "Dashboard", "Profile", "Reports", "Team", "SystemManagement", "UserManagement", "Logs" }
            };
        }

        private void SetupTabControlAppearance()
        {
            mainTabControl.Appearance = TabAppearance.Normal;
            mainTabControl.Alignment = TabAlignment.Top;
            mainTabControl.HotTrack = true;
            mainTabControl.Multiline = false;
            mainTabControl.SizeMode = TabSizeMode.Fixed;
            mainTabControl.ItemSize = new Size(120, 25);
        }

        public void InitializeTabs(UserRole role)
        {
            try
            {
                mainTabControl.SuspendLayout();
                ClearCurrentTabs();

                if (roleTabMapping.ContainsKey(role))
                {
                    var tabsToShow = roleTabMapping[role];
                    foreach (var tabKey in tabsToShow)
                    {
                        AddOrShowTab(tabKey);
                    }
                }

                if (mainTabControl.TabPages.Count > 0)
                {
                    mainTabControl.SelectedIndex = 0;
                }
            }
            finally
            {
                mainTabControl.ResumeLayout(true);
            }
        }

        private void ClearCurrentTabs()
        {
            while (mainTabControl.TabPages.Count > 0)
            {
                var tabPage = mainTabControl.TabPages[0];
                mainTabControl.TabPages.RemoveAt(0);

                if (tabPage.Tag != null)
                {
                    string tabKey = tabPage.Tag.ToString();
                    if (!tabPageCache.ContainsKey(tabKey))
                    {
                        tabPageCache[tabKey] = tabPage;
                    }
                }
            }
        }

        private void AddOrShowTab(string tabKey)
        {
            TabPage tabPage;

            if (tabPageCache.ContainsKey(tabKey))
            {
                tabPage = tabPageCache[tabKey];
            }
            else
            {
                tabPage = CreateTabPage(tabKey);
                tabPageCache[tabKey] = tabPage;
            }

            if (tabPage != null && !mainTabControl.TabPages.Contains(tabPage))
            {
                mainTabControl.TabPages.Add(tabPage);
            }
        }

        private TabPage CreateTabPage(string tabKey)
        {
            TabPage tabPage = null;

            switch (tabKey)
            {
                case "Dashboard":
                    tabPage = CreateDashboardTab();
                    break;
                case "Profile":
                    tabPage = CreateProfileTab();
                    break;
                case "Reports":
                    tabPage = CreateReportsTab();
                    break;
                case "Team":
                    tabPage = CreateTeamTab();
                    break;
                case "SystemManagement":
                    tabPage = CreateSystemManagementTab();
                    break;
                case "UserManagement":
                    tabPage = CreateUserManagementTab();
                    break;
                case "Logs":
                    tabPage = CreateLogsTab();
                    break;
            }

            if (tabPage != null)
            {
                tabPage.Tag = tabKey;
                SetupTabPageEvents(tabPage);
            }

            return tabPage;
        }

        private void SetupTabPageEvents(TabPage tabPage)
        {
            tabPage.Enter += OnTabPageEnter;
            tabPage.Leave += OnTabPageLeave;
        }

        private void OnTabPageEnter(object sender, EventArgs e)
        {
            var tabPage = sender as TabPage;
            Console.WriteLine($"进入标签页: {tabPage?.Text}");
        }

        private void OnTabPageLeave(object sender, EventArgs e)
        {
            var tabPage = sender as TabPage;
            Console.WriteLine($"离开标签页: {tabPage?.Text}");
        }

        #region 创建具体标签页的方法

        private TabPage CreateDashboardTab()
        {
            var tab = new TabPage("仪表盘")
            {
                BackColor = Color.FromArgb(240, 248, 255),
                UseVisualStyleBackColor = true
            };

            var label = new Label
            {
                Text = "欢迎使用系统仪表盘",
                Font = new Font("Microsoft YaHei", 14, FontStyle.Bold),
                ForeColor = Color.DarkBlue,
                AutoSize = true,
                Location = new Point(20, 20)
            };
            tab.Controls.Add(label);

            return tab;
        }

        private TabPage CreateProfileTab()
        {
            var tab = new TabPage("个人资料")
            {
                BackColor = Color.FromArgb(245, 245, 245),
                UseVisualStyleBackColor = true
            };

            var groupBox = new GroupBox
            {
                Text = "用户信息",
                Size = new Size(300, 200),
                Location = new Point(20, 20)
            };
            tab.Controls.Add(groupBox);

            return tab;
        }

        private TabPage CreateReportsTab()
        {
            var tab = new TabPage("报表管理")
            {
                BackColor = Color.FromArgb(248, 248, 255),
                UseVisualStyleBackColor = true
            };

            var dataGridView = new DataGridView
            {
                Size = new Size(500, 300),
                Location = new Point(20, 20),
                ReadOnly = true,
                AllowUserToAddRows = false
            };
            tab.Controls.Add(dataGridView);

            return tab;
        }

        private TabPage CreateTeamTab()
        {
            var tab = new TabPage("团队管理")
            {
                BackColor = Color.FromArgb(250, 250, 250),
                UseVisualStyleBackColor = true
            };

            var treeView = new TreeView
            {
                Size = new Size(250, 300),
                Location = new Point(20, 20)
            };
            tab.Controls.Add(treeView);

            return tab;
        }
        private TabPage CreateSystemManagementTab()
        {
            var tab = new TabPage("系统管理")
            {
                BackColor = Color.FromArgb(255, 250, 250),
                UseVisualStyleBackColor = true,
                Tag = "Admin"
            };

            var tabControl = new TabControl
            {
                Size = new Size(600, 400),
                Location = new Point(20, 20)
            };

            var configTab = new TabPage("系统配置");
            var backupTab = new TabPage("数据备份");

            tabControl.TabPages.AddRange(new TabPage[] { configTab, backupTab });
            tab.Controls.Add(tabControl);

            return tab;
        }

        private TabPage CreateUserManagementTab()
        {
            var tab = new TabPage("用户管理")
            {
                BackColor = Color.FromArgb(255, 248, 248),
                UseVisualStyleBackColor = true,
                Tag = "Admin"
            };

            var splitContainer = new SplitContainer
            {
                Dock = DockStyle.Fill,
                SplitterDistance = 200
            };

            var userListBox = new ListBox { Dock = DockStyle.Fill };
            splitContainer.Panel1.Controls.Add(userListBox);

            var userDetailsPanel = new Panel { Dock = DockStyle.Fill };
            splitContainer.Panel2.Controls.Add(userDetailsPanel);

            tab.Controls.Add(splitContainer);

            return tab;
        }

        private TabPage CreateLogsTab()
        {
            var tab = new TabPage("系统日志")
            {
                BackColor = Color.FromArgb(248, 255, 248),
                UseVisualStyleBackColor = true,
                Tag = "Admin"
            };

            var logTextBox = new RichTextBox
            {
                Dock = DockStyle.Fill,
                ReadOnly = true,
                Font = new Font("Consolas", 9),
                BackColor = Color.Black,
                ForeColor = Color.LimeGreen
            };
            tab.Controls.Add(logTextBox);

            return tab;
        }

        #endregion

        #region 公共方法

        public void RegisterTabType(string tabKey, UserRole minRole, Func<TabPage> creator)
        {
            foreach (UserRole role in Enum.GetValues(typeof(UserRole)))
            {
                if (role >= minRole && roleTabMapping.ContainsKey(role))
                {
                    if (!roleTabMapping[role].Contains(tabKey))
                    {
                        roleTabMapping[role].Add(tabKey);
                    }
                }
            }
        }

        public void RemoveTab(string tabKey)
        {
            var tabToRemove = mainTabControl.TabPages.Cast<TabPage>()
                    .FirstOrDefault(tp => tp.Tag?.ToString() == tabKey);

            if (tabToRemove != null)
            {
                mainTabControl.TabPages.Remove(tabToRemove);
            }

            if (tabPageCache.ContainsKey(tabKey))
            {
                tabPageCache[tabKey]?.Dispose();
                tabPageCache.Remove(tabKey);
            }
        }

        public bool SwitchToTab(string tabKey)
        {
            var targetTab = mainTabControl.TabPages.Cast<TabPage>()
                    .FirstOrDefault(tp => tp.Tag?.ToString() == tabKey);

            if (targetTab != null)
            {
                mainTabControl.SelectedTab = targetTab;
                return true;
            }
            return false;
        }

        public string GetCurrentTabKey()
        {
            return mainTabControl.SelectedTab?.Tag?.ToString();
        }

        #endregion

        #region IDisposable实现

        public void Dispose()
        {
            Dispose(true);
            GC.SuppressFinalize(this);
        }

        protected virtual void Dispose(bool disposing)
        {
            if (!disposed)
            {
                if (disposing)
                {
                    if (tabPageCache != null)
                    {
                        foreach (var tabPage in tabPageCache.Values)
                        {
                            tabPage?.Dispose();
                        }
                        tabPageCache.Clear();
                        tabPageCache = null;
                    }

                    roleTabMapping?.Clear();
                    roleTabMapping = null;
                    mainTabControl = null;
                }
                disposed = true;
            }
        }

        ~DynamicTabManager()
        {
            Dispose(false);
        }

        #endregion
    }
}

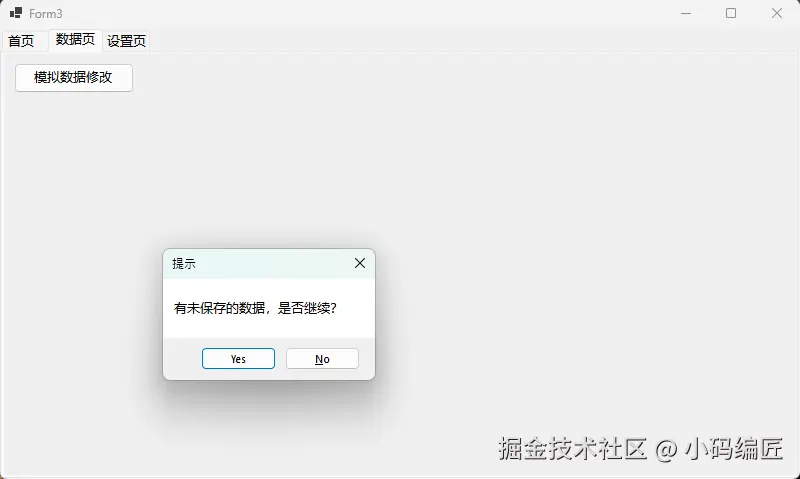

3、标签页切换事件处理

合理利用 SelectedIndexChanged 与 Selecting 事件，可实现懒加载、数据验证等高级功能：

namespace AppWinformTabControlAndGroupBox
{
    public partial class Form3 : Form
    {
        private TabControl tabControl;
        private bool hasUnsavedData = false;

        public Form3()
        {
            InitializeComponent();
            InitializeTabControl();
            SetupTabEvents();
        }

        private void InitializeTabControl()
        {
            tabControl = new TabControl();
            tabControl.Dock = DockStyle.Fill;

            TabPage tab1 = new TabPage("首页");
            TabPage tab2 = new TabPage("数据页");
            tab2.Tag = "DataTab";
            TabPage tab3 = new TabPage("设置页");

            tabControl.TabPages.Add(tab1);
            tabControl.TabPages.Add(tab2);
            tabControl.TabPages.Add(tab3);

            this.Controls.Add(tabControl);

            Label welcomeLabel = new Label();
            welcomeLabel.Text = "欢迎使用TabControl示例";
            welcomeLabel.Dock = DockStyle.Fill;
            welcomeLabel.TextAlign = ContentAlignment.MiddleCenter;
            tab1.Controls.Add(welcomeLabel);

            Button changeDataButton = new Button();
            changeDataButton.Text = "模拟数据修改";
            changeDataButton.Size = new Size(120, 30);
            changeDataButton.Location = new Point(10, 10);
            changeDataButton.Click += (s, e) => SimulateDataChange();
            tab3.Controls.Add(changeDataButton);
        }

        private void SetupTabEvents()
        {
            tabControl.SelectedIndexChanged += OnTabChanged;
            tabControl.Selecting += OnTabSelecting;
        }

        private void OnTabChanged(object sender, EventArgs e)
        {
            var currentTab = tabControl.SelectedTab;
            LogUserActivity($"用户切换到：{currentTab.Text}");

            if (currentTab.Tag?.ToString() == "DataTab" && currentTab.Controls.Count == 0)
            {
                LoadDataForTab(currentTab);
            }
        }

        private void OnTabSelecting(object sender, TabControlCancelEventArgs e)
        {
            if (HasUnsavedData())
            {
                var result = MessageBox.Show("有未保存的数据，是否继续？", "提示", MessageBoxButtons.YesNo);
                if (result == DialogResult.No)
                {
                    e.Cancel = true;
                }
            }
        }

        private void LogUserActivity(string activity)
        {
            Console.WriteLine($"[{DateTime.Now}] {activity}");
        }

        private bool HasUnsavedData()
        {
            return hasUnsavedData;
        }

        private void LoadDataForTab(TabPage tab)
        {
            var label = new Label
            {
                Text = "数据已加载",
                Dock = DockStyle.Fill,
                TextAlign = ContentAlignment.MiddleCenter,
                BackColor = Color.LightBlue
            };
            tab.Controls.Add(label);
            Console.WriteLine($"为 {tab.Text} 加载数据完成");
        }

        private void SimulateDataChange()
        {
            hasUnsavedData = true;
            MessageBox.Show("数据已修改，现在切换标签页会提示保存！");
        }
    }
}

三、GroupBox：相关控件的最佳伙伴

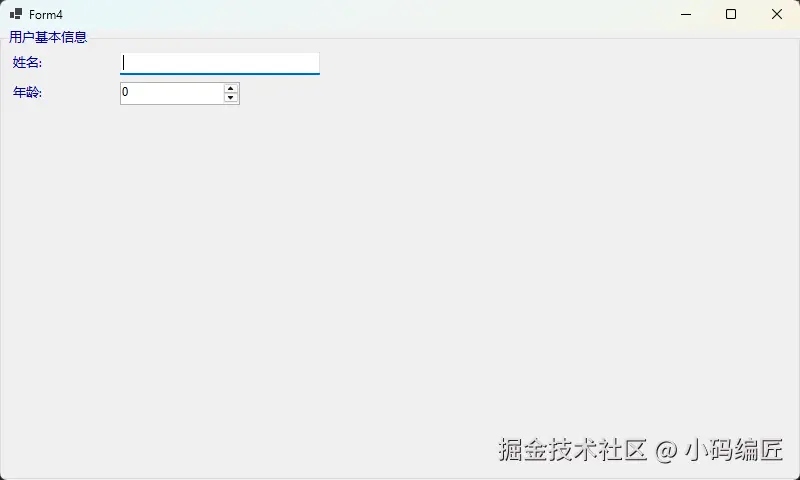

1、基础应用场景

GroupBox 用于将功能相关的控件逻辑分组，提升界面语义清晰度：

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppWinformTabControlAndGroupBox
{
    public partial class Form4 : Form
    {
        public Form4()
        {
            InitializeComponent();
            CreateUserInfoGroup();
        }
        private void CreateUserInfoGroup()
        {
            var userInfoGroup = new GroupBox
            {
                Text = "用户基本信息",
                Location = new Point(20, 20),
                Size = new Size(300, 120),
                ForeColor = Color.DarkBlue,
                Dock = DockStyle.Fill,
            };

            var nameLabel = new Label { Text = "姓名:", Location = new Point(10, 25) };
            var nameTextBox = new TextBox { Location = new Point(120, 22), Width = 200 };

            var ageLabel = new Label { Text = "年龄:", Location = new Point(10, 55) };
            var ageNumeric = new NumericUpDown
            {
                Location = new Point(120, 52),
                Minimum = 0,
                Maximum = 450
            };

            userInfoGroup.Controls.AddRange(new Control[]
            {
                nameLabel, nameTextBox, ageLabel, ageNumeric
            });

            this.Controls.Add(userInfoGroup);
        }
    }
}

2、高级应用：数据绑定与验证

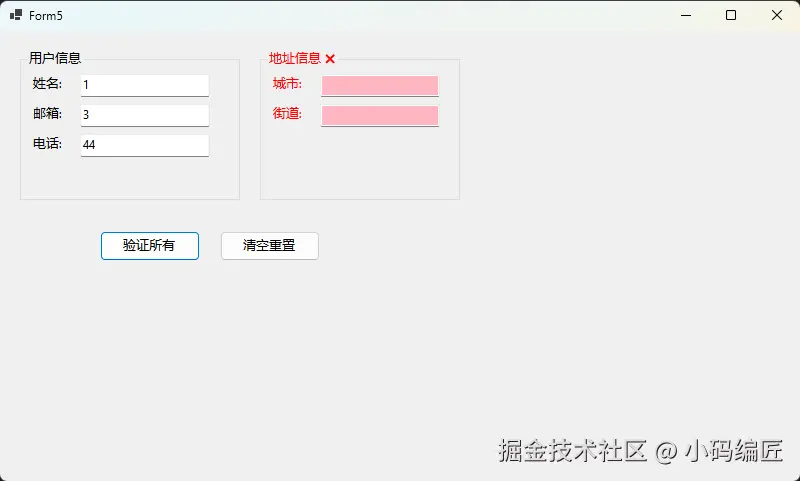

通过继承 GroupBox，可实现智能验证与状态反馈：

using System;
using System.Drawing;
using System.Windows.Forms;

namespace AppWinformTabControlAndGroupBox
{
    public class SmartGroupBox : GroupBox
    {
        private bool _hasValidationErrors;

        public bool HasValidationErrors
        {
            get => _hasValidationErrors;
            set
            {
                _hasValidationErrors = value;
                this.ForeColor = value ? Color.Red : Color.Black;
                this.Text = value ? $"{OriginalText} ❌" : OriginalText;
            }
        }

        public string OriginalText { get; set; }

        public SmartGroupBox() : base()
        {
            OriginalText = this.Text;
        }

        public SmartGroupBox(string text) : base()
        {
            OriginalText = text;
            this.Text = text;
        }

        public bool ValidateAllControls()
        {
            bool isValid = true;

            foreach (Control control in this.Controls)
            {
                if (control is TextBox textBox)
                {
                    if (string.IsNullOrWhiteSpace(textBox.Text))
                    {
                        textBox.BackColor = Color.LightPink;
                        isValid = false;
                    }
                    else
                    {
                        textBox.BackColor = Color.White;
                    }
                }
            }

            HasValidationErrors = !isValid;
            return isValid;
        }

        public void ClearValidationErrors()
        {
            foreach (Control control in this.Controls)
            {
                if (control is TextBox textBox)
                {
                    textBox.BackColor = Color.White;
                }
            }
            HasValidationErrors = false;
        }

        public int GetErrorCount()
        {
            int errorCount = 0;
            foreach (Control control in this.Controls)
            {
                if (control is TextBox textBox && string.IsNullOrWhiteSpace(textBox.Text))
                {
                    errorCount++;
                }
            }
            return errorCount;
        }
    }
}

四、终极组合：TabControl + GroupBox 实战案例

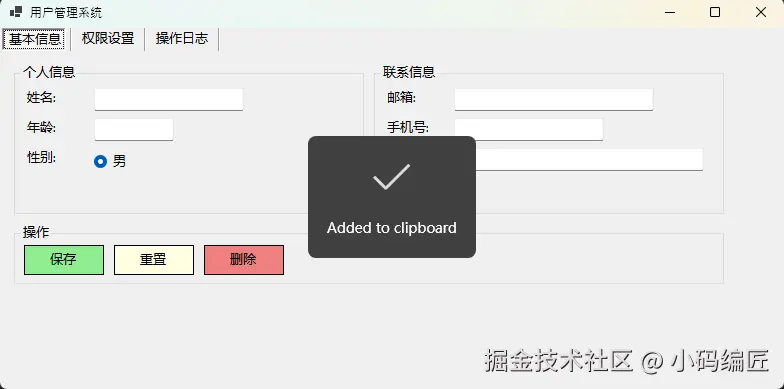

以下是一个完整的企业级用户管理界面，融合了 TabControl 与 SmartGroupBox：

namespace AppWinformTabControlAndGroupBox
{
    public partial class Form6 : Form
    {
        private TabControl mainTabs;

        public Form6()
        {
            InitializeComponent();
            this.Text = "用户管理系统";
            this.Size = new Size(800, 400);
            this.StartPosition = FormStartPosition.CenterScreen;

            mainTabs = new TabControl
            {
                Dock = DockStyle.Fill,
                Appearance = TabAppearance.FlatButtons
            };

            var userInfoTab = CreateUserInfoTab();
            var permissionTab = CreatePermissionTab();
            var auditTab = CreateAuditTab();

            mainTabs.TabPages.AddRange(new[] { userInfoTab, permissionTab, auditTab });
            this.Controls.Add(mainTabs);
        }

        private TabPage CreateUserInfoTab()
        {
            var tab = new TabPage("基本信息");

            var personalGroup = new SmartGroupBox("个人信息")
            {
                Location = new Point(10, 10),
                Size = new Size(350, 150)
            };
            AddPersonalInfoControls(personalGroup);

            var contactGroup = new SmartGroupBox("联系信息")
            {
                Location = new Point(370, 10),
                Size = new Size(350, 150)
            };
            AddContactInfoControls(contactGroup);

            var actionGroup = CreateActionButtonsGroup();

            tab.Controls.AddRange(new Control[] { personalGroup, contactGroup, actionGroup });
            return tab;
        }

        private void AddPersonalInfoControls(SmartGroupBox groupBox)
        {
            var nameLabel = new Label { Text = "姓名:", Location = new Point(10, 25), Size = new Size(60, 23) };
            var nameTextBox = new TextBox { Location = new Point(80, 23), Size = new Size(150, 23), Tag = "required" };

            var ageLabel = new Label { Text = "年龄:", Location = new Point(10, 55), Size = new Size(60, 23) };
            var ageTextBox = new TextBox { Location = new Point(80, 53), Size = new Size(80, 23) };

            var genderLabel = new Label { Text = "性别:", Location = new Point(10, 85), Size = new Size(60, 23) };
            var maleRadio = new RadioButton { Text = "男", Location = new Point(80, 85), Checked = true };
            var femaleRadio = new RadioButton { Text = "女", Location = new Point(130, 85) };

            groupBox.Controls.AddRange(new Control[] { nameLabel, nameTextBox, ageLabel, ageTextBox, genderLabel, maleRadio, femaleRadio });
        }

        private void AddContactInfoControls(SmartGroupBox groupBox)
        {
            var emailLabel = new Label { Text = "邮箱:", Location = new Point(10, 25), Size = new Size(60, 23) };
            var emailTextBox = new TextBox { Location = new Point(80, 23), Size = new Size(200, 23), Tag = "required" };

            var phoneLabel = new Label { Text = "手机号:", Location = new Point(10, 55), Size = new Size(60, 23) };
            var phoneTextBox = new TextBox { Location = new Point(80, 53), Size = new Size(150, 23) };

            var addressLabel = new Label { Text = "地址:", Location = new Point(10, 85), Size = new Size(60, 23) };
            var addressTextBox = new TextBox { Location = new Point(80, 83), Size = new Size(250, 23) };

            groupBox.Controls.AddRange(new Control[] { emailLabel, emailTextBox, phoneLabel, phoneTextBox, addressLabel, addressTextBox });
        }

        private TabPage CreatePermissionTab()
        {
            var tab = new TabPage("权限设置");
            var permissionGroup = new SmartGroupBox("用户权限")
            {
                Location = new Point(10, 10),
                Size = new Size(700, 200)
            };

            var permissions = new string[] { "查看权限", "编辑权限", "删除权限", "管理权限" };
            for (int i = 0; i < permissions.Length; i++)
            {
                var checkBox = new CheckBox
                {
                    Text = permissions[i],
                    Location = new Point(20 + (i % 2) * 200, 30 + (i / 2) * 30),
                    Size = new Size(150, 25)
                };
                permissionGroup.Controls.Add(checkBox);
            }

            tab.Controls.Add(permissionGroup);
            return tab;
        }

        private TabPage CreateAuditTab()
        {
            var tab = new TabPage("操作日志");
            var auditGroup = new SmartGroupBox("最近操作")
            {
                Location = new Point(10, 10),
                Size = new Size(700, 200)
            };

            var listView = new ListView
            {
                Location = new Point(10, 25),
                Size = new Size(680, 160),
                View = View.Details,
                FullRowSelect = true,
                GridLines = true
            };

            listView.Columns.Add("时间", 120);
            listView.Columns.Add("操作", 100);
            listView.Columns.Add("详情", 300);

            var items = new string[,]
            {
                { DateTime.Now.AddHours(-1).ToString("yyyy-MM-dd HH:mm"), "登录", "用户登录系统" },
                { DateTime.Now.AddHours(-2).ToString("yyyy-MM-dd HH:mm"), "修改", "修改个人信息" },
                { DateTime.Now.AddHours(-3).ToString("yyyy-MM-dd HH:mm"), "查看", "查看用户列表" }
            };

            for (int i = 0; i < items.GetLength(0); i++)
            {
                var item = new ListViewItem(items[i, 0]);
                item.SubItems.Add(items[i, 1]);
                item.SubItems.Add(items[i, 2]);
                listView.Items.Add(item);
            }

            auditGroup.Controls.Add(listView);
            tab.Controls.Add(auditGroup);
            return tab;
        }

        private GroupBox CreateActionButtonsGroup()
        {
            var actionGroup = new GroupBox
            {
                Text = "操作",
                Location = new Point(10, 170),
                Size = new Size(710, 60)
            };

            var saveBtn = new Button { Text = "保存", Location = new Point(10, 20), Size = new Size(80, 30), BackColor = Color.LightGreen, FlatStyle = FlatStyle.Flat };
            var resetBtn = new Button { Text = "重置", Location = new Point(100, 20), Size = new Size(80, 30), BackColor = Color.LightYellow, FlatStyle = FlatStyle.Flat };
            var deleteBtn = new Button { Text = "删除", Location = new Point(190, 20), Size = new Size(80, 30), BackColor = Color.LightCoral, FlatStyle = FlatStyle.Flat };

            saveBtn.Click += (s, e) => SaveUserData();
            resetBtn.Click += (s, e) => ResetForm();
            deleteBtn.Click += (s, e) => DeleteUser();

            actionGroup.Controls.AddRange(new Control[] { saveBtn, resetBtn, deleteBtn });
            return actionGroup;
        }

        private void SaveUserData()
        {
            bool allValid = true;
            foreach (TabPage tab in mainTabs.TabPages)
            {
                foreach (Control control in tab.Controls)
                {
                    if (control is SmartGroupBox groupBox)
                    {
                        if (!groupBox.ValidateAllControls())
                        {
                            allValid = false;
                            mainTabs.SelectedTab = tab;
                            break;
                        }
                    }
                }
                if (!allValid) break;
            }

            if (allValid)
            {
                MessageBox.Show("数据保存成功！", "成功", MessageBoxButtons.OK, MessageBoxIcon.Information);
            }
            else
            {
                MessageBox.Show("请填写所有必填项（标红的输入框）！", "验证失败", MessageBoxButtons.OK, MessageBoxIcon.Warning);
            }
        }

        private void ResetForm()
        {
            var result = MessageBox.Show("确定要重置表单吗？", "确认", MessageBoxButtons.YesNo, MessageBoxIcon.Question);
            if (result == DialogResult.Yes)
            {
                foreach (TabPage tab in mainTabs.TabPages)
                {
                    foreach (Control control in tab.Controls)
                    {
                        if (control is SmartGroupBox groupBox)
                        {
                            ResetGroupBoxControls(groupBox);
                        }
                    }
                }
                MessageBox.Show("表单已重置！", "提示", MessageBoxButtons.OK, MessageBoxIcon.Information);
            }
        }

        private void ResetGroupBoxControls(GroupBox groupBox)
        {
            foreach (Control control in groupBox.Controls)
            {
                if (control is TextBox textBox)
                {
                    textBox.Text = string.Empty;
                    textBox.BackColor = SystemColors.Window;
                }
                else if (control is RadioButton radioButton && radioButton.Text == "男")
                {
                    radioButton.Checked = true;
                }
                else if (control is CheckBox checkBox)
                {
                    checkBox.Checked = false;
                }
            }
        }

        private void DeleteUser()
        {
            var result = MessageBox.Show("确定要删除用户吗？", "确认删除", MessageBoxButtons.YesNo, MessageBoxIcon.Warning);
            if (result == DialogResult.Yes)
            {
                MessageBox.Show("用户删除成功！", "成功", MessageBoxButtons.OK, MessageBoxIcon.Information);
                ResetForm();
            }
        }
    }
}

总结

通过本文的系统讲解，我们掌握了以下关键点：

1、界面组织的艺术：TabControl 用于宏观页面划分，GroupBox 用于微观控件分组，二者结合可构建层次分明的界面；

2、动态管理的智慧：基于角色或业务逻辑动态加载标签页，提升灵活性与安全性；

3、性能优化的技巧：采用懒加载、控件缓存、事件防重复订阅等策略，避免内存泄漏与性能瓶颈；

4、验证与反馈机制：通过自定义 SmartGroupBox 实现即时验证与视觉反馈，提升数据完整性；

5、工程化思维：封装通用组件（如 GroupBoxFactory），提高代码复用率与可维护性。

关键词

TabControl、GroupBox、WinForms、界面组织、动态标签页、懒加载、数据验证、SmartGroupBox、事件处理、内存管理

mp.weixin.qq.com/s/cdbZX42-ScN4yk12ITJihQ

最后

如果你觉得这篇文章对你有帮助，不妨点个赞支持一下！你的支持是我继续分享知识的动力。如果有任何疑问或需要进一步的帮助，欢迎随时留言。

也可以加入微信公众号 [DotNet技术匠] 社区，与其他热爱技术的同行一起交流心得，共同成长！

优秀是一种习惯，欢迎大家留言学习！
