本学习系列将以Cesium + Vue3 + Vite +Typescript+elementplus作为主要技术栈展开，后续会循序渐进，持续探索Cesium的高级功能，详情请关注原文Cesium+Vue3学习教程系列（20）---圆形、扇形绘制与编辑

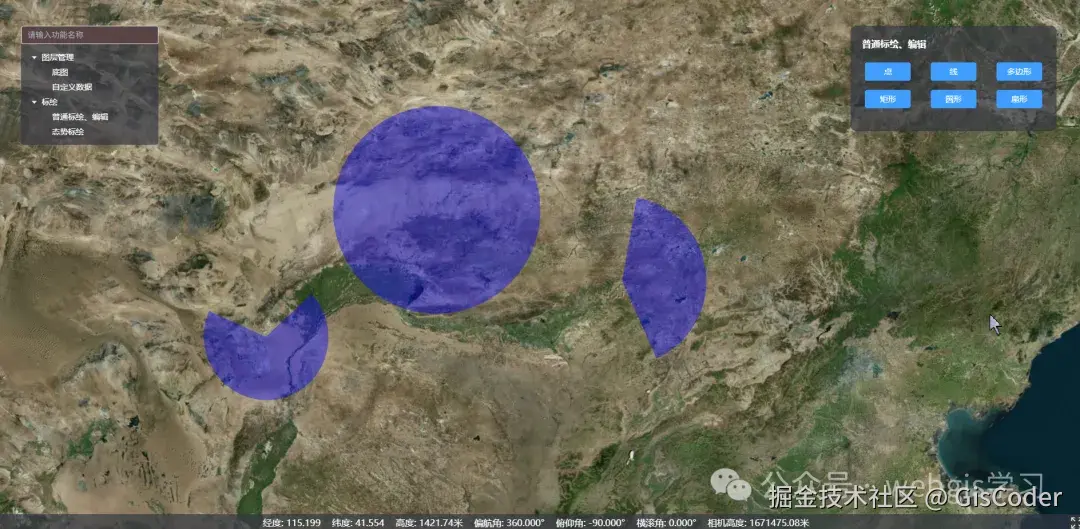

上篇Cesium+Vue3学习教程系列（19）---多边形标绘代码封装修改，新增矩形绘制介绍了矩形的绘制与编辑，为了响应读者的留言增加圆形、扇形的需求，本篇在普通标绘组件中增加圆形、扇形的标绘与编辑。先看效果：
1、圆形标绘。
（1）通过查阅Cesium官方文档，发现Entity里面有EllipseGraphics椭圆类型，椭圆的长半轴与短半轴相等不就是一个圆嘛，因此本篇打算使用ellipse写圆形。话不多说，新建CommonCircle类继承BaseDraw。
import EventDispatcher from "@/system/EventDispatcher/EventDispatcher";
import { CallbackProperty, Cartesian3, ClassificationType, Color, Entity, Viewer } from "cesium";
import { BaseDraw, GeometryType } from "../BaseDraw";
import { circleRadiusCallback } from "./CreatePolygonPoints";
export default class CommonCircle extends BaseDraw {
/** 临时点，用来实时跟随鼠标 */
private tempCursor = new Cartesian3();
protected get maxPointCount() { return 2; }
constructor(viewer: Viewer, dispatcher: EventDispatcher) {
super(viewer, dispatcher);
this.geometryType = GeometryType.COMMON_CIRCLE;
this.minPointCount = 2;
}
protected buildFinalEntity(): Entity {
return this.viewer.entities.add({
position: this.getPositions()[0],
ellipse: {
semiMajorAxis: circleRadiusCallback(this.getPositions()),
semiMinorAxis: circleRadiusCallback(this.getPositions()),
material: Color.BLUE.withAlpha(0.4),
outline: true,
outlineColor: Color.WHITE,
outlineWidth: 2,
classificationType: ClassificationType.BOTH
}
});
}
protected buildTempEntity(): Entity | undefined {
if (this.getPositions().length < (this.minPointCount - 1)) return undefined;
return this.viewer.entities.add({
position: this.getPositions()[0],
ellipse: {
semiMajorAxis: new CallbackProperty(() => circleRadiusCallback([
...this.getPositions(),
this.tempCursor,
]), false),
semiMinorAxis: new CallbackProperty(() => circleRadiusCallback([
...this.getPositions(),
this.tempCursor,
]), false),
classificationType: ClassificationType.BOTH,// 贴地
material: Color.CYAN.withAlpha(0.3),
outline: true,
outlineColor: Color.WHITE,
outlineWidth: 2
}
});
}
protected updateTempEntity(cursor: Cartesian3): void {
this.tempCursor = cursor;
}
/* -------------------- 鼠标事件 -------------------- */
protected onLeftClick(e: any): void {
super.onLeftClick(e);
if (this.getPositions().length === this.maxPointCount) {
this.finish();
}
}
}
（2）采用两点画圆。因此minPointCount 、maxPointCount均为2。长半轴semiMajorAxis和短半轴semiMinorAxis均等于圆形半径就行。
（3）计算半径的回调函数。比较简单，就是计算笛卡尔坐标系下两点的距离。
export const circleRadiusCallback = (pos: Cartesian3[]) => {
if (pos.length !== 2) return 0;
return Cartesian3.distance(pos[0], pos[1]);
}
2、扇形绘制。
（1）由于Cesium并没有提供扇形的相关类，因此只能根据Polygon进行模拟绘制。新建CommonSector类继承BasePolygon，通过三个点绘制扇形。第一个点是圆心，第二个点确定圆的半径，第三个点确定扇形角度。
import EventDispatcher from "@/system/EventDispatcher/EventDispatcher";
import { Viewer } from "cesium";
import BasePolygon from "./BasePolygon";
import { GeometryType } from "../BaseDraw";
import { CreateSectorPoints } from "./CreatePolygonPoints";
export default class CommonSector extends BasePolygon {
constructor(viewer: Viewer, dispatcher: EventDispatcher) {
super(viewer, dispatcher);
this.geometryType = GeometryType.COMMON_SECTOR;
this.minPointCount = 3;
}
protected get maxPointCount() { return 3; }
protected createPolygonPoints = CreateSectorPoints;
}
（2）将坐标系转到局部东北天（ENU）坐标系，在局部东北天坐标系下计算平面角度，避免球面曲率干扰。再通过角度插值计算圆弧点坐标，最后再将局部坐标系转为笛卡尔坐标系完成扇形绘制。
/**
* 创建扇形数据点
* @param pos 传入的三个点
* @returns
*/
export const CreateSectorPoints = (pos: Cartesian3[]) => {
if (pos.length !== 3) return pos;
let center = pos[0];
let p1 = pos[1];
let p2 = pos[2];
// 1. 半径
const radius = Cartesian3.distance(center, p1);
// 2. 把三点转到局部 ENU 平面，方便算夹角
const toLocal = Transforms.eastNorthUpToFixedFrame(center);
const inv = Matrix4.inverse(toLocal, new Matrix4());
const q1 = Matrix4.multiplyByPoint(inv, p1, new Cartesian3());
const q2 = Matrix4.multiplyByPoint(inv, p2, new Cartesian3());
// 3. 起始角、终止角
let start = Math.atan2(q1.y, q1.x);
let end = Math.atan2(q2.y, q2.x);
if (end < start) end += CesiumMath.TWO_PI; // 保证逆时针
// 4. 三角网：圆心 + 圆弧插值
const positions: number[][] = [];
const N = 64; // 插值数，可改
for (let i = 0; i <= N; i++) {
const angle = start + (end - start) * (i / N);
const x = radius * Math.cos(angle);
const y = radius * Math.sin(angle);
const z = 0;
positions.push([x, y, z]);
}
//ENU 转回 WGS84
const worldPositions: Cartesian3[] = [];
// 先把圆心（世界坐标）放进去
worldPositions.push(center);
// 再把圆弧上的点逐个转回世界
for (let i = 0; i < positions.length; i++) {
const local = new Cartesian3(positions[i][0], positions[i][1], positions[i][2]);
const world = Matrix4.multiplyByPoint(toLocal, local, new Cartesian3());
worldPositions.push(world);
}
return worldPositions;
}
3、然后将圆形与扇形添加到EditHelper类中updateShape()函数中实现编辑功能。
case GeometryType.COMMON_CIRCLE:
this.shapeEntity.position = new ConstantPositionProperty(this.positions[0]);
if (this.shapeEntity.ellipse) {
this.shapeEntity.ellipse.semiMajorAxis = new CallbackProperty(() => circleRadiusCallback(this.positions), false);
this.shapeEntity.ellipse.semiMinorAxis = new CallbackProperty(() => circleRadiusCallback(this.positions), false);
}
break;
case GeometryType.COMMON_SECTOR:
this.shapeEntity.polygon!.hierarchy = new CallbackProperty(() => new PolygonHierarchy(CreateSectorPoints(this.positions)), false);
break;

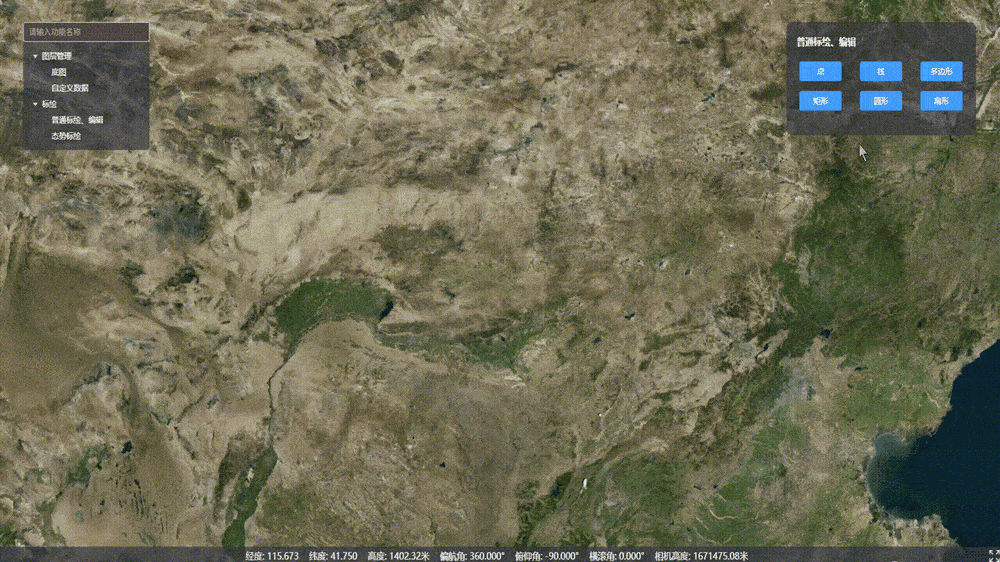

4、最终效果
