电力之芯：金仓数据库如何成为发电行业数字化转型的核心引擎

电力之芯：金仓数据库如何成为发电行业数字化转型的核心引擎

在电力行业数字化转型的浪潮中，发电企业的核心生产系统正经历着从自动化到智能化的深刻变革。作为一名长期关注电力行业信息化的技术专家，我亲眼见证了数据库技术在发电领域从边缘系统到核心控制的跨越式发展。金仓数据库凭借其对发电业务特性的深刻理解和卓越的技术实力，正在成为支撑现代电力系统安全稳定运行的数字基石。

发电行业数字化的特殊使命：为何数据库选择关乎电网安全？

发电行业的信息化建设与其他行业有着本质区别。在一次电力信息化技术研讨会上，某大型发电集团的CIO分享了一个令人深思的案例：由于实时数据库性能瓶颈，导致AGC（自动发电控制）系统响应延迟，直接影响了电网频率的稳定性。这个案例让我深刻认识到，发电行业数据库不仅要处理海量实时数据，更要保证绝对的可靠性和实时性。

发电行业核心系统的三大特性

实时性要求极高：电网调度、自动发电控制等系统需要毫秒级响应

-- 发电实时监控数据表设计
CREATE TABLE power_generation_realtime (
    data_id BIGSERIAL PRIMARY KEY,
    plant_id VARCHAR(50) NOT NULL,
    unit_id VARCHAR(100) NOT NULL,
    data_type VARCHAR(50) NOT NULL,  -- 功率、频率、电压等
    data_value DECIMAL(10,4),
    quality_flag INTEGER DEFAULT 1,  -- 数据质量标志
    timestamp TIMESTAMP(3) DEFAULT CURRENT_TIMESTAMP(3),  -- 毫秒级时间戳
    -- 分区优化
    PARTITION BY RANGE (timestamp)
);

-- 创建小时级分区
CREATE TABLE generation_realtime_20250115 PARTITION OF power_generation_realtime
FOR VALUES FROM ('2025-01-15 00:00:00') TO ('2025-01-15 01:00:00');

-- 实时数据查询索引
CREATE INDEX idx_generation_realtime ON power_generation_realtime
(plant_id, unit_id, data_type, timestamp)
WHERE timestamp > NOW() - INTERVAL '1 hour';

-- 实时数据聚合物化视图
CREATE MATERIALIZED VIEW plant_realtime_summary AS
SELECT
    plant_id,
    data_type,
    AVG(data_value) as avg_value,
    MAX(data_value) as max_value,
    MIN(data_value) as min_value,
    COUNT(*) as sample_count,
    MAX(timestamp) as latest_sample
FROM power_generation_realtime
WHERE timestamp >= NOW() - INTERVAL '5 minutes'
  AND quality_flag = 1
GROUP BY plant_id, data_type
WITH DATA;

数据一致性要求严格：电力交易、计量结算需要绝对的数据准确性

-- 电力交易结算数据表
CREATE TABLE power_trading_settlement (
    settlement_id BIGSERIAL PRIMARY KEY,
    plant_id VARCHAR(50) NOT NULL,
    trading_interval TIMESTAMP NOT NULL,  -- 交易时段
    contract_type VARCHAR(20) NOT NULL,   -- 合约类型
    contract_quantity DECIMAL(12,2),      -- 合约电量
    actual_quantity DECIMAL(12,2),        -- 实际电量
    settlement_price DECIMAL(8,4),        -- 结算电价
    settlement_amount DECIMAL(15,2),      -- 结算金额
    settlement_status VARCHAR(20) DEFAULT 'PENDING',
    created_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    updated_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    -- 审计字段
    created_by VARCHAR(100),
    updated_by VARCHAR(100)
);

-- 数据一致性检查函数
CREATE OR REPLACE FUNCTION check_settlement_consistency()
RETURNS TABLE(check_item VARCHAR, status VARCHAR, details TEXT) AS $$
BEGIN
    -- 检查电量平衡
    RETURN QUERY
    SELECT
        '电量平衡检查' as check_item,
        CASE WHEN balance_diff = 0 THEN '正常' ELSE '异常' END as status,
        '总电量差额: ' || balance_diff::TEXT as details
    FROM (
        SELECT ABS(SUM(contract_quantity) - SUM(actual_quantity)) as balance_diff
        FROM power_trading_settlement
        WHERE trading_interval >= CURRENT_DATE - INTERVAL '1 day'
    ) balance_check;

    -- 检查金额计算准确性
    RETURN QUERY
    SELECT
        '金额计算检查',
        CASE WHEN amount_diff = 0 THEN '正常' ELSE '异常' END,
        '金额计算差额: ' || amount_diff::TEXT
    FROM (
        SELECT ABS(SUM(settlement_amount) - SUM(actual_quantity * settlement_price)) as amount_diff
        FROM power_trading_settlement
        WHERE settlement_status = 'CONFIRMED'
    ) amount_check;
END;
$$ LANGUAGE plpgsql;

高可用性要求：核心生产系统必须保证99.999%的可用性

-- 高可用集群监控视图
CREATE VIEW power_ha_cluster_monitor AS
SELECT
    node_name,
    node_role,
    sync_state,
    replay_lag,
    client_addr,
    application_name,
    CASE
        WHEN sync_state = 'SYNC' AND replay_lag = 0 THEN '最优'
        WHEN sync_state = 'ASYNC' AND replay_lag < 100 THEN '良好'
        WHEN sync_state = 'ASYNC' AND replay_lag < 1000 THEN '警告'
        ELSE '异常'
    END as health_status,
    last_heartbeat
FROM sys_stat_replication
WHERE sync_state IS NOT NULL
ORDER BY node_role, sync_state;

-- 自动故障切换测试
SELECT cluster_failover_test(
    test_scenario => 'PRIMARY_NODE_FAILURE',
    expected_rto => 10,  -- 10秒内完成切换
    expected_rpo => 0,   -- 零数据丢失
    test_timeout => 30   -- 30秒超时
);

中国大唐集团：电力现货交易系统的技术突破

现货交易辅助决策系统

中国大唐集团的电力现货交易辅助决策系统是发电行业数字化转型的典范。该系统需要处理"中长期+现货"的多维度交易数据，对数据库的并发处理能力和实时分析能力提出了极高要求。

交易数据分析架构：

-- 电力交易数据模型
CREATE TABLE power_trading_data (
    trading_id BIGSERIAL PRIMARY KEY,
    plant_id VARCHAR(50) NOT NULL,
    trading_date DATE NOT NULL,
    trading_interval INTEGER NOT NULL,  -- 交易时段
    market_type VARCHAR(20) NOT NULL,   -- 市场类型
    bid_quantity DECIMAL(10,2),         -- 申报电量
    bid_price DECIMAL(8,4),             -- 申报价格
    cleared_quantity DECIMAL(10,2),     -- 出清电量
    cleared_price DECIMAL(8,4),         -- 出清价格
    trading_status VARCHAR(20) DEFAULT 'SUBMITTED',
    created_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    -- 复合索引优化
    UNIQUE(plant_id, trading_date, trading_interval, market_type)
) PARTITION BY RANGE (trading_date);

-- 创建月度分区
CREATE TABLE trading_data_202501 PARTITION OF power_trading_data
FOR VALUES FROM ('2025-01-01') TO ('2025-02-01');

-- 交易分析查询
WITH trading_analysis AS (
    SELECT
        plant_id,
        trading_date,
        market_type,
        SUM(bid_quantity) as total_bid_quantity,
        SUM(cleared_quantity) as total_cleared_quantity,
        AVG(cleared_price) as avg_cleared_price,
        COUNT(*) as trading_count
    FROM power_trading_data
    WHERE trading_date >= CURRENT_DATE - INTERVAL '30 days'
      AND trading_status = 'CLEARED'
    GROUP BY plant_id, trading_date, market_type
)
SELECT
    plant_id,
    market_type,
    ROUND(AVG(total_cleared_quantity), 2) as avg_daily_cleared,
    ROUND(AVG(avg_cleared_price), 4) as avg_daily_price,
    ROUND(SUM(total_cleared_quantity) / SUM(total_bid_quantity) * 100, 2) as clearance_rate,
    SUM(trading_count) as total_trades
FROM trading_analysis
GROUP BY plant_id, market_type
ORDER BY plant_id, market_type;

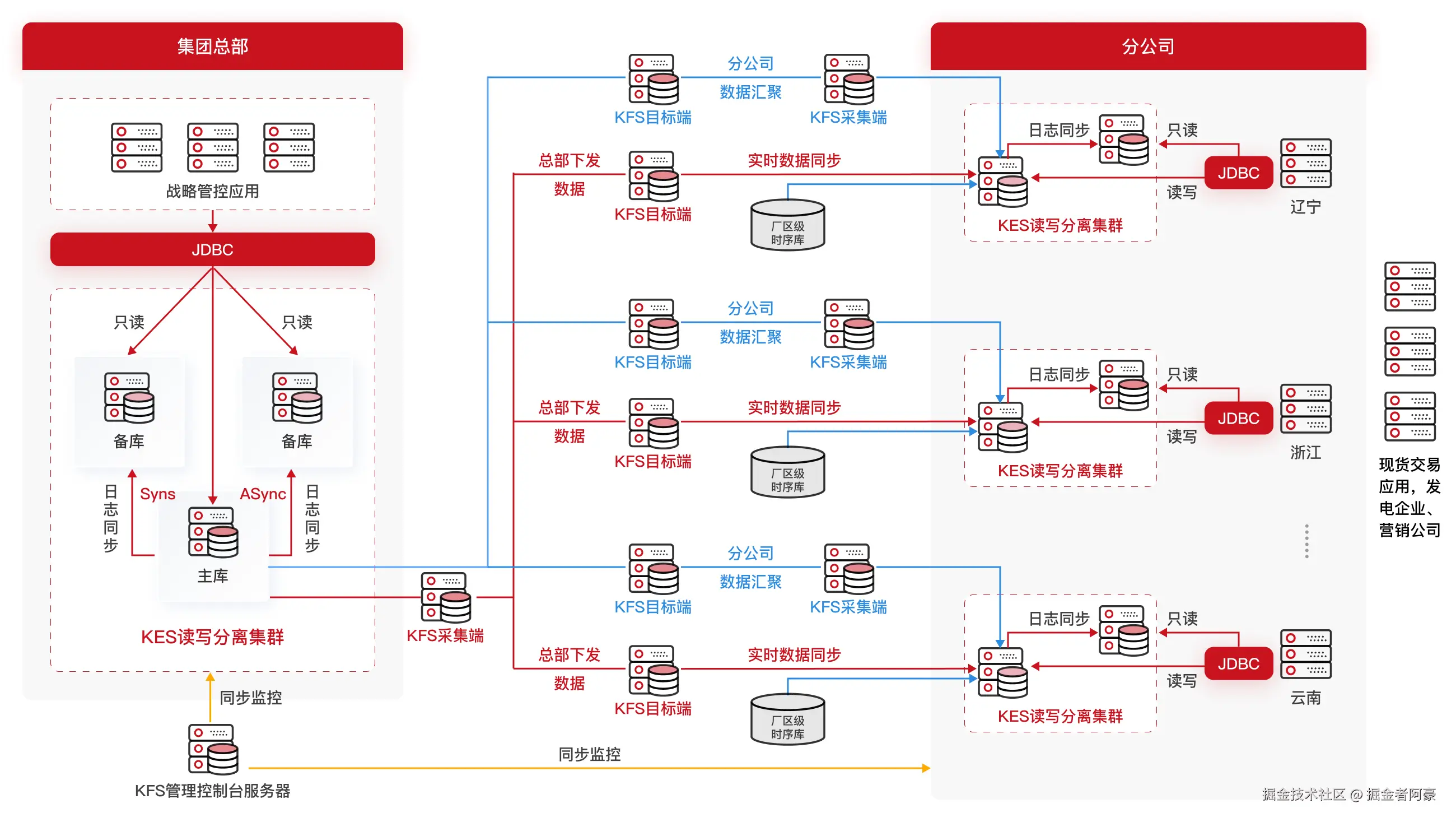

读写分离集群优化：

-- 读写分离配置
-- 写操作路由到主节点
INSERT INTO power_trading_data
(plant_id, trading_date, trading_interval, market_type, bid_quantity, bid_price)
VALUES
('PLANT_001', '2025-01-15', 1, 'DAY_AHEAD', 1000.00, 0.45);

-- 读操作路由到备节点
SELECT /*+ READONLY */
    trading_interval,
    AVG(cleared_price) as avg_price,
    SUM(cleared_quantity) as total_quantity
FROM power_trading_data
WHERE plant_id = 'PLANT_001'
  AND trading_date = '2025-01-15'
  AND market_type = 'DAY_AHEAD'
GROUP BY trading_interval
ORDER BY trading_interval;

-- 集群负载监控
SELECT
    '主节点' as node_type,
    COUNT(*) as connection_count,
    SUM(CASE WHEN state = 'active' THEN 1 ELSE 0 END) as active_connections
FROM sys_stat_activity
WHERE application_name != 'background'

UNION ALL

SELECT
    '备节点',
    COUNT(*),
    SUM(CASE WHEN state = 'active' THEN 1 ELSE 0 END)
FROM sys_stat_activity@standby_node
WHERE application_name != 'background';

国家电网：智能电网调度控制的长期实践

D5000智能电网调度控制系统

国家电网的D5000系统是金仓数据库在电力行业长期稳定运行的典范。系统已稳定运行17年，覆盖26省84地市，实现了"5个9"的可用性目标。

电网调度数据模型：

-- 电网设备模型
CREATE TABLE power_grid_equipment (
    equipment_id VARCHAR(100) PRIMARY KEY,
    equipment_name VARCHAR(200) NOT NULL,
    equipment_type VARCHAR(50) NOT NULL,
    voltage_level VARCHAR(20),
    substation_id VARCHAR(50),
    region_code VARCHAR(20),
    longitude DECIMAL(9,6),
    latitude DECIMAL(8,6),
    status VARCHAR(20) DEFAULT 'IN_SERVICE',
    commission_date DATE,
    maintenance_status VARCHAR(20)
);

-- 实时遥测数据
CREATE TABLE scada_telemetry (
    telemetry_id BIGSERIAL,
    equipment_id VARCHAR(100) NOT NULL,
    telemetry_type VARCHAR(50) NOT NULL,  -- 电流、电压、功率等
    telemetry_value DECIMAL(12,4),
    quality_code INTEGER DEFAULT 0,
    timestamp TIMESTAMP(3) DEFAULT CURRENT_TIMESTAMP(3),
    PRIMARY KEY (equipment_id, telemetry_type, timestamp)
) PARTITION BY RANGE (timestamp);

-- 宽表支持（单表1443列）
CREATE TABLE grid_wide_table (
    record_id BIGSERIAL PRIMARY KEY,
    timestamp TIMESTAMP NOT NULL,
    -- 电压相关字段
    voltage_bus1 DECIMAL(8,2),
    voltage_bus2 DECIMAL(8,2),
    -- 电流相关字段
    current_line1 DECIMAL(8,2),
    current_line2 DECIMAL(8,2),
    -- 功率相关字段
    power_active DECIMAL(10,2),
    power_reactive DECIMAL(10,2),
    -- ... 其他1400+字段
    data_source VARCHAR(50),
    data_quality INTEGER
);

-- 全表实时更新性能优化
CREATE OR REPLACE PROCEDURE update_wide_table_performance()
AS $$
DECLARE
    start_time TIMESTAMP;
    end_time TIMESTAMP;
    duration INTERVAL;
BEGIN
    start_time := CLOCK_TIMESTAMP();

    -- 模拟全表更新操作
    UPDATE grid_wide_table
    SET voltage_bus1 = voltage_bus1 * 1.01,
        power_active = power_active * 0.98
    WHERE timestamp >= NOW() - INTERVAL '1 hour';

    end_time := CLOCK_TIMESTAMP();
    duration := end_time - start_time;

    RAISE NOTICE '全表更新完成，耗时: %', duration;
END;
$$ LANGUAGE plpgsql;

跨区域数据同步：

-- 跨省数据同步配置
CREATE SUBSCRIPTION north_region_sync
CONNECTION 'host=north-center.grid.com port=54321 dbname=d5000_center'
PUBLICATION north_region_publication;

-- 数据同步状态监控
SELECT
    subscription_name,
    apply_lag,
    write_lag,
    flush_lag,
    sync_state,
    last_msg_send_time,
    last_msg_receipt_time
FROM sys_stat_subscription
WHERE subscription_name LIKE '%sync';

-- 数据一致性验证
WITH sync_validation AS (
    SELECT
        '主中心' as center_type,
        COUNT(*) as record_count,
        MAX(timestamp) as latest_data
    FROM scada_telemetry

    UNION ALL

    SELECT
        '备中心',
        COUNT(*),
        MAX(timestamp)
    FROM scada_telemetry@backup_center
)
SELECT * FROM sync_validation;

技术创新的核心价值

宽表技术支持

金仓数据库在电网调度系统中的宽表技术支持，解决了电力行业海量测点数据管理的难题。

-- 宽表性能优化
-- 创建适合宽表查询的索引
CREATE INDEX idx_wide_table_timestamp ON grid_wide_table (timestamp);
CREATE INDEX idx_wide_table_voltage ON grid_wide_table (voltage_bus1, voltage_bus2);
CREATE INDEX idx_wide_table_power ON grid_wide_table (power_active, power_reactive);

-- 宽表查询优化示例
EXPLAIN (ANALYZE, BUFFERS)
SELECT
    timestamp,
    voltage_bus1,
    voltage_bus2,
    power_active,
    power_reactive
FROM grid_wide_table
WHERE timestamp >= '2025-01-15 10:00:00'
  AND timestamp < '2025-01-15 11:00:00'
  AND voltage_bus1 BETWEEN 220 AND 240
  AND power_active > 1000
ORDER BY timestamp
LIMIT 1000;

-- 宽表统计信息管理
CREATE STATISTICS wide_table_stats
ON voltage_bus1, voltage_bus2, power_active, power_reactive
FROM grid_wide_table;

ANALYZE grid_wide_table;

高并发连接管理

发电行业核心系统需要支持上千个并发连接，金仓数据库通过优化的连接管理和资源控制，确保了系统的稳定运行。

-- 连接池监控和管理
CREATE VIEW connection_pool_monitor AS
SELECT
    datname,
    usename,
    application_name,
    state,
    COUNT(*) as connection_count,
    MIN(backend_start) as oldest_connection,
    MAX(backend_start) as newest_connection
FROM sys_stat_activity
WHERE state IS NOT NULL
GROUP BY datname, usename, application_name, state
ORDER BY connection_count DESC;

-- 资源组管理
CREATE RESOURCE GROUP scada_group WITH
    (cpu_rate_limit=40, memory_limit='16GB', active_statements=200);

CREATE RESOURCE GROUP trading_group WITH
    (cpu_rate_limit=30, memory_limit='8GB', active_statements=100);

-- 用户资源分配
CREATE USER scada_user RESOURCE GROUP scada_group;
CREATE USER trading_user RESOURCE GROUP trading_group;

-- 性能监控和告警
CREATE OR REPLACE FUNCTION connection_alert_check()
RETURNS TABLE(alert_type VARCHAR, alert_message TEXT, severity VARCHAR) AS $$
BEGIN
    -- 检查连接数使用率
    IF (SELECT COUNT(*) FROM sys_stat_activity) >
       (SELECT setting::INTEGER * 0.8 FROM sys_settings WHERE name = 'max_connections')
    THEN
        RETURN QUERY SELECT 'HIGH_CONNECTION_USAGE', '数据库连接数超过80%阈值', 'HIGH';
    END IF;

    -- 检查长事务
    IF EXISTS (
        SELECT 1 FROM sys_stat_activity
        WHERE state = 'active'
        AND NOW() - xact_start > INTERVAL '10 minutes'
    ) THEN
        RETURN QUERY SELECT 'LONG_RUNNING_TRANSACTION', '存在运行时间超过10分钟的事务', 'MEDIUM';
    END IF;
END;
$$ LANGUAGE plpgsql;

未来展望：发电数字化的新篇章

随着新型电力系统建设的推进，发电行业数据库将面临新的技术挑战和发展机遇。

人工智能集成应用

-- AI驱动的预测分析
CREATE TABLE ai_power_forecast (
    forecast_id BIGSERIAL PRIMARY KEY,
    plant_id VARCHAR(50) NOT NULL,
    forecast_time TIMESTAMP NOT NULL,
    forecast_type VARCHAR(50) NOT NULL,  -- 负荷预测、发电预测等
    predicted_value DECIMAL(12,4),
    confidence_interval DECIMAL(5,4),
    model_version VARCHAR(100),
    created_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

-- 预测准确性分析
CREATE VIEW forecast_accuracy_analysis AS
SELECT
    af.plant_id,
    af.forecast_type,
    COUNT(*) as forecast_count,
    AVG(ABS(af.predicted_value - ad.actual_value)) as mean_absolute_error,
    AVG(ABS(af.predicted_value - ad.actual_value) / ad.actual_value) as mean_absolute_percentage_error,
    CORR(af.predicted_value, ad.actual_value) as correlation_coefficient
FROM ai_power_forecast af
JOIN power_generation_realtime ad ON af.plant_id = ad.plant_id
    AND af.forecast_time = ad.timestamp
    AND af.forecast_type = 'GENERATION_FORECAST'
WHERE af.forecast_time >= CURRENT_DATE - INTERVAL '30 days'
GROUP BY af.plant_id, af.forecast_type;

云边协同架构演进

-- 边缘计算节点管理
CREATE TABLE edge_computing_nodes (
    node_id VARCHAR(100) PRIMARY KEY,
    plant_id VARCHAR(50) NOT NULL,
    node_type VARCHAR(50) NOT NULL,
    hardware_config JSONB,
    software_version VARCHAR(100),
    last_heartbeat TIMESTAMP,
    sync_status VARCHAR(20),
    data_lag INTERVAL,
    network_quality VARCHAR(20)
);

-- 边缘节点健康监控
SELECT
    node_id,
    plant_id,
    node_type,
    last_heartbeat,
    sync_status,
    EXTRACT(EPOCH FROM data_lag) as data_lag_seconds,
    CASE
        WHEN EXTRACT(EPOCH FROM data_lag) < 10 THEN '优'
        WHEN EXTRACT(EPOCH FROM data_lag) < 30 THEN '良'
        WHEN EXTRACT(EPOCH FROM data_lag) < 60 THEN '中'
        ELSE '差'
    END as sync_quality
FROM edge_computing_nodes
WHERE last_heartbeat > NOW() - INTERVAL '5 minutes'
ORDER BY data_lag_seconds DESC;

结语：电力数字化的坚实基座

金仓数据库在发电行业的成功实践，充分展现了国产基础软件在支撑国家能源安全中的技术价值。从中国大唐的电力现货交易，到国家电网的智能调度控制，金仓用17年的稳定运行证明了国产数据库能够胜任电力行业最严苛的核心生产场景。

作为电力数字化的见证者和参与者，我坚信随着新型电力系统建设的深入推进和能源数字化转型的加速，金仓数据库将在发电行业智能化进程中发挥更加重要的作用，为构建安全、高效、清洁的现代能源体系提供坚实的技术支撑。在电力行业数字化转型的道路上，金仓正在成为推动行业创新发展的关键力量。
