金仓数据库引领新能源行业数字化转型：案例深度解析与领导力展现本文展示了新能源场站管理的数据模型设计，包括场站信息、设备数

摘要： 随着"双碳"目标推进，国产数据库在新能源行业数字化转型中发挥关键作用。电科金仓(Kingbase)数据库成功支撑中广核新能源600多个场站的管理系统，通过解决复杂迁移、高并发访问等难题，实现99.999%系统可用性。本文展示了新能源场站管理的数据模型设计，包括场站信息、设备数据和实时监控等核心表结构，提供了数据操作、统计分析及性能优化的SQL示例，为新能源企业数据库国产化替代提供了实践参考。

1.前言

随着全球能源革命与数字革命的深度融合，新能源行业正迎来前所未有的发展机遇。在“双碳”目标推动下，电力行业加速向智能化、绿色化转型，数据库作为信息系统的核心基石，其国产化替代已成为保障能源安全、提升运营效率的关键。电科金仓（KINGBASE）作为国产数据库的领军企业，通过多个标杆项目，展现了在新能源领域的强大技术实力和行业领导力。本文结合具体案例与行业数据，深入剖析金仓数据库如何助力新能源企业实现数字化转型。

2.新能源场站管理数据模型设计

中广核新能源控股有限公司在生产运维系统中面临系统孤立、数据割裂等挑战。金仓数据库通过30天攻坚，成功支撑系统上线，覆盖600多个新能源场站和6000多名人员，实现了检修管理、智能运维等业务的统一整合。项目突破四大难题：复杂迁移、高并发访问、异地容灾和分步替换。金仓方案凭借“迁移零修改”的兼容性、自治调优性能以及多级别高可用架构，确保系统可用性达99.999% ，满足灾难恢复能力5级要求。

2.1 基本表结构创建

以下是一个典型的新能源场站监控系统的核心表结构：

-- 创建场站基本信息表
CREATE TABLE power_station (
    station_id VARCHAR(20) PRIMARY KEY,
    station_name VARCHAR(100) NOT NULL,
    station_type VARCHAR(20) CHECK (station_type IN ('风电', '光伏', '储能', '水电')),
    capacity DECIMAL(10,2),
    location VARCHAR(200),
    grid_connection_date DATE,
    status VARCHAR(10) DEFAULT '正常'
);

COMMENT ON TABLE power_station IS '新能源场站基本信息表';
COMMENT ON COLUMN power_station.station_id IS '场站编号';
COMMENT ON COLUMN power_station.station_type IS '场站类型：风电、光伏、储能、水电';

-- 创建实时监控数据表
CREATE TABLE real_time_monitoring (
    record_id BIGSERIAL PRIMARY KEY,
    station_id VARCHAR(20) REFERENCES power_station(station_id),
    collection_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    active_power DECIMAL(8,2),
    wind_speed DECIMAL(5,2),
    temperature DECIMAL(4,1),
    device_status VARCHAR(20)
);

-- 创建设备信息表
CREATE TABLE equipment_info (
    equipment_id VARCHAR(30) PRIMARY KEY,
    station_id VARCHAR(20) REFERENCES power_station(station_id),
    equipment_name VARCHAR(100),
    equipment_type VARCHAR(30),
    manufacturer VARCHAR(50),
    installation_date DATE,
    maintenance_cycle INTEGER
);

2.2 数据插入操作

-- 插入场站基本信息
INSERT INTO power_station (station_id, station_name, station_type, capacity, location, grid_connection_date)
VALUES ('FD2023001', '张北风电场一期', '风电', 150.00, '河北省张家口市张北县', '2023-01-15');

INSERT INTO power_station (station_id, station_name, station_type, capacity, location, grid_connection_date)
VALUES ('GF2023001', '宁夏光伏电站', '光伏', 200.50, '宁夏回族自治区银川市', '2023-03-20');

-- 批量插入设备信息
INSERT INTO equipment_info (equipment_id, station_id, equipment_name, equipment_type, manufacturer, installation_date, maintenance_cycle)
VALUES
('WTG001', 'FD2023001', '风力发电机1号', '风力发电机组', '金风科技', '2023-01-10', 180),
('WTG002', 'FD2023001', '风力发电机2号', '风力发电机组', '远景能源', '2023-01-12', 180),
('PVP001', 'GF2023001', '光伏逆变器1号', '逆变器', '华为技术', '2023-03-15', 365);

2.3 实时数据采集插入

-- 插入实时监控数据
INSERT INTO real_time_monitoring (station_id, active_power, wind_speed, temperature, device_status)
VALUES ('FD2023001', 135.75, 8.5, 15.3, '正常运行');

INSERT INTO real_time_monitoring (station_id, active_power, wind_speed, temperature, device_status)
VALUES ('GF2023001', 185.20, NULL, 28.5, '正常运行');

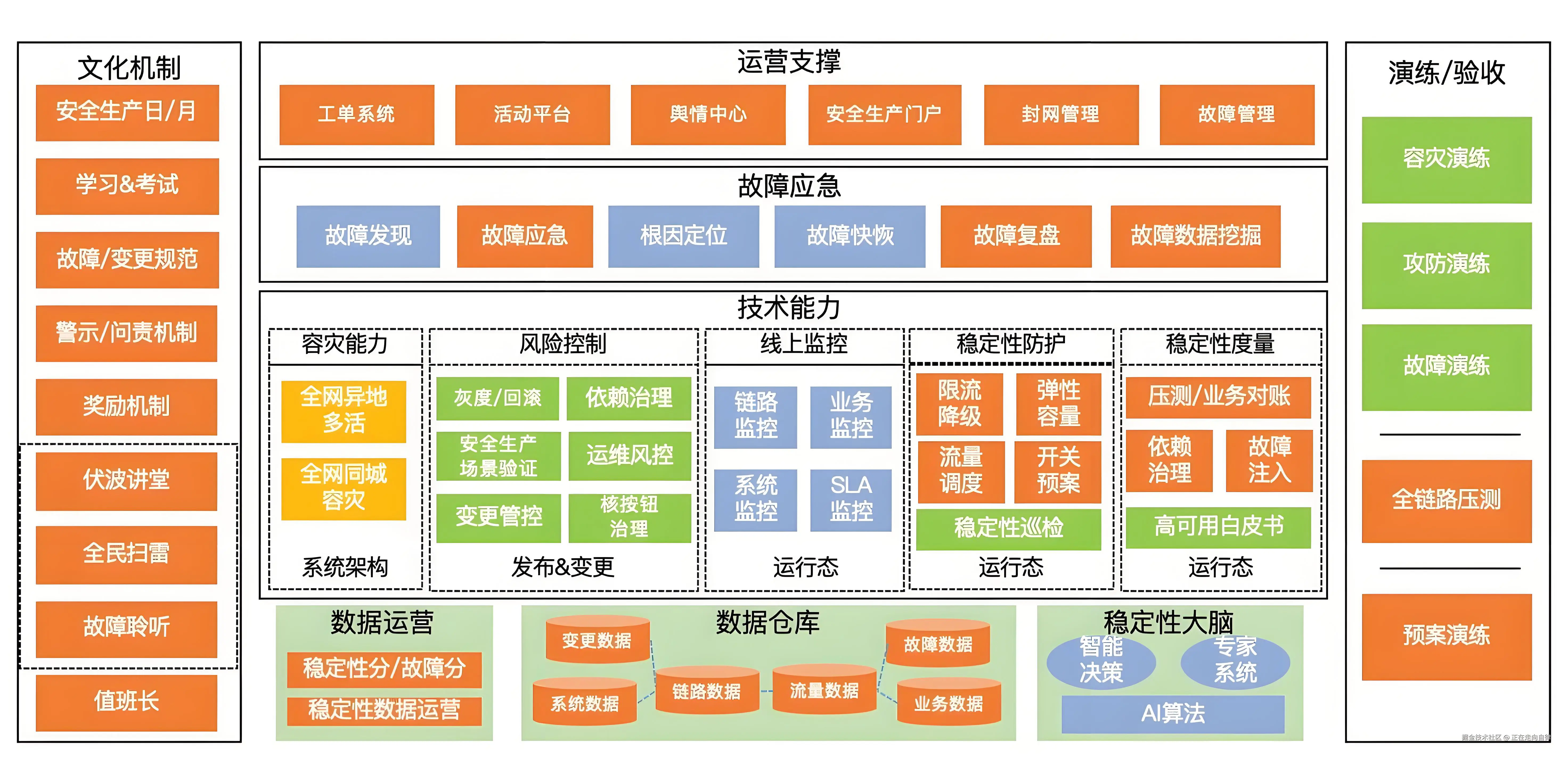

3. 新能源行业高可用架构与容灾设计实战

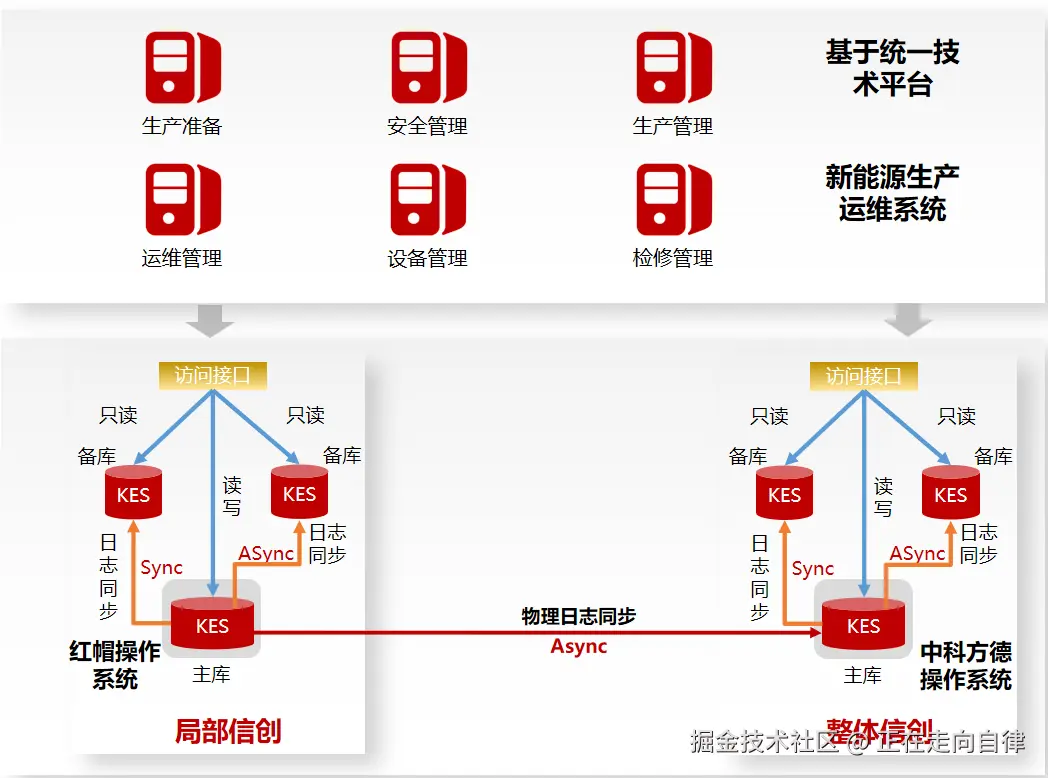

3.1 多中心高可用架构设计

新能源场站分布广泛，对系统高可用性要求极高。金仓数据库通过多级容灾架构确保业务连续性：

-- 创建高可用集群配置
CREATE CLUSTER新能源_cluster WITH (
    MODE = active_standby,
    SYNC_MODE = synchronous,
    FAILOVER_TIMEOUT = 30,
    HEARTBEAT_INTERVAL = 5
);

-- 添加主备节点
ADD NODE primary_node WITH (
    HOST = '192.168.1.101',
    PORT = 54321,
    ROLE = primary
);

ADD NODE standby_node WITH (
    HOST = '192.168.1.102',
    PORT = 54321,
    ROLE = standby
);

-- 创建异地容灾配置
CREATE REPLICATION SLOT cross_region_slot
WITH (
    SLOT_NAME = 'dr_slot',
    DATABASE = '新能源_db',
    PLUGIN = 'test_decoding',
    TEMPORARY = false
);

3.2 实时数据同步与故障切换

// 高可用监控与自动切换服务
@Component
@Slf4j
public class HighAvailabilityService {

    @Autowired
    private DataSource dataSource;

    private static final String CLUSTER_STATUS_SQL =
        "SELECT node_name, node_type, state, sync_state, " +
        "pg_last_xact_replay_timestamp() as last_replay " +
        "FROM kingbase_stat_replication";

    public ClusterHealth checkClusterHealth() {
        ClusterHealth health = new ClusterHealth();
        try (Connection conn = dataSource.getConnection();
             Statement stmt = conn.createStatement();
             ResultSet rs = stmt.executeQuery(CLUSTER_STATUS_SQL)) {

            while (rs.next()) {
                String nodeName = rs.getString("node_name");
                String state = rs.getString("state");
                String syncState = rs.getString("sync_state");

                if "primary".equals(state) && "async".equals(syncState)) {
                    log.warn("主备同步状态异常: {} - {}", nodeName, syncState);
                    health.setSyncStatus(SyncStatus.WARNING);
                }
            }
        } catch (SQLException e) {
            log.error("集群健康检查失败", e);
            health.setOverallStatus(HealthStatus.CRITICAL);
        }
        return health;
    }

    public boolean initiateFailover(String targetStandby) {
        try (Connection conn = dataSource.getConnection();
             Statement stmt = conn.createStatement()) {

            // 执行故障切换
            stmt.execute("SELECT kingbase_ctl.promote()");

            // 验证切换结果
            return verifyFailoverSuccess(targetStandby);
        } catch (SQLException e) {
            log.error("故障切换执行失败", e);
            return false;
        }
    }
}

3.3 数据备份与恢复策略

-- 配置自动备份策略
-- 创建基础备份
SELECT kingbase_start_backup('新能源系统全量备份', true);

-- 设置WAL归档
ALTER SYSTEM SET archive_mode = on;
ALTER SYSTEM SET archive_command = 'cp %p /kingbase/archive/%f';
ALTER SYSTEM SET wal_level = replica;

-- 创建时间点恢复配置
CREATE RESTORE POINT before_major_update
AS OF TIMESTAMP '2024-01-01 00:00:00';

-- 配置自动备份任务
CREATE SCHEDULE backup_schedule
WITH (
    SCHEDULE_NAME = 'daily_backup',
    START_TIME = '02:00:00',
    REPEAT_INTERVAL = '1 day',
    DATABASE = '新能源_db'
);

-- 创建备份任务
CREATE BACKUP TASK full_backup
WITH (
    TASK_NAME = 'full_nightly_backup',
    SCHEDULE = 'backup_schedule',
    BACKUP_TYPE = 'FULL',
    COMPRESSION = true,
    PARALLEL = 4
);

4.数据查询与统计分析

4.1 基础查询示例

-- 查询所有正常运行的风电场站
SELECT station_id, station_name, capacity, location
FROM power_station
WHERE station_type = '风电' AND status = '正常';

-- 联合查询场站实时数据
SELECT ps.station_name, rtm.active_power, rtm.wind_speed, rtm.collection_time
FROM power_station ps
JOIN real_time_monitoring rtm ON ps.station_id = rtm.station_id
WHERE ps.station_type = '风电'
ORDER BY rtm.collection_time DESC;

4.2 聚合查询与统计分析

-- 按类型统计场站总容量
SELECT station_type, COUNT(*) as station_count, SUM(capacity) as total_capacity
FROM power_station
WHERE status = '正常'
GROUP BY station_type;

-- 查询最近一小时的发电量统计
SELECT station_id,
       AVG(active_power) as avg_power,
       MAX(active_power) as max_power,
       MIN(active_power) as min_power
FROM real_time_monitoring
WHERE collection_time >= CURRENT_TIMESTAMP - INTERVAL '1 hour'
GROUP BY station_id;

5.数据更新与维护操作

5.1 更新操作示例

-- 更新场站状态
UPDATE power_station
SET status = '检修中'
WHERE station_id = 'FD2023001';

-- 批量更新设备维护信息
UPDATE equipment_info
SET maintenance_cycle = 200
WHERE equipment_type = '风力发电机组';

5.2 删除操作示例

-- 删除历史监控数据（保留最近30天）
DELETE FROM real_time_monitoring
WHERE collection_time < CURRENT_DATE - 30;

-- 删除已退役场站数据
DELETE FROM power_station
WHERE status = '退役';

6.高级功能：存储过程与触发器

6.1 创建数据校验存储过程

-- 创建功率数据校验存储过程
CREATE OR REPLACE FUNCTION validate_power_data()
RETURNS TRIGGER AS $$
BEGIN
    -- 校验功率值是否在合理范围内
    IF NEW.active_power < 0 THEN
        RAISE EXCEPTION '功率值不能为负数';
    END IF;

    -- 校验风电场的风速数据完整性
    IF (SELECT station_type FROM power_station WHERE station_id = NEW.station_id) = '风电'
       AND NEW.wind_speed IS NULL THEN
        RAISE EXCEPTION '风电场必须提供风速数据';
    END IF;

    RETURN NEW;
END;
$$ LANGUAGE plpgsql;

-- 创建数据校验触发器
CREATE TRIGGER power_data_validation
    BEFORE INSERT OR UPDATE ON real_time_monitoring
    FOR EACH ROW EXECUTE FUNCTION validate_power_data();

7.数据备份与恢复示例

7.1 基础备份操作

-- 创建关键数据备份表
CREATE TABLE power_station_backup AS
SELECT * FROM power_station WHERE status = '正常';

-- 定期备份实时数据统计
CREATE TABLE daily_power_summary AS
SELECT station_id,
       DATE(collection_time) as summary_date,
       AVG(active_power) as daily_avg_power
FROM real_time_monitoring
GROUP BY station_id, DATE(collection_time);

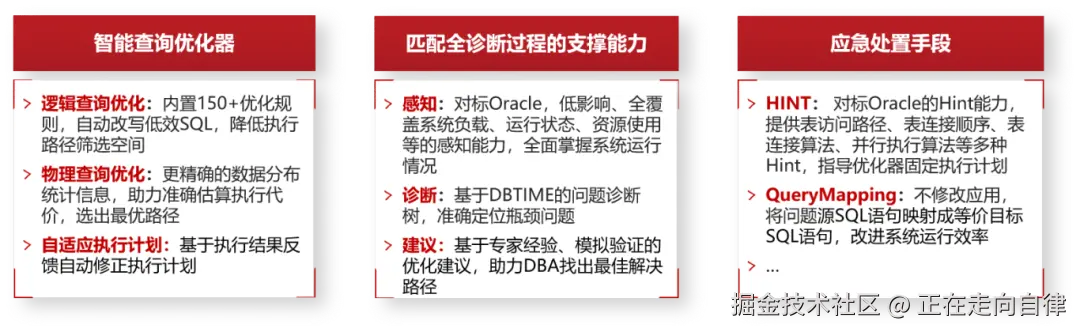

8.性能优化实战技巧

8.1 索引创建与查询优化

-- 为频繁查询的字段创建索引
CREATE INDEX idx_station_type ON power_station(station_type);
CREATE INDEX idx_monitoring_time ON real_time_monitoring(collection_time DESC);
CREATE INDEX idx_equipment_station ON equipment_info(station_id);

-- 使用金仓数据库特有的性能优化Hint
SELECT /*+ INDEX(rtm idx_monitoring_time) */
       ps.station_name, rtm.active_power
FROM power_station ps
JOIN real_time_monitoring rtm ON ps.station_id = rtm.station_id
WHERE rtm.collection_time >= CURRENT_DATE;
