C#数据采集系统实战：从零搭建高效实时数据处理管道

前言

工业4.0与数字化转型浪潮下，实时、可靠的数据采集能力已成为智能制造、物联网及金融监控等关键领域的基础设施。然而，许多 C# 开发在开发此类系统时，常面临高延迟、内存膨胀、异常处理缺失、质量控制薄弱等核心挑战。本文通过一个完整、可落地的实战架构，展示如何利用现代 .NET 技术栈打造专业级数据采集系统，兼顾性能、稳定性与扩展性。

正文

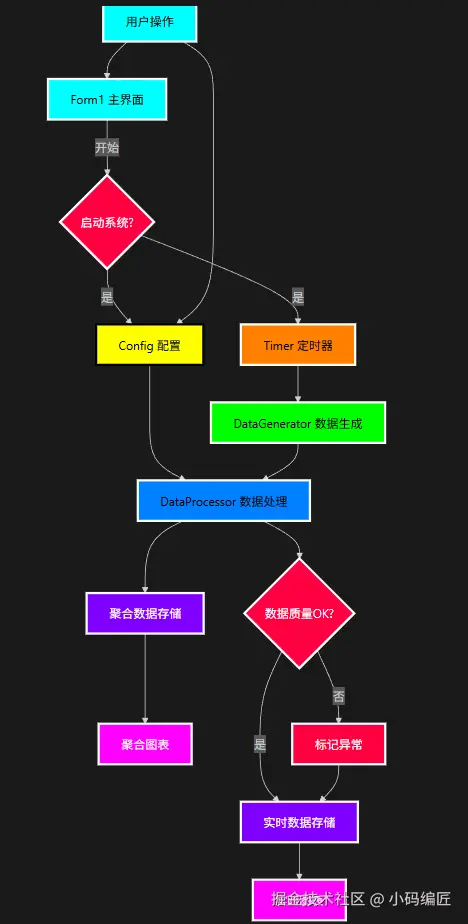

一、系统架构设计：三层异步流水线

我们摒弃传统的单线程轮询模式，采用 生产者-消费者模型 + Channel 异步通道，构建如下四层数据流：

数据生成层 → 数据处理层 → 数据聚合层 → UI 展示层

该架构具备三大优势：

高内聚低耦合：各模块职责清晰，便于独立测试与迭代

高吞吐低延迟：基于 System.Threading.Channels 的无锁异步通信

强容错能力：任一层异常不会导致全局崩溃，支持优雅降级

二、核心技术实现

1、智能数据生成器（模拟真实传感器）

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppDataAcquisitionSystem
{
public class DataGenerator
    {
privatereadonly Random _random;
privatedouble _baseValue;
privatedouble _trend;

publicDataGenerator()
        {
            _random = new Random();
            _baseValue = 50.0;
            _trend = 0.0;
        }

publicasync Task<DataPoint> GenerateDataPointAsync()
        {
// 模拟真实的传感器数据：基础值 + 趋势 + 噪声 + 偶尔的异常值
var noise = _random.NextDouble() * 2 - 1; // -1 到 1 的噪声
var spike = _random.NextDouble() < 0.05 ? _random.NextDouble() * 20 - 10 : 0; // 5%概率出现异常值

            _trend += (_random.NextDouble() - 0.5) * 0.1;
            _trend = Math.Max(-2, Math.Min(2, _trend));

            _baseValue += _trend;
            _baseValue = Math.Max(0, Math.Min(100, _baseValue)); // 限制基础值范围

varvalue = _baseValue + noise + spike;

returnnew DataPoint
            {
                Timestamp = DateTime.Now,
                Value = value,
                Quality = DataQuality.Good,
                Source = "Sensor-001"
            };
        }
    }
}

设计亮点：引入趋势项 _trend 模拟缓慢漂移，5% 异常率贴近工业现场，数值边界约束防止溢出。

2、高性能数据处理器（Channel + 异步流）

publicclass DataProcessor
{
privatereadonly Channel<DataPoint> _rawDataChannel;
privatereadonly Channel<DataPoint> _processedDataChannel;
privatereadonly Channel<AggregatedData> _aggregatedDataChannel;

publicasync Task StartProcessingAsync(CancellationToken cancellationToken = default)
    {
// 🚀 并行处理：数据处理和聚合同时进行
var processingTask = ProcessDataAsync(cancellationToken);
var aggregationTask = AggregateDataAsync(cancellationToken);

await Task.WhenAll(processingTask, aggregationTask);
    }

privateasync Task ProcessDataAsync(CancellationToken cancellationToken)
    {
awaitforeach (var dataPoint in _rawDataChannel.Reader.ReadAllAsync(cancellationToken))
        {
var processedPoint = ProcessSingleDataPoint(dataPoint);
if (processedPoint != null)
            {
await _processedDataChannel.Writer.WriteAsync(processedPoint, cancellationToken);
            }
        }
    }
}

关键点：Channel<T> 提供背压控制；IAsyncEnumerable 支持响应式流处理；并行任务提升吞吐量。

3、多维度质量控制机制

private DataQuality PerformQualityCheck(DataPoint dataPoint)
{
// 🛡️ 基础数值检查
if (double.IsNaN(dataPoint.Value) || double.IsInfinity(dataPoint.Value))
return DataQuality.Bad;

// 📊 数值范围验证
if (Math.Abs(dataPoint.Value) > 1000)
return DataQuality.Bad;

// ⚡ 变化率检查 - 防止突变数据
if (_lastValue != null)
    {
var timeDiff = (dataPoint.Timestamp - _lastValue.Timestamp).TotalSeconds;
if (timeDiff > 0)
        {
var changeRate = Math.Abs(dataPoint.Value - _lastValue.Value) / timeDiff;
if (changeRate > 100) // 变化率阈值
return DataQuality.Uncertain;
        }
    }

return DataQuality.Good;
}

该策略有效识别 NaN、超限值及不合理跳变，保障下游数据可信度。

4、滑动窗口实时聚合

privateasync Task AggregateDataAsync(CancellationToken cancellationToken)
{
awaitforeach (var dataPoint in _processedDataChannel.Reader.ReadAllAsync(cancellationToken))
    {
        _windowBuffer.Add(dataPoint);

if (_windowBuffer.Count >= _config.WindowSize)
        {
var aggregated = CalculateAggregatedData(_windowBuffer);
await _aggregatedDataChannel.Writer.WriteAsync(aggregated, cancellationToken);

// 🎯 滑动窗口优化：保留部分历史数据
var keepCount = _config.WindowSize / 2;
            _windowBuffer.RemoveRange(0, _windowBuffer.Count - keepCount);
        }
    }
}

滑动窗口避免“硬切分”导致的信息丢失，同时控制内存占用，实现连续性与效率的平衡。

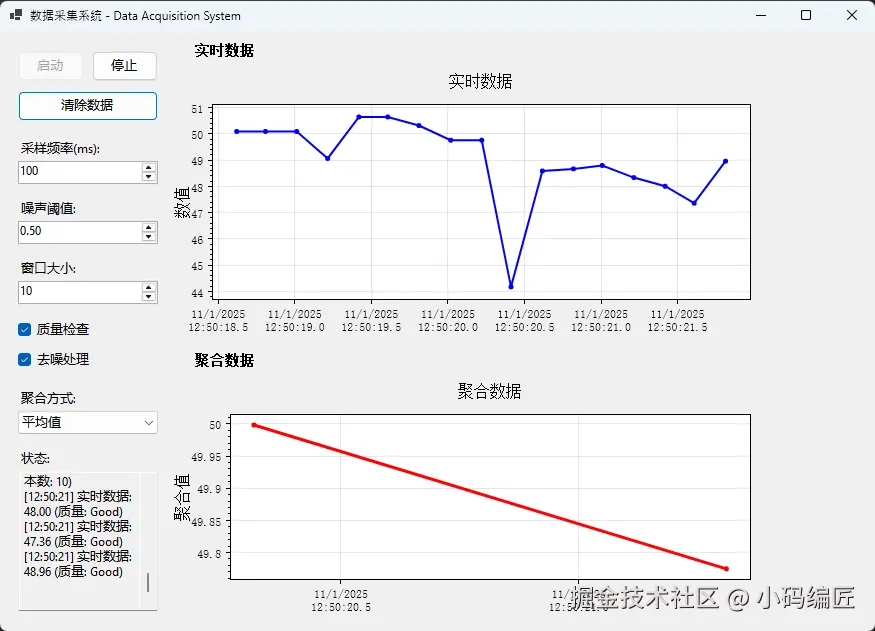

三、UI 实时可视化（ScottPlot 集成）

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using ScottPlot;
using Timer = System.Threading.Timer;

namespace AppDataAcquisitionSystem
{
public partial class Form1 : Form
    {
private DataGenerator _dataGenerator;
private DataProcessor _dataProcessor;
private AcquisitionConfig _config;
private Timer _acquisitionTimer;
private CancellationTokenSource _cancellationTokenSource;

// 数据存储
private List<DataPoint> _realTimeData;
private List<AggregatedData> _aggregatedData;

// 图表数据
private List<double> _realTimeValues;
private List<DateTime> _realTimeTimes;
private List<double> _aggregatedValues;
private List<DateTime> _aggregatedTimes;

privateconstint MaxDisplayPoints = 100;

publicForm1()
        {
            InitializeComponent();
            InitializeSystem();
            InitializePlots();
            AttachEventHandlers();
        }

privatevoidInitializeSystem()
        {
            _realTimeData = new List<DataPoint>();
            _aggregatedData = new List<AggregatedData>();
            _realTimeValues = new List<double>();
            _realTimeTimes = new List<DateTime>();
            _aggregatedValues = new List<double>();
            _aggregatedTimes = new List<DateTime>();

            _dataGenerator = new DataGenerator();
            UpdateConfiguration();
        }

privatevoidInitializePlots()
        {
            plotRealTime.Font = new Font("SimSun", 12);
// 配置实时数据图表
            plotRealTime.Plot.Title("实时数据");
            plotRealTime.Plot.Font.Set("SimSun");
            plotRealTime.Plot.XLabel("时间");
            plotRealTime.Plot.YLabel("数值");

// 配置聚合数据图表
            plotAggregated.Font = new Font("SimSun", 12);
            plotAggregated.Plot.Title("聚合数据");
            plotAggregated.Plot.Font.Set("SimSun");
            plotAggregated.Plot.XLabel("时间");
            plotAggregated.Plot.YLabel("聚合值");
        }

privatevoidAttachEventHandlers()
        {
            btnStart.Click += BtnStart_Click;
            btnStop.Click += BtnStop_Click;
            btnClear.Click += BtnClear_Click;

// 配置变更事件
            nudSampleRate.ValueChanged += (s, e) => UpdateConfiguration();
            nudNoiseThreshold.ValueChanged += (s, e) => UpdateConfiguration();
            nudWindowSize.ValueChanged += (s, e) => UpdateConfiguration();
            chkQualityCheck.CheckedChanged += (s, e) => UpdateConfiguration();
            chkDenoising.CheckedChanged += (s, e) => UpdateConfiguration();
            cmbAggregationType.SelectedIndexChanged += (s, e) => UpdateConfiguration();
        }

privatevoidUpdateConfiguration()
        {
            _config = new AcquisitionConfig
            {
                SampleRateMs = (int)nudSampleRate.Value,
                NoiseThreshold = (double)nudNoiseThreshold.Value,
                WindowSize = (int)nudWindowSize.Value,
                EnableQualityCheck = chkQualityCheck.Checked,
                EnableDenoising = chkDenoising.Checked,
                AggregationType = (AggregationType)cmbAggregationType.SelectedIndex
            };
        }

privateasyncvoidBtnStart_Click(object sender, EventArgs e)
        {
try
            {
                btnStart.Enabled = false;
                btnStop.Enabled = true;

                UpdateConfiguration();
                _dataProcessor = new DataProcessor(_config);
                _cancellationTokenSource = new CancellationTokenSource();

// 启动数据处理
var processingTask = _dataProcessor.StartProcessingAsync(_cancellationTokenSource.Token);

// 启动数据读取任务
var readingTask = StartDataReadingAsync(_cancellationTokenSource.Token);

// 启动数据采集定时器
                _acquisitionTimer = new Timer(OnDataAcquisitionTimer, null, 0, _config.SampleRateMs);

                UpdateStatus("系统已启动");

await Task.WhenAny(processingTask, readingTask);
            }
catch (Exception ex)
            {
                UpdateStatus($"启动失败: {ex.Message}");
                btnStart.Enabled = true;
                btnStop.Enabled = false;
            }
        }

privatevoidBtnStop_Click(object sender, EventArgs e)
        {
            StopAcquisition();
        }

privatevoidBtnClear_Click(object sender, EventArgs e)
        {
            _realTimeData.Clear();
            _aggregatedData.Clear();
            _realTimeValues.Clear();
            _realTimeTimes.Clear();
            _aggregatedValues.Clear();
            _aggregatedTimes.Clear();

            plotRealTime.Plot.Clear();
            plotAggregated.Plot.Clear();
            plotRealTime.Refresh();
            plotAggregated.Refresh();

            UpdateStatus("数据已清除");
        }

privatevoidStopAcquisition()
        {
try
            {
                _acquisitionTimer?.Dispose();
                _cancellationTokenSource?.Cancel();
                _dataProcessor?.StopProcessing();

                btnStart.Enabled = true;
                btnStop.Enabled = false;

                UpdateStatus("系统已停止");
            }
catch (Exception ex)
            {
                UpdateStatus($"停止失败: {ex.Message}");
            }
        }

privateasyncvoidOnDataAcquisitionTimer(object state)
        {
try
            {
var dataPoint = await _dataGenerator.GenerateDataPointAsync();
await _dataProcessor.AddRawDataAsync(dataPoint);
            }
catch (Exception ex)
            {
                BeginInvoke(new Action(() => UpdateStatus($"数据采集错误: {ex.Message}")));
            }
        }

privateasync Task StartDataReadingAsync(CancellationToken cancellationToken)
        {
// 启动处理后数据读取
var processedTask = ReadProcessedDataAsync(cancellationToken);
var aggregatedTask = ReadAggregatedDataAsync(cancellationToken);

await Task.WhenAll(processedTask, aggregatedTask);
        }

privateasync Task ReadProcessedDataAsync(CancellationToken cancellationToken)
        {
try
            {
awaitforeach (var dataPoint in _dataProcessor.ProcessedDataReader.ReadAllAsync(cancellationToken))
                {
                    BeginInvoke(new Action(() =>
                    {
                        _realTimeData.Add(dataPoint);
                        _realTimeValues.Add(dataPoint.Value);
                        _realTimeTimes.Add(dataPoint.Timestamp);

// 限制显示点数
if (_realTimeValues.Count > MaxDisplayPoints)
                        {
                            _realTimeValues.RemoveAt(0);
                            _realTimeTimes.RemoveAt(0);
                        }

                        UpdateRealTimePlot();
                        UpdateStatus($"实时数据: {dataPoint.Value:F2} (质量: {dataPoint.Quality})");
                    }));
                }
            }
catch (OperationCanceledException)
            {
// 正常取消
            }
        }

privateasync Task ReadAggregatedDataAsync(CancellationToken cancellationToken)
        {
try
            {
awaitforeach (var aggregatedData in _dataProcessor.AggregatedDataReader.ReadAllAsync(cancellationToken))
                {
                    BeginInvoke(new Action(() =>
                    {
                        _aggregatedData.Add(aggregatedData);
                        _aggregatedValues.Add(aggregatedData.Value);
                        _aggregatedTimes.Add(aggregatedData.WindowEnd);

// 限制显示点数
if (_aggregatedValues.Count > MaxDisplayPoints)
                        {
                            _aggregatedValues.RemoveAt(0);
                            _aggregatedTimes.RemoveAt(0);
                        }

                        UpdateAggregatedPlot();
                        UpdateStatus($"聚合数据 ({aggregatedData.Type}): {aggregatedData.Value:F2} (样本数: {aggregatedData.SampleCount})");
                    }));
                }
            }
catch (OperationCanceledException)
            {
// 正常取消
            }
        }

privatevoidUpdateRealTimePlot()
        {
if (_realTimeValues.Count == 0) return;

            plotRealTime.Plot.Clear();

var times = _realTimeTimes.Select(t => t.ToOADate()).ToArray();
var values = _realTimeValues.ToArray();

var scatter = plotRealTime.Plot.Add.Scatter(times, values);
            scatter.Color = Colors.Blue;
            scatter.LineWidth = 2;

            plotRealTime.Plot.Axes.DateTimeTicksBottom();
            plotRealTime.Plot.Axes.AutoScale();
            plotRealTime.Refresh();
        }

privatevoidUpdateAggregatedPlot()
        {
if (_aggregatedValues.Count == 0) return;

            plotAggregated.Plot.Clear();

var times = _aggregatedTimes.Select(t => t.ToOADate()).ToArray();
var values = _aggregatedValues.ToArray();

var scatter = plotAggregated.Plot.Add.Scatter(times, values);
            scatter.Color = Colors.Red;
            scatter.LineWidth = 3;

            plotAggregated.Plot.Axes.DateTimeTicksBottom();
            plotAggregated.Plot.Axes.AutoScale();
            plotAggregated.Refresh();
        }

privatevoidUpdateStatus(string message)
        {
if (InvokeRequired)
            {
                BeginInvoke(new Action(() => UpdateStatus(message)));
return;
            }

            txtStatus.AppendText($"[{DateTime.Now:HH:mm:ss}] {message}rn");
            txtStatus.ScrollToCaret();
        }

protectedoverridevoidOnFormClosing(FormClosingEventArgs e)
        {
            StopAcquisition();
base.OnFormClosing(e);
        }
    }
}

四、性能优化要点

内存管理

privateconstint MaxDisplayPoints = 100;

// 限制显示点数，防止内存泄漏
if (_realTimeValues.Count > MaxDisplayPoints)
{
    _realTimeValues.RemoveAt(0);
    _realTimeTimes.RemoveAt(0);
}

异步资源清理

// 正确的取消令牌使用
_cancellationTokenSource = CancellationTokenSource.CreateLinkedTokenSource(cancellationToken);

// 优雅的资源清理
protectedoverridevoidOnFormClosing(FormClosingEventArgs e)
{
    StopAcquisition(); // 确保所有异步任务正确停止
base.OnFormClosing(e);
}

五、典型应用场景

• 工业物联网（IIoT）：产线传感器实时监控

• 金融交易系统：毫秒级行情数据采集

• 环境监测站：温湿度、PM2.5 连续记录

• IT 运维平台：服务器 CPU/内存指标追踪

六、常见问题应对

Q1：Channel 背压如何处理？

A：使用有界通道并配置等待策略

var options = new BoundedChannelOptions(1000)
{
    FullMode = BoundedChannelFullMode.Wait,
    SingleReader = true,
    SingleWriter = false
};
_channel = Channel.CreateBounded<DataPoint>(options);

Q2：海量数据下的性能瓶颈？

A：引入批处理机制：

privatereadonly List<DataPoint> _batchBuffer = new List<DataPoint>();
privateconstint BatchSize = 50;

if (_batchBuffer.Count >= BatchSize)
{
await ProcessBatchAsync(_batchBuffer);
    _batchBuffer.Clear();
}

总结

一套面向工业场景的 C# 数据采集系统，其核心价值在于：

1、异步流水线架构：通过 Channel 实现高并发、低耦合的数据流转

2、全链路质量控制：从生成、处理到聚合，嵌入多层校验机制

3、轻量级实时可视化：ScottPlot 与 WinForm 无缝集成，支持动态刷新

该方案不仅解决了传统采集系统的性能与稳定性痛点，更为后续扩展（如接入数据库、远程上报、AI 异常检测）预留了清晰接口。开发者可根据实际需求灵活裁剪或增强各模块功能。

关键词

C#、数据采集、Channel、异步编程、ScottPlot、工业物联网、质量控制、滑动窗口、WinForm、.NET

最后

如果你觉得这篇文章对你有帮助，不妨点个赞支持一下！你的支持是我继续分享知识的动力。如果有任何疑问或需要进一步的帮助，欢迎随时留言。

也可以加入微信公众号 [DotNet技术匠] 社区，与其他热爱技术的同行一起交流心得，共同成长！

优秀是一种习惯，欢迎大家留言学习！

来源：mp.weixin.qq.com/s/kSq9ZBk6RWRZwxk0QC4bIQ
