Bootstrap表格:让数据展示既美观又专业

40 阅读3分钟

在数据密集的Web应用中,表格是展示结构化信息最常用的方式之一。Bootstrap提供了一套功能丰富、样式精美的表格组件,让开发者无需编写复杂CSS就能创建出专业水准的数据表格。

Bootstrap表格

Bootstrap表格是基于CSS样式预定义的表格组件,通过添加特定的类名,可以快速实现条纹行、悬停效果、边框、紧凑布局等多种表格样式。它继承了Bootstrap的响应式特性,能够在不同设备上保持良好的可读性。

基础表格结构

Bootstrap表格的基本结构与传统HTML表格相同,但需要添加.table基类:

<table class="table">
  <thead>
    <tr>
      <th scope="col">#</th>
      <th scope="col">姓名</th>
      <th scope="col">部门</th>
      <th scope="col">职位</th>
    </tr>
  </thead>
  <tbody>
    <tr>
      <th scope="row">1</th>
      <td>张三</td>
      <td>技术部</td>
      <td>前端工程师</td>
    </tr>
    <tr>
      <th scope="row">2</th>
      <td>李四</td>
      <td>设计部</td>
      <td>UI设计师</td>
    </tr>
  </tbody>
</table>

表格样式变体

Bootstrap提供了多种表格样式类来满足不同场景需求:

类名描述
.table-striped斑马条纹表格
.table-bordered带边框表格
.table-borderless无边框表格
.table-hover行悬停效果
.table-sm紧凑型表格
.table-dark深色主题表格

完整代码示例

<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Bootstrap表格示例</title>
    <!-- 引入Bootstrap CSS -->
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/css/bootstrap.min.css" rel="stylesheet">
    <style>
        .demo-section {
            margin-bottom: 3rem;
        }
        .demo-section h3 {
            margin-bottom: 1rem;
            color: #495057;
            border-left: 4px solid #0d6efd;
            padding-left: 10px;
        }
    </style>
</head>
<body>
    <div class="container my-5">
        <h1 class="text-center mb-4">Bootstrap表格样式展示</h1>

        <!-- 基础表格 -->
        <div class="demo-section">
            <h3>基础表格</h3>
            <table class="table">
                <thead>
                    <tr>
                        <th scope="col">#</th>
                        <th scope="col">姓名</th>
                        <th scope="col">部门</th>
                        <th scope="col">职位</th>
                        <th scope="col">入职时间</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th scope="row">1</th>
                        <td>张三</td>
                        <td>技术部</td>
                        <td>前端工程师</td>
                        <td>2022-03-15</td>
                    </tr>
                    <tr>
                        <th scope="row">2</th>
                        <td>李四</td>
                        <td>设计部</td>
                        <td>UI设计师</td>
                        <td>2021-08-22</td>
                    </tr>
                    <tr>
                        <th scope="row">3</th>
                        <td>王五</td>
                        <td>市场部</td>
                        <td>市场专员</td>
                        <td>2023-01-10</td>
                    </tr>
                </tbody>
            </table>
        </div>

        <!-- 斑马条纹表格 -->
        <div class="demo-section">
            <h3>斑马条纹表格</h3>
            <table class="table table-striped">
                <thead>
                    <tr>
                        <th scope="col">#</th>
                        <th scope="col">产品名称</th>
                        <th scope="col">类别</th>
                        <th scope="col">价格</th>
                        <th scope="col">库存</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th scope="row">1</th>
                        <td>笔记本电脑</td>
                        <td>电子产品</td>
                        <td>¥5,999</td>
                        <td>23</td>
                    </tr>
                    <tr>
                        <th scope="row">2</th>
                        <td>无线鼠标</td>
                        <td>电脑配件</td>
                        <td>¥129</td>
                        <td>156</td>
                    </tr>
                    <tr>
                        <th scope="row">3</th>
                        <td>机械键盘</td>
                        <td>电脑配件</td>
                        <td>¥399</td>
                        <td>42</td>
                    </tr>
                </tbody>
            </table>
        </div>

        <!-- 带边框和悬停效果的表格 -->
        <div class="demo-section">
            <h3>带边框和悬停效果的表格</h3>
            <table class="table table-bordered table-hover">
                <thead class="table-light">
                    <tr>
                        <th scope="col">课程编号</th>
                        <th scope="col">课程名称</th>
                        <th scope="col">教师</th>
                        <th scope="col">学分</th>
                        <th scope="col">选课人数</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th scope="row">CS101</th>
                        <td>计算机基础</td>
                        <td>张教授</td>
                        <td>3</td>
                        <td>120</td>
                    </tr>
                    <tr>
                        <th scope="row">MA202</th>
                        <td>高等数学</td>
                        <td>李教授</td>
                        <td>4</td>
                        <td>95</td>
                    </tr>
                    <tr>
                        <th scope="row">EN305</th>
                        <td>专业英语</td>
                        <td>王老师</td>
                        <td>2</td>
                        <td>78</td>
                    </tr>
                </tbody>
            </table>
        </div>

        <!-- 紧凑型表格 -->
        <div class="demo-section">
            <h3>紧凑型表格</h3>
            <table class="table table-sm">
                <thead>
                    <tr>
                        <th scope="col">ID</th>
                        <th scope="col">任务名称</th>
                        <th scope="col">负责人</th>
                        <th scope="col">状态</th>
                        <th scope="col">截止日期</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th scope="row">T001</th>
                        <td>需求分析文档</td>
                        <td>张三</td>
                        <td><span class="badge bg-success">已完成</span></td>
                        <td>2024-01-15</td>
                    </tr>
                    <tr>
                        <th scope="row">T002</th>
                        <td>UI设计稿</td>
                        <td>李四</td>
                        <td><span class="badge bg-warning">进行中</span></td>
                        <td>2024-02-10</td>
                    </tr>
                    <tr>
                        <th scope="row">T003</th>
                        <td>前端开发</td>
                        <td>王五</td>
                        <td><span class="badge bg-secondary">待开始</span></td>
                        <td>2024-03-01</td>
                    </tr>
                </tbody>
            </table>
        </div>

        <!-- 深色表格 -->
        <div class="demo-section">
            <h3>深色主题表格</h3>
            <table class="table table-dark">
                <thead>
                    <tr>
                        <th scope="col">#</th>
                        <th scope="col">电影名称</th>
                        <th scope="col">类型</th>
                        <th scope="col">评分</th>
                        <th scope="col">上映年份</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th scope="row">1</th>
                        <td>肖申克的救赎</td>
                        <td>剧情</td>
                        <td>9.7</td>
                        <td>1994</td>
                    </tr>
                    <tr>
                        <th scope="row">2</th>
                        <td>阿甘正传</td>
                        <td>剧情/爱情</td>
                        <td>9.5</td>
                        <td>1994</td>
                    </tr>
                    <tr>
                        <th scope="row">3</th>
                        <td>这个杀手不太冷</td>
                        <td>剧情/动作</td>
                        <td>9.4</td>
                        <td>1994</td>
                    </tr>
                </tbody>
            </table>
        </div>

        <!-- 彩色表头表格 -->
        <div class="demo-section">
            <h3>彩色表头表格</h3>
            <table class="table">
                <thead class="table-primary">
                    <tr>
                        <th scope="col">月份</th>
                        <th scope="col">销售额</th>
                        <th scope="col">同比增长</th>
                        <th scope="col">完成率</th>
                    </tr>
                </thead>
                <tbody>
                    <tr>
                        <th scope="row">一月</th>
                        <td>¥125,000</td>
                        <td class="text-success">+15%</td>
                        <td>105%</td>
                    </tr>
                    <tr>
                        <th scope="row">二月</th>
                        <td>¥118,000</td>
                        <td class="text-success">+8%</td>
                        <td>98%</td>
                    </tr>
                    <tr>
                        <th scope="row">三月</th>
                        <td>¥142,000</td>
                        <td class="text-success">+22%</td>
                        <td>118%</td>
                    </tr>
                </tbody>
            </table>
        </div>

        <!-- 响应式表格 -->
        <div class="demo-section">
            <h3>响应式表格(在小屏幕上水平滚动)</h3>
            <div class="table-responsive">
                <table class="table table-striped">
                    <thead>
                        <tr>
                            <th scope="col">员工ID</th>
                            <th scope="col">姓名</th>
                            <th scope="col">职位</th>
                            <th scope="col">部门</th>
                            <th scope="col">邮箱</th>
                            <th scope="col">电话</th>
                            <th scope="col">入职日期</th>
                            <th scope="col">薪资等级</th>
                            <th scope="col">绩效评分</th>
                        </tr>
                    </thead>
                    <tbody>
                        <tr>
                            <th scope="row">E1001</th>
                            <td>张三</td>
                            <td>高级工程师</td>
                            <td>技术部</td>
                            <td>zhangsan@company.com</td>
                            <td>13800138000</td>
                            <td>2020-05-20</td>
                            <td>P7</td>
                            <td>A</td>
                        </tr>
                        <tr>
                            <th scope="row">E1002</th>
                            <td>李四</td>
                            <td>产品经理</td>
                            <td>产品部</td>
                            <td>lisi@company.com</td>
                            <td>13900139000</td>
                            <td>2019-08-15</td>
                            <td>P8</td>
                            <td>A+</td>
                        </tr>
                    </tbody>
                </table>
            </div>
        </div>
    </div>

    <!-- 引入Bootstrap JS -->
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.3.0/dist/js/bootstrap.bundle.min.js"></script>
</body>
</html>

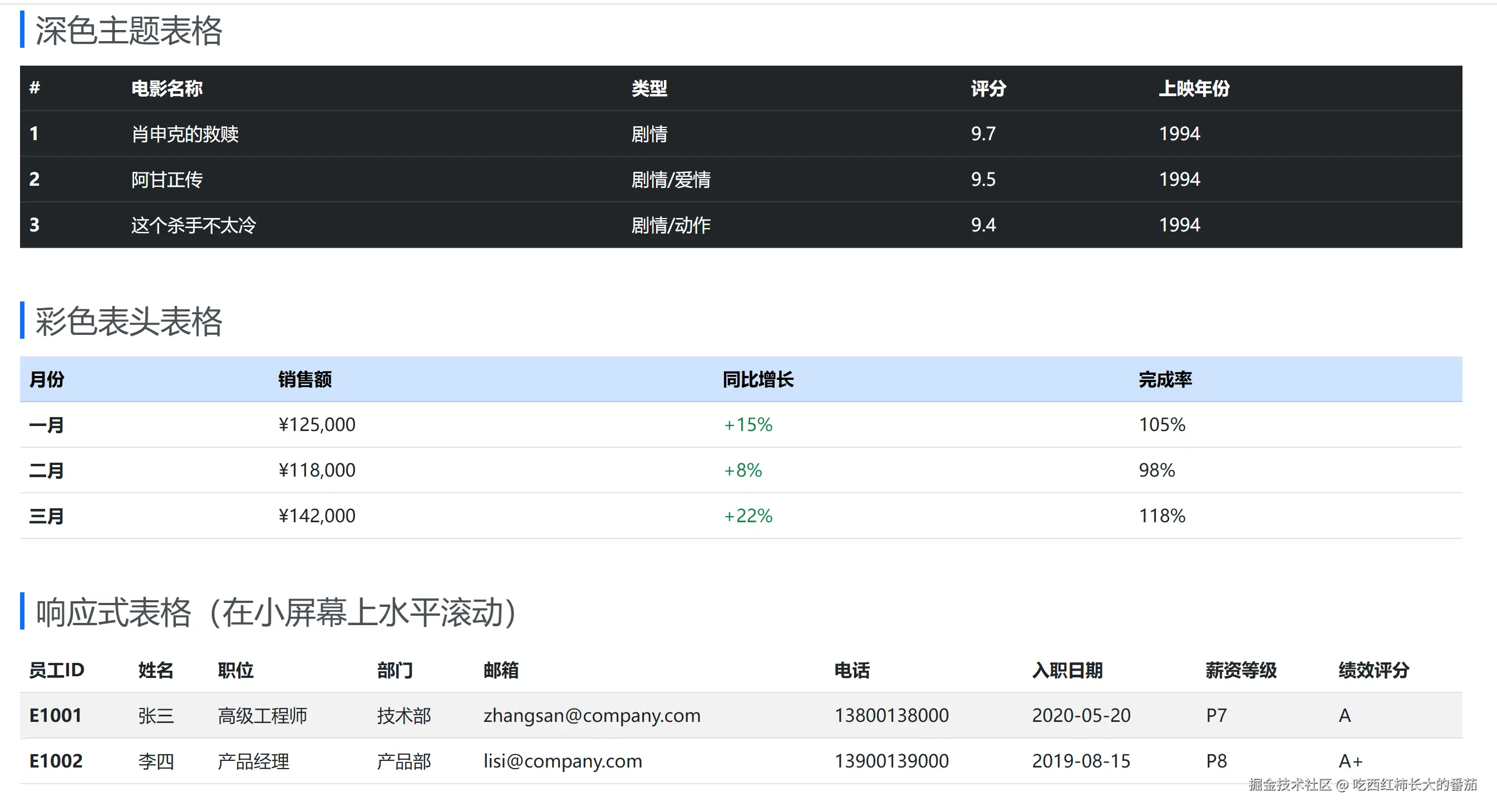

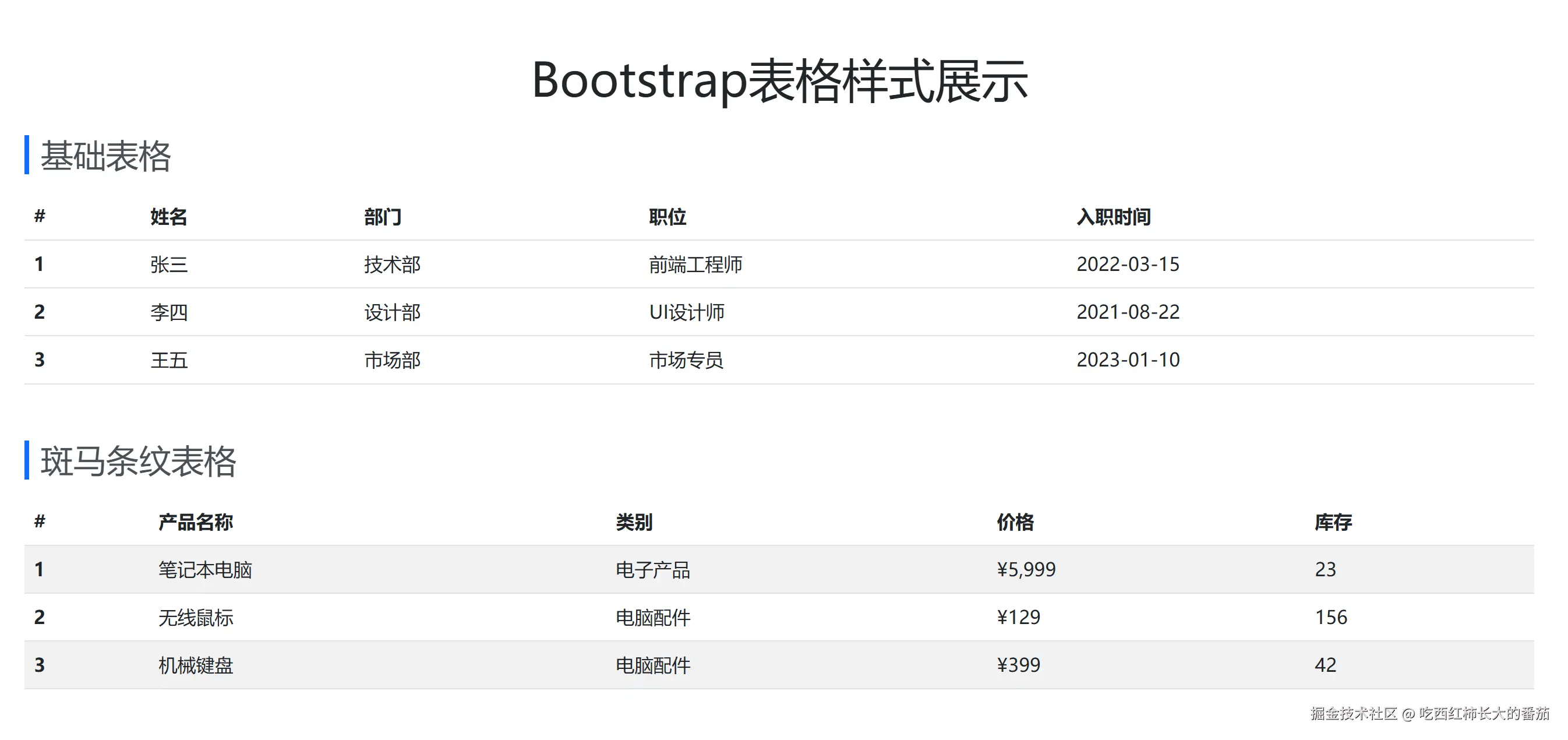

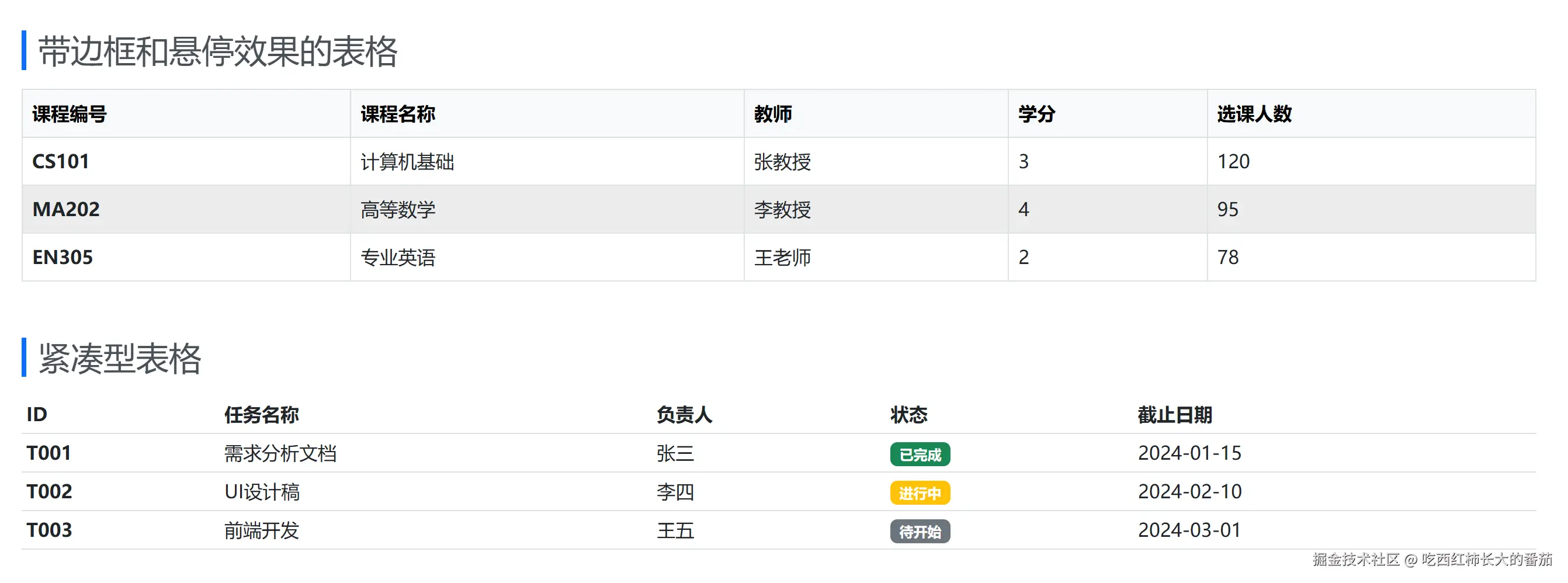

运行结果如下:




总结:

  • 基础类必备 :所有表格都必须加上 .table 基类
  • 样式可组合 :可以叠加 .table-striped.table-hover.table-bordered 等多个样式类
  • 响应式包装:宽表格用 .table-responsive 实现水平滚动
