Bipes-Blockly项目二次开发/终端预览（三）

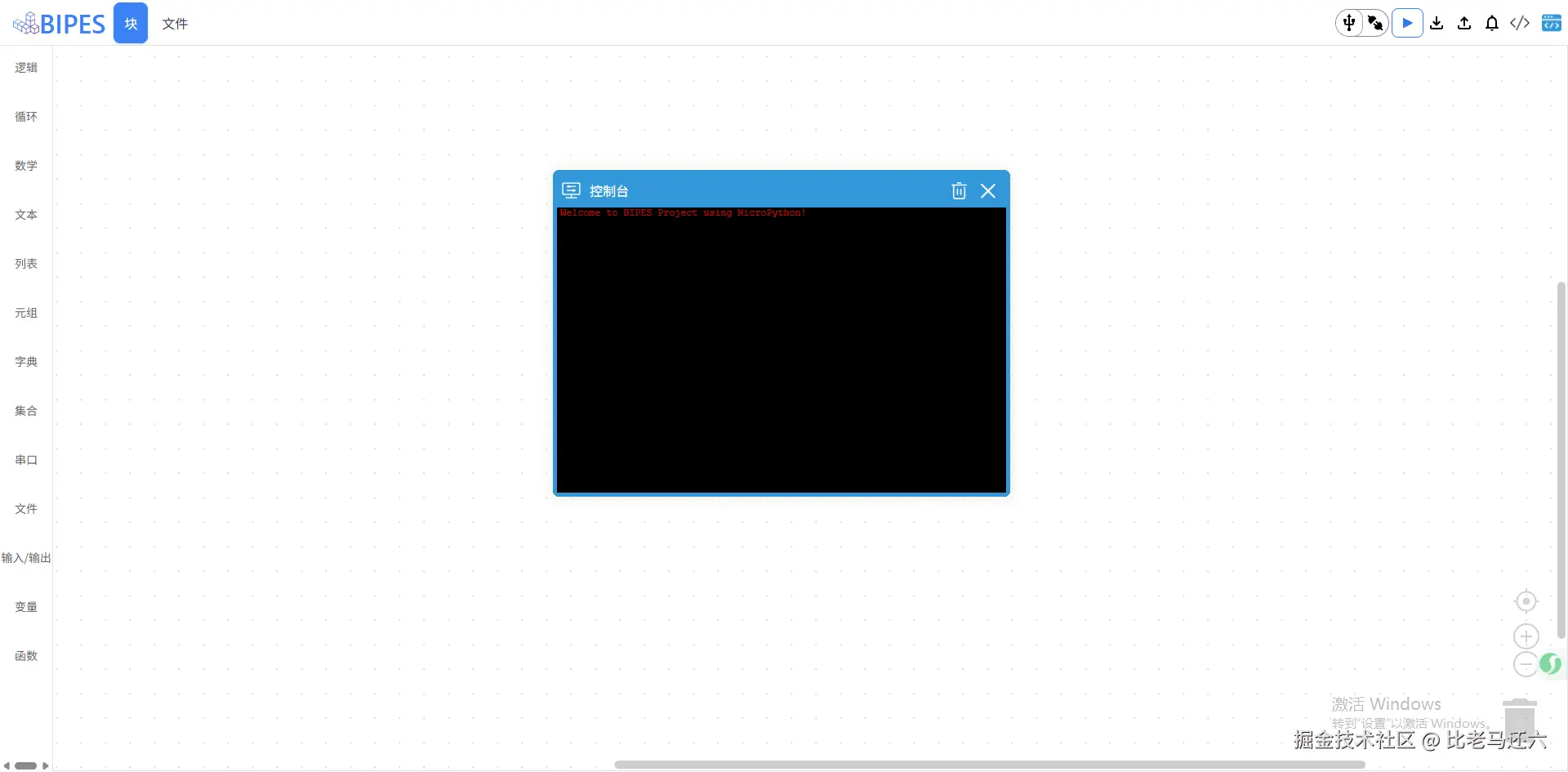

原先Bipes是有终端功能，不过在使用上不是很好，所以这次将终端功能进行调整，做成弹框形式，支持拉伸，拖拽。
原先Bipes使用插件xterm.js，这个版本我记得是一个老版本，想要用新版本功能，可以替换下，在这里做终端预览已经够用了。
为什么要做终端预览功能，因为后面想接入web-python，ok，来看下这一期代码改动。 项目地址：maxuecan.github.io/Bipes/index…
html引用
资源应用
<script src="core/xterm.js?ver=4.13.0"></script>
页面初始内容
<div class="control-preview">
<div class="control-header">
<div class="header-left">
<img src="./media/new-icon/console.png" alt="">
<span>控制台</span>
</div>
<div class="header-right">
<img class="control-clear" src="./media/new-icon/delete.png" title="清空控制台">
<img class="control-close" src="./media/new-icon/close.png" title="关闭控制台">
</div>
</div>
<div class="box-content">
<div id="term" class="xterm"></div>
</div>
</div>
js引用
export default class ControlPreview {
constructor(element, options = {}) {
/* <--- 拖拽拉伸参数 start ---> */
this.element = element
this.options = {
minWidth: options.minWidth || 560,
minHeight: options.minHeight || 400,
maxWidth: options.maxWidth || 800,
maxHeight: options.maxHeight || 607,
onResize: options.onResize || null,
handles: options.handles || "all"
}
this.isResizing = false
this.isDragging = false
this.currentHandle = null
this.startX = 0
this.startY = 0
this.startWidth = 0
this.startHeight = 0
this.startLeft = 0
this.startTop = 0
/* <--- 拖拽拉伸参数 end ---> */
this.state = false // 控制台状态
this.initEvent() // 初始化事件
}
initEvent() {
$('#consolePreviewButton').on('click', () => {
this.changeConsole(!this.state)
})
// 终端清空功能
$('.control-clear').on('click', () => {
term.write('\x1bc')
})
$('.control-close').on('click', () => {
this.changeConsole(false)
})
// 初始化拖拽拉伸功能
this.createHandles()
this.bindEvents()
}
// 显示隐藏预览区
changeConsole(state) {
let status = state ? 'on' : 'off'
$('.control-preview').css('visibility', (state ? 'visible' : 'hidden'))
$('#consolePreviewButton').css('background', `url(../media/new-icon/console-${status}.png) center / cover`)
this.state = state
}
createHandles() {
const handles = [
{ class: "resize-handle-n", cursor: "n-resize" },
{ class: "resize-handle-s", cursor: "s-resize" },
{ class: "resize-handle-w", cursor: "w-resize" },
{ class: "resize-handle-e", cursor: "e-resize" },
{ class: "resize-handle-nw", cursor: "nw-resize" },
{ class: "resize-handle-ne", cursor: "ne-resize" },
{ class: "resize-handle-sw", cursor: "sw-resize" },
{ class: "resize-handle-se", cursor: "se-resize" },
]
handles.forEach((handle) => {
const handleEl = document.createElement("div")
handleEl.className = `resize-handle ${handle.class}`
this.element.appendChild(handleEl)
})
}
bindEvents() {
const handles = this.element.querySelectorAll(".resize-handle")
handles.forEach((handle) => {
handle.addEventListener("mousedown", this.startResize.bind(this))
})
// 标题栏拖拽移动
const header = this.element.querySelector(".control-header")
if (header) {
header.addEventListener("mousedown", this.startDrag.bind(this))
}
document.addEventListener("mousemove", this.handleResize.bind(this))
document.addEventListener("mouseup", this.stopResize.bind(this))
}
startResize(e) {
e.preventDefault()
this.isResizing = true
this.currentHandle = e.target
this.startX = e.clientX
this.startY = e.clientY
const styles = window.getComputedStyle(this.element)
this.startWidth = parseInt(styles.width, 10)
this.startHeight = parseInt(styles.height, 10)
this.startLeft = parseInt(styles.left, 10) || 0
this.startTop = parseInt(styles.top, 10) || 0
document.body.style.userSelect = "none"
}
startDrag(e) {
e.preventDefault()
this.isDragging = true
this.startX = e.clientX
this.startY = e.clientY
const styles = window.getComputedStyle(this.element)
this.startLeft = parseInt(styles.left, 10) || 0
this.startTop = parseInt(styles.top, 10) || 0
document.body.style.userSelect = "none"
}
handleResize(e) {
if (!this.isResizing && !this.isDragging) return
if (this.isResizing) {
this.doResize(e)
} else if (this.isDragging) {
this.doDrag(e)
}
}
doResize(e) {
const deltaX = e.clientX - this.startX
const deltaY = e.clientY - this.startY
let newWidth = this.startWidth
let newHeight = this.startHeight
let newLeft = this.startLeft
let newTop = this.startTop
// 根据拖拽的控制点调整尺寸和位置
if (this.currentHandle.classList.contains("resize-handle-e")) {
newWidth = Math.max(
this.options.minWidth,
Math.min(this.options.maxWidth, this.startWidth + deltaX)
)
} else if (this.currentHandle.classList.contains("resize-handle-w")) {
newWidth = Math.max(
this.options.minWidth,
Math.min(this.options.maxWidth, this.startWidth - deltaX)
)
newLeft = this.startLeft + deltaX
if (newLeft > this.startLeft) newLeft = this.startLeft
} else if (this.currentHandle.classList.contains("resize-handle-s")) {
newHeight = Math.max(
this.options.minHeight,
Math.min(this.options.maxHeight, this.startHeight + deltaY)
)
} else if (this.currentHandle.classList.contains("resize-handle-n")) {
newHeight = Math.max(
this.options.minHeight,
Math.min(this.options.maxHeight, this.startHeight - deltaY)
)
newTop = this.startTop + deltaY
if (newTop > this.startTop) newTop = this.startTop
} else if (this.currentHandle.classList.contains("resize-handle-se")) {
newWidth = Math.max(
this.options.minWidth,
Math.min(this.options.maxWidth, this.startWidth + deltaX)
)
newHeight = Math.max(
this.options.minHeight,
Math.min(this.options.maxHeight, this.startHeight + deltaY)
)
} else if (this.currentHandle.classList.contains("resize-handle-sw")) {
newWidth = Math.max(
this.options.minWidth,
Math.min(this.options.maxWidth, this.startWidth - deltaX)
)
newHeight = Math.max(
this.options.minHeight,
Math.min(this.options.maxHeight, this.startHeight + deltaY)
)
newLeft = this.startLeft + deltaX
if (newLeft > this.startLeft) newLeft = this.startLeft
} else if (this.currentHandle.classList.contains("resize-handle-ne")) {
newWidth = Math.max(
this.options.minWidth,
Math.min(this.options.maxWidth, this.startWidth + deltaX)
)
newHeight = Math.max(
this.options.minHeight,
Math.min(this.options.maxHeight, this.startHeight - deltaY)
)
newTop = this.startTop + deltaY
if (newTop > this.startTop) newTop = this.startTop
} else if (this.currentHandle.classList.contains("resize-handle-nw")) {
newWidth = Math.max(
this.options.minWidth,
Math.min(this.options.maxWidth, this.startWidth - deltaX)
)
newHeight = Math.max(
this.options.minHeight,
Math.min(this.options.maxHeight, this.startHeight - deltaY)
)
newLeft = this.startLeft + deltaX
newTop = this.startTop + deltaY
if (newLeft > this.startLeft) newLeft = this.startLeft
if (newTop > this.startTop) newTop = this.startTop
}
// 应用新尺寸和位置
this.element.style.width = `${newWidth}px`
this.element.style.height = `${newHeight}px`
this.element.style.left = `${newLeft}px`
this.element.style.top = `${newTop}px`
// 调用回调函数
if (this.options.onResize) {
this.options.onResize({
width: newWidth,
height: newHeight,
left: newLeft,
top: newTop
})
}
term.resize()
}
doDrag(e) {
const deltaX = e.clientX - this.startX
const deltaY = e.clientY - this.startY
const newLeft = this.startLeft + deltaX
const newTop = this.startTop + deltaY
let width = +getComputedStyle(this.element).width.replace('px', '')
let height = +getComputedStyle(this.element).height.replace('px', '')
let offWidth = +document.body.offsetWidth
let offHeight = +document.body.offsetHeight
if (
newLeft > 0 &&
(width + newLeft) < offWidth
) this.element.style.left = `${newLeft}px`
if (
newTop > 0 &&
(height + newTop) < offHeight
) this.element.style.top = `${newTop}px`
}
stopResize() {
this.isResizing = false
this.isDragging = false
this.currentHandle = null
document.body.style.userSelect = ""
}
}
