Skywalking运维之路(Java日志接入)

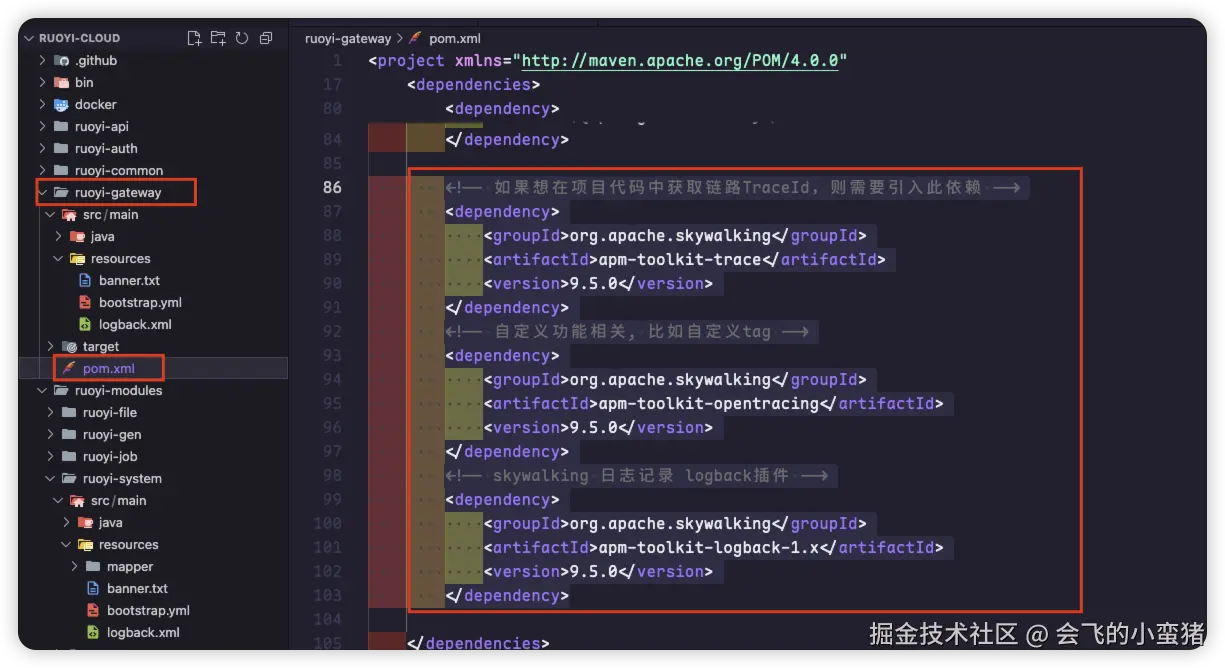

1. Java项目中引入依赖包(pom.xml)

这里使用若依SpringBootCloud版本来演示，pom.xml引入依赖

     <dependencies>
        <!-- 如果想在项目代码中获取链路TraceId，则需要引入此依赖 -->
        <dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-trace</artifactId>
            <version>9.5.0</version>
        </dependency>
        <!-- 自定义功能相关, 比如自定义tag -->
        <dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-opentracing</artifactId>
            <version>9.5.0</version>
        </dependency>
        <!-- skywalking 日志记录 logback插件 -->
        <dependency>
            <groupId>org.apache.skywalking</groupId>
            <artifactId>apm-toolkit-logback-1.x</artifactId>
            <version>9.5.0</version>
        </dependency>
   </dependencies>

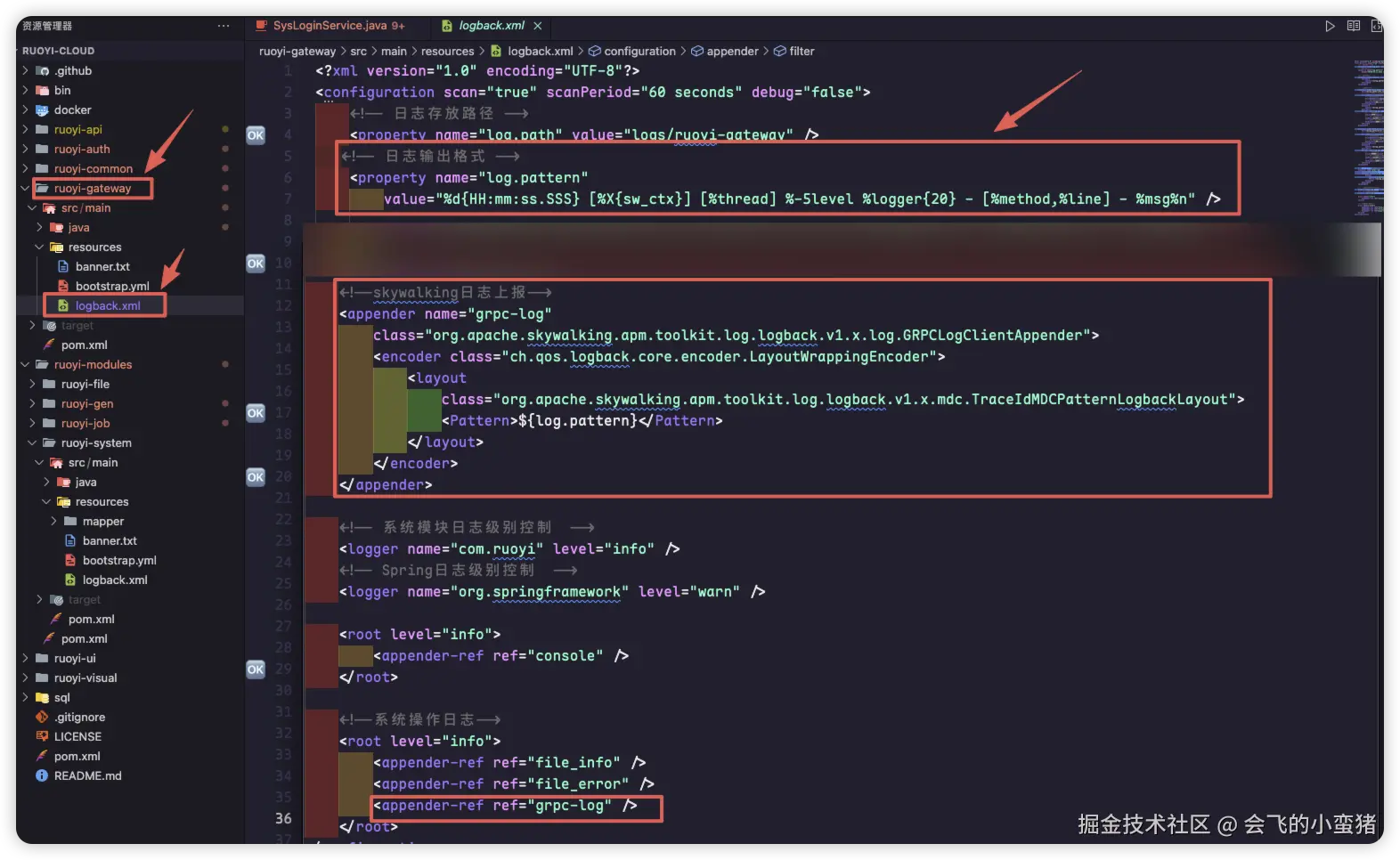

2. 修改日志配置文件

这里使用的是logback的日志依赖

<?xml version="1.0" encoding="UTF-8"?>
<configuration scan="true" scanPeriod="60 seconds" debug="false">

   .......

   <!-- 日志输出格式 这里有几种方式 %tid   %X{tid]}   %sw_ctx  %X{sw_ctx}-->
    <property name="log.pattern"
        value="%d{HH:mm:ss.SSS} [%X{sw_ctx}] [%thread] %-5level %logger{20} - [%method,%line] - %msg%n" />

   .......

    <!--skywalking日志上报-->
    <appender name="grpc-log"
        class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.log.GRPCLogClientAppender">
        <encoder class="ch.qos.logback.core.encoder.LayoutWrappingEncoder">
            <layout
                class="org.apache.skywalking.apm.toolkit.log.logback.v1.x.mdc.TraceIdMDCPatternLogbackLayout">
                <Pattern>${log.pattern}</Pattern>
            </layout>
        </encoder>
    </appender>
   .......
    <!--系统操作日志-->
    <root level="info">
        <appender-ref ref="file_info" />
        <appender-ref ref="file_error" />
        <appender-ref ref="grpc-log" />
    </root>
</configuration>

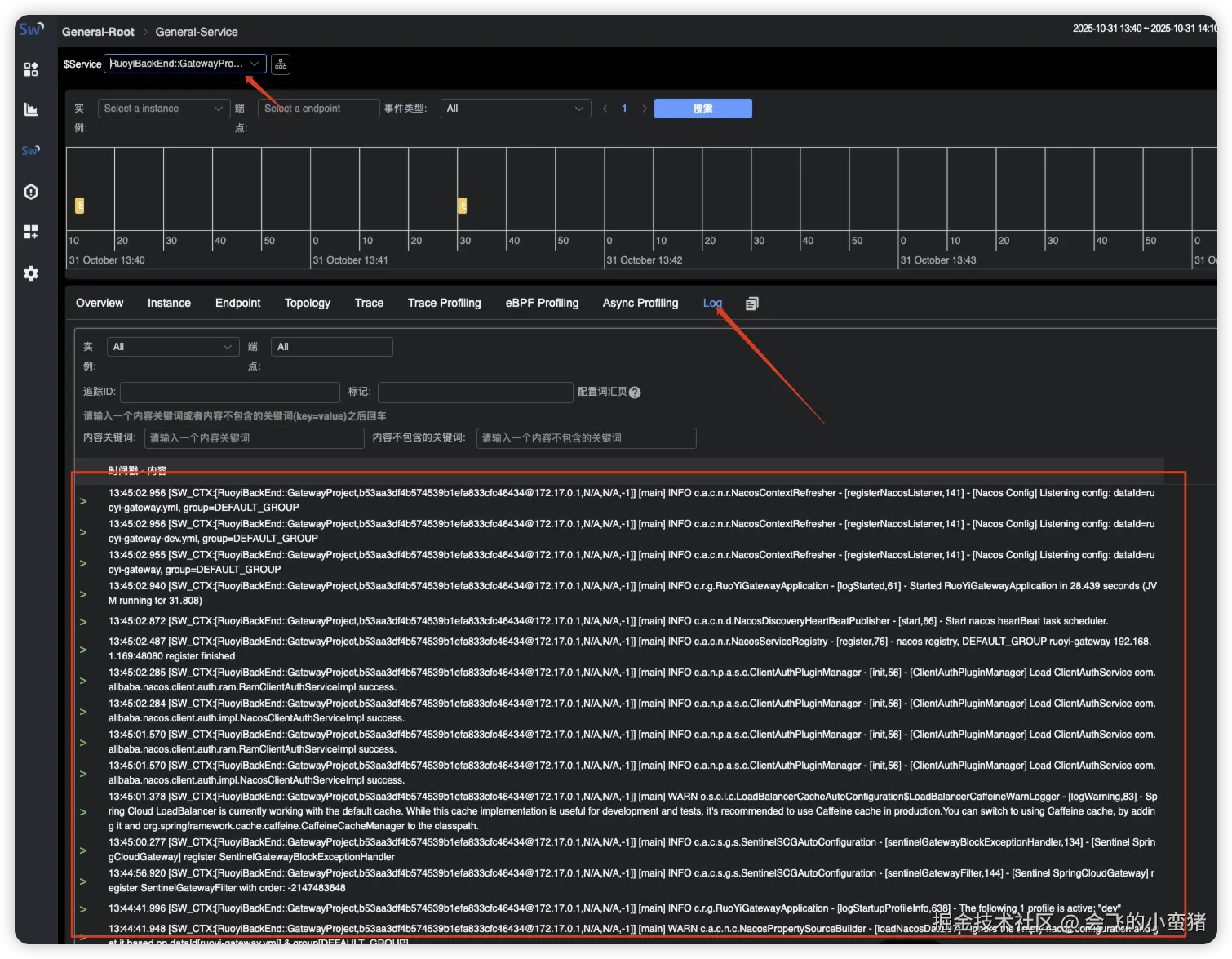

3.启动Java项目查看Skywalking中是否已经有日志

4.探针参数修改

# 官方建议修改探针参数
log.max_message_size=${SW_GRPC_LOG_MAX_MESSAGE_SIZE:10485760}
