本学习系列将以Cesium + Vue3 + Vite +Typescript+elementplus作为主要技术栈展开，后续会循序渐进，持续探索Cesium的高级功能，相关源码全部免费公开。 详情查看原文Vue3+Cesium学习系列（8）---图形标绘点、线、多边形
1、新建BaseDraw类，作为点、线、多边形的基类，在构造函数中注入事件分发器，用于回调标绘数据信息。
import { ScreenSpaceEventHandler, ScreenSpaceEventType, Viewer, Entity, HeightReference, Cartesian3, Color, JulianDate, Cartesian2 } from 'cesium';
import EventDispatcher from '../EventDispatcher/EventDispatcher';
export abstract class BaseDraw {
protected viewer: Viewer;
protected dispatcher: EventDispatcher;
protected handler: ScreenSpaceEventHandler;
protected active = false; // 是否处于绘制状态
protected finished = false; // 是否已结束
protected tempEntity?: Entity; // 绘制过程中跟随鼠标的临时实体
protected pointEntities: Entity[] = []; // 已落点的实体（可用于回退、编辑）
constructor(viewer: Viewer, dispatcher: EventDispatcher) {
this.viewer = viewer;
this.dispatcher = dispatcher;
this.handler = new ScreenSpaceEventHandler(viewer.canvas);
}
/** 子类必须实现：根据当前点序列生成最终实体 */
protected abstract buildFinalEntity(): Entity;
/** 子类可实现：生成跟随鼠标的临时图形 */
protected abstract buildTempEntity(): Entity | undefined;
/** 开始绘制 */
start() {
if (this.active || this.finished) return;
this.active = true;
this.finished = false;
// 左键落点
this.handler.setInputAction((e: any) => this.onLeftClick(e), ScreenSpaceEventType.LEFT_CLICK);
// 鼠标移动
this.handler.setInputAction((e: any) => this.onMouseMove(e), ScreenSpaceEventType.MOUSE_MOVE);
// 右键结束
this.handler.setInputAction(() => this.finish(), ScreenSpaceEventType.RIGHT_CLICK);
this.dispatcher.dispatchEvent('DRAWSTART', { type: this.constructor.name,text:"开始绘制" });
}
protected onLeftClick(e: any) {
const cartesian = this.safePick(e.position || e.endPosition);
if (!cartesian) return;
this.addPoint(cartesian);
this.dispatcher.dispatchEvent('DRAWUPDATE', { type: this.constructor.name, points: this.getPositions() });
}
protected onMouseMove(e: any) {
const cartesian = this.safePick(e.position || e.endPosition);
if (!cartesian) return;
// 更新临时图形
if (!this.tempEntity) {
this.tempEntity = this.buildTempEntity();
}
this.updateTempEntity(cartesian);
this.dispatcher.dispatchEvent('MOUSEMOVE', { type: this.constructor.name, points: this.getPositions(), cursor: cartesian,text:"添加下一个点" });
}
protected addPoint(position: Cartesian3) {
// 落点显示
const point = this.viewer.entities.add({
position,
point: {
pixelSize: 10,
color: Color.YELLOW,
heightReference: HeightReference.CLAMP_TO_GROUND,
disableDepthTestDistance: Number.POSITIVE_INFINITY // 始终不被地形遮挡
}
});
this.pointEntities.push(point);
}
/** 安全地拾取贴地点；失败返回 undefined */
private safePick(windowPos: Cartesian2): Cartesian3 | undefined {
const ray = this.viewer.camera.getPickRay(windowPos);
if (!ray) return undefined;
return this.viewer.scene.globe.pick(ray, this.viewer.scene)
?? this.viewer.scene.globe.ellipsoid.scaleToGeodeticSurface(ray.origin);
}
/** 当前可用于成面的点数 */
protected get validPositions(): Cartesian3[] {
const pts = this.getPositions();
return pts.length >= 2 ? pts : [];
}
/** 结束绘制 */
finish() {
if (!this.active) return;
this.active = false;
this.finished = true;
this.handler.removeInputAction(ScreenSpaceEventType.LEFT_CLICK);
this.handler.removeInputAction(ScreenSpaceEventType.MOUSE_MOVE);
this.handler.removeInputAction(ScreenSpaceEventType.RIGHT_CLICK);
// 移除临时
if (this.tempEntity) {
this.viewer.entities.remove(this.tempEntity);
this.tempEntity = undefined;
}
const final = this.buildFinalEntity();
this.dispatcher.dispatchEvent('DRAWEND', { type: this.constructor.name, entity: final, points: this.getPositions(),text:"绘制完成"});
}
/** 清理 */
destroy() {
this.finish();
this.pointEntities.forEach(p => this.viewer.entities.remove(p));
this.pointEntities = [];
this.handler.destroy();
}
/** 子类可重写：返回当前已有点序列 */
protected getPositions(): Cartesian3[] {
return this.pointEntities.map(e => e.position!.getValue(JulianDate.now())!);
}
/** 更新临时图形（子类可重写） */
protected updateTempEntity(cursor: Cartesian3) {
// 默认空实现
}
}
调用start函数开始绘制。onLeftClick函数响应左键落点。onMouseMove用于处理鼠标移动，移动过程中会有临时图形存放在buildTempEntity里，buildTempEntity是抽象函数，子类里会有具体实现。调用finish完成绘制。绘制的最终实体放在buildFinalEntity里，也是个抽象函数，子类具体实现。
2、新建CommonPoint类继承BaseDraw。实现buildTempEntity与buildFinalEntity。点图形不需要鼠标临时跟随，只需左键点击一次即可绘制。
import { Color, Entity, HeightReference, Viewer } from "cesium";
import { BaseDraw } from "../BaseDraw";
import EventDispatcher from "@/system/EventDispatcher/EventDispatcher";
export default class CommonPoint extends BaseDraw {
constructor(viewer: Viewer, dispatcher: EventDispatcher) {
super(viewer, dispatcher);
}
protected buildFinalEntity(): Entity {
const pos = this.getPositions()[0];
return this.viewer.entities.add({
position: pos,
point: { pixelSize: 12, color: Color.RED, heightReference: HeightReference.CLAMP_TO_GROUND }
});
}
protected buildTempEntity(): Entity | undefined {
return undefined; // 点绘制无需临时跟随
}
protected onLeftClick(e: any) {
super.onLeftClick(e);
// 点只需要 1 次点击即可结束
this.finish();
}
}
3、新建CommonLine类继承BaseDraw。实现buildTempEntity与buildFinalEntity。tempCursor用于记录鼠标位置。
import { CallbackProperty, Cartesian3, Color, Entity, PolylineGraphics } from "cesium"
import { BaseDraw } from "../BaseDraw";
export default class CommonLine extends BaseDraw {
private tempCursor?: Cartesian3;
protected buildFinalEntity(): Entity {
return this.viewer.entities.add({
polyline: new PolylineGraphics({
positions: new CallbackProperty(() => this.getPositions(), false),
width: 3,
material: Color.ORANGE,
clampToGround: true
})
});
}
protected buildTempEntity(): Entity | undefined {
return this.viewer.entities.add({
polyline: new PolylineGraphics({
positions: new CallbackProperty(() => [...this.getPositions(), this.tempCursor || new Cartesian3()], false),
width: 2,
material: Color.YELLOW.withAlpha(0.6),
clampToGround: true
})
});
}
protected updateTempEntity(cursor: Cartesian3) {
this.tempCursor = cursor;
}
}
4、新建PolygonDraw继承BaseDraw。实现buildTempEntity与buildFinalEntity生成临时多边形Entity与最终Entity。tempCursor用于记录鼠标位置。
import { Entity, PolygonGraphics, CallbackProperty, Color, Cartesian3, ClassificationType } from 'cesium';
import { BaseDraw } from '../BaseDraw';
export default class CommonPolygon extends BaseDraw {
protected buildFinalEntity(): Entity {
return this.viewer.entities.add({
polygon: new PolygonGraphics({
hierarchy: new CallbackProperty(() => ({
positions: [...this.validPositions || new Cartesian3()]
}), false),
classificationType: ClassificationType.BOTH,
material: Color.BLUE.withAlpha(0.4)
})
});
}
protected buildTempEntity(): Entity | undefined {
if (this.validPositions.length === 0) return undefined; // 不创建
return this.viewer.entities.add({
polygon: new PolygonGraphics({
hierarchy: new CallbackProperty(() => ({
positions: [...this.validPositions, this.tempCursor || new Cartesian3()]
}), false),
classificationType: ClassificationType.BOTH,
material: Color.CYAN.withAlpha(0.3)
})
});
}
private tempCursor = new Cartesian3();
protected updateTempEntity(cursor: Cartesian3) {
this.tempCursor = cursor;
}
}
5、前端页面，新建CommonDraw.vue。调用图形对象相应的start函数即可。利用事件总线回调的数据，显示标绘信息。
<template>
<div class="common-draw-container">
<span class="common-draw-title"> 普通标绘 </span>
<div class="draw-btns">
<el-button type="primary" @click="DrawPointOnScene">点</el-button>
<el-button type="primary" @click="DrawLineOnScene">线</el-button>
<el-button type="primary" @click="DrawPolygonOnScene">多边形</el-button>
</div>
<el-text>{{ drawInfo }}</el-text>
</div>
</template>
<script lang="ts" setup>
import CommonLine from '@/system/Draw/Lines/CommonLine'
import CommonPoint from '@/system/Draw/Points/CommonPoint'
import CommonPolygon from '@/system/Draw/Polygons/CommonPolygon'
import EventDispatcher from '@/system/EventDispatcher/EventDispatcher'
import CesiumViewer from '@/Viewer/CesiumViewer'
const drawInfo = ref('')
let viewer = CesiumViewer.viewer
const dispatcher = new EventDispatcher();
// 监听绘制结果
dispatcher.on('DRAWEND', (payload:any) => {
drawInfo.value = payload.text;
});
dispatcher.on('DRAWSTART', (payload:any) => {
drawInfo.value = payload.text;
});
dispatcher.on('MOUSEMOVE', (payload:any) => {
drawInfo.value = payload.text;
});
const DrawPointOnScene = () => {
const pointTool = new CommonPoint(viewer!, dispatcher);
pointTool.start();
}
const DrawLineOnScene = () => {
const lineTool = new CommonLine(viewer!, dispatcher);
lineTool.start();
}
const DrawPolygonOnScene = () => {
const polygonTool = new CommonPolygon(viewer!, dispatcher);
polygonTool.start();
}
</script>
<style lang="scss" scoped>
.common-draw-container {
padding: 20px;
text-align: left;
.common-draw-title {
font-size: 16px;
font-weight: bold;
margin-bottom: 10px;
}
.draw-btns {
margin-top: 20px;
margin-bottom: 20px;
.el-button {
margin-right: 10px;
width: 60px;
}
}
.el-text {
color: yellow
}
}
</style>

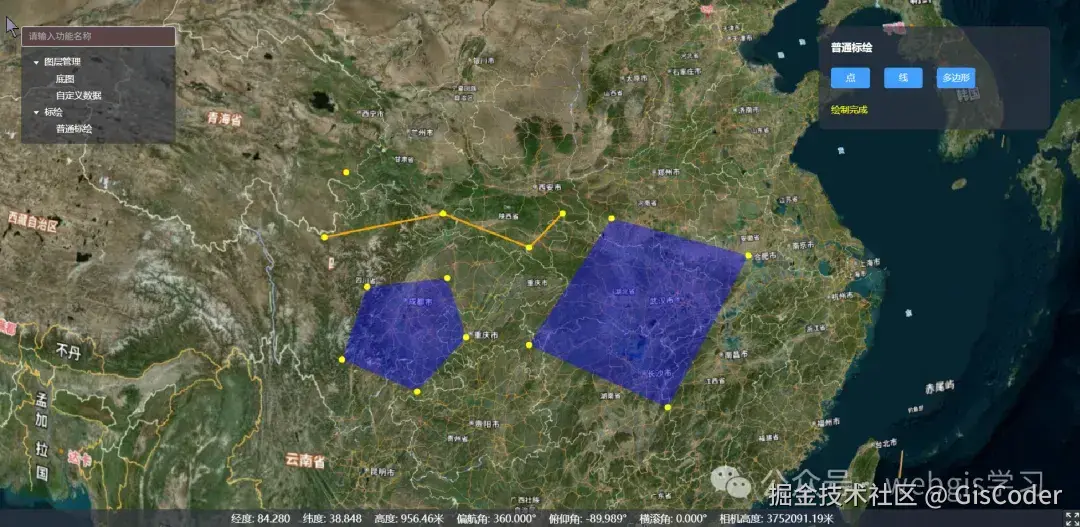

6、实现效果
