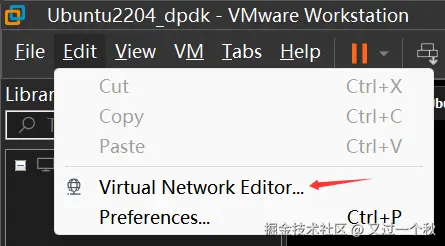

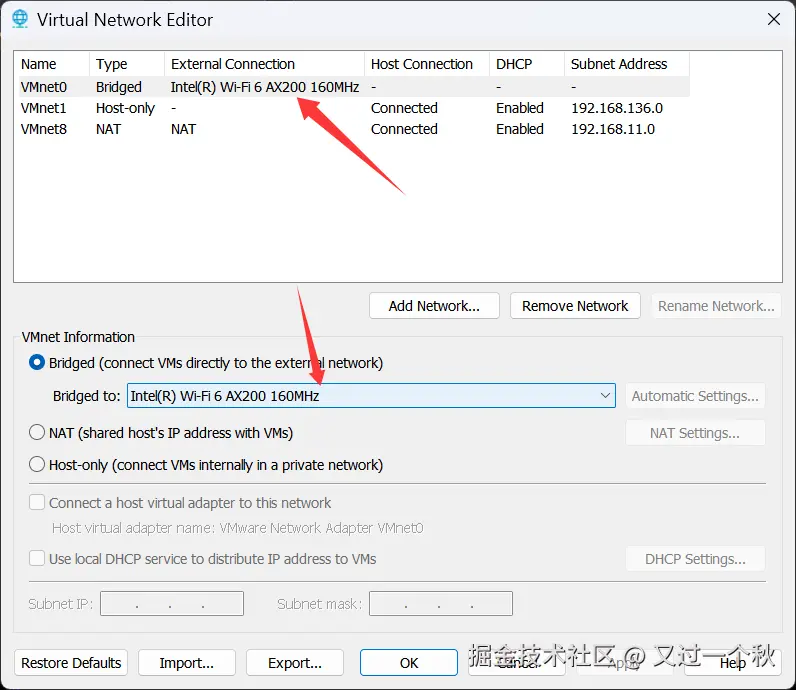

VM 桥接网卡 获取 IP 地址

VM

管理员权限启动 VM

Ubuntu 设置静态 IP

ip addr

查看网卡名称

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens160: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 00:0c:29:22:c1:75 brd ff:ff:ff:ff:ff:ff
    altname enp3s0
3: ens192: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 00:0c:29:22:c1:7f brd ff:ff:ff:ff:ff:ff
    altname enp11s0
4: ens224: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether 00:0c:29:22:c1:89 brd ff:ff:ff:ff:ff:ff
    altname enp19s0
5: ens36: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:22:c1:93 brd ff:ff:ff:ff:ff:ff
    altname enp2s4
    inet 192.168.11.139/24 metric 100 brd 192.168.11.255 scope global dynamic ens36
       valid_lft 1353sec preferred_lft 1353sec
    inet6 fe80::20c:29ff:fe22:c193/64 scope link
       valid_lft forever preferred_lft forever

如果报错就安装一下

apt install openvswitch-switch -y
systemctl start ovsdb-server
systemctl enable ovsdb-server

修改配置文件，可能不是这个文件名，但是大概在/etc/netplan的文件夹下

vim /etc/netplan/50-cloud-init.yaml

network:
    ethernets:
        ens160:
            dhcp4: true
    version: 2

改成下面的格式

network:
    ethernets:
      ens160:
          dhcp4: false
          addresses:
              - 10.16.6.100/16
          routes:
              - to: 10.16.0.0/16
                via: 10.16.255.254
                metric: 100
      ens192:
          dhcp4: false
          addresses:
              - 10.16.6.101/16
          routes:
              - to: 10.16.0.0/16
                via: 10.16.255.254
                metric: 200
      ens36:
            dhcp4: true
    version: 2

生效

netplan apply

绑定驱动

如果 dev 在运行

sudo ip link set dev 接口名 down

sudo ip link set dev 接口名 up
