在工作的时候，公司的服务器各种限制，被限制了访问的IP。但是需要上传各种docker镜像上去，遇到版本问题，动不动就让我升级下docker容器版本吧。
我的想法：在我自己的工作电脑上面，下载好对应的镜像，然后上传到对应的服务器即可。
既然都是通过网络接口请求的，我想一定有python工具，能够直接跟dockerhub打交道，不需 Docker 客户端的支持。通过查找，github有个项目：docker-drag，start数量860个，还是很优秀的。地址：github.com/NotGlop/doc… 。里面就是想要的一个脚本，不过这个start很多的脚本我使用的时候有问题，下载报错KeyError: 'layers'，不过还是找到了其他仓库解决了我遇到的问题，能够继续愉快使用，我能够成功使用的代码，我放在了最下面。
使用方式
将最后面的python代码，保存为docker_pull.py文件，文件名字随便，然后cmd执行python docker_pull.py mysql:5.7，即可愉快地下载镜像了。
使用的命令，与docke pull命令使用方法一致。其主要是借助 Python 的 Request 库和 HTTPS API 直接从仓库中拉取镜像，并保存为 TAR 文件。
PS：不管怎样，你的工作电脑先要开启魔法，能够正常访问dockerhub，才能使用哈。
# 下载方式：Pull a Docker image in HTTPS
python docker_pull.py hello-world
python docker_pull.py jenkins/jenkins
python docker_pull.py jenkins/jenkins:latest-jdk17
python docker_pull.py mysql/mysql-server:8.0
python docker_pull.py mcr.microsoft.com/mssql-tools
python docker_pull.py consul@sha256:6ba4bfe1449ad8ac5a76cb29b6c3ff54489477a23786afb61ae30fb3b1ac0ae9

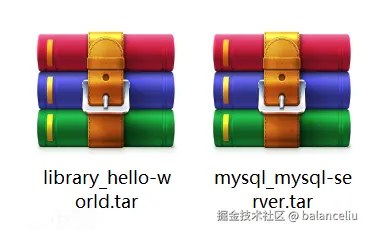

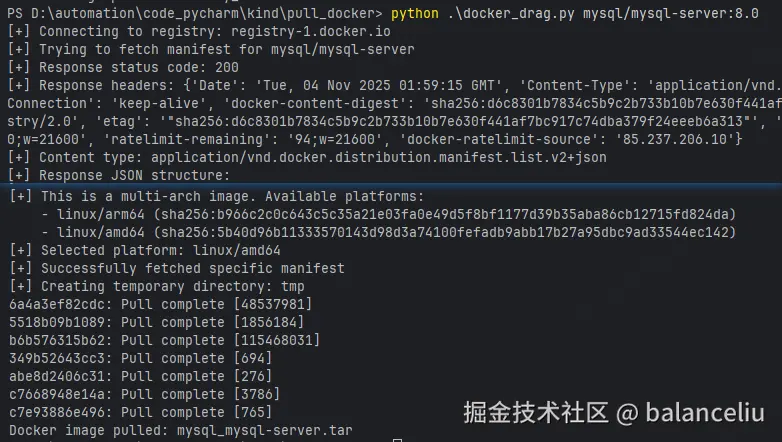

下载结果：
当下载好镜像后，把镜像上传到对应的服务器上，就可以继续愉快地使用容器部署服务咯。
docker load -i mysql_mysql-server.tar
最终脚本
import gzip
import hashlib
import json
import os
import shutil
import sys
import tarfile
import requests
import urllib3
from requests.adapters import HTTPAdapter
from urllib3.util.retry import Retry
urllib3.disable_warnings()
def create_session():
session = requests.Session()
retry_strategy = Retry(
total=3,
backoff_factor=1,
status_forcelist=[429, 500, 502, 503, 504],
)
adapter = HTTPAdapter(max_retries=retry_strategy)
session.mount("http://", adapter)
session.mount("https://", adapter)
# Check if proxy environment variables are set
http_proxy = os.environ.get('HTTP_PROXY') or os.environ.get('http_proxy')
https_proxy = os.environ.get('HTTPS_PROXY') or os.environ.get('https_proxy')
if http_proxy or https_proxy:
session.proxies = {
'http': http_proxy,
'https': https_proxy
}
print('[+] Using proxy settings from environment')
return session
if len(sys.argv) != 2:
print('Usage:\n\tdocker_pull.py [registry/][repository/]image[:tag|@digest]\n')
exit(1)
# Create a session for all requests
session = create_session()
# Look for the Docker image to download
repo = 'library'
tag = 'latest'
imgparts = sys.argv[1].split('/')
try:
img, tag = imgparts[-1].split('@')
except ValueError:
try:
img, tag = imgparts[-1].split(':')
except ValueError:
img = imgparts[-1]
# Docker client doesn't seem to consider the first element as a potential registry unless there is a '.' or ':'
if len(imgparts) > 1 and ('.' in imgparts[0] or ':' in imgparts[0]):
registry = imgparts[0]
repo = '/'.join(imgparts[1:-1])
else:
registry = 'registry-1.docker.io'
if len(imgparts[:-1]) != 0:
repo = '/'.join(imgparts[:-1])
else:
repo = 'library'
repository = '{}/{}'.format(repo, img)
# Get Docker authentication endpoint when it is required
auth_url = 'https://auth.docker.io/token'
reg_service = 'registry.docker.io'
try:
print('[+] Connecting to registry: {}'.format(registry))
resp = session.get('https://{}/v2/'.format(registry), verify=False, timeout=30)
if resp.status_code == 401:
auth_url = resp.headers['WWW-Authenticate'].split('"')[1]
try:
reg_service = resp.headers['WWW-Authenticate'].split('"')[3]
except IndexError:
reg_service = ""
except requests.exceptions.RequestException as e:
print('[-] Connection error:', str(e))
print('[*] Troubleshooting tips:')
print(' 1. Check your internet connection')
print(' 2. If you are behind a proxy, set HTTP_PROXY and HTTPS_PROXY environment variables')
print(' 3. Try using a VPN if the registry is blocked')
print(' 4. Verify if the registry {} is accessible from your network'.format(registry))
exit(1)
# Get Docker token (this function is useless for unauthenticated registries like Microsoft)
def get_auth_head(type):
try:
resp = session.get('{}?service={}&scope=repository:{}:pull'.format(auth_url, reg_service, repository),
verify=False, timeout=30)
access_token = resp.json()['token']
auth_head = {'Authorization': 'Bearer ' + access_token, 'Accept': type}
return auth_head
except requests.exceptions.RequestException as e:
print('[-] Authentication error:', str(e))
exit(1)
# Docker style progress bar
def progress_bar(ublob, nb_traits):
sys.stdout.write('\r' + ublob[7:19] + ': Downloading [')
for i in range(0, nb_traits):
if i == nb_traits - 1:
sys.stdout.write('>')
else:
sys.stdout.write('=')
for i in range(0, 49 - nb_traits):
sys.stdout.write(' ')
sys.stdout.write(']')
sys.stdout.flush()
# Fetch manifest v2 and get image layer digests
print('[+] Trying to fetch manifest for {}'.format(repository))
auth_head = get_auth_head(
'application/vnd.docker.distribution.manifest.v2+json,application/vnd.docker.distribution.manifest.list.v2+json')
try:
resp = session.get('https://{}/v2/{}/manifests/{}'.format(registry, repository, tag), headers=auth_head,
verify=False, timeout=30)
except requests.exceptions.RequestException as e:
print('[-] Manifest fetch error:', str(e))
exit(1)
print('[+] Response status code:', resp.status_code)
print('[+] Response headers:', resp.headers)
if (resp.status_code != 200):
print('[-] Cannot fetch manifest for {} [HTTP {}]'.format(repository, resp.status_code))
print(resp.content)
exit(1)
content_type = resp.headers.get('content-type', '')
print('[+] Content type:', content_type)
try:
resp_json = resp.json()
print('[+] Response JSON structure:')
print(json.dumps(resp_json, indent=2))
# Handle manifest list (multi-arch images)
if 'manifests' in resp_json:
print('[+] This is a multi-arch image. Available platforms:')
for m in resp_json['manifests']:
if 'platform' in m:
print(' - {}/{} ({})'.format(
m['platform'].get('os', 'unknown'),
m['platform'].get('architecture', 'unknown'),
m['digest']
))
# Try to find linux/amd64 platform first, then fall back to windows/amd64
selected_manifest = None
for m in resp_json['manifests']:
platform = m.get('platform', {})
if platform.get('os') == 'linux' and platform.get('architecture') == 'amd64':
selected_manifest = m
break
if not selected_manifest:
for m in resp_json['manifests']:
platform = m.get('platform', {})
if platform.get('os') == 'windows' and platform.get('architecture') == 'amd64':
selected_manifest = m
break
if not selected_manifest:
# If no preferred platform found, use the first one
selected_manifest = resp_json['manifests'][0]
print('[+] Selected platform: {}/{}'.format(
selected_manifest['platform'].get('os', 'unknown'),
selected_manifest['platform'].get('architecture', 'unknown')
))
# Fetch the specific manifest
try:
# Get fresh auth token for manifest
manifest_auth_head = get_auth_head('application/vnd.docker.distribution.manifest.v2+json')
manifest_resp = session.get(
'https://{}/v2/{}/manifests/{}'.format(registry, repository, selected_manifest['digest']),
headers=manifest_auth_head, # 使用新的认证头
verify=False,
timeout=30
)
if manifest_resp.status_code != 200:
print('[-] Failed to fetch specific manifest:', manifest_resp.status_code)
print('[-] Response content:', manifest_resp.content)
exit(1)
resp_json = manifest_resp.json()
print('[+] Successfully fetched specific manifest')
except Exception as e:
print('[-] Error fetching specific manifest:', e)
exit(1)
# Now we should have the actual manifest with layers
if 'layers' not in resp_json:
print('[-] Error: No layers found in manifest')
print('[-] Available keys:', list(resp_json.keys()))
exit(1)
layers = resp_json['layers']
except KeyError as e:
print('[-] Error: Could not find required key in response:', e)
print('[-] Available keys:', list(resp_json.keys()))
exit(1)
except Exception as e:
print('[-] Unexpected error:', e)
exit(1)
# Create tmp directory if it doesn't exist
imgdir = 'tmp'
if not os.path.exists(imgdir):
print('[+] Creating temporary directory:', imgdir)
os.makedirs(imgdir)
config = resp_json['config']['digest']
try:
confresp = session.get('https://{}/v2/{}/blobs/{}'.format(registry, repository, config), headers=auth_head,
verify=False, timeout=30)
except requests.exceptions.RequestException as e:
print('[-] Config fetch error:', str(e))
exit(1)
file = open('{}/{}.json'.format(imgdir, config[7:]), 'wb')
file.write(confresp.content)
file.close()
content = [{
'Config': config[7:] + '.json',
'RepoTags': [],
'Layers': []
}]
if len(imgparts[:-1]) != 0:
content[0]['RepoTags'].append('/'.join(imgparts[:-1]) + '/' + img + ':' + tag)
else:
content[0]['RepoTags'].append(img + ':' + tag)
empty_json = '{"created":"1970-01-01T00:00:00Z","container_config":{"Hostname":"","Domainname":"","User":"","AttachStdin":false, \
"AttachStdout":false,"AttachStderr":false,"Tty":false,"OpenStdin":false, "StdinOnce":false,"Env":null,"Cmd":null,"Image":"", \
"Volumes":null,"WorkingDir":"","Entrypoint":null,"OnBuild":null,"Labels":null}}'
# Build layer folders
parentid = ''
for layer in layers:
ublob = layer['digest']
# FIXME: Creating fake layer ID. Don't know how Docker generates it
fake_layerid = hashlib.sha256((parentid + '\n' + ublob + '\n').encode('utf-8')).hexdigest()
layerdir = imgdir + '/' + fake_layerid
os.mkdir(layerdir)
# Creating VERSION file
file = open(layerdir + '/VERSION', 'w')
file.write('1.0')
file.close()
# Creating layer.tar file
sys.stdout.write(ublob[7:19] + ': Downloading...')
sys.stdout.flush()
auth_head = get_auth_head(
'application/vnd.docker.distribution.manifest.v2+json') # refreshing token to avoid its expiration
try:
bresp = session.get('https://{}/v2/{}/blobs/{}'.format(registry, repository, ublob), headers=auth_head,
stream=True, verify=False, timeout=30)
except requests.exceptions.RequestException as e:
print('[-] Layer fetch error:', str(e))
exit(1)
if (bresp.status_code != 200): # When the layer is located at a custom URL
try:
bresp = session.get(layer['urls'][0], headers=auth_head, stream=True, verify=False, timeout=30)
except requests.exceptions.RequestException as e:
print('[-] Layer fetch error:', str(e))
exit(1)
if (bresp.status_code != 200):
print('\rERROR: Cannot download layer {} [HTTP {}]'.format(ublob[7:19], bresp.status_code,
bresp.headers['Content-Length']))
print(bresp.content)
exit(1)
# Stream download and follow the progress
bresp.raise_for_status()
unit = int(bresp.headers['Content-Length']) / 50
acc = 0
nb_traits = 0
progress_bar(ublob, nb_traits)
with open(layerdir + '/layer_gzip.tar', "wb") as file:
for chunk in bresp.iter_content(chunk_size=8192):
if chunk:
file.write(chunk)
acc = acc + 8192
if acc > unit:
nb_traits = nb_traits + 1
progress_bar(ublob, nb_traits)
acc = 0
sys.stdout.write("\r{}: Extracting...{}".format(ublob[7:19], " " * 50)) # Ugly but works everywhere
sys.stdout.flush()
with open(layerdir + '/layer.tar', "wb") as file: # Decompress gzip response
unzLayer = gzip.open(layerdir + '/layer_gzip.tar', 'rb')
shutil.copyfileobj(unzLayer, file)
unzLayer.close()
os.remove(layerdir + '/layer_gzip.tar')
print("\r{}: Pull complete [{}]".format(ublob[7:19], bresp.headers['Content-Length']))
content[0]['Layers'].append(fake_layerid + '/layer.tar')
# Creating json file
file = open(layerdir + '/json', 'w')
# last layer = config manifest - history - rootfs
if layers[-1]['digest'] == layer['digest']:
# FIXME: json.loads() automatically converts to unicode, thus decoding values whereas Docker doesn't
json_obj = json.loads(confresp.content)
del json_obj['history']
try:
del json_obj['rootfs']
except: # Because Microsoft loves case insensitiveness
del json_obj['rootfS']
else: # other layers json are empty
json_obj = json.loads(empty_json)
json_obj['id'] = fake_layerid
if parentid:
json_obj['parent'] = parentid
parentid = json_obj['id']
file.write(json.dumps(json_obj))
file.close()
file = open(imgdir + '/manifest.json', 'w')
file.write(json.dumps(content))
file.close()
if len(imgparts[:-1]) != 0:
content = {'/'.join(imgparts[:-1]) + '/' + img: {tag: fake_layerid}}
else: # when pulling only an img (without repo and registry)
content = {img: {tag: fake_layerid}}
file = open(imgdir + '/repositories', 'w')
file.write(json.dumps(content))
file.close()
# Create image tar and clean tmp folder
docker_tar = repo.replace('/', '_') + '_' + img + '.tar'
sys.stdout.write("Creating archive...")
sys.stdout.flush()
tar = tarfile.open(docker_tar, "w")
tar.add(imgdir, arcname=os.path.sep)
tar.close()
shutil.rmtree(imgdir)
print('\rDocker image pulled: ' + docker_tar)
