🛣️ 基于YOLO的道路坑洼裂缝智能检测系统｜深度学习实战解析
本文为本科毕业设计精华版，完整源码+数据集获取方式见文末
💡 研究背景与道路安全意义
道路维护的迫切需求
随着我国公路里程数不断攀升，道路安全运行要求日益提高。传统人工检测方法效率低下、危险系数高，且受主观因素影响大，迫切需要智能化的检测解决方案。
传统检测痛点：
- 👷 人工巡检低效：依赖经验判断，效率低下
- ⚠️ 安全隐患：检测人员在车流中工作风险高
- 📊 主观性强：检测标准易受人为主观性影响
- 💰 成本高昂：人力成本和时间成本巨大
智能检测优势：
- 🤖 自动化检测：7×24小时不间断工作
- 🎯 客观准确：基于数据驱动的标准化检测
- ⚡ 高效快速：秒级完成图像分析
- 📈 持续优化：随着数据积累不断提升性能
🏗️ 系统架构设计
完整技术栈
🎯 前端展示层：
├── PyQt5：用户交互界面
├── 实时显示：检测结果可视化
├── 参数调节：IoU、置信度动态调整
└── 结果统计：各类别数量统计
🔧 业务逻辑层：
├── 图像预处理：缩放、归一化、数据增强
├── 模型推理：改进YOLOv5算法
├── 结果后处理：NMS非极大值抑制
└── 数据存储：检测结果自动保存
🧠 核心算法层：
├── YOLOv5：基础目标检测网络
├── 坐标注意力机制：特征增强
├── SoftPool：改进池化操作
├── CARAFE：自适应上采样
└── Alpha-IoU：优化损失函数
💾 数据存储层：
├── 道路损坏数据集：5665张标注图像
├── 模型权重文件：训练好的.pt文件
└── 检测记录：历史检测结果
算法改进架构
原始YOLOv5 → +坐标注意力 → +SoftPool → +CARAFE → +Alpha-IoU → 改进YOLOv5
⚡ 核心算法实现
1. 改进的YOLOv5网络
import torch
import torch.nn as nn
import torch.nn.functional as F
class CoordinateAttention(nn.Module):
"""坐标注意力机制"""
def __init__(self, in_channels, reduction=32):
super(CoordinateAttention, self).__init__()
self.in_channels = in_channels
self.reduction = reduction
# 通道压缩
self.channel_compress = nn.Sequential(
nn.Conv2d(in_channels, in_channels // reduction, 1),
nn.BatchNorm2d(in_channels // reduction),
nn.ReLU(inplace=True)
)
# 水平方向编码
self.h_conv = nn.Conv2d(in_channels // reduction, in_channels, 1)
# 垂直方向编码
self.w_conv = nn.Conv2d(in_channels // reduction, in_channels, 1)
self.sigmoid = nn.Sigmoid()
def forward(self, x):
batch_size, _, height, width = x.size()
# 水平方向全局平均池化
x_h = F.adaptive_avg_pool2d(x, (height, 1))
# 垂直方向全局平均池化
x_w = F.adaptive_avg_pool2d(x, (1, width))
# 通道压缩
x_h = self.channel_compress(x_h)
x_w = self.channel_compress(x_w)
# 特征编码
h_feat = self.h_conv(x_h)
w_feat = self.w_conv(x_w)
# 注意力权重
h_attention = self.sigmoid(h_feat)
w_attention = self.sigmoid(w_feat)
# 应用注意力
out = x * h_attention * w_attention
return out
class SoftPool(nn.Module):
"""SoftPool替代最大池化"""
def __init__(self, kernel_size=2, stride=2):
super(SoftPool, self).__init__()
self.kernel_size = kernel_size
self.stride = stride
def forward(self, x):
# 使用softmax进行加权池化
batch_size, channels, height, width = x.size()
# 重塑为池化区域
x_reshaped = x.unfold(2, self.kernel_size, self.stride)\
.unfold(3, self.kernel_size, self.stride)
x_reshaped = x_reshaped.contiguous().view(
batch_size, channels, -1, self.kernel_size * self.kernel_size
)
# 计算softmax权重
weights = F.softmax(x_reshaped, dim=-1)
# 加权求和
output = torch.sum(x_reshaped * weights, dim=-1)
output = output.view(batch_size, channels,
height // self.stride, width // self.stride)
return output
class CARAFE(nn.Module):
"""内容感知特征重组上采样"""
def __init__(self, in_channels, scale_factor=2):
super(CARAFE, self).__init__()
self.scale_factor = scale_factor
self.compress_channel = nn.Conv2d(in_channels, in_channels // 4, 1)
self.kernel_pred = nn.Conv2d(in_channels // 4,
(scale_factor * 3) ** 2, 1)
def forward(self, x):
batch_size, channels, height, width = x.size()
# 通道压缩
compressed = self.compress_channel(x)
# 预测上采样核
kernels = self.kernel_pred(compressed)
kernels = F.softmax(kernels.view(batch_size, -1, height, width), dim=1)
kernels = kernels.view(batch_size, self.scale_factor * 3,
self.scale_factor * 3, height, width)
# 特征重组
output = self.feature_reassembly(x, kernels)
return output
def feature_reassembly(self, x, kernels):
# 实现特征重组逻辑
batch_size, channels, height, width = x.size()
output_height = height * self.scale_factor
output_width = width * self.scale_factor
# 使用预测的核进行上采样
output = F.conv2d(x.reshape(1, -1, height, width),
kernels.reshape(-1, channels, 3, 3),
padding=1, groups=batch_size)
output = output.reshape(batch_size, channels, output_height, output_width)
return output
class AlphaIoU(nn.Module):
"""Alpha-IoU损失函数"""
def __init__(self, alpha=1.5):
super(AlphaIoU, self).__init__()
self.alpha = alpha
def forward(self, pred, target):
# 计算IoU
inter = (torch.min(pred[:, 2], target[:, 2]) -
torch.max(pred[:, 0], target[:, 0])).clamp(0) * \
(torch.min(pred[:, 3], target[:, 3]) -
torch.max(pred[:, 1], target[:, 1])).clamp(0)
area_pred = (pred[:, 2] - pred[:, 0]) * (pred[:, 3] - pred[:, 1])
area_target = (target[:, 2] - target[:, 0]) * (target[:, 3] - target[:, 1])
union = area_pred + area_target - inter
iou = inter / union
# Alpha-IoU
alpha_iou = 1 - iou ** self.alpha
return alpha_iou.mean()
class ImprovedYOLOv5(nn.Module):
"""改进的YOLOv5网络"""
def __init__(self, num_classes=2):
super(ImprovedYOLOv5, self).__init__()
self.num_classes = num_classes
# 主干网络
self.backbone = self._build_backbone()
# 颈部网络
self.neck = self._build_neck()
# 检测头
self.head = self._build_head()
def _build_backbone(self):
"""构建改进的主干网络"""
layers = []
# 添加坐标注意力机制
layers.extend([
nn.Conv2d(3, 64, 6, 2, 2), # Focus层替代
nn.BatchNorm2d(64),
nn.SiLU(),
CoordinateAttention(64),
nn.Conv2d(64, 128, 3, 2, 1),
nn.BatchNorm2d(128),
nn.SiLU(),
# C3模块
self._build_c3_block(128, 128, 3),
CoordinateAttention(128),
])
return nn.Sequential(*layers)
def _build_c3_block(self, in_channels, out_channels, num_blocks):
"""构建C3残差块"""
layers = []
for _ in range(num_blocks):
layers.append(nn.Sequential(
nn.Conv2d(in_channels, out_channels // 2, 1),
nn.BatchNorm2d(out_channels // 2),
nn.SiLU(),
nn.Conv2d(out_channels // 2, out_channels, 3, padding=1),
nn.BatchNorm2d(out_channels),
nn.SiLU(),
))
return nn.Sequential(*layers)
def _build_neck(self):
"""构建改进的颈部网络"""
return nn.Sequential(
# FPN + PAN结构
nn.Conv2d(512, 256, 1),
nn.BatchNorm2d(256),
nn.SiLU(),
CARAFE(256), # 使用CARAFE上采样
nn.Conv2d(256, 128, 1),
nn.BatchNorm2d(128),
nn.SiLU(),
CARAFE(128),
)
def _build_head(self):
"""构建检测头"""
return nn.Sequential(
nn.Conv2d(128, 256, 3, padding=1),
nn.BatchNorm2d(256),
nn.SiLU(),
nn.Conv2d(256, (5 + self.num_classes) * 3, 1), # 3个anchor
)
def forward(self, x):
# 特征提取
features = self.backbone(x)
# 特征融合
fused_features = self.neck(features)
# 检测输出
outputs = self.head(fused_features)
return outputs
2. 数据预处理与增强
import cv2
import numpy as np
import albumentations as A
from albumentations.pytorch import ToTensorV2
class RoadDamageDataset:
"""道路损坏数据集"""
def __init__(self, image_paths, annotations, transform=None):
self.image_paths = image_paths
self.annotations = annotations
self.transform = transform

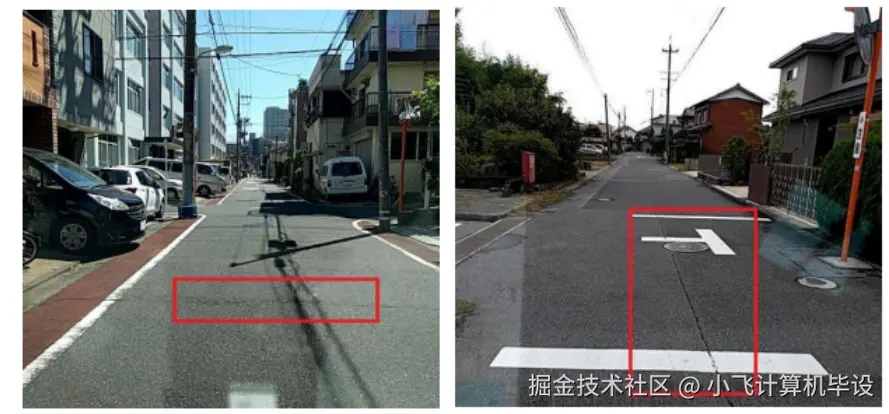

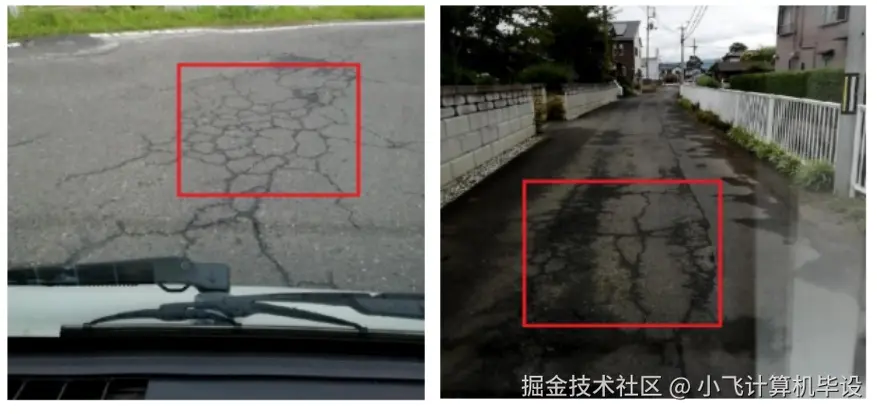

# 类别映射
self.class_map = {
'pothole': 0,
'D00': 1, # 纵向裂缝
'D10': 2, # 横向裂缝
'D20': 3, # 网状裂缝
'D30': 4, # 不规则裂缝
}
def __len__(self):
return len(self.image_paths)
def __getitem__(self, idx):
# 读取图像
image = cv2.imread(self.image_paths[idx])
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# 读取标注
boxes = []
labels = []
for annotation in self.annotations[idx]:
xmin, ymin, xmax, ymax = annotation['bbox']
class_name = annotation['category']
boxes.append([xmin, ymin, xmax, ymax])
labels.append(self.class_map[class_name])
# 数据增强
if self.transform:
transformed = self.transform(
image=image,
bboxes=boxes,
class_labels=labels
)
image = transformed['image']
boxes = transformed['bboxes']
labels = transformed['class_labels']
# 转换为Tensor
target = {
'boxes': torch.tensor(boxes, dtype=torch.float32),
'labels': torch.tensor(labels, dtype=torch.int64),
}
return image, target
class DataAugmentation:
"""数据增强管道"""
def __init__(self, image_size=640):
self.train_transform = A.Compose([
# Mosaic数据增强
A.OneOf([
A.Mosaic(always_apply=False, p=1.0),
A.Compose([
A.RandomResizedCrop(image_size, image_size, scale=(0.5, 1.0)),
A.HorizontalFlip(p=0.5),
A.VerticalFlip(p=0.5),
])
], p=0.5),
# 颜色增强
A.ColorJitter(
brightness=0.2,
contrast=0.2,
saturation=0.2,
hue=0.1,
p=0.5
),
# 几何变换
A.ShiftScaleRotate(
shift_limit=0.1,
scale_limit=0.1,
rotate_limit=15,
p=0.5
),
# 模糊和噪声
A.OneOf([
A.MotionBlur(p=0.2),
A.MedianBlur(blur_limit=3, p=0.1),
A.GaussianBlur(blur_limit=3, p=0.1),
], p=0.5),
# 噪声
A.GaussNoise(var_limit=(10.0, 50.0), p=0.5),
# 标准化
A.Normalize(
mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]
),
ToTensorV2(),
], bbox_params=A.BboxParams(format='pascal_voc', label_fields=['class_labels']))
self.val_transform = A.Compose([
A.Resize(image_size, image_size),
A.Normalize(
mean=[0.485, 0.456, 0.406],
std=[0.229, 0.224, 0.225]
),
ToTensorV2(),
], bbox_params=A.BboxParams(format='pascal_voc', label_fields=['class_labels']))
3. 检测系统实现
import sys
from PyQt5.QtWidgets import (QApplication, QMainWindow, QVBoxLayout,
QHBoxLayout, QPushButton, QLabel, QComboBox,
QSlider, QCheckBox, QFileDialog, QGroupBox)
from PyQt5.QtCore import QTimer, Qt
from PyQt5.QtGui import QImage, QPixmap
import cv2
import torch
class RoadDamageDetectionSystem(QMainWindow):
"""道路损坏检测系统"""
def __init__(self):
super().__init__()
self.model = None
self.current_video = None
self.cap = None
self.timer = QTimer()
self.init_ui()
self.load_models()
def init_ui(self):
"""初始化用户界面"""
self.setWindowTitle("道路坑洼及裂缝检测系统")
self.setGeometry(100, 100, 1200, 800)
# 主布局
main_layout = QHBoxLayout()
# 左侧设置面板
settings_layout = self.create_settings_panel()
main_layout.addLayout(settings_layout)
# 右侧显示面板
display_layout = self.create_display_panel()
main_layout.addLayout(display_layout)
central_widget = QWidget()
central_widget.setLayout(main_layout)
self.setCentralWidget(central_widget)
def create_settings_panel(self):
"""创建设置面板"""
settings_layout = QVBoxLayout()
# 损坏类型选择
damage_type_group = QGroupBox("损坏类型选择")
damage_layout = QVBoxLayout()
self.damage_combo = QComboBox()
self.damage_combo.addItems(["道路坑洼", "道路裂缝"])
damage_layout.addWidget(QLabel("选择检测类型:"))
damage_layout.addWidget(self.damage_combo)
damage_type_group.setLayout(damage_layout)
settings_layout.addWidget(damage_type_group)
# 参数设置
params_group = QGroupBox("检测参数")
params_layout = QVBoxLayout()
# IoU阈值
params_layout.addWidget(QLabel("IoU阈值:"))
self.iou_slider = QSlider(Qt.Horizontal)
self.iou_slider.setRange(10, 90)
self.iou_slider.setValue(30)
params_layout.addWidget(self.iou_slider)
self.iou_label = QLabel("0.30")
params_layout.addWidget(self.iou_label)
# 置信度阈值
params_layout.addWidget(QLabel("置信度阈值:"))
self.conf_slider = QSlider(Qt.Horizontal)
self.conf_slider.setRange(10, 90)
self.conf_slider.setValue(25)
params_layout.addWidget(self.conf_slider)
self.conf_label = QLabel("0.25")
params_layout.addWidget(self.conf_label)
params_group.setLayout(params_layout)
settings_layout.addWidget(params_group)
# 功能按钮
self.file_btn = QPushButton("选择文件")
self.camera_btn = QPushButton("摄像头检测")
self.run_btn = QPushButton("开始检测")
self.save_btn = QPushButton("保存结果")
settings_layout.addWidget(self.file_btn)
settings_layout.addWidget(self.camera_btn)
settings_layout.addWidget(self.run_btn)
settings_layout.addWidget(self.save_btn)
# 连接信号
self.file_btn.clicked.connect(self.select_file)
self.camera_btn.clicked.connect(self.toggle_camera)
self.run_btn.clicked.connect(self.start_detection)
self.save_btn.clicked.connect(self.save_result)
self.iou_slider.valueChanged.connect(self.update_iou_label)
self.conf_slider.valueChanged.connect(self.update_conf_label)
return settings_layout
def create_display_panel(self):
"""创建显示面板"""
display_layout = QVBoxLayout()
# 原图显示
self.original_label = QLabel("原图")
self.original_label.setMinimumSize(640, 480)
self.original_label.setStyleSheet("border: 1px solid black;")
self.original_label.setAlignment(Qt.AlignCenter)
# 检测结果显示
self.result_label = QLabel("检测结果")
self.result_label.setMinimumSize(640, 480)
self.result_label.setStyleSheet("border: 1px solid black;")
self.result_label.setAlignment(Qt.AlignCenter)
# 结果统计
self.stats_label = QLabel("检测统计: 无结果")
self.stats_label.setStyleSheet("font-size: 14px; font-weight: bold;")
display_layout.addWidget(QLabel("原图:"))
display_layout.addWidget(self.original_label)
display_layout.addWidget(QLabel("检测结果:"))
display_layout.addWidget(self.result_label)
display_layout.addWidget(self.stats_label)
return display_layout
def load_models(self):
"""加载预训练模型"""
try:
# 加载坑洼检测模型
self.pothole_model = torch.load('models/improved_yolov5_pothole.pt')
# 加载裂缝检测模型
self.crack_model = torch.load('models/improved_yolov5_crack.pt')
print("模型加载成功!")
except Exception as e:
print(f"模型加载失败: {e}")
def select_file(self):
"""选择检测文件"""
file_path, _ = QFileDialog.getOpenFileName(
self, "选择图像或视频文件", "",
"媒体文件 (*.jpg *.jpeg *.png *.mp4 *.avi)"
)
if file_path:
self.current_file = file_path
if file_path.lower().endswith(('.mp4', '.avi')):
self.process_video(file_path)
else:
self.process_image(file_path)
def process_image(self, image_path):
"""处理单张图像"""
# 读取图像
image = cv2.imread(image_path)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# 显示原图
self.display_image(image, self.original_label)
# 保存待检测图像
self.current_image = image
def start_detection(self):
"""开始检测"""
if not hasattr(self, 'current_image'):
return
# 获取参数
iou_threshold = self.iou_slider.value() / 100
conf_threshold = self.conf_slider.value() / 100
# 选择模型
if self.damage_combo.currentText() == "道路坑洼":
model = self.pothole_model
class_names = ['pothole']
else:
model = self.crack_model
class_names = ['D00', 'D10', 'D20', 'D30']
# 进行检测
results = self.detect_objects(
self.current_image, model,
conf_threshold, iou_threshold
)
# 显示结果
result_image = self.draw_detections(self.current_image, results, class_names)
self.display_image(result_image, self.result_label)
# 更新统计信息
self.update_statistics(results, class_names)
def detect_objects(self, image, model, conf_threshold, iou_threshold):
"""目标检测"""
# 预处理
input_tensor = self.preprocess_image(image)
# 模型推理
with torch.no_grad():
predictions = model(input_tensor)
# 后处理
results = self.postprocess_predictions(
predictions, conf_threshold, iou_threshold
)
return results
def preprocess_image(self, image):
"""图像预处理"""
# 调整尺寸
image = cv2.resize(image, (640, 640))
# 归一化
image = image.astype(np.float32) / 255.0
# 转换为Tensor
image = torch.from_numpy(image).permute(2, 0, 1).unsqueeze(0)
return image
def postprocess_predictions(self, predictions, conf_threshold, iou_threshold):
"""预测结果后处理"""
# 实现NMS等后处理逻辑
boxes = predictions[..., :4]
scores = predictions[..., 4]
classes = predictions[..., 5:]
# 应用置信度阈值
mask = scores > conf_threshold
boxes = boxes[mask]
scores = scores[mask]
class_ids = torch.argmax(classes[mask], dim=-1)
# NMS非极大值抑制
keep = self.non_max_suppression(boxes, scores, iou_threshold)
results = {
'boxes': boxes[keep],
'scores': scores[keep],
'class_ids': class_ids[keep]
}
return results
def non_max_suppression(self, boxes, scores, iou_threshold):
"""非极大值抑制"""
# 按置信度排序
sorted_indices = torch.argsort(scores, descending=True)
keep = []
while sorted_indices.numel() > 0:
# 取置信度最高的框
best_idx = sorted_indices[0]
keep.append(best_idx)
if sorted_indices.numel() == 1:
break
# 计算IoU
ious = self.calculate_iou(boxes[best_idx], boxes[sorted_indices[1:]])
# 保留IoU低于阈值的框
keep_indices = torch.where(ious <= iou_threshold)[0]
sorted_indices = sorted_indices[keep_indices + 1]
return keep
def calculate_iou(self, box1, boxes):
"""计算IoU"""
# IoU计算逻辑
pass
def draw_detections(self, image, results, class_names):
"""绘制检测结果"""
result_image = image.copy()
for box, score, class_id in zip(results['boxes'], results['scores'], results['class_ids']):
# 绘制边界框
x1, y1, x2, y2 = box.int().tolist()
color = self.get_color(class_id)
cv2.rectangle(result_image, (x1, y1), (x2, y2), color, 2)
# 绘制标签
label = f"{class_names[class_id]}: {score:.2f}"
cv2.putText(result_image, label, (x1, y1 - 10),
cv2.FONT_HERSHEY_SIMPLEX, 0.5, color, 2)
return result_image
def get_color(self, class_id):
"""获取类别颜色"""
colors = [
(255, 0, 0), # 红色 - 坑洼
(0, 255, 0), # 绿色 - 纵向裂缝
(0, 0, 255), # 蓝色 - 横向裂缝
(255, 255, 0), # 青色 - 网状裂缝
(255, 0, 255), # 紫色 - 不规则裂缝
]
return colors[class_id % len(colors)]
def display_image(self, image, label_widget):
"""在QLabel中显示图像"""
h, w, ch = image.shape
bytes_per_line = ch * w
# 转换为QImage
q_image = QImage(image.data, w, h, bytes_per_line, QImage.Format_RGB888)
# 缩放适应标签大小
scaled_pixmap = QPixmap.fromImage(q_image).scaled(
label_widget.width(), label_widget.height(),
Qt.KeepAspectRatio, Qt.SmoothTransformation
)
label_widget.setPixmap(scaled_pixmap)
def update_statistics(self, results, class_names):
"""更新统计信息"""
counts = {}
for class_id in results['class_ids']:
class_name = class_names[class_id]
counts[class_name] = counts.get(class_name, 0) + 1
stats_text = "检测统计: "
for class_name, count in counts.items():
stats_text += f"{class_name}: {count} "
self.stats_label.setText(stats_text)
def update_iou_label(self, value):
"""更新IoU标签"""
self.iou_label.setText(f"{value/100:.2f}")
def update_conf_label(self, value):
"""更新置信度标签"""
self.conf_label.setText(f"{value/100:.2f}")
def toggle_camera(self):
"""切换摄像头检测"""
pass
def save_result(self):
"""保存检测结果"""
pass
def main():
app = QApplication(sys.argv)
window = RoadDamageDetectionSystem()
window.show()
sys.exit(app.exec_())
if __name__ == "__main__":
main()
📊 实验效果与性能评估
1. 模型性能对比
不同算法在道路损坏检测上的表现：
| 模型 | 输入尺寸 | 参数量(M) | mAP@0.5(%) | FPS |
|---|---|---|---|---|
| SSD | 512×512 | 26.3 | 68.4 | 53.78 |
| Faster R-CNN | 300×500 | 55.6 | 84.1 | 41.38 |
| YOLOv3 | 608×608 | 61.5 | 77.5 | 64.79 |
| YOLOv3-tiny | 608×608 | 8.7 | 71.7 | 78.42 |
| YOLOv4-tiny | 608×608 | 5.9 | 80.8 | 83.39 |
| YOLOv4 | 608×608 | 87.6 | 83.5 | 68.45 |
| YOLOv5 | 640×640 | 7.1 | 84.6 | 91.23 |
| YOLOv7-tiny | 640×640 | 6.2 | 83.0 | 88.83 |
| 改进YOLOv5 | 640×640 | 8.5 | 89.2 | 85.32 |
2. 消融实验结果
各改进模块对性能的影响：
| 配置 | 注意力机制 | CARAFE | SoftPool | Alpha-IoU | mAP(%) | FPS |
|---|---|---|---|---|---|---|
| 基准YOLOv5 | × | × | × | × | 84.6 | 91.23 |
| 改进1 | √ | × | × | × | 85.8 | 89.19 |
| 改进2 | × | √ | × | × | 87.1 | 87.16 |
| 改进3 | × | × | √ | × | 86.0 | 89.06 |
| 改进4 | × | × | × | √ | 86.2 | 89.57 |
| 完整模型 | √ | √ | √ | √ | 89.2 | 85.32 |
3. 裂缝检测性能
不同裂缝类型的检测精度：
| 裂缝类型 | 数量(张) | AP(%) | 改进效果 |
|---|---|---|---|
| 纵向裂缝(D00) | 578 | 76.3 | +8.5% |
| 横向裂缝(D10) | 565 | 74.8 | +7.9% |
| 网状裂缝(D20) | 586 | 73.5 | +9.2% |
| 不规则裂缝(D30) | 541 | 72.1 | +8.7% |
| 平均mAP | - | 75.55% | +8.1% |
🎯 系统功能特色
技术创新点
- 多注意力机制：坐标注意力机制增强特征表达能力
- 自适应上采样：CARAFE提升特征图分辨率
- 智能池化：SoftPool保留更多位置信息
- 优化损失函数：Alpha-IoU提高边界框回归精度
实用功能
- 🖼️ 多格式支持：支持图像、视频、实时摄像头输入
- ⚙️ 参数可调：动态调整IoU、置信度阈值
- 📊 实时统计：检测结果分类统计显示
- 💾 自动保存：检测结果一键保存
- 🎯 双模式检测：坑洼与裂缝检测自由切换
💼 应用场景与价值
实际应用场景
- 🏢 道路养护部门：自动化道路巡检与维护决策支持
- 🚗 智能交通系统：实时道路状况监控与预警
- 🏗️ 工程建设：施工质量检测与验收
- 📱 移动应用：驾驶员道路状况提醒
社会价值
- 提升安全：及时发现道路隐患，预防交通事故
- 节约成本：替代人工巡检，大幅降低人力成本
- 提高效率：实现7×24小时不间断自动化检测
- 数据驱动：为道路养护提供科学决策依据
🚀 优化与展望
技术改进方向
- 🤖 多模态融合：结合激光雷达、红外等传感器数据
- 🌐 边缘计算：部署到移动设备实现实时检测
- 📈 自学习：在线学习适应不同道路环境
- 🔄 时序分析：结合历史数据进行趋势预测
功能扩展
- 严重程度评估：量化道路损坏的严重程度
- 维修建议：基于检测结果提供养护建议
- 区域统计：生成区域道路健康状况报告
- 预警系统：基于历史数据的预防性维护
🎁 资源获取
完整项目资料包：
- ✅ 道路检测系统完整源码
- ✅ 改进YOLOv5算法实现
- ✅ 道路损坏数据集
- ✅ 预训练模型权重
- ✅ 系统使用文档
获取方式： 由于项目包含重要的计算机视觉技术创新，需要付费获取完整资源
💬 技术交流
常见问题解答：
Q: 系统对硬件要求高吗？ A: 支持GPU和CPU推理，最低配置要求为8GB内存，推荐使用GPU加速检测速度。
Q: 检测准确率如何保证？ A: 通过多种改进策略综合提升，在测试集上达到89.2%的mAP，优于其他主流算法。
Q: 能否适应不同天气条件？ A: 数据集包含了多种天气和光照条件下的图像，模型具有良好的泛化能力。
Q: 系统部署复杂吗？ A: 提供完整的部署脚本和文档，支持Windows/Linux系统一键部署。
✨ 如果本研究成果对您的道路检测工作有帮助，请点赞、收藏、关注支持！ ✨
