1. 基本结构
- HTML 结构包含一个 Canvas 元素，用于绘制动画
- 内嵌 CSS 设置 Canvas 占满整个屏幕，背景为半透明黑色
- JavaScript 代码实现动画逻辑
2. 核心功能解析
2.1 兼容性处理
- 对
requestAnimationFrame进行了兼容性封装，确保在不同浏览器中都能正常运行动画 - 检测设备是否为移动设备，用于后续适配不同屏幕尺寸
2.2 心形曲线计算
-
heartPosition(rad)函数：使用数学公式计算心形曲线上的点- 公式：
[sin³(rad), -(15cos(rad) - 5cos(2rad) - 2cos(3rad) - cos(4rad))] - 这是一个经典的心形曲线参数方程
- 公式：
-
scaleAndTranslate(pos, sx, sy, dx, dy)函数：对心形曲线上的点进行缩放和平移- 用于调整心形的大小和位置
2.3 粒子系统
-
创建了多层（3 层）心形粒子轨迹，每层大小不同
-
每个粒子有以下属性：
- 速度 (vx, vy) 和移动相关参数
- 粒子颜色 (f) 使用 HSLA 颜色模式，带有透明度
- 轨迹记录 (trace)，保存粒子的历史位置，用于绘制拖尾效果
- 目标点 (q)，粒子会向这个点移动
2.4 动画逻辑
-
pulse(kx, ky)函数：通过改变缩放系数实现心形的脉动效果 -
主循环
loop()：- 更新心形的脉动状态
- 半透明填充画布，产生轨迹渐隐效果
- 为每个粒子计算新位置，使其向目标点移动
- 更新粒子的轨迹历史
- 绘制粒子及其轨迹
- 绘制心形的顶点
2.5 响应式处理
- 监听窗口大小变化事件，动态调整 Canvas 尺寸
- 根据设备类型（移动 / 桌面）调整粒子数量和动画参数

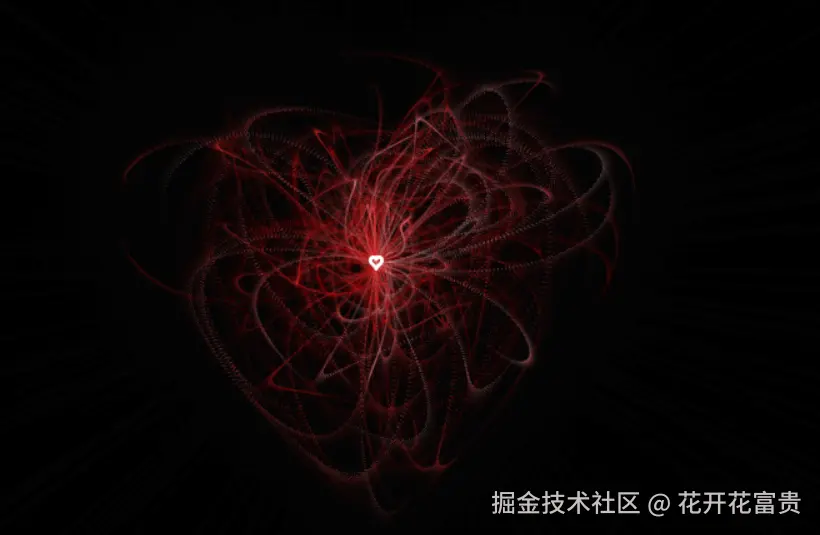

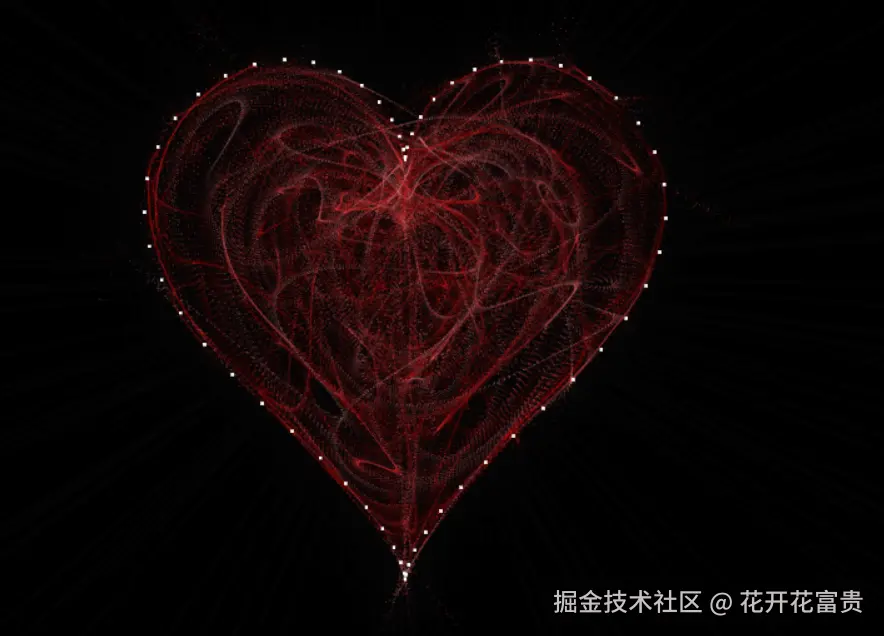

3. 视觉效果特点
- 粒子会沿着心形轨迹运动，形成动态的心形图案
- 心形会有规律地脉动（放大缩小）
- 每个粒子带有拖尾效果，增强视觉流畅感
- 粒子颜色为红色系（HSL 中的 0 度），带有不同饱和度和亮度
- 背景逐渐变暗，使粒子轨迹自然消失
4.代码示例
<!DOCTYPE html>
<html><head><meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>💗</title>
<style>
canvas {
position: absolute;
left: 0;
top: 0;
width: 100%;
height: 100%;
background-color: rgba(0, 0, 0, .2);
}
</style>
</head>
<body>
<canvas id="heart" width="1920" height="947"></canvas>
<script>
window.requestAnimationFrame =
window.__requestAnimationFrame ||
window.requestAnimationFrame ||
window.webkitRequestAnimationFrame ||
window.mozRequestAnimationFrame ||
window.oRequestAnimationFrame ||
window.msRequestAnimationFrame ||
(function () {
return function (callback, element) {
var lastTime = element.__lastTime;
if (lastTime === undefined) {
lastTime = 0;
}
var currTime = Date.now();
var timeToCall = Math.max(1, 33 - (currTime - lastTime));
window.setTimeout(callback, timeToCall);
element.__lastTime = currTime + timeToCall;
};
})();
window.isDevice = (/android|webos|iphone|ipad|ipod|blackberry|iemobile|opera mini/i.test(((navigator.userAgent || navigator.vendor || window.opera)).toLowerCase()));
var loaded = false;
var init = function () {
if (loaded) return;
loaded = true;
var mobile = window.isDevice;
var koef = mobile ? 0.5 : 1;
var canvas = document.getElementById('heart');
var ctx = canvas.getContext('2d');
var width = canvas.width = koef * innerWidth;
var height = canvas.height = koef * innerHeight;
var rand = Math.random;
ctx.fillStyle = "rgba(0,0,0,1)";
ctx.fillRect(0, 0, width, height);
var heartPosition = function (rad) {
//return [Math.sin(rad), Math.cos(rad)];
return [Math.pow(Math.sin(rad), 3), -(15 * Math.cos(rad) - 5 * Math.cos(2 * rad) - 2 * Math.cos(3 * rad) - Math.cos(4 * rad))];
};
var scaleAndTranslate = function (pos, sx, sy, dx, dy) {
return [dx + pos[0] * sx, dy + pos[1] * sy];
};
window.addEventListener('resize', function () {
width = canvas.width = koef * innerWidth;
height = canvas.height = koef * innerHeight;
ctx.fillStyle = "rgba(0,0,0,1)";
ctx.fillRect(0, 0, width, height);
});
var traceCount = mobile ? 20 : 50;
var pointsOrigin = [];
var i;
var dr = mobile ? 0.3 : 0.1;
for (i = 0; i < Math.PI * 2; i += dr) pointsOrigin.push(scaleAndTranslate(heartPosition(i), 210, 13, 0, 0));
for (i = 0; i < Math.PI * 2; i += dr) pointsOrigin.push(scaleAndTranslate(heartPosition(i), 150, 9, 0, 0));
for (i = 0; i < Math.PI * 2; i += dr) pointsOrigin.push(scaleAndTranslate(heartPosition(i), 90, 5, 0, 0));
var heartPointsCount = pointsOrigin.length;
var targetPoints = [];
var pulse = function (kx, ky) {
for (i = 0; i < pointsOrigin.length; i++) {
targetPoints[i] = [];
targetPoints[i][0] = kx * pointsOrigin[i][0] + width / 2;
targetPoints[i][1] = ky * pointsOrigin[i][1] + height / 2;
}
};
var e = [];
for (i = 0; i < heartPointsCount; i++) {
var x = rand() * width;
var y = rand() * height;
e[i] = {
vx: 0,
vy: 0,
R: 2,
speed: rand() + 5,
q: ~~(rand() * heartPointsCount),
D: 2 * (i % 2) - 1,
force: 0.2 * rand() + 0.7,
f: "hsla(0," + ~~(40 * rand() + 60) + "%," + ~~(60 * rand() + 20) + "%,.3)",
trace: []
};
for (var k = 0; k < traceCount; k++) e[i].trace[k] = {x: x, y: y};
}
var config = {
traceK: 0.4,
timeDelta: 0.01
};
var time = 0;
var loop = function () {
var n = -Math.cos(time);
pulse((1 + n) * .5, (1 + n) * .5);
time += ((Math.sin(time)) < 0 ? 9 : (n > 0.8) ? .2 : 1) * config.timeDelta;
ctx.fillStyle = "rgba(0,0,0,.1)";
ctx.fillRect(0, 0, width, height);
for (i = e.length; i--;) {
var u = e[i];
var q = targetPoints[u.q];
var dx = u.trace[0].x - q[0];
var dy = u.trace[0].y - q[1];
var length = Math.sqrt(dx * dx + dy * dy);
if (10 > length) {
if (0.95 < rand()) {
u.q = ~~(rand() * heartPointsCount);
} else {
if (0.99 < rand()) {
u.D *= -1;
}
u.q += u.D;
u.q %= heartPointsCount;
if (0 > u.q) {
u.q += heartPointsCount;
}
}
}
u.vx += -dx / length * u.speed;
u.vy += -dy / length * u.speed;
u.trace[0].x += u.vx;
u.trace[0].y += u.vy;
u.vx *= u.force;
u.vy *= u.force;
for (k = 0; k < u.trace.length - 1;) {
var T = u.trace[k];
var N = u.trace[++k];
N.x -= config.traceK * (N.x - T.x);
N.y -= config.traceK * (N.y - T.y);
}
ctx.fillStyle = u.f;
for (k = 0; k < u.trace.length; k++) {
ctx.fillRect(u.trace[k].x, u.trace[k].y, 1, 1);
}
}
ctx.fillStyle = "rgba(255,255,255,1)";
for (i = u.trace.length + 13; i--;) ctx.fillRect(targetPoints[i][0], targetPoints[i][1], 2, 2);
window.requestAnimationFrame(loop, canvas);
};
loop();
};
var s = document.readyState;
if (s === 'complete' || s === 'loaded' || s === 'interactive') init();
else document.addEventListener('DOMContentLoaded', init, false);
</script>
</body></html>
