AWS EKS 计算资源自动扩缩之Karpenter[AWS 海外区] 本文介绍在AWS EKS上安装Karpenter

Karpenter是一个为Kubernetes构建的开源自动扩缩容项目。它提高了Kubernetes应用程序的可用性，而无需手动或过度配置计算资源。 Karpenter旨在通过观察不可调度的Pod的聚合资源请求并做出启动和终止节点的决策，以最大限度地减少调度延迟，从而在几秒钟内（而不是几分钟）提供合适的计算资源来满足您的应用程序的需求。

karpenter可以替代传统的cluster-autoscaler,我们可以参考karpenter进行安装，选择Migrating from Cluster Autoscaler安装方式，为现有的EKS集群安装karpenter

本次安装Cluster Autoscaler的参考链接

环境

Software	version	install location
AWS EKS	1.34	AWS(俄勒冈region)
eksctl	0.215.0	本地电脑
kubectl	1.34	本地电脑
aws cli	2.21.0	本地电脑

IAM OIDC provider设置

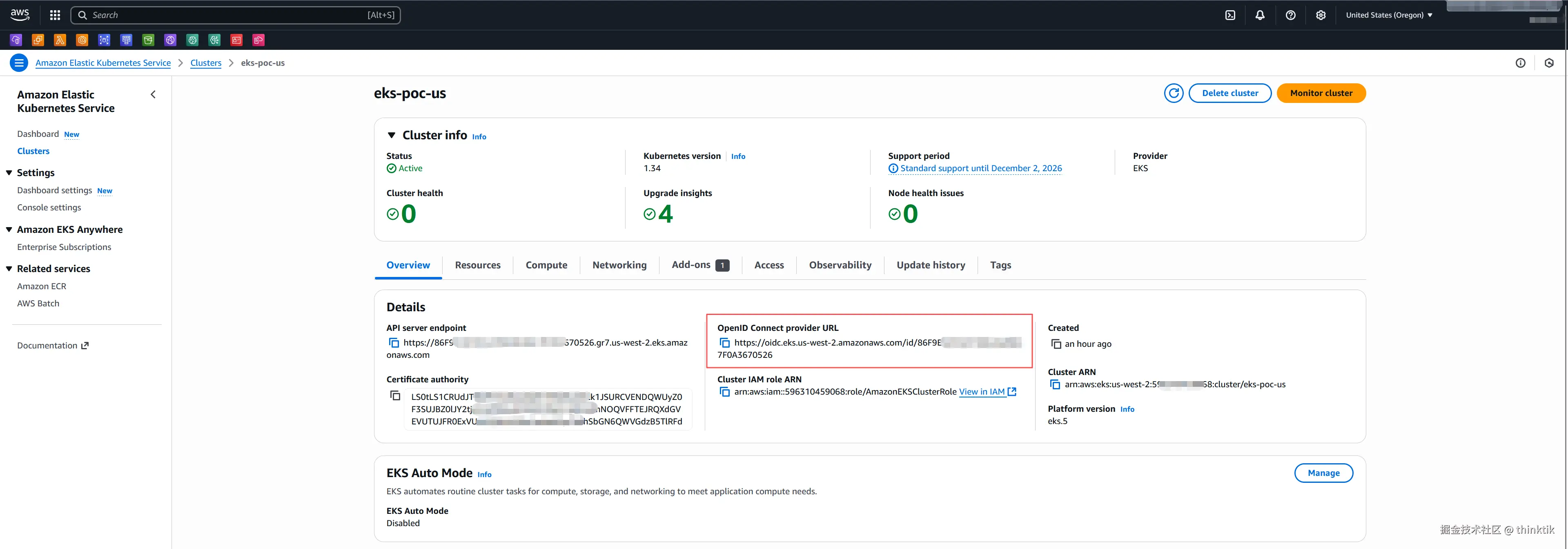

在EKS里面找到OpenID Connect provider URL复制它

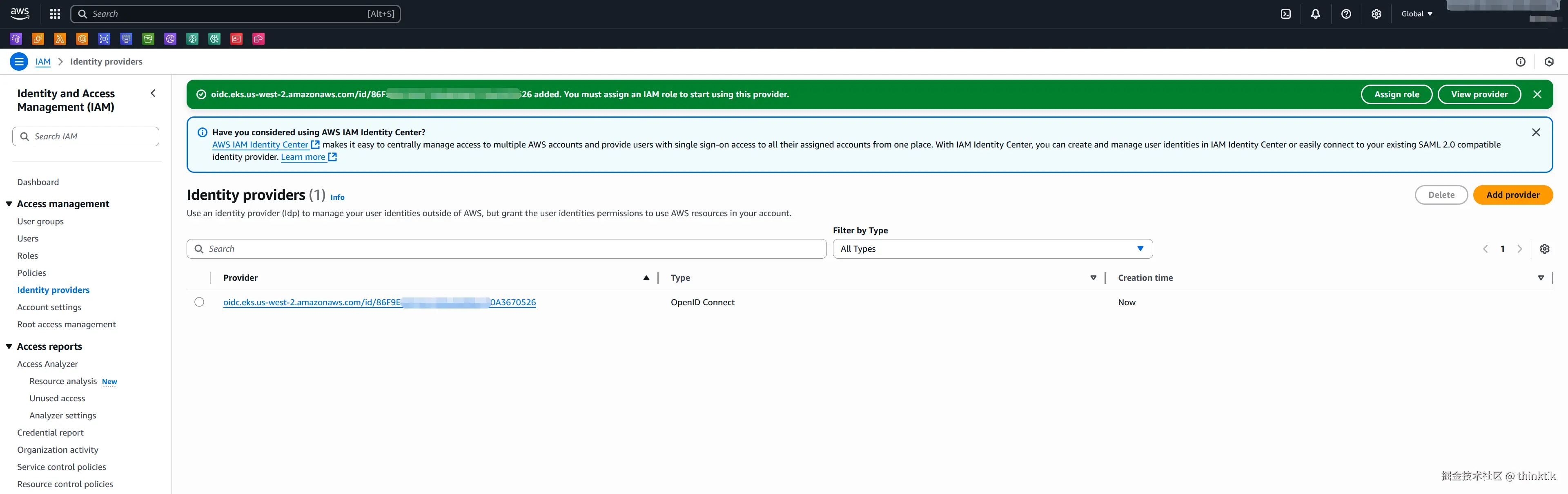

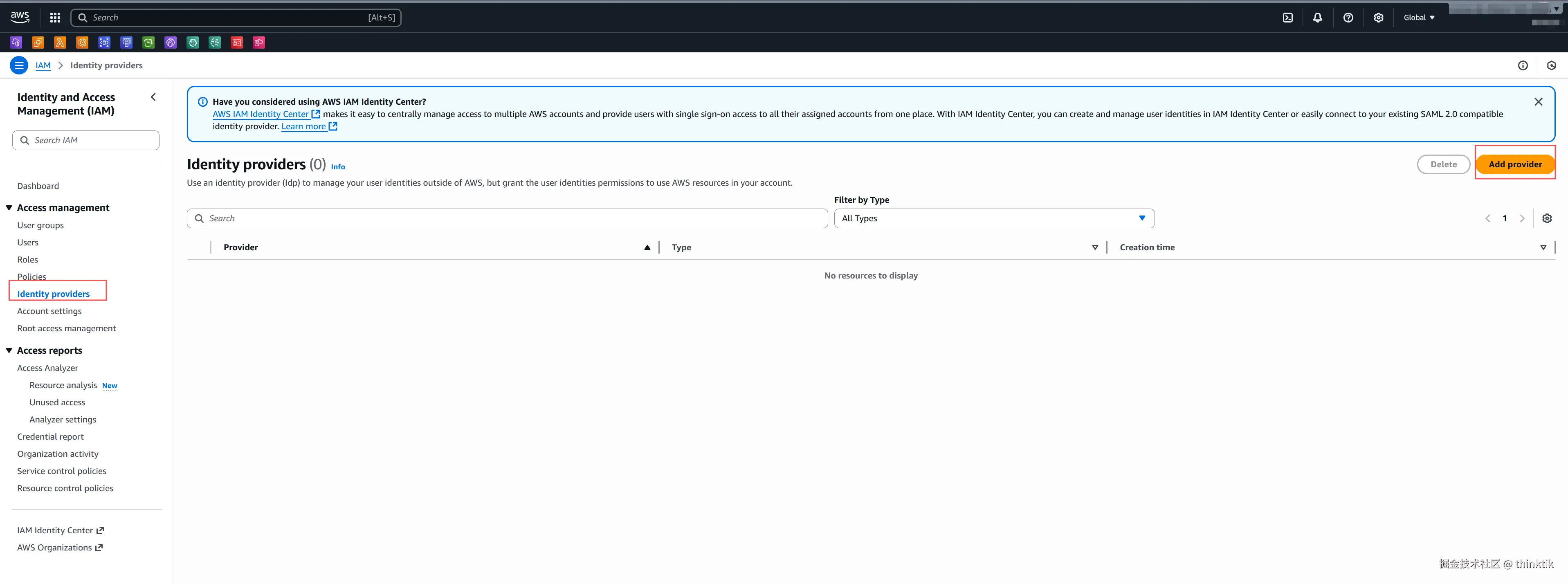

然后在AWS IAM控制台，进行添加

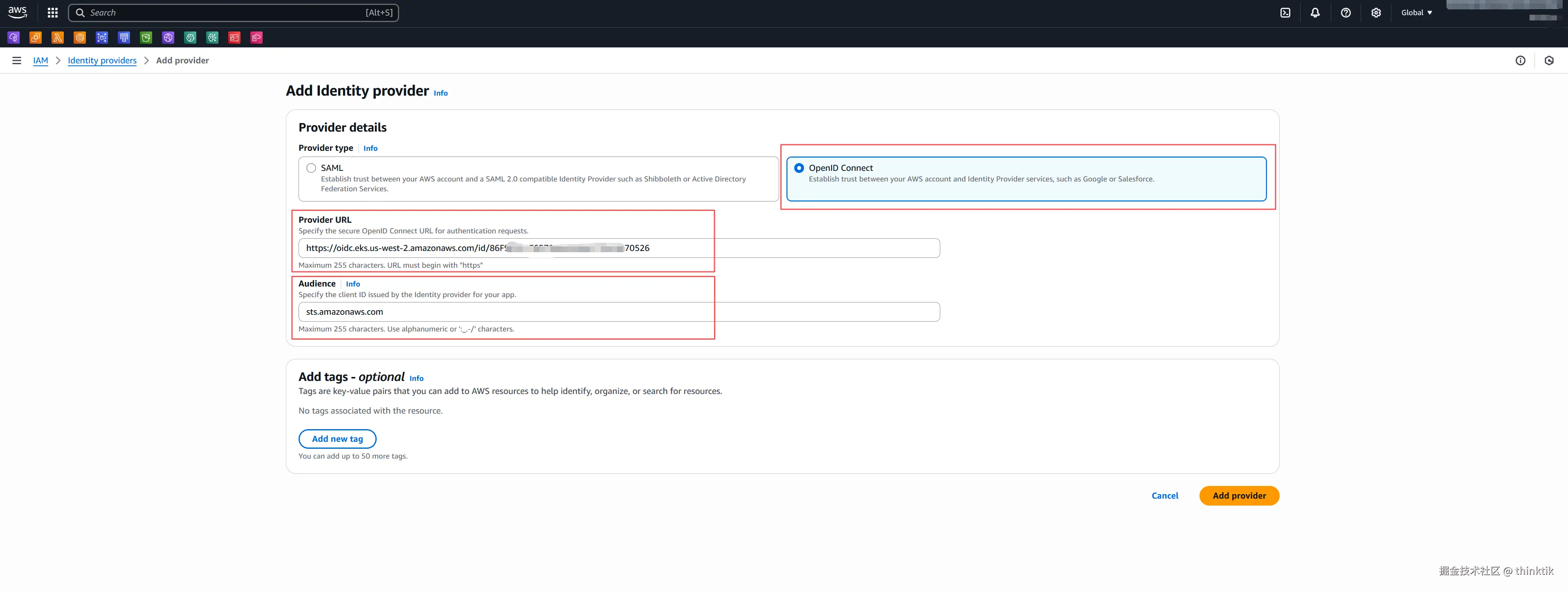

填入复制的OpenID Connect provider URL并在Audience里面填充sts.amazonaws.com

安装karpenter

根据Migrating from Cluster Autoscaler

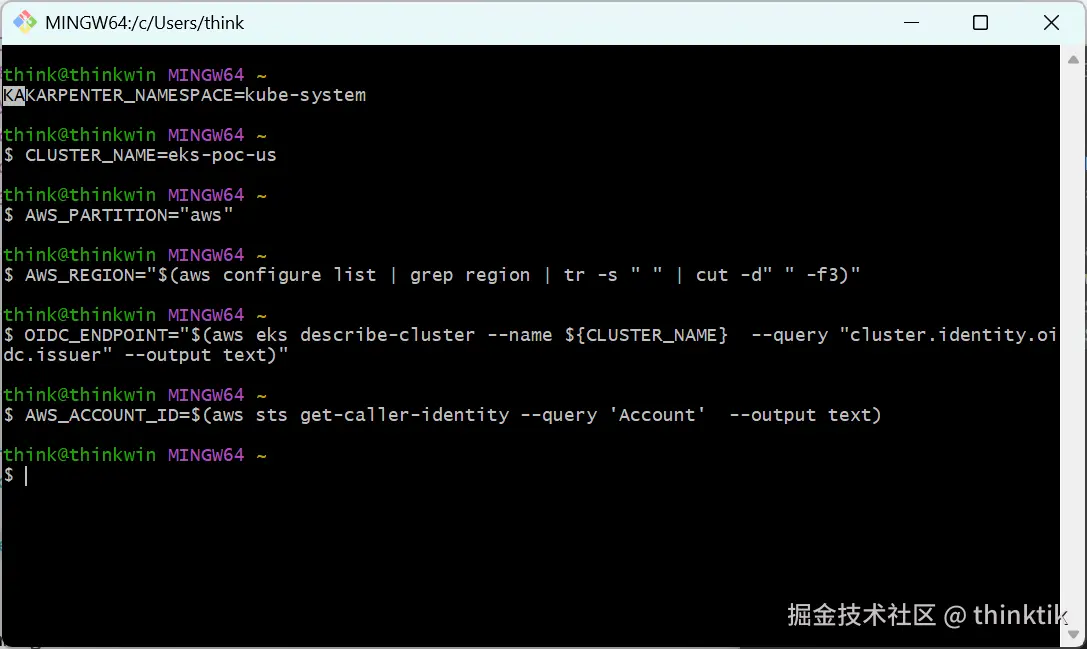

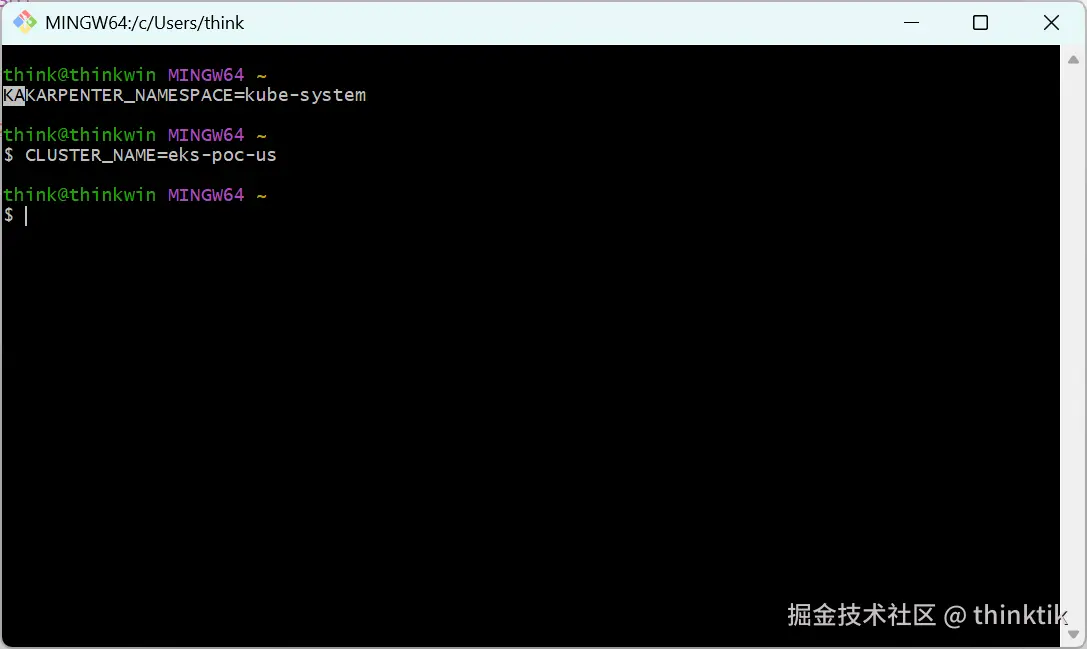

设置环境变量

KARPENTER_NAMESPACE=kube-system
# 集群名称
CLUSTER_NAME=<your cluster name>

建议在bash环境执行（windows可以安装mingw）

# 海外区域填aws,国内填aws-cn
AWS_PARTITION="aws"
# 获取AWS region
AWS_REGION="$(aws configure list | grep region | tr -s " " | cut -d" " -f3)"
# 获取OIDC ENDPOINT
OIDC_ENDPOINT="$(aws eks describe-cluster --name ${CLUSTER_NAME}  --query "cluster.identity.oidc.issuer" --output text)"
# 获取aws account id
AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query 'Account'  --output text)
K8S_VERSION=$(aws eks describe-cluster --name "${CLUSTER_NAME}" --query "cluster.version" --output text)
ALIAS_VERSION="$(aws ssm get-parameter --name "/aws/service/eks/optimized-ami/${K8S_VERSION}/amazon-linux-2023/x86_64/standard/recommended/image_id" --query Parameter.Value | xargs aws ec2 describe-images --query 'Images[0].Name' --image-ids | sed -r 's/^.*(v[[:digit:]]+).*$/\1/')"

建议在bash环境执行（windows可以安装mingw）

创建KarpenterNodeRole IAM role

为karpenter将要管理的节点创建KarpenterNodeRole-xxx role

echo '{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Service": "ec2.amazonaws.com"
            },
            "Action": "sts:AssumeRole"
        }
    ]
}' > node-trust-policy.json


aws iam create-role --role-name "KarpenterNodeRole-${CLUSTER_NAME}" \
    --assume-role-policy-document file://node-trust-policy.json

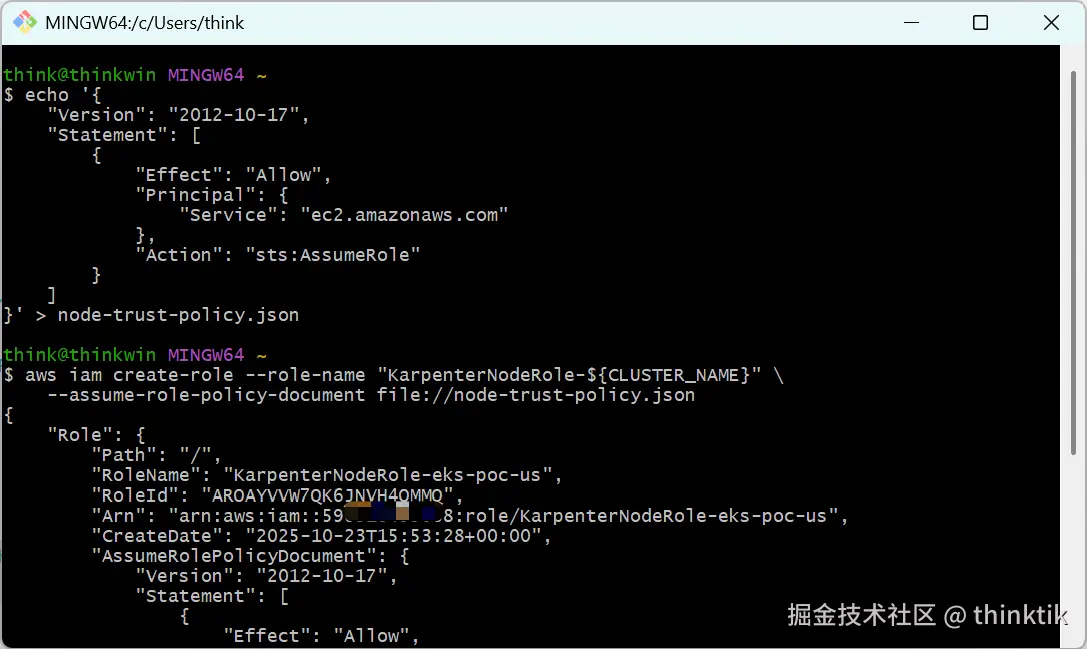

效果如下：

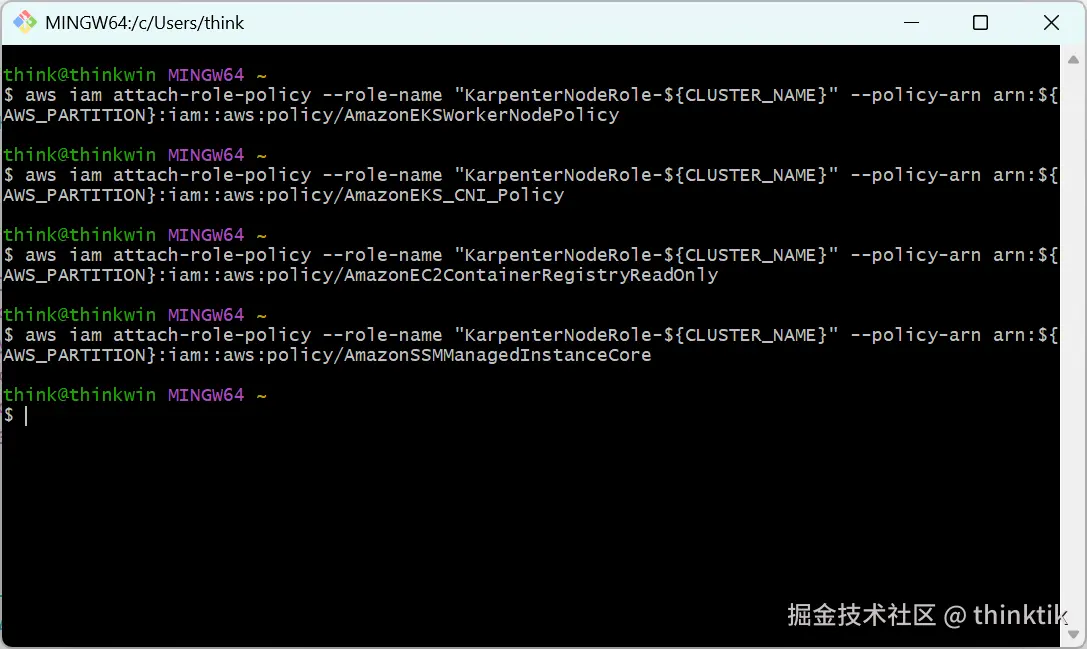

给创建的role附加policy:

aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" --policy-arn arn:${AWS_PARTITION}:iam::aws:policy/AmazonEKSWorkerNodePolicy
aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" --policy-arn arn:${AWS_PARTITION}:iam::aws:policy/AmazonEKS_CNI_Policy
aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" --policy-arn arn:${AWS_PARTITION}:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly
aws iam attach-role-policy --role-name "KarpenterNodeRole-${CLUSTER_NAME}" --policy-arn arn:${AWS_PARTITION}:iam::aws:policy/AmazonSSMManagedInstanceCore

效果如下：

创建KarpenterControllerRole IAM Role

KarpenterControllerRole IAM Role 主要是给Karpenter 控制器自己用

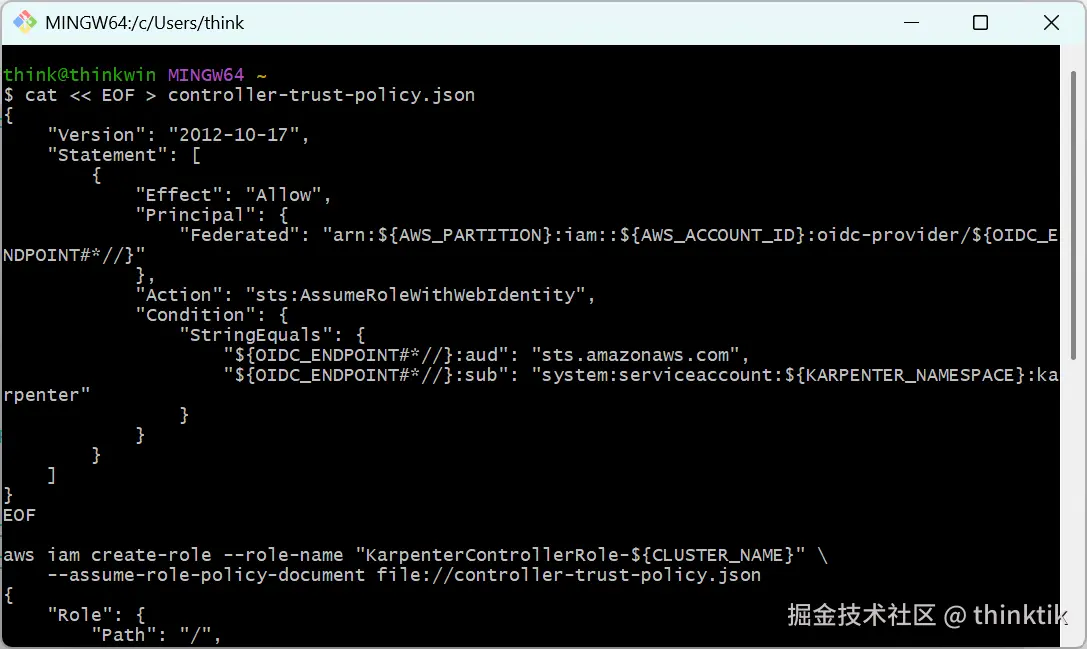

cat << EOF > controller-trust-policy.json
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:oidc-provider/${OIDC_ENDPOINT#*//}"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "${OIDC_ENDPOINT#*//}:aud": "sts.amazonaws.com",
                    "${OIDC_ENDPOINT#*//}:sub": "system:serviceaccount:${KARPENTER_NAMESPACE}:karpenter"
                }
            }
        }
    ]
}
EOF

aws iam create-role --role-name "KarpenterControllerRole-${CLUSTER_NAME}" \
    --assume-role-policy-document file://controller-trust-policy.json

为KarpenterControllerRole附加policy

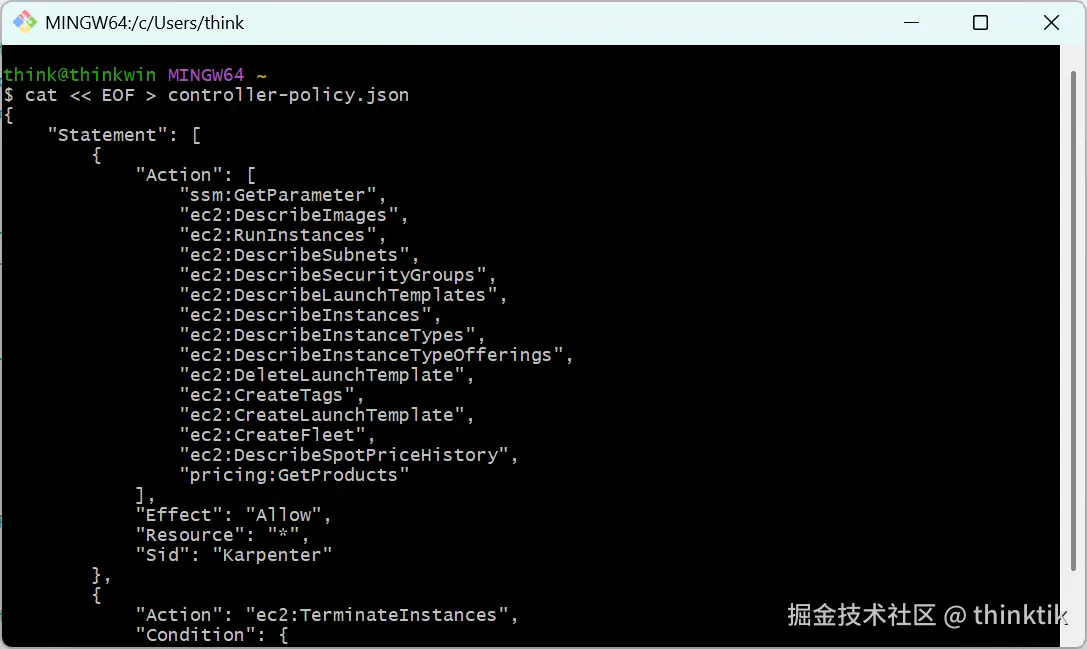

cat << EOF > controller-policy.json
{
    "Statement": [
        {
            "Action": [
                "ssm:GetParameter",
                "ec2:DescribeImages",
                "ec2:RunInstances",
                "ec2:DescribeSubnets",
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeLaunchTemplates",
                "ec2:DescribeInstances",
                "ec2:DescribeInstanceTypes",
                "ec2:DescribeInstanceTypeOfferings",
                "ec2:DeleteLaunchTemplate",
                "ec2:CreateTags",
                "ec2:CreateLaunchTemplate",
                "ec2:CreateFleet",
                "ec2:DescribeSpotPriceHistory",
                "pricing:GetProducts"
            ],
            "Effect": "Allow",
            "Resource": "*",
            "Sid": "Karpenter"
        },
        {
            "Action": "ec2:TerminateInstances",
            "Condition": {
                "StringLike": {
                    "ec2:ResourceTag/karpenter.sh/nodepool": "*"
                }
            },
            "Effect": "Allow",
            "Resource": "*",
            "Sid": "ConditionalEC2Termination"
        },
        {
            "Effect": "Allow",
            "Action": "iam:PassRole",
            "Resource": "arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterNodeRole-${CLUSTER_NAME}",
            "Sid": "PassNodeIAMRole"
        },
        {
            "Effect": "Allow",
            "Action": "eks:DescribeCluster",
            "Resource": "arn:${AWS_PARTITION}:eks:${AWS_REGION}:${AWS_ACCOUNT_ID}:cluster/${CLUSTER_NAME}",
            "Sid": "EKSClusterEndpointLookup"
        },
        {
            "Sid": "AllowScopedInstanceProfileCreationActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": [
                "iam:CreateInstanceProfile"
            ],
            "Condition": {
                "StringEquals": {
                    "aws:RequestTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                    "aws:RequestTag/topology.kubernetes.io/region": "${AWS_REGION}"
                },
                "StringLike": {
                    "aws:RequestTag/karpenter.k8s.aws/ec2nodeclass": "*"
                }
            }
        },
        {
            "Sid": "AllowScopedInstanceProfileTagActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": [
                "iam:TagInstanceProfile"
            ],
            "Condition": {
                "StringEquals": {
                    "aws:ResourceTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                    "aws:ResourceTag/topology.kubernetes.io/region": "${AWS_REGION}",
                    "aws:RequestTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                    "aws:RequestTag/topology.kubernetes.io/region": "${AWS_REGION}"
                },
                "StringLike": {
                    "aws:ResourceTag/karpenter.k8s.aws/ec2nodeclass": "*",
                    "aws:RequestTag/karpenter.k8s.aws/ec2nodeclass": "*"
                }
            }
        },
        {
            "Sid": "AllowScopedInstanceProfileActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": [
                "iam:AddRoleToInstanceProfile",
                "iam:RemoveRoleFromInstanceProfile",
                "iam:DeleteInstanceProfile"
            ],
            "Condition": {
                "StringEquals": {
                    "aws:ResourceTag/kubernetes.io/cluster/${CLUSTER_NAME}": "owned",
                    "aws:ResourceTag/topology.kubernetes.io/region": "${AWS_REGION}"
                },
                "StringLike": {
                    "aws:ResourceTag/karpenter.k8s.aws/ec2nodeclass": "*"
                }
            }
        },
        {
            "Sid": "AllowInstanceProfileReadActions",
            "Effect": "Allow",
            "Resource": "*",
            "Action": "iam:GetInstanceProfile"
        },
        {
            "Sid": "AllowUnscopedInstanceProfileListAction",
            "Effect": "Allow",
            "Resource": "*",
            "Action": "iam:ListInstanceProfiles"
        }
    ],
    "Version": "2012-10-17"
}
EOF

aws iam put-role-policy --role-name "KarpenterControllerRole-${CLUSTER_NAME}" \
    --policy-name "KarpenterControllerPolicy-${CLUSTER_NAME}" \
    --policy-document file://controller-policy.json

效果如下：

为karpenter管理的node所在的子网和安全组添加tag

为现有的nodegroup所在的子网打标签

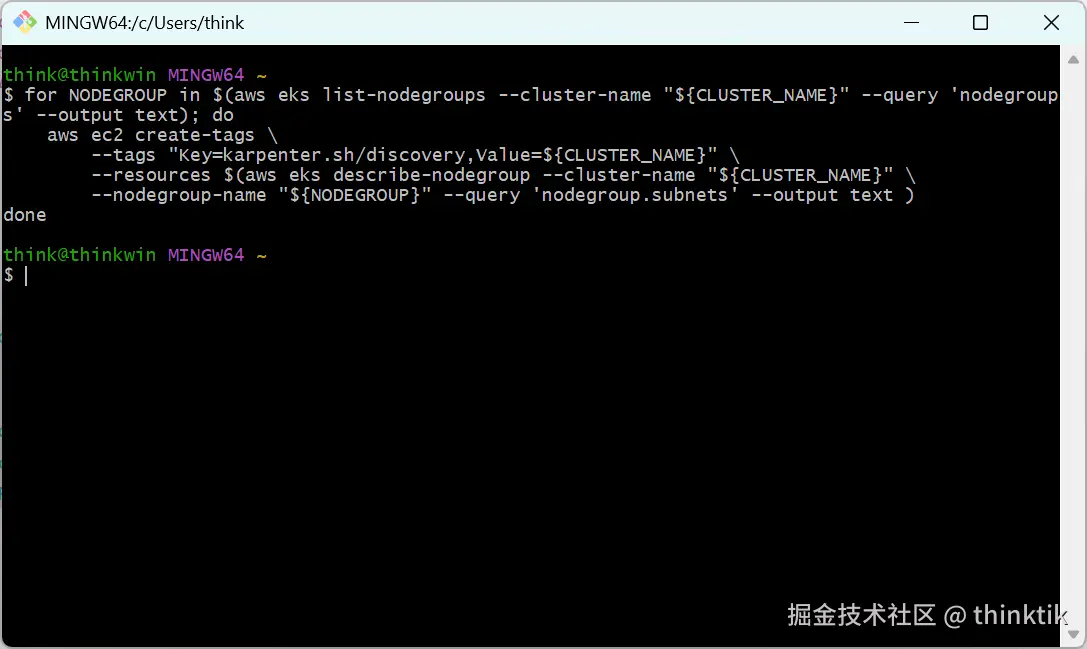

# 为现有的nodegroup所在的子网打标签
for NODEGROUP in $(aws eks list-nodegroups --cluster-name "${CLUSTER_NAME}" --query 'nodegroups' --output text); do
    aws ec2 create-tags \
        --tags "Key=karpenter.sh/discovery,Value=${CLUSTER_NAME}" \
        --resources $(aws eks describe-nodegroup --cluster-name "${CLUSTER_NAME}" \
        --nodegroup-name "${NODEGROUP}" --query 'nodegroup.subnets' --output text )
done

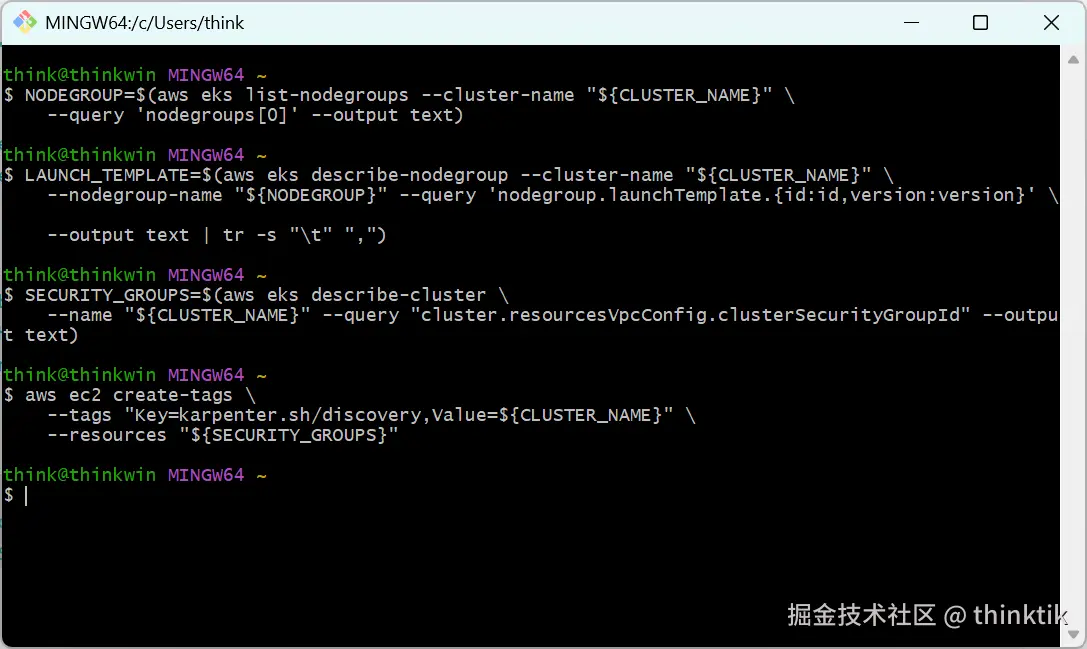

为现有的node group所在的安全组打标签

# 查询nodegroup
NODEGROUP=$(aws eks list-nodegroups --cluster-name "${CLUSTER_NAME}" \
    --query 'nodegroups[0]' --output text)
# 查询aws ec2 launch template
LAUNCH_TEMPLATE=$(aws eks describe-nodegroup --cluster-name "${CLUSTER_NAME}" \
    --nodegroup-name "${NODEGROUP}" --query 'nodegroup.launchTemplate.{id:id,version:version}' \
    --output text | tr -s "\t" ",")

# If your EKS setup is configured to use only Cluster security group, then please execute -
SECURITY_GROUPS=$(aws eks describe-cluster \
    --name "${CLUSTER_NAME}" --query "cluster.resourcesVpcConfig.clusterSecurityGroupId" --output text)

# If your setup uses the security groups in the Launch template of a managed node group, then :
SECURITY_GROUPS="$(aws ec2 describe-launch-template-versions \
    --launch-template-id "${LAUNCH_TEMPLATE%,*}" --versions "${LAUNCH_TEMPLATE#*,}" \
    --query 'LaunchTemplateVersions[0].LaunchTemplateData.[NetworkInterfaces[0].Groups||SecurityGroupIds]' \
    --output text)"
# 为安全组打tag
aws ec2 create-tags \
    --tags "Key=karpenter.sh/discovery,Value=${CLUSTER_NAME}" \
    --resources "${SECURITY_GROUPS}"

效果如下：

编辑`aws-auth`

先设置kube凭证，让本地电脑可以控制EKS集群，用你的实际的值替换<region-code>和<your-eks-cluster-name>

aws eks update-kubeconfig --region <region-code> --name <your-eks-cluster-name>

开始编辑

kubectl edit configmap aws-auth -n kube-system

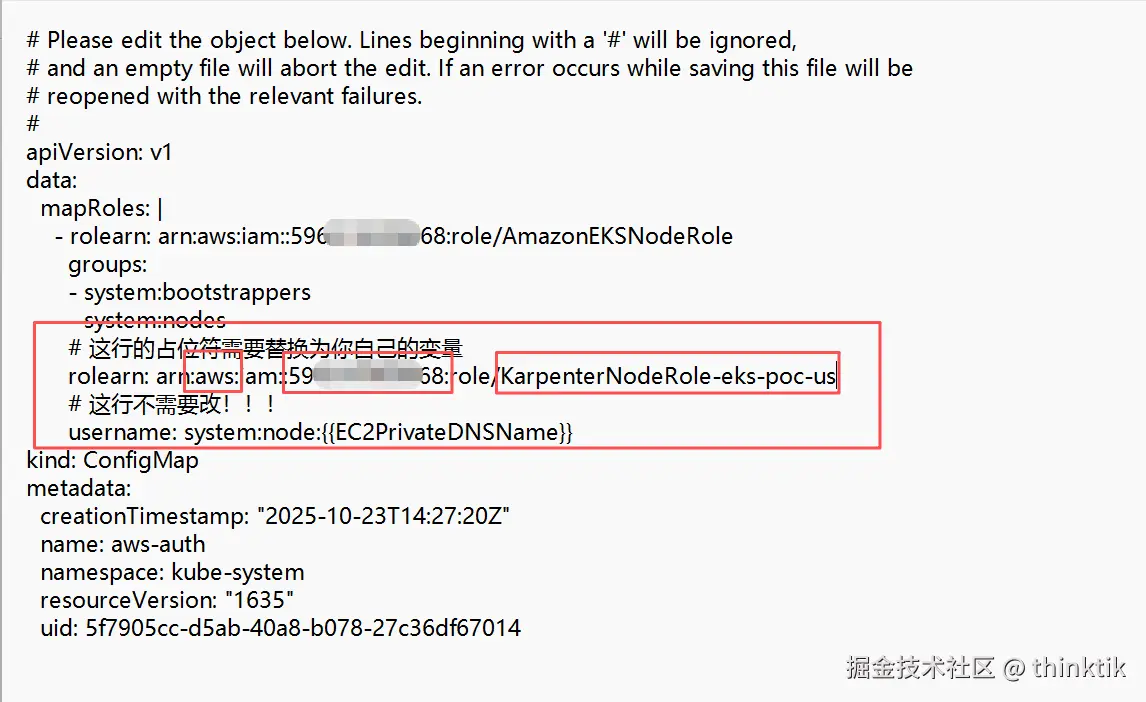

按照下列模板补充进去，其中AWS_PARTITION、AWS_ACCOUNT_ID、CLUSTER_NAME是变量，填你自己的实际的值

- groups:
  - system:bootstrappers
  - system:nodes
  ## If you intend to run Windows workloads, the kube-proxy group should be specified.
  # For more information, see https://github.com/aws/karpenter/issues/5099.
  # - eks:kube-proxy-windows
  # 这行的占位符需要替换为你自己的变量
  rolearn: arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterNodeRole-${CLUSTER_NAME}
  # 这行不需要改！！！
  username: system:node:{{EC2PrivateDNSName}}

这里注意要将AWS_PARTITION、AWS_ACCOUNT_ID、CLUSTER_NAME替换为你账户实际的值!!!,否则后续启动的node无权限加入EKS.

安装karpenter 1.8.1

设置karpenter版本为1.8.1,一般选择最新的就好.

export KARPENTER_VERSION="1.8.1"

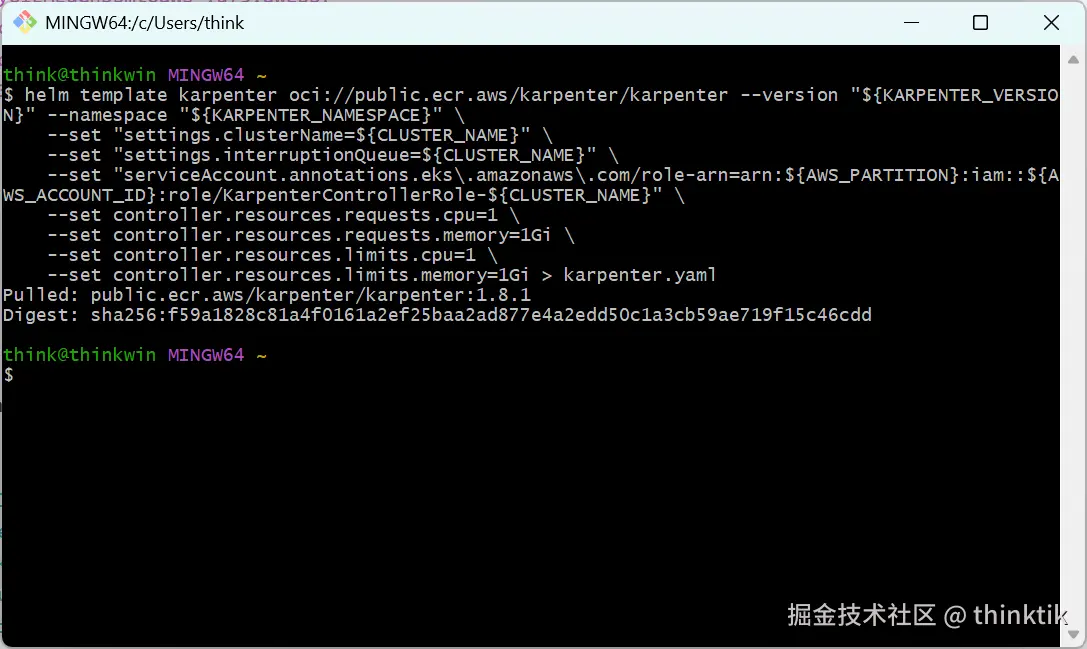

用helm创建Karpenter deployment yaml模板

helm template karpenter oci://public.ecr.aws/karpenter/karpenter --version "${KARPENTER_VERSION}" --namespace "${KARPENTER_NAMESPACE}" \
    --set "settings.clusterName=${CLUSTER_NAME}" \
    --set "settings.interruptionQueue=${CLUSTER_NAME}" \
    --set "serviceAccount.annotations.eks\.amazonaws\.com/role-arn=arn:${AWS_PARTITION}:iam::${AWS_ACCOUNT_ID}:role/KarpenterControllerRole-${CLUSTER_NAME}" \
    --set controller.resources.requests.cpu=1 \
    --set controller.resources.requests.memory=1Gi \
    --set controller.resources.limits.cpu=1 \
    --set controller.resources.limits.memory=1Gi > karpenter.yaml

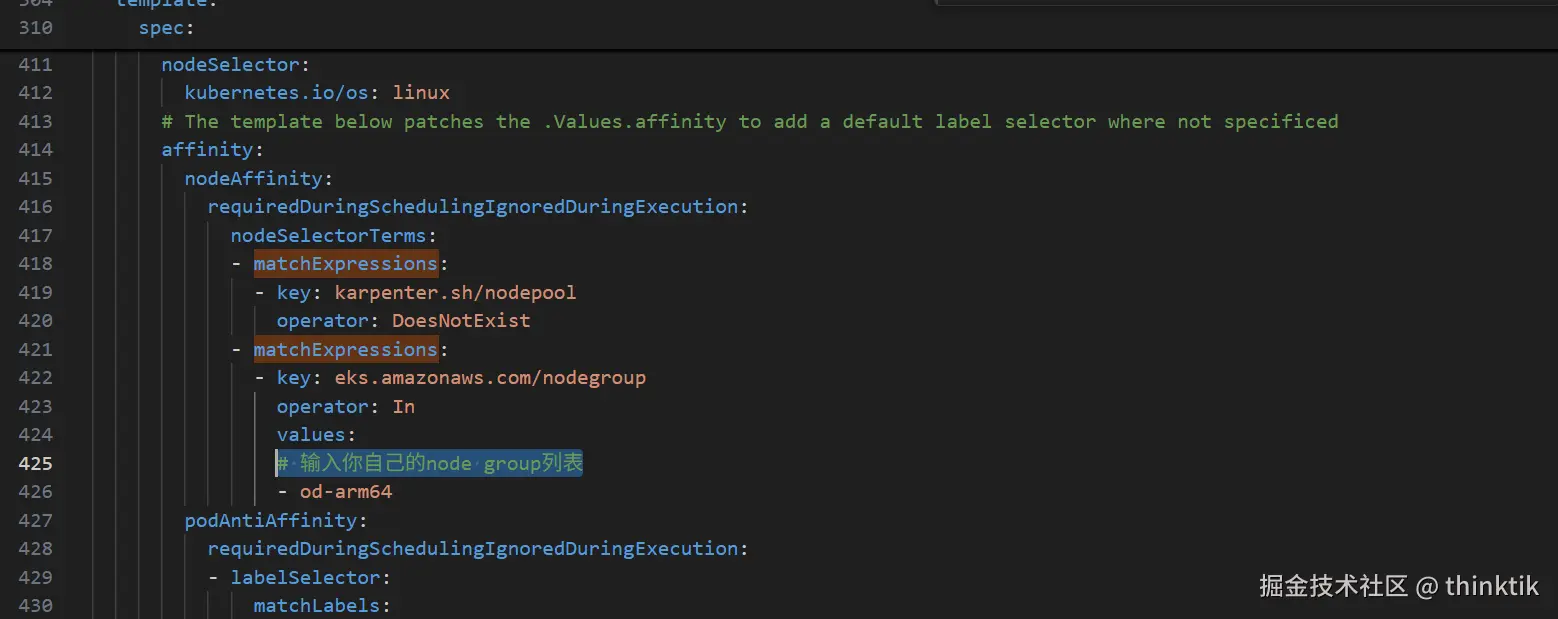

修改下载下来的karpenter.yaml,补充我红色方框的内容，并且注意将value改为你的EKS的node group名称。

  - matchExpressions:
    - key: eks.amazonaws.com/nodegroup
      operator: In
      values:
      # 输入你自己的node group列表
      - ${NODEGROUP}

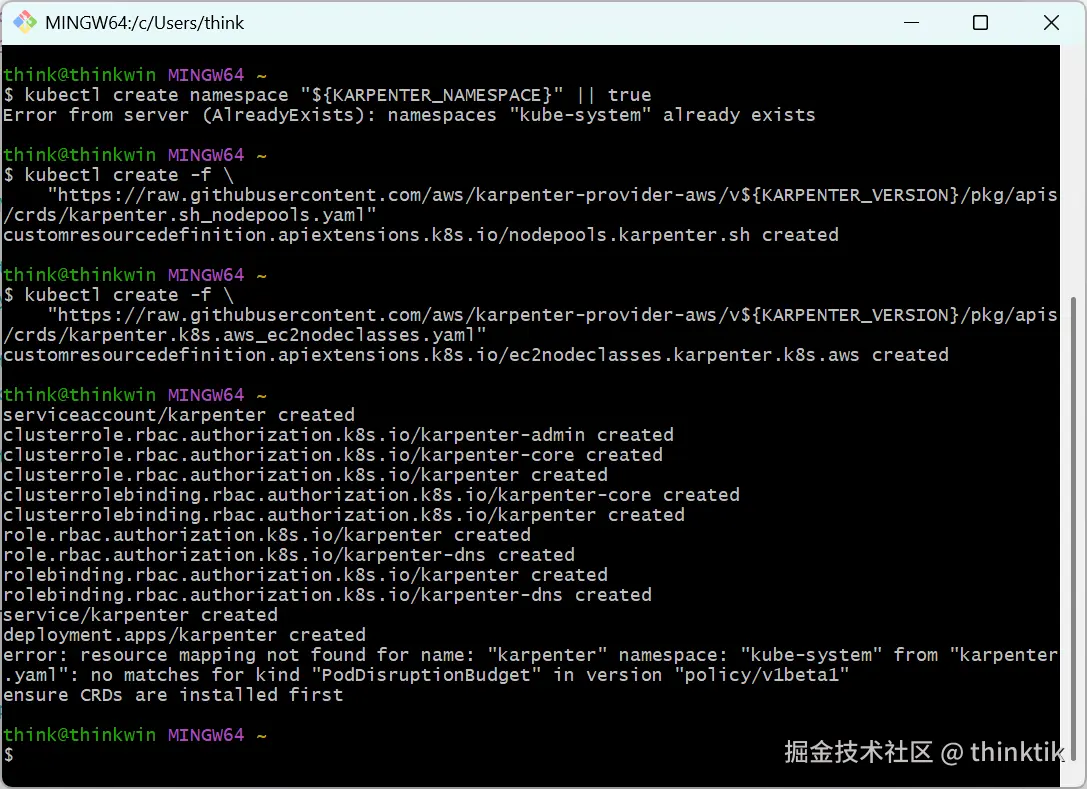

正式部署karpenter

kubectl create namespace "${KARPENTER_NAMESPACE}" || true
kubectl create -f \
    "https://raw.githubusercontent.com/aws/karpenter-provider-aws/v${KARPENTER_VERSION}/pkg/apis/crds/karpenter.sh_nodepools.yaml"
kubectl create -f \
    "https://raw.githubusercontent.com/aws/karpenter-provider-aws/v${KARPENTER_VERSION}/pkg/apis/crds/karpenter.k8s.aws_ec2nodeclasses.yaml"
kubectl create -f \
    "https://raw.githubusercontent.com/aws/karpenter-provider-aws/v${KARPENTER_VERSION}/pkg/apis/crds/karpenter.sh_nodeclaims.yaml"
kubectl apply -f karpenter.yaml

创建一个默认的karpenter provisioner,注意要将${CLUSTER_NAME}替换为你自己的EKS集群名称

cat <<EOF | envsubst | kubectl apply -f -
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default
spec:
  template:
    spec:
      requirements:
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: kubernetes.io/os
          operator: In
          values: ["linux"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["spot"]
        - key: karpenter.k8s.aws/instance-category
          operator: In
          values: ["c", "m", "r"]
        - key: karpenter.k8s.aws/instance-generation
          operator: Gt
          values: ["2"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default
      expireAfter: 720h # 30 * 24h = 720h
  limits:
    cpu: 1000
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 1m
---
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default
spec:
  role: "KarpenterNodeRole-${CLUSTER_NAME}" # replace with your cluster name
  amiSelectorTerms:
    - alias: "al2023@latest"
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: "${CLUSTER_NAME}" # replace with your cluster name
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: "${CLUSTER_NAME}" # replace with your cluster name
EOF

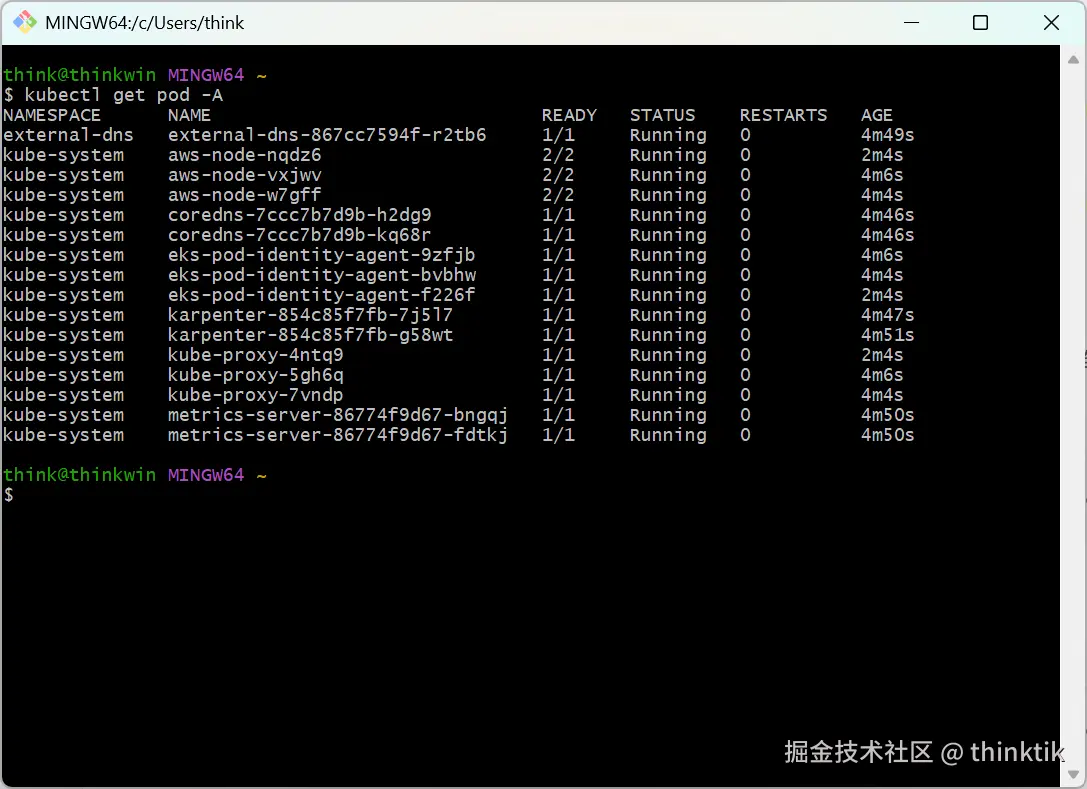

到这里我们按照完成了，可以执行下面的命令查看日志，一般没有错误信息就行

kubectl logs -f -n "${KARPENTER_NAMESPACE}" -l app.kubernetes.io/name=karpenter -c controller

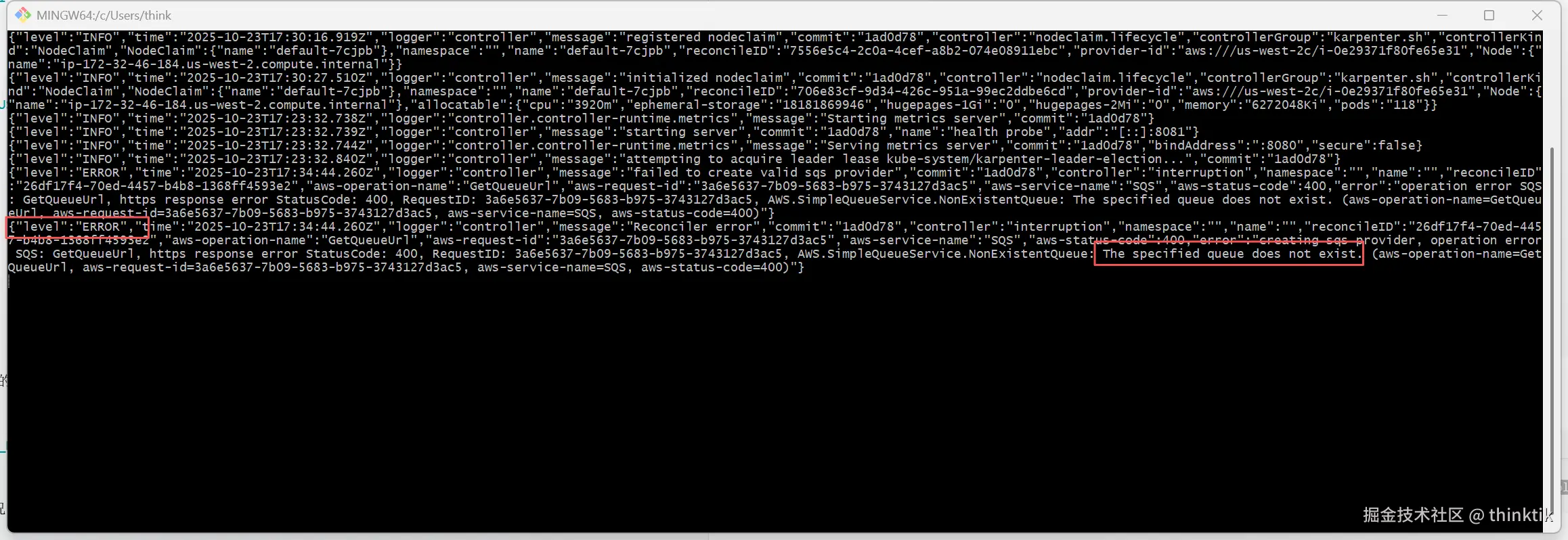

如果发现类似The specified queue does not exist的错误，其实没大的关系，这个是因为我们还没设置SQS来配合karpenter实现EC2 spot机型的中断回收

也可以从查看karpenter的pod运行情况

kubectl logs -f -n "${KARPENTER_NAMESPACE}" -l app.kubernetes.io/name=karpenter -c controller

测试karpenter

我们可以部署下面的nginx Deployment来触发karpenter对EC2节点的自动伸缩,我故意设置了副本数为100，来迫使EKS中的karpenter扩展更多的EC2

apiVersion: apps/v1
kind: Deployment
metadata:
  name: eks-sample-linux-deployment
  namespace: default
  labels:
    app: eks-sample-linux-app
spec:
  replicas: 100
  selector:
    matchLabels:
      app: eks-sample-linux-app
  template:
    metadata:
      labels:
        app: eks-sample-linux-app
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: kubernetes.io/arch
                operator: In
                values:
                - amd64
                - arm64
      containers:
      - name: nginx
        image: public.ecr.aws/nginx/nginx:1.23
        ports:
        - name: http
          containerPort: 80
        imagePullPolicy: IfNotPresent
      nodeSelector:
        kubernetes.io/os: linux

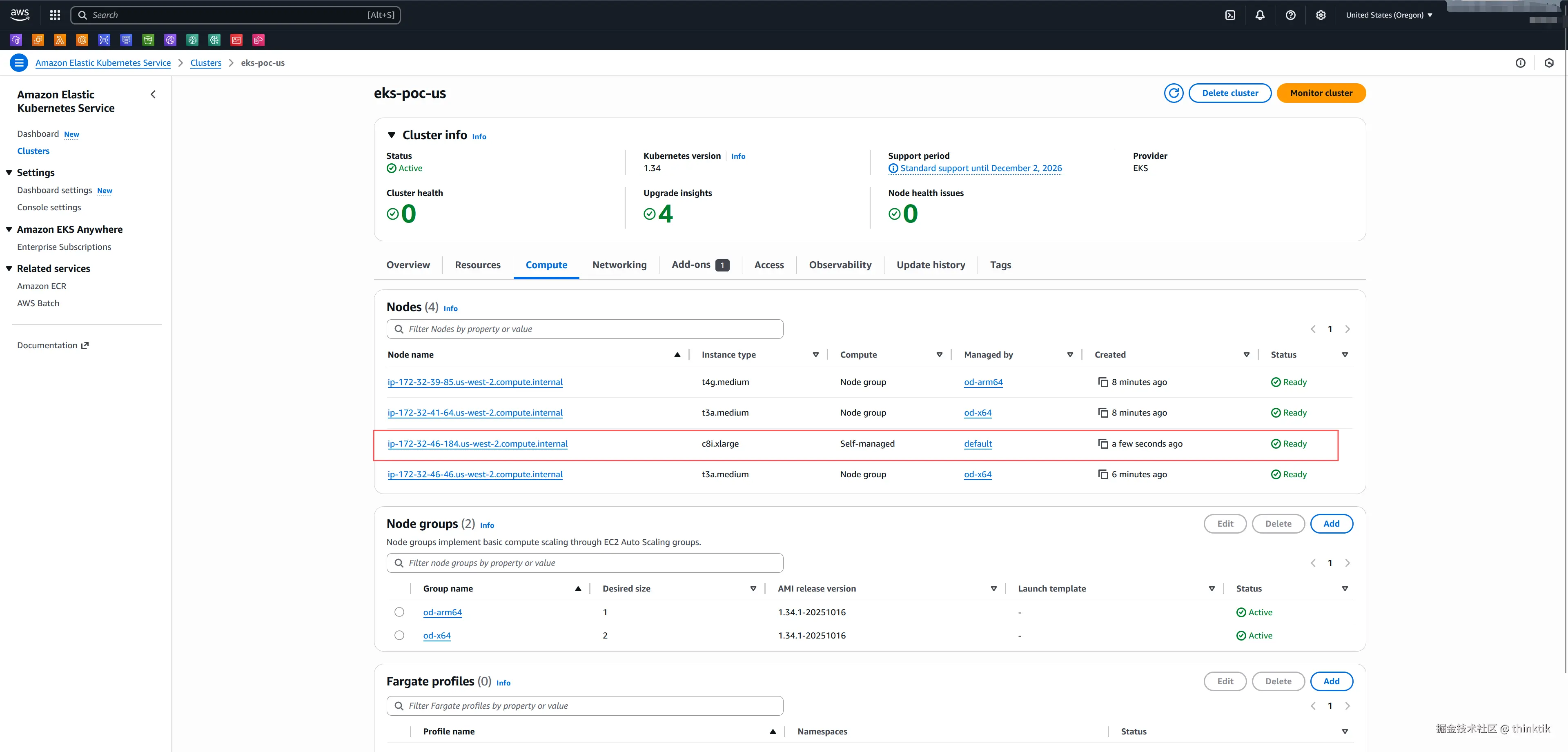

效果如下，karpenter发现底层EC2资源不够，马上申请了一个EC2满足大量的nginx的资源需求

当我们移出这个deployment后，karpenter会自动的在一端实际后销毁EC2. 这里我们还可以模拟了实现了EKS根据压力或者资源需求自动扩展/收缩EC2资源的功能，结合HPA可以做到了pod和EC2的弹性,关于EKS中的HPA的测试demo可以看Scale pod deployments with Horizontal Pod Autoscaler

AWS EKS 计算资源自动扩缩之Karpenter[AWS 海外区]

环境

IAM OIDC provider设置

安装karpenter

设置环境变量

创建KarpenterNodeRole IAM role

创建KarpenterControllerRole IAM Role

为karpenter管理的node所在的子网和安全组添加tag

编辑aws-auth

安装karpenter 1.8.1

编辑`aws-auth`
