cilium AIO 环境信息记录

bobz965
64 阅读22分钟

1. 环境

k8s



root@cili-control:~# k get node -A -o wide
NAME           STATUS   ROLES                  AGE   VERSION   INTERNAL-IP   EXTERNAL-IP   OS-IMAGE             KERNEL-VERSION       CONTAINER-RUNTIME
cili-control   Ready    control-plane,worker   3h    v1.33.1   11.0.1.132    <none>        Ubuntu 22.04.5 LTS   5.15.0-160-generic   containerd://1.7.13
root@cili-control:~# k get po -A -o wide
NAMESPACE     NAME                                   READY   STATUS    RESTARTS   AGE   IP              NODE           NOMINATED NODE   READINESS GATES
kube-system   cilium-k9xj8                           1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   cilium-operator-7c6b45754-jbqbw        1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   coredns-58f4c86d4d-4qxgh               1/1     Running   0          3h    10.233.64.53    cili-control   <none>           <none>
kube-system   coredns-58f4c86d4d-sqfbb               1/1     Running   0          3h    10.233.64.232   cili-control   <none>           <none>
kube-system   kube-apiserver-cili-control            1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   kube-controller-manager-cili-control   1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   kube-multus-ds-rhj2x                   1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   kube-proxy-888gs                       1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   kube-scheduler-cili-control            1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   nodelocaldns-84l6g                     1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>

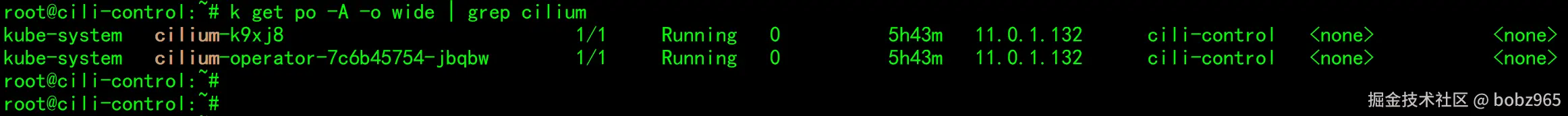

root@cili-control:~# k get po -A -o wide | grep cilium
kube-system   cilium-k9xj8                           1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>
kube-system   cilium-operator-7c6b45754-jbqbw        1/1     Running   0          3h    11.0.1.132      cili-control   <none>           <none>



root@cili-control:~# k get crd -A -o wide | grep cilium
ciliumcidrgroups.cilium.io                       2025-10-19T06:43:41Z
ciliumclusterwidenetworkpolicies.cilium.io       2025-10-19T06:43:41Z
ciliumendpoints.cilium.io                        2025-10-19T06:43:41Z
ciliumexternalworkloads.cilium.io                2025-10-19T06:43:41Z
ciliumidentities.cilium.io                       2025-10-19T06:43:41Z
ciliuml2announcementpolicies.cilium.io           2025-10-19T06:43:41Z
ciliumloadbalancerippools.cilium.io              2025-10-19T06:43:41Z
ciliumnetworkpolicies.cilium.io                  2025-10-19T06:43:41Z
ciliumnodeconfigs.cilium.io                      2025-10-19T06:43:41Z
ciliumnodes.cilium.io                            2025-10-19T06:43:41Z
ciliumpodippools.cilium.io                       2025-10-19T06:43:41Z

2. 网络


root@cili-control:~# route -n
Kernel IP routing table
Destination     Gateway         Genmask         Flags Metric Ref    Use Iface
0.0.0.0         11.0.1.2        0.0.0.0         UG    100    0        0 ens33
10.233.64.0     10.233.64.147   255.255.255.0   UG    0      0        0 cilium_host
10.233.64.147   0.0.0.0         255.255.255.255 UH    0      0        0 cilium_host
11.0.1.0        0.0.0.0         255.255.255.0   U     100    0        0 ens33
11.0.1.2        0.0.0.0         255.255.255.255 UH    100    0        0 ens33
root@cili-control:~#
root@cili-control:~# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:c6:51:a4 brd ff:ff:ff:ff:ff:ff
    altname enp2s1
    inet 11.0.1.132/24 metric 100 brd 11.0.1.255 scope global dynamic ens33
       valid_lft 1532sec preferred_lft 1532sec
    inet6 fe80::20c:29ff:fec6:51a4/64 scope link
       valid_lft forever preferred_lft forever
3: nodelocaldns: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default
    link/ether 56:3c:49:e5:6c:d2 brd ff:ff:ff:ff:ff:ff
    inet 169.254.25.10/32 scope global nodelocaldns
       valid_lft forever preferred_lft forever
4: kube-ipvs0: <BROADCAST,NOARP> mtu 1500 qdisc noop state DOWN group default
    link/ether ca:7c:9f:83:93:25 brd ff:ff:ff:ff:ff:ff
    inet 10.233.0.1/32 scope global kube-ipvs0
       valid_lft forever preferred_lft forever
    inet 10.233.0.3/32 scope global kube-ipvs0
       valid_lft forever preferred_lft forever
    inet 10.233.14.40/32 scope global kube-ipvs0
       valid_lft forever preferred_lft forever

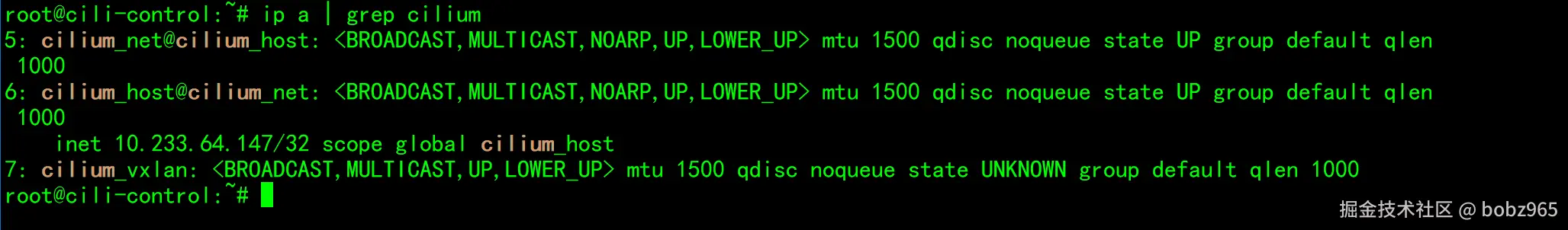

5: cilium_net@cilium_host: <BROADCAST,MULTICAST,NOARP,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 4e:ba:a2:c9:52:fd brd ff:ff:ff:ff:ff:ff
    inet6 fe80::4cba:a2ff:fec9:52fd/64 scope link
       valid_lft forever preferred_lft forever
6: cilium_host@cilium_net: <BROADCAST,MULTICAST,NOARP,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether d2:77:69:cb:86:2b brd ff:ff:ff:ff:ff:ff
    inet 10.233.64.147/32 scope global cilium_host
       valid_lft forever preferred_lft forever
    inet6 fe80::d077:69ff:fecb:862b/64 scope link
       valid_lft forever preferred_lft forever
7: cilium_vxlan: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UNKNOWN group default qlen 1000
    link/ether ca:b6:50:d1:22:92 brd ff:ff:ff:ff:ff:ff
    inet6 fe80::c8b6:50ff:fed1:2292/64 scope link
       valid_lft forever preferred_lft forever
9: lxc_health@if8: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 86:78:f4:06:cb:12 brd ff:ff:ff:ff:ff:ff link-netnsid 0
    inet6 fe80::8478:f4ff:fe06:cb12/64 scope link
       valid_lft forever preferred_lft forever
11: lxc507234951551@if10: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 4a:85:e2:59:de:ed brd ff:ff:ff:ff:ff:ff link-netns cni-2ae79087-e613-51fb-9a26-97fae4e1a173
    inet6 fe80::4885:e2ff:fe59:deed/64 scope link
       valid_lft forever preferred_lft forever
13: lxc3b598c0e6778@if12: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
    link/ether 76:60:e9:61:f1:20 brd ff:ff:ff:ff:ff:ff link-netns cni-83cccf1c-69c1-ec62-9acb-d7d5a98b4737
    inet6 fe80::7460:e9ff:fe61:f120/64 scope link
       valid_lft forever preferred_lft forever

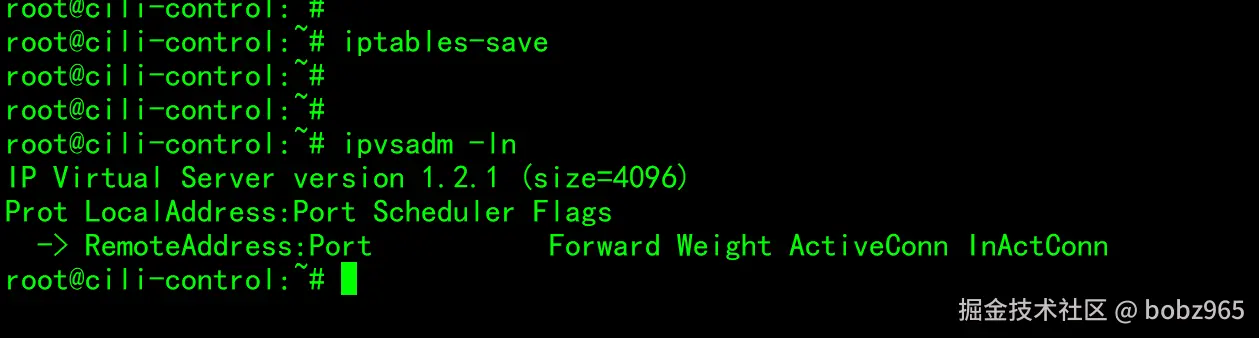

cilium 完全不使用 iptables 和 ipvs


Cilium 路由的作用



Cilium 是基于 eBPF 的容器网络解决方案（常用于 Kubernetes），其路由的核心作用是实现 Pod 网络、主机网络与外部网络之间的流量转发，并为 eBPF 程序提供流量管控（如网络策略、负载均衡）的入口。

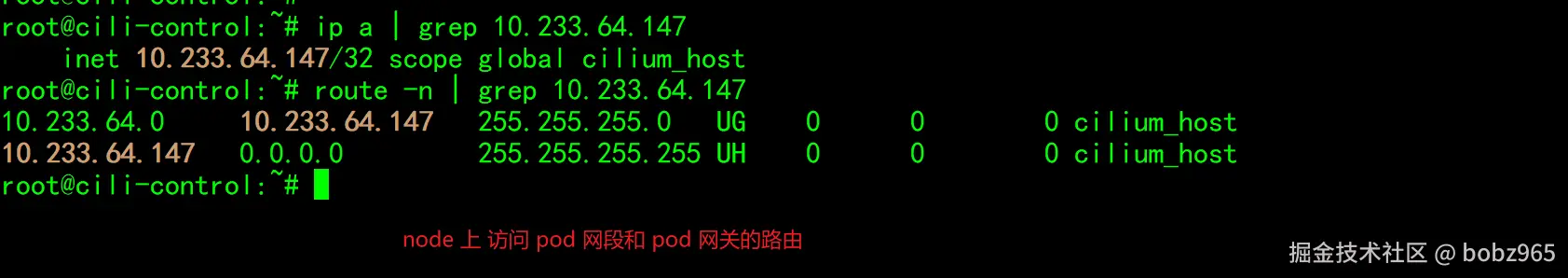

  • 通过宿主机上的 cilium_host 接口： 实现 host <--> pod,

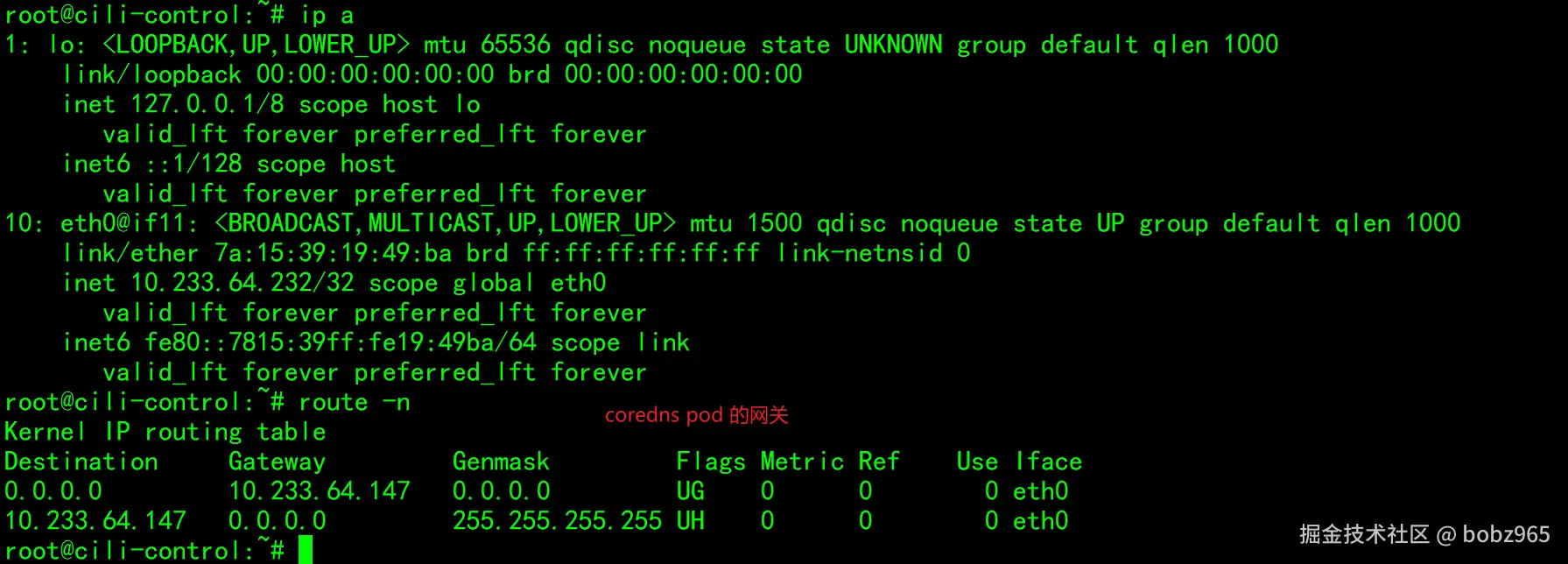

  • pod 网关就是该接口 ip，所以 pod （跨网段）出入的流量都会经过该接口

从提供的route -n输出来看，关键 Cilium 路由如下：

  1. 10.233.64.0/24 网段路由：目标网段为节点上的 Pod 网络（Kubernetes Pod 通常分配在独立网段），网关指向10.233.64.147（cilium_host 接口的 IP），接口为 cilium_host。

    • 作用：所有发往该 Pod 网段的流量，会被引导至cilium_host接口，由 Cilium 的 eBPF 程序处理（如检查网络策略、转发到目标 Pod）。

  2. 10.233.64.147/32主机路由：目标为cilium_host接口自身的 IP，网关为0.0.0.0（直连），接口为cilium_host。

    • 作用：标识cilium_host接口的 IP 地址，确保主机自身能通过该接口与 Pod 网络通信（如主机访问本地 Pod）。

Cilium 核心接口


  • cilium_net@cilium_host与cilium_host@cilium_net：一对 veth（虚拟以太网）接口（veth 对用于不同网络命名空间间通信）。

    • cilium_net：Cilium 网络栈的 “内部端”，负责与其他 Cilium 组件（如cilium_vxlan）交互。
    • cilium_host：绑定10.233.64.147/32IP，是主机在 Pod 网络中的 “身份标识”，所有 Pod 网络的流量需经过该接口，由 eBPF 程序处理（如网络策略检查、流量统计）。

  • cilium_vxlan：VXLAN 隧道接口，用于跨节点 Pod 通信。

    • 作用：在多节点 Kubernetes 集群中，不同节点的 Pod 属于同一逻辑网络（如10.233.0.0/16），VXLAN 通过将 Pod 数据包封装在 UDP 中，实现跨节点的二层通信（仿佛 Pod 在同一局域网）。

LXC 开头的接口

LXC 相关接口（Cilium 管理的 Pod 网络接口）



LXC 你可以理解为是一种命名习惯的继承

Cilium 通过类似 LXC 的命名方式管理 Pod 的 veth 接口（veth 对的主机端），格式为lxc<随机ID>@if<索引>：

  • lxc_health@if8：Cilium 健康检查专用接口，对应健康检查容器（或网络命名空间）的 veth 对主机端。

    • 作用：用于 Cilium 自身网络状态监控（如检查网络连通性、eBPF 程序有效性）。

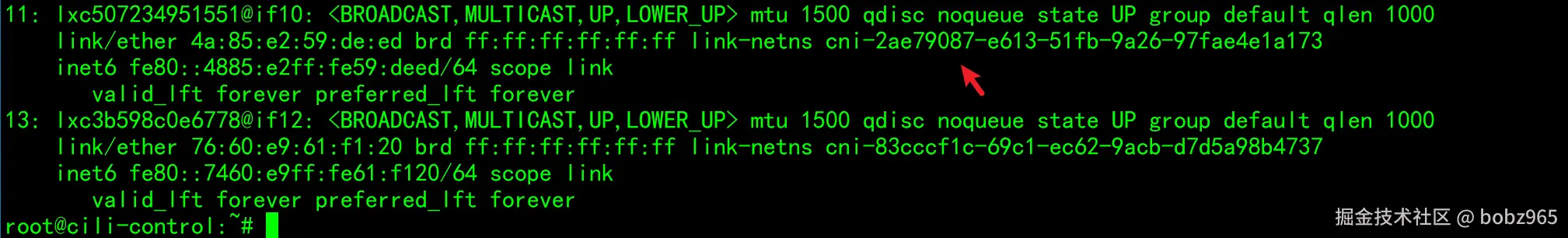

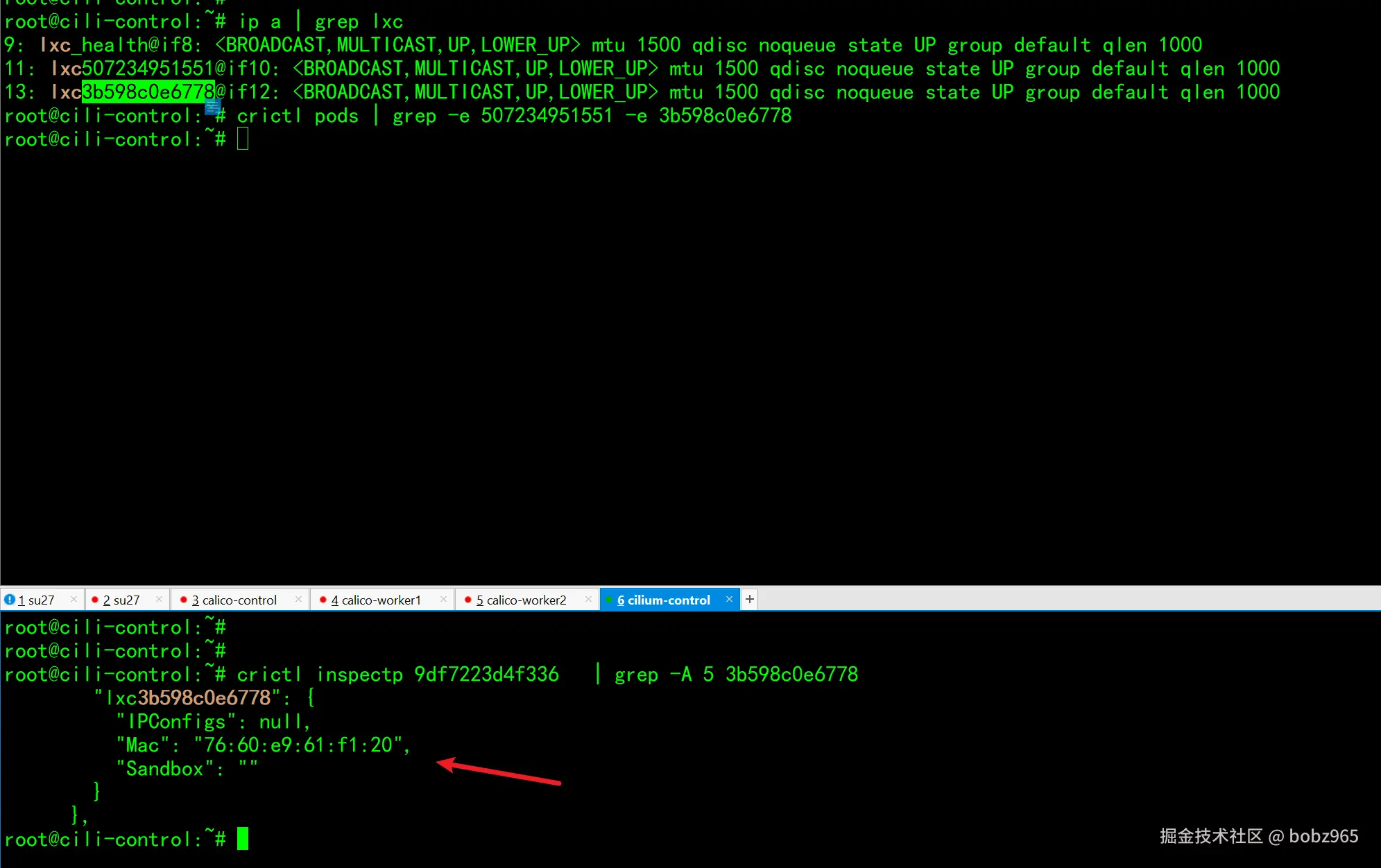

  • lxc507234951551@if10、lxc3b598c0e6778@if12：连接具体 Pod 的 veth 接口（主机端）。

    • @if10/@if12：表示 veth 对的另一端接口索引（在 Pod 的网络命名空间内，通常名为eth0）。
    • link-netns：指向对应 Pod 的网络命名空间 ID，确保流量正确进入 Pod。
    • 作用：作为主机与 Pod 之间的 “数据通道”，所有进出 Pod 的流量都通过这些接口传输，Cilium 的 eBPF 程序会在此处拦截流量并应用网络策略。

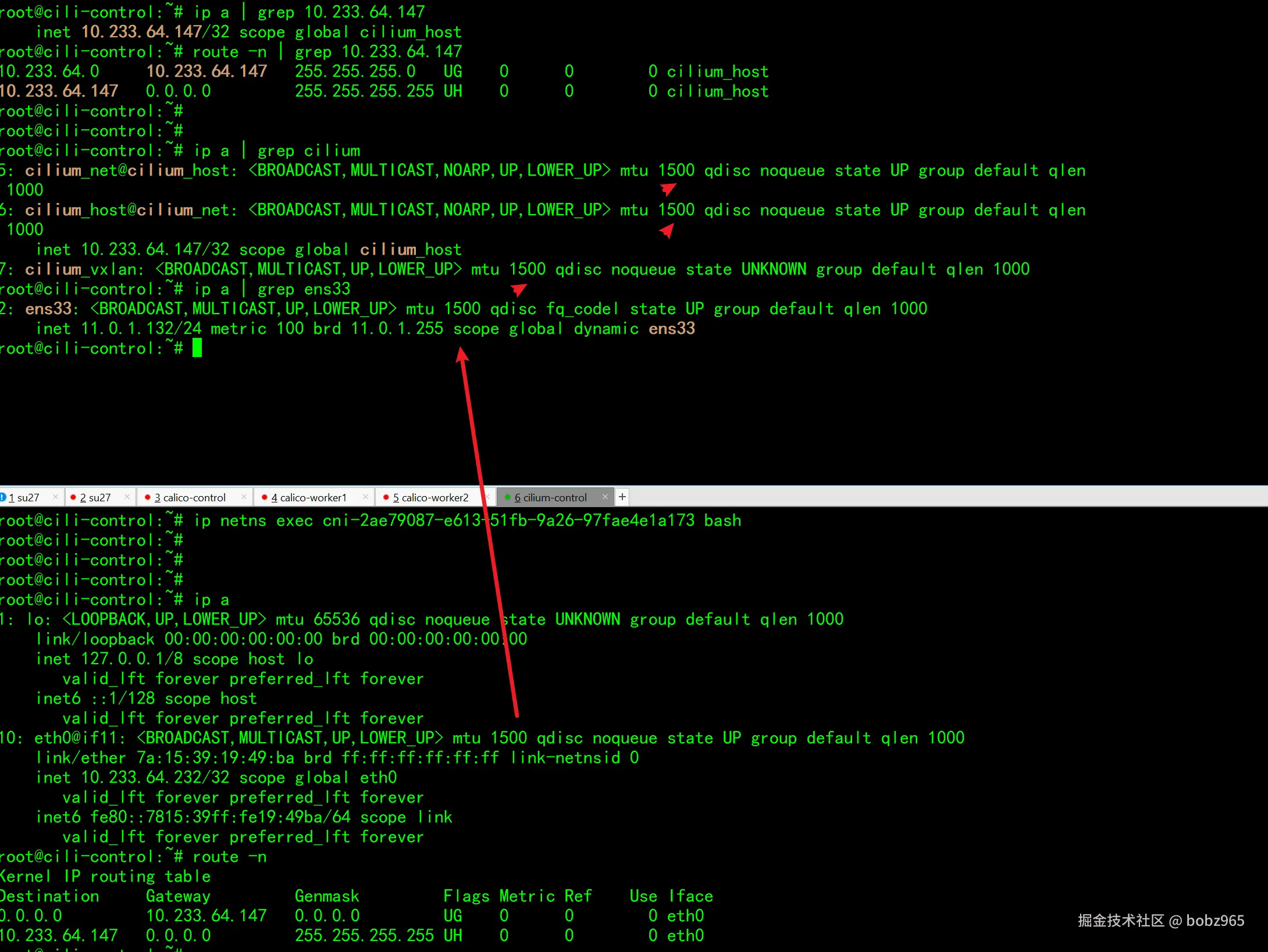

mtu 都是 1500

host 网卡，host cilium 接口，pod 网卡都是 1500


Cilium 通过路由引导 Pod 网络流量至自身接口（如cilium_host），再通过 veth 对（cilium_net/cilium_host）、VXLAN 隧道（cilium_vxlan）和 Pod 专用 veth（lxcxxxx）实现流量转发，同时基于 eBPF 在这些接口上提供网络策略、监控等核心功能。

3. CRD

CRD 一览


root@cili-control:~# k get crd -A -o wide | grep cilium
ciliumcidrgroups.cilium.io                       2025-10-19T06:43:41Z
ciliumclusterwidenetworkpolicies.cilium.io       2025-10-19T06:43:41Z
ciliumendpoints.cilium.io                        2025-10-19T06:43:41Z
ciliumexternalworkloads.cilium.io                2025-10-19T06:43:41Z
ciliumidentities.cilium.io                       2025-10-19T06:43:41Z
ciliuml2announcementpolicies.cilium.io           2025-10-19T06:43:41Z
ciliumloadbalancerippools.cilium.io              2025-10-19T06:43:41Z
ciliumnetworkpolicies.cilium.io                  2025-10-19T06:43:41Z
ciliumnodeconfigs.cilium.io                      2025-10-19T06:43:41Z
ciliumnodes.cilium.io                            2025-10-19T06:43:41Z
ciliumpodippools.cilium.io                       2025-10-19T06:43:41Z

以下是每个 CRD 的详细功能和作用：

1. ciliumcidrgroups.cilium.io

功能：定义一组 CIDR（无类别域间路由）地址块的集合。

作用：将多个 CIDR 地址（如10.0.0.0/24、192.168.1.0/24）归类为一个逻辑组，

方便在网络策略中统一引用。例如，在CiliumNetworkPolicy中通过引用 CIDR 组，

可快速允许 / 拒绝一组 IP 地址的流量，避免重复配置单个 CIDR。

2. ciliumclusterwidenetworkpolicies.cilium.io

功能：定义集群级别的网络策略。

作用：Kubernetes 原生NetworkPolicy是命名空间级别的（仅作用于单个命名空间），而该 CRD 支持跨命名空间的全局策略，可控制整个集群内所有 Pod、服务之间的流量。

适用于需要统一管控集群全域流量的场景（如禁止所有命名空间的 Pod 访问外部公网）。

3. ciliumendpoints.cilium.io

功能：表示 Cilium 管理的网络端点（对应 Kubernetes 中的 Pod 或外部工作负载）。

作用：每个 Pod（或通过ciliumexternalworkloads定义的外部工作负载）在 Cilium 中会生成一个CiliumEndpoint资源，记录该端点的网络配置（如 IP 地址、MAC 地址）、身份标识（关联ciliumidentities）、所属网络策略等信息。


Cilium 通过该资源实现对端点的细粒度网络控制和状态监控。

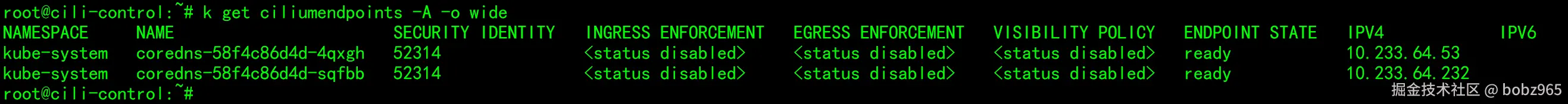

root@cili-control:~# k get ciliumendpoints -n kube-system   coredns-58f4c86d4d-4qxgh -o yaml
apiVersion: cilium.io/v2
kind: CiliumEndpoint
metadata:
  creationTimestamp: "2025-10-19T06:44:04Z"
  generation: 1
  labels:
    k8s-app: kube-dns
    pod-template-hash: 58f4c86d4d
  name: coredns-58f4c86d4d-4qxgh
  namespace: kube-system
  ownerReferences:
  - apiVersion: v1
    kind: Pod
    name: coredns-58f4c86d4d-4qxgh
    uid: 7d509401-8c17-4b3d-a7e6-81d32a9a8696
  resourceVersion: "605"
  uid: 3f5dc417-f2f2-40d3-9ff6-ee5511b9dec9
status:
  encryption: {}
  external-identifiers:
    cni-attachment-id: 9df7223d4f3368089934339829fb7e8f6b7a251f26108a2110cb4c3d32b9dc2f:eth0
    container-id: 9df7223d4f3368089934339829fb7e8f6b7a251f26108a2110cb4c3d32b9dc2f
    k8s-namespace: kube-system
    k8s-pod-name: coredns-58f4c86d4d-4qxgh
    pod-name: kube-system/coredns-58f4c86d4d-4qxgh
  id: 1605
  identity:
    id: 52314
    labels:
    - k8s:io.cilium.k8s.namespace.labels.kubernetes.io/metadata.name=kube-system
    - k8s:io.cilium.k8s.policy.cluster=default
    - k8s:io.cilium.k8s.policy.serviceaccount=coredns
    - k8s:io.kubernetes.pod.namespace=kube-system
    - k8s:k8s-app=kube-dns
  named-ports:
  - name: dns
    port: 53
    protocol: UDP
  - name: dns-tcp
    port: 53
    protocol: TCP
  - name: metrics
    port: 9153
    protocol: TCP
  networking:
    addressing:
    - ipv4: 10.233.64.53
    node: 11.0.1.132
  policy:
    egress:
      enforcing: false
      state: <status disabled>
    ingress:
      enforcing: false
      state: <status disabled>
  state: ready
  visibility-policy-status: <status disabled>

4. ciliumexternalworkloads.cilium.io

功能：定义集群外的工作负载（如物理机、虚拟机、非 K8s 容器）。

作用：将集群外的 workload 纳入 Cilium 的网络和安全管理范围，为其分配身份标识（关联ciliumidentities）和 IP 地址，使其能与集群内 Pod 通过统一的网络策略通信。例 如，允许物理机上的应用安全访问 K8s 集群内的服务。

5. ciliumidentities.cilium.io

功能：定义 Cilium 用于安全策略的 “身份标识”。

作用：Cilium 基于 Pod / 外部工作负载的标签（如app=nginx）生成唯一身份（Identity），替代传统基于 IP 的策略控制。身份与标签动态绑定（IP 可能变化，但标签不变则身份不变），使网络策略更灵活（如 “允许所有app=frontend的 Pod 访问app=backend的 Pod”）。

该 CRD 记录身份与标签的映射关系。



root@cili-control:~# k get ciliumidentities -A -o wide
NAME    NAMESPACE     AGE
52314   kube-system   5h29m
root@cili-control:~#
root@cili-control:~#
root@cili-control:~#
root@cili-control:~#
root@cili-control:~#
root@cili-control:~#
root@cili-control:~#
root@cili-control:~# k get ciliumidentities 52314 -o yaml
apiVersion: cilium.io/v2
kind: CiliumIdentity
metadata:
  creationTimestamp: "2025-10-19T06:44:04Z"
  generation: 1
  labels:
    io.cilium.k8s.policy.cluster: default
    io.cilium.k8s.policy.serviceaccount: coredns
    io.kubernetes.pod.namespace: kube-system
    k8s-app: kube-dns
  name: "52314"
  resourceVersion: "603"
  uid: f51673de-0c9a-49ec-b721-818eef87cbc4
security-labels:
  k8s:io.cilium.k8s.namespace.labels.kubernetes.io/metadata.name: kube-system
  k8s:io.cilium.k8s.policy.cluster: default
  k8s:io.cilium.k8s.policy.serviceaccount: coredns
  k8s:io.kubernetes.pod.namespace: kube-system
  k8s:k8s-app: kube-dns

6. ciliuml2announcementpolicies.cilium.io

功能：配置二层（L2）网络中的地址通告策略。

作用：控制 Cilium 如何在二层网络中通告 IP 地址（如 Pod IP、Service ClusterIP），确保外部网络（如物理交换机、路由器）能感知这些 IP 的位置，实现跨二层网络的通信。例如，在使用 BGP 或 ARP 通告时，定义哪些 IP 需要被广播到外部网络。

热迁移需要意识到这些策略的影响： BGP（ECMP） + ACL（限制新的 vm 端口，直到热迁移完毕）

7. ciliumloadbalancerippools.cilium.io

功能：管理分配给LoadBalancer类型服务的 IP 地址池。

作用：当 Kubernetes 创建LoadBalancer类型的 Service 时，Cilium 可从该 CRD 定义的 IP 池中分配外部 IP，用于暴露服务到集群外。支持配置 IP 范围、排除特定 IP 等，解决外部负载均衡 IP 地址管理的问题。

8. ciliumnetworkpolicies.cilium.io

功能：Cilium 扩展的网络策略（比 K8s 原生策略功能更强）。

作用：支持多层级流量控制，包括：

  • L3/L4（网络 / 传输层）：基于 IP、端口、协议的策略；
  • L7（应用层）：基于 HTTP 路径、gRPC 方法、DNS 域名等的策略（如 “仅允许GET /api/v1请求”）；
  • 基于身份（关联ciliumidentities）：直接通过标签定义策略，无需关心 IP 变化；
  • 跨命名空间 / 外部工作负载：控制集群内外的流量交互。

9. ciliumnodeconfigs.cilium.io

功能：定义节点级别的 Cilium 配置（覆盖全局配置）。

作用：为集群中的特定节点设置 Cilium 运行参数，例如：网络接口（eth0）、隧道模式（VXLAN/Geneve）、eBPF 程序加载路径等。适用于节点硬件 / 网络环境不一致的场景（如部分节点需要使用独立的隧道接口）。

10. ciliumnodes.cilium.io

功能：记录 Cilium 在节点上的运行状态和网络信息。

作用：是 Cilium 对 KubernetesNode资源的扩展，存储节点的 Cilium 代理状态（如是否就绪）、分配的 Pod CIDR 范围、二层网络信息（如 MAC 地址）等，帮助 Cilium 控制平面感知节点网络状态，实现跨节点流量调度。

root@cili-control:~# k get ciliumnodes -A -o wide
NAME           CILIUMINTERNALIP   INTERNALIP   AGE
cili-control   10.233.64.147      11.0.1.132   5h35m
root@cili-control:~#
root@cili-control:~# k get ciliumnodes cili-control -o yaml
apiVersion: cilium.io/v2
kind: CiliumNode
metadata:
  creationTimestamp: "2025-10-19T06:43:48Z"
  generation: 3
  labels:
    beta.kubernetes.io/arch: amd64
    beta.kubernetes.io/os: linux
    kubernetes.io/arch: amd64
    kubernetes.io/hostname: cili-control
    kubernetes.io/os: linux
    node-role.kubernetes.io/control-plane: ""
    node-role.kubernetes.io/worker: ""
    node.kubernetes.io/exclude-from-external-load-balancers: ""
  name: cili-control
  ownerReferences:
  - apiVersion: v1
    kind: Node
    name: cili-control
    uid: 42c4c5fe-feb7-4af2-a306-96952945a05d
  resourceVersion: "559"
  uid: 9edd7fc9-6df3-4f08-9350-12c56202a45c
spec:
  addresses:
  - ip: 11.0.1.132 # k8s node 管理 ip
    type: InternalIP
  - ip: 10.233.64.147
    type: CiliumInternalIP # node 上的 pod 网关
  alibaba-cloud: {}
  azure: {}
  bootid: 87c25842-2aac-4dc7-9d8e-44f1d1425a93
  encryption: {}
  eni: {}
  health:
    ipv4: 10.233.64.236
  ingress: {}
  ipam:
    podCIDRs:
    - 10.233.64.0/24
    pools: {}
status:
  alibaba-cloud: {}
  azure: {}
  eni: {}
  ipam:
    operator-status: {}

11. ciliumpodippools.cilium.io

功能：管理分配给 Pod 的 IP 地址池。

作用：定义 Pod 可使用的 IP 地址范围，Cilium 会从这些池中为新建 Pod 分配 IP。支持按命名空间、节点划分不同 IP 池（如 “命名空间prod的 Pod 只能使用10.10.0.0/24”），实现 Pod IP 的精细化管理，避免 IP 冲突。

这些 CRD 共同构成了 Cilium 在 Kubernetes 中的核心控制平面，通过扩展 Kubernetes API 实现了灵活的网络编排、身份化安全策略和跨环境 workload 管理。

4. cilium 组件


  • cilium: agent
  • cilium-operator: 控制器

agent


root@cili-control:~# k get po -n kube-system   cilium-k9xj8 -o yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    container.apparmor.security.beta.kubernetes.io/apply-sysctl-overwrites: unconfined
    container.apparmor.security.beta.kubernetes.io/cilium-agent: unconfined
    container.apparmor.security.beta.kubernetes.io/clean-cilium-state: unconfined
    container.apparmor.security.beta.kubernetes.io/mount-cgroup: unconfined
  creationTimestamp: "2025-10-19T06:43:37Z"
  generateName: cilium-
  generation: 1
  labels:
    app.kubernetes.io/name: cilium-agent
    app.kubernetes.io/part-of: cilium
    controller-revision-hash: 5cf9699494
    k8s-app: cilium
    pod-template-generation: "1"
  name: cilium-k9xj8
  namespace: kube-system
  ownerReferences:
  - apiVersion: apps/v1
    blockOwnerDeletion: true
    controller: true
    kind: DaemonSet
    name: cilium
    uid: 395acb79-4176-4def-8d4e-553cd52988c6
  resourceVersion: "591"
  uid: 5de188fb-1554-4a8c-8404-7862d86576d3
spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchFields:
          - key: metadata.name
            operator: In
            values:
            - cili-control
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
      - labelSelector:
          matchLabels:
            k8s-app: cilium
        topologyKey: kubernetes.io/hostname
  automountServiceAccountToken: true
  containers:
  - args:
    - --config-dir=/tmp/cilium/config-map
    command:
    - cilium-agent
    env:
    - name: K8S_NODE_NAME
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: spec.nodeName
    - name: CILIUM_K8S_NAMESPACE
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: metadata.namespace
    - name: CILIUM_CLUSTERMESH_CONFIG
      value: /var/lib/cilium/clustermesh/
    - name: GOMEMLIMIT
      valueFrom:
        resourceFieldRef:
          divisor: "1"
          resource: limits.memory
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    lifecycle:
      postStart:
        exec:
          command:
          - bash
          - -c
          - |
            set -o errexit
            set -o pipefail
            set -o nounset

            # When running in AWS ENI mode, it's likely that 'aws-node' has
            # had a chance to install SNAT iptables rules. These can result
            # in dropped traffic, so we should attempt to remove them.
            # We do it using a 'postStart' hook since this may need to run
            # for nodes which might have already been init'ed but may still
            # have dangling rules. This is safe because there are no
            # dependencies on anything that is part of the startup script
            # itself, and can be safely run multiple times per node (e.g. in
            # case of a restart).
            if [[ "$(iptables-save | grep -E -c 'AWS-SNAT-CHAIN|AWS-CONNMARK-CHAIN')" != "0" ]];
            then
                echo 'Deleting iptables rules created by the AWS CNI VPC plugin'
                iptables-save | grep -E -v 'AWS-SNAT-CHAIN|AWS-CONNMARK-CHAIN' | iptables-restore
            fi
            echo 'Done!'
      preStop:
        exec:
          command:
          - /cni-uninstall.sh
    livenessProbe:
      failureThreshold: 10
      httpGet:
        host: 127.0.0.1
        httpHeaders:
        - name: brief
          value: "true"
        path: /healthz
        port: 9879
        scheme: HTTP
      periodSeconds: 30
      successThreshold: 1
      timeoutSeconds: 5
    name: cilium-agent
    readinessProbe:
      failureThreshold: 3
      httpGet:
        host: 127.0.0.1
        httpHeaders:
        - name: brief
          value: "true"
        path: /healthz
        port: 9879
        scheme: HTTP
      periodSeconds: 30
      successThreshold: 1
      timeoutSeconds: 5
    resources: {}
    securityContext:
      appArmorProfile:
        type: Unconfined
      capabilities:
        add:
        - CHOWN
        - KILL
        - NET_ADMIN
        - NET_RAW
        - IPC_LOCK
        - SYS_MODULE
        - SYS_ADMIN
        - SYS_RESOURCE
        - DAC_OVERRIDE
        - FOWNER
        - SETGID
        - SETUID
        drop:
        - ALL
      seLinuxOptions:
        level: s0
        type: spc_t
    startupProbe:
      failureThreshold: 105
      httpGet:
        host: 127.0.0.1
        httpHeaders:
        - name: brief
          value: "true"
        path: /healthz
        port: 9879
        scheme: HTTP
      initialDelaySeconds: 5
      periodSeconds: 2
      successThreshold: 1
      timeoutSeconds: 1
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /host/proc/sys/net
      name: host-proc-sys-net
    - mountPath: /host/proc/sys/kernel
      name: host-proc-sys-kernel
    - mountPath: /sys/fs/bpf
      mountPropagation: HostToContainer
      name: bpf-maps
    - mountPath: /var/run/cilium
      name: cilium-run
    - mountPath: /host/etc/cni/net.d
      name: etc-cni-netd
    - mountPath: /var/lib/cilium/clustermesh
      name: clustermesh-secrets
      readOnly: true
    - mountPath: /lib/modules
      name: lib-modules
      readOnly: true
    - mountPath: /run/xtables.lock
      name: xtables-lock
    - mountPath: /var/lib/cilium/tls/hubble
      name: hubble-tls
      readOnly: true
    - mountPath: /tmp
      name: tmp
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  hostNetwork: true
  initContainers:
  - command:
    - cilium-dbg
    - build-config
    env:
    - name: K8S_NODE_NAME
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: spec.nodeName
    - name: CILIUM_K8S_NAMESPACE
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: metadata.namespace
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    name: config
    resources: {}
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /tmp
      name: tmp
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  - command:
    - sh
    - -ec
    - |
      cp /usr/bin/cilium-mount /hostbin/cilium-mount;
      nsenter --cgroup=/hostproc/1/ns/cgroup --mount=/hostproc/1/ns/mnt "${BIN_PATH}/cilium-mount" $CGROUP_ROOT;
      rm /hostbin/cilium-mount
    env:
    - name: CGROUP_ROOT
      value: /run/cilium/cgroupv2
    - name: BIN_PATH
      value: /opt/cni/bin
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    name: mount-cgroup
    resources: {}
    securityContext:
      appArmorProfile:
        type: Unconfined
      capabilities:
        add:
        - SYS_ADMIN
        - SYS_CHROOT
        - SYS_PTRACE
        drop:
        - ALL
      seLinuxOptions:
        level: s0
        type: spc_t
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /hostproc
      name: hostproc
    - mountPath: /hostbin
      name: cni-path
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  - command:
    - sh
    - -ec
    - |
      cp /usr/bin/cilium-sysctlfix /hostbin/cilium-sysctlfix;
      nsenter --mount=/hostproc/1/ns/mnt "${BIN_PATH}/cilium-sysctlfix";
      rm /hostbin/cilium-sysctlfix
    env:
    - name: BIN_PATH
      value: /opt/cni/bin
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    name: apply-sysctl-overwrites
    resources: {}
    securityContext:
      appArmorProfile:
        type: Unconfined
      capabilities:
        add:
        - SYS_ADMIN
        - SYS_CHROOT
        - SYS_PTRACE
        drop:
        - ALL
      seLinuxOptions:
        level: s0
        type: spc_t
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /hostproc
      name: hostproc
    - mountPath: /hostbin
      name: cni-path
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  - args:
    - mount | grep "/sys/fs/bpf type bpf" || mount -t bpf bpf /sys/fs/bpf
    command:
    - /bin/bash
    - -c
    - --
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    name: mount-bpf-fs
    resources: {}
    securityContext:
      privileged: true
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /sys/fs/bpf
      mountPropagation: Bidirectional
      name: bpf-maps
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  - command:
    - /init-container.sh
    env:
    - name: CILIUM_ALL_STATE
      valueFrom:
        configMapKeyRef:
          key: clean-cilium-state
          name: cilium-config
          optional: true
    - name: CILIUM_BPF_STATE
      valueFrom:
        configMapKeyRef:
          key: clean-cilium-bpf-state
          name: cilium-config
          optional: true
    - name: WRITE_CNI_CONF_WHEN_READY
      valueFrom:
        configMapKeyRef:
          key: write-cni-conf-when-ready
          name: cilium-config
          optional: true
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    name: clean-cilium-state
    resources: {}
    securityContext:
      appArmorProfile:
        type: Unconfined
      capabilities:
        add:
        - NET_ADMIN
        - SYS_MODULE
        - SYS_ADMIN
        - SYS_RESOURCE
        drop:
        - ALL
      seLinuxOptions:
        level: s0
        type: spc_t
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /sys/fs/bpf
      name: bpf-maps
    - mountPath: /run/cilium/cgroupv2
      mountPropagation: HostToContainer
      name: cilium-cgroup
    - mountPath: /var/run/cilium
      name: cilium-run
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  - command:
    - /install-plugin.sh
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/cilium:v1.15.3
    imagePullPolicy: IfNotPresent
    name: install-cni-binaries
    resources:
      requests:
        cpu: 100m
        memory: 10Mi
    securityContext:
      capabilities:
        drop:
        - ALL
      seLinuxOptions:
        level: s0
        type: spc_t
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /host/opt/cni/bin
      name: cni-path
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-cs8l9
      readOnly: true
  nodeName: cili-control
  nodeSelector:
    kubernetes.io/os: linux
  preemptionPolicy: PreemptLowerPriority
  priority: 2000001000
  priorityClassName: system-node-critical
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: cilium
  serviceAccountName: cilium
  terminationGracePeriodSeconds: 1
  tolerations:
  - operator: Exists
  - effect: NoExecute
    key: node.kubernetes.io/not-ready
    operator: Exists
  - effect: NoExecute
    key: node.kubernetes.io/unreachable
    operator: Exists
  - effect: NoSchedule
    key: node.kubernetes.io/disk-pressure
    operator: Exists
  - effect: NoSchedule
    key: node.kubernetes.io/memory-pressure
    operator: Exists
  - effect: NoSchedule
    key: node.kubernetes.io/pid-pressure
    operator: Exists
  - effect: NoSchedule
    key: node.kubernetes.io/unschedulable
    operator: Exists
  - effect: NoSchedule
    key: node.kubernetes.io/network-unavailable
    operator: Exists
  volumes:
  - emptyDir: {}
    name: tmp
  - hostPath:
      path: /var/run/cilium
      type: DirectoryOrCreate
    name: cilium-run
  - hostPath:
      path: /sys/fs/bpf
      type: DirectoryOrCreate
    name: bpf-maps
  - hostPath:
      path: /proc
      type: Directory
    name: hostproc
  - hostPath:
      path: /run/cilium/cgroupv2
      type: DirectoryOrCreate
    name: cilium-cgroup
  - hostPath:
      path: /opt/cni/bin
      type: DirectoryOrCreate
    name: cni-path
  - hostPath:
      path: /etc/cni/net.d
      type: DirectoryOrCreate
    name: etc-cni-netd
  - hostPath:
      path: /lib/modules
      type: ""
    name: lib-modules
  - hostPath:
      path: /run/xtables.lock
      type: FileOrCreate
    name: xtables-lock
  - name: clustermesh-secrets
    projected:
      defaultMode: 256
      sources:
      - secret:
          name: cilium-clustermesh
          optional: true
      - secret:
          items:
          - key: tls.key
            path: common-etcd-client.key
          - key: tls.crt
            path: common-etcd-client.crt
          - key: ca.crt
            path: common-etcd-client-ca.crt
          name: clustermesh-apiserver-remote-cert
          optional: true
  - hostPath:
      path: /proc/sys/net
      type: Directory
    name: host-proc-sys-net
  - hostPath:
      path: /proc/sys/kernel
      type: Directory
    name: host-proc-sys-kernel
  - name: hubble-tls
    projected:
      defaultMode: 256
      sources:
      - secret:
          items:
          - key: tls.crt
            path: server.crt
          - key: tls.key
            path: server.key
          - key: ca.crt
            path: client-ca.crt
          name: hubble-server-certs
          optional: true
  - name: kube-api-access-cs8l9
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace

operator 控制器


root@cili-control:~# k get po -n kube-system   cilium-operator-7c6b45754-jbqbw -o yaml
apiVersion: v1
kind: Pod
metadata:
  annotations:
    prometheus.io/port: "9963"
    prometheus.io/scrape: "true"
  creationTimestamp: "2025-10-19T06:43:37Z"
  generateName: cilium-operator-7c6b45754-
  generation: 1
  labels:
    app.kubernetes.io/name: cilium-operator
    app.kubernetes.io/part-of: cilium
    io.cilium/app: operator
    name: cilium-operator
    pod-template-hash: 7c6b45754
  name: cilium-operator-7c6b45754-jbqbw
  namespace: kube-system
  ownerReferences:
  - apiVersion: apps/v1
    blockOwnerDeletion: true
    controller: true
    kind: ReplicaSet
    name: cilium-operator-7c6b45754
    uid: 163b247c-e515-4920-92e7-5b43c750dc75
  resourceVersion: "532"
  uid: 559c7ce6-7563-4760-841d-0c5dec6fedee
spec:
  affinity:
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
      - labelSelector:
          matchLabels:
            io.cilium/app: operator
        topologyKey: kubernetes.io/hostname
  automountServiceAccountToken: true
  containers:
  - args:
    - --config-dir=/tmp/cilium/config-map
    - --debug=$(CILIUM_DEBUG)
    command:
    - cilium-operator-generic
    env:
    - name: K8S_NODE_NAME
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: spec.nodeName
    - name: CILIUM_K8S_NAMESPACE
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: metadata.namespace
    - name: CILIUM_DEBUG
      valueFrom:
        configMapKeyRef:
          key: debug
          name: cilium-config
          optional: true
    image: registry.cn-beijing.aliyuncs.com/kubesphereio/operator-generic:v1.15.3
    imagePullPolicy: IfNotPresent
    livenessProbe:
      failureThreshold: 3
      httpGet:
        host: 127.0.0.1
        path: /healthz
        port: 9234
        scheme: HTTP
      initialDelaySeconds: 60
      periodSeconds: 10
      successThreshold: 1
      timeoutSeconds: 3
    name: cilium-operator
    ports:
    - containerPort: 9963
      hostPort: 9963
      name: prometheus
      protocol: TCP
    readinessProbe:
      failureThreshold: 5
      httpGet:
        host: 127.0.0.1
        path: /healthz
        port: 9234
        scheme: HTTP
      periodSeconds: 5
      successThreshold: 1
      timeoutSeconds: 3
    resources: {}
    terminationMessagePath: /dev/termination-log
    terminationMessagePolicy: FallbackToLogsOnError
    volumeMounts:
    - mountPath: /tmp/cilium/config-map
      name: cilium-config-path
      readOnly: true
    - mountPath: /var/run/secrets/kubernetes.io/serviceaccount
      name: kube-api-access-n8vw7
      readOnly: true
  dnsPolicy: ClusterFirst
  enableServiceLinks: true
  hostNetwork: true
  nodeName: cili-control
  nodeSelector:
    kubernetes.io/os: linux
  preemptionPolicy: PreemptLowerPriority
  priority: 2000000000
  priorityClassName: system-cluster-critical
  restartPolicy: Always
  schedulerName: default-scheduler
  securityContext: {}
  serviceAccount: cilium-operator
  serviceAccountName: cilium-operator
  terminationGracePeriodSeconds: 30
  tolerations:
  - operator: Exists
  volumes:
  - configMap:
      defaultMode: 420
      name: cilium-config
    name: cilium-config-path
  - name: kube-api-access-n8vw7
    projected:
      defaultMode: 420
      sources:
      - serviceAccountToken:
          expirationSeconds: 3607
          path: token
      - configMap:
          items:
          - key: ca.crt
            path: ca.crt
          name: kube-root-ca.crt
      - downwardAPI:
          items:
          - fieldRef:
              apiVersion: v1
              fieldPath: metadata.namespace
            path: namespace

cilium-config


root@cili-control:~# k get cm -n kube-system cilium-config -o yaml
apiVersion: v1
data:
  agent-not-ready-taint-key: node.cilium.io/agent-not-ready
  arping-refresh-period: 30s
  auto-direct-node-routes: "false" # 可以试用下
  bpf-lb-acceleration: disabled # 需要用
  bpf-lb-external-clusterip: "false" # 可以试用下
  bpf-lb-map-max: "65536"
  bpf-lb-sock: "false" # 可以试用下
  bpf-map-dynamic-size-ratio: "0.0025"
  bpf-policy-map-max: "16384"
  bpf-root: /sys/fs/bpf
  cgroup-root: /run/cilium/cgroupv2
  cilium-endpoint-gc-interval: 5m0s
  cluster-id: "0"
  cluster-name: default
  cluster-pool-ipv4-cidr: 10.233.64.0/18
  cluster-pool-ipv4-mask-size: "24"
  cni-exclusive: "true"
  cni-log-file: /var/run/cilium/cilium-cni.log
  custom-cni-conf: "false" # 可以试用下
  debug: "false"
  debug-verbose: ""
  dnsproxy-enable-transparent-mode: "true"
  egress-gateway-reconciliation-trigger-interval: 1s
  enable-auto-protect-node-port-range: "true"
  enable-bgp-control-plane: "false"  # 需要用
  enable-bpf-clock-probe: "false" # 需要用
  enable-endpoint-health-checking: "true"
  enable-external-ips: "false" # 需要用
  enable-health-check-loadbalancer-ip: "false"
  enable-health-check-nodeport: "true"
  enable-health-checking: "true"
  enable-host-port: "false" # 可以试用下
  enable-hubble: "true"
  enable-ipv4: "true"
  enable-ipv4-big-tcp: "false" # 可以试用下
  enable-ipv4-masquerade: "true"
  enable-ipv6: "false" # 需要用
  enable-ipv6-big-tcp: "false" # 需要用
  enable-ipv6-masquerade: "true" # 可以试用下
  enable-k8s-networkpolicy: "true"
  enable-k8s-terminating-endpoint: "true"
  enable-l2-neigh-discovery: "true"
  enable-l7-proxy: "true" # 需要用
  enable-local-redirect-policy: "false"
  enable-masquerade-to-route-source: "false"
  enable-metrics: "true"
  enable-node-port: "false"
  enable-policy: default
  enable-remote-node-identity: "true"
  enable-sctp: "false" # 可以试用下
  enable-svc-source-range-check: "true"
  enable-vtep: "false" # 可以试用下
  enable-well-known-identities: "false"
  enable-xt-socket-fallback: "true"
  external-envoy-proxy: "false" # 可以试用下
  hubble-disable-tls: "false"
  hubble-export-file-max-backups: "5"
  hubble-export-file-max-size-mb: "10"
  hubble-listen-address: :4244
  hubble-socket-path: /var/run/cilium/hubble.sock
  hubble-tls-cert-file: /var/lib/cilium/tls/hubble/server.crt
  hubble-tls-client-ca-files: /var/lib/cilium/tls/hubble/client-ca.crt
  hubble-tls-key-file: /var/lib/cilium/tls/hubble/server.key
  identity-allocation-mode: crd
  identity-gc-interval: 15m0s
  identity-heartbeat-timeout: 30m0s
  install-no-conntrack-iptables-rules: "false"
  ipam: cluster-pool
  ipam-cilium-node-update-rate: 15s
  k8s-client-burst: "20"
  k8s-client-qps: "10" # 可以试用下
  kube-proxy-replacement: "false" # 需要用
  kube-proxy-replacement-healthz-bind-address: ""
  max-connected-clusters: "255"
  mesh-auth-enabled: "true"
  mesh-auth-gc-interval: 5m0s
  mesh-auth-queue-size: "1024"
  mesh-auth-rotated-identities-queue-size: "1024"
  monitor-aggregation: medium
  monitor-aggregation-flags: all
  monitor-aggregation-interval: 5s
  node-port-bind-protection: "true"
  nodes-gc-interval: 5m0s
  operator-api-serve-addr: 127.0.0.1:9234
  operator-prometheus-serve-addr: :9963
  policy-cidr-match-mode: ""
  preallocate-bpf-maps: "false"
  procfs: /host/proc
  proxy-connect-timeout: "2"
  proxy-max-connection-duration-seconds: "0"
  proxy-max-requests-per-connection: "0"
  proxy-prometheus-port: "9964"
  remove-cilium-node-taints: "true"
  routing-mode: tunnel
  service-no-backend-response: reject # 需要用
  set-cilium-is-up-condition: "true"
  set-cilium-node-taints: "true"
  sidecar-istio-proxy-image: cilium/istio_proxy
  skip-cnp-status-startup-clean: "false"
  synchronize-k8s-nodes: "true"
  tofqdns-dns-reject-response-code: refused
  tofqdns-enable-dns-compression: "true"
  tofqdns-endpoint-max-ip-per-hostname: "50"
  tofqdns-idle-connection-grace-period: 0s
  tofqdns-max-deferred-connection-deletes: "10000"
  tofqdns-proxy-response-max-delay: 100ms
  tunnel-protocol: vxlan # 默认模式
  unmanaged-pod-watcher-interval: "15"
  vtep-cidr: ""
  vtep-endpoint: ""
  vtep-mac: ""
  vtep-mask: ""
  write-cni-conf-when-ready: /host/etc/cni/net.d/05-cilium.conflist
kind: ConfigMap
metadata:
  annotations:
    meta.helm.sh/release-name: cilium
    meta.helm.sh/release-namespace: kube-system
  creationTimestamp: "2025-10-19T06:43:34Z"
  labels:
    app.kubernetes.io/managed-by: Helm
  name: cilium-config
  namespace: kube-system
  resourceVersion: "314"
  uid: 11016253-a373-457b-805e-ece9c38b7be7

1
avatar
文章
阅读
粉丝
