这个是在部署elk过程中操作的，这里作为工作留档，比较粗糙只是为了测试下各个模块的使用。具体测试环境在前面已经发布，另外这里需要给Docker-compose中logstash开放7777和8888端口

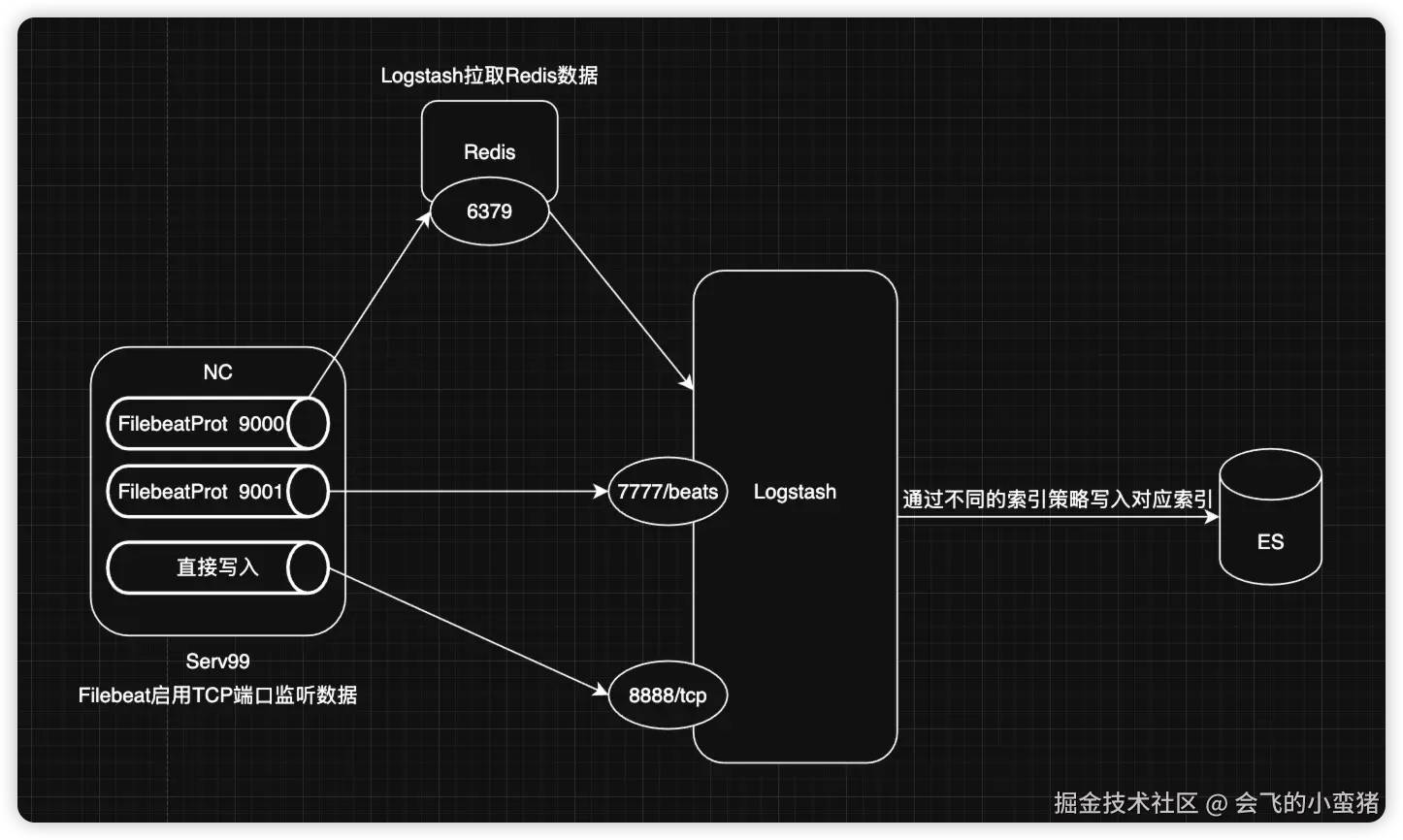

1.综合案例图
2.Logstash配置
root@ubuntu2204test99:~/elkf/logstash/pipeline# pwd
/root/elkf/logstash/pipeline
root@ubuntu2204test99:~/elkf/logstash/pipeline# cat logstash.conf
input {
beats {
# 自定义一个类型，使Logstash可以进行判断处理
type => "soure-bates"
port => 7777
}
tcp {
type => "soure-tcp"
port => 8888
}
redis {
type => "soure-redis"
data_type => "list"
db => 5
host => "192.168.1.47"
port => "6379"
password => "123456"
key => "filebeat-log"
}
}
output {
stdout {}
if [type] == "soure-bates"{
elasticsearch {
hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]
user => "elastic"
password => "123456"
index => "soure-bates-%{+yyyy.MM.dd}"
}
} else if [type] == "soure-tcp" {
elasticsearch {
hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]
user => "elastic"
password => "123456"
index => "soure-tcp-%{+yyyy.MM.dd}"
}
} else if [type] == "soure-redis"{
elasticsearch {
hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]
user => "elastic"
password => "123456"
index => "soure-redis-%{+yyyy.MM.dd}"
}
} else {
elasticsearch {
hosts => ["192.168.1.99:9201","192.168.1.99:9202","192.168.1.99:9203"]
user => "elastic"
password => "123456"
index => "soure-other-%{+yyyy.MM.dd}"
}
}
}
3.Filebeat配置(TCP)
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# pwd
/usr/local/filebeat-7.17.24
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# cat filebeat-tcp-logstatsh-es.yml
# Filebeat tcp配置,监听tcp9000断后来的信息并写入到logstash
filebeat.inputs:
- type: tcp
host: "0.0.0.0:9001"
output.logstash:
hosts: ["192.168.1.99:7777"]
# Filebeat启动命令
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# ./filebeat -e -c filebeat-tcp-logstatsh-es.yml --path.data /tmp/filebeat01/

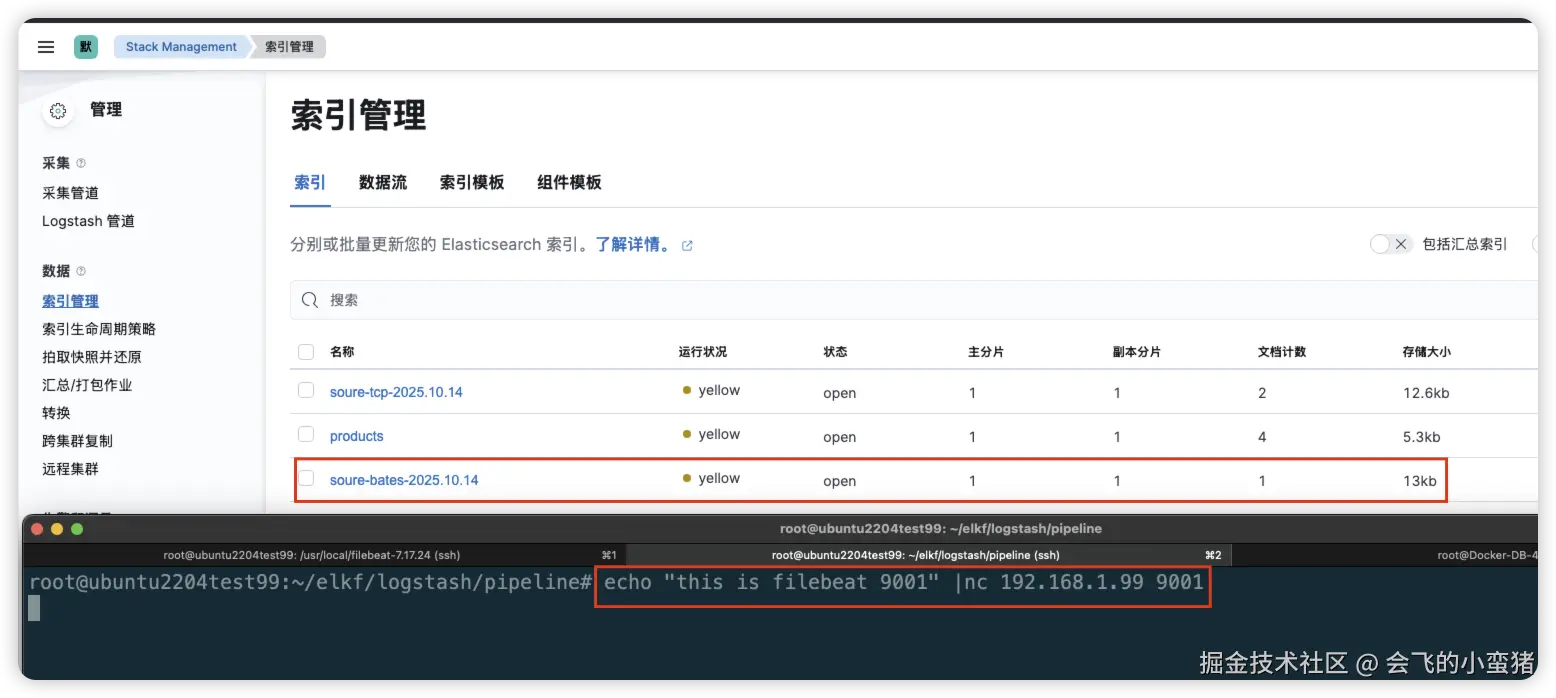

# 测试命令
root@ubuntu2204test99:~/elkf/logstash/pipeline# echo "this is filebeat 9001" |nc 192.168.1.99 9001
4.Filebeat配置(Redis)
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# pwd
/usr/local/filebeat-7.17.24
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# cat filebeat-redis-logstatsh-es.yml
filebeat.inputs:
- type: tcp
host: "0.0.0.0:9000"
output.redis:
hosts: ["192.168.1.47:6379"]
password: "123456"
key: "filebeat-log"
db: 5 # 数据库编号
timeout: 5
# Filebeat启动命令
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# ./filebeat -e -c filebeat-redis-logstatsh-es.yml --path.data /tmp/filebeat02/

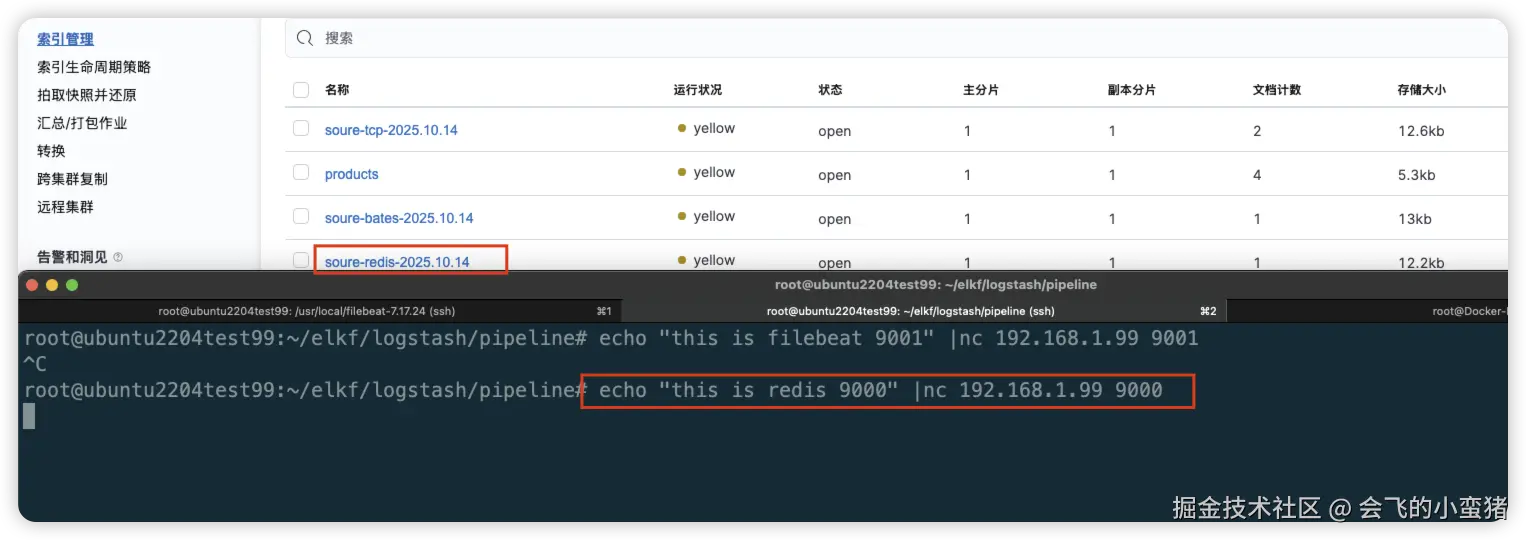

# 测试命令
root@ubuntu2204test99:~/elkf/logstash/pipeline# echo "this is redis 9000" |nc 192.168.1.99 9000

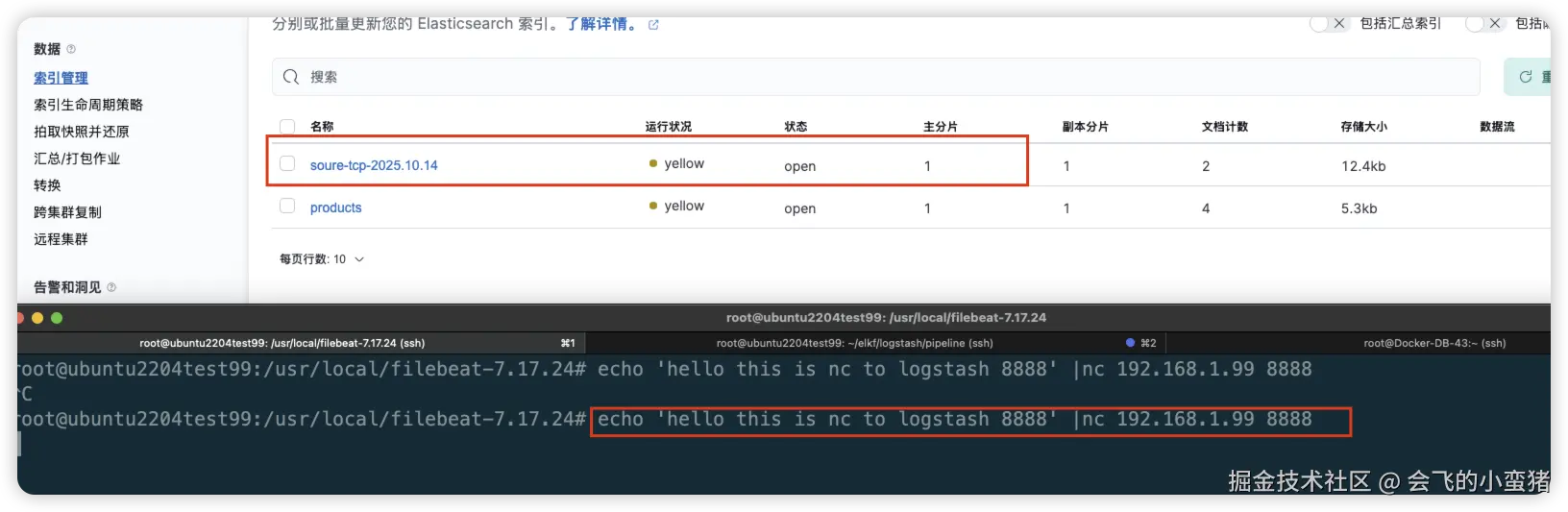

5.nc直接向Logstash写入
root@ubuntu2204test99:/usr/local/filebeat-7.17.24# echo 'hello this is nc to logstash 8888' |nc 192.168.1.99 8888
