Godot 城市模拟 - 001 如何动态创建一个胶囊/立方体节点

基础设置

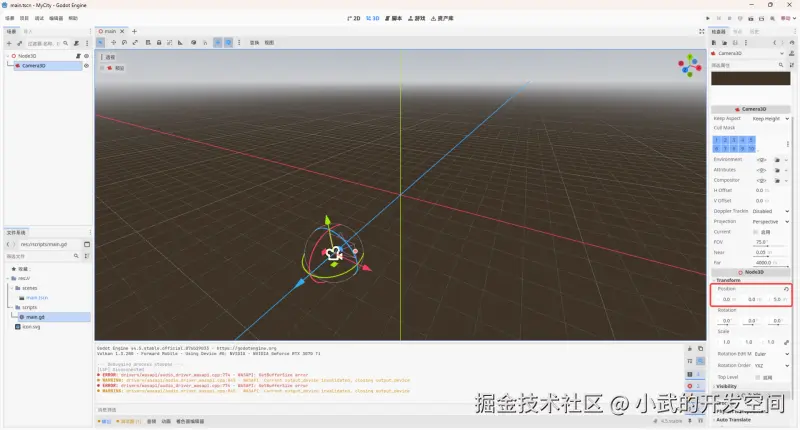

创建场景

创建main场景，场景中添加Camera3D 节点，并把相机的位置设置为(0,0,5)，可以看到现在相机默认看向原点方向。

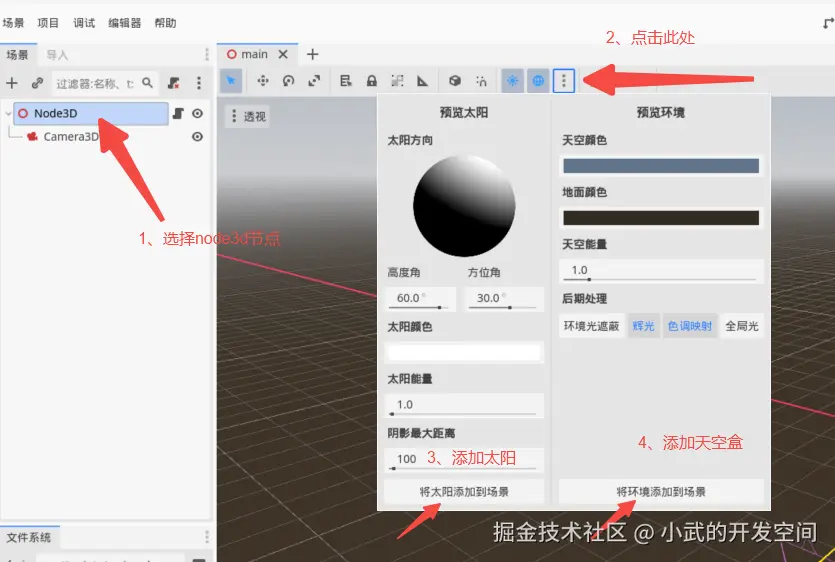

添加灯光和天空盒

动态创建胶囊节点

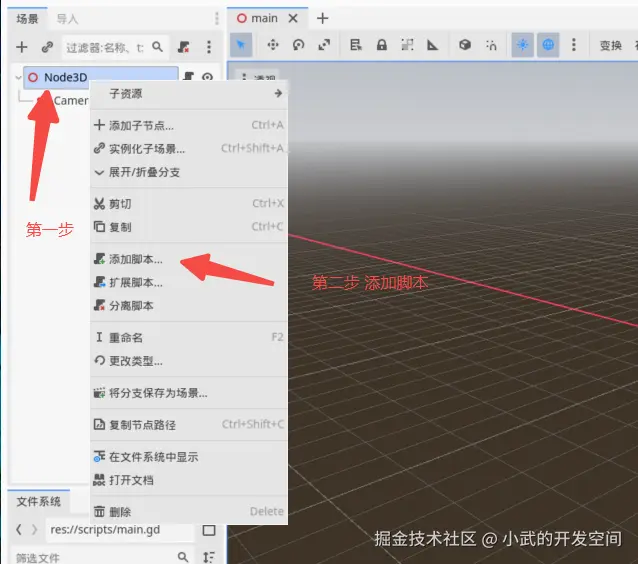

创建main脚本，并挂载到主场景

main.gd 保存在scripts 文件夹

extends Node3D


# Called when the node enters the scene tree for the first time.
func _ready() -> void:
	 # 创建 MeshInstance3D 节点
	var capsule_mesh_instance = MeshInstance3D.new()

	# 创建胶囊体网格资源
	var capsule_mesh = CapsuleMesh.new()

	# 设置胶囊体参数（可选）
	capsule_mesh.radius = 0.5       # 底部半径
	capsule_mesh.radial_segments = 16  # 径向分段数
	capsule_mesh.rings = 8           # 轴向分段数

	# 将网格赋给 MeshInstance3D
	capsule_mesh_instance.mesh = capsule_mesh

	# 创建材质（可选）
	var material = StandardMaterial3D.new()
	material.albedo_color = Color(1, 0, 0)  # 红色材质
	capsule_mesh_instance.material_override = material

	# 添加到场景
	add_child(capsule_mesh_instance)

	# 调整位置（可选）
	capsule_mesh_instance.position = Vector3(0, 1, 0)


# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta: float) -> void:
	pass

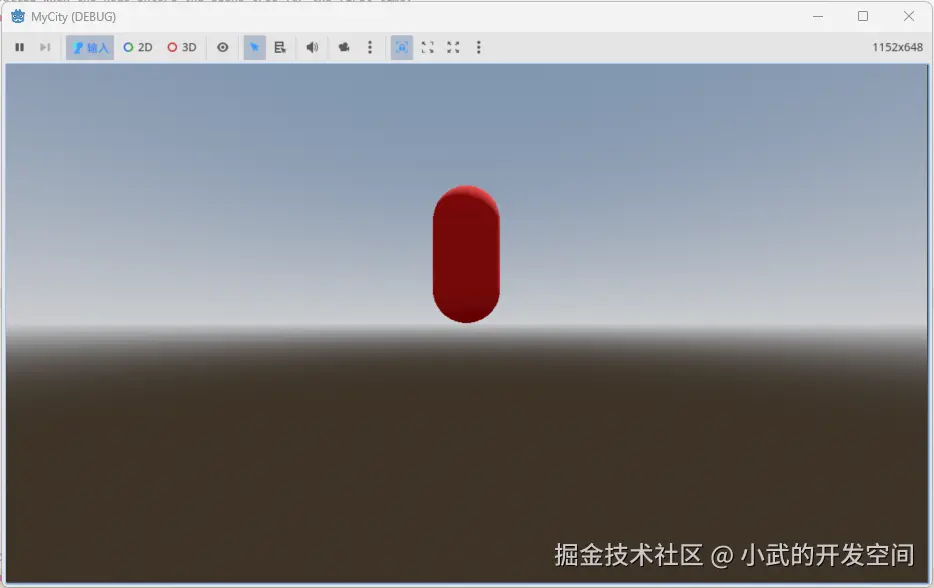

运行效果

动态创建立方体节点

extends Node3D


# Called when the node enters the scene tree for the first time.
func _ready() -> void:
	 # 创建 MeshInstance3D 节点
	var capsule_mesh_instance = MeshInstance3D.new()

	# 创建胶囊体网格资源
	var capsule_mesh = CapsuleMesh.new()

	# 设置胶囊体参数（可选）
	capsule_mesh.radius = 0.5       # 底部半径
	capsule_mesh.radial_segments = 16  # 径向分段数
	capsule_mesh.rings = 8           # 轴向分段数

	# 将网格赋给 MeshInstance3D
	capsule_mesh_instance.mesh = capsule_mesh

	# 创建材质（可选）
	var material = StandardMaterial3D.new()
	material.albedo_color = Color(1, 0, 0)  # 红色材质
	capsule_mesh_instance.material_override = material

	# 添加到场景
	add_child(capsule_mesh_instance)

	# 调整位置（可选）
	capsule_mesh_instance.position = Vector3(0, 1, 0)


	var box_mech_instance = MeshInstance3D.new()

	var box_mesh = BoxMesh.new()

	box_mesh.size = Vector3(1,1,1)

	box_mech_instance.mesh = box_mesh

	box_mech_instance.material_overlay = material

	add_child(box_mech_instance)

	box_mech_instance.position = Vector3(0,-2,-1)


# Called every frame. 'delta' is the elapsed time since the previous frame.
func _process(delta: float) -> void:
	pass

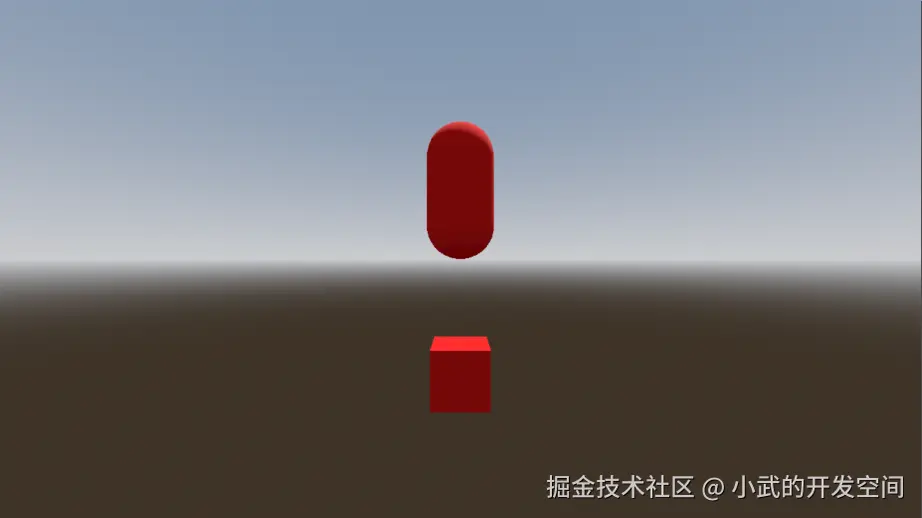

运行效果
