Flutter 插件开发实战:

用 amps_sdk 讲透 Android / iOS / HarmonyOS 广告桥接


摘要

Flutter 插件的本质,是在 Dart 和原生之间搭一座「消息桥」。广告 SDK 插件比普通插件更复杂:要处理异步回调、多广告位并行、全屏展示与信息流嵌入两种形态,还要在 Android、iOS、HarmonyOS 三端保持协议一致。

本文以公司开源广告Flutter插件项目 amps_sdk(AMPS 广告网络 Flutter 插件)为完整案例,从 MethodChannel 原理出发,讲清楚 Dart 层怎么设计 API、Native 层怎么解耦、多实例怎么隔离、自渲染怎么闭环。读完后,你应该能独立设计一套可上线的广告插件架构。


一、Flutter 插件在做什么

Flutter 应用运行在 Dart VM 里,原生 SDK(Java/Kotlin、Swift、ArkTS)跑在各自平台。两者不能直接互调,靠 Platform Channel 传消息:

┌─────────────────┐     MethodChannel      ┌──────────────────┐
│  Flutter (Dart) │ ◄────────────────────► │  Native (各平台)  │
│  amps_sdk/lib   │   invokeMethod / 回调   │  manager/*.kt 等  │
└─────────────────┘                        └──────────────────┘

常用通道类型:

类型用途amps_sdk 是否使用
MethodChannel方法调用 + 离散事件回调✅ 主通道 amps_sdk
EventChannel持续数据流(传感器、进度)❌ 广告事件是离散的,用 MethodChannel 反向调用即可
PlatformView在 Flutter 布局里嵌入原生 View✅ 原生模板 / 自渲染信息流

广告插件和普通插件最大的区别:不是调一次就结束,而是 load → render → show → click → close 一长串异步回调,且可能多路广告同时进行。


二、amps_sdk 整体分层

媒体 App (example/)
       │
       ▼

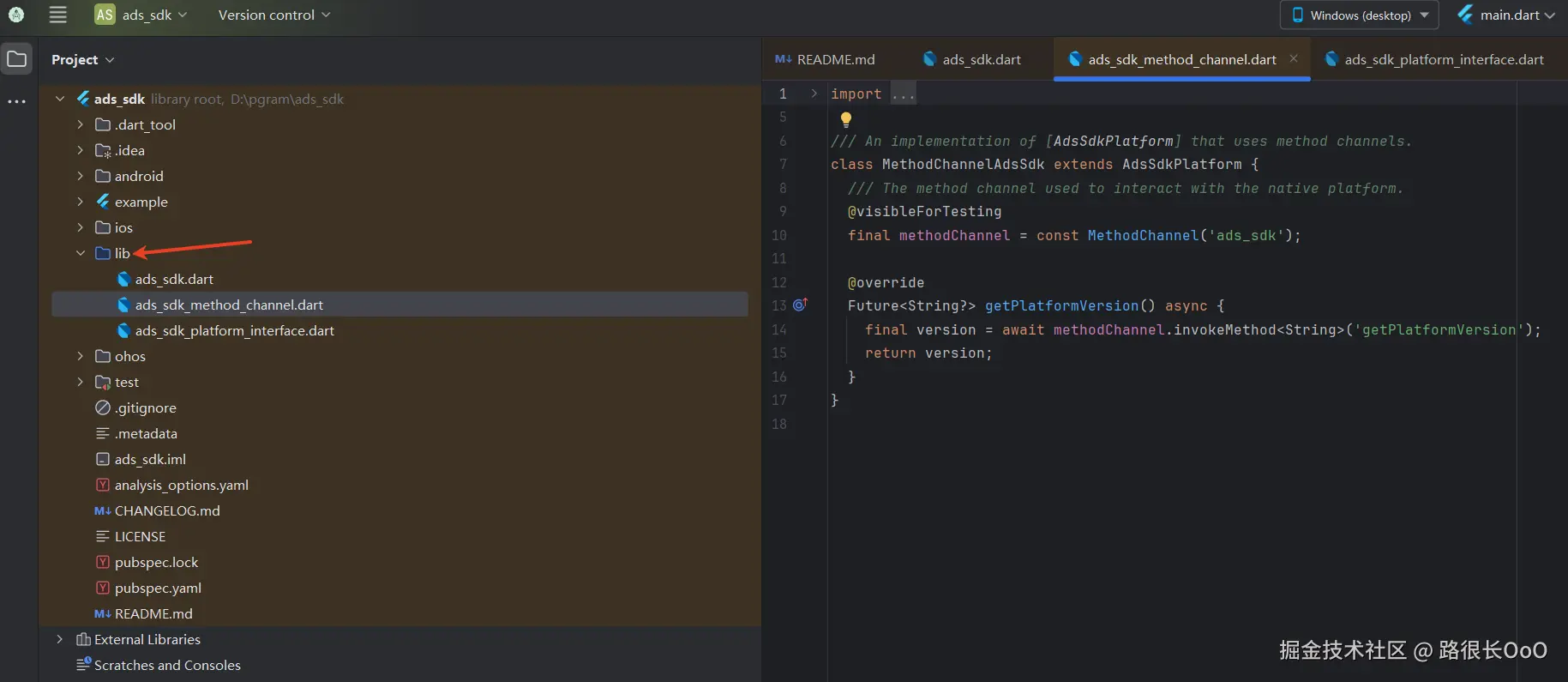

lib/                          ← Dart 对外 API
  ├── amps_sdk.dart           ← 全局 MethodChannel
  ├── controller/             ← 各广告类型 Controller
  ├── data/                   ← 配置、常量、Dispatcher
  └── native_widget.dart 等   ← PlatformView 封装
       │
       ▼
android/  ios/  ohos/         ← 三端原生实现
  ├── manager/                ← 按广告类型拆分
  ├── data/InstanceChannelHelper
  └── view/                   ← PlatformView Factory
       │
       ▼
AMPS ADN SDK (biz.beizi.adn)  ← 底层广告 SDK

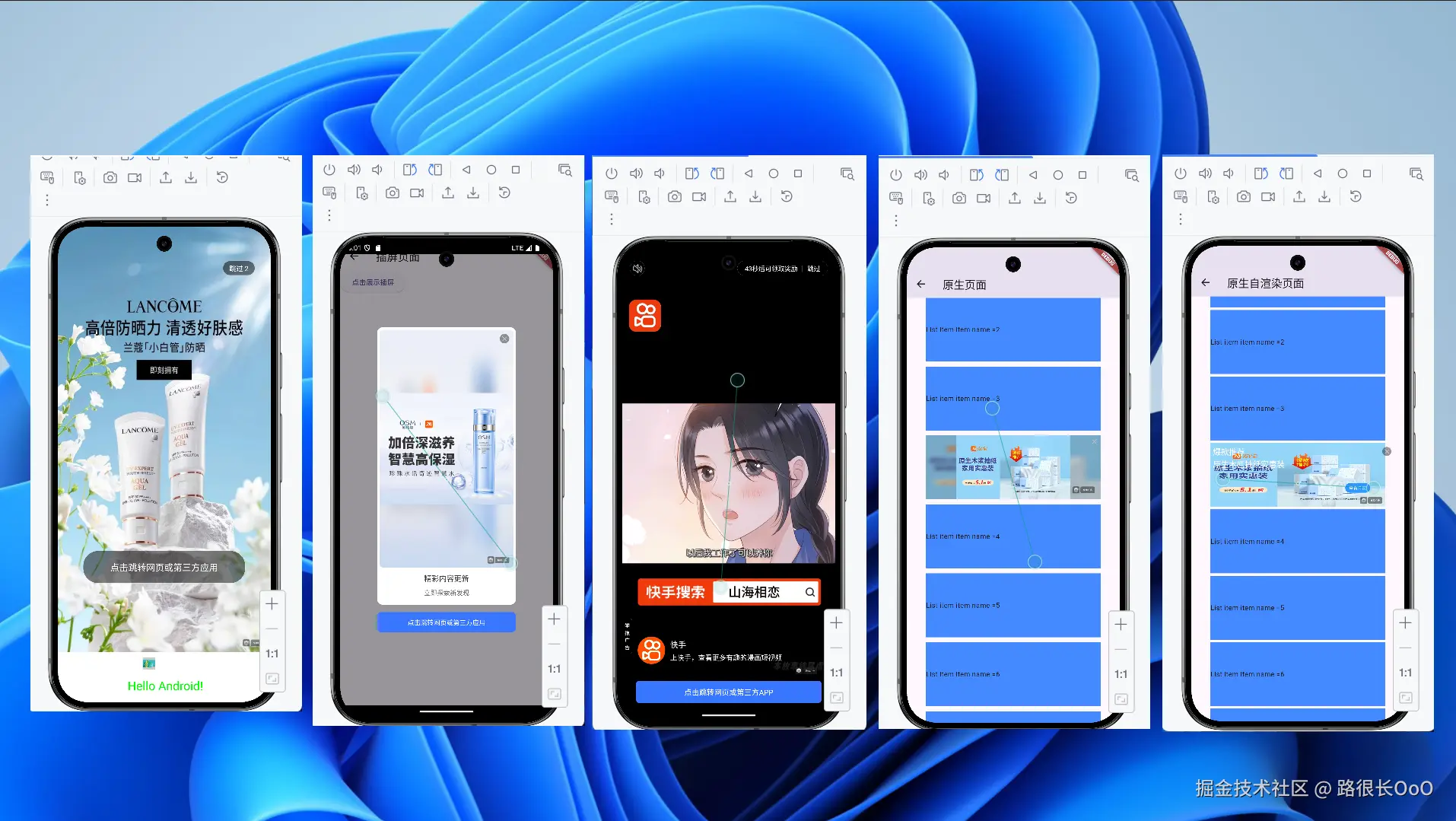

支持的广告形态:

模块Dart 类展示方式
初始化AMPSAdSDK—
开屏AMPSSplashAdshowAd() 全屏覆盖
插屏AMPSInterstitialAdshowAd() 全屏覆盖
原生模板AMPSNativeAdNativeWidget 嵌入列表
自渲染AMPSNativeAd(unified)UnifiedWidget + 布局 DSL

三、MethodChannel:一条通道走天下

3.1 通道名四端对齐

Dart 侧定义唯一主通道:

// lib/amps_sdk.dart
class AmpsSdk {
  static const MethodChannel channel = MethodChannel('amps_sdk');
}

lib/common.dart 里集中维护 方法名、回调名、PlatformView ID,Android / iOS / OHOS 各有一份对应常量。这是跨端联调成本最低的做法——改一处,四端同步。

主通道负责两类通信:

  1. Dart → Native:channel.invokeMethod('AMPSSplashAd_load', args)
  2. Native → Dart:channel.invokeMethod('onRenderOk', args)(反向调用)

3.2 参数怎么传

复杂配置不适合 positional 参数。amps_sdk 用 Builder + Map:

final config = AMPSBuilder("your_app_id")
    .setAppName("测试 App")
    .setDebugSetting(true)
    .setAdCustomController(AMPSCustomController(param: ...))
    .build();

await AmpsSdk.channel.invokeMethod(
  AMPSAdSdkMethodNames.init,
  config.toMap(testModel),
);

Native 侧用 Converter 把 Map 转成 SDK 需要的对象。Map 的 key 在 amps_sdk_api_keys.dart 里统一定义,避免字符串拼写错误。

3.3 Init 回调:不带 instanceId

初始化是全局单例行为,回调直接传 flat map:

// Native → Dart
{ "code": 1001, "message": "init failed" }

// Dart 处理
case AMPSInitChannelMethod.initFailed:
  final map = call.arguments as Map?;
  _callBack?.initFailed?.call(map?['code'], map?['message']);

四、Dart 层设计:五个模块 + 一个 Dispatcher

4.1 五个 Controller,一种调用风格

和原生 SDK 对齐,Flutter 端也拆成五个模块:

// 初始化
AMPSAdSDK().init(sdkConfig, initCallBack);

// 开屏
final splash = AMPSSplashAd(config: options, mCallBack: callback);
splash.load();
splash.showAd(splashBottomWidget: bottom);

// 插屏 — 同上
final interstitial = AMPSInterstitialAd(config: options, mCallBack: callback);

// 原生 / 自渲染
final native = AMPSNativeAd(config: options, mCallBack: callback);
native.load();
// renderSuccess 后
NativeWidget(native, adId: adId);

Flutter 没有 interface,用 typedef + 回调类 代替:

class AdCallBack {
  final VoidCallback? onRenderOk;
  final void Function(int? code, String? msg)? onLoadFailure;
  final VoidCallback? onAdClosed;
  // ...
}

4.2 核心问题:setMethodCallHandler 会被覆盖

如果每个 Controller 都写:

AmpsSdk.channel.setMethodCallHandler((call) { ... });

后注册的会覆盖先注册的。典型场景:先 load 开屏,再 load 插屏,开屏的所有回调全丢。

这是广告插件最常见的 Dart 层 bug。

4.3 解法:AmpsChannelDispatcher

全局只注册 一次 handler,各模块 register 自己的处理函数:

class AmpsChannelDispatcher {
  static const String kInstanceId = 'instanceId';
  static const String kData = 'data';

  static final List<AmpsChannelHandler> _handlers = [];

  static void register(AmpsChannelHandler handler) {
    _ensureInstalled();
    if (!_handlers.contains(handler)) _handlers.add(handler);
  }

  static void _ensureInstalled() {
    AmpsSdk.channel.setMethodCallHandler((call) async {
      for (final h in List<AmpsChannelHandler>.from(_handlers)) {
        try { await h(call); } catch (_) {}
      }
    });
  }

  static String? extractInstanceId(MethodCall call) {
    final args = call.arguments;
    if (args is Map) return args[kInstanceId] as String?;
    return null;
  }
}

Init 注册一次;Splash / Interstitial / Native 各自注册 _handleChannelCall,只处理本类型的 call.method。

4.4 多实例:instanceId 协议

单例 Manager 只能承载一路广告。媒体 App 常见需求:

  • 开屏 A 展示中,B 已在后台 load 好
  • Feed 里多个原生广告并行

约定统一协议:

方向格式
Dart → Native{ ...config, instanceId: 'splash_xxx_1' }
Native → Dart{ instanceId: 'splash_xxx_1', data: <payload> }

Controller 实现模式:

class AMPSSplashAd {
  final String _instanceId = _generateInstanceId();
  static final Map<String, AMPSSplashAd> _instances = {};

  AMPSSplashAd({required this.config, this.mCallBack}) {
    _instances[_instanceId] = this;
    AmpsChannelDispatcher.register(_handleChannelCall);
  }

  void load() {
    AmpsSdk.channel.invokeMethod(AMPSAdSdkMethodNames.splashLoad, {
      ...config.toMap(),
      AmpsChannelDispatcher.kInstanceId: _instanceId,
    });
  }

  static Future<void> _handleChannelCall(MethodCall call) async {
    final id = AmpsChannelDispatcher.extractInstanceId(call);
    if (id == null) return;
    final ad = _instances[id];
    // 根据 call.method 触发 ad.mCallBack
  }
}

每个实例有唯一 ID,回调通过 _instances[id] 路由,互不干扰。

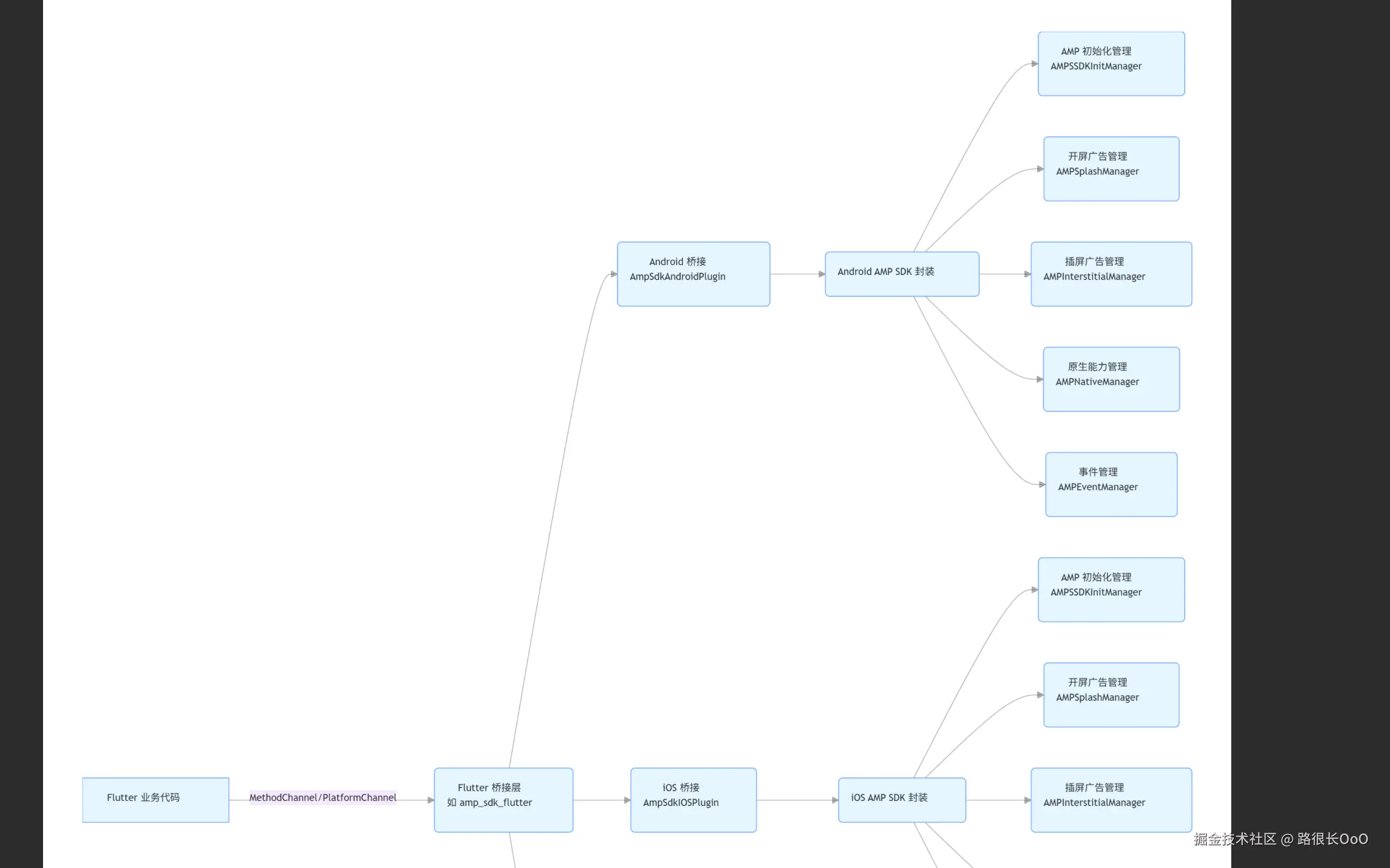

五、Native 层设计:EventManager + Manager + Helper

5.1 为什么不建多个 Plugin

有人用多个 Plugin(每个广告类型一个 MethodChannel)。问题是 GeneratedPluginRegistrant 默认只注册主 Plugin,多 Plugin 容易丢注册。

推荐方案:一个 Plugin + 一个 EventManager + 多个 Manager。

AmpsSdkPlugin
    └── AMPSEventManager(唯一 MethodChannel)
            ├── AMPSSDKInitManager
            ├── AMPSSplashManager
            ├── AMPSInterstitialManager
            └── AMPSNativeManager

Inbound 路由(Dart 调 Native):

override fun onMethodCall(call: MethodCall, result: Result) {
    when {
        InitMethodNames.contains(call.method) ->
            AMPSSDKInitManager.getInstance().handleMethodCall(call, result)
        SplashMethodNames.contains(call.method) ->
            AMPSSplashManager.getInstance().handleMethodCall(call, result)
        InterstitialMethodNames.contains(call.method) ->
            AMPSInterstitialManager.getInstance().handleMethodCall(call, result)
        NativeMethodNames.contains(call.method) ->
            AMPSNativeManager.getInstance().handleMethodCall(call, result)
        else -> result.notImplemented()
    }
}

Outbound 回调(Native 调 Dart)统一走:

AMPSEventManager.getInstance().sendMessageToFlutter(method, args)

5.2 Manager 多实例 Map

单例字段无法承载多路广告:

// ❌ B 会覆盖 A
private var mSplashAd: AMPSSplashAd? = null

改为按 instanceId 隔离:

private class AdEntry(val instanceId: String) {
    var mSplashAd: AMPSSplashAd? = null
    val containerTag = "splash_main_container_tag_$instanceId"
}
private val ads = mutableMapOf<String, AdEntry>()

private fun getOrCreateEntry(instanceId: String): AdEntry {
    return ads.getOrPut(instanceId) { AdEntry(instanceId) }
}
  • load:解析 instanceId,创建 Entry,发起 SDK load
  • showAd:按 instance 找 Entry,在 decorView 上挂独立容器(tag 隔离)
  • onAdClosed:清理对应容器,释放 Entry

iOS 用嵌套 DelegateHandler 解决 SDK delegate 无法区分实例;OHOS 用 ArkTS class + Map,逻辑一致。

5.3 InstanceChannelHelper:Outbound 统一封装

Native 回调 Flutter 时必须带 instanceId,三端同构:

// Android
object InstanceChannelHelper {
    fun send(method: String, instanceId: String, data: Any? = null) {
        AMPSEventManager.getInstance().sendMessageToFlutter(
            method,
            mapOf("instanceId" to instanceId, "data" to data)
        )
    }
}

SDK 回调里:

override fun onAmpsAdLoaded() {
    InstanceChannelHelper.send(ON_LOAD_SUCCESS, instanceId)
    InstanceChannelHelper.send(ON_RENDER_OK, instanceId)
}

override fun onAmpsAdDismiss() {
    cleanupViewsAfterAdClosed(instanceId)
    InstanceChannelHelper.send(ON_AD_CLOSED, instanceId)
}

iOS 有 InstanceChannelHelper.swift,OHOS 有 InstanceChannelHelper.ets,协议完全相同。


六、两种展示范式:这是广告插件的分水岭

广告插件和普通插件最大的架构分叉:全屏广告 和 嵌入信息流 走完全不同的桥接路径。

范式 A:全屏 —— load + showAd

开屏、插屏

final splash = AMPSSplashAd(config: options, mCallBack: callback);
splash.load();
// onRenderOk 后
splash.showAd(splashBottomWidget: bottomWidget);

Native 在 Activity 的 decorView(iOS 是当前 VC)上动态挂载容器,不占 Flutter 布局树。关闭时 Native 自己 removeView,再回调 onAdClosed。

特点:

  • 不需要 PlatformView
  • 展示层级在 Flutter 之上
  • 适合启动页、弹窗类广告

范式 B:嵌入 —— load + PlatformView

原生模板、自渲染信息流

nativeAd.load();
// renderSuccess(adId) 后
NativeWidget(nativeAd, adId: adId);
AndroidView(
  viewType: AMPSPlatformViewRegistry.ampsSdkNativeViewId,
  creationParams: {"adId": adId, "width": width},
  onPlatformViewCreated: _onPlatformViewCreated,
);

特点:

  • 广告嵌在 ListView / Column 里
  • 每个 creative 分配 UUID adId
  • 关闭时必须知道删哪一条 feed item

这里有两个 ID,职责不同:

ID层级作用
instanceId会话级区分「第几路 load 请求」,路由 MethodChannel 回调
adId创意级区分「哪一条广告素材」,PlatformView 创建参数、关闭时删 item

范式 C:Widget 内嵌 + 独立 Channel(Legacy)

SplashWidget / InterstitialWidget 在 PlatformView 创建后,会注册独立通道:

MethodChannel('biz.beizi.adn/splash_view_id$id')

此路径回调 不带 全局 instanceId envelope,适合单实例 Demo。生产环境多实例并行,推荐主通道 + Dispatcher 方案。


七、自渲染(Unified):布局 DSL → Native 动态建 View

自渲染是 amps_sdk 比普通插件多出来的一层:Flutter 描述布局,Native 按 DSL 动态创建 ImageView、TextView、CloseButton 等。

7.1 Dart 描述布局

NativeUnifiedWidget(
  height: 128,
  backgroundColor: '#F0EDF4',
  children: [
    UnifiedMainImgWidget(width: 120, height: 90, ...),
    UnifiedTitleWidget(textSize: 14, ...),
    UnifiedCloseWidget(imagePath: 'assets/images/close.png'),
    DownLoadWidget(..., downloadListener: listener),
  ],
)

toMap() 作为 PlatformView 的 creationParams 传给 Native。

7.2 Native 渲染链路

UnifiedWidget (Dart)
    → PlatformView creationParams
    → AMPSUnifiedView (Native Factory)
    → NativeUnifiedModule
    → AmpsUnifiedFrameLayout.render()
        按 type 创建子 View → bindAdToRootContainer

7.3 关闭回调的坑

多实例改造后,若自渲染 View 层仍 sendMessage(onAdClosed, adId) 不带 instanceId,Dart Dispatcher 会直接丢弃回调 → feed 卡片不删、PlatformView 变成空壳 → 底部出现白条。

修复要点:

  1. AdUnifiedWrapperManager 维护 adId → instanceId 映射
  2. AmpsUnifiedFrameLayout 所有回调走 InstanceChannelHelper.send(method, instanceId, adId)
  3. Flutter 侧 onAdClosed 按 adId 从列表移除 item
  4. Example 可加 Flutter 兜底关闭按钮(原生不回调时手动移除)

八、完整时序:从 load 到 close

以开屏双实例为例:

sequenceDiagram
  participant App as Flutter App
  participant A as AMPSSplashAd(A)
  participant B as AMPSSplashAd(B)
  participant Disp as AmpsChannelDispatcher
  participant Ch as MethodChannel
  participant Mgr as AMPSSplashManager

  App->>A: load() instanceId=A
  App->>B: load() instanceId=B
  A->>Ch: splashLoad + instanceId
  B->>Ch: splashLoad + instanceId
  Ch->>Mgr: handleSplashLoad ×2
  Mgr-->>Ch: onRenderOk {instanceId:A}
  Ch->>Disp: fan-out
  Disp->>A: callback.onRenderOk
  App->>A: showAd()
  Mgr-->>Ch: onAdClosed {instanceId:A}
  Disp->>A: callback.onAdClosed
  App->>B: showAd()

Example 里的验证逻辑:

_splashAdA = AMPSSplashAd(config: options, mCallBack: callbackA);
_splashAdB = AMPSSplashAd(config: options, mCallBack: callbackB);
debugPrint('A instanceId=${_splashAdA!.instanceId}');
_splashAdA!.load();
_splashAdB!.load();
// A onRenderOk → showAd(A)
// A onAdClosed → showAd(B)

验证标准:Log 里两个不同 instanceId;A 关闭后 B 正常接续,无回调串台。


九、三端一致性要点

层级AndroidiOSHarmonyOS
入口AmpsSdkPlugin.ktAmpsSdkPlugin.swiftAmpsSdkPlugin.ets
分发AMPSEventManager同名同名
多实例Map<instanceId, AdEntry>嵌套 DelegateHandlerArkTS class + Map
回调封装InstanceChannelHelper.kt.swift.ets
PlatformViewPlatformViewFactoryFlutterPlatformViewPlatformView

OHOS 特别注意:PlatformView 里的 adId 必须是实例字段,不能是 static——否则多路原生广告会共用同一个 adId,关闭时串台。


十、开发环境与项目创建(精简版)

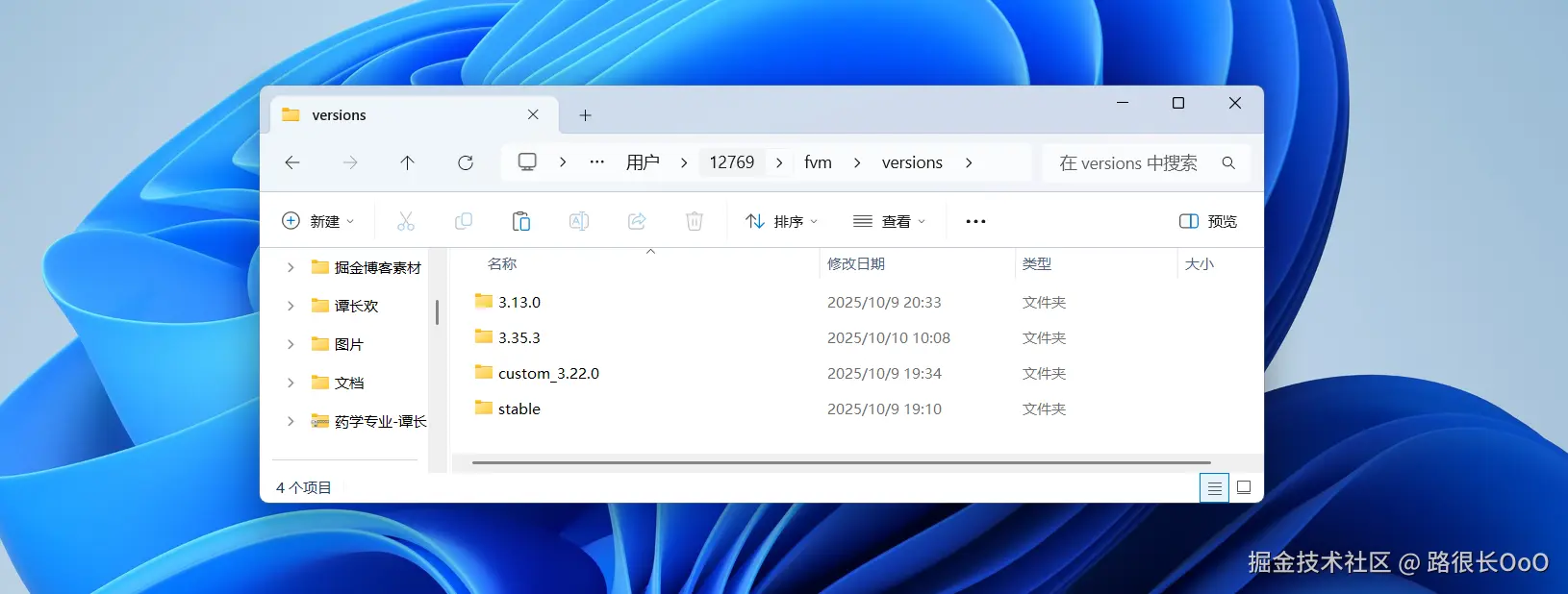

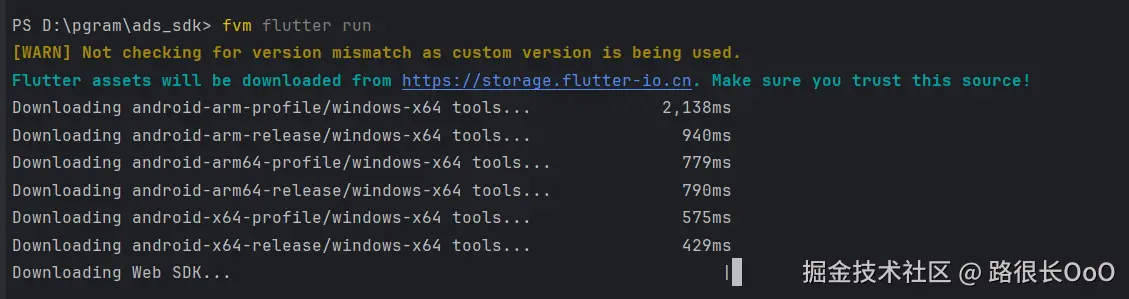

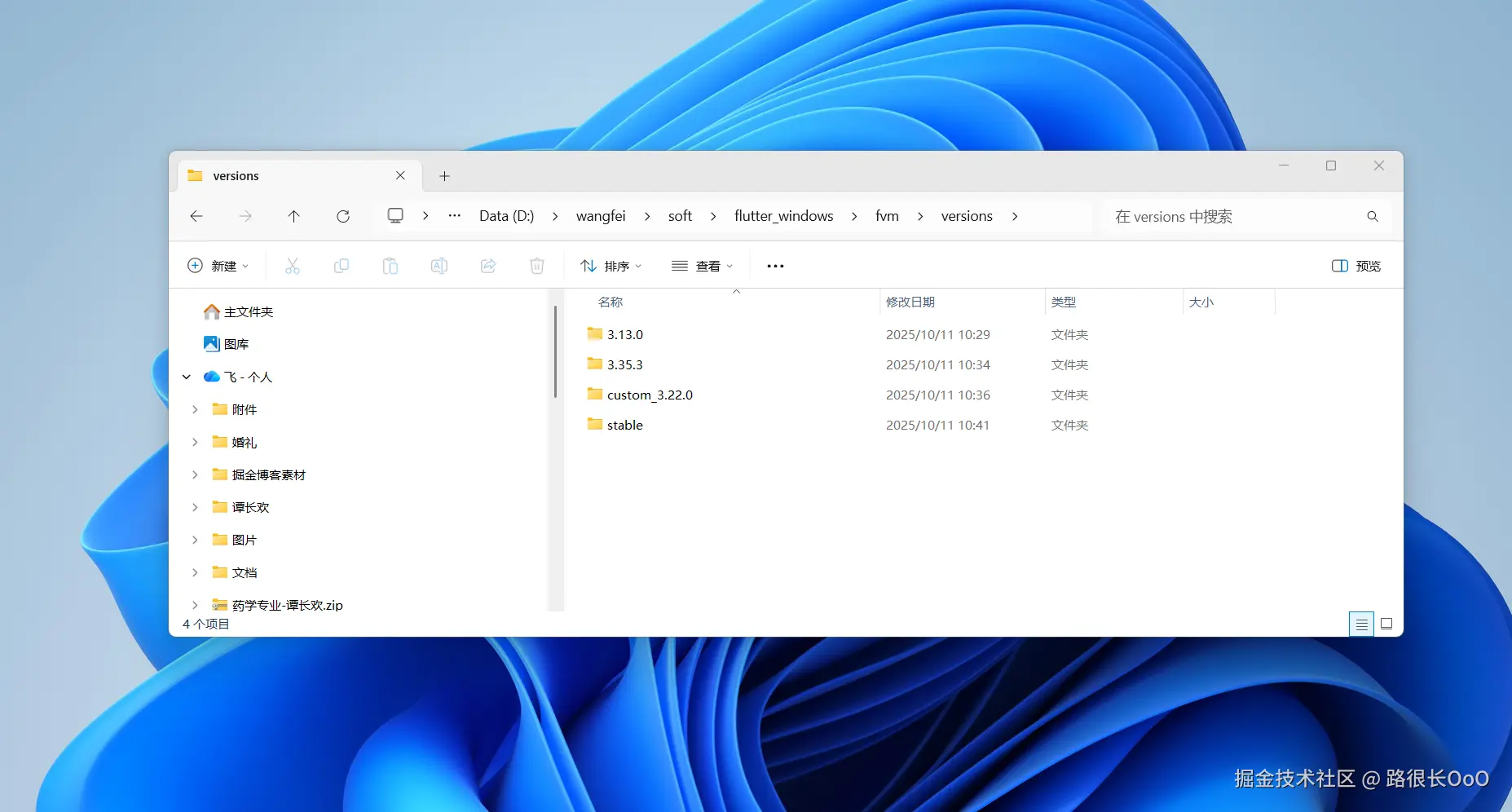

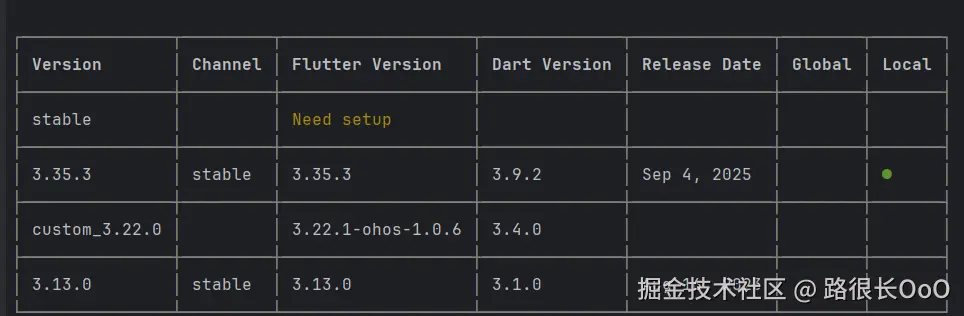

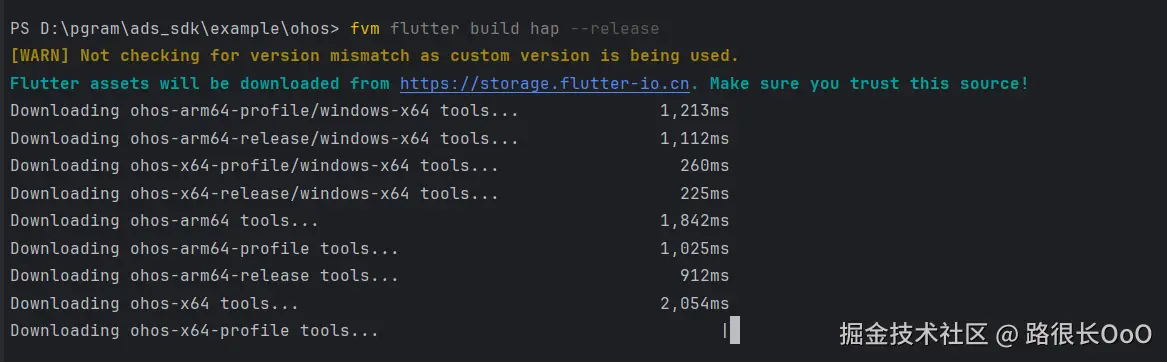

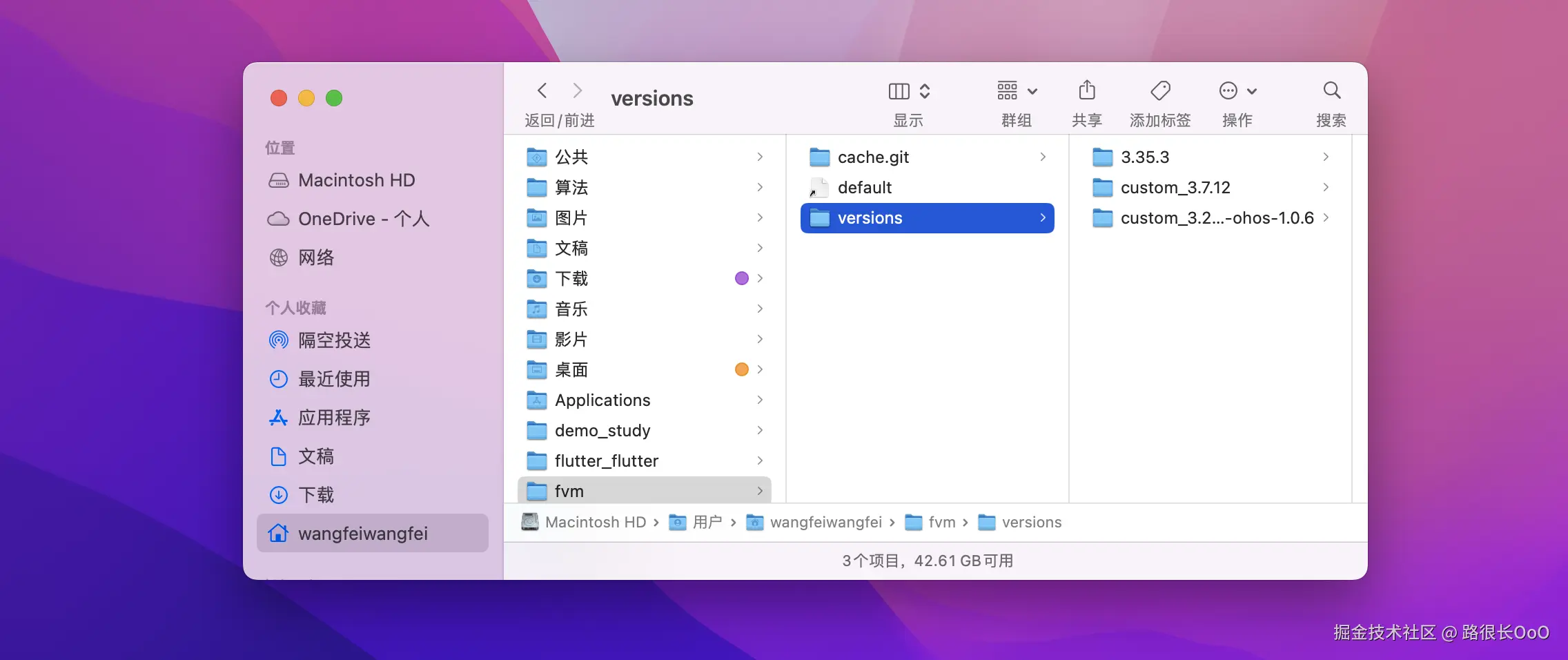

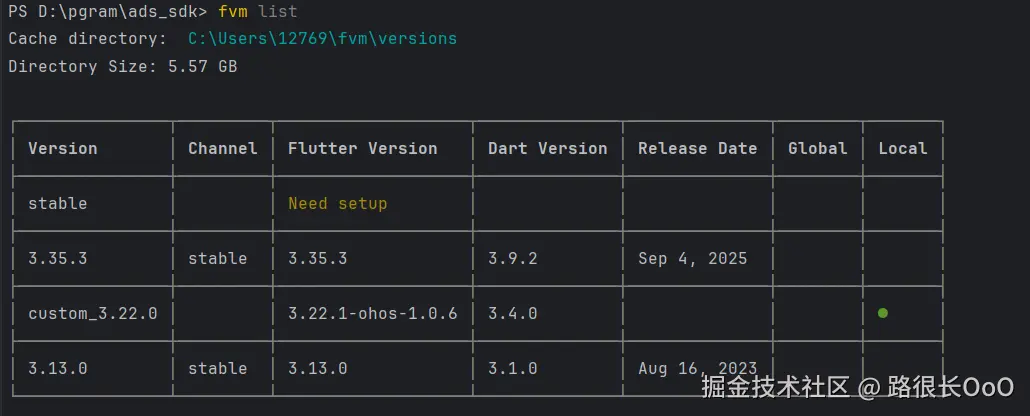

广告插件常需三端 Flutter SDK,版本不一致时用 FVM 管理:

dart pub global activate fvm
fvm install 3.35.3    # Android / iOS
fvm use 3.35.3

# HarmonyOS 需 clone OHOS 版 Flutter
git clone -b 3.22.0-ohos https://gitcode.com/openharmony-tpc/flutter_flutter.git

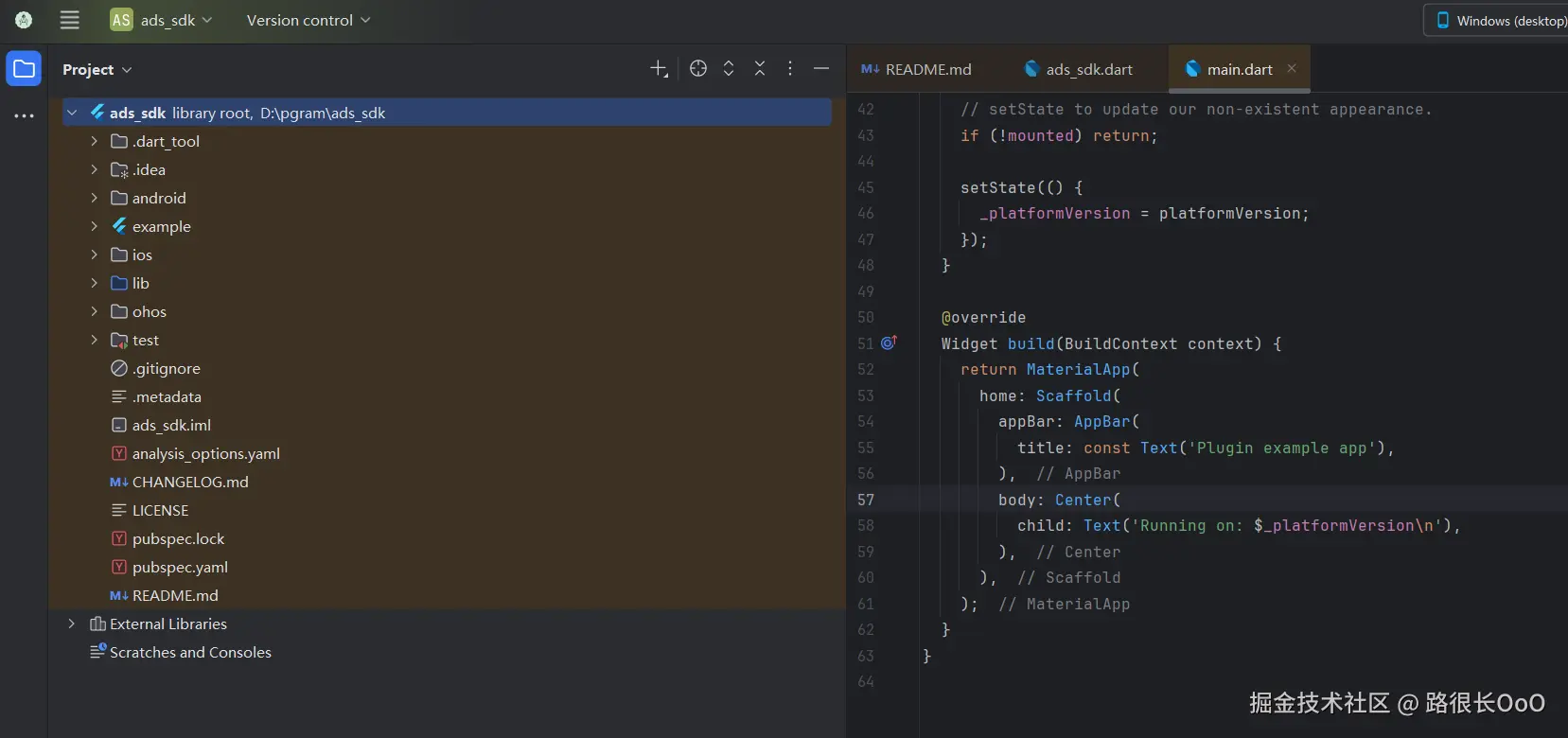

fvm flutter create --template=plugin --platforms=android,ios,ohos amps_sdk

各端 IDE 打开路径:

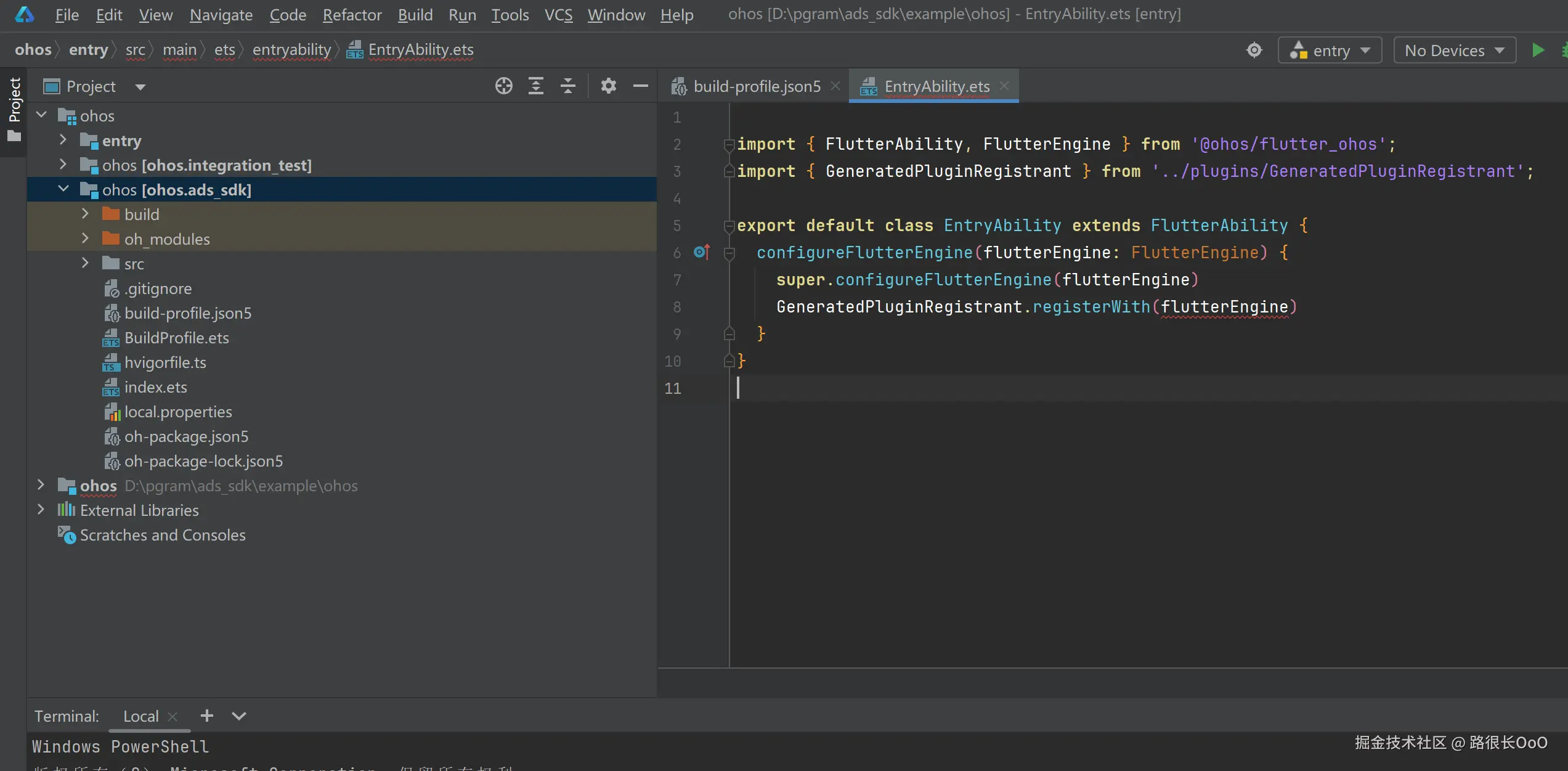

平台IDE路径

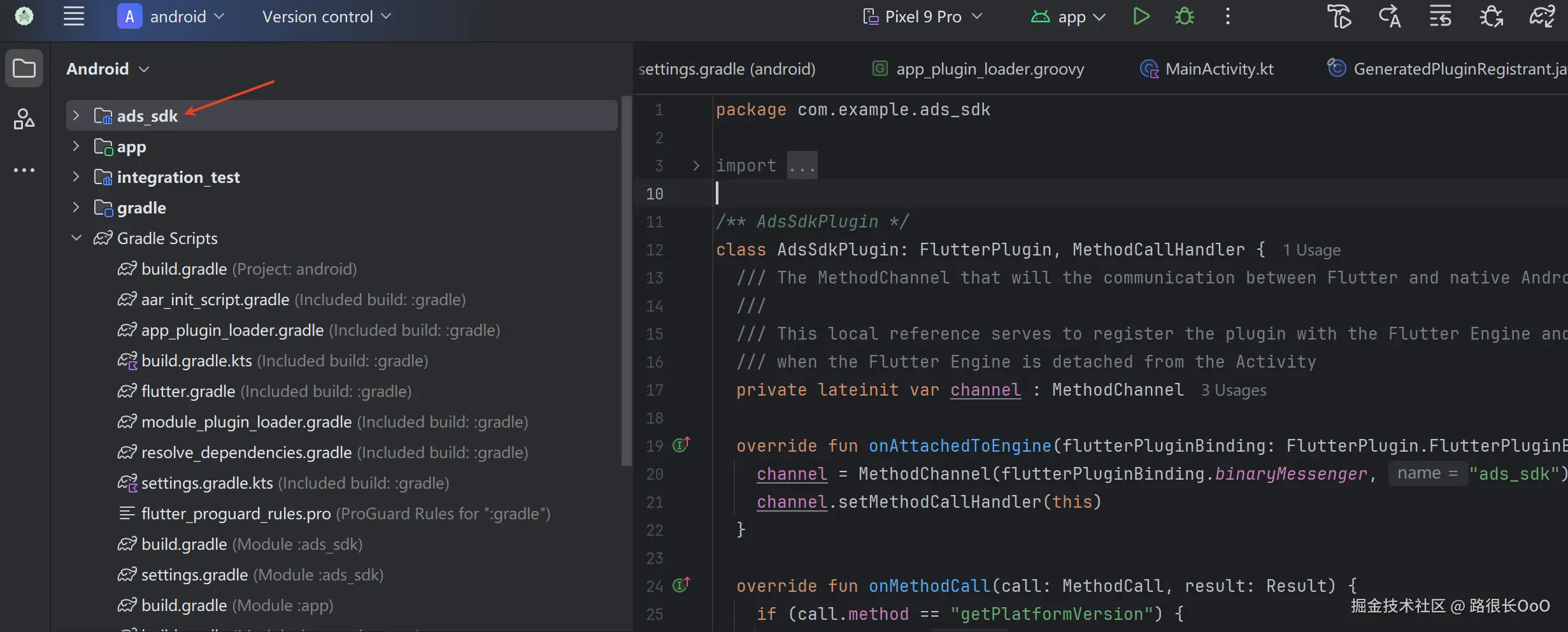

AndroidAndroid Studioexample/android
iOSXcodeexample/ios/Runner.xcworkspace
HarmonyOSDevEco Studioexample/ohos

原生 SDK 依赖建议发布到 Maven / CocoaPods / OHPM,避免让接入方手动拷贝 AAR。


十一、Checklist:上线前自查

Dart 层

  • 禁止各 Controller 直接 AmpsSdk.channel.setMethodCallHandler
  • 除 Init 外,所有 invoke / 回调带 instanceId
  • 信息流关闭用 adId 删 item;PlatformView 用 ValueKey('${label}_$adId')
  • Controller dispose 时从 _instances 移除并 unregister handler

Native 层

  • Manager 内禁止单字段 var xxxAd 承载多会话
  • 广告回调统一 InstanceChannelHelper.send
  • 自渲染 View 发回调前能解析 instanceId
  • PlatformView dispose 清理 WrapperManager
  • showAd 容器用唯一 tag,close 时 removeView

联调

  • 双实例 A/B 页面:并行 load、顺序 show、回调不串
  • 自渲染关闭后 feed 无留白
  • 三端 method 名 / 回调名 / PlatformView ID 一致

十二、总结

Flutter 广告插件的核心,不是「调通一个 MethodChannel」,而是解决四件事:

  1. 通道分工 — 一个主 MethodChannel 负责命令和离散回调;PlatformView 负责嵌入展示
  2. Dart Dispatcher — 全局一次 handler 注册,多模块 fan-out,避免回调覆盖
  3. instanceId 协议 — Dart 和 Native 两端 Map 隔离,支撑多路广告并行
  4. 两种展示范式 — 全屏 showAd 与嵌入 PlatformView 分轨设计;自渲染额外维护 adId ↔ instanceId 映射

amps_sdk 把这套架构落到了 Android、iOS、HarmonyOS 三端,Example 里提供了开屏 / 插屏 / 原生 / 自渲染的双实例验证页。照着这个结构做,你的插件从 Demo 到生产会少走很多弯路。
