一.开发工具简介
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
二.系统内容简介
医院急诊患者行为分析系统是一套基于大数据技术的医疗数据智能分析平台。系统采用Hadoop+Spark分布式计算框架作为数据处理引擎,通过HDFS实现海量急诊数据的存储与管理。后端使用Django框架构建RESTful API接口,结合Spark SQL进行复杂的数据查询与统计分析,利用Pandas和NumPy完成数据清洗、特征提取等预处理工作。前端采用Vue+ElementUI搭建交互界面,通过Echarts实现患者特征、急诊行为、满意度评价、医疗资源利用等多维度数据的可视化展示。系统核心功能涵盖用户权限管理、急诊患者基础数据管理、患者特征画像分析、急诊就医行为模式挖掘、满意度评估、医疗资源配置分析以及多维度综合分析看板,并提供可视化大屏用于数据集中展示。通过对急诊患者的就诊时间分布、疾病类型、等候时长、诊疗流程、资源占用等关键指标进行深度分析,为医院管理者提供数据支持,辅助优化急诊科室资源配置与服务流程。
三.系统功能演示

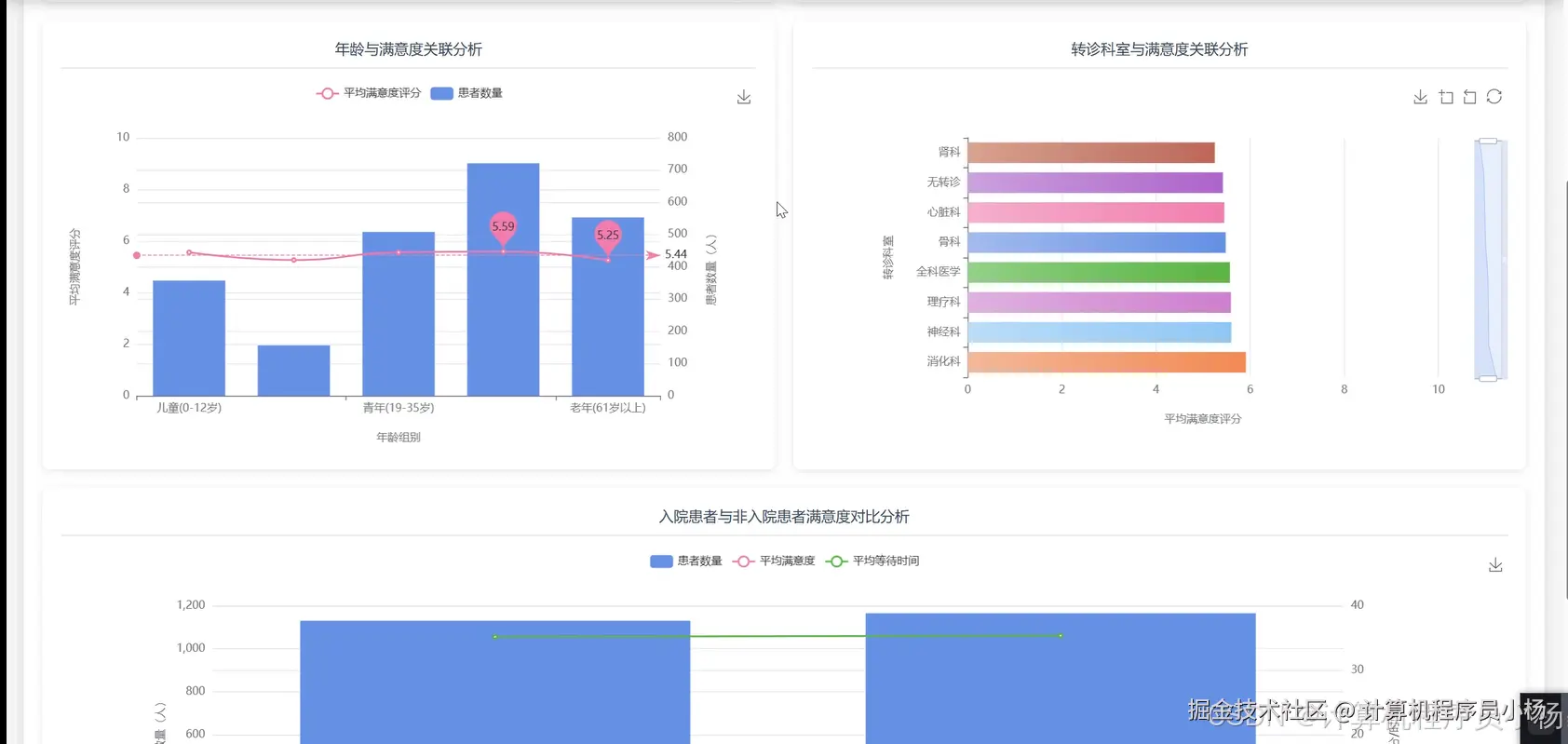

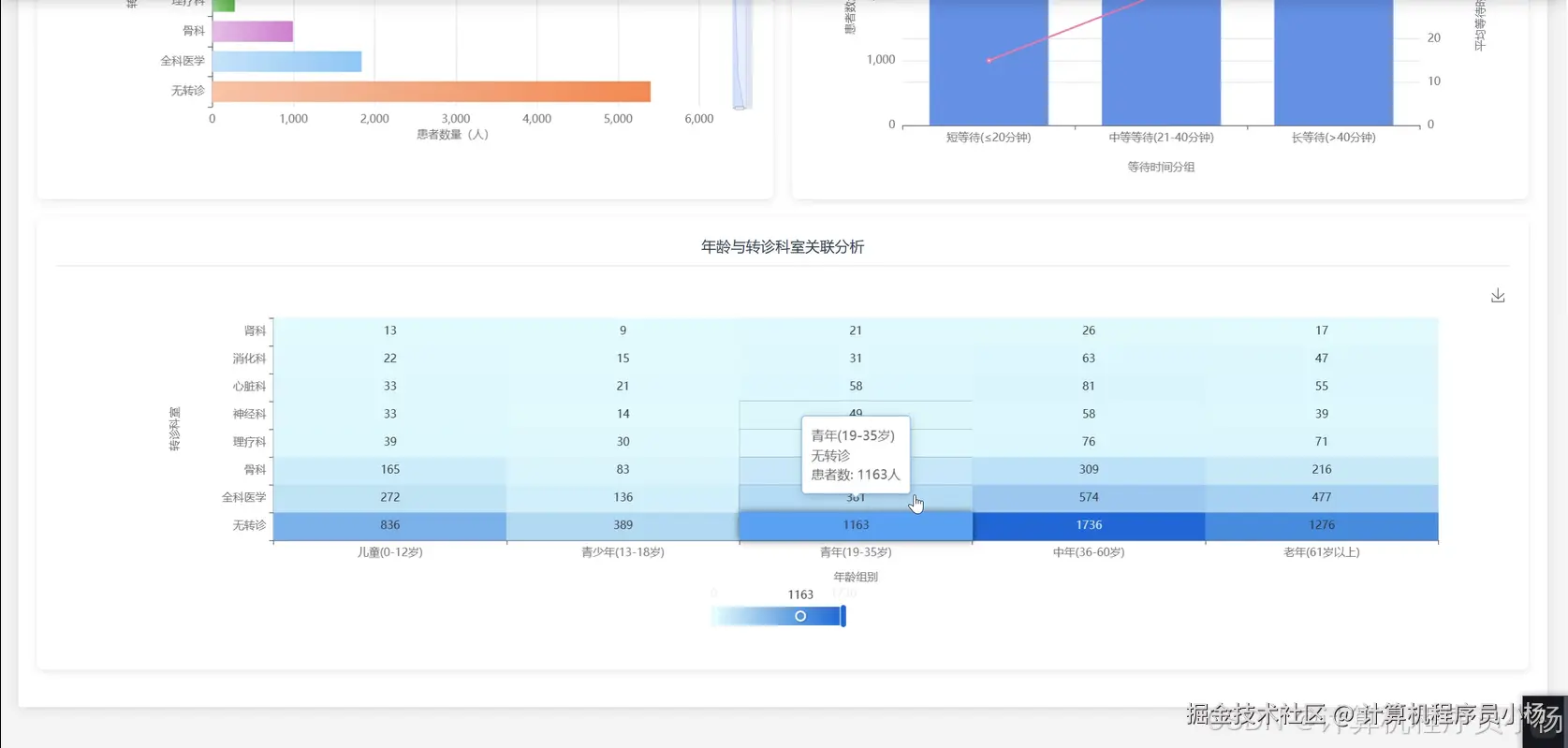

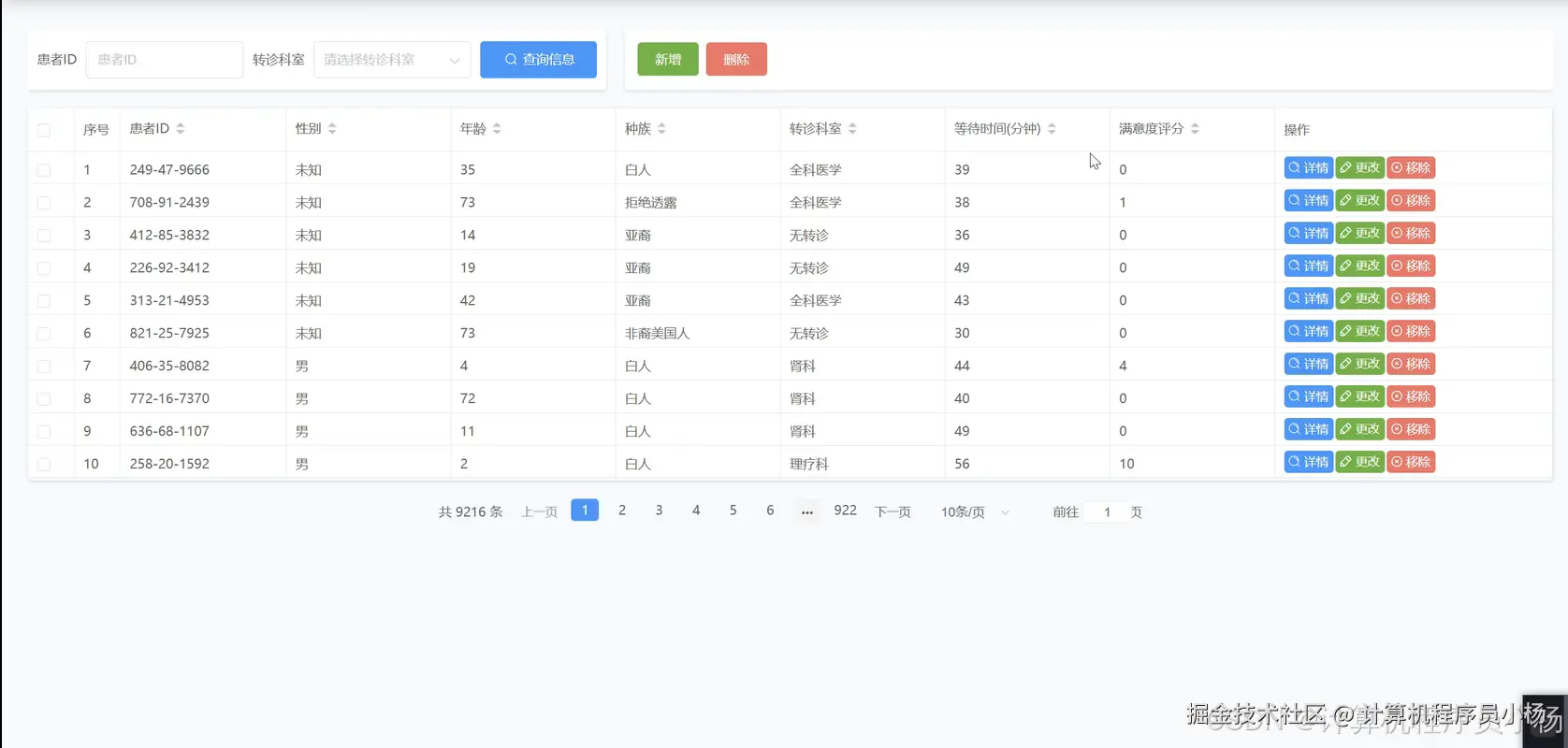

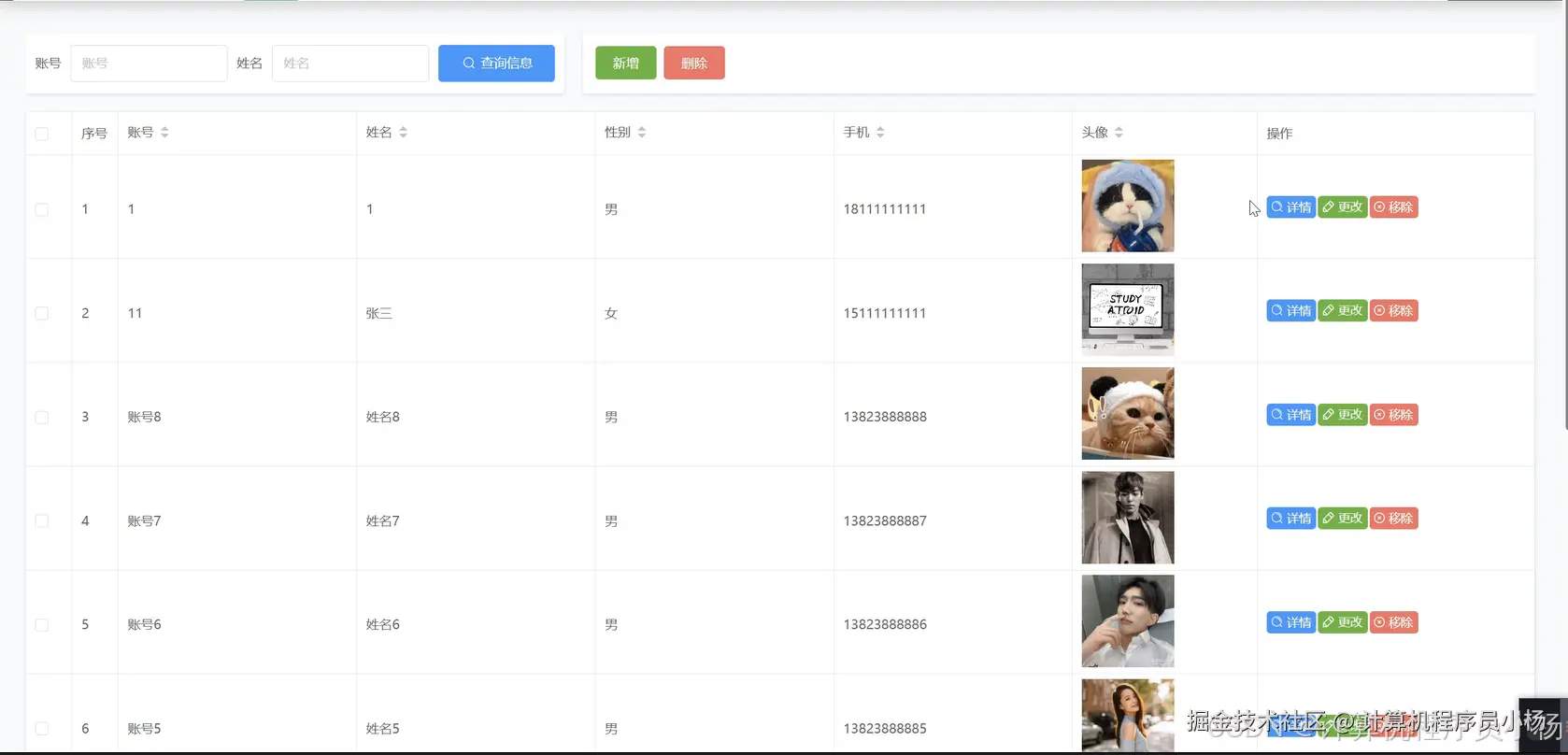

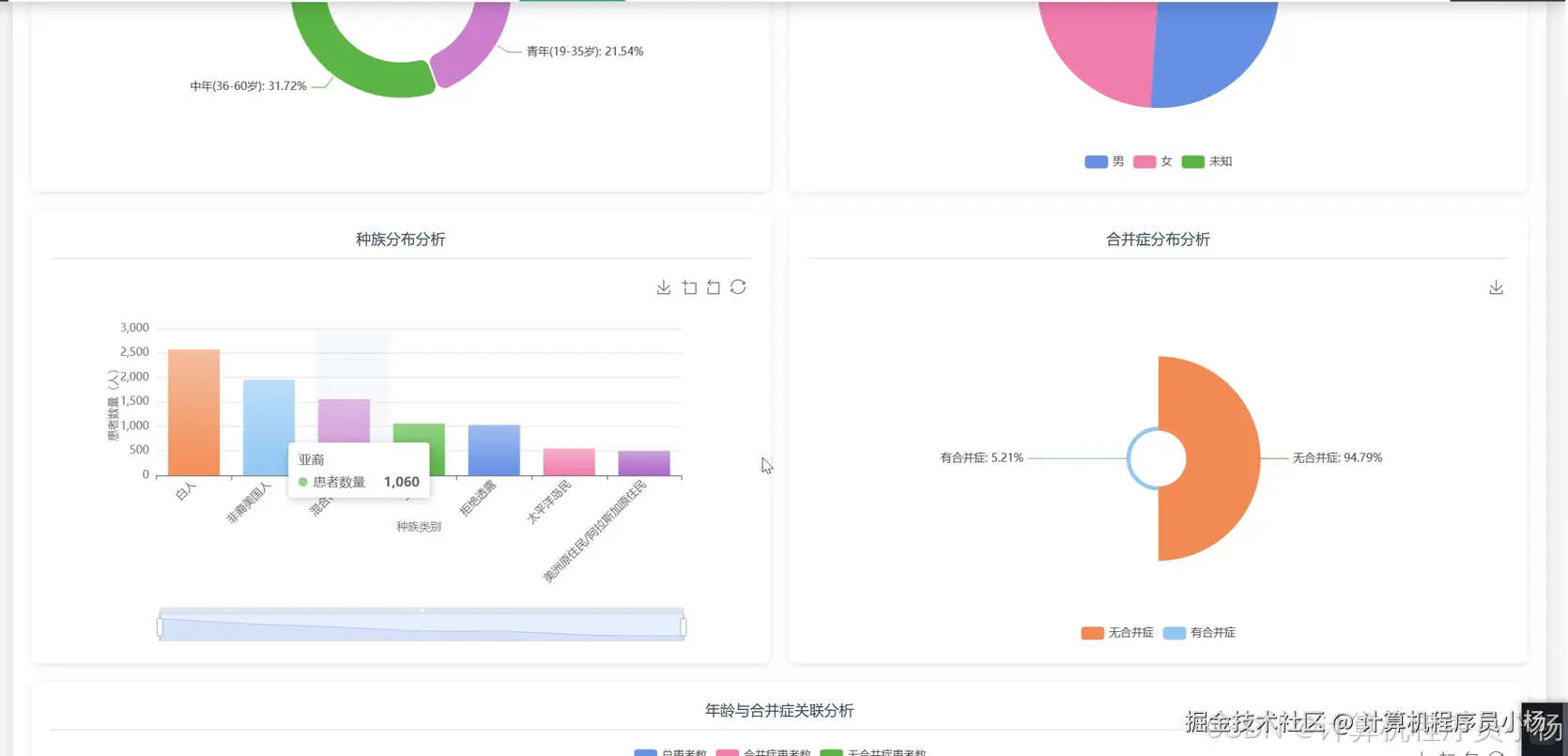

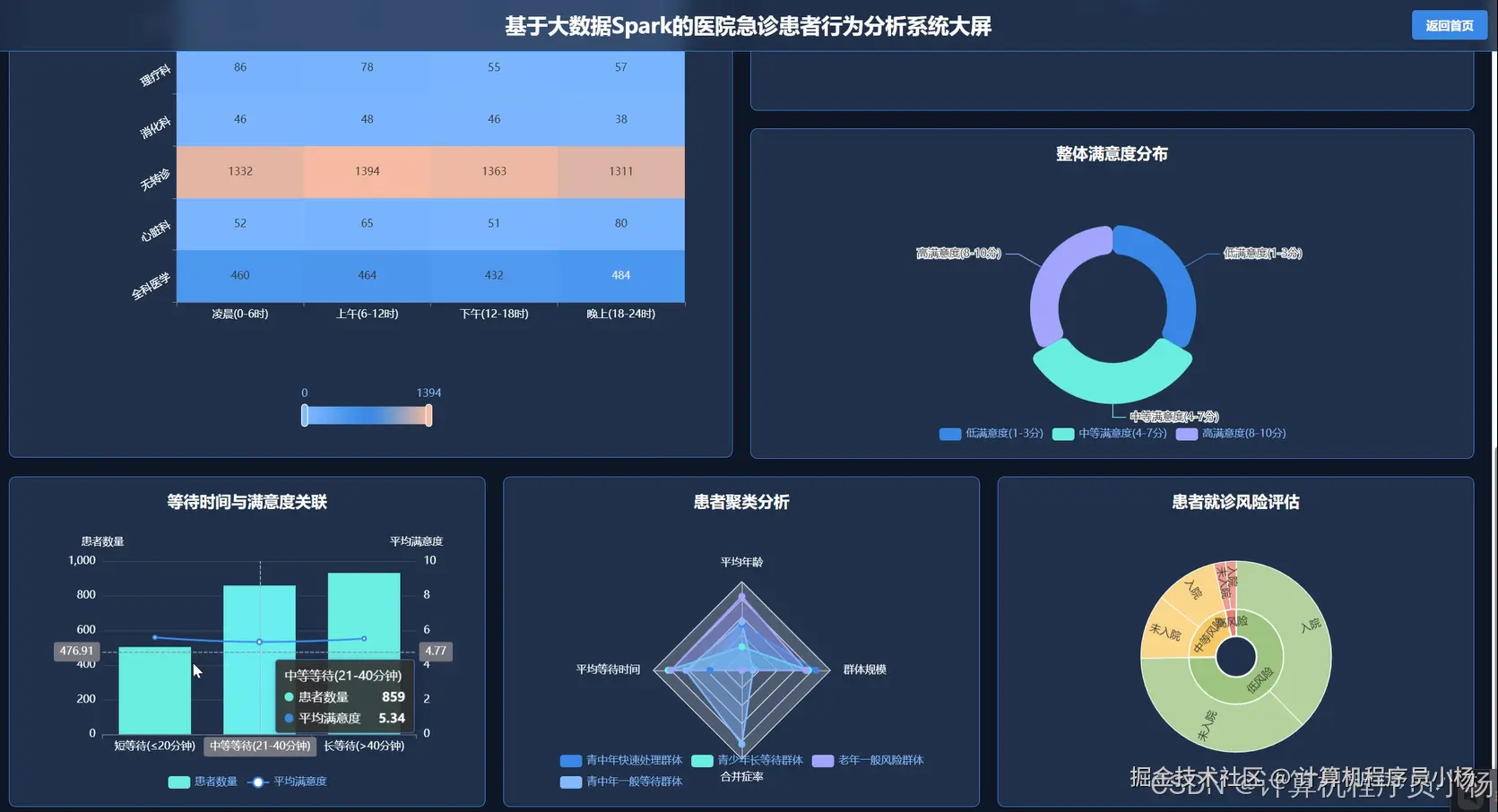

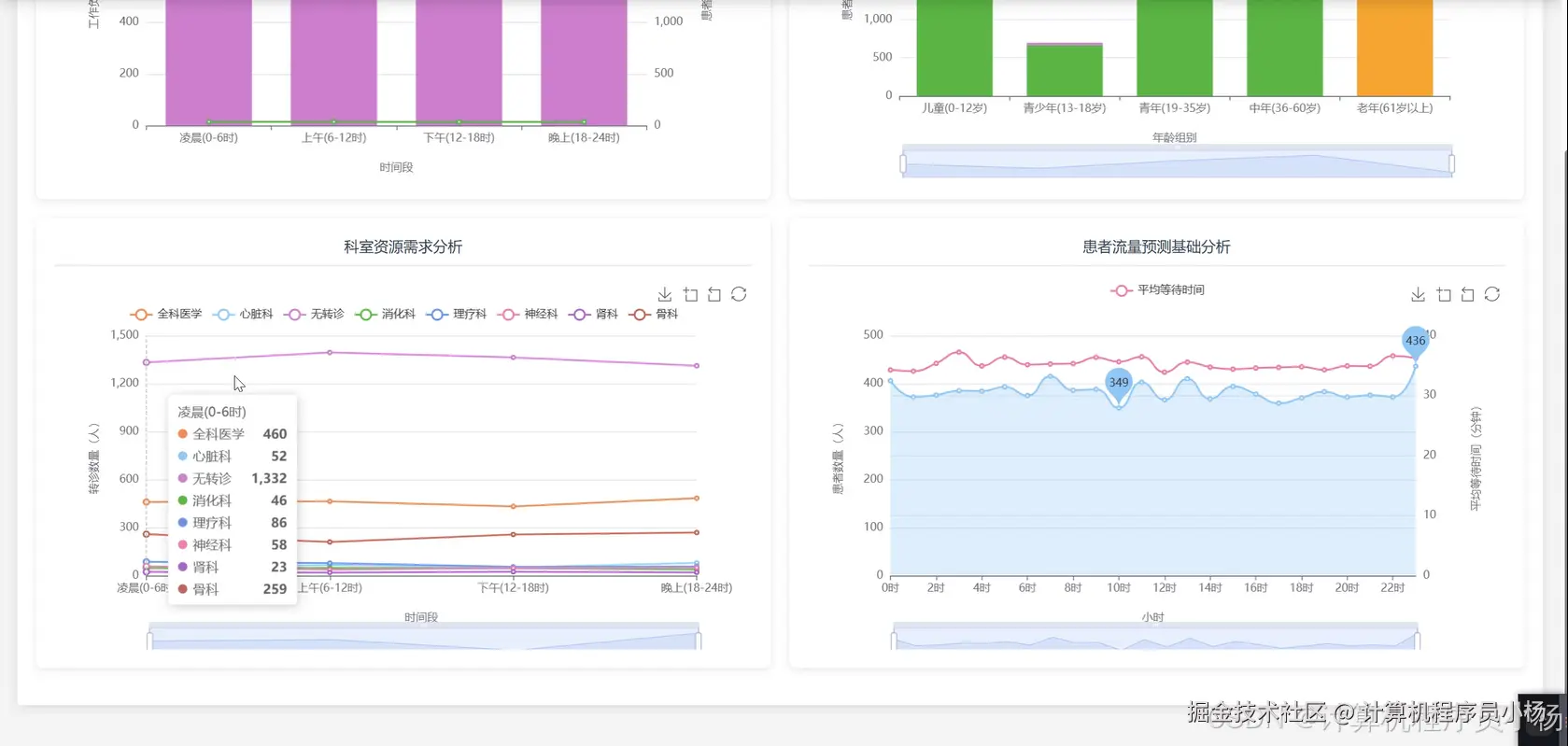

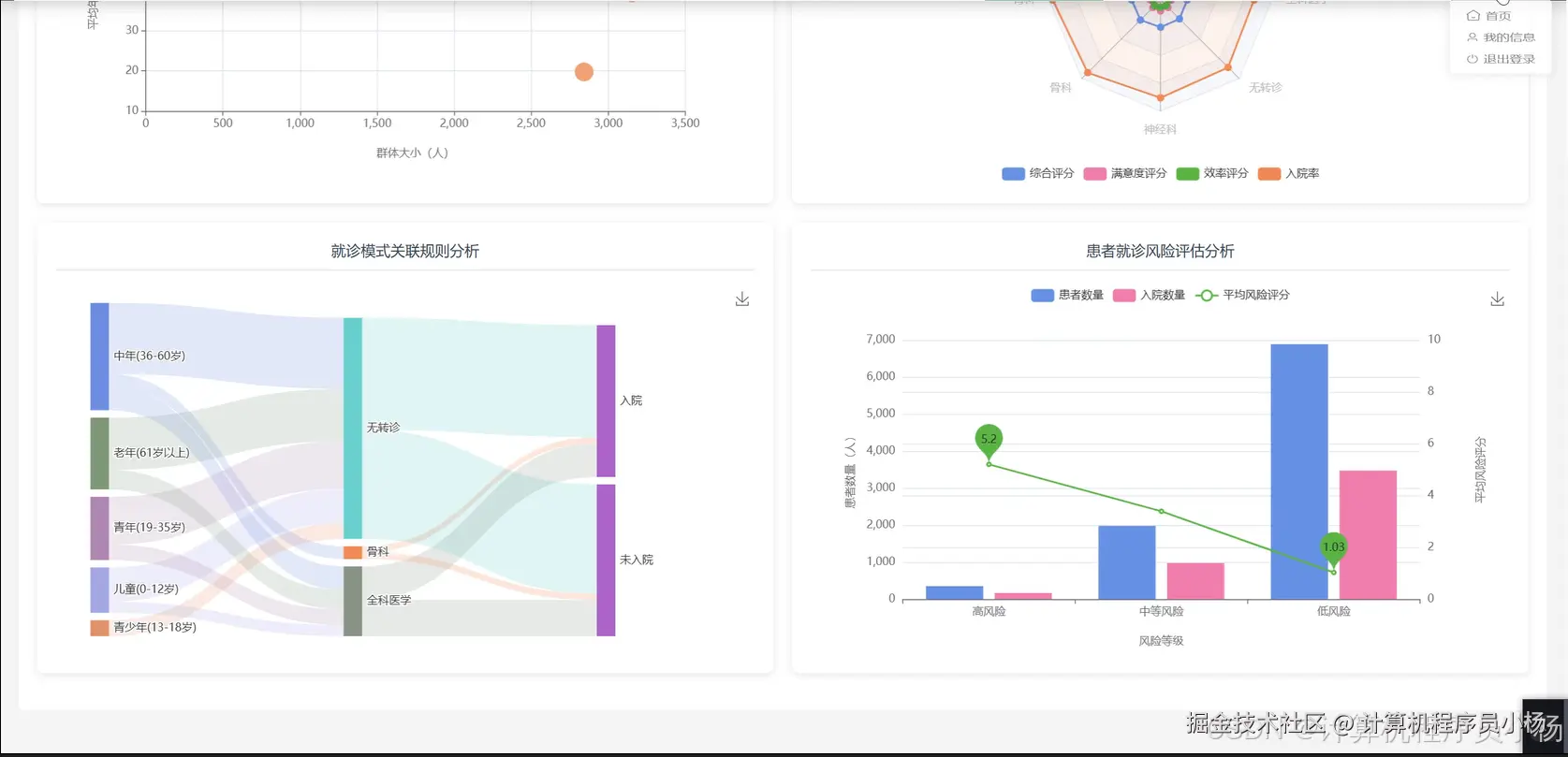

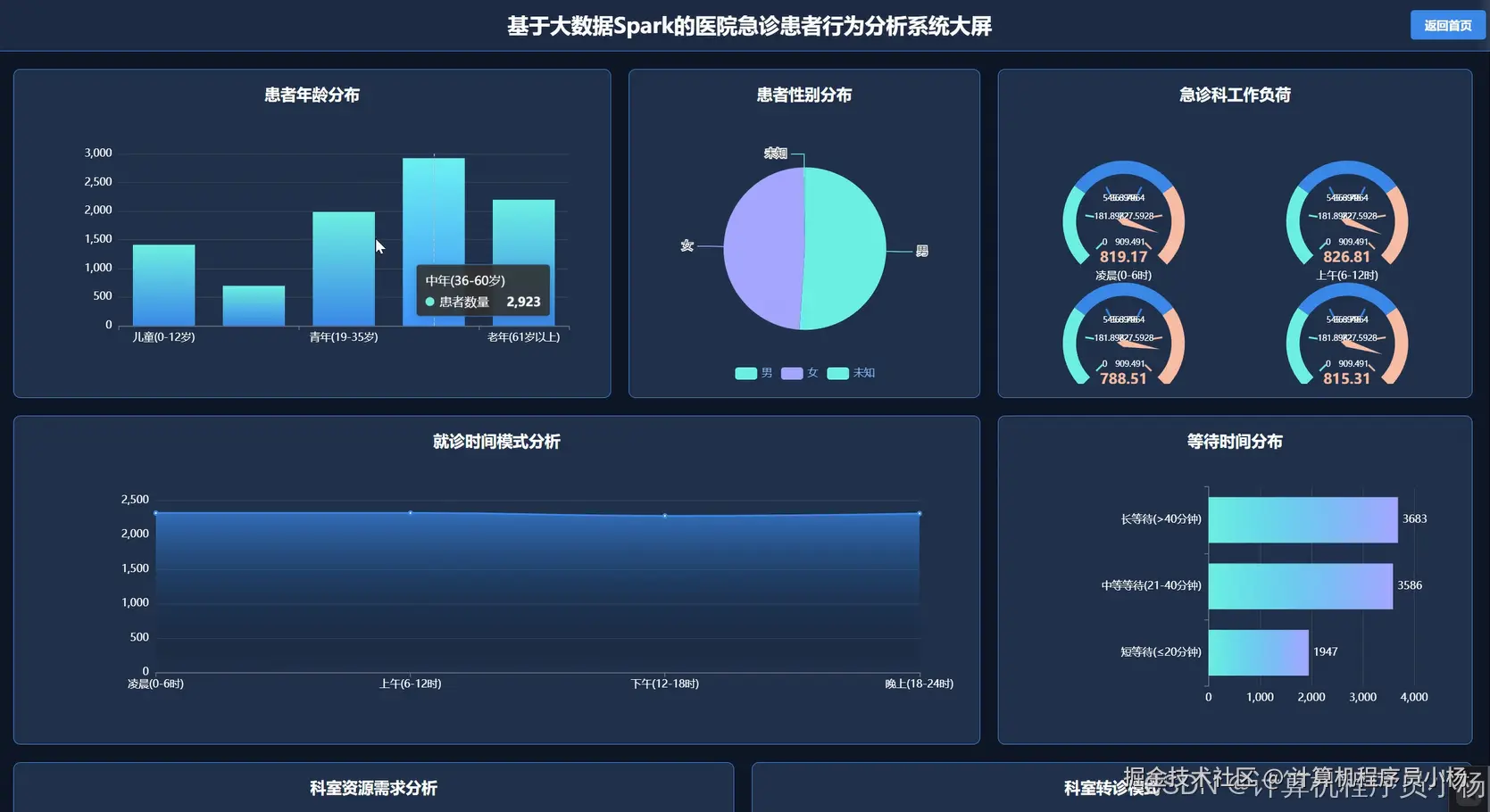

四.系统界面展示
五.系统源码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, count, avg, sum, when, hour, date_format, unix_timestamp, lag, dense_rank
from pyspark.sql.window import Window
from django.http import JsonResponse
from django.views import View
import pandas as pd
import numpy as np
from datetime import datetime, timedelta
import json
spark = SparkSession.builder.appName("EmergencyPatientAnalysis").config("spark.sql.warehouse.dir", "/user/hive/warehouse").config("spark.executor.memory", "4g").config("spark.driver.memory", "2g").getOrCreate()
class PatientBehaviorAnalysis(View):
def post(self, request):
params = json.loads(request.body)
start_date = params.get('start_date')
end_date = params.get('end_date')
patient_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/emergency_db").option("dbtable", "patient_records").option("user", "root").option("password", "password").load()
filtered_df = patient_df.filter((col("admission_time") >= start_date) & (col("admission_time") <= end_date))
filtered_df = filtered_df.withColumn("admission_hour", hour(col("admission_time")))
filtered_df = filtered_df.withColumn("wait_minutes", (unix_timestamp(col("treatment_start_time")) - unix_timestamp(col("admission_time"))) / 60)
hourly_distribution = filtered_df.groupBy("admission_hour").agg(count("patient_id").alias("patient_count"), avg("wait_minutes").alias("avg_wait_time")).orderBy("admission_hour")
disease_distribution = filtered_df.groupBy("disease_type").agg(count("patient_id").alias("case_count"), avg("treatment_duration").alias("avg_duration")).orderBy(col("case_count").desc()).limit(10)
age_groups = filtered_df.withColumn("age_group", when(col("age") < 18, "儿童").when((col("age") >= 18) & (col("age") < 40), "青年").when((col("age") >= 40) & (col("age") < 60), "中年").otherwise("老年"))
age_behavior = age_groups.groupBy("age_group").agg(count("patient_id").alias("total_patients"), avg("wait_minutes").alias("avg_wait"), avg("satisfaction_score").alias("avg_satisfaction")).orderBy("age_group")
repeat_patients = filtered_df.groupBy("patient_id").agg(count("visit_id").alias("visit_count")).filter(col("visit_count") > 1)
repeat_rate = (repeat_patients.count() / filtered_df.select("patient_id").distinct().count()) * 100
window_spec = Window.partitionBy("patient_id").orderBy("admission_time")
patient_sequence = filtered_df.withColumn("prev_visit_time", lag("admission_time").over(window_spec))
patient_sequence = patient_sequence.withColumn("days_between_visits", (unix_timestamp(col("admission_time")) - unix_timestamp(col("prev_visit_time"))) / 86400)
avg_revisit_interval = patient_sequence.filter(col("days_between_visits").isNotNull()).agg(avg("days_between_visits").alias("avg_interval")).collect()[0]["avg_interval"]
peak_hours = hourly_distribution.filter(col("patient_count") > hourly_distribution.agg(avg("patient_count")).collect()[0][0]).select("admission_hour").rdd.flatMap(lambda x: x).collect()
result_data = {"hourly_distribution": hourly_distribution.toPandas().to_dict(orient='records'),"disease_distribution": disease_distribution.toPandas().to_dict(orient='records'),"age_behavior": age_behavior.toPandas().to_dict(orient='records'),"repeat_visit_rate": round(repeat_rate, 2),"avg_revisit_interval": round(avg_revisit_interval, 2) if avg_revisit_interval else 0,"peak_hours": peak_hours}
return JsonResponse({"code": 200, "data": result_data, "message": "患者行为分析完成"})
class ResourceUtilizationAnalysis(View):
def post(self, request):
params = json.loads(request.body)
department_id = params.get('department_id')
analysis_date = params.get('analysis_date')
resource_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/emergency_db").option("dbtable", "resource_usage").option("user", "root").option("password", "password").load()
patient_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/emergency_db").option("dbtable", "patient_records").option("user", "root").option("password", "password").load()
filtered_resource = resource_df.filter((col("department_id") == department_id) & (date_format(col("usage_date"), "yyyy-MM-dd") == analysis_date))
filtered_patient = patient_df.filter((col("department_id") == department_id) & (date_format(col("admission_time"), "yyyy-MM-dd") == analysis_date))
bed_usage = filtered_resource.filter(col("resource_type") == "bed").agg(avg("usage_rate").alias("avg_bed_usage"), sum("usage_hours").alias("total_bed_hours")).collect()[0]
equipment_usage = filtered_resource.filter(col("resource_type") == "equipment").groupBy("equipment_name").agg(sum("usage_count").alias("total_usage"), avg("usage_duration").alias("avg_duration")).orderBy(col("total_usage").desc())
doctor_workload = filtered_patient.groupBy("attending_doctor").agg(count("patient_id").alias("patient_count"), sum("treatment_duration").alias("total_work_minutes"), avg("treatment_duration").alias("avg_treatment_time")).orderBy(col("patient_count").desc())
medicine_consumption = filtered_resource.filter(col("resource_type") == "medicine").groupBy("medicine_name").agg(sum("quantity").alias("total_quantity"), sum("cost").alias("total_cost")).orderBy(col("total_cost").desc()).limit(20)
total_patients = filtered_patient.count()
total_doctors = doctor_workload.count()
doctor_patient_ratio = round(total_patients / total_doctors, 2) if total_doctors > 0 else 0
high_load_doctors = doctor_workload.filter(col("total_work_minutes") > 480).select("attending_doctor", "patient_count", "total_work_minutes")
equipment_utilization_rate = equipment_usage.withColumn("utilization_score", col("total_usage") * col("avg_duration") / 480)
underutilized_equipment = equipment_utilization_rate.filter(col("utilization_score") < 0.5).select("equipment_name", "total_usage", "utilization_score")
window_rank = Window.orderBy(col("total_cost").desc())
high_cost_medicines = medicine_consumption.withColumn("cost_rank", dense_rank().over(window_rank)).filter(col("cost_rank") <= 5)
result_data = {"bed_usage": {"avg_usage_rate": round(bed_usage["avg_bed_usage"], 2) if bed_usage["avg_bed_usage"] else 0,"total_hours": round(bed_usage["total_bed_hours"], 2) if bed_usage["total_bed_hours"] else 0},"equipment_usage": equipment_usage.toPandas().to_dict(orient='records'),"doctor_workload": doctor_workload.toPandas().to_dict(orient='records'),"medicine_consumption": medicine_consumption.toPandas().to_dict(orient='records'),"doctor_patient_ratio": doctor_patient_ratio,"high_load_doctors": high_load_doctors.toPandas().to_dict(orient='records'),"underutilized_equipment": underutilized_equipment.toPandas().to_dict(orient='records'),"high_cost_medicines": high_cost_medicines.toPandas().to_dict(orient='records')}
return JsonResponse({"code": 200, "data": result_data, "message": "医疗资源利用分析完成"})
class SatisfactionAnalysis(View):
def post(self, request):
params = json.loads(request.body)
start_date = params.get('start_date')
end_date = params.get('end_date')
satisfaction_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/emergency_db").option("dbtable", "patient_satisfaction").option("user", "root").option("password", "password").load()
patient_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/emergency_db").option("dbtable", "patient_records").option("user", "root").option("password", "password").load()
filtered_satisfaction = satisfaction_df.filter((col("feedback_date") >= start_date) & (col("feedback_date") <= end_date))
joined_df = filtered_satisfaction.join(patient_df, filtered_satisfaction.patient_id == patient_df.patient_id, "left")
overall_satisfaction = joined_df.agg(avg("satisfaction_score").alias("avg_score"), count("satisfaction_id").alias("total_feedback")).collect()[0]
satisfaction_distribution = joined_df.withColumn("score_level", when(col("satisfaction_score") >= 90, "非常满意").when((col("satisfaction_score") >= 70) & (col("satisfaction_score") < 90), "满意").when((col("satisfaction_score") >= 50) & (col("satisfaction_score") < 70), "一般").otherwise("不满意")).groupBy("score_level").agg(count("satisfaction_id").alias("count")).orderBy(col("count").desc())
dimension_scores = joined_df.groupBy().agg(avg("service_attitude_score").alias("avg_service"), avg("treatment_effect_score").alias("avg_effect"), avg("environment_score").alias("avg_environment"), avg("waiting_time_score").alias("avg_waiting"))
wait_time_satisfaction = joined_df.withColumn("wait_time_range", when(col("wait_minutes") < 15, "0-15分钟").when((col("wait_minutes") >= 15) & (col("wait_minutes") < 30), "15-30分钟").when((col("wait_minutes") >= 30) & (col("wait_minutes") < 60), "30-60分钟").otherwise("60分钟以上")).groupBy("wait_time_range").agg(avg("satisfaction_score").alias("avg_score"), count("satisfaction_id").alias("feedback_count")).orderBy("wait_time_range")
doctor_satisfaction = joined_df.groupBy("attending_doctor").agg(avg("satisfaction_score").alias("avg_doctor_score"), count("satisfaction_id").alias("feedback_count")).filter(col("feedback_count") >= 5).orderBy(col("avg_doctor_score").desc())
disease_satisfaction = joined_df.groupBy("disease_type").agg(avg("satisfaction_score").alias("avg_score"), count("satisfaction_id").alias("feedback_count")).filter(col("feedback_count") >= 3).orderBy(col("avg_score"))
complaint_analysis = joined_df.filter(col("has_complaint") == 1).groupBy("complaint_type").agg(count("satisfaction_id").alias("complaint_count")).orderBy(col("complaint_count").desc())
low_satisfaction_records = joined_df.filter(col("satisfaction_score") < 60).select("patient_id", "satisfaction_score", "feedback_content", "complaint_type", "wait_minutes", "attending_doctor").orderBy("satisfaction_score").limit(10)
satisfaction_trend_df = joined_df.withColumn("feedback_week", date_format(col("feedback_date"), "yyyy-ww")).groupBy("feedback_week").agg(avg("satisfaction_score").alias("weekly_avg_score"), count("satisfaction_id").alias("weekly_feedback_count")).orderBy("feedback_week")
result_data = {"overall_satisfaction": {"avg_score": round(overall_satisfaction["avg_score"], 2) if overall_satisfaction["avg_score"] else 0,"total_feedback": overall_satisfaction["total_feedback"]},"satisfaction_distribution": satisfaction_distribution.toPandas().to_dict(orient='records'),"dimension_scores": dimension_scores.toPandas().to_dict(orient='records')[0] if dimension_scores.count() > 0 else {},"wait_time_satisfaction": wait_time_satisfaction.toPandas().to_dict(orient='records'),"doctor_satisfaction": doctor_satisfaction.toPandas().to_dict(orient='records'),"disease_satisfaction": disease_satisfaction.toPandas().to_dict(orient='records'),"complaint_analysis": complaint_analysis.toPandas().to_dict(orient='records'),"low_satisfaction_records": low_satisfaction_records.toPandas().to_dict(orient='records'),"satisfaction_trend": satisfaction_trend_df.toPandas().to_dict(orient='records')}
return JsonResponse({"code": 200, "data": result_data, "message": "患者满意度分析完成"})
