一、实验目的
1、了解完整的关系型数据库应用系统的基本构成。
2、了解基本的软件分层架构思想：通过Model（模型）、DAO（数据访问对象）、Service（服务）、Main（主程序）的包结构。
3、掌握MySQL数据库的基本操作（增删改查）
4、掌握使用Java（JDBC）操作数据库的标准流程
5、理解关系型数据库的设计范式与实体关系
二、实验学时
2学时
三、实验类型
综合性
四、实验需求
1、硬件
每人配备计算机1台，建议优先使用个人计算机开展实验。
实验基于信息技术学院教学容器化云计算平台开展。
2、软件
安装IntelliJ IDEA Community。
MySQL 8.0。
项目管理使用GitLab。
3、网络
本地主机能够访问互联网和实验中心网络。
4、工具
无
五、实验任务
1、使用Java实现的医院信息管理系统，包含了对MySQL数据库的增删改查和多表关联查询操作。
六、实验内容及步骤
1、表结构设计
- 创建科室表
- 创建医生表
- 创建患者表
- 创建病房表
- 创建预约表
- 创建住院记录表
-- 创建数据库
CREATE DATABASE IF NOT EXISTS hospital_db;
USE hospital_db;
-- 科室表
CREATE TABLE departments (
dept_id INT PRIMARY KEY AUTO_INCREMENT,
dept_name VARCHAR(50) NOT NULL,
location VARCHAR(100),
head_doctor_id INT
);
-- 医生表
CREATE TABLE doctors (
doctor_id INT PRIMARY KEY AUTO_INCREMENT,
first_name VARCHAR(50) NOT NULL,
last_name VARCHAR(50) NOT NULL,
specialization VARCHAR(100),
dept_id INT,
phone_number VARCHAR(20),
email VARCHAR(100),
hire_date DATE,
FOREIGN KEY (dept_id) REFERENCES departments(dept_id)
);
-- 患者表
CREATE TABLE patients (
patient_id INT PRIMARY KEY AUTO_INCREMENT,
first_name VARCHAR(50) NOT NULL,
last_name VARCHAR(50) NOT NULL,
date_of_birth DATE,
gender ENUM('男', '女', '其他'),
phone_number VARCHAR(20),
address TEXT,
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- 病房表
CREATE TABLE wards (
ward_id INT PRIMARY KEY AUTO_INCREMENT,
ward_name VARCHAR(50) NOT NULL,
dept_id INT,
capacity INT,
current_occupancy INT DEFAULT 0,
FOREIGN KEY (dept_id) REFERENCES departments(dept_id)
);
-- 预约表
CREATE TABLE appointments (
appointment_id INT PRIMARY KEY AUTO_INCREMENT,
patient_id INT,
doctor_id INT,
appointment_date DATETIME,
status ENUM('预约中', '已完成', '已取消'),
notes TEXT,
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
FOREIGN KEY (patient_id) REFERENCES patients(patient_id),
FOREIGN KEY (doctor_id) REFERENCES doctors(doctor_id)
);
-- 住院记录表
CREATE TABLE hospitalizations (
hospitalization_id INT PRIMARY KEY AUTO_INCREMENT,
patient_id INT,
ward_id INT,
doctor_id INT,
admission_date DATE,
discharge_date DATE NULL,
diagnosis TEXT,
treatment_plan TEXT,
FOREIGN KEY (patient_id) REFERENCES patients(patient_id),
FOREIGN KEY (ward_id) REFERENCES wards(ward_id),
FOREIGN KEY (doctor_id) REFERENCES doctors(doctor_id)
);
-- 添加外键约束到科室表
ALTER TABLE departments ADD FOREIGN KEY (head_doctor_id) REFERENCES doctors(doctor_id);
2、初始化数据
-- 插入科室数据
INSERT INTO departments (dept_name, location) VALUES
('内科', '一楼东侧'),
('外科', '二楼西侧'),
('儿科', '三楼南侧'),
('妇产科','二楼东侧'),
('骨科', '一楼西侧');
-- 插入医生数据
INSERT INTO doctors (first_name, last_name, specialization, dept_id, phone_number, email, hire_date) VALUES
('张', '小明', '心脏病学', 1, '13800138001', 'zhangxiaoming@qq.com', '2015-03-10'),
('李', '中华', '神经内科', 1, '13800138002', 'lizhonghua@qq.com', '2017-06-15'),
('王', '成刚', '普通外科', 2, '13800138003', 'wangchenggang@qq.com', '2010-08-20'),
('赵', '敏敏', '儿科医学', 3, '13800138004', 'zhaominmin@qq.com', '2018-02-05'),
('刘', '艳芳', '妇产科学', 4, '13800138005', 'liuyanfang@qq.com', '2012-11-30'),
('陈', '国强', '骨科医学', 5, '13800138006', 'chenguoqiang@qq.com', '2016-07-22');
-- 更新科室表设置主任医生
UPDATE departments SET head_doctor_id = 1 WHERE dept_id = 1;
UPDATE departments SET head_doctor_id = 3 WHERE dept_id = 2;
UPDATE departments SET head_doctor_id = 4 WHERE dept_id = 3;
UPDATE departments SET head_doctor_id = 5 WHERE dept_id = 4;
UPDATE departments SET head_doctor_id = 6 WHERE dept_id = 5;
-- 插入患者数据
INSERT INTO patients (first_name, last_name, date_of_birth, gender, phone_number, address) VALUES
('陈', '小明', '1985-07-12', '男', '13900139001', '河南省郑州市金水区100号'),
('杨', '国华', '1978-11-23', '女', '13900139002', '河南省郑州市金水区200号'),
('黄', '晓明', '2015-03-15', '女', '13900139003', '河南省郑州市金水区300号'),
('吴', '敏', '1992-09-05', '男', '13900139004', '河南省郑州市金水区400号'),
('郑', '海波', '1980-12-30', '女', '13900139005', '河南省郑州市金水区500号');
-- 插入病房数据
INSERT INTO wards (ward_name, dept_id, capacity) VALUES
('内科病房1', 1, 4),
('内科病房2', 1, 6),
('外科病房1', 2, 5),
('儿科病房1', 3, 8),
('妇产科病房1', 4, 6),
('骨科病房1', 5, 4);
-- 插入预约数据
INSERT INTO appointments (patient_id, doctor_id, appointment_date, status) VALUES
(1, 1, '2023-10-15 09:00:00', '已完成'),
(2, 3, '2023-10-16 10:30:00', '预约中'),
(3, 4, '2023-10-17 14:00:00', '预约中'),
(4, 6, '2023-10-18 11:15:00', '已取消'),
(5, 5, '2023-10-19 15:45:00', '预约中');
-- 插入住院记录数据
INSERT INTO hospitalizations (patient_id, ward_id, doctor_id, admission_date, diagnosis, treatment_plan) VALUES
(1, 1, 1, '2023-10-10', '高血压', '药物治疗和定期监测'),
(3, 4, 4, '2023-10-12', '肺炎', '抗生素治疗和休息'),
(5, 5, 5, '2023-10-14', '孕期检查', '定期产检和营养指导');
3、构建Java项目
- 数据查询测试用例
-- 查询所有医生信息
SELECT * FROM doctors;
-- 查询特定科室的医生
SELECT d.doctor_id, d.first_name, d.last_name, d.specialization, dept.dept_name
FROM doctors d
JOIN departments dept ON d.dept_id = dept.dept_id
WHERE dept.dept_name = '内科';
-- 查询患者及其预约信息
SELECT p.first_name, p.last_name, d.first_name AS doctor_first_name,
d.last_name AS doctor_last_name, a.appointment_date, a.status
FROM appointments a
JOIN patients p ON a.patient_id = p.patient_id
JOIN doctors d ON a.doctor_id = d.doctor_id;
-- 查询当前住院患者信息
SELECT p.first_name, p.last_name, w.ward_name, d.first_name AS doctor_first_name,
d.last_name AS doctor_last_name, h.admission_date, h.diagnosis
FROM hospitalizations h
JOIN patients p ON h.patient_id = p.patient_id
JOIN wards w ON h.ward_id = w.ward_id
JOIN doctors d ON h.doctor_id = d.doctor_id
WHERE h.discharge_date IS NULL;
-- 查询各科室病房使用情况
SELECT dept.dept_name, w.ward_name, w.capacity, w.current_occupancy,
(w.capacity - w.current_occupancy) AS available_beds
FROM wards w
JOIN departments dept ON w.dept_id = dept.dept_id;
2. 数据修改测试用例
-- 更新医生电话号码
UPDATE doctors SET phone_number = '13800138000' WHERE doctor_id = 1;
-- 更新患者地址
UPDATE patients SET address = '河南省郑州市金水区建国路200号' WHERE patient_id = 1;
-- 完成预约
UPDATE appointments SET status = '已完成'
WHERE appointment_id = 2;
-- 患者出院
UPDATE hospitalizations SET discharge_date = CURDATE()
WHERE hospitalization_id = 1;
-- 更新病房占用情况
UPDATE wards SET current_occupancy = current_occupancy - 1
WHERE ward_id = (SELECT ward_id FROM hospitalizations WHERE hospitalization_id = 1);
3. 数据删除测试用例
-- 取消预约
DELETE FROM appointments WHERE appointment_id = 4;
-- 删除患者记录(需要先删除相关记录)
-- 首先删除相关预约记录
DELETE FROM appointments WHERE patient_id = 4;
-- 然后删除患者
DELETE FROM patients WHERE patient_id = 4;
4. 复杂查询测试用例
-- 查询各科室医生数量
SELECT d.dept_name, COUNT(doc.doctor_id) AS doctor_count
FROM departments d
LEFT JOIN doctors doc ON d.dept_id = doc.dept_id
GROUP BY d.dept_name
ORDER BY doctor_count DESC;
-- 查询每位医生的患者数量
SELECT doc.doctor_id, doc.first_name, doc.last_name,
COUNT(DISTINCT a.patient_id) AS patient_count
FROM doctors doc
LEFT JOIN appointments a ON doc.doctor_id = a.doctor_id
GROUP BY doc.doctor_id, doc.first_name, doc.last_name
ORDER BY patient_count DESC;
-- 查询今天之后的预约
SELECT p.first_name AS patient_first_name, p.last_name AS patient_last_name,
doc.first_name AS doctor_first_name, doc.last_name AS doctor_last_name,
a.appointment_date, a.status
FROM appointments a
JOIN patients p ON a.patient_id = p.patient_id
JOIN doctors doc ON a.doctor_id = doc.doctor_id
WHERE a.appointment_date > NOW()
ORDER BY a.appointment_date;
-- 查询各科室病房使用率
SELECT dept.dept_name, w.ward_name, w.capacity, w.current_occupancy,
ROUND((w.current_occupancy * 100.0 / w.capacity), 2) AS usage_rate
FROM wards w
JOIN departments dept ON w.dept_id = dept.dept_id
ORDER BY usage_rate DESC;
-- 查询患者的完整住院历史
SELECT p.first_name, p.last_name,
h.admission_date, h.discharge_date,
w.ward_name,
doc.first_name AS doctor_first_name, doc.last_name AS doctor_last_name,
h.diagnosis
FROM hospitalizations h
JOIN patients p ON h.patient_id = p.patient_id
JOIN wards w ON h.ward_id = w.ward_id
JOIN doctors doc ON h.doctor_id = doc.doctor_id
ORDER BY h.admission_date DESC;
5. 创建Java项目

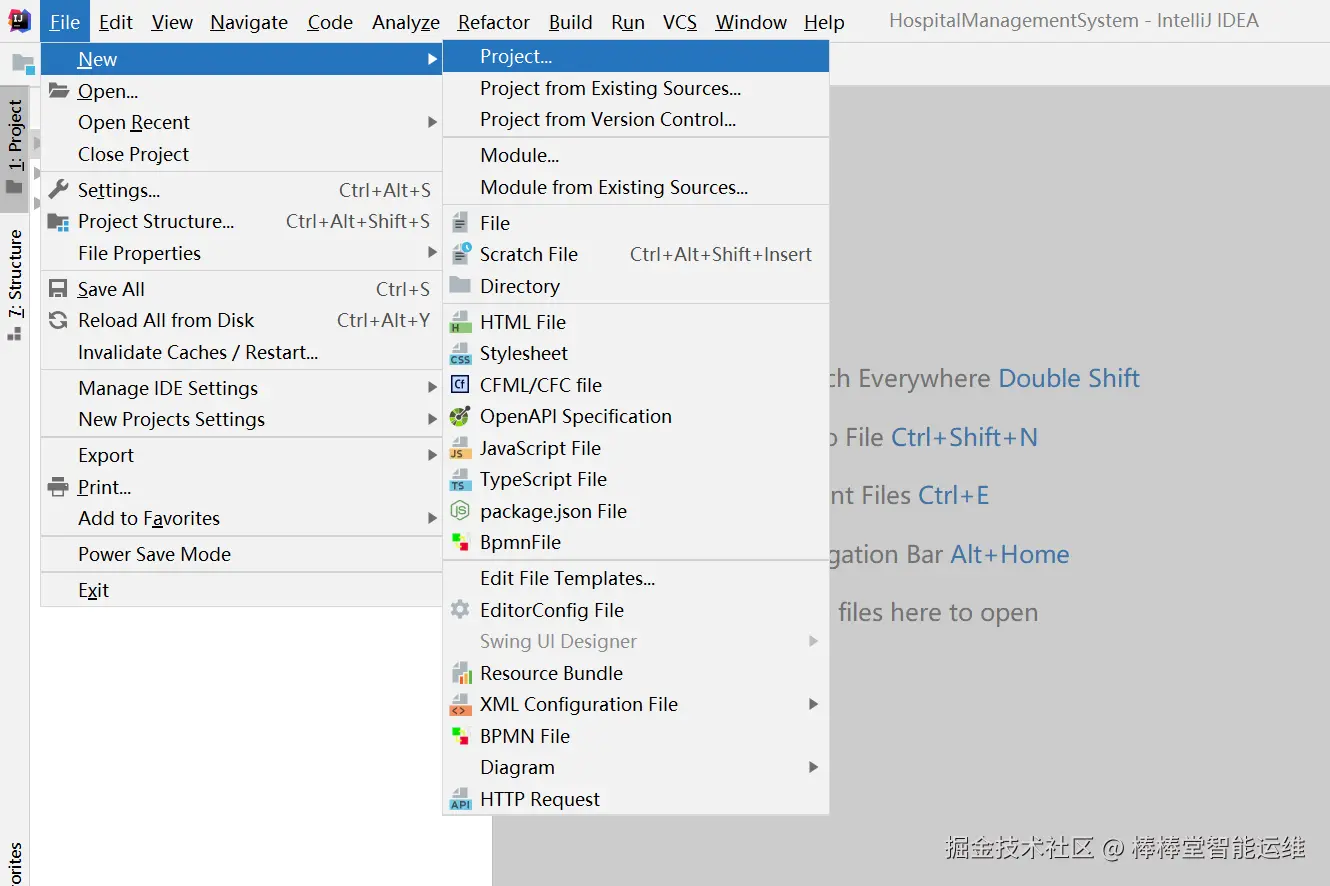

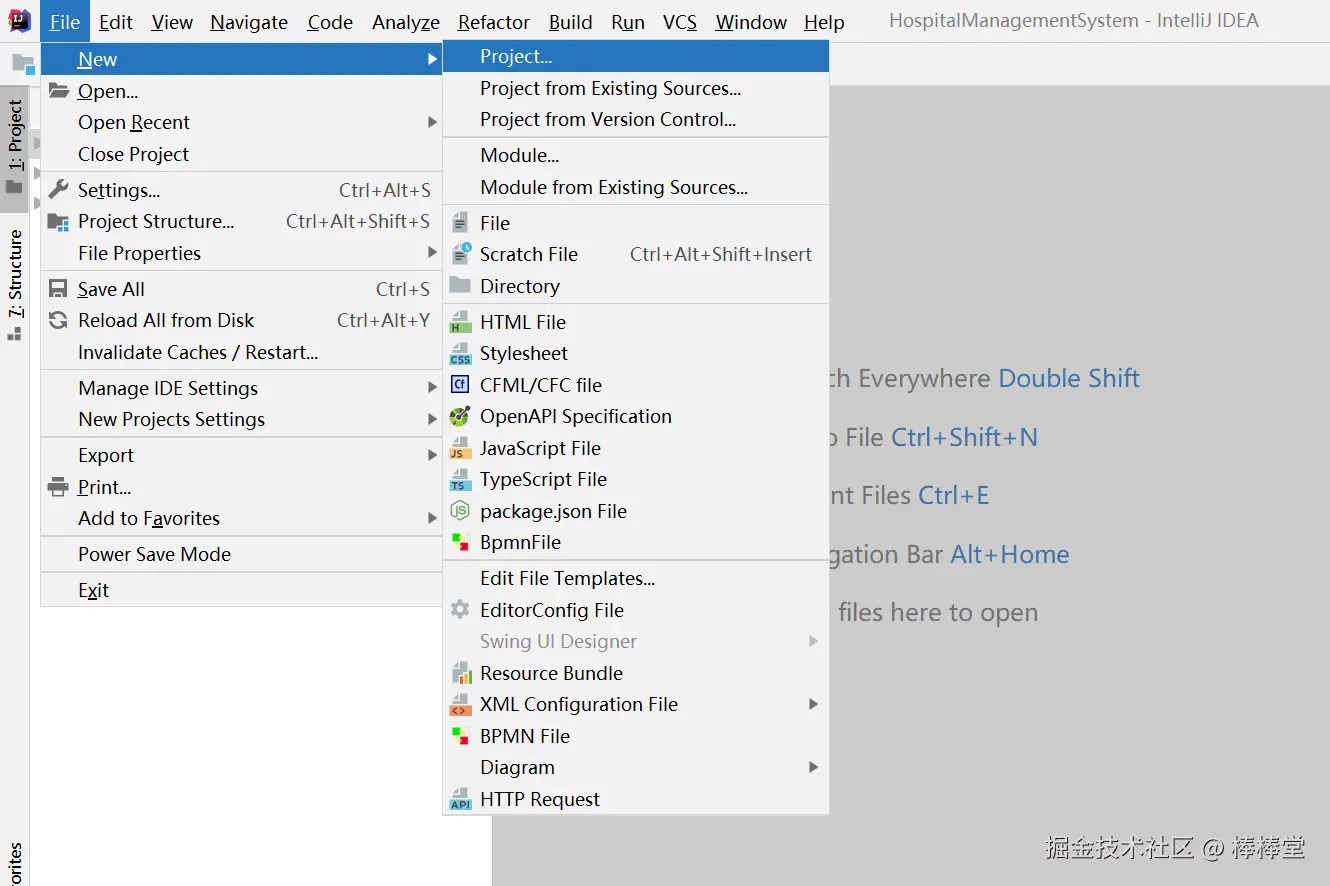

图6-3-5-1创建java项目

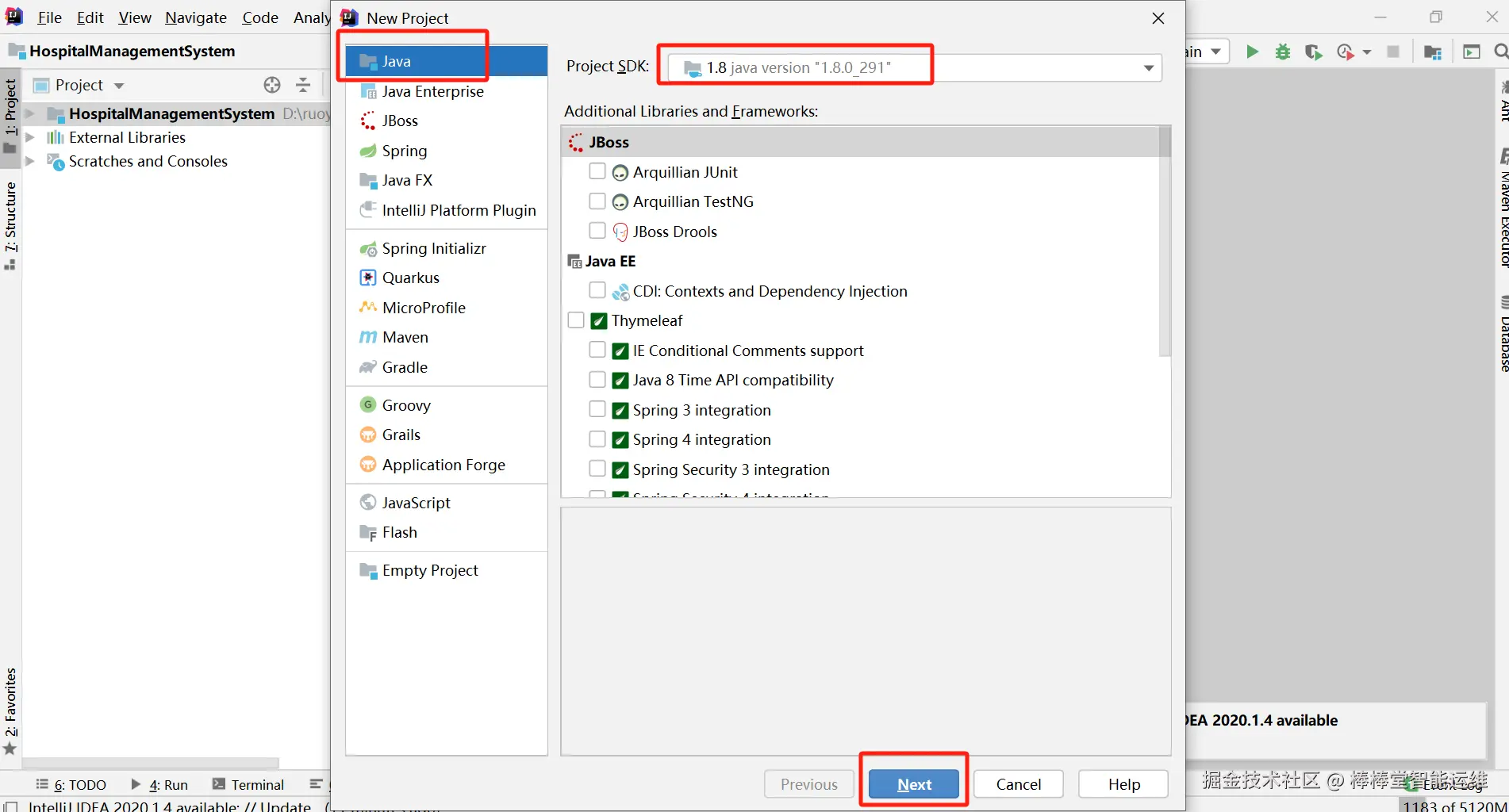

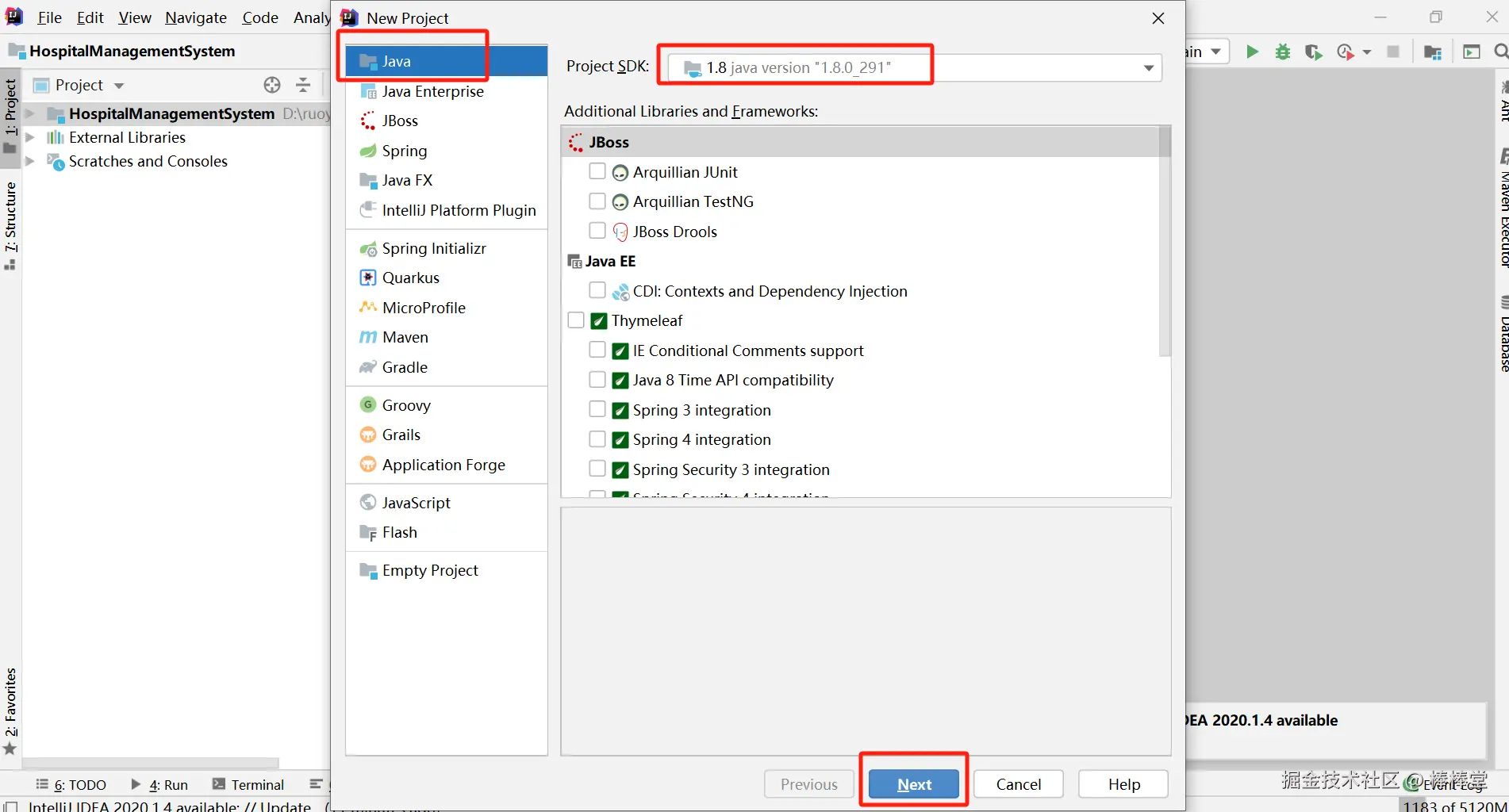

图6-3-5-2选择java项目并指定JDK

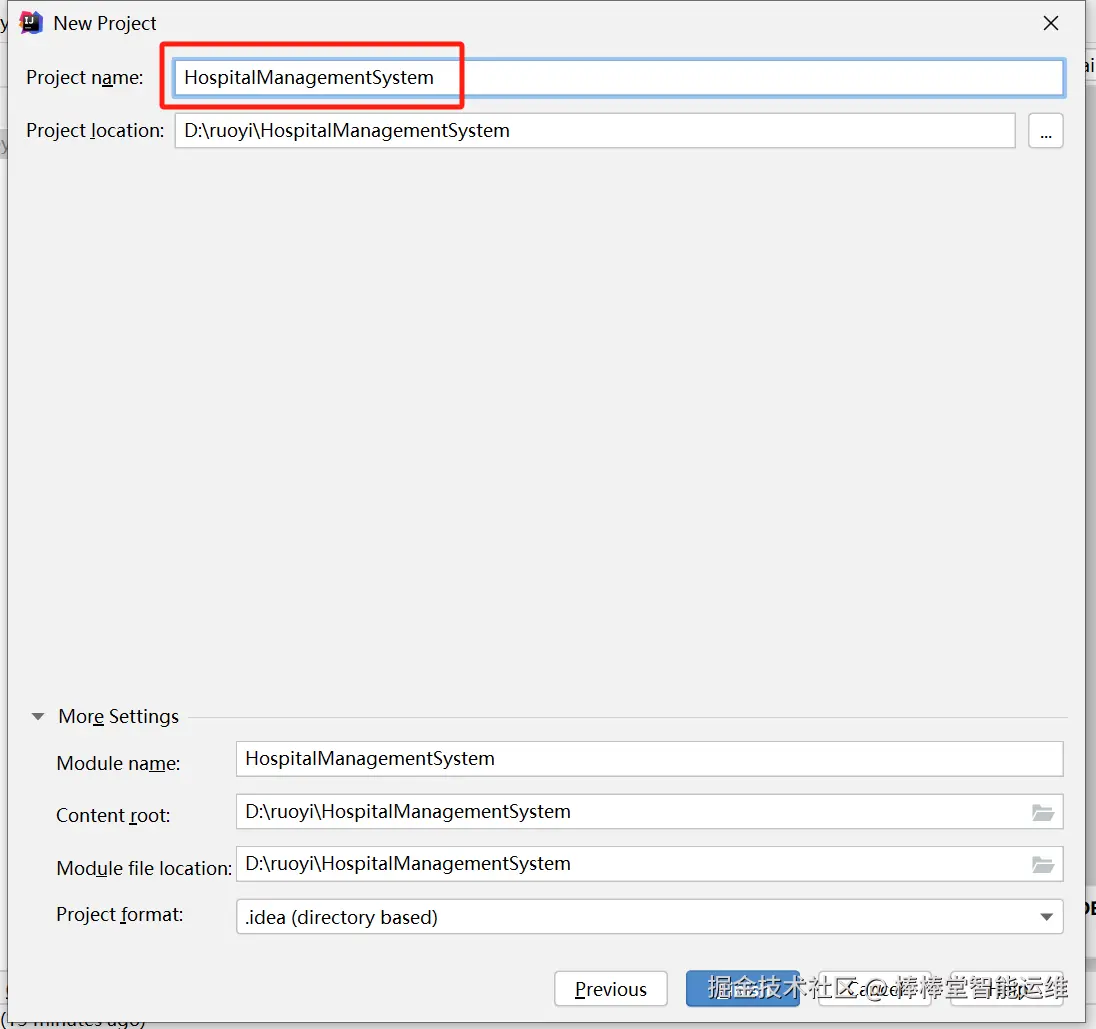

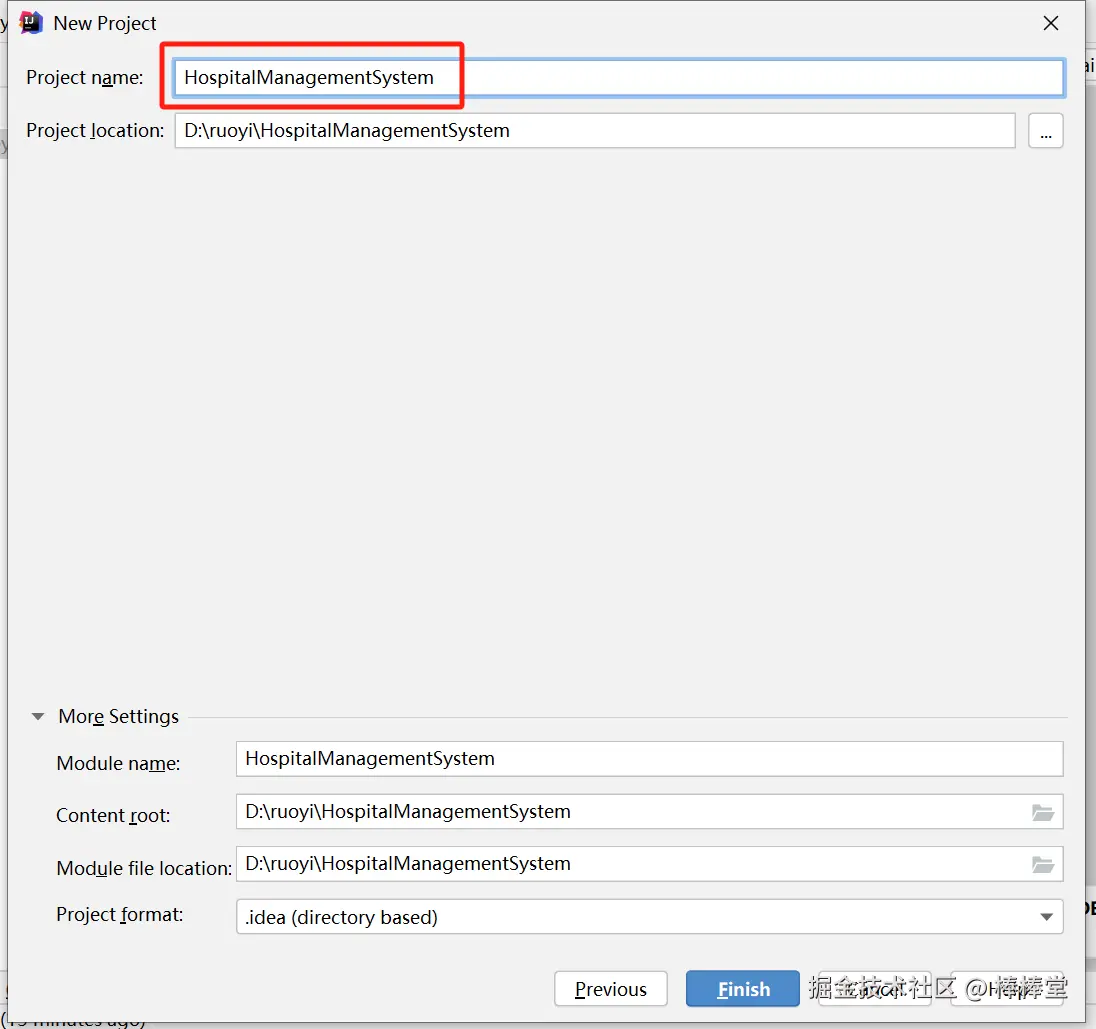

图6-3-5-3指定项目名称
- 导入mysql数据库驱动

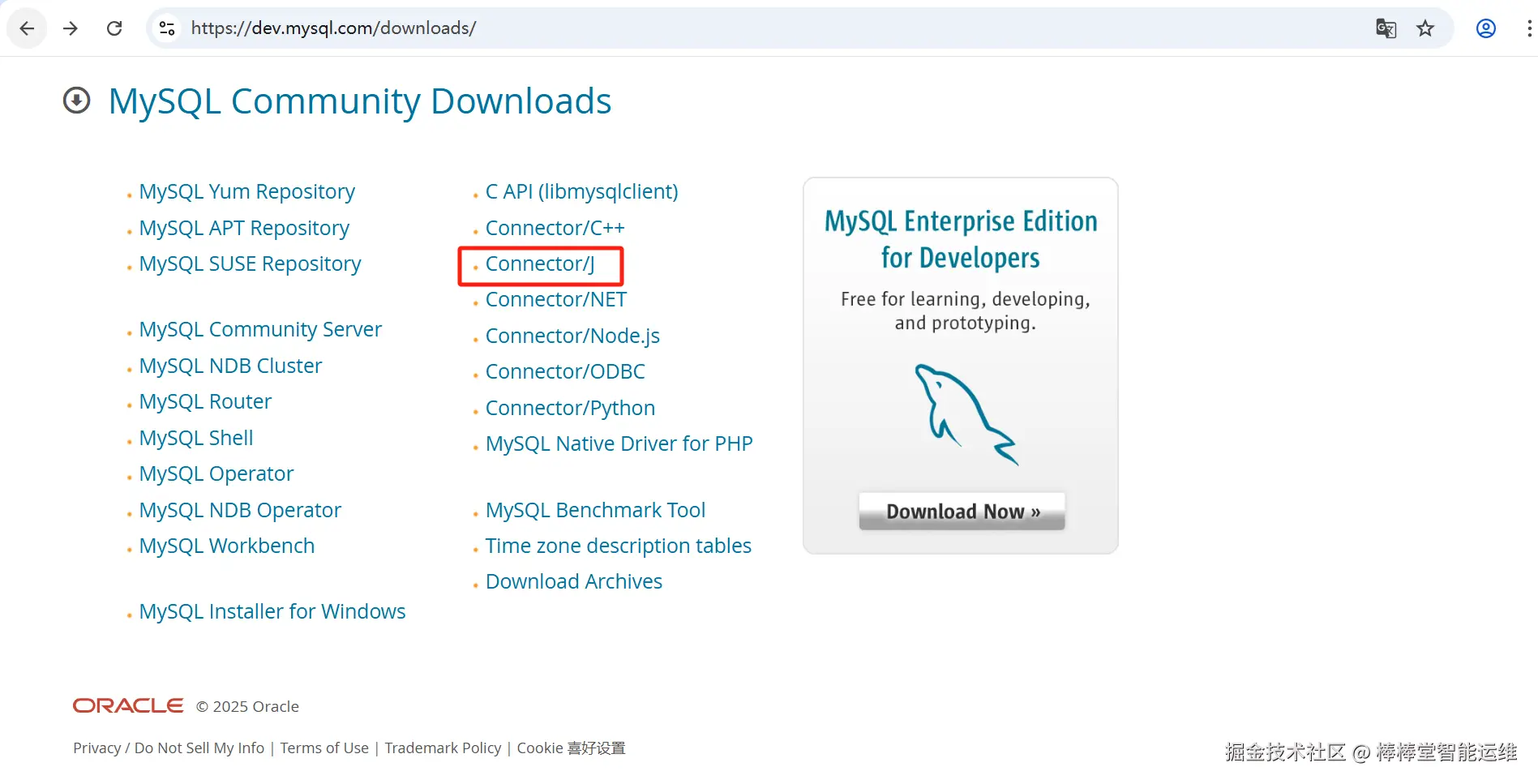

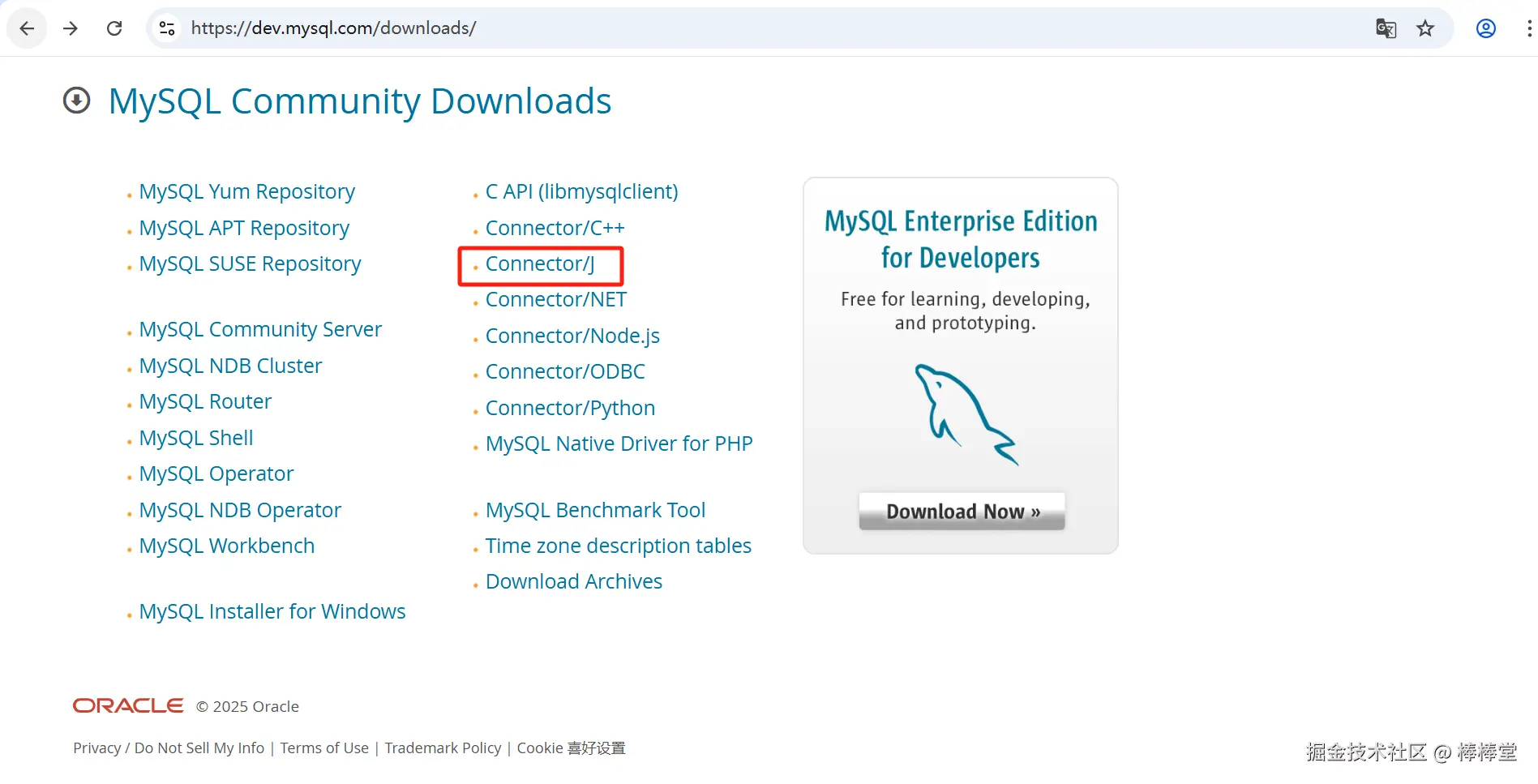

图6-3-6-1下载mysql数据库官方驱动

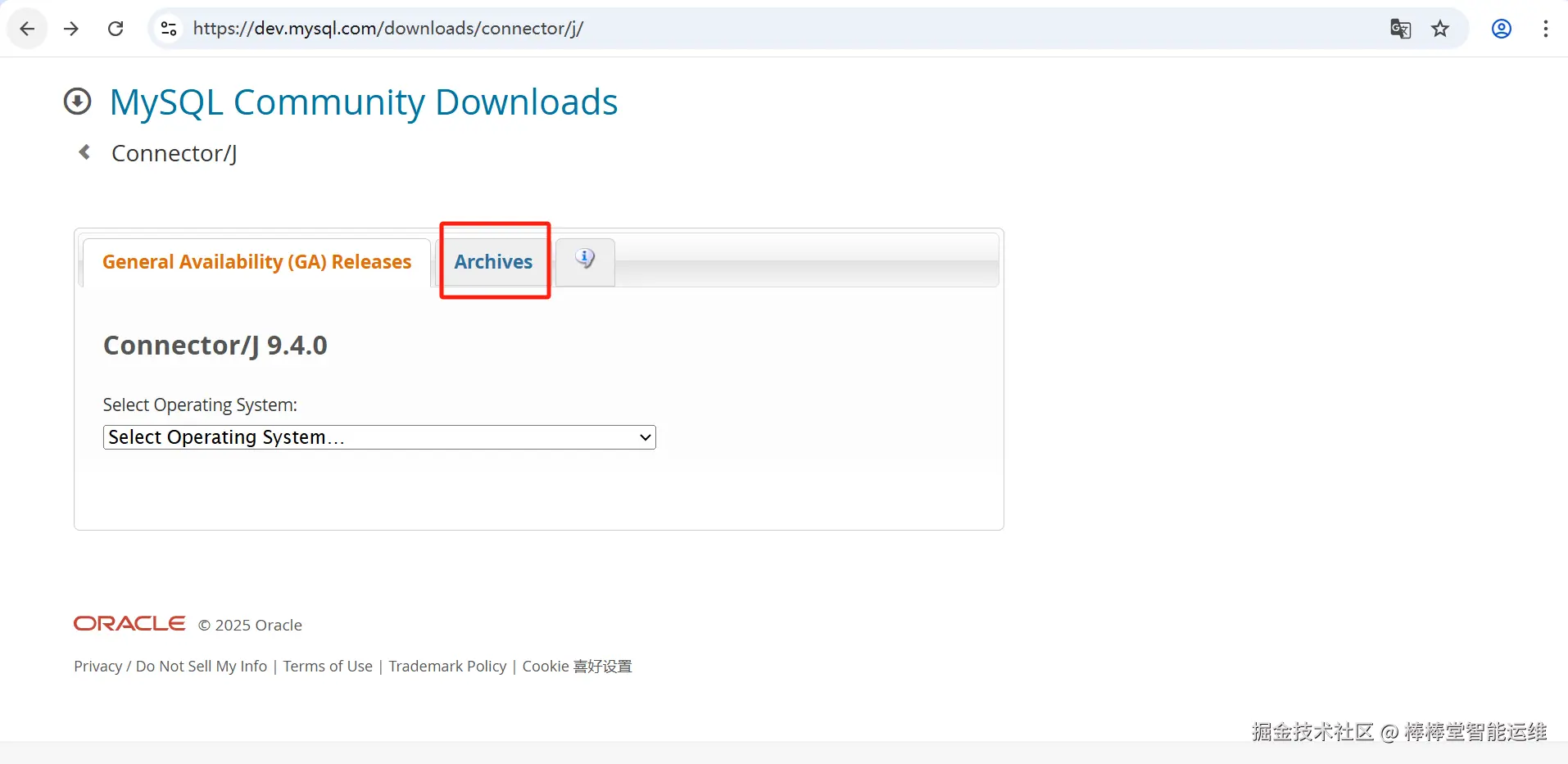

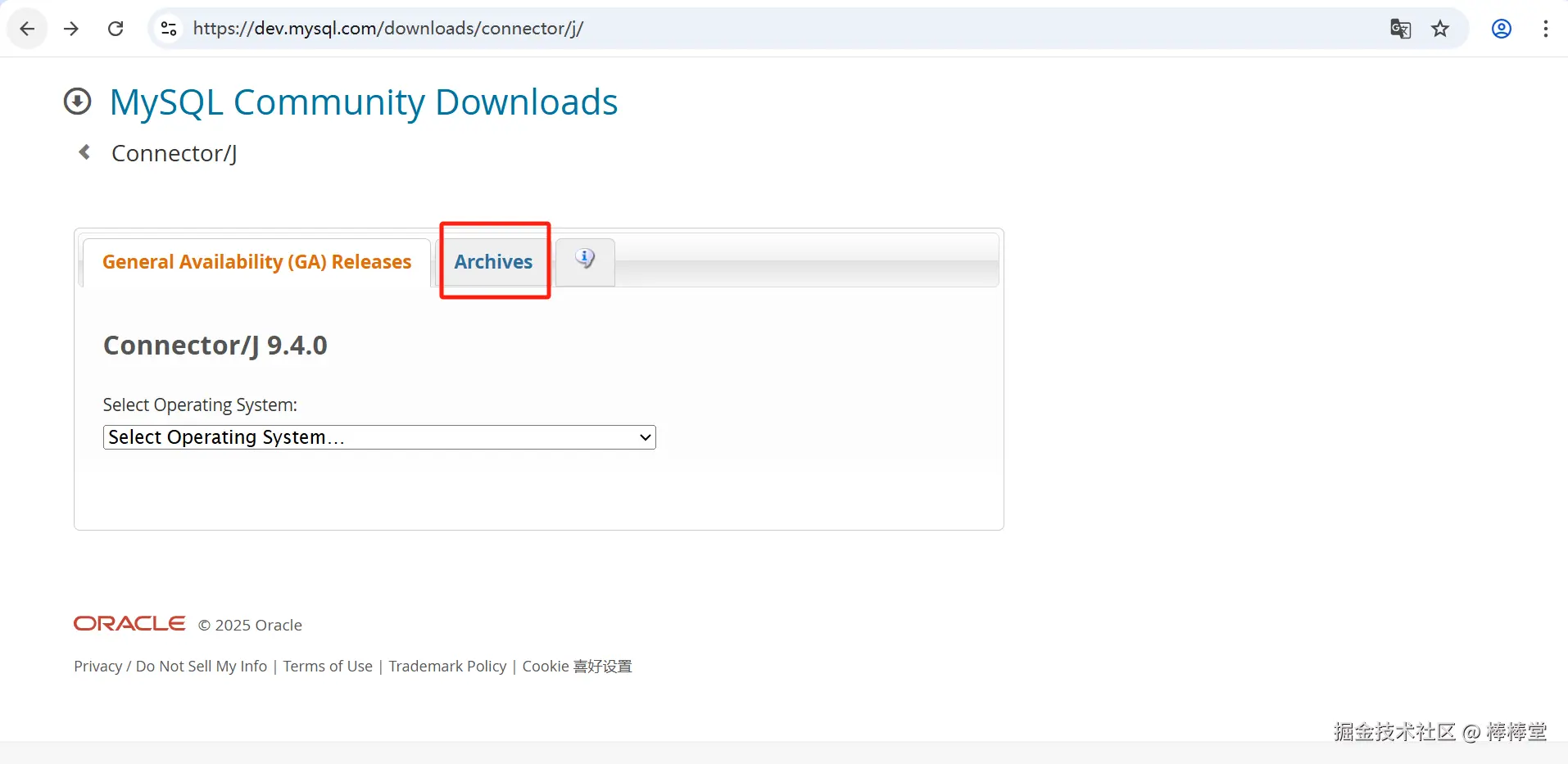

图6-3-6-2选择archives

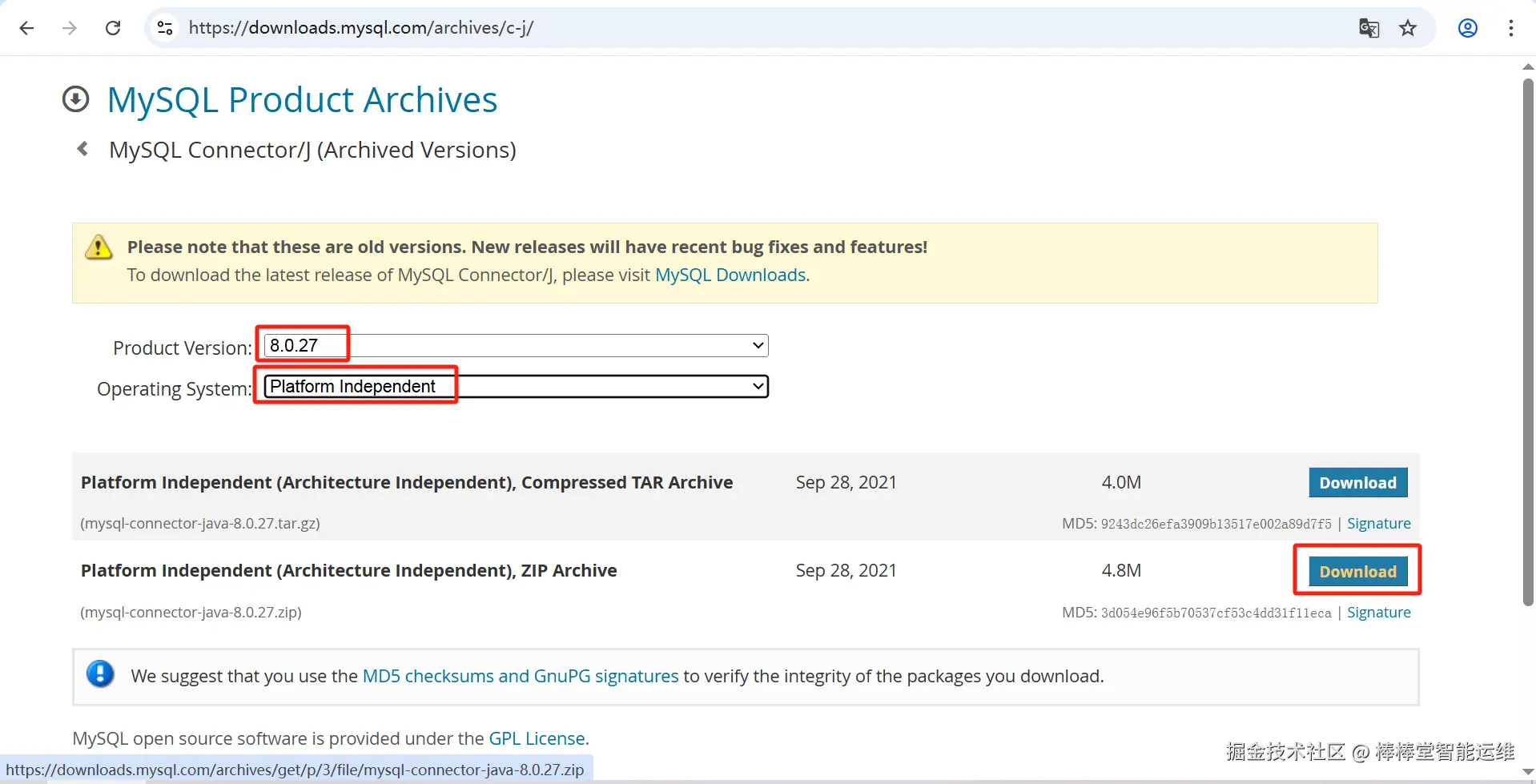

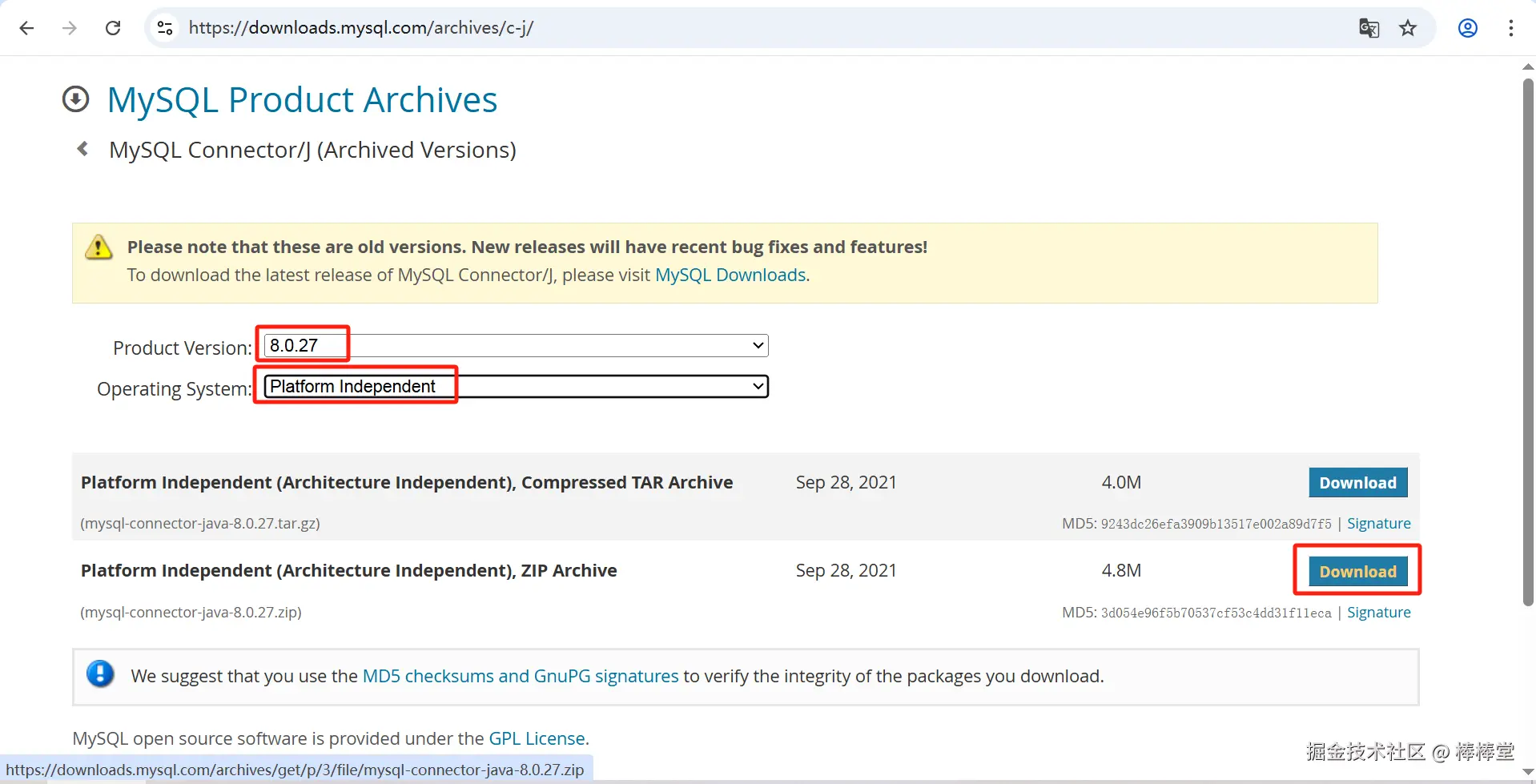

图6-3-6-3指定驱动版本和操作系统类型

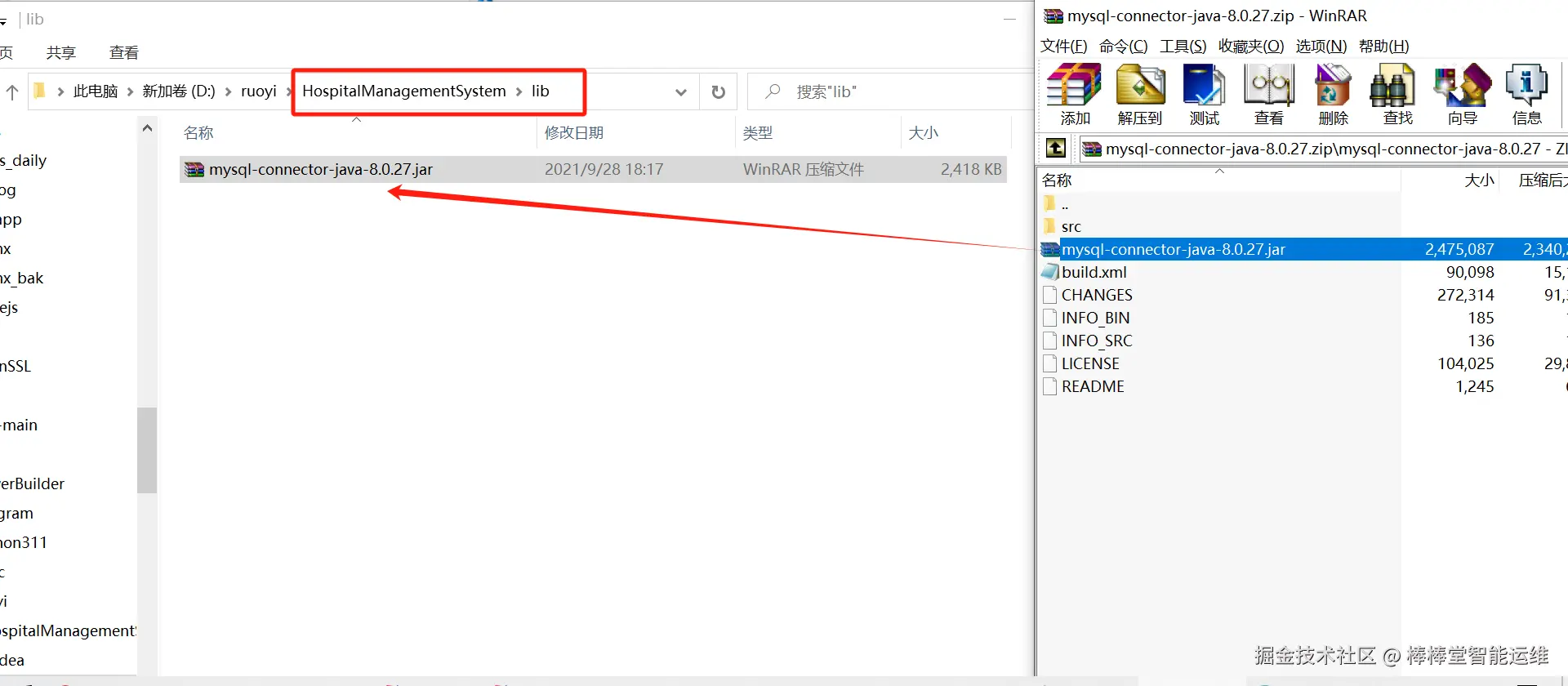

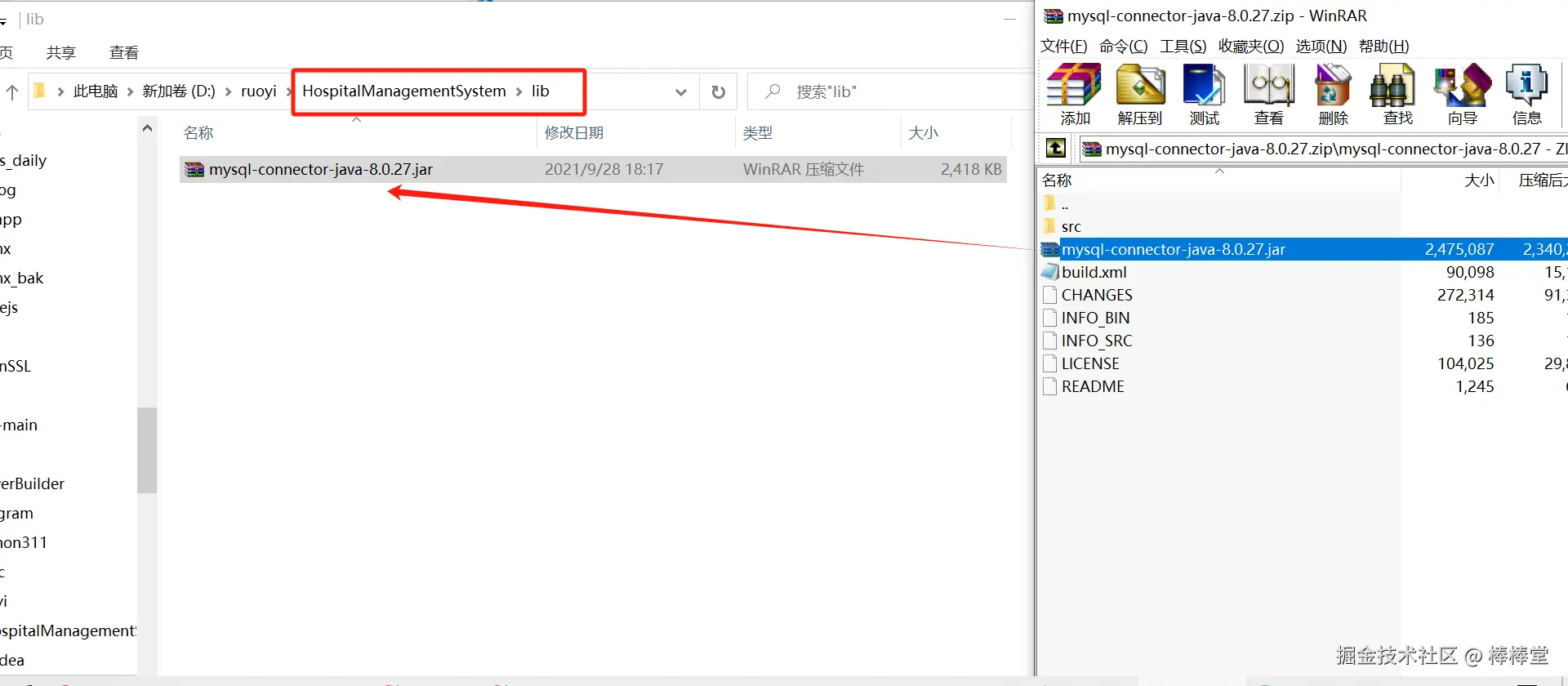

图6-3-6-4项目src同级路径下创建lib目录并将驱动文件拖动至该目录

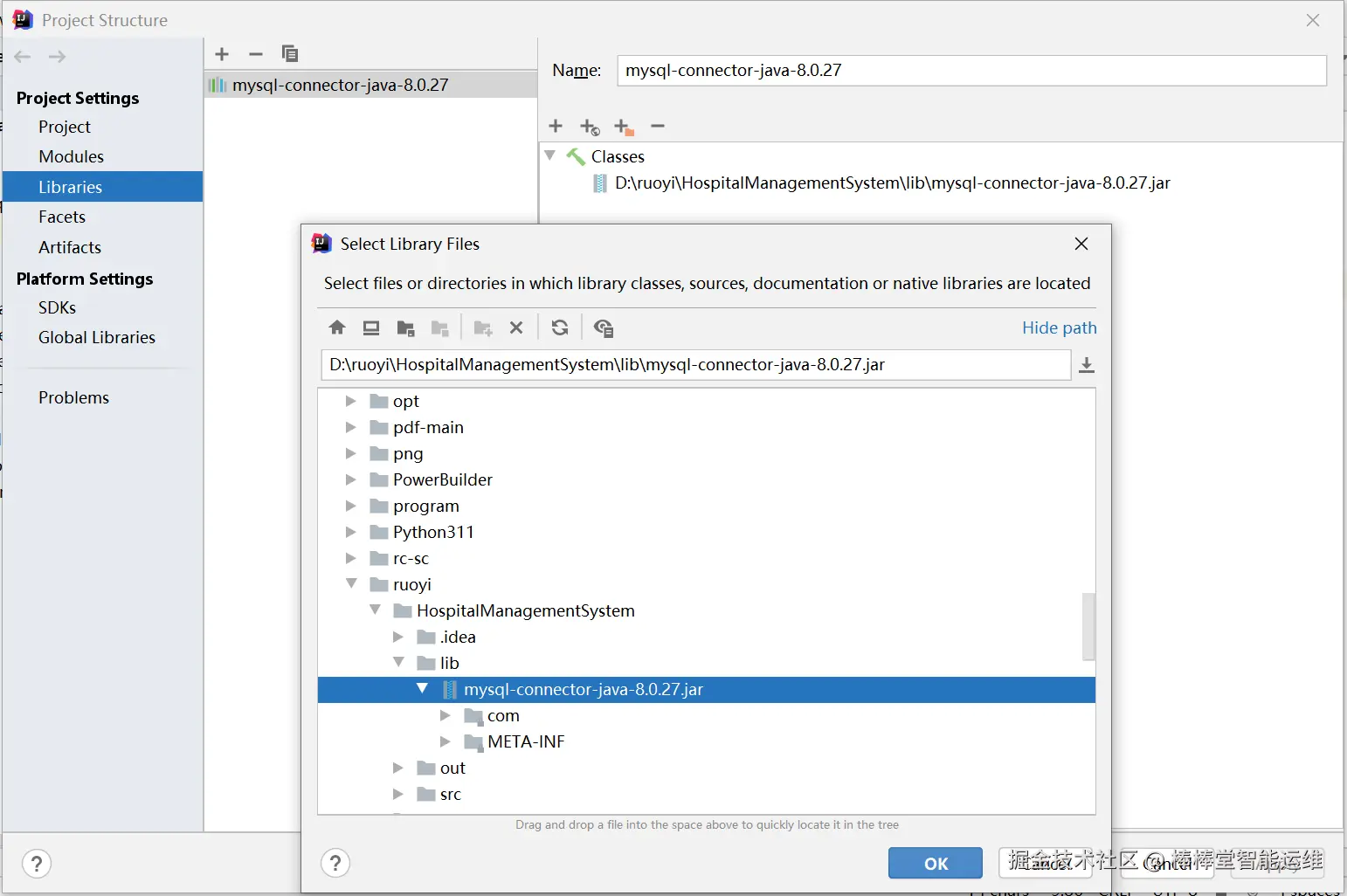

图6-3-6-5在项目中引入jar包
- 创建Java类
HospitalManagementSystem/
├── src/
│ ├── model/
│ │ ├── Department.java
│ │ ├── Doctor.java
│ │ ├── Patient.java
│ │ ├── Ward.java
│ │ ├── Appointment.java
│ │ └── Hospitalization.java
│ ├── dao/
│ │ ├── DatabaseConnection.java
│ │ ├── DepartmentDAO.java
│ │ ├── DoctorDAO.java
│ │ ├── PatientDAO.java
│ │ ├── WardDAO.java
│ │ ├── AppointmentDAO.java
│ │ └── HospitalizationDAO.java
│ ├── service/
│ │ └── HospitalService.java
│ └── Main.java
└── lib/
└── mysql-connector-java-8.0.27.jar
项目结构
// DatabaseConnection.java
package dao;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;
public class DatabaseConnection {
private static final String URL = "jdbc:mysql://localhost:3306/hospital_db";
private static final String USER = "username";
private static final String PASSWORD = "password";
static {
try {
Class.forName("com.mysql.cj.jdbc.Driver");
} catch (ClassNotFoundException e) {
e.printStackTrace();
}
}
public static Connection getConnection() throws SQLException {
return DriverManager.getConnection(URL, USER, PASSWORD);
}
}
数据库连接工具类
public class Doctor {
private int doctorId;
private String firstName;
private String lastName;
private String specialization;
private int deptId;
private String phoneNumber;
private String email;
private String hireDate;
// 构造方法、getter和setter省略，但实际需要实现
}
Doctor类（实体类）
import java.sql.*;
import java.util.ArrayList;
import java.util.List;
public class DoctorDAO {
// 插入医生记录
public void addDoctor(Doctor doctor) throws SQLException {
String sql = "INSERT INTO doctors (first_name, last_name, specialization, dept_id, phone_number, email, hire_date) VALUES (?, ?, ?, ?, ?, ?, ?)";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setString(1, doctor.getFirstName());
pstmt.setString(2, doctor.getLastName());
pstmt.setString(3, doctor.getSpecialization());
pstmt.setInt(4, doctor.getDeptId());
pstmt.setString(5, doctor.getPhoneNumber());
pstmt.setString(6, doctor.getEmail());
pstmt.setString(7, doctor.getHireDate());
pstmt.executeUpdate();
}
}
// 根据ID查询医生
public Doctor getDoctorById(int doctorId) throws SQLException {
String sql = "SELECT * FROM doctors WHERE doctor_id = ?";
Doctor doctor = null;
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, doctorId);
ResultSet rs = pstmt.executeQuery();
if (rs.next()) {
doctor = new Doctor();
doctor.setDoctorId(rs.getInt("doctor_id"));
doctor.setFirstName(rs.getString("first_name"));
doctor.setLastName(rs.getString("last_name"));
doctor.setSpecialization(rs.getString("specialization"));
doctor.setDeptId(rs.getInt("dept_id"));
doctor.setPhoneNumber(rs.getString("phone_number"));
doctor.setEmail(rs.getString("email"));
doctor.setHireDate(rs.getString("hire_date"));
}
}
return doctor;
}
// 查询所有医生
public List<Doctor> getAllDoctors() throws SQLException {
List<Doctor> doctors = new ArrayList<>();
String sql = "SELECT * FROM doctors";
try (Connection conn = DatabaseConnection.getConnection();
Statement stmt = conn.createStatement();
ResultSet rs = stmt.executeQuery(sql)) {
while (rs.next()) {
Doctor doctor = new Doctor();
doctor.setDoctorId(rs.getInt("doctor_id"));
doctor.setFirstName(rs.getString("first_name"));
doctor.setLastName(rs.getString("last_name"));
doctor.setSpecialization(rs.getString("specialization"));
doctor.setDeptId(rs.getInt("dept_id"));
doctor.setPhoneNumber(rs.getString("phone_number"));
doctor.setEmail(rs.getString("email"));
doctor.setHireDate(rs.getString("hire_date"));
doctors.add(doctor);
}
}
return doctors;
}
// 更新医生信息
public void updateDoctor(Doctor doctor) throws SQLException {
String sql = "UPDATE doctors SET first_name = ?, last_name = ?, specialization = ?, dept_id = ?, phone_number = ?, email = ?, hire_date = ? WHERE doctor_id = ?";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setString(1, doctor.getFirstName());
pstmt.setString(2, doctor.getLastName());
pstmt.setString(3, doctor.getSpecialization());
pstmt.setInt(4, doctor.getDeptId());
pstmt.setString(5, doctor.getPhoneNumber());
pstmt.setString(6, doctor.getEmail());
pstmt.setString(7, doctor.getHireDate());
pstmt.setInt(8, doctor.getDoctorId());
pstmt.executeUpdate();
}
}
// 删除医生
public void deleteDoctor(int doctorId) throws SQLException {
String sql = "DELETE FROM doctors WHERE doctor_id = ?";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, doctorId);
pstmt.executeUpdate();
}
}
}
DoctorDAO类（数据访问对象）
类似地，需要为其他表（患者、科室、预约等）创建DAO类，示例中省略。
public List<Doctor> getDoctorsByDepartment(String deptName) throws SQLException {
List<Doctor> doctors = new ArrayList<>();
String sql = "SELECT d.* FROM doctors d JOIN departments dept ON d.dept_id = dept.dept_id WHERE dept.dept_name = ?";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setString(1, deptName);
ResultSet rs = pstmt.executeQuery();
while (rs.next()) {
Doctor doctor = new Doctor();
doctor.setDoctorId(rs.getInt("doctor_id"));
doctor.setFirstName(rs.getString("first_name"));
doctor.setLastName(rs.getString("last_name"));
doctor.setSpecialization(rs.getString("specialization"));
doctor.setDeptId(rs.getInt("dept_id"));
doctor.setPhoneNumber(rs.getString("phone_number"));
doctor.setEmail(rs.getString("email"));
doctor.setHireDate(rs.getString("hire_date"));
doctors.add(doctor);
}
}
return doctors;
}
多表关联查询核心示例
// Department.java
package model;
public class Department {
private int deptId;
private String deptName;
private String location;
private int headDoctorId;
// 构造方法
public Department() {}
public Department(int deptId, String deptName, String location, int headDoctorId) {
this.deptId = deptId;
this.deptName = deptName;
this.location = location;
this.headDoctorId = headDoctorId;
}
// Getter和Setter方法
public int getDeptId() { return deptId; }
public void setDeptId(int deptId) { this.deptId = deptId; }
public String getDeptName() { return deptName; }
public void setDeptName(String deptName) { this.deptName = deptName; }
public String getLocation() { return location; }
public void setLocation(String location) { this.location = location; }
public int getHeadDoctorId() { return headDoctorId; }
public void setHeadDoctorId(int headDoctorId) { this.headDoctorId = headDoctorId; }
@Override
public String toString() {
return "Department [deptId=" + deptId + ", deptName=" + deptName +
", location=" + location + ", headDoctorId=" + headDoctorId + "]";
}
}
Department.java
// Doctor.java
package model;
import java.util.Date;
public class Doctor {
private int doctorId;
private String firstName;
private String lastName;
private String specialization;
private int deptId;
private String phoneNumber;
private String email;
private Date hireDate;
// 构造方法、Getter和Setter方法
public Doctor() {}
public Doctor(int doctorId, String firstName, String lastName, String specialization,
int deptId, String phoneNumber, String email, Date hireDate) {
this.doctorId = doctorId;
this.firstName = firstName;
this.lastName = lastName;
this.specialization = specialization;
this.deptId = deptId;
this.phoneNumber = phoneNumber;
this.email = email;
this.hireDate = hireDate;
}
// Getter和Setter方法
public int getDoctorId() { return doctorId; }
public void setDoctorId(int doctorId) { this.doctorId = doctorId; }
public String getFirstName() { return firstName; }
public void setFirstName(String firstName) { this.firstName = firstName; }
public String getLastName() { return lastName; }
public void setLastName(String lastName) { this.lastName = lastName; }
public String getSpecialization() { return specialization; }
public void setSpecialization(String specialization) { this.specialization = specialization; }
public int getDeptId() { return deptId; }
public void setDeptId(int deptId) { this.deptId = deptId; }
public String getPhoneNumber() { return phoneNumber; }
public void setPhoneNumber(String phoneNumber) { this.phoneNumber = phoneNumber; }
public String getEmail() { return email; }
public void setEmail(String email) { this.email = email; }
public Date getHireDate() { return hireDate; }
public void setHireDate(Date hireDate) { this.hireDate = hireDate; }
@Override
public String toString() {
return "Doctor [doctorId=" + doctorId + ", firstName=" + firstName +
", lastName=" + lastName + ", specialization=" + specialization +
", deptId=" + deptId + ", phoneNumber=" + phoneNumber +
", email=" + email + ", hireDate=" + hireDate + "]";
}
}
Doctor.java
其他实体类（Patient, Ward, Appointment,Hospitalization等）实现类似，这里省略。
// DepartmentDAO.java
package dao;
import model.Department;
import java.sql.*;
import java.util.ArrayList;
import java.util.List;
public class DepartmentDAO {
// 添加科室
public boolean addDepartment(Department department) {
String sql = "INSERT INTO departments (dept_name, location, head_doctor_id) VALUES (?, ?, ?)";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setString(1, department.getDeptName());
pstmt.setString(2, department.getLocation());
pstmt.setInt(3, department.getHeadDoctorId());
int affectedRows = pstmt.executeUpdate();
return affectedRows > 0;
} catch (SQLException e) {
e.printStackTrace();
return false;
}
}
// 获取所有科室
public List<Department> getAllDepartments() {
List<Department> departments = new ArrayList<>();
String sql = "SELECT * FROM departments";
try (Connection conn = DatabaseConnection.getConnection();
Statement stmt = conn.createStatement();
ResultSet rs = stmt.executeQuery(sql)) {
while (rs.next()) {
Department department = new Department();
department.setDeptId(rs.getInt("dept_id"));
department.setDeptName(rs.getString("dept_name"));
department.setLocation(rs.getString("location"));
department.setHeadDoctorId(rs.getInt("head_doctor_id"));
departments.add(department);
}
} catch (SQLException e) {
e.printStackTrace();
}
return departments;
}
// 根据ID获取科室
public Department getDepartmentById(int deptId) {
String sql = "SELECT * FROM departments WHERE dept_id = ?";
Department department = null;
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, deptId);
ResultSet rs = pstmt.executeQuery();
if (rs.next()) {
department = new Department();
department.setDeptId(rs.getInt("dept_id"));
department.setDeptName(rs.getString("dept_name"));
department.setLocation(rs.getString("location"));
department.setHeadDoctorId(rs.getInt("head_doctor_id"));
}
} catch (SQLException e) {
e.printStackTrace();
}
return department;
}
// 更新科室信息
public boolean updateDepartment(Department department) {
String sql = "UPDATE departments SET dept_name = ?, location = ?, head_doctor_id = ? WHERE dept_id = ?";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setString(1, department.getDeptName());
pstmt.setString(2, department.getLocation());
pstmt.setInt(3, department.getHeadDoctorId());
pstmt.setInt(4, department.getDeptId());
int affectedRows = pstmt.executeUpdate();
return affectedRows > 0;
} catch (SQLException e) {
e.printStackTrace();
return false;
}
}
// 删除科室
public boolean deleteDepartment(int deptId) {
String sql = "DELETE FROM departments WHERE dept_id = ?";
try (Connection conn = DatabaseConnection.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, deptId);
int affectedRows = pstmt.executeUpdate();
return affectedRows > 0;
} catch (SQLException e) {
e.printStackTrace();
return false;
}
}
}
DepartmentDAO.java
其他DAO类（DoctorDAO, PatientDAO, WardDAO, AppointmentDAO, HospitalizationDAO等）实现类似，这里省略。
// HospitalService.java
package service;
import dao.*;
import model.*;
import java.util.List;
public class HospitalService {
private DepartmentDAO departmentDAO = new DepartmentDAO();
private DoctorDAO doctorDAO = new DoctorDAO();
private PatientDAO patientDAO = new PatientDAO();
private WardDAO wardDAO = new WardDAO();
private AppointmentDAO appointmentDAO = new AppointmentDAO();
private HospitalizationDAO hospitalizationDAO = new HospitalizationDAO();
// 科室相关操作
public boolean addDepartment(Department department) {
return departmentDAO.addDepartment(department);
}
public List<Department> getAllDepartments() {
return departmentDAO.getAllDepartments();
}
public Department getDepartmentById(int deptId) {
return departmentDAO.getDepartmentById(deptId);
}
public boolean updateDepartment(Department department) {
return departmentDAO.updateDepartment(department);
}
public boolean deleteDepartment(int deptId) {
return departmentDAO.deleteDepartment(deptId);
}
// 医生相关操作
public boolean addDoctor(Doctor doctor) {
return doctorDAO.addDoctor(doctor);
}
public List<Doctor> getAllDoctors() {
return doctorDAO.getAllDoctors();
}
public Doctor getDoctorById(int doctorId) {
return doctorDAO.getDoctorById(doctorId);
}
public List<Doctor> getDoctorsByDepartment(int deptId) {
return doctorDAO.getDoctorsByDepartment(deptId);
}
public boolean updateDoctor(Doctor doctor) {
return doctorDAO.updateDoctor(doctor);
}
public boolean deleteDoctor(int doctorId) {
return doctorDAO.deleteDoctor(doctorId);
}
// 多表关联查询示例
public List<Doctor> getDoctorsWithDepartmentInfo() {
return doctorDAO.getDoctorsWithDepartmentInfo();
}
public List<Appointment> getAppointmentsWithPatientAndDoctorInfo() {
return appointmentDAO.getAppointmentsWithPatientAndDoctorInfo();
}
public List<Hospitalization> getCurrentHospitalizations() {
return hospitalizationDAO.getCurrentHospitalizations();
}
// 其他方法...
}
HospitalService.java
// Main.java
import service.HospitalService;
import model.*;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
public class Main {
private static HospitalService hospitalService = new HospitalService();
private static SimpleDateFormat dateFormat = new SimpleDateFormat("yyyy-MM-dd");
public static void main(String[] args) {
try {
// 1. 添加科室
Department dept1 = new Department(0, "心脏内科", "一楼东侧", 0);
hospitalService.addDepartment(dept1);
// 2. 添加医生
Doctor doctor1 = new Doctor(0, "张", "小明", "心脏病学", 1,
"13800138001", "zhangming@hospital.com",
dateFormat.parse("2015-03-10"));
hospitalService.addDoctor(doctor1);
// 3. 添加患者
Patient patient1 = new Patient(0, "陈", "国华", dateFormat.parse("1985-07-12"),
"男", "13900139001", "郑州市人民路100号", new Date());
hospitalService.addPatient(patient1);
// 4. 查询所有科室
System.out.println("所有科室:");
List<Department> departments = hospitalService.getAllDepartments();
for (Department dept : departments) {
System.out.println(dept);
}
// 5. 查询所有医生
System.out.println("\n所有医生:");
List<Doctor> doctors = hospitalService.getAllDoctors();
for (Doctor doctor : doctors) {
System.out.println(doctor);
}
// 6. 多表关联查询：获取医生及其科室信息
System.out.println("\n医生及其科室信息:");
List<Doctor> doctorsWithDept = hospitalService.getDoctorsWithDepartmentInfo();
for (Doctor doctor : doctorsWithDept) {
System.out.println(doctor.getFirstName() + " " + doctor.getLastName() +
" - " + doctor.getSpecialization() +
" - 科室: " + doctor.getDeptId()); // 这里可以扩展为显示科室名称
}
// 7. 多表关联查询：获取当前住院患者信息
System.out.println("\n当前住院患者:");
List<Hospitalization> hospitalizations = hospitalService.getCurrentHospitalizations();
for (Hospitalization hospitalization : hospitalizations) {
System.out.println("患者ID: " + hospitalization.getPatientId() +
", 病房ID: " + hospitalization.getWardId() +
", 入院日期: " + hospitalization.getAdmissionDate());
}
} catch (Exception e) {
e.printStackTrace();
}
}
}
主程序Main.java示例
// DoctorDAO.java 中的多表查询方法
public List<Doctor> getDoctorsWithDepartmentInfo() {
List<Doctor> doctors = new ArrayList<>();
String sql = "SELECT d.*, dept.dept_name " +
"FROM doctors d " +
"JOIN departments dept ON d.dept_id = dept.dept_id";
try (Connection conn = DatabaseConnection.getConnection();
Statement stmt = conn.createStatement();
ResultSet rs = stmt.executeQuery(sql)) {
while (rs.next()) {
Doctor doctor = new Doctor();
doctor.setDoctorId(rs.getInt("doctor_id"));
doctor.setFirstName(rs.getString("first_name"));
doctor.setLastName(rs.getString("last_name"));
doctor.setSpecialization(rs.getString("specialization"));
doctor.setDeptId(rs.getInt("dept_id"));
doctor.setPhoneNumber(rs.getString("phone_number"));
doctor.setEmail(rs.getString("email"));
doctor.setHireDate(rs.getDate("hire_date"));
// 可以扩展Doctor类添加departmentName字段
doctors.add(doctor);
}
} catch (SQLException e) {
e.printStackTrace();
}
return doctors;
}
多表关联查询主要方法实现示例
// HospitalizationDAO.java 中的多表查询方法
public List<Hospitalization> getCurrentHospitalizations() {
List<Hospitalization> hospitalizations = new ArrayList<>();
String sql = "SELECT h.*, p.first_name, p.last_name, w.ward_name, d.first_name AS doc_first_name, d.last_name AS doc_last_name " +
"FROM hospitalizations h " +
"JOIN patients p ON h.patient_id = p.patient_id " +
"JOIN wards w ON h.ward_id = w.ward_id " +
"JOIN doctors d ON h.doctor_id = d.doctor_id " +
"WHERE h.discharge_date IS NULL";
try (Connection conn = DatabaseConnection.getConnection();
Statement stmt = conn.createStatement();
ResultSet rs = stmt.executeQuery(sql)) {
while (rs.next()) {
Hospitalization hospitalization = new Hospitalization();
hospitalization.setHospitalizationId(rs.getInt("hospitalization_id"));
hospitalization.setPatientId(rs.getInt("patient_id"));
hospitalization.setWardId(rs.getInt("ward_id"));
hospitalization.setDoctorId(rs.getInt("doctor_id"));
hospitalization.setAdmissionDate(rs.getDate("admission_date"));
hospitalization.setDischargeDate(rs.getDate("discharge_date"));
hospitalization.setDiagnosis(rs.getString("diagnosis"));
hospitalization.setTreatmentPlan(rs.getString("treatment_plan"));
// 可以扩展Hospitalization类添加这些字段
hospitalizations.add(hospitalization);
}
} catch (SQLException e) {
e.printStackTrace();
}
return hospitalizations;
}
HospitalizationDAO.java 中的多表查询主要方法实现示例
七、实验考核
1、本课程实验考核方案
本课程实验考核采用【实验智能评】【实验随堂查】方式开展，根据不同的实验内容选择不同的考核方式。
【实验智能评】：实验完成后提交GitLab，通过自动化代码评审工具进行评分。
【实验随堂查】：在实验课上通过现场演示的方式向实验指导教师进行汇报，并完成现场问答交流。
2、本实验考核要求
本实验考核方式：实验智能评
实验1-3作为本课程第1次实验考核。
考核要求：
（1）学生通过GitLab提交实验成果：{此部分说明需要提交的内容}。
（2）由GitLab根据成果和交流情况综合评分。
