基于大数据的玉米产量数据可视化分析系统-功能介绍
【Python大数据+AI毕设实战】玉米产量数据可视化分析系统是一个基于现代大数据技术栈构建的农业数据分析平台，采用Python作为主要开发语言，整合Hadoop分布式存储框架与Spark大数据计算引擎，实现对海量玉米产量数据的高效处理和深度挖掘。系统后端采用Django框架搭建RESTful API接口，前端运用Vue.js配合ElementUI组件库构建用户交互界面，通过ECharts图表库实现数据的多维度可视化展示。系统核心功能涵盖产量表现分析、品种特性评估、环境条件影响研究、生长发育特征统计以及时空分布规律探索等五大分析维度，能够处理包含品种编号、产量数据、种子特征、植株形态、开花期信息以及实验环境等多元化农业数据。通过运用Spark SQL进行数据清洗与预处理，结合Pandas和NumPy进行统计计算，系统能够自动识别高产品种、分析产量影响因素、生成环境适应性报告，为农业科研人员和生产管理者提供科学的决策支持工具，实现传统农业向数据驱动农业的转型升级。
基于大数据的玉米产量数据可视化分析系统-选题背景意义
选题背景 玉米作为全球三大主要粮食作物之一，在保障粮食安全方面发挥着举足轻重的作用，我国玉米种植面积和总产量均位居世界前列，玉米产业的稳定发展直接关系到国家粮食战略安全。随着现代农业科技的快速发展，玉米育种技术不断进步，新品种层出不穷，如何科学评估不同品种的产量表现、适应性特征以及环境响应规律成为农业科研和生产实践中的重要课题。传统的玉米产量分析主要依赖人工统计和简单的电子表格处理，面对日益增长的试验数据和复杂的多因子分析需求，这种方式已经难以满足现代农业精准化管理的要求。同时，农业领域积累了大量的历史种植数据、气象数据、土壤数据等，这些宝贵的数据资源如果能够得到有效整合和深度挖掘，将为农业生产优化、品种改良以及种植决策提供强有力的科学支撑。大数据技术的兴起为解决这一问题提供了新的思路和技术手段。 选题意义 本课题的实施具有多方面的实际价值和应用意义。从农业生产角度来看，通过构建玉米产量数据可视化分析系统，能够帮助农业科研人员更加直观地理解不同品种的产量特性和环境适应性，为品种选育和推广应用提供数据支持，这对提高玉米生产效率和品质具有积极的促进作用。从技术应用层面分析，本系统将大数据处理技术与传统农业领域相结合，展示了Hadoop和Spark等现代数据技术在垂直行业中的实际应用场景，为相关技术在农业信息化建设中的推广提供了参考案例。对于个人技能发展而言，通过完成这个项目能够较好地掌握大数据技术栈的实际运用，熟悉从数据采集、存储、处理到可视化展示的完整流程，这些技能在当前的就业市场中具有一定的实用价值。本系统虽然规模有限，但它体现了数据驱动决策的理念，为后续开展更大规模的农业大数据研究奠定了基础，也为农业现代化和智慧农业的发展贡献了微薄之力。
基于大数据的玉米产量数据可视化分析系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的玉米产量数据可视化分析系统-视频展示

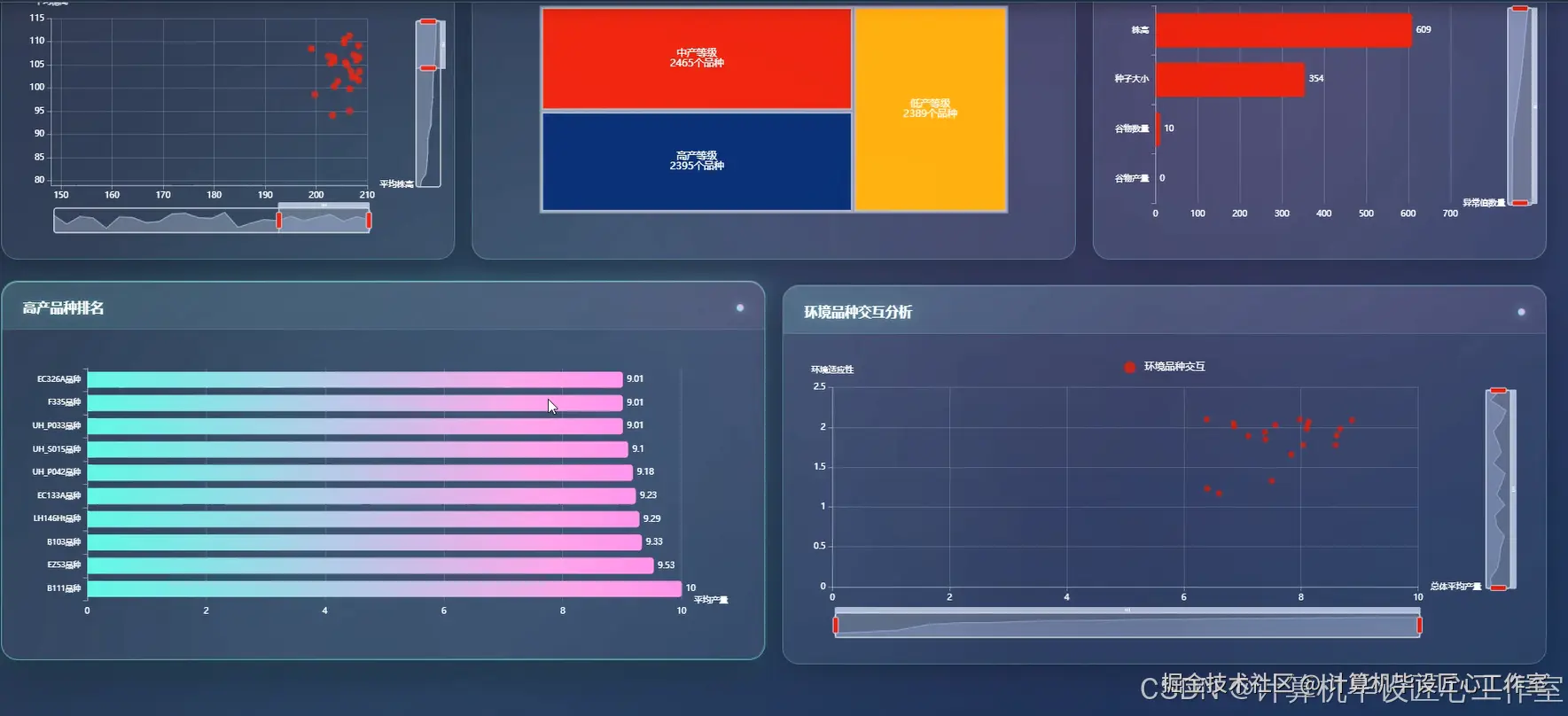

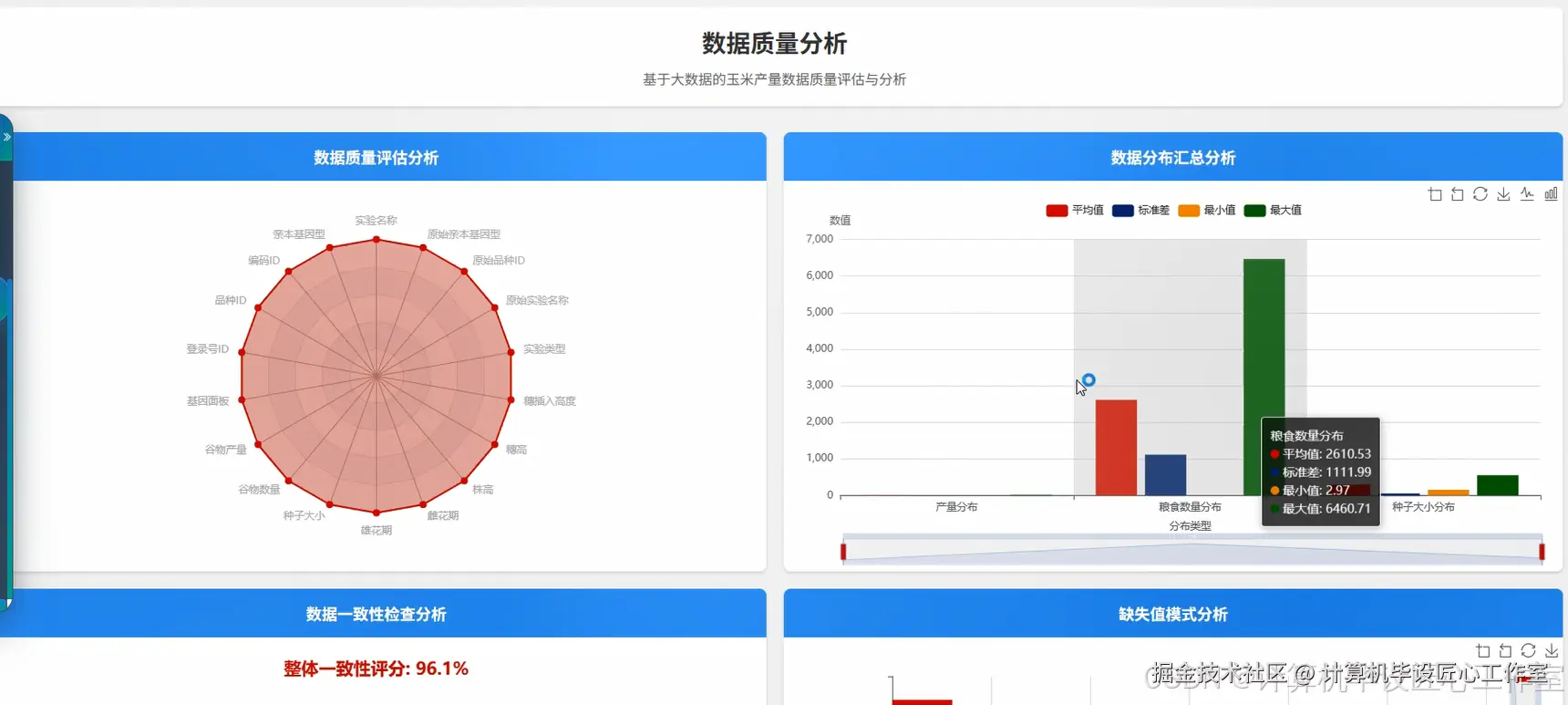

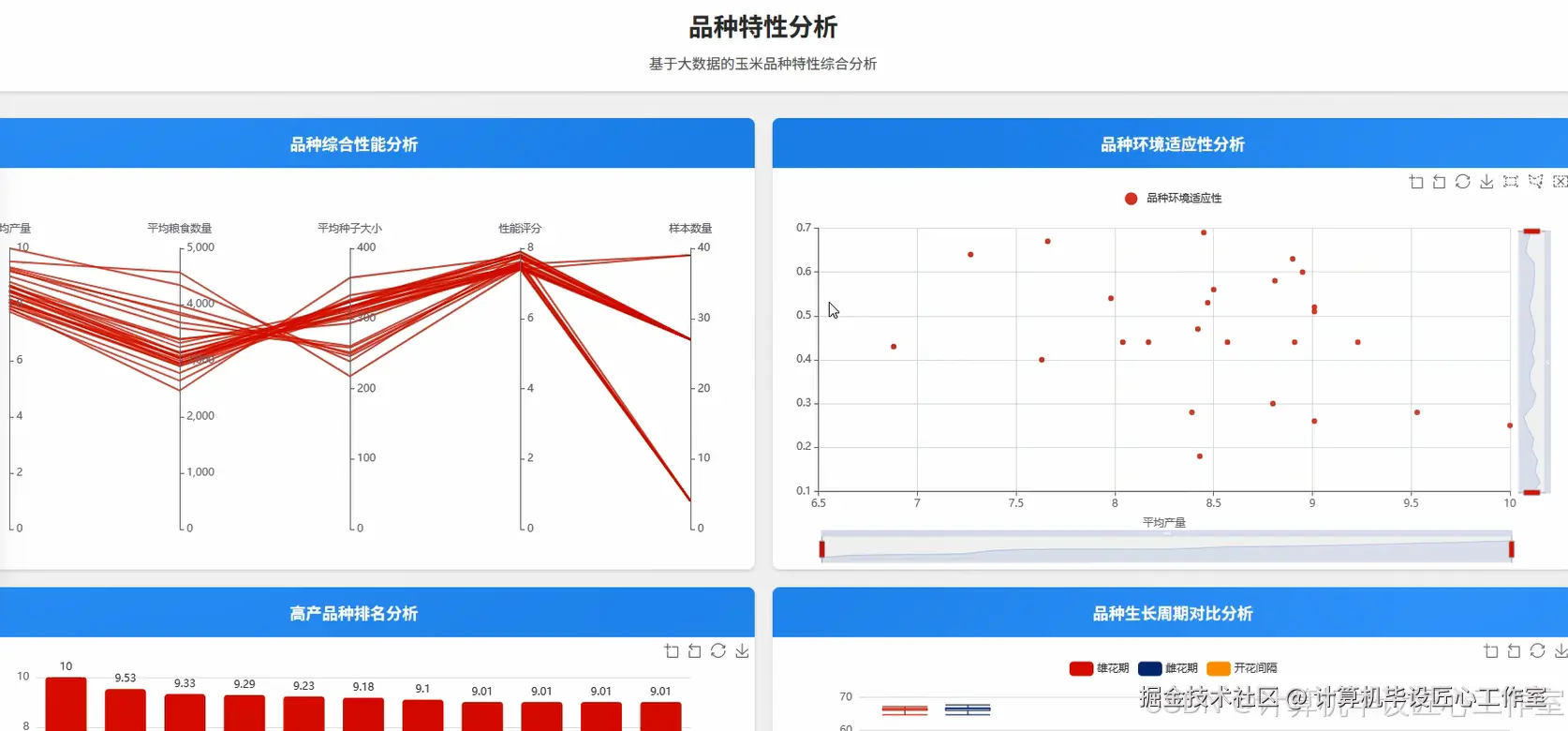

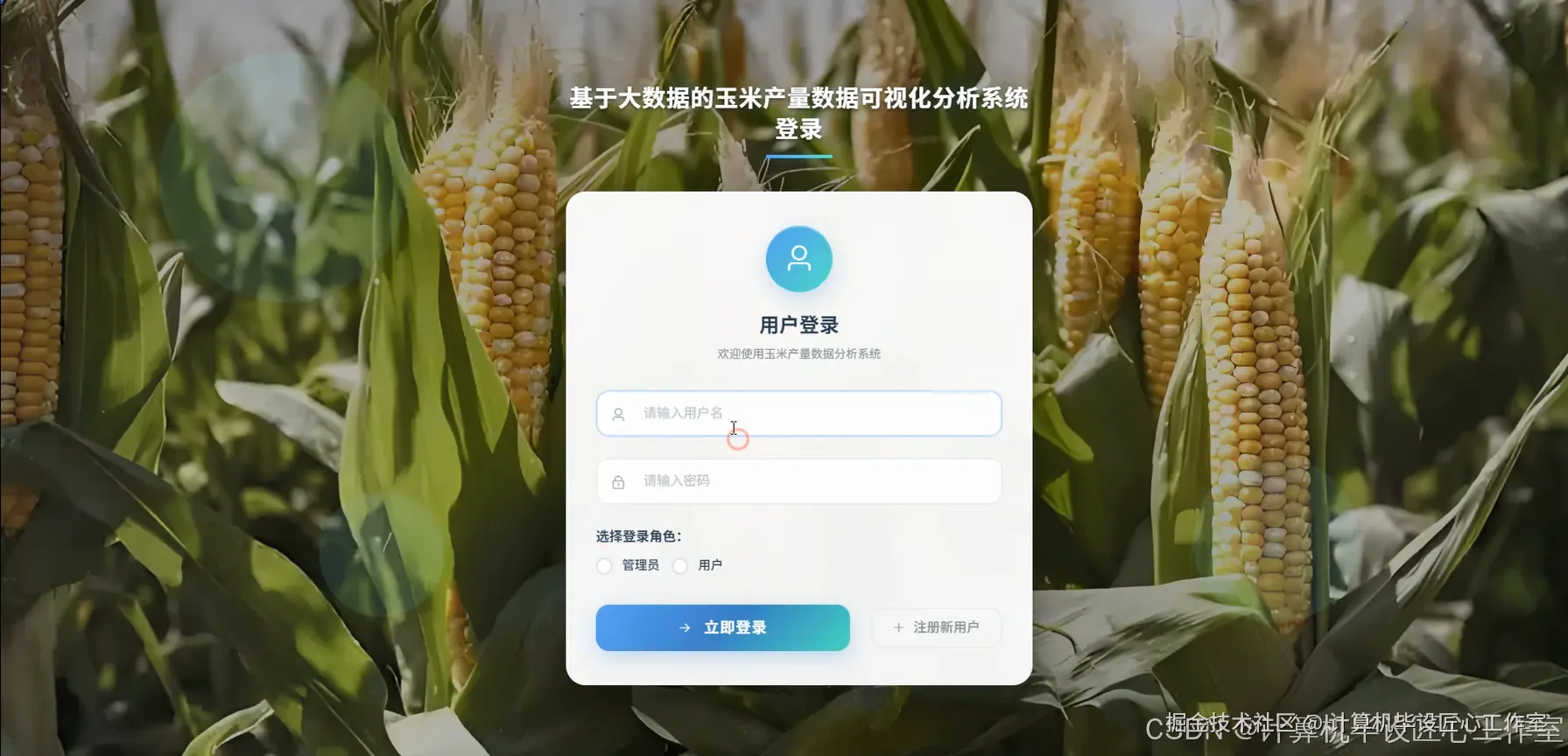

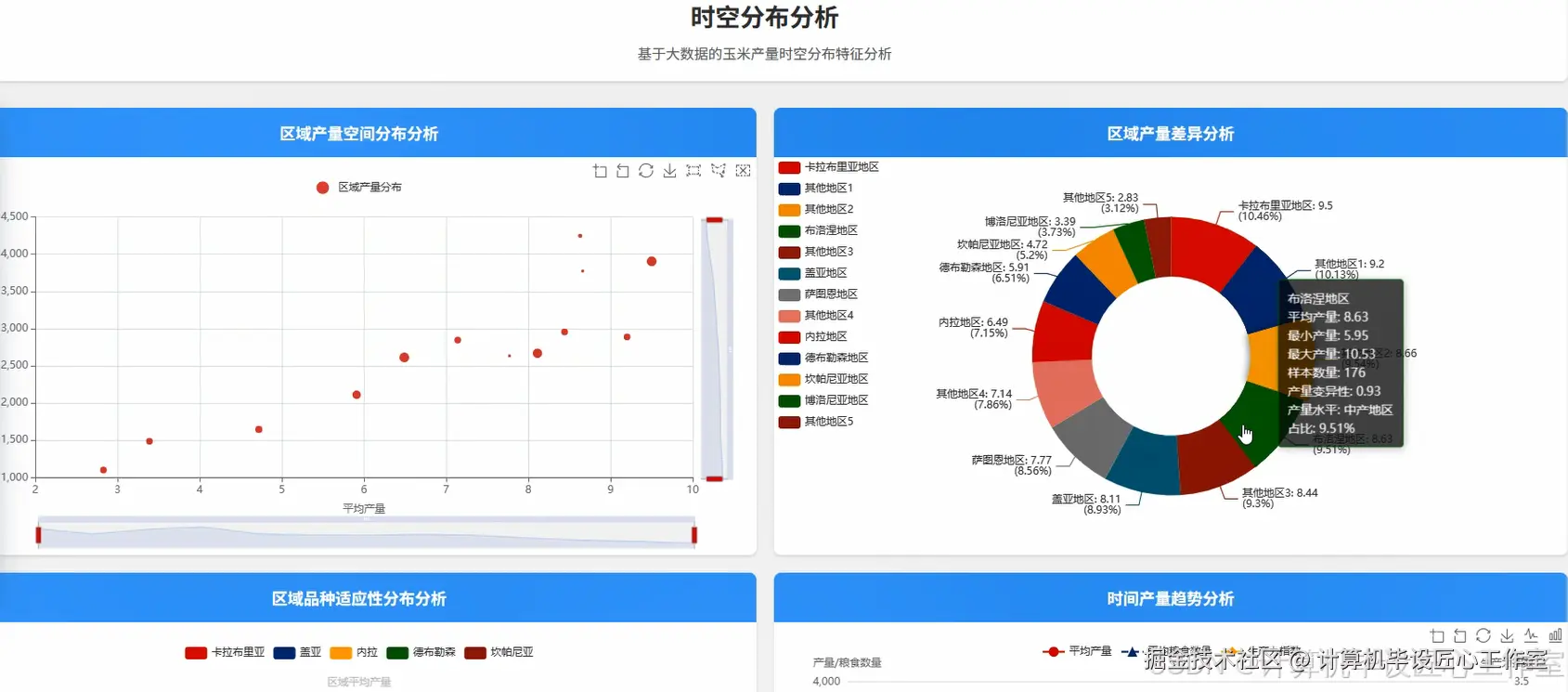

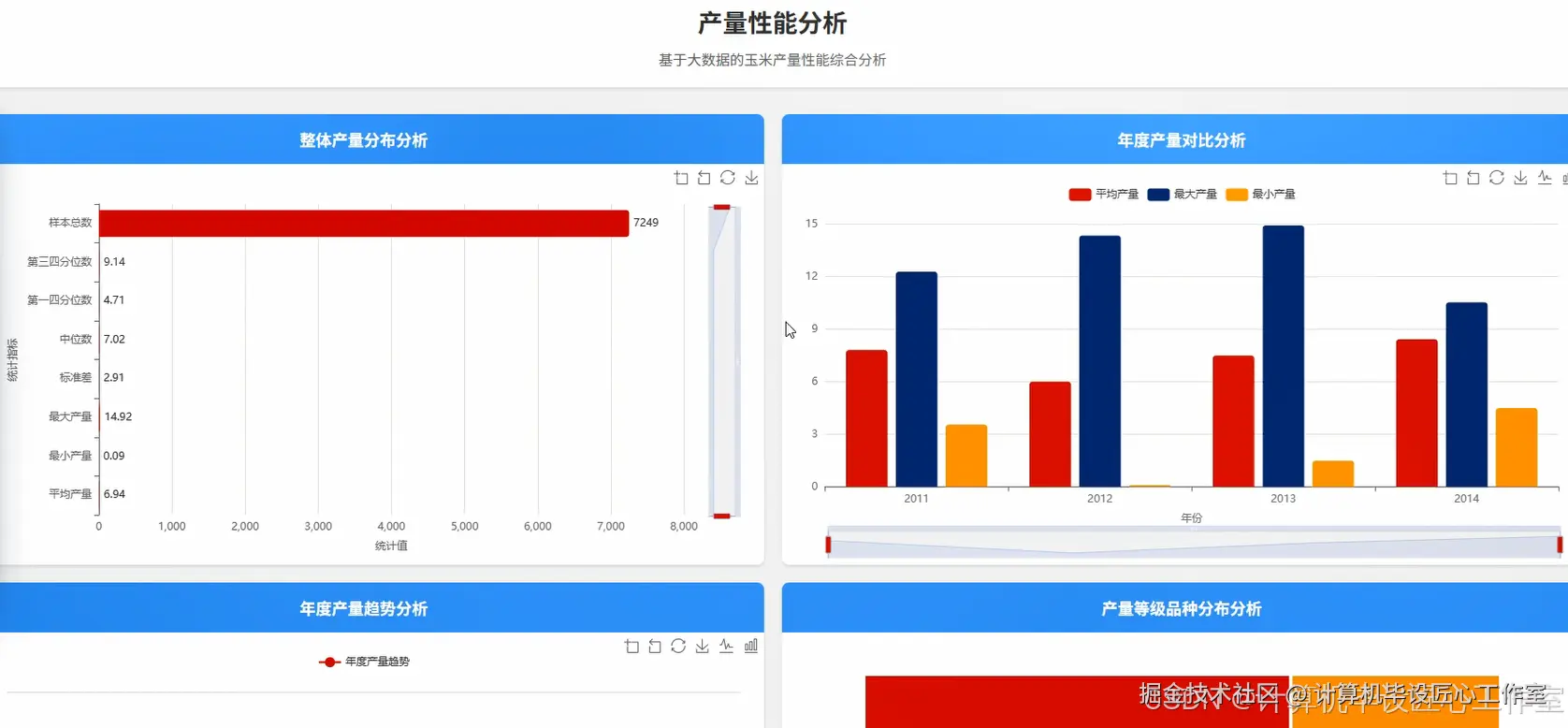

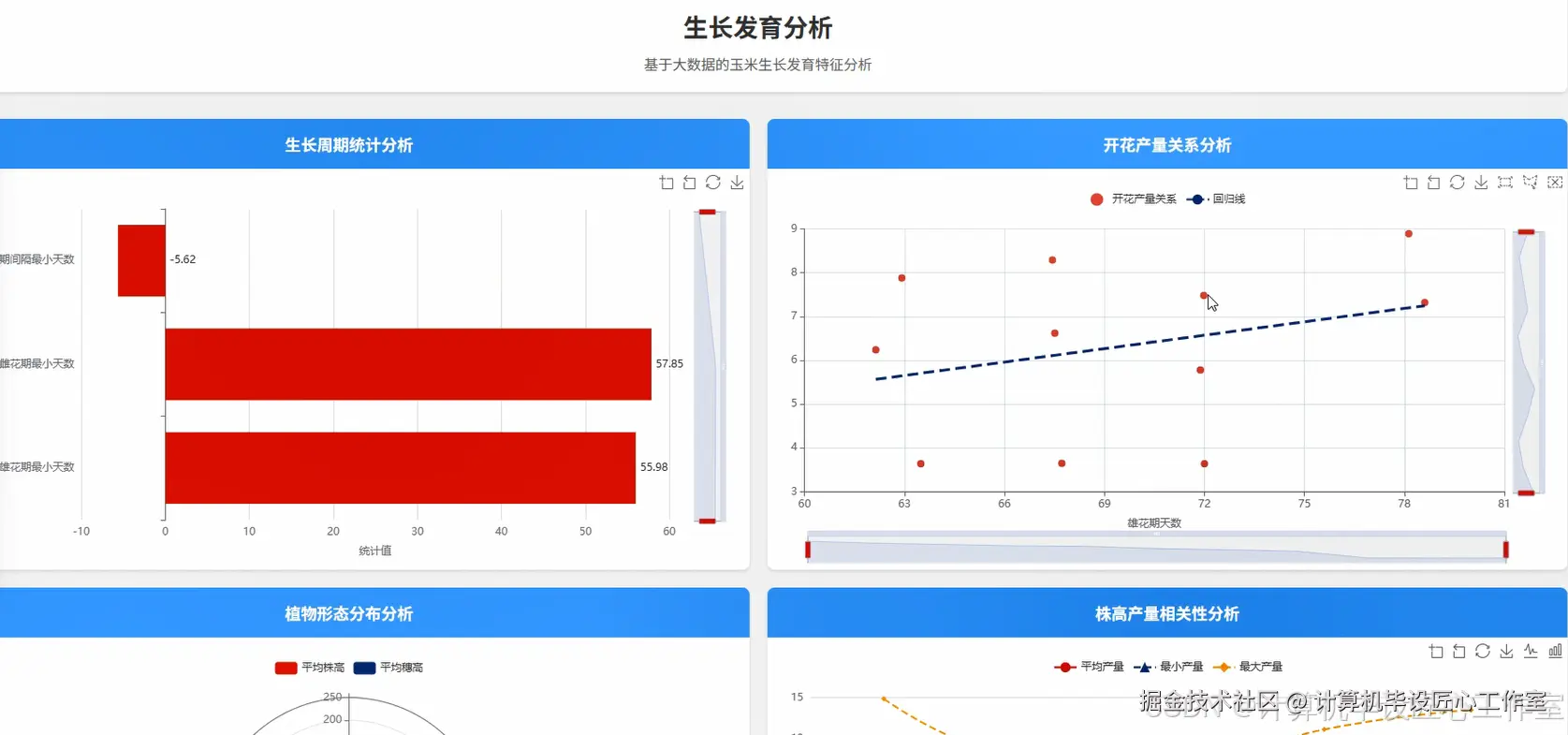

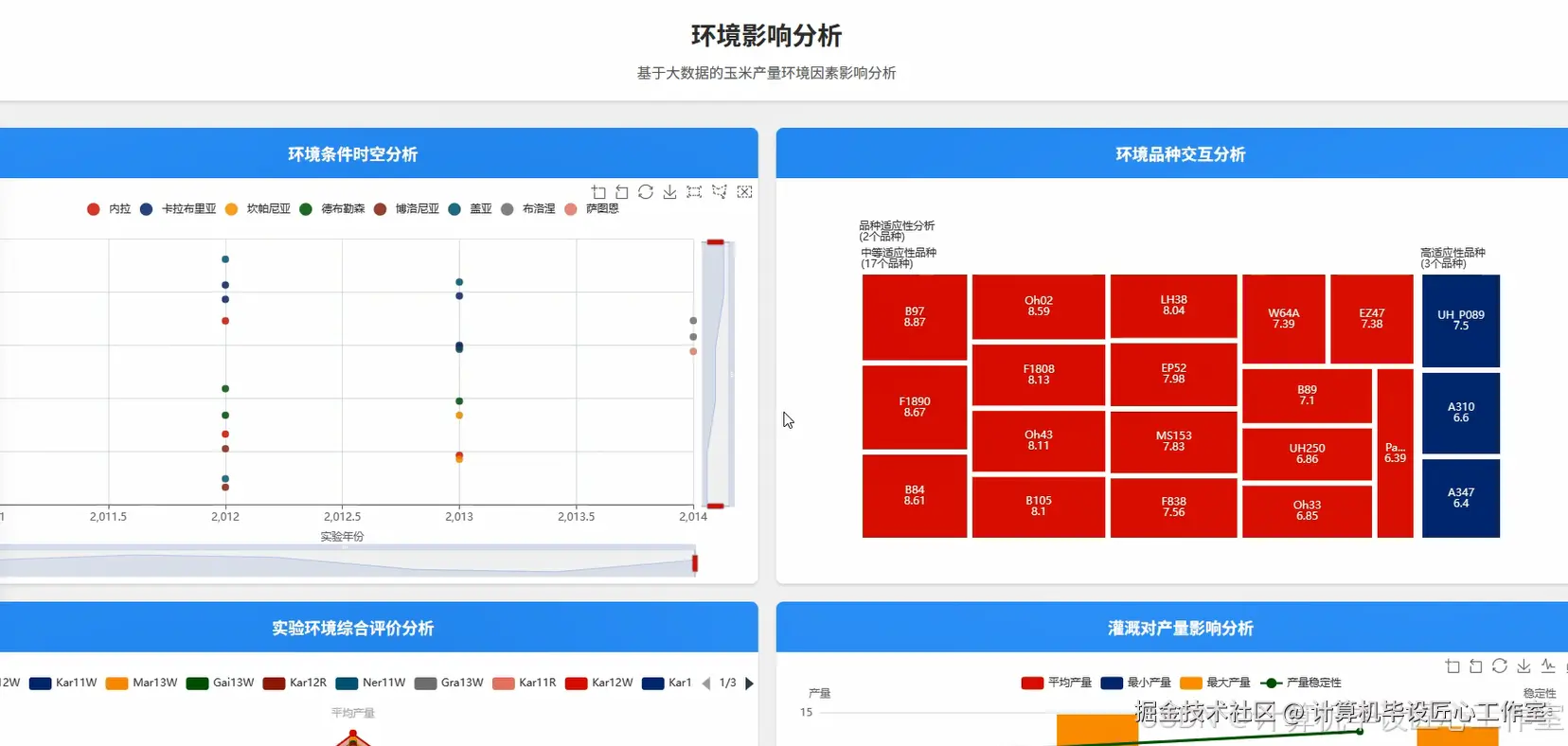

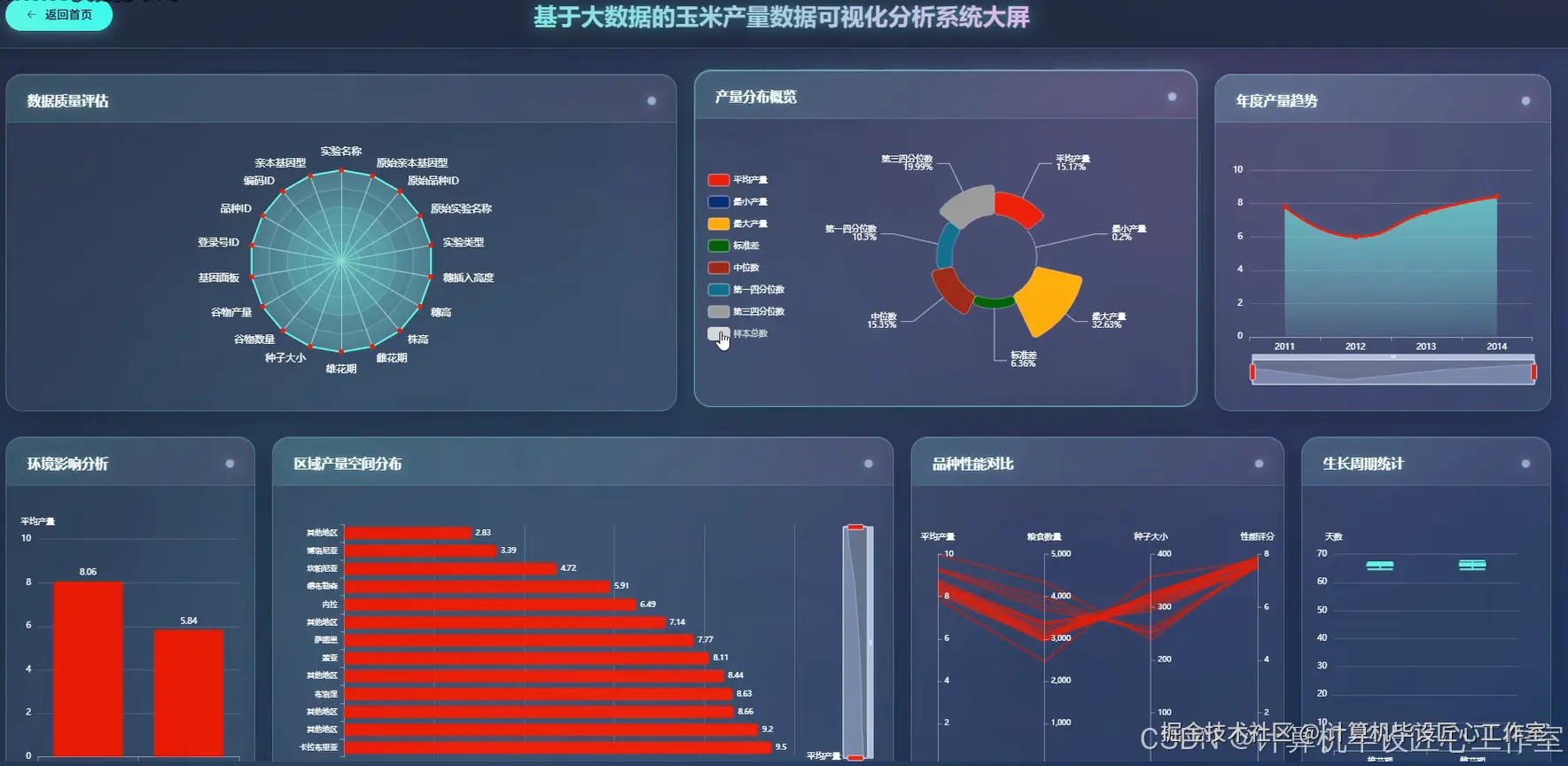

基于大数据的玉米产量数据可视化分析系统-图片展示
基于大数据的玉米产量数据可视化分析系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, count, desc, asc, when, sum as spark_sum
from pyspark.sql.types import StructType, StructField, StringType, DoubleType, IntegerType
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views import View
def corn_yield_analysis():
spark = SparkSession.builder.appName("CornYieldAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
def overall_yield_distribution(request):
df = spark.read.option("header", "true").option("inferSchema", "true").csv("/data/corn_yield_data.csv")
df.createOrReplaceTempView("corn_data")
yield_stats = spark.sql("SELECT AVG(grain_yield) as avg_yield, STDDEV(grain_yield) as std_yield, MIN(grain_yield) as min_yield, MAX(grain_yield) as max_yield, PERCENTILE_APPROX(grain_yield, 0.5) as median_yield FROM corn_data WHERE grain_yield IS NOT NULL")
stats_result = yield_stats.collect()[0]
avg_yield = float(stats_result['avg_yield'])
std_yield = float(stats_result['std_yield'])
min_yield = float(stats_result['min_yield'])
max_yield = float(stats_result['max_yield'])
median_yield = float(stats_result['median_yield'])
yield_intervals = spark.sql("SELECT CASE WHEN grain_yield < {} THEN '低产区间' WHEN grain_yield >= {} AND grain_yield < {} THEN '中产区间' ELSE '高产区间' END as yield_level, COUNT(*) as count FROM corn_data WHERE grain_yield IS NOT NULL GROUP BY CASE WHEN grain_yield < {} THEN '低产区间' WHEN grain_yield >= {} AND grain_yield < {} THEN '中产区间' ELSE '高产区间' END ORDER BY yield_level".format(avg_yield - std_yield, avg_yield - std_yield, avg_yield + std_yield, avg_yield - std_yield, avg_yield - std_yield, avg_yield + std_yield))
interval_data = [{"level": row['yield_level'], "count": row['count']} for row in yield_intervals.collect()]
coefficient_variation = (std_yield / avg_yield) * 100 if avg_yield > 0 else 0
yield_range = max_yield - min_yield
quartile_25 = spark.sql("SELECT PERCENTILE_APPROX(grain_yield, 0.25) as q25 FROM corn_data WHERE grain_yield IS NOT NULL").collect()[0]['q25']
quartile_75 = spark.sql("SELECT PERCENTILE_APPROX(grain_yield, 0.75) as q75 FROM corn_data WHERE grain_yield IS NOT NULL").collect()[0]['q75']
iqr = float(quartile_75) - float(quartile_25)
outlier_threshold_low = float(quartile_25) - 1.5 * iqr
outlier_threshold_high = float(quartile_75) + 1.5 * iqr
outlier_count = spark.sql("SELECT COUNT(*) as outliers FROM corn_data WHERE grain_yield < {} OR grain_yield > {}".format(outlier_threshold_low, outlier_threshold_high)).collect()[0]['outliers']
result_data = {"average": round(avg_yield, 2), "median": round(median_yield, 2), "std_dev": round(std_yield, 2), "min_value": round(min_yield, 2), "max_value": round(max_yield, 2), "coefficient_variation": round(coefficient_variation, 2), "yield_range": round(yield_range, 2), "intervals": interval_data, "outliers": outlier_count, "total_samples": df.count()}
return JsonResponse({"status": "success", "data": result_data})
def high_yield_variety_ranking(request):
df = spark.read.option("header", "true").option("inferSchema", "true").csv("/data/corn_yield_data.csv")
df.createOrReplaceTempView("corn_varieties")
variety_ranking = spark.sql("SELECT Variety_ID, AVG(grain_yield) as avg_yield, COUNT(*) as sample_count, STDDEV(grain_yield) as yield_stability, MIN(grain_yield) as min_yield, MAX(grain_yield) as max_yield FROM corn_varieties WHERE grain_yield IS NOT NULL AND Variety_ID IS NOT NULL GROUP BY Variety_ID HAVING COUNT(*) >= 3 ORDER BY avg_yield DESC LIMIT 20")
ranking_results = []
for idx, row in enumerate(variety_ranking.collect(), 1):
variety_id = row['Variety_ID']
avg_yield = float(row['avg_yield'])
sample_count = row['sample_count']
stability = float(row['yield_stability']) if row['yield_stability'] else 0
min_yield = float(row['min_yield'])
max_yield = float(row['max_yield'])
cv_stability = (stability / avg_yield * 100) if avg_yield > 0 else 0
yield_consistency = "稳定" if cv_stability < 15 else "中等" if cv_stability < 25 else "不稳定"
performance_score = avg_yield * 0.7 + (100 - cv_stability) * 0.3
variety_performance = spark.sql("SELECT AVG(grain_number) as avg_grain_num, AVG(seed_size) as avg_seed_size FROM corn_varieties WHERE Variety_ID = '{}' AND grain_number IS NOT NULL AND seed_size IS NOT NULL".format(variety_id))
perf_data = variety_performance.collect()[0] if variety_performance.count() > 0 else None
avg_grain_num = float(perf_data['avg_grain_num']) if perf_data and perf_data['avg_grain_num'] else 0
avg_seed_size = float(perf_data['avg_seed_size']) if perf_data and perf_data['avg_seed_size'] else 0
ranking_results.append({"rank": idx, "variety_id": variety_id, "average_yield": round(avg_yield, 2), "sample_count": sample_count, "stability_level": yield_consistency, "cv_coefficient": round(cv_stability, 2), "min_yield": round(min_yield, 2), "max_yield": round(max_yield, 2), "performance_score": round(performance_score, 2), "grain_number": round(avg_grain_num, 0), "seed_size": round(avg_seed_size, 3)})
top_varieties = ranking_results[:10]
performance_analysis = {"high_performance": [v for v in ranking_results if v["performance_score"] > 80], "stable_varieties": [v for v in ranking_results if v["cv_coefficient"] < 15], "high_yield_threshold": ranking_results[0]["average_yield"] * 0.9 if ranking_results else 0}
return JsonResponse({"status": "success", "data": {"rankings": top_varieties, "analysis": performance_analysis, "total_varieties": len(ranking_results)}})
def yield_environment_correlation(request):
df = spark.read.option("header", "true").option("inferSchema", "true").csv("/data/corn_yield_data.csv")
df.createOrReplaceTempView("corn_environment")
irrigation_analysis = spark.sql("SELECT CASE WHEN Experiment LIKE '%W%' THEN '人工灌溉' WHEN Experiment LIKE '%R%' THEN '自然降雨' ELSE '未知' END as irrigation_type, AVG(grain_yield) as avg_yield, COUNT(*) as sample_count, STDDEV(grain_yield) as yield_variance FROM corn_environment WHERE grain_yield IS NOT NULL GROUP BY CASE WHEN Experiment LIKE '%W%' THEN '人工灌溉' WHEN Experiment LIKE '%R%' THEN '自然降雨' ELSE '未知' END HAVING sample_count > 5")
irrigation_results = []
for row in irrigation_analysis.collect():
irrigation_type = row['irrigation_type']
avg_yield = float(row['avg_yield'])
sample_count = row['sample_count']
variance = float(row['yield_variance']) if row['yield_variance'] else 0
irrigation_results.append({"type": irrigation_type, "average_yield": round(avg_yield, 2), "sample_count": sample_count, "variance": round(variance, 2)})
location_analysis = spark.sql("SELECT SUBSTR(Experiment, 1, 3) as location_code, AVG(grain_yield) as avg_yield, COUNT(*) as sample_count, AVG(plant_height) as avg_height, AVG(ear_height) as avg_ear_height FROM corn_environment WHERE grain_yield IS NOT NULL AND LENGTH(Experiment) >= 3 GROUP BY SUBSTR(Experiment, 1, 3) HAVING COUNT(*) >= 10 ORDER BY avg_yield DESC")
location_results = []
for row in location_analysis.collect():
location_code = row['location_code']
avg_yield = float(row['avg_yield'])
sample_count = row['sample_count']
avg_height = float(row['avg_height']) if row['avg_height'] else 0
avg_ear_height = float(row['avg_ear_height']) if row['avg_ear_height'] else 0
environment_score = avg_yield / max([r['avg_yield'] for r in irrigation_results] + [1]) * 100
adaptation_level = "优秀" if environment_score > 85 else "良好" if environment_score > 70 else "一般"
location_results.append({"location": location_code, "average_yield": round(avg_yield, 2), "sample_count": sample_count, "plant_height": round(avg_height, 1), "ear_height": round(avg_ear_height, 1), "environment_score": round(environment_score, 1), "adaptation": adaptation_level})
year_trend = spark.sql("SELECT SUBSTR(Experiment, -2) as year_suffix, AVG(grain_yield) as avg_yield, COUNT(*) as sample_count FROM corn_environment WHERE grain_yield IS NOT NULL AND LENGTH(Experiment) >= 2 GROUP BY SUBSTR(Experiment, -2) HAVING COUNT(*) >= 5 ORDER BY year_suffix")
yearly_data = [{"year": row['year_suffix'], "average_yield": round(float(row['avg_yield']), 2), "sample_count": row['sample_count']} for row in year_trend.collect()]
correlation_summary = {"irrigation_optimal": max(irrigation_results, key=lambda x: x['average_yield']) if irrigation_results else None, "location_optimal": max(location_results, key=lambda x: x['average_yield']) if location_results else None, "yield_stability": sum([r['variance'] for r in irrigation_results]) / len(irrigation_results) if irrigation_results else 0}
return JsonResponse({"status": "success", "data": {"irrigation_analysis": irrigation_results, "location_analysis": location_results, "yearly_trend": yearly_data, "correlation_summary": correlation_summary}})
基于大数据的玉米产量数据可视化分析系统-结语
