基于大数据的农产品数据可视化分析系统介绍
基于大数据的农产品数据可视化分析系统是一套集数据采集、存储、处理与可视化展示于一体的综合性农业数据分析平台，该系统采用Hadoop分布式文件系统HDFS作为底层数据存储架构，结合Spark大数据处理引擎实现对海量农产品数据的高效计算和分析处理。系统后端采用Python Django框架和Java Spring Boot框架双重技术栈支持，通过Spark SQL、Pandas、NumPy等数据处理工具对农产品相关数据进行深度挖掘和统计分析，前端基于Vue.js框架结合ElementUI组件库构建用户交互界面，利用Echarts图表库实现数据的动态可视化展示。系统核心功能模块包括农产品价格趋势分析、生产结构分析、宏观影响因素分析以及综合关联性分析，用户可以通过直观的图表形式查看不同时间维度下农产品价格波动规律、各地区农产品产量分布情况、气候环境等宏观因素对农产品产出的影响程度，以及多种农产品之间的关联性变化趋势。系统还提供完善的用户管理功能，包括个人信息维护、密码修改、系统简介查看等基础服务模块，整体架构采用MySQL关系型数据库存储用户信息和处理结果，通过大数据技术栈的深度整合为农业生产决策、市场预测和政策制定提供科学的数据支撑和分析依据。
基于大数据的农产品数据可视化分析系统演示视频

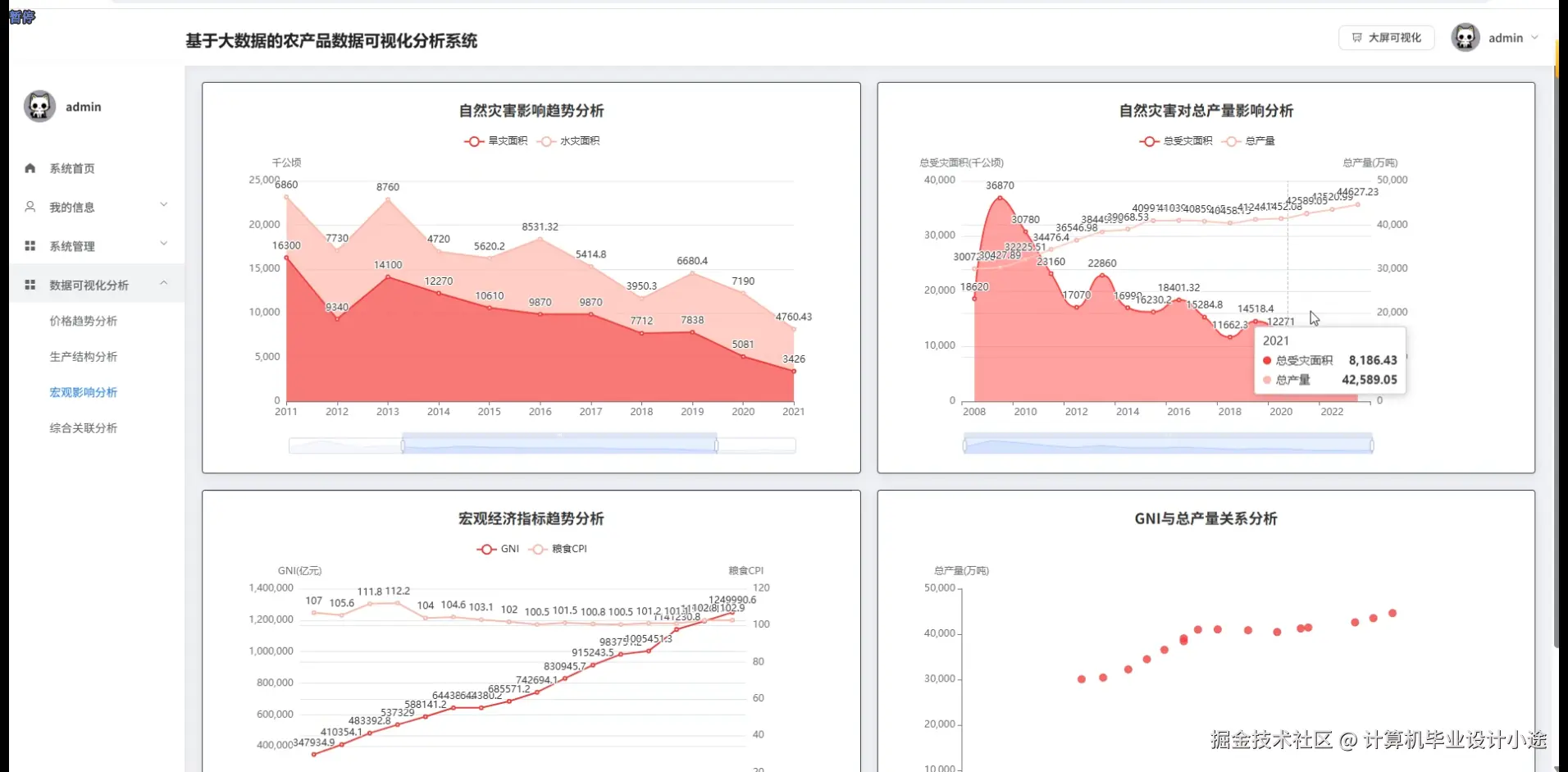

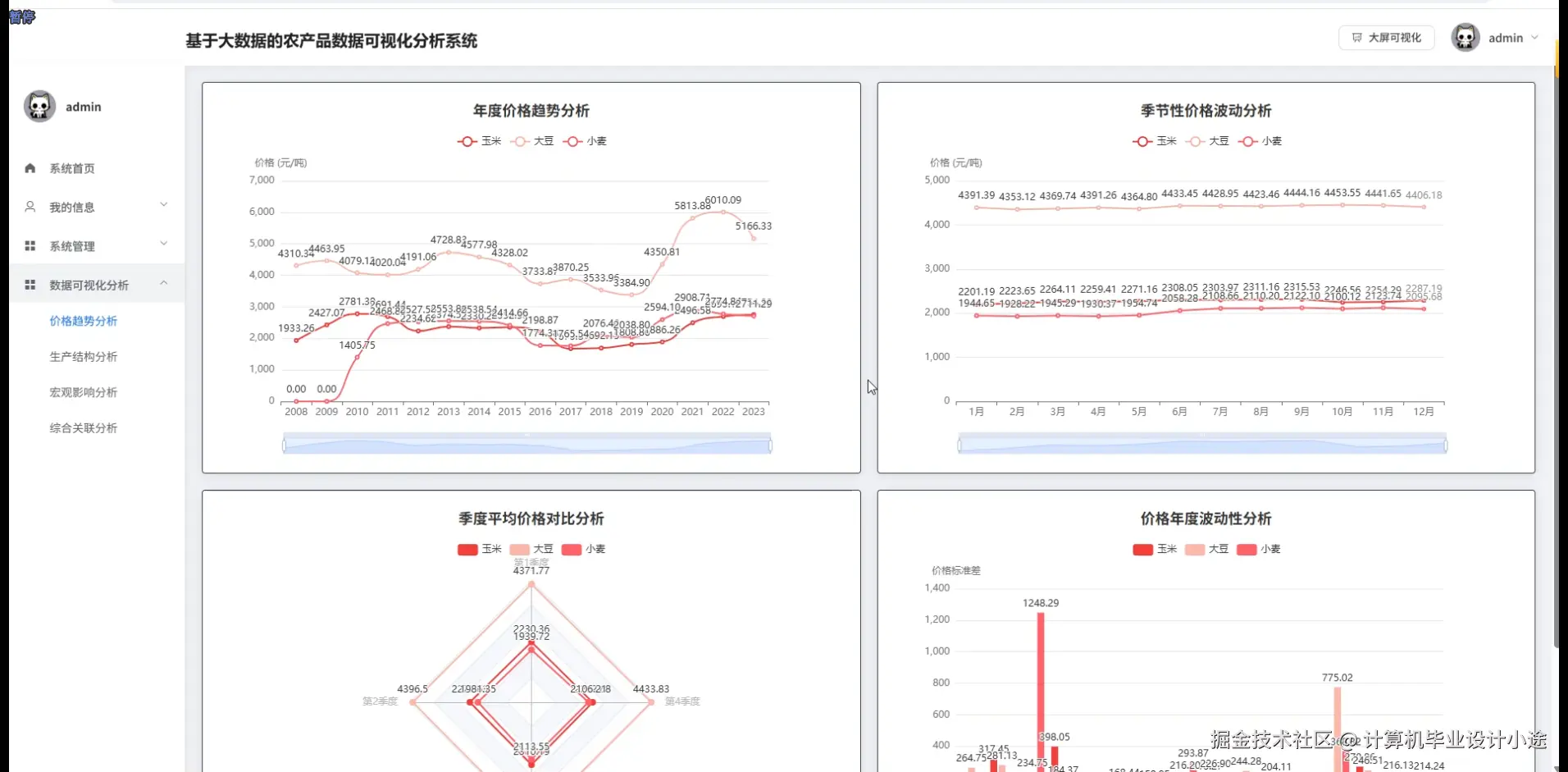

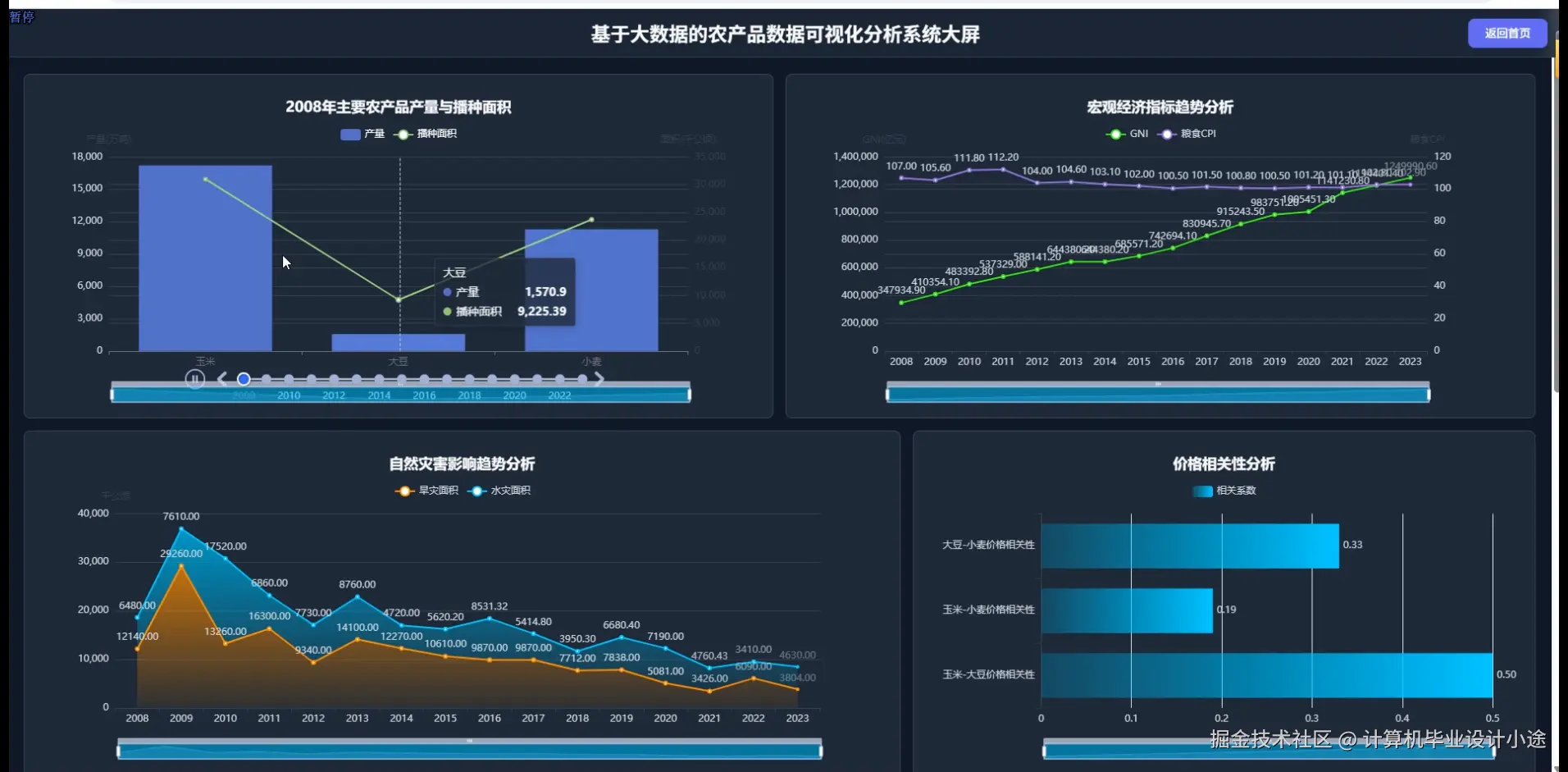

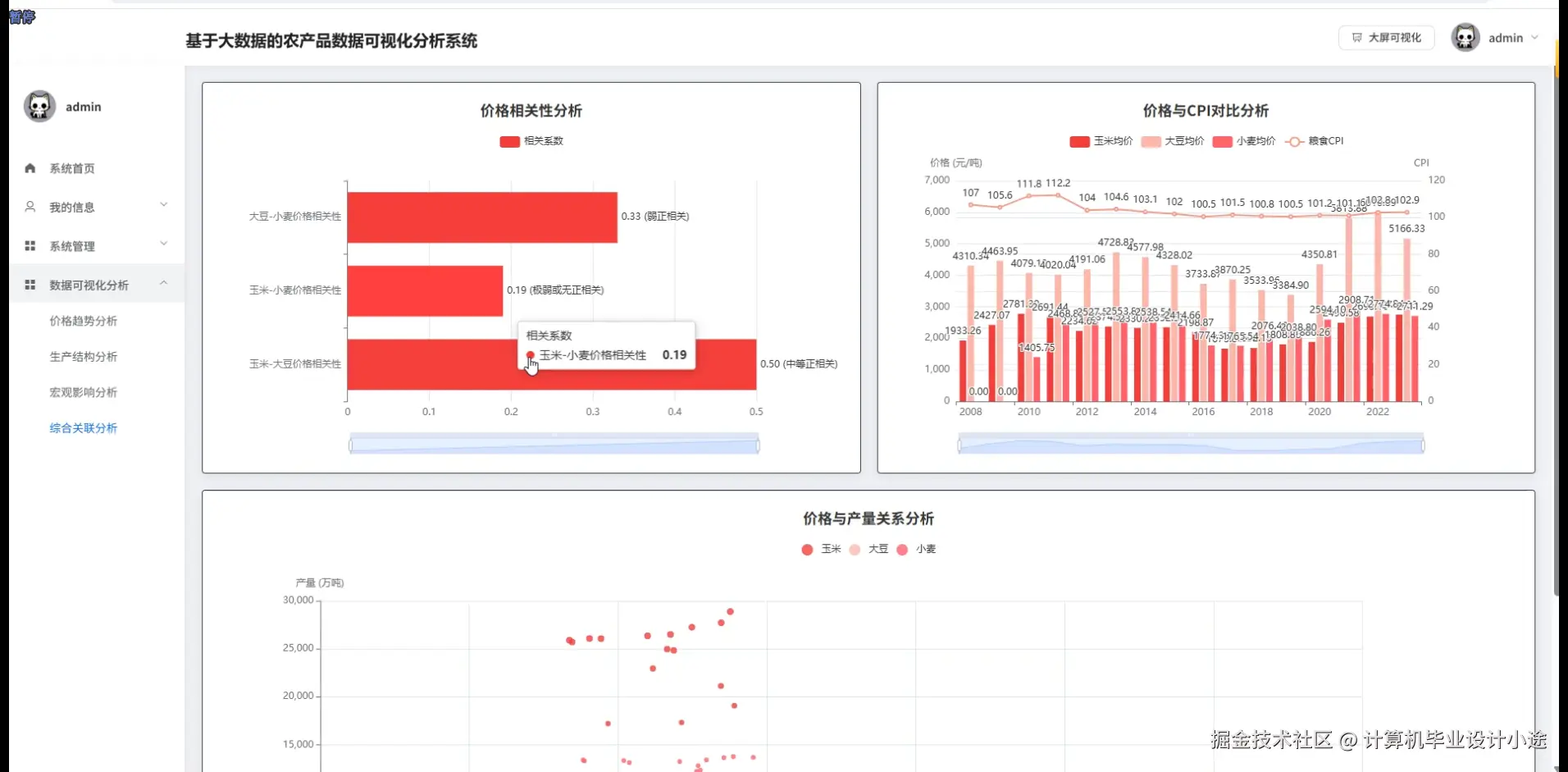

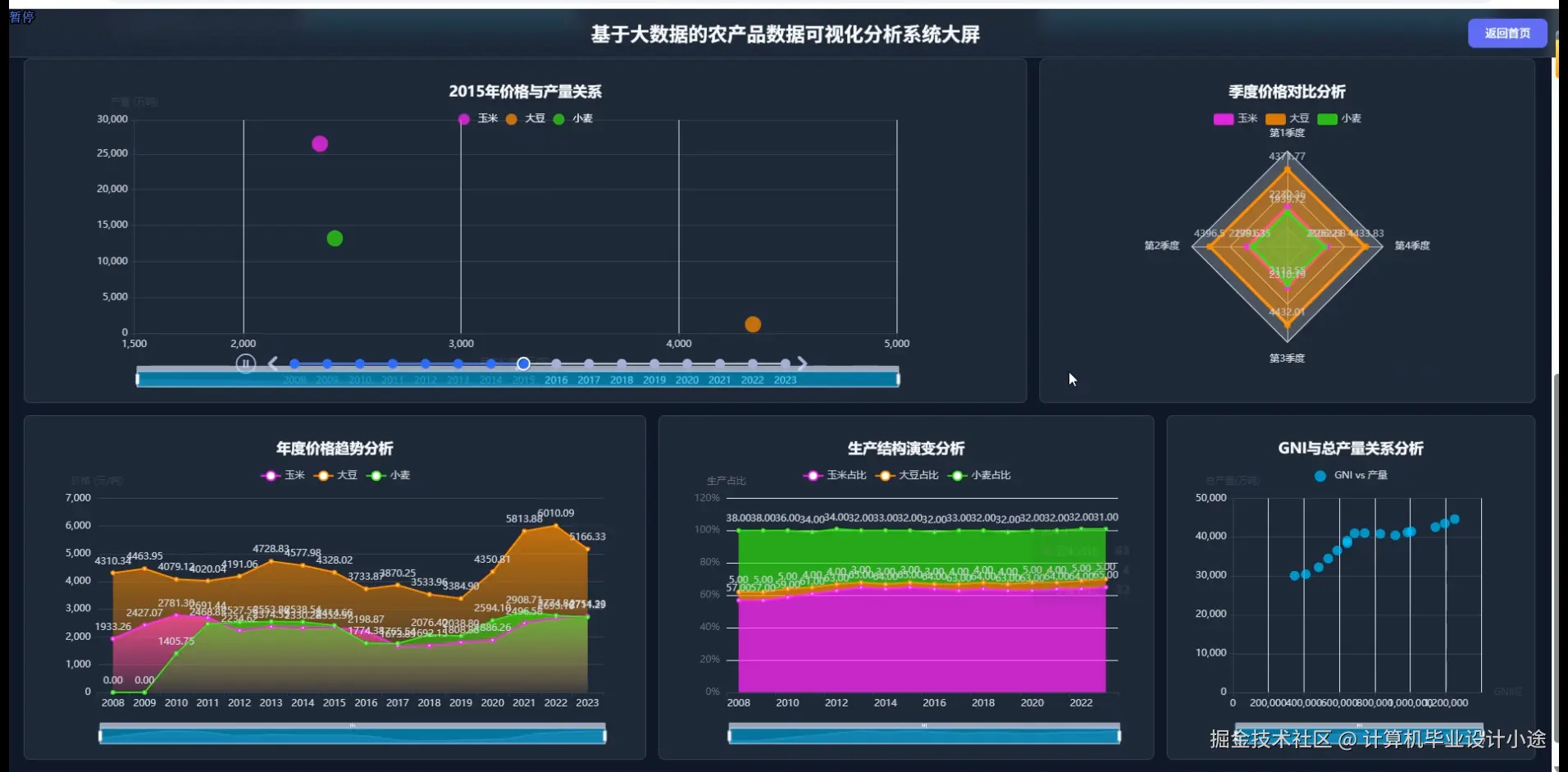

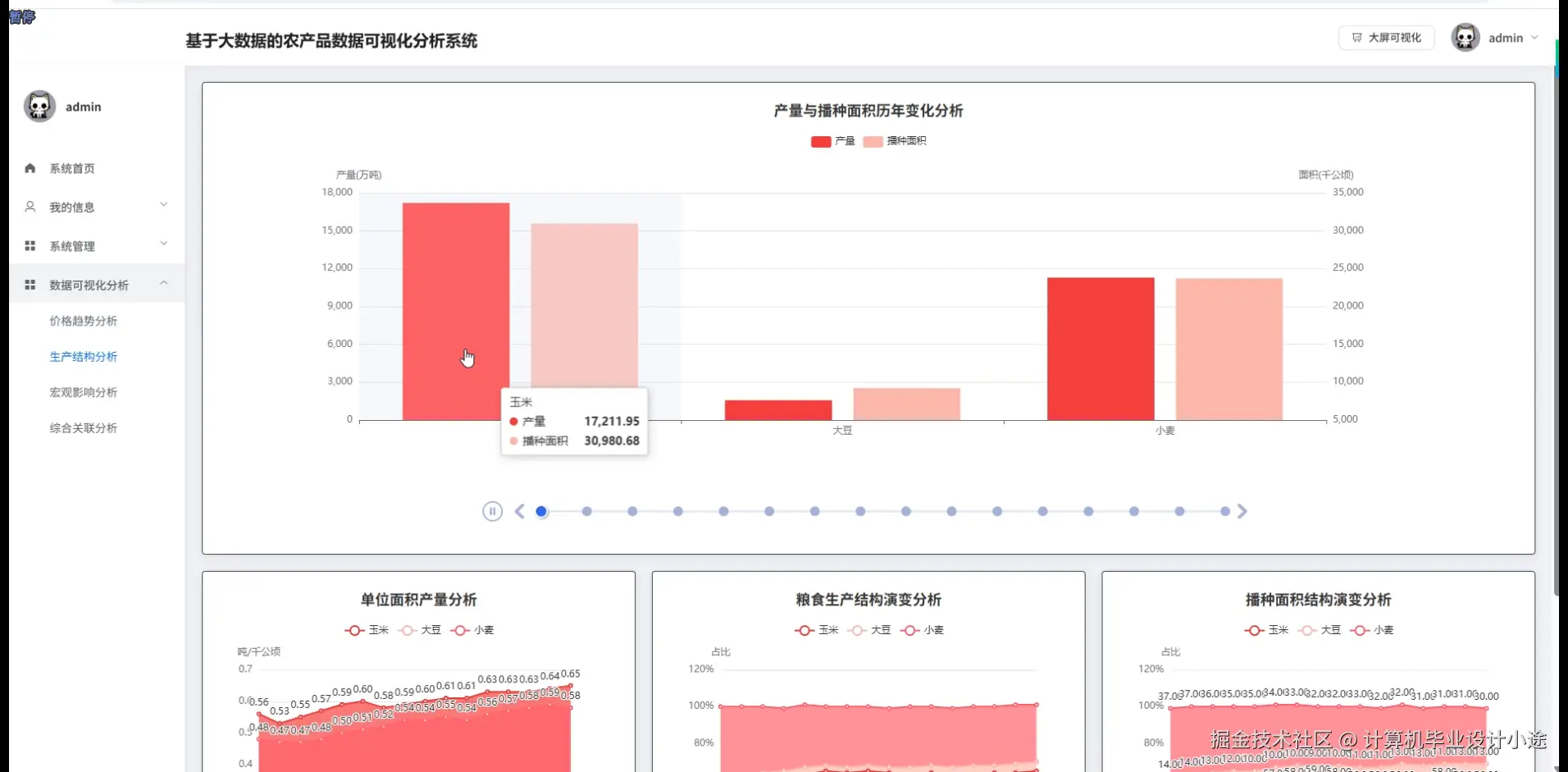

基于大数据的农产品数据可视化分析系统演示图片
基于大数据的农产品数据可视化分析系统代码展示
spark = SparkSession.builder.appName("AgriculturalDataAnalysis").config("spark.sql.adaptive.enabled", "true").getOrCreate()
def analyze_price_trend(product_name, start_date, end_date):
price_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agricultural_db").option("dbtable", "product_prices").option("user", "root").option("password", "password").load()
filtered_df = price_df.filter((price_df.product_name == product_name) & (price_df.date >= start_date) & (price_df.date <= end_date))
daily_avg = filtered_df.groupBy("date").agg({"price": "avg", "volume": "sum"}).withColumnRenamed("avg(price)", "avg_price").withColumnRenamed("sum(volume)", "total_volume")
trend_data = daily_avg.withColumn("price_change", daily_avg.avg_price - lag("avg_price").over(Window.orderBy("date"))).withColumn("change_rate", (daily_avg.avg_price - lag("avg_price").over(Window.orderBy("date"))) / lag("avg_price").over(Window.orderBy("date")) * 100)
monthly_trend = daily_avg.withColumn("month", date_format("date", "yyyy-MM")).groupBy("month").agg({"avg_price": "avg", "total_volume": "avg"}).withColumnRenamed("avg(avg_price)", "monthly_avg_price").withColumnRenamed("avg(total_volume)", "monthly_avg_volume")
seasonal_analysis = filtered_df.withColumn("season", when((month("date") >= 3) & (month("date") <= 5), "春季").when((month("date") >= 6) & (month("date") <= 8), "夏季").when((month("date") >= 9) & (month("date") <= 11), "秋季").otherwise("冬季"))
seasonal_stats = seasonal_analysis.groupBy("season").agg({"price": "avg", "price": "max", "price": "min"}).withColumnRenamed("avg(price)", "season_avg").withColumnRenamed("max(price)", "season_max").withColumnRenamed("min(price)", "season_min")
volatility_calc = trend_data.select(stddev("avg_price").alias("price_volatility"), variance("avg_price").alias("price_variance"))
trend_direction = trend_data.select(corr("date", "avg_price").alias("trend_correlation"))
result_data = {"daily_trend": trend_data.collect(), "monthly_trend": monthly_trend.collect(), "seasonal_stats": seasonal_stats.collect(), "volatility": volatility_calc.collect()[0], "trend_direction": trend_direction.collect()[0]}
support_resistance = trend_data.agg({"avg_price": "max", "avg_price": "min"}).collect()[0]
result_data["support_level"] = support_resistance["min(avg_price)"]
result_data["resistance_level"] = support_resistance["max(avg_price)"]
moving_avg_7 = trend_data.withColumn("ma_7", avg("avg_price").over(Window.orderBy("date").rowsBetween(-6, 0)))
moving_avg_30 = moving_avg_7.withColumn("ma_30", avg("avg_price").over(Window.orderBy("date").rowsBetween(-29, 0)))
result_data["moving_averages"] = moving_avg_30.select("date", "avg_price", "ma_7", "ma_30").collect()
return result_data
def analyze_production_structure(region, year):
production_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agricultural_db").option("dbtable", "production_data").option("user", "root").option("password", "password").load()
region_data = production_df.filter((production_df.region == region) & (production_df.year == year))
total_production = region_data.agg({"output": "sum"}).collect()[0]["sum(output)"]
crop_distribution = region_data.groupBy("crop_type").agg({"output": "sum", "area": "sum"}).withColumnRenamed("sum(output)", "total_output").withColumnRenamed("sum(area)", "total_area")
crop_percentage = crop_distribution.withColumn("output_percentage", (crop_distribution.total_output / total_production) * 100).withColumn("yield_per_area", crop_distribution.total_output / crop_distribution.total_area)
top_crops = crop_percentage.orderBy(desc("output_percentage")).limit(10)
productivity_analysis = crop_percentage.select("crop_type", "yield_per_area").orderBy(desc("yield_per_area"))
area_efficiency = region_data.groupBy("crop_type").agg({"area": "avg", "output": "avg"}).withColumnRenamed("avg(area)", "avg_area").withColumnRenamed("avg(output)", "avg_output")
efficiency_ratio = area_efficiency.withColumn("efficiency_score", area_efficiency.avg_output / area_efficiency.avg_area)
seasonal_production = region_data.groupBy("crop_type", "season").agg({"output": "sum"}).withColumnRenamed("sum(output)", "seasonal_output")
production_stability = region_data.groupBy("crop_type").agg(stddev("output").alias("output_std"), avg("output").alias("output_avg")).withColumn("stability_index", col("output_avg") / col("output_std"))
growth_trend = production_df.filter(production_df.region == region).groupBy("crop_type", "year").agg({"output": "sum"}).withColumnRenamed("sum(output)", "yearly_output")
year_over_year = growth_trend.withColumn("growth_rate", (col("yearly_output") - lag("yearly_output").over(Window.partitionBy("crop_type").orderBy("year"))) / lag("yearly_output").over(Window.partitionBy("crop_type").orderBy("year")) * 100)
diversity_index = crop_distribution.select(sum((col("total_output") / total_production) * log2(col("total_output") / total_production))).collect()[0][0]
production_summary = {"crop_distribution": crop_percentage.collect(), "top_crops": top_crops.collect(), "productivity_ranking": productivity_analysis.collect(), "efficiency_analysis": efficiency_ratio.collect(), "seasonal_patterns": seasonal_production.collect(), "stability_metrics": production_stability.collect(), "growth_trends": year_over_year.collect(), "diversity_index": abs(diversity_index) if diversity_index else 0}
return production_summary
def analyze_comprehensive_correlation(start_date, end_date):
price_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agricultural_db").option("dbtable", "product_prices").option("user", "root").option("password", "password").load()
weather_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agricultural_db").option("dbtable", "weather_data").option("user", "root").option("password", "password").load()
production_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agricultural_db").option("dbtable", "production_data").option("user", "root").option("password", "password").load()
date_filtered_price = price_df.filter((price_df.date >= start_date) & (price_df.date <= end_date))
date_filtered_weather = weather_df.filter((weather_df.date >= start_date) & (weather_df.date <= end_date))
price_weather_joined = date_filtered_price.join(date_filtered_weather, ["date", "region"], "inner")
price_temp_corr = price_weather_joined.select(corr("price", "temperature").alias("price_temp_correlation"))
price_rainfall_corr = price_weather_joined.select(corr("price", "rainfall").alias("price_rainfall_correlation"))
price_humidity_corr = price_weather_joined.select(corr("price", "humidity").alias("price_humidity_correlation"))
monthly_price_avg = date_filtered_price.withColumn("month", date_format("date", "yyyy-MM")).groupBy("product_name", "month").agg({"price": "avg"}).withColumnRenamed("avg(price)", "monthly_avg_price")
monthly_production = production_df.withColumn("month", date_format("date", "yyyy-MM")).groupBy("crop_type", "month").agg({"output": "sum"}).withColumnRenamed("sum(output)", "monthly_production").withColumnRenamed("crop_type", "product_name")
price_production_joined = monthly_price_avg.join(monthly_production, ["product_name", "month"], "inner")
supply_demand_corr = price_production_joined.select(corr("monthly_avg_price", "monthly_production").alias("price_production_correlation"))
cross_product_analysis = date_filtered_price.groupBy("date").pivot("product_name").agg({"price": "avg"})
product_columns = [col for col in cross_product_analysis.columns if col != "date"]
correlation_matrix = {}
for i in range(len(product_columns)):
for j in range(i+1, len(product_columns)):
corr_val = cross_product_analysis.select(corr(product_columns[i], product_columns[j]).alias("correlation")).collect()[0]["correlation"]
correlation_matrix[f"{product_columns[i]}_{product_columns[j]}"] = corr_val if corr_val else 0
regional_price_diff = date_filtered_price.groupBy("product_name", "region").agg({"price": "avg"}).withColumnRenamed("avg(price)", "regional_avg_price")
price_spread_analysis = regional_price_diff.groupBy("product_name").agg({"regional_avg_price": "max", "regional_avg_price": "min"}).withColumn("price_spread", col("max(regional_avg_price)") - col("min(regional_avg_price)"))
seasonal_correlation = price_weather_joined.withColumn("season", when((month("date") >= 3) & (month("date") <= 5), "春季").when((month("date") >= 6) & (month("date") <= 8), "夏季").when((month("date") >= 9) & (month("date") <= 11), "秋季").otherwise("冬季"))
seasonal_price_weather = seasonal_correlation.groupBy("season").agg(corr("price", "temperature").alias("seasonal_temp_corr"), corr("price", "rainfall").alias("seasonal_rain_corr"))
comprehensive_results = {"weather_correlations": {"temperature": price_temp_corr.collect()[0]["price_temp_correlation"], "rainfall": price_rainfall_corr.collect()[0]["price_rainfall_correlation"], "humidity": price_humidity_corr.collect()[0]["price_humidity_correlation"]}, "supply_demand_correlation": supply_demand_corr.collect()[0]["price_production_correlation"], "cross_product_correlations": correlation_matrix, "regional_price_analysis": price_spread_analysis.collect(), "seasonal_correlations": seasonal_price_weather.collect()}
return comprehensive_results

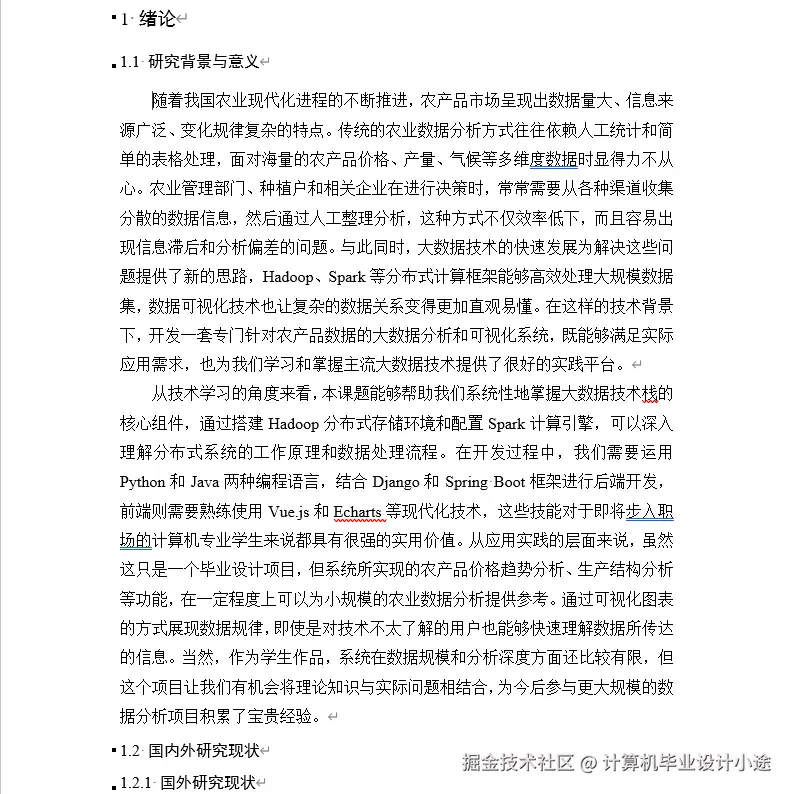

基于大数据的农产品数据可视化分析系统文档展示
