基于大数据的电商物流数据分析与可视化系统-系统介绍

基于大数据的电商物流数据分析与可视化系统是一个专门针对电商物流业务场景开发的数据分析平台。系统采用Hadoop+Spark大数据技术架构，通过HDFS分布式文件系统存储海量的电商交易数据、物流配送数据和用户评价数据，利用Spark SQL和Spark Core进行高效的数据处理与分析计算。后端基于Django框架构建，提供完整的RESTful API接口服务，前端采用Vue+ElementUI+Echarts技术栈实现数据可视化展示。系统核心功能涵盖物流配送时效分析、客户评价满意度分析、成本折扣影响分析、产品特征影响分析、多维指标综合分析等模块，通过可视化大屏实时展示各项业务指标。系统运用Pandas和NumPy进行数据预处理，结合Spark的分布式计算能力处理大规模物流数据，为电商企业提供配送效率优化建议、客户满意度提升方案和成本控制策略，帮助管理者通过数据驱动的方式优化物流运营决策，提升整体服务质量和运营效率。

基于大数据的电商物流数据分析与可视化系统-选题背景

电商行业的迅速发展带动了物流业务的快速增长，物流配送已成为影响用户购物体验的关键因素。电商平台每天产生大量的订单数据、配送数据、用户反馈数据，这些数据分散存储在不同的业务系统中，缺乏统一的数据整合和深度分析。传统的物流数据分析主要依靠简单的统计报表，分析维度单一且处理速度较慢，难以满足电商企业对实时数据分析和智能决策的需求。物流成本控制、配送时效优化、客户满意度提升等问题都需要通过大数据技术进行深度挖掘和分析才能找到有效的解决方案。现有的物流管理系统大多专注于流程管控，缺乏基于大数据的智能分析功能，无法为管理者提供科学的决策依据。同时，随着消费者对配送服务要求的不断提高，电商企业迫切需要一套能够整合多源数据、快速分析处理、直观展示结果的物流数据分析系统，来支撑业务运营的精细化管理和智能化决策。 本课题研究对于电商物流行业的数字化转型具有一定的实践参考价值。从技术应用角度来看，系统将Hadoop+Spark大数据技术与具体的物流业务场景相结合，探索了大数据技术在物流数据分析领域的实际应用方法，为类似的企业级数据分析项目提供了可借鉴的技术方案。从业务价值来说，系统能够帮助电商企业更好地理解物流运营现状，通过数据可视化的方式展示配送时效、成本分布、客户满意度等关键指标，为管理者的运营决策提供数据支撑。从用户体验角度来讲，通过对配送数据的深度分析，可以发现影响配送效率的关键因素，进而优化配送流程，提升用户的购物体验。从成本控制方面来看，系统的成本折扣影响分析功能可以帮助企业识别成本优化的机会点，为降本增效提供科学依据。对于计算机专业的学习来说，本项目结合了主流的大数据技术栈与实际的商业应用场景，有助于加深对大数据技术在企业级应用中的理解，体现了学以致用的教育理念。

基于大数据的电商物流数据分析与可视化系统-技术选型

大数据框架：Hadoop+Spark（本次没用Hive，支持定制）

开发语言：Python+Java（两个版本都支持）

后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持）

前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery

详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy

数据库：MySQL

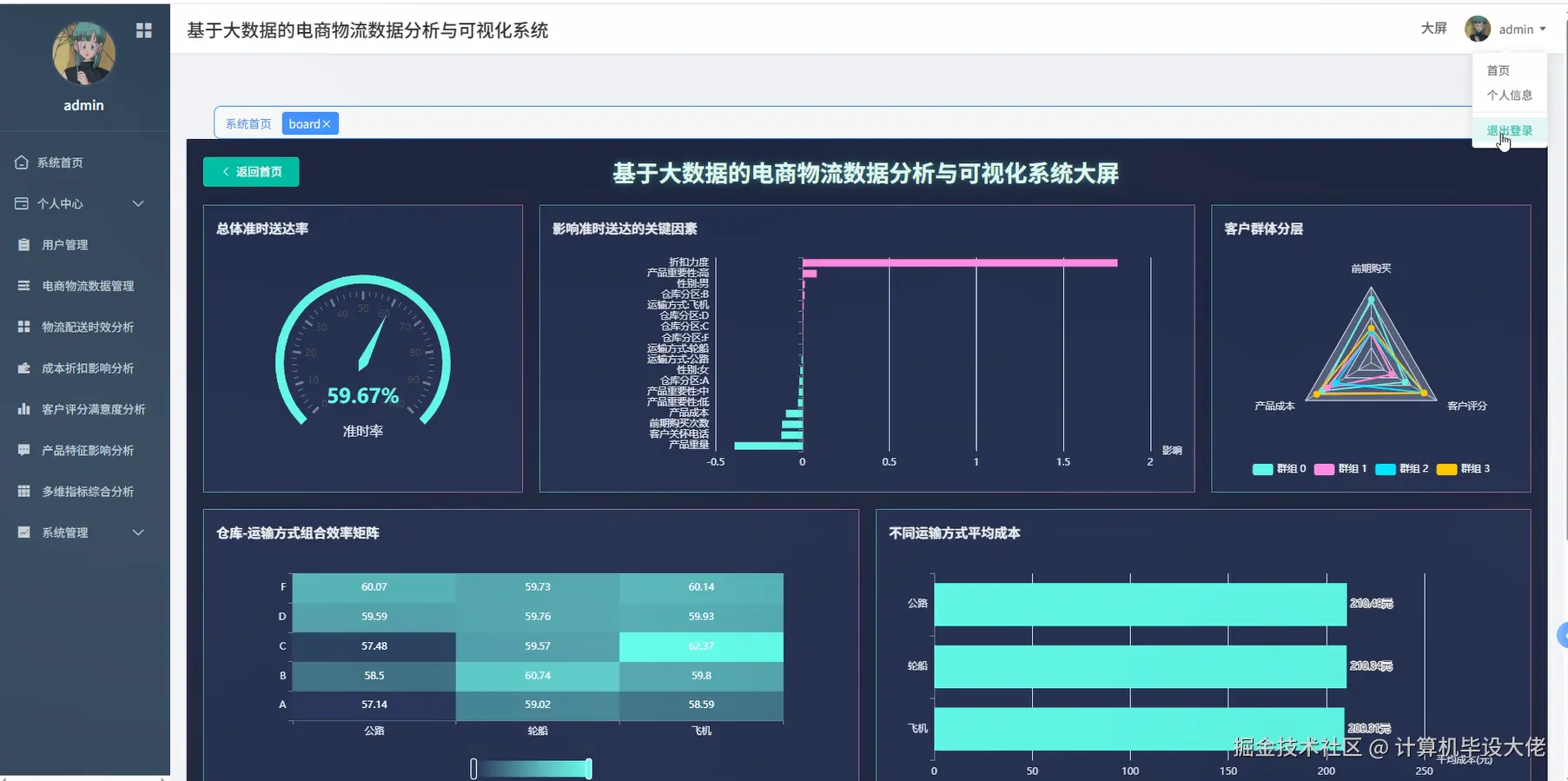

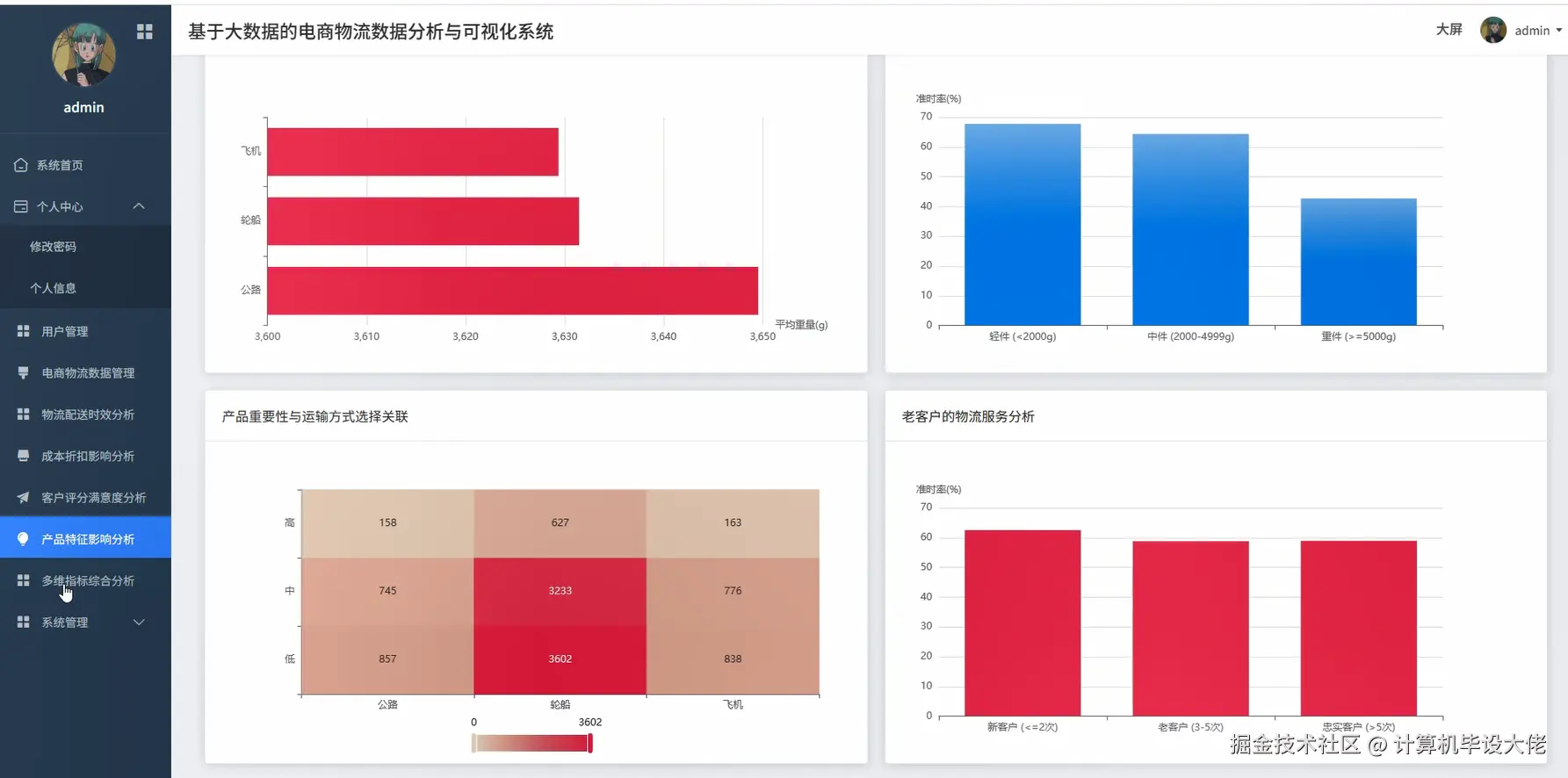

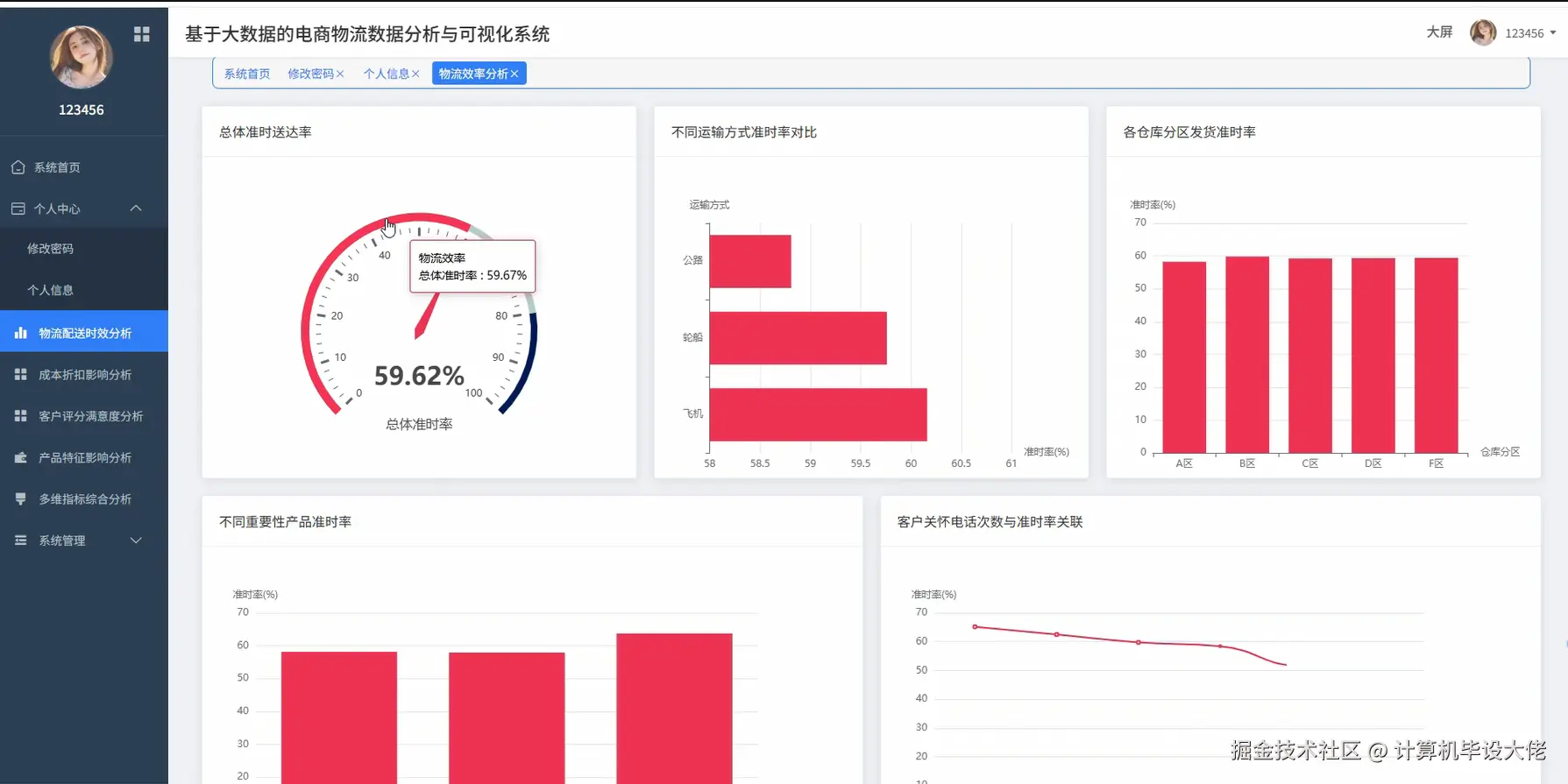

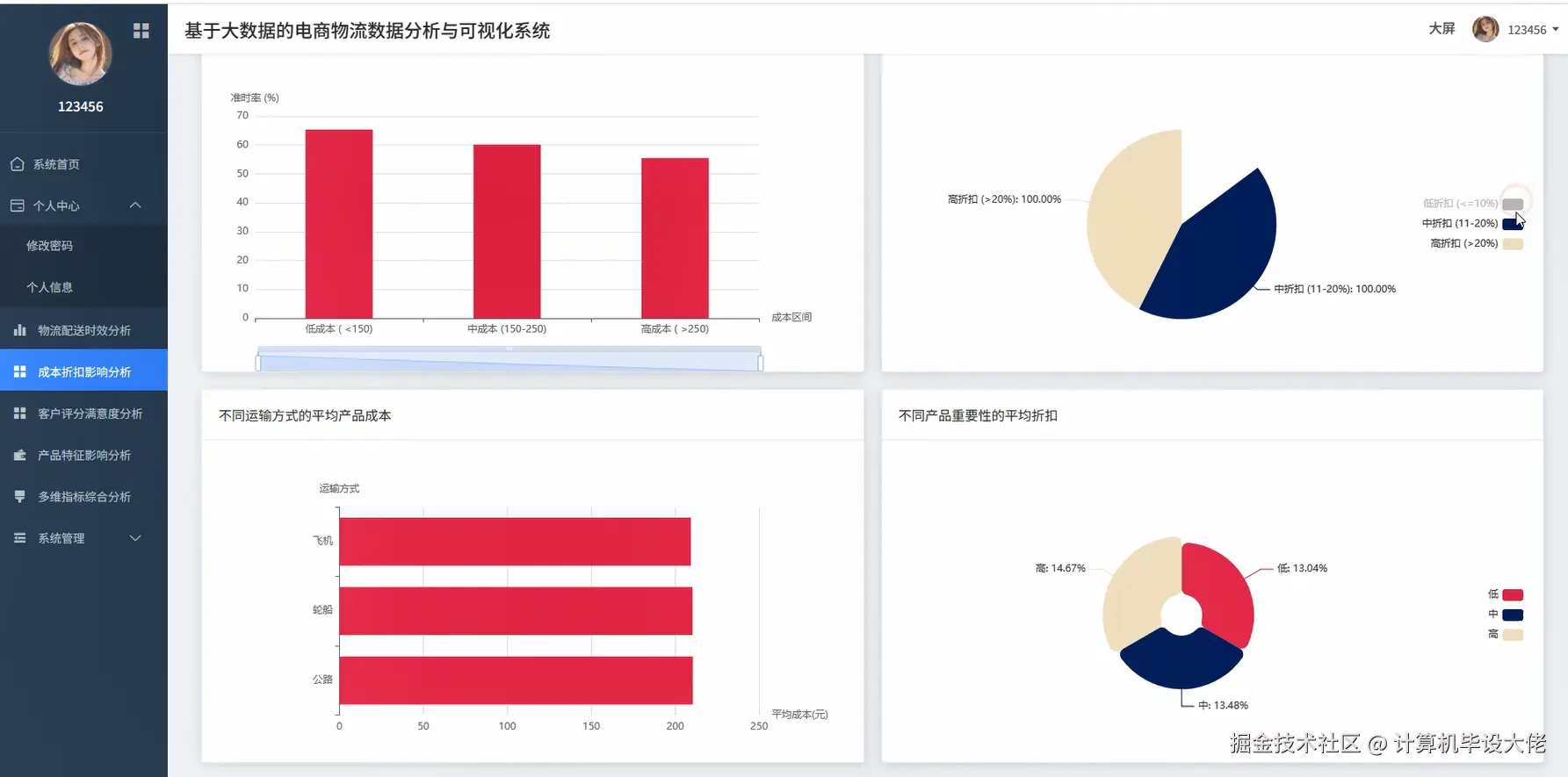

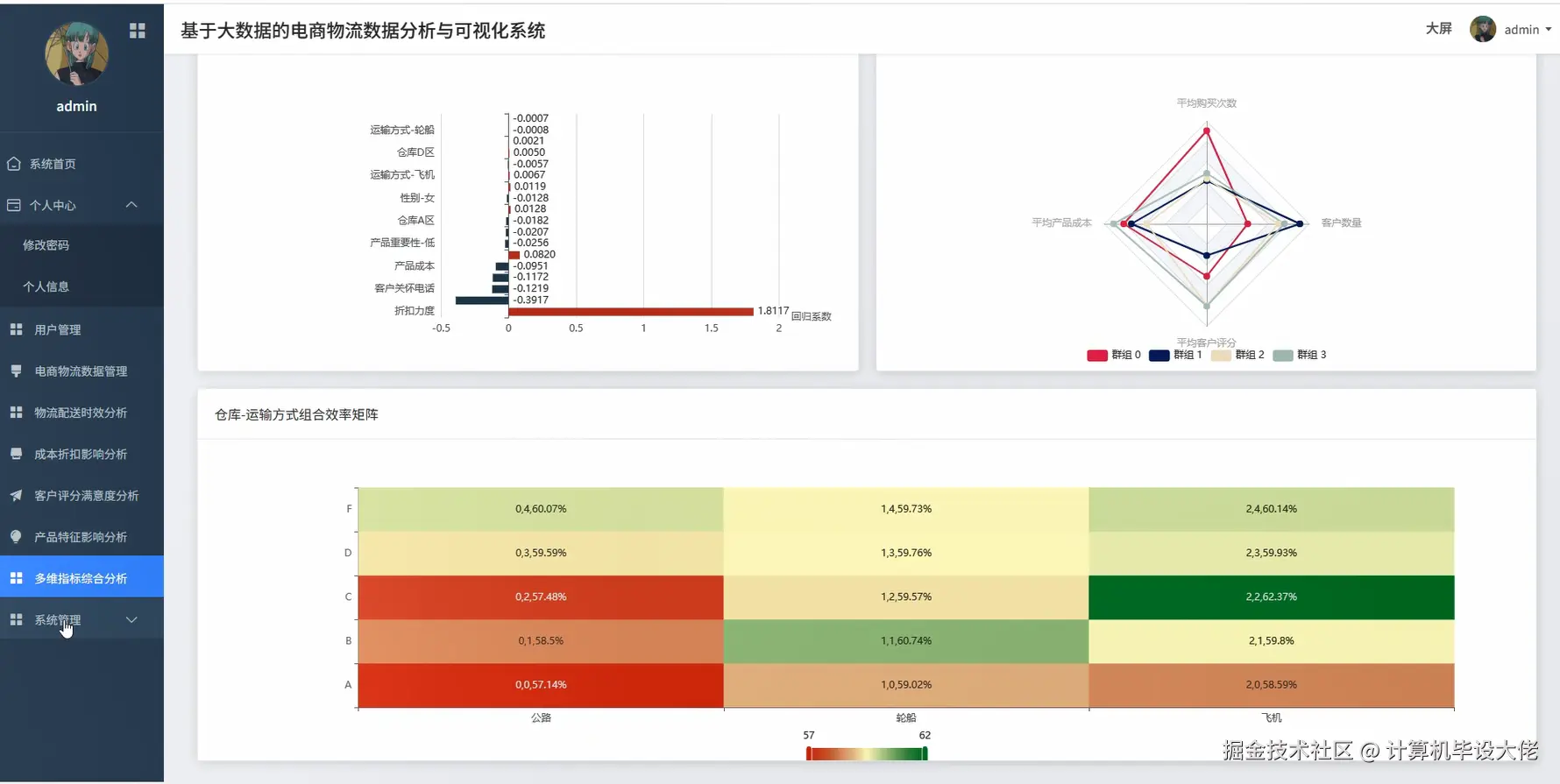

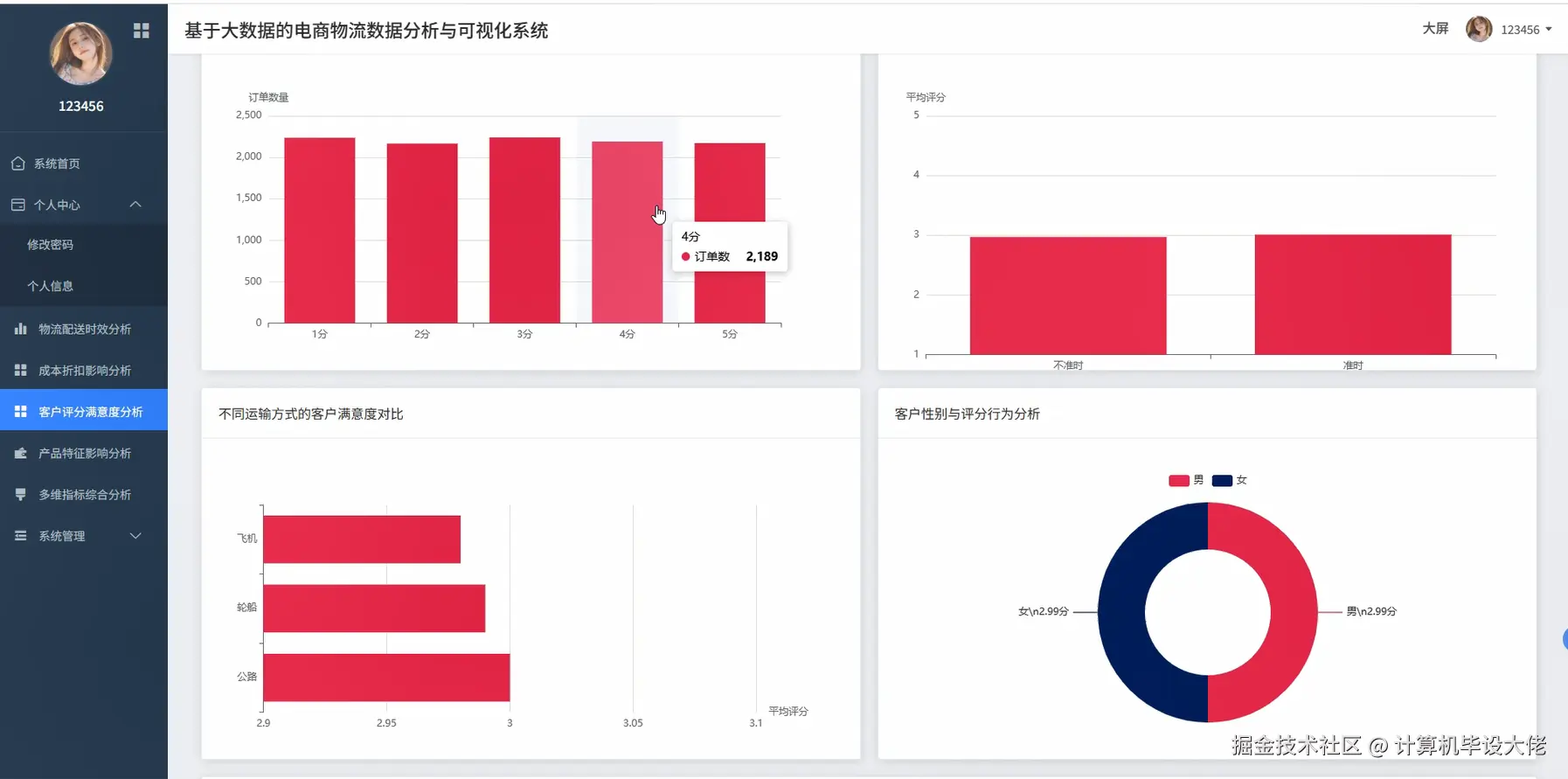

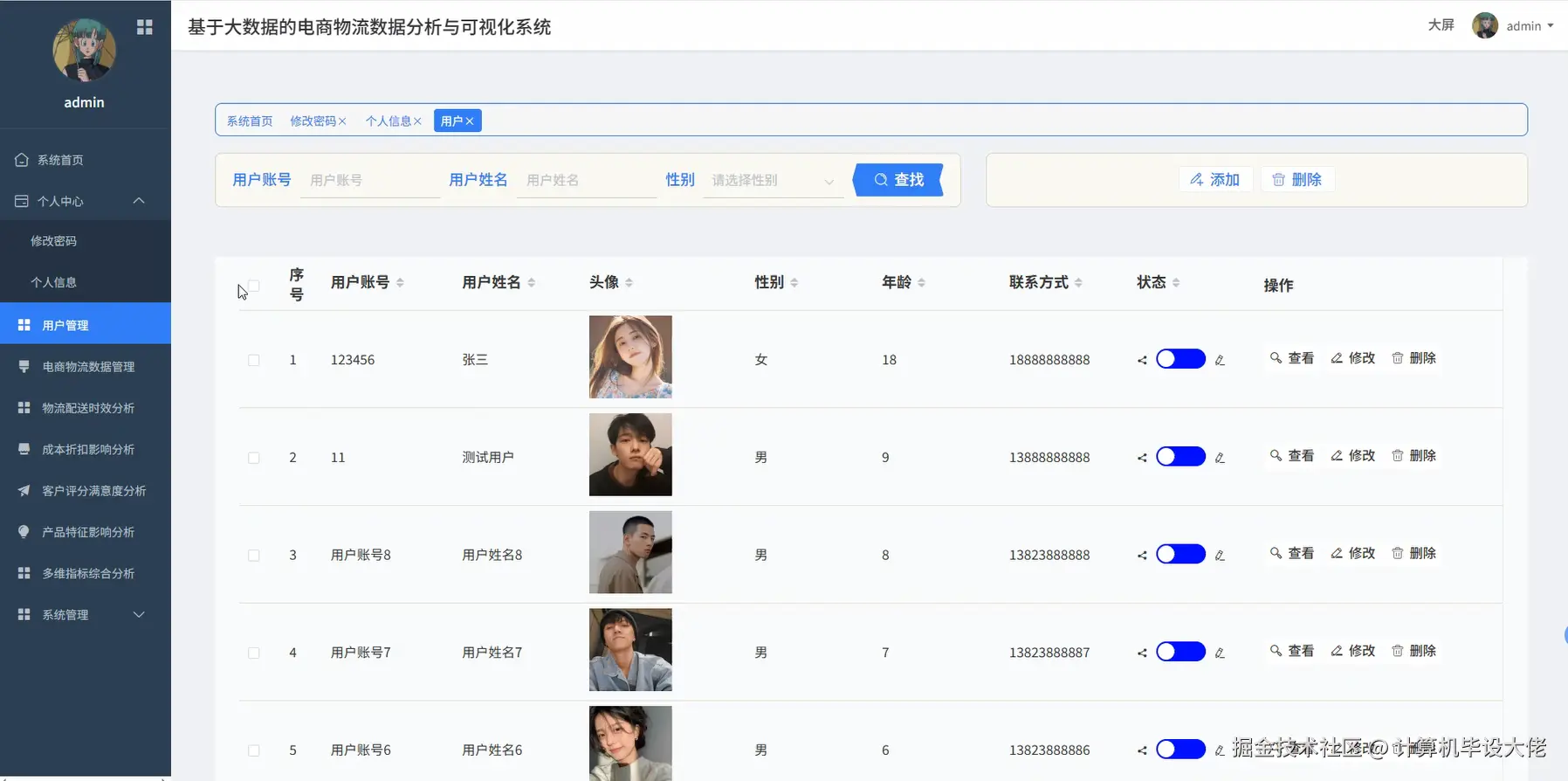

基于大数据的电商物流数据分析与可视化系统-图片展示

基于大数据的电商物流数据分析与可视化系统-视频展示

基于大数据的电商物流数据分析与可视化系统-视频展示

基于大数据的电商物流数据分析与可视化系统-代码展示

基于大数据的电商物流数据分析与可视化系统-代码
from pyspark.sql import SparkSession
from pyspark.sql.functions import *
from pyspark.sql.types import *
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json

spark = SparkSession.builder.appName("EcommerceLogisticsAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()

@csrf_exempt
def logistics_delivery_analysis(request):
    delivery_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "delivery_info").option("user", "root").option("password", "password").load()
    order_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "order_info").option("user", "root").option("password", "password").load()
    combined_data = delivery_data.join(order_data, "order_id")
    delivery_time_analysis = combined_data.withColumn("delivery_hours", (unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).withColumn("time_range", when(col("delivery_hours") <= 24, "24小时内").when((col("delivery_hours") > 24) & (col("delivery_hours") <= 48), "24-48小时").when((col("delivery_hours") > 48) & (col("delivery_hours") <= 72), "48-72小时").otherwise("72小时以上")).groupBy("time_range").agg(count("*").alias("order_count"), avg("delivery_hours").alias("avg_hours"))
    regional_efficiency = combined_data.groupBy("delivery_region").agg(avg((unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).alias("avg_delivery_hours"), count("*").alias("total_orders"), sum(when(col("delivery_status") == "成功", 1).otherwise(0)).alias("success_count")).withColumn("success_rate", col("success_count") / col("total_orders") * 100)
    carrier_performance = combined_data.groupBy("carrier_name").agg(avg((unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).alias("avg_delivery_time"), count("*").alias("total_deliveries"), sum(when(col("delivery_status") == "成功", 1).otherwise(0)).alias("success_deliveries")).withColumn("efficiency_score", col("success_deliveries") / col("total_deliveries") * 100 / col("avg_delivery_time")).orderBy(desc("efficiency_score"))
    time_trend = combined_data.withColumn("delivery_date", date_format(col("delivery_time"), "yyyy-MM-dd")).groupBy("delivery_date").agg(avg((unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).alias("daily_avg_hours"), count("*").alias("daily_orders")).orderBy("delivery_date")
    distance_impact = combined_data.withColumn("distance_range", when(col("delivery_distance") < 50, "近距离").when((col("delivery_distance") >= 50) & (col("delivery_distance") < 200), "中距离").when((col("delivery_distance") >= 200) & (col("delivery_distance") < 500), "远距离").otherwise("超远距离")).groupBy("distance_range").agg(avg((unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).alias("avg_hours"), count("*").alias("count"))
    peak_analysis = combined_data.withColumn("hour_of_day", hour(col("ship_time"))).withColumn("peak_period", when((col("hour_of_day") >= 9) & (col("hour_of_day") <= 11), "上午高峰").when((col("hour_of_day") >= 14) & (col("hour_of_day") <= 16), "下午高峰").when((col("hour_of_day") >= 19) & (col("hour_of_day") <= 21), "晚间高峰").otherwise("平峰")).groupBy("peak_period").agg(avg((unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).alias("avg_delivery_hours"), count("*").alias("order_volume"))
    result_data = {"delivery_time_analysis": delivery_time_analysis.toPandas().to_dict('records'), "regional_efficiency": regional_efficiency.toPandas().to_dict('records'), "carrier_performance": carrier_performance.toPandas().to_dict('records'), "time_trend": time_trend.toPandas().to_dict('records'), "distance_impact": distance_impact.toPandas().to_dict('records'), "peak_analysis": peak_analysis.toPandas().to_dict('records')}
    return JsonResponse(result_data, safe=False)

@csrf_exempt
def customer_satisfaction_analysis(request):
    review_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "customer_reviews").option("user", "root").option("password", "password").load()
    order_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "order_info").option("user", "root").option("password", "password").load()
    delivery_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "delivery_info").option("user", "root").option("password", "password").load()
    combined_reviews = review_data.join(order_data, "order_id").join(delivery_data, "order_id")
    satisfaction_distribution = combined_reviews.withColumn("satisfaction_level", when(col("rating") >= 4.5, "非常满意").when((col("rating") >= 4.0) & (col("rating") < 4.5), "满意").when((col("rating") >= 3.0) & (col("rating") < 4.0), "一般").when((col("rating") >= 2.0) & (col("rating") < 3.0), "不满意").otherwise("非常不满意")).groupBy("satisfaction_level").agg(count("*").alias("count"), avg("rating").alias("avg_rating"))
    delivery_satisfaction = combined_reviews.withColumn("delivery_hours", (unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).withColumn("delivery_speed", when(col("delivery_hours") <= 24, "很快").when((col("delivery_hours") > 24) & (col("delivery_hours") <= 48), "较快").when((col("delivery_hours") > 48) & (col("delivery_hours") <= 72), "一般").otherwise("较慢")).groupBy("delivery_speed").agg(avg("rating").alias("avg_satisfaction"), count("*").alias("review_count"))
    regional_satisfaction = combined_reviews.groupBy("delivery_region").agg(avg("rating").alias("avg_rating"), count("*").alias("total_reviews"), sum(when(col("rating") >= 4.0, 1).otherwise(0)).alias("positive_reviews")).withColumn("positive_rate", col("positive_reviews") / col("total_reviews") * 100).orderBy(desc("avg_rating"))
    carrier_satisfaction = combined_reviews.groupBy("carrier_name").agg(avg("rating").alias("avg_rating"), count("*").alias("total_reviews"), sum(when(col("rating") >= 4.0, 1).otherwise(0)).alias("satisfied_customers")).withColumn("satisfaction_rate", col("satisfied_customers") / col("total_reviews") * 100).orderBy(desc("satisfaction_rate"))
    monthly_trend = combined_reviews.withColumn("review_month", date_format(col("review_date"), "yyyy-MM")).groupBy("review_month").agg(avg("rating").alias("monthly_avg_rating"), count("*").alias("monthly_reviews"), sum(when(col("rating") >= 4.0, 1).otherwise(0)).alias("positive_count")).withColumn("monthly_positive_rate", col("positive_count") / col("monthly_reviews") * 100).orderBy("review_month")
    issue_analysis = combined_reviews.filter(col("rating") < 3.0).withColumn("complaint_type", when(col("review_text").contains("延迟"), "配送延迟").when(col("review_text").contains("损坏"), "商品损坏").when(col("review_text").contains("态度"), "服务态度").when(col("review_text").contains("联系"), "沟通问题").otherwise("其他问题")).groupBy("complaint_type").agg(count("*").alias("complaint_count"), avg("rating").alias("avg_complaint_rating"))
    correlation_analysis = combined_reviews.withColumn("delivery_hours", (unix_timestamp("delivery_time") - unix_timestamp("ship_time")) / 3600).select(corr("delivery_hours", "rating").alias("time_rating_correlation"), corr("order_amount", "rating").alias("amount_rating_correlation"))
    result_data = {"satisfaction_distribution": satisfaction_distribution.toPandas().to_dict('records'), "delivery_satisfaction": delivery_satisfaction.toPandas().to_dict('records'), "regional_satisfaction": regional_satisfaction.toPandas().to_dict('records'), "carrier_satisfaction": carrier_satisfaction.toPandas().to_dict('records'), "monthly_trend": monthly_trend.toPandas().to_dict('records'), "issue_analysis": issue_analysis.toPandas().to_dict('records'), "correlation_analysis": correlation_analysis.toPandas().to_dict('records')}
    return JsonResponse(result_data, safe=False)

@csrf_exempt
def cost_discount_analysis(request):
    cost_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "logistics_cost").option("user", "root").option("password", "password").load()
    order_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "order_info").option("user", "root").option("password", "password").load()
    promotion_data = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/logistics_db").option("dbtable", "promotion_info").option("user", "root").option("password", "password").load()
    combined_data = cost_data.join(order_data, "order_id").join(promotion_data, "promotion_id", "left")
    discount_impact = combined_data.withColumn("discount_range", when(col("discount_rate") == 0, "无折扣").when((col("discount_rate") > 0) & (col("discount_rate") <= 0.1), "小幅折扣").when((col("discount_rate") > 0.1) & (col("discount_rate") <= 0.3), "中等折扣").otherwise("大幅折扣")).groupBy("discount_range").agg(avg("logistics_cost").alias("avg_cost"), avg("order_amount").alias("avg_order_value"), count("*").alias("order_count"))
    cost_efficiency = combined_data.withColumn("cost_ratio", col("logistics_cost") / col("order_amount")).withColumn("efficiency_level", when(col("cost_ratio") < 0.05, "高效").when((col("cost_ratio") >= 0.05) & (col("cost_ratio") < 0.1), "正常").when((col("cost_ratio") >= 0.1) & (col("cost_ratio") < 0.15), "一般").otherwise("低效")).groupBy("efficiency_level").agg(count("*").alias("count"), avg("cost_ratio").alias("avg_cost_ratio"), avg("discount_rate").alias("avg_discount"))
    regional_cost = combined_data.groupBy("delivery_region").agg(avg("logistics_cost").alias("avg_region_cost"), avg("discount_rate").alias("avg_region_discount"), count("*").alias("region_orders")).withColumn("cost_per_order", col("avg_region_cost")).orderBy(desc("cost_per_order"))
    volume_discount = combined_data.withColumn("order_volume", when(col("order_amount") < 100, "小额订单").when((col("order_amount") >= 100) & (col("order_amount") < 500), "中额订单").when((col("order_amount") >= 500) & (col("order_amount") < 1000), "大额订单").otherwise("超大额订单")).groupBy("order_volume").agg(avg("discount_rate").alias("avg_discount"), avg("logistics_cost").alias("avg_cost"), count("*").alias("count"))
    seasonal_analysis = combined_data.withColumn("order_month", date_format(col("order_date"), "MM")).withColumn("season", when(col("order_month").isin("12", "01", "02"), "冬季").when(col("order_month").isin("03", "04", "05"), "春季").when(col("order_month").isin("06", "07", "08"), "夏季").otherwise("秋季")).groupBy("season").agg(avg("logistics_cost").alias("seasonal_avg_cost"), avg("discount_rate").alias("seasonal_avg_discount"), count("*").alias("seasonal_orders"))
    promotion_effectiveness = combined_data.filter(col("promotion_id").isNotNull()).groupBy("promotion_type").agg(avg("discount_rate").alias("avg_promotion_discount"), avg("logistics_cost").alias("avg_promotion_cost"), avg("order_amount").alias("avg_promotion_value"), count("*").alias("promotion_usage"))
    cost_optimization = combined_data.withColumn("cost_saving", col("order_amount") * col("discount_rate") - col("logistics_cost")).withColumn("optimization_potential", when(col("cost_saving") > 0, "可优化").otherwise("已优化")).groupBy("optimization_potential").agg(count("*").alias("count"), avg("cost_saving").alias("avg_saving"))
    result_data = {"discount_impact": discount_impact.toPandas().to_dict('records'), "cost_efficiency": cost_efficiency.toPandas().to_dict('records'), "regional_cost": regional_cost.toPandas().to_dict('records'), "volume_discount": volume_discount.toPandas().to_dict('records'), "seasonal_analysis": seasonal_analysis.toPandas().to_dict('records'), "promotion_effectiveness": promotion_effectiveness.toPandas().to_dict('records'), "cost_optimization": cost_optimization.toPandas().to_dict('records')}
    return JsonResponse(result_data, safe=False)

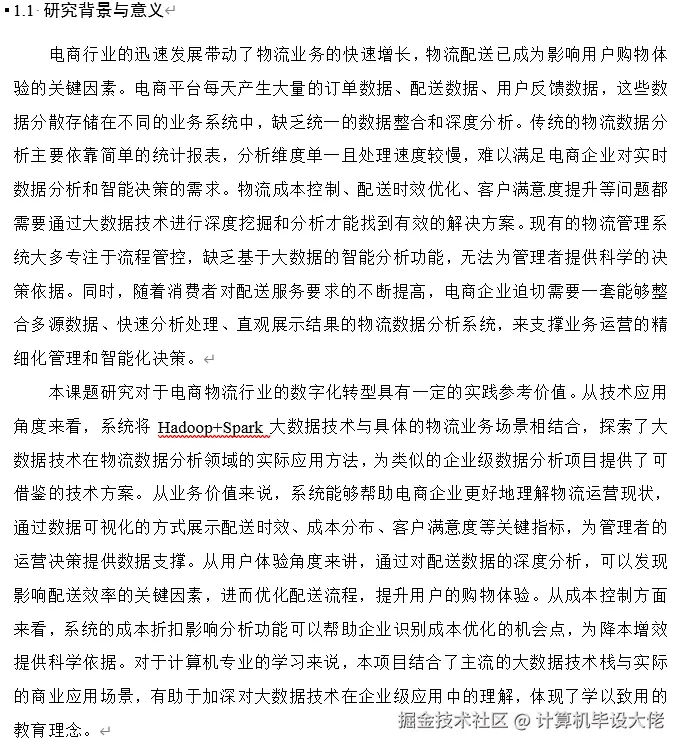

基于大数据的电商物流数据分析与可视化系统-文档展示

获取源码-结语

今天分享的这个电商物流大数据分析系统对于正在准备毕设的同学来说真的是个不错的选择。系统结合了当前热门的Hadoop+Spark技术栈，涵盖了物流配送时效、客户满意度、成本控制等多个实用的分析模块，既能体现大数据技术的应用价值，又贴近实际的商业场景。从技术角度来看，项目的技术栈比较完整，从数据存储到分析处理再到可视化展示都有涉及，答辩时导师问起来也有的聊。如果你也在为毕设选题烦恼，或者对这个项目感兴趣想了解更多细节，欢迎在评论区留言讨论。
