基于大数据的宜居城市数据可视化分析系统介绍
本系统是一套基于Hadoop和Spark大数据框架构建的宜居城市数据可视化分析平台，通过整合城市经济、环境、公共服务等多维度数据，为用户提供直观的数据展示和分析能力。系统采用分布式存储架构，利用HDFS存储海量城市数据，通过Spark引擎实现高效的数据清洗、转换和计算处理。前端采用Vue框架配合Echarts图表库，将复杂的数据分析结果以柱状图、折线图、雷达图等多种可视化形式呈现，让用户能够快速把握城市各项指标的变化趋势和分布特征。系统核心功能涵盖经济状况分析、环境质量分析、公共服务分析以及综合幸福度评估四大模块，每个模块都运用Spark SQL进行数据查询统计，结合Pandas和NumPy进行数据处理和科学计算。后端支持Django和Spring Boot两种实现方式，通过RESTful接口与前端交互，保证数据传输的高效性和安全性。整个系统从数据采集、存储、计算到可视化展示形成完整的技术闭环，为城市规划决策和居民生活质量评估提供了可靠的数据支撑工具。
基于大数据的宜居城市数据可视化分析系统演示视频

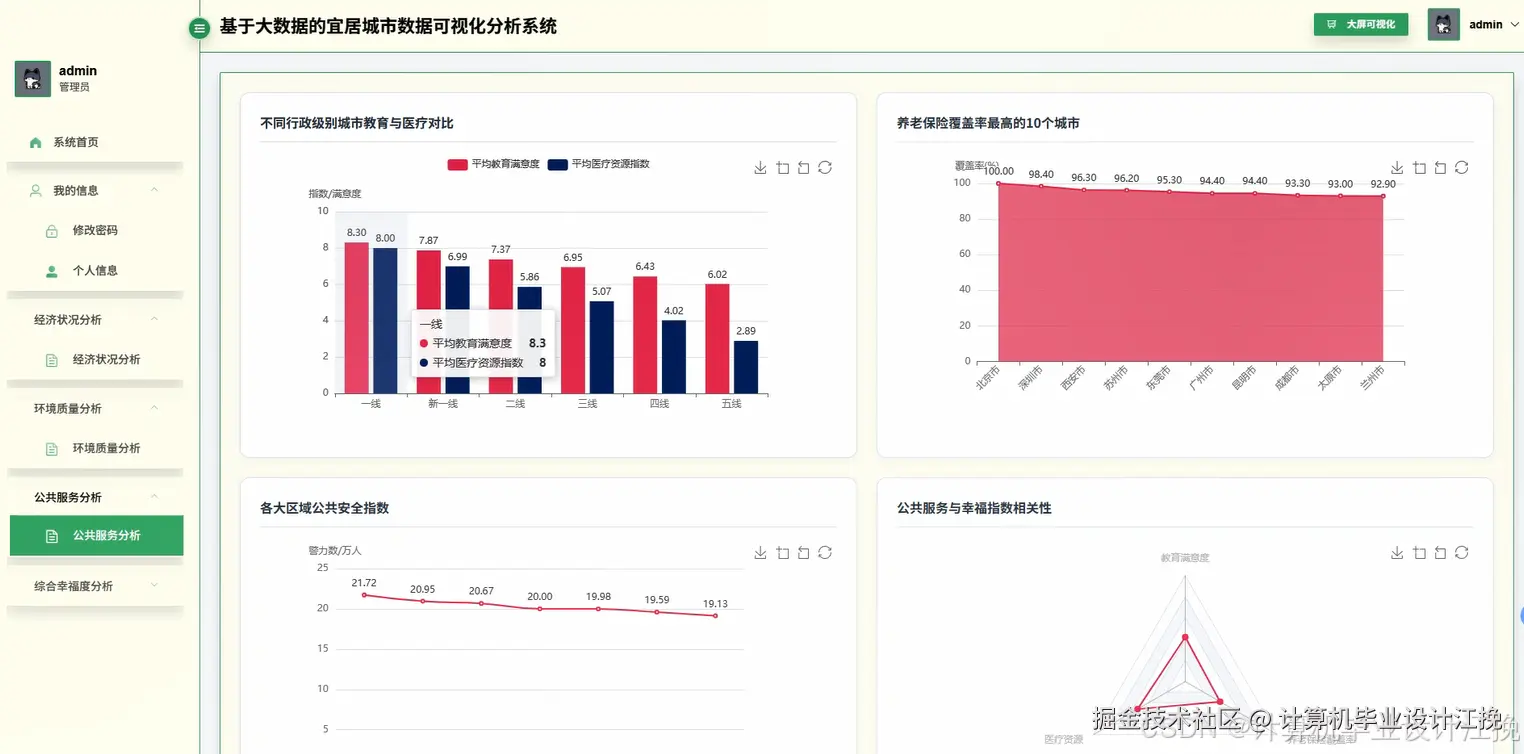

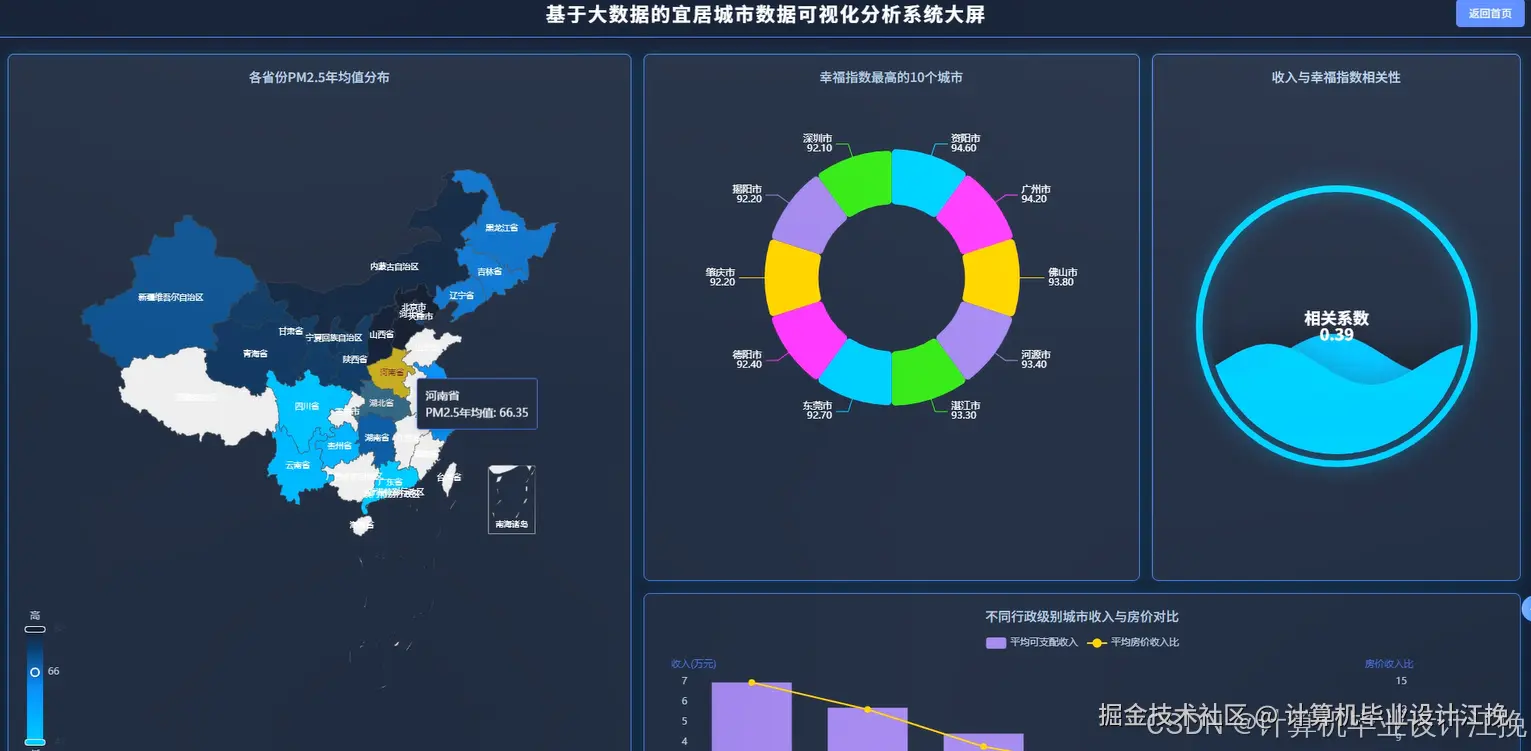

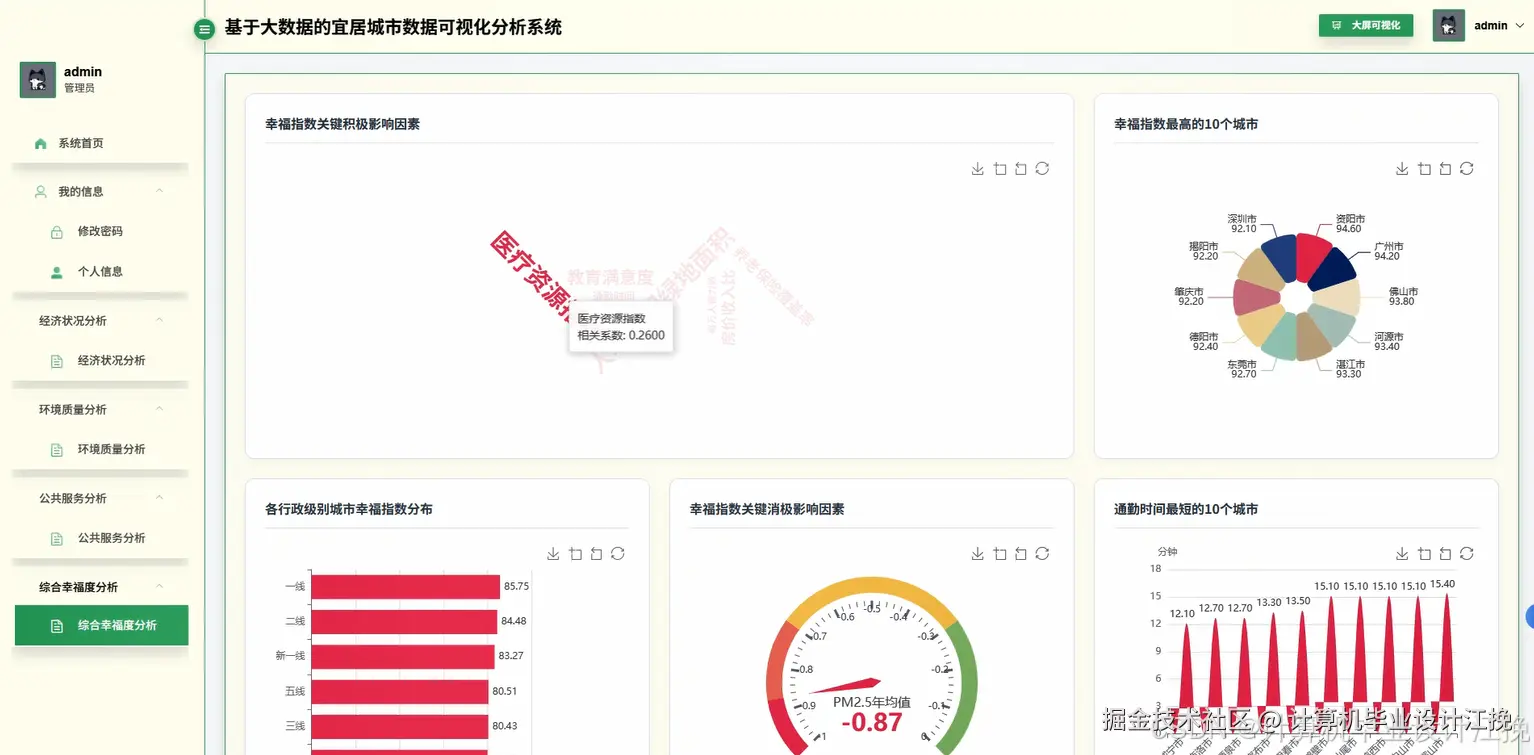

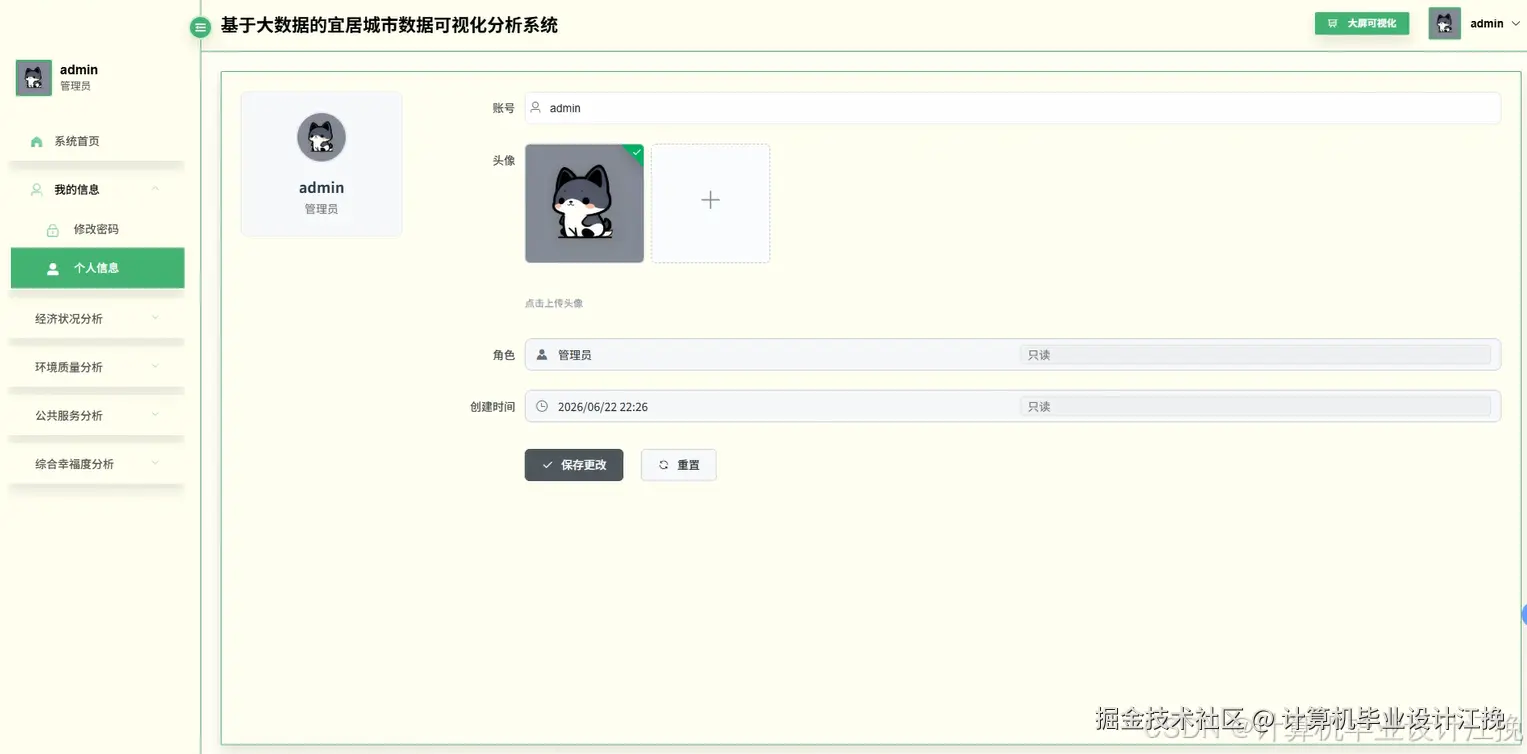

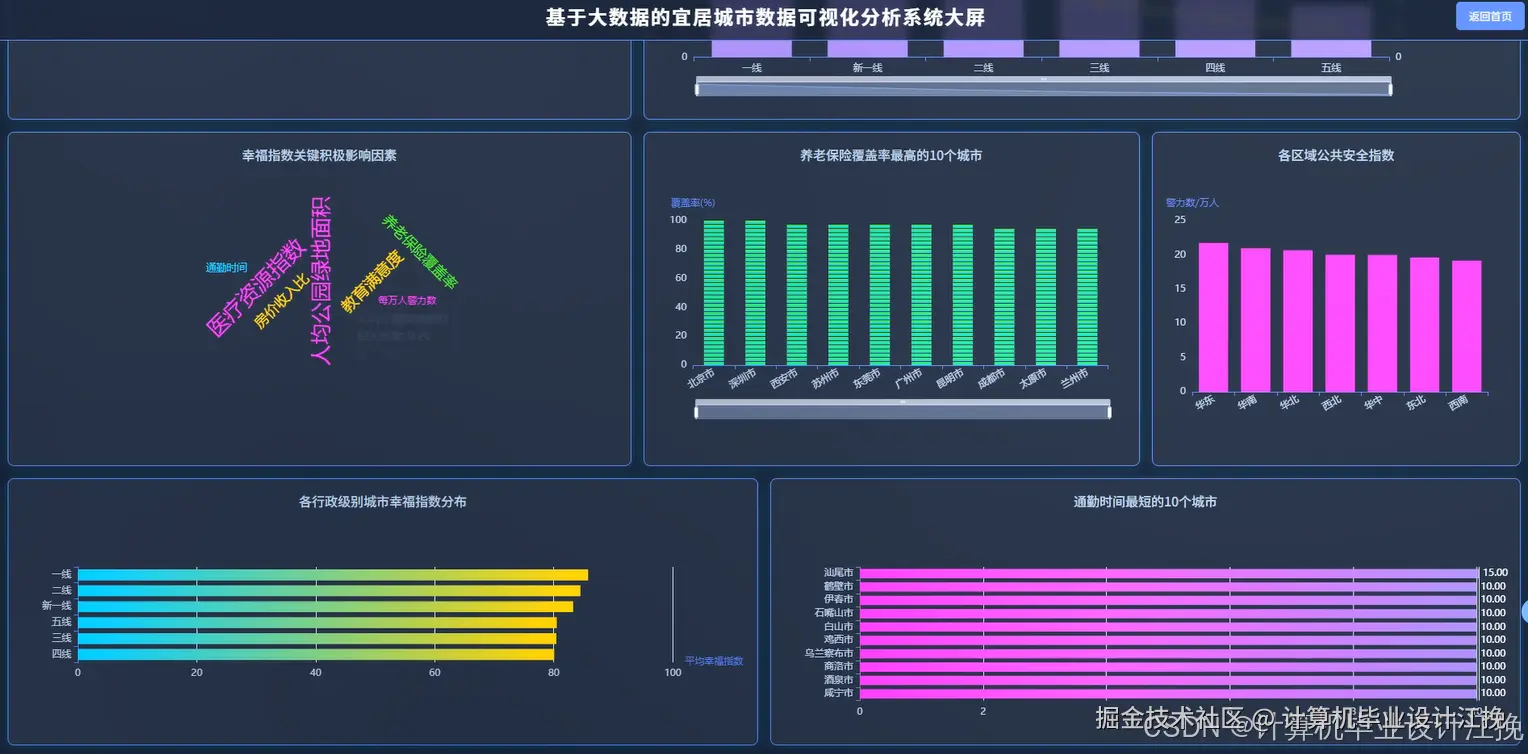

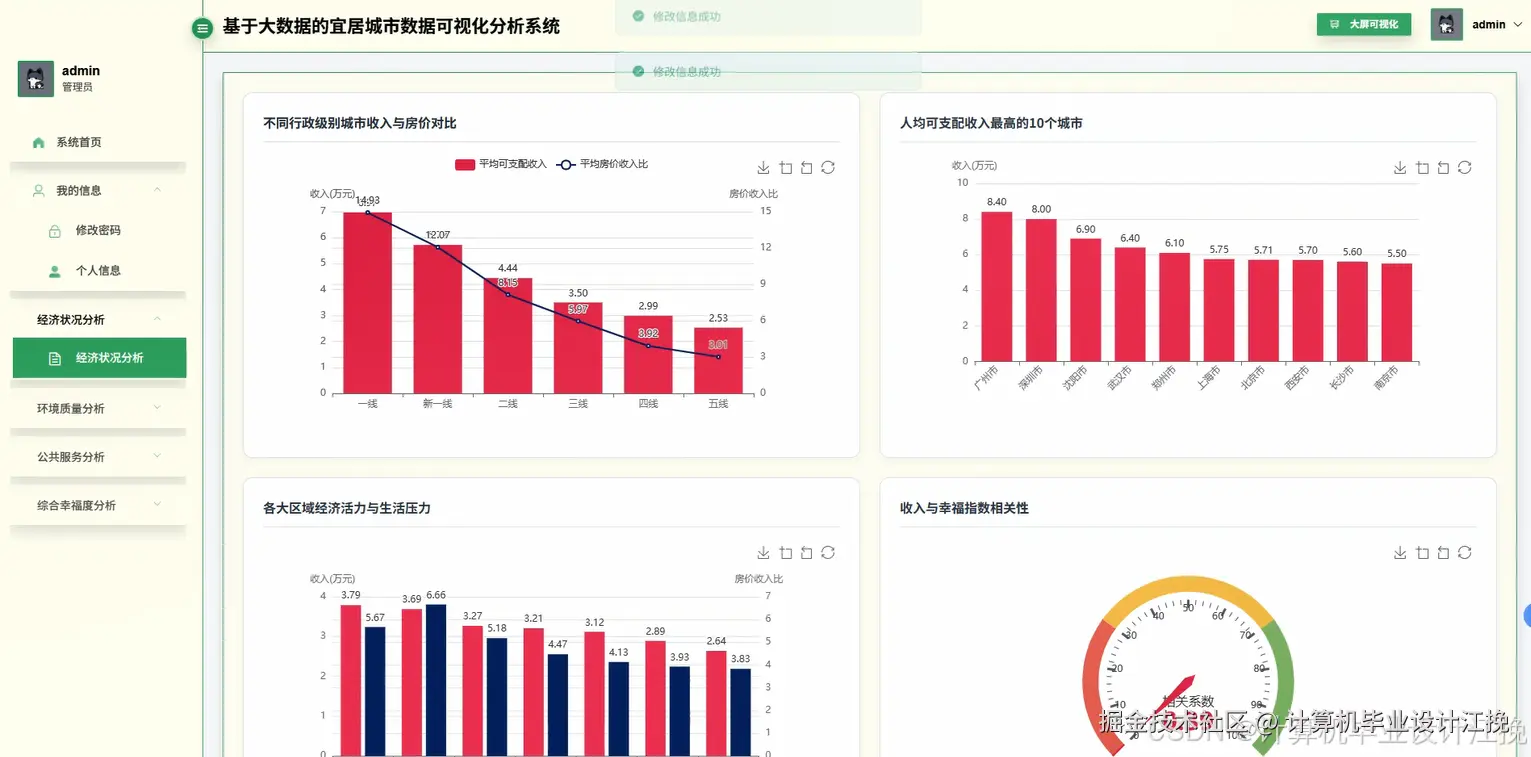

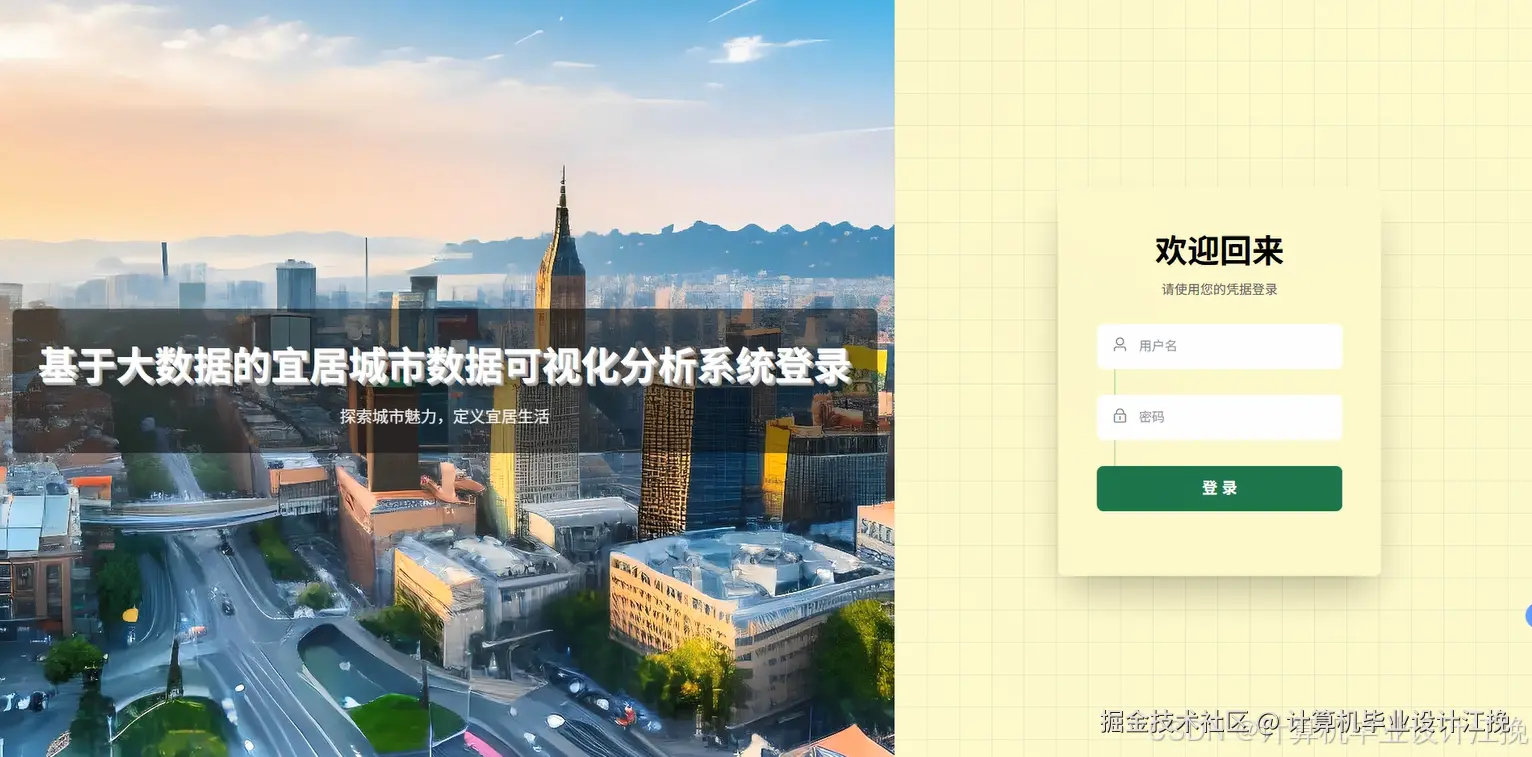

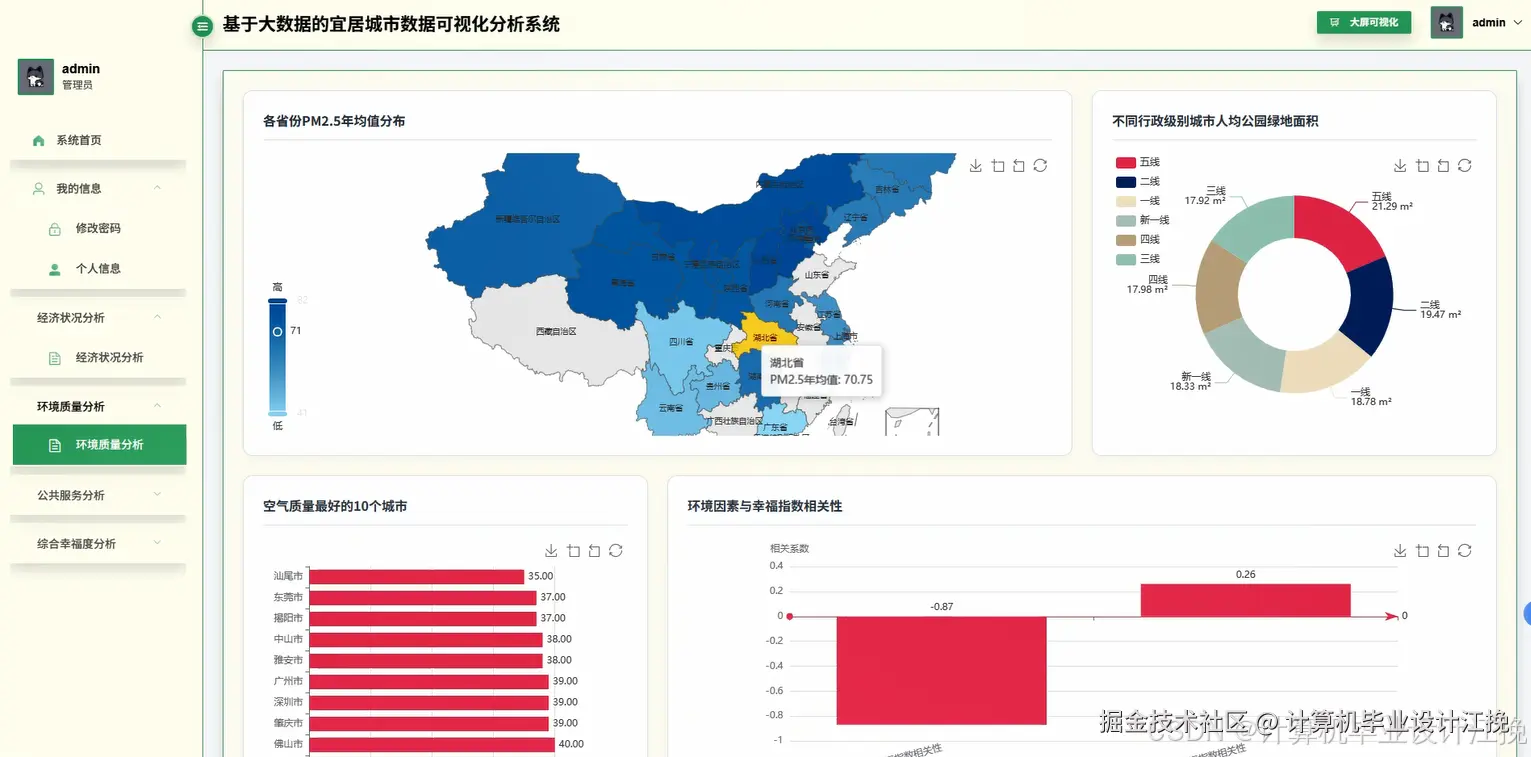

基于大数据的宜居城市数据可视化分析系统演示图片
基于大数据的宜居城市数据可视化分析系统代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, sum, count, when, round
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views import View
spark = SparkSession.builder.appName("LivableCityAnalysis").master("local[*]").config("spark.sql.warehouse.dir", "/user/hive/warehouse").getOrCreate()
class EconomicAnalysisView(View):
def get(self, request):
city_name = request.GET.get('city_name', '')
year = request.GET.get('year', '2024')
hdfs_path = f"hdfs://localhost:9000/data/economic_data/{year}/"
df = spark.read.option("header", "true").option("inferSchema", "true").csv(hdfs_path)
if city_name:
df = df.filter(col("city") == city_name)
gdp_stats = df.groupBy("city").agg(avg("gdp").alias("avg_gdp"),sum("total_revenue").alias("total_revenue"),count("*").alias("record_count"))
gdp_growth = df.withColumn("growth_rate", ((col("gdp") - col("last_year_gdp")) / col("last_year_gdp") * 100))
gdp_growth = gdp_growth.filter(col("growth_rate").isNotNull())
top_cities = gdp_stats.orderBy(col("avg_gdp").desc()).limit(10)
industry_distribution = df.groupBy("city", "industry_type").agg(sum("output_value").alias("industry_output"))
industry_pivot = industry_distribution.groupBy("city").pivot("industry_type").sum("industry_output").fillna(0)
employment_rate = df.withColumn("employment_status", when(col("employed_population") / col("total_population") > 0.95, "high").when(col("employed_population") / col("total_population") > 0.85, "medium").otherwise("low"))
employment_stats = employment_rate.groupBy("city", "employment_status").count()
result_pandas = top_cities.toPandas()
result_pandas['avg_gdp'] = result_pandas['avg_gdp'].round(2)
growth_pandas = gdp_growth.select("city", "gdp", "growth_rate").toPandas()
growth_pandas['growth_rate'] = growth_pandas['growth_rate'].round(2)
industry_pandas = industry_pivot.toPandas()
employment_pandas = employment_stats.toPandas()
correlation_matrix = df.select("gdp", "total_revenue", "population", "investment").toPandas().corr()
correlation_data = correlation_matrix.to_dict()
response_data = {'top_cities': result_pandas.to_dict('records'),'growth_analysis': growth_pandas.to_dict('records'),'industry_distribution': industry_pandas.to_dict('records'),'employment_stats': employment_pandas.to_dict('records'),'correlation': correlation_data,'status': 'success'}
return JsonResponse(response_data, safe=False)
class EnvironmentAnalysisView(View):
def get(self, request):
city_name = request.GET.get('city_name', '')
start_date = request.GET.get('start_date', '2024-01-01')
end_date = request.GET.get('end_date', '2024-12-31')
hdfs_path = "hdfs://localhost:9000/data/environment_data/"
df = spark.read.option("header", "true").option("inferSchema", "true").csv(hdfs_path)
df = df.filter((col("date") >= start_date) & (col("date") <= end_date))
if city_name:
df = df.filter(col("city") == city_name)
aqi_stats = df.groupBy("city").agg(avg("aqi").alias("avg_aqi"),avg("pm25").alias("avg_pm25"),avg("pm10").alias("avg_pm10"),count(when(col("aqi") <= 50, True)).alias("excellent_days"),count(when((col("aqi") > 50) & (col("aqi") <= 100), True)).alias("good_days"),count(when(col("aqi") > 100, True)).alias("polluted_days"))
aqi_level = df.withColumn("air_quality_level", when(col("aqi") <= 50, "优").when(col("aqi") <= 100, "良").when(col("aqi") <= 150, "轻度污染").when(col("aqi") <= 200, "中度污染").when(col("aqi") <= 300, "重度污染").otherwise("严重污染"))
level_distribution = aqi_level.groupBy("city", "air_quality_level").count().orderBy("city", "air_quality_level")
water_quality = df.select("city", "water_quality_index", "drinking_water_qualified_rate").groupBy("city").agg(avg("water_quality_index").alias("avg_water_index"),avg("drinking_water_qualified_rate").alias("avg_qualified_rate"))
green_coverage = df.select("city", "green_coverage_rate", "park_area", "forest_coverage").groupBy("city").agg(avg("green_coverage_rate").alias("avg_green_rate"),sum("park_area").alias("total_park_area"),avg("forest_coverage").alias("avg_forest_coverage"))
noise_pollution = df.select("city", "noise_level", "noise_complaint_count").groupBy("city").agg(avg("noise_level").alias("avg_noise_level"),sum("noise_complaint_count").alias("total_complaints"))
monthly_trend = df.groupBy("city", "month").agg(avg("aqi").alias("monthly_avg_aqi")).orderBy("city", "month")
aqi_pandas = aqi_stats.toPandas()
aqi_pandas = aqi_pandas.round(2)
level_pandas = level_distribution.toPandas()
water_pandas = water_quality.toPandas().round(2)
green_pandas = green_coverage.toPandas().round(2)
noise_pandas = noise_pollution.toPandas().round(2)
trend_pandas = monthly_trend.toPandas().round(2)
comprehensive_score = aqi_pandas.copy()
comprehensive_score['env_score'] = (100 - comprehensive_score['avg_aqi']) * 0.4 + water_pandas['avg_qualified_rate'] * 0.3 + green_pandas['avg_green_rate'] * 0.3
comprehensive_score['env_score'] = comprehensive_score['env_score'].round(2)
response_data = {'aqi_statistics': aqi_pandas.to_dict('records'),'quality_distribution': level_pandas.to_dict('records'),'water_quality': water_pandas.to_dict('records'),'green_coverage': green_pandas.to_dict('records'),'noise_pollution': noise_pandas.to_dict('records'),'monthly_trend': trend_pandas.to_dict('records'),'comprehensive_score': comprehensive_score[['city', 'env_score']].to_dict('records'),'status': 'success'}
return JsonResponse(response_data, safe=False)
class ComprehensiveHappinessView(View):
def get(self, request):
city_name = request.GET.get('city_name', '')
hdfs_economic = "hdfs://localhost:9000/data/economic_data/"
hdfs_environment = "hdfs://localhost:9000/data/environment_data/"
hdfs_service = "hdfs://localhost:9000/data/service_data/"
hdfs_survey = "hdfs://localhost:9000/data/happiness_survey/"
df_economic = spark.read.option("header", "true").option("inferSchema", "true").csv(hdfs_economic)
df_environment = spark.read.option("header", "true").option("inferSchema", "true").csv(hdfs_environment)
df_service = spark.read.option("header", "true").option("inferSchema", "true").csv(hdfs_service)
df_survey = spark.read.option("header", "true").option("inferSchema", "true").csv(hdfs_survey)
economic_score = df_economic.groupBy("city").agg((avg("gdp") / 10000).alias("gdp_score"),(avg("income_per_capita") / 1000).alias("income_score"),(avg("employment_rate") * 100).alias("employment_score"))
economic_score = economic_score.withColumn("economic_index", (col("gdp_score") * 0.3 + col("income_score") * 0.4 + col("employment_score") * 0.3))
env_score = df_environment.groupBy("city").agg(((100 - avg("aqi")) / 10).alias("air_score"),(avg("green_coverage_rate")).alias("green_score"),(avg("water_quality_index") / 10).alias("water_score"))
env_score = env_score.withColumn("environment_index", (col("air_score") * 0.4 + col("green_score") * 0.3 + col("water_score") * 0.3))
service_score = df_service.groupBy("city").agg((count("hospital_id") / avg("population") * 10000).alias("medical_density"),(count("school_id") / avg("population") * 10000).alias("education_density"),(sum("public_transport_coverage") / count("*")).alias("transport_coverage"))
service_score = service_score.withColumn("service_index", (col("medical_density") * 0.35 + col("education_density") * 0.35 + col("transport_coverage") * 0.3))
survey_score = df_survey.groupBy("city").agg(avg("life_satisfaction").alias("satisfaction_score"),avg("safety_feeling").alias("safety_score"),avg("community_harmony").alias("harmony_score"))
survey_score = survey_score.withColumn("subjective_index", (col("satisfaction_score") * 0.4 + col("safety_score") * 0.3 + col("harmony_score") * 0.3))
merged_df = economic_score.join(env_score, "city", "inner").join(service_score, "city", "inner").join(survey_score, "city", "inner")
merged_df = merged_df.withColumn("happiness_index", round((col("economic_index") * 0.25 + col("environment_index") * 0.25 + col("service_index") * 0.25 + col("subjective_index") * 0.25), 2))
if city_name:
merged_df = merged_df.filter(col("city") == city_name)
ranked_cities = merged_df.orderBy(col("happiness_index").desc())
top_20_cities = ranked_cities.limit(20)
result_pandas = top_20_cities.toPandas()
result_pandas = result_pandas.round(2)
dimension_analysis = result_pandas[['city', 'economic_index', 'environment_index', 'service_index', 'subjective_index', 'happiness_index']]
dimension_stats = dimension_analysis.describe().to_dict()
city_ranking = result_pandas[['city', 'happiness_index']].reset_index(drop=True)
city_ranking.index = city_ranking.index + 1
city_ranking['rank'] = city_ranking.index
weak_dimensions = []
for idx, row in result_pandas.iterrows():
city_weak = {'city': row['city'], 'weakest_dimension': ''}
min_score = min(row['economic_index'], row['environment_index'], row['service_index'], row['subjective_index'])
if row['economic_index'] == min_score:
city_weak['weakest_dimension'] = '经济发展'
elif row['environment_index'] == min_score:
city_weak['weakest_dimension'] = '环境质量'
elif row['service_index'] == min_score:
city_weak['weakest_dimension'] = '公共服务'
else:
city_weak['weakest_dimension'] = '主观感受'
weak_dimensions.append(city_weak)
response_data = {'happiness_ranking': city_ranking.to_dict('records'),'dimension_analysis': dimension_analysis.to_dict('records'),'dimension_statistics': dimension_stats,'improvement_suggestions': weak_dimensions,'status': 'success'}
return JsonResponse(response_data, safe=False)

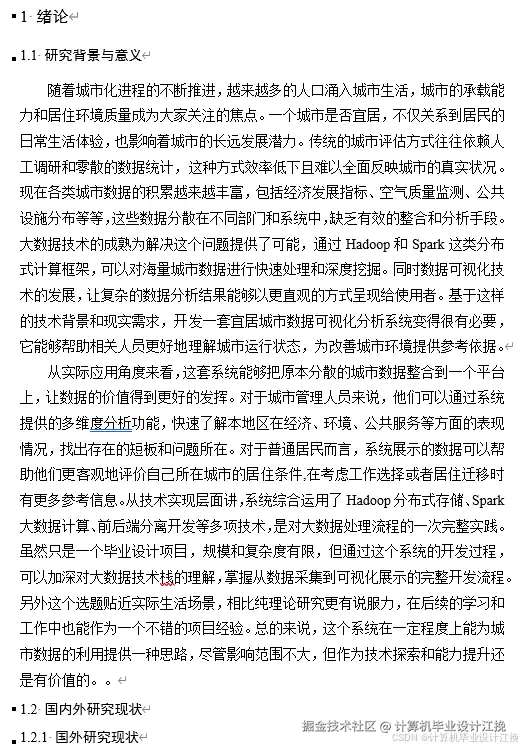

基于大数据的宜居城市数据可视化分析系统文档展示
