二、系统介绍
大数据框架：Hadoop+Spark（Hive需要定制修改） 开发语言：Java+Python（两个版本都支持） 数据库：MySQL 后端框架：SpringBoot(Spring+SpringMVC+Mybatis)+Django（两个版本都支持） 前端：Vue+Echarts+HTML+CSS+JavaScript+jQuery
北京旅游景点可视化分析系统是一个基于大数据技术构建的智能化旅游数据分析平台，采用Hadoop+Spark分布式计算框架对北京地区旅游景点数据进行深度挖掘和可视化展示。系统后端基于Django框架开发，前端运用Vue+ElementUI+Echarts技术栈实现交互式界面设计，通过MySQL数据库存储结构化数据，利用HDFS分布式文件系统管理海量旅游数据。平台集成热度与口碑分析、消费与成本分析、空间地理分布分析、主题与特色分析等核心功能模块，为用户提供全方位的北京旅游景点数据洞察。系统运用Spark SQL进行高效数据查询处理，结合Pandas和NumPy进行数据清洗与统计分析，通过Echarts图表组件实现数据的多维度可视化呈现，帮助旅游管理部门、景区运营方以及游客群体更好地了解北京旅游市场现状与发展趋势，为旅游决策提供数据支撑。
三、视频解说

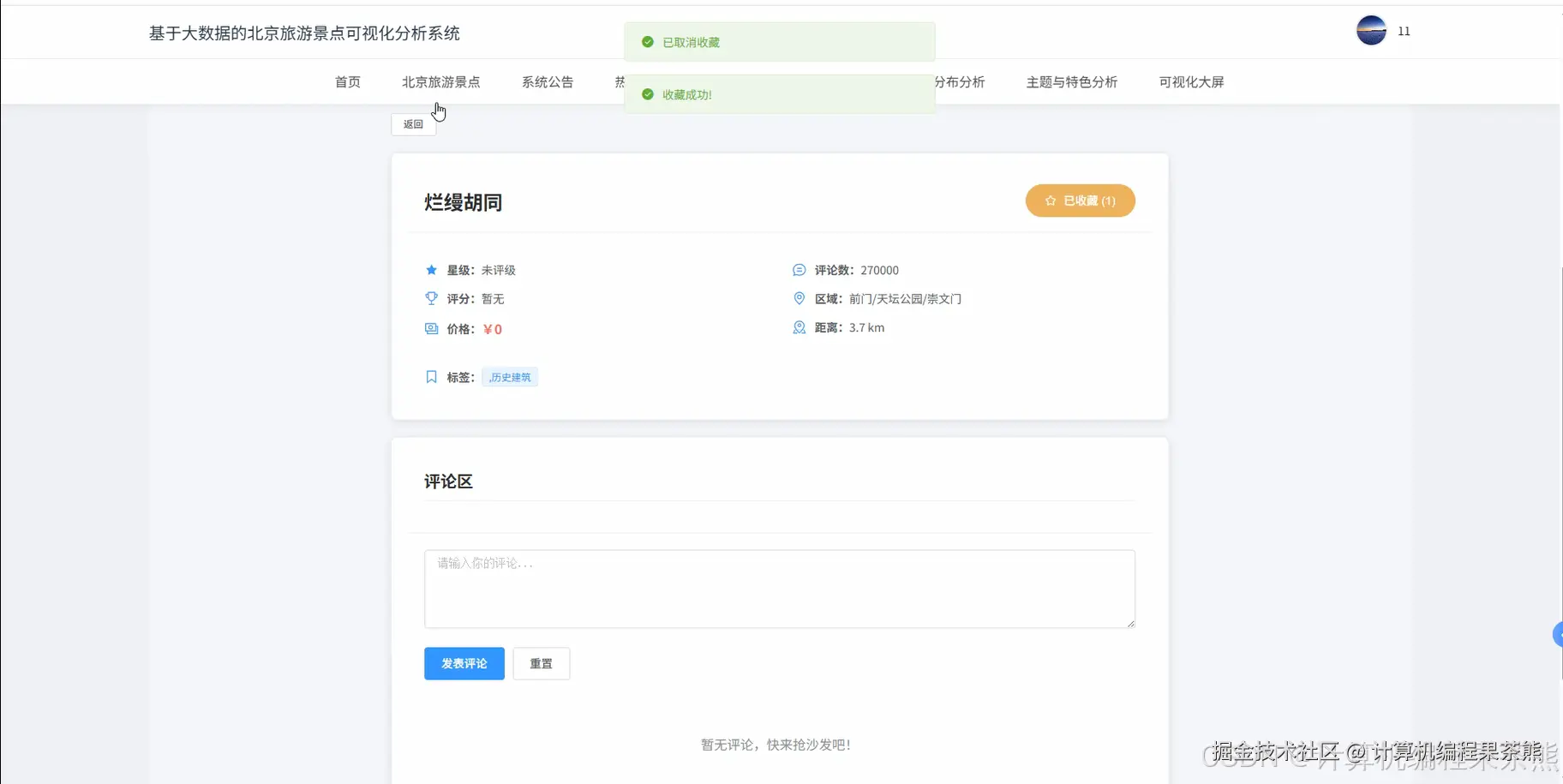

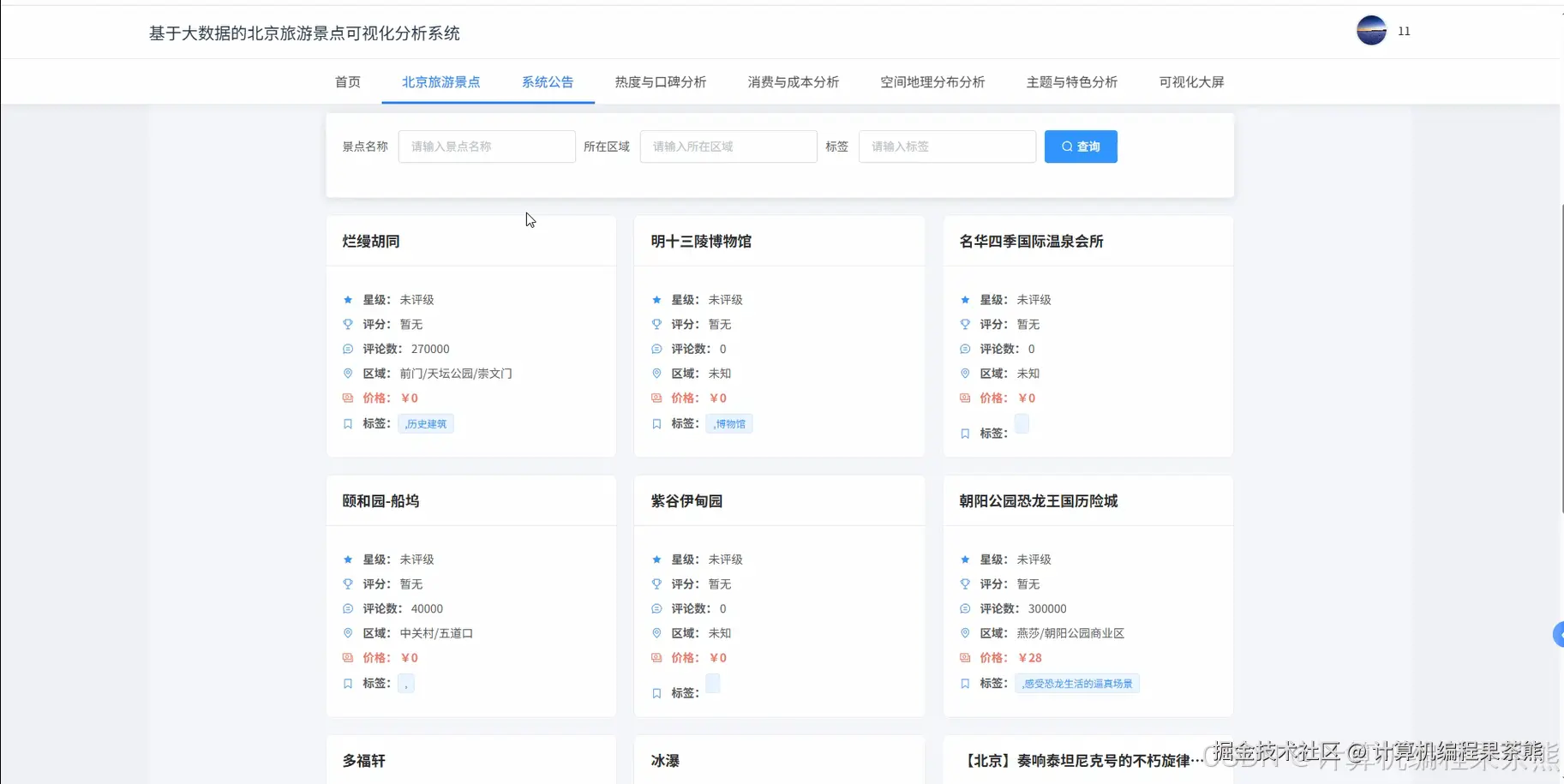

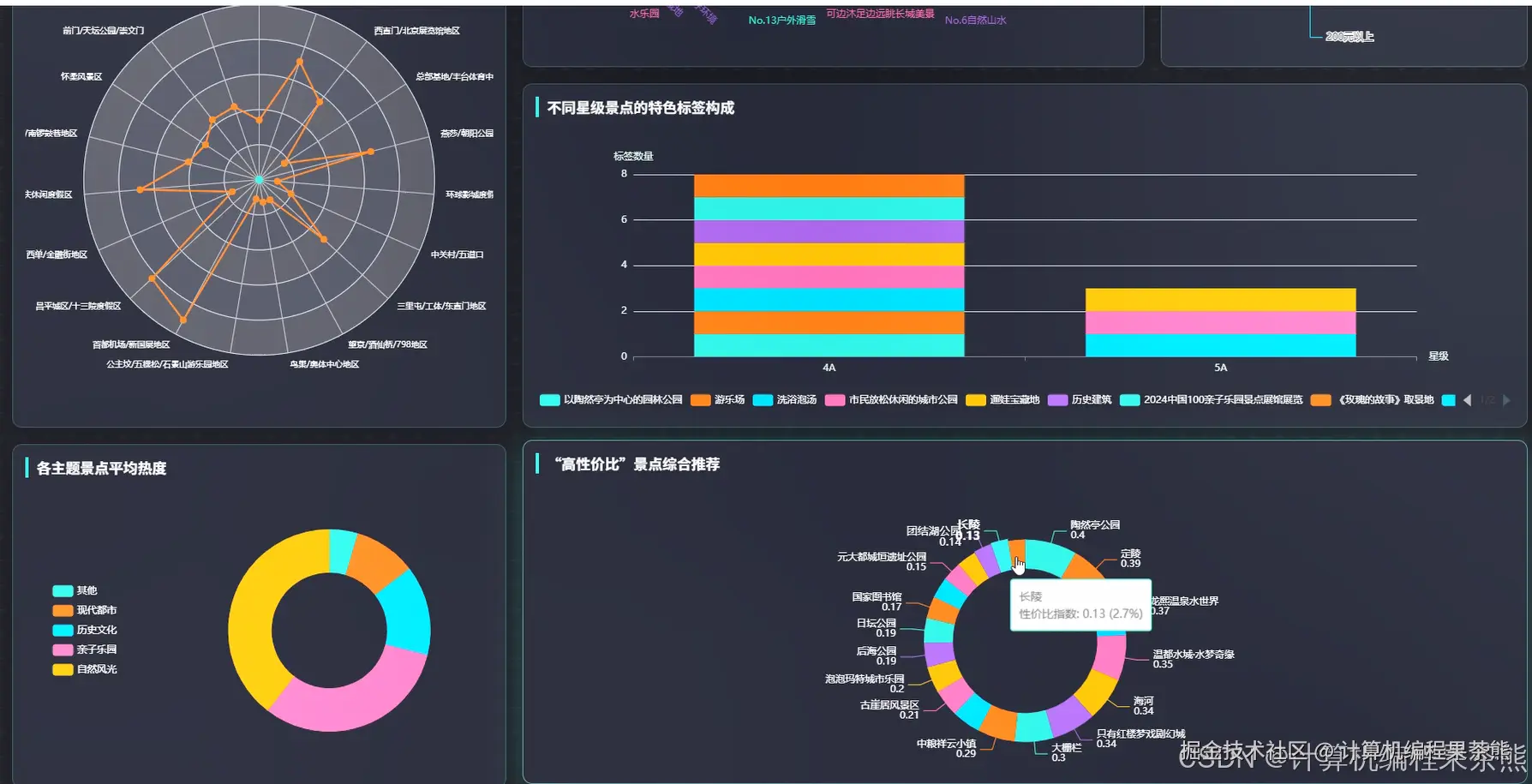

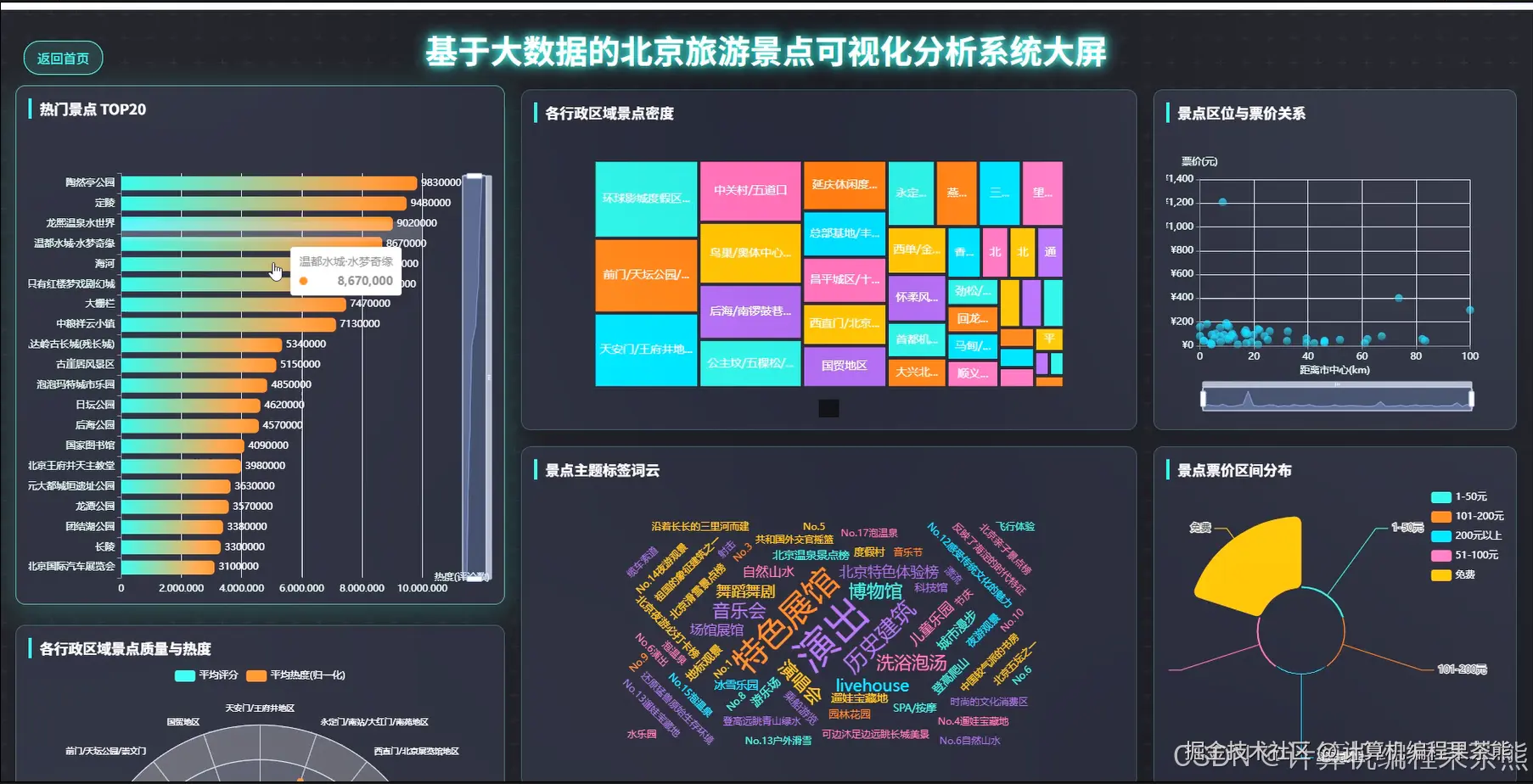

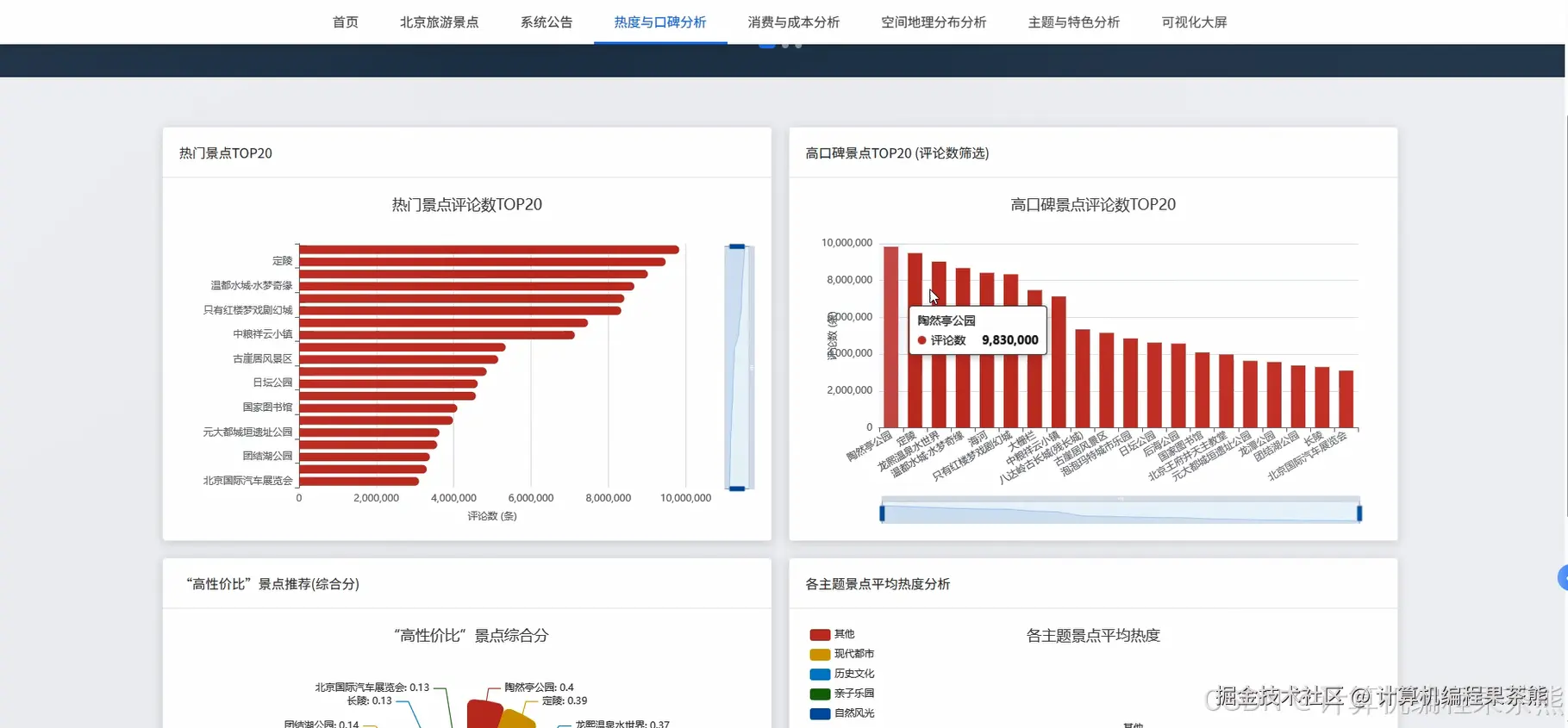

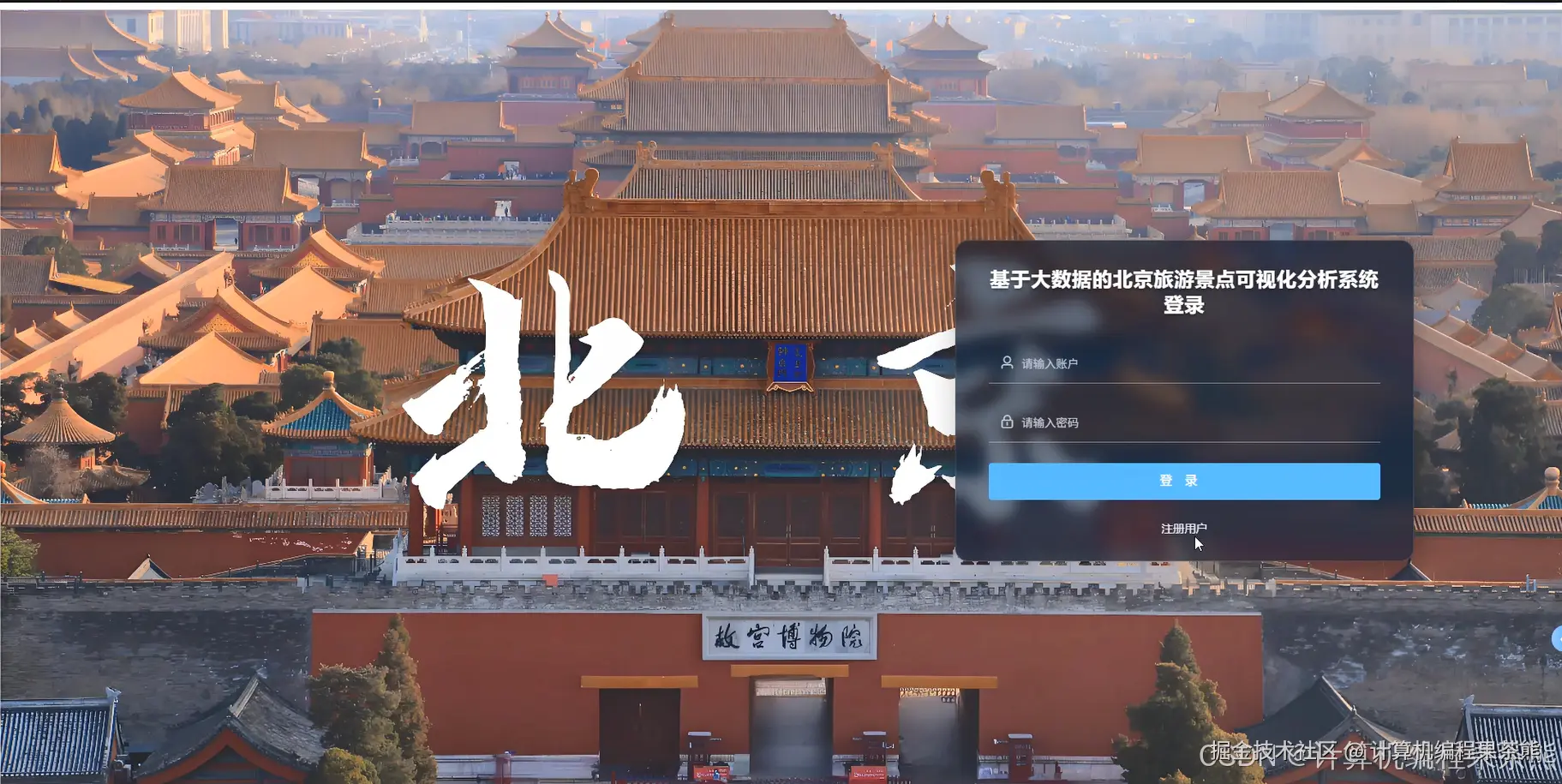

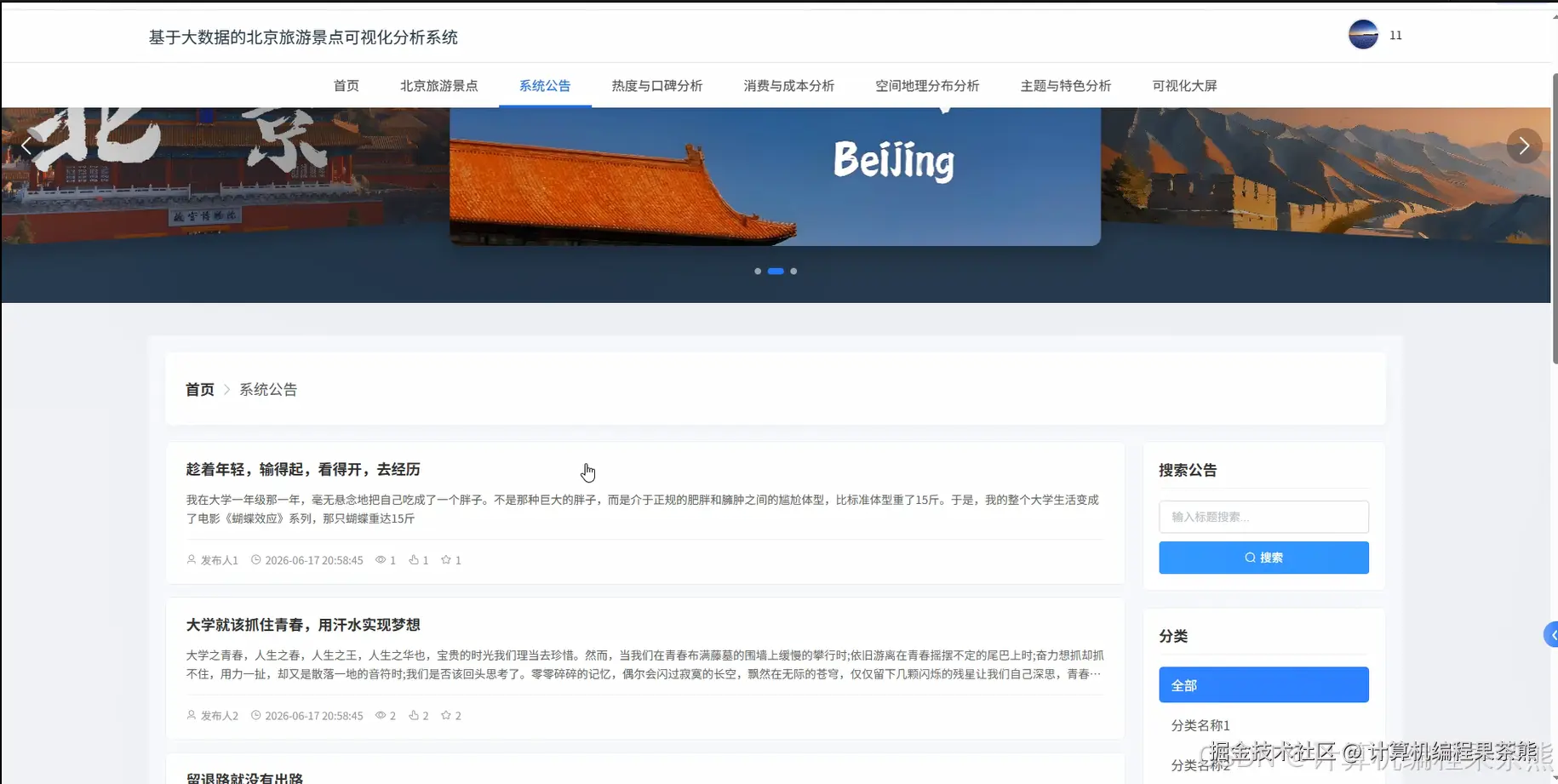

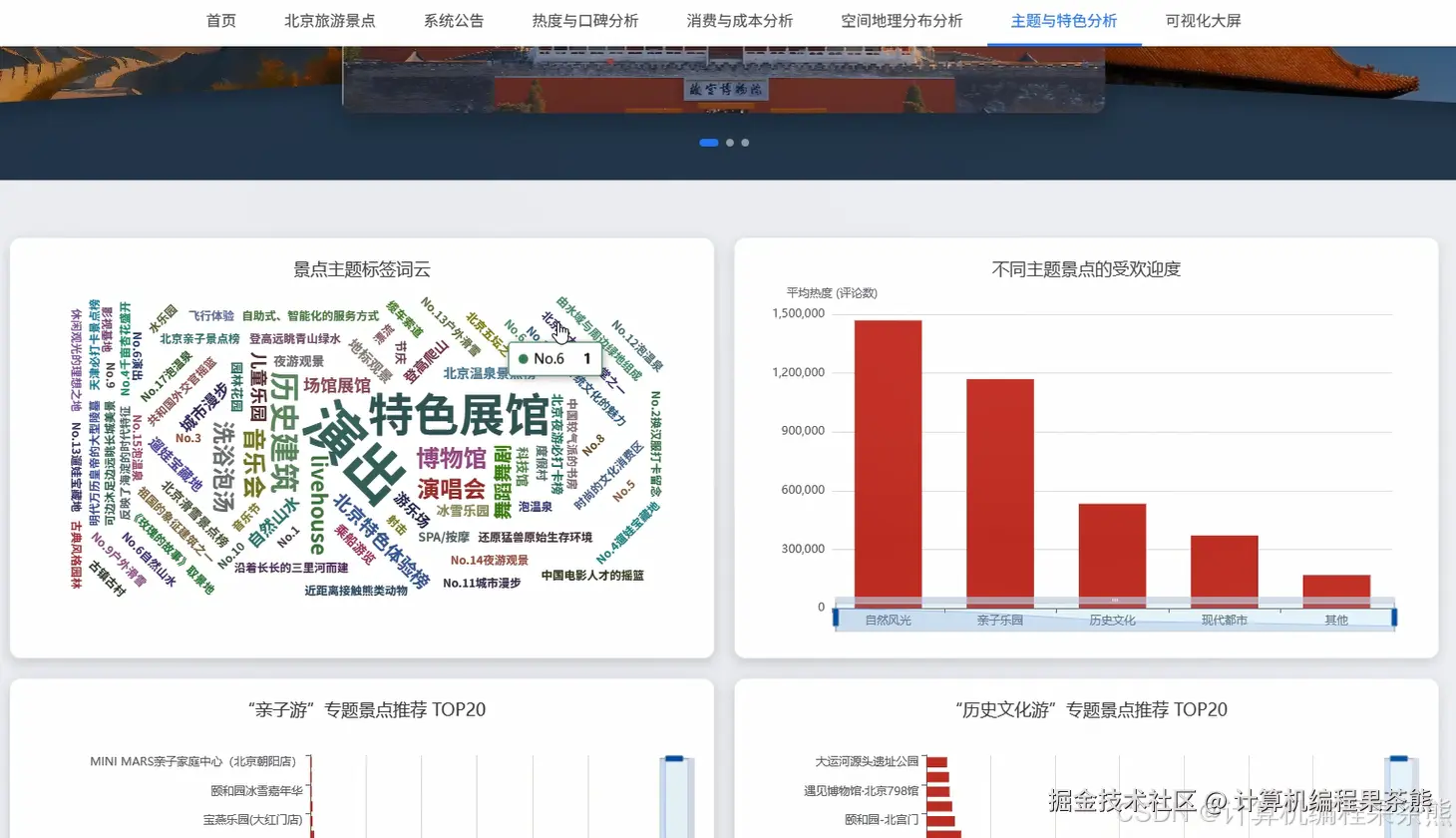

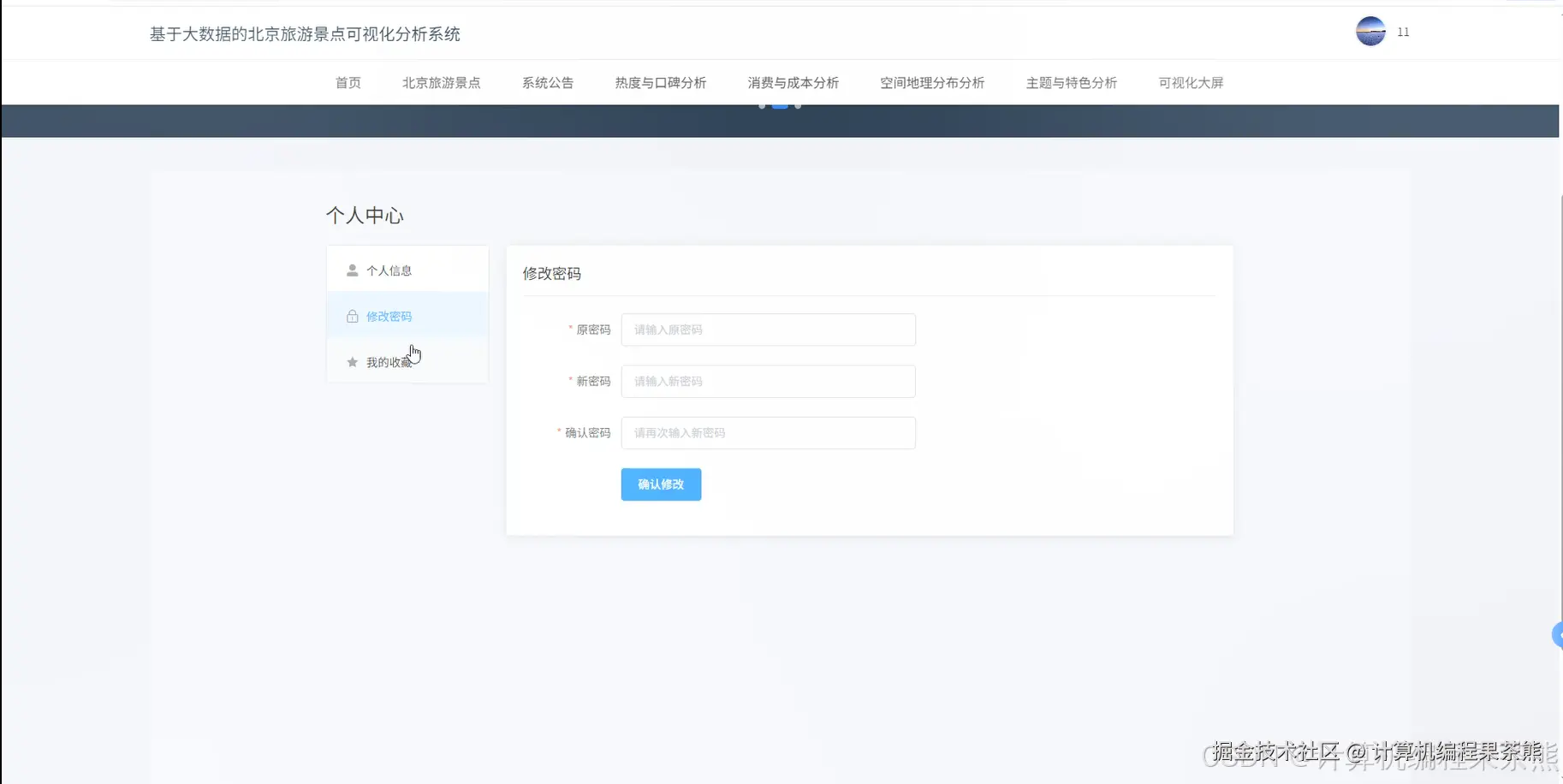

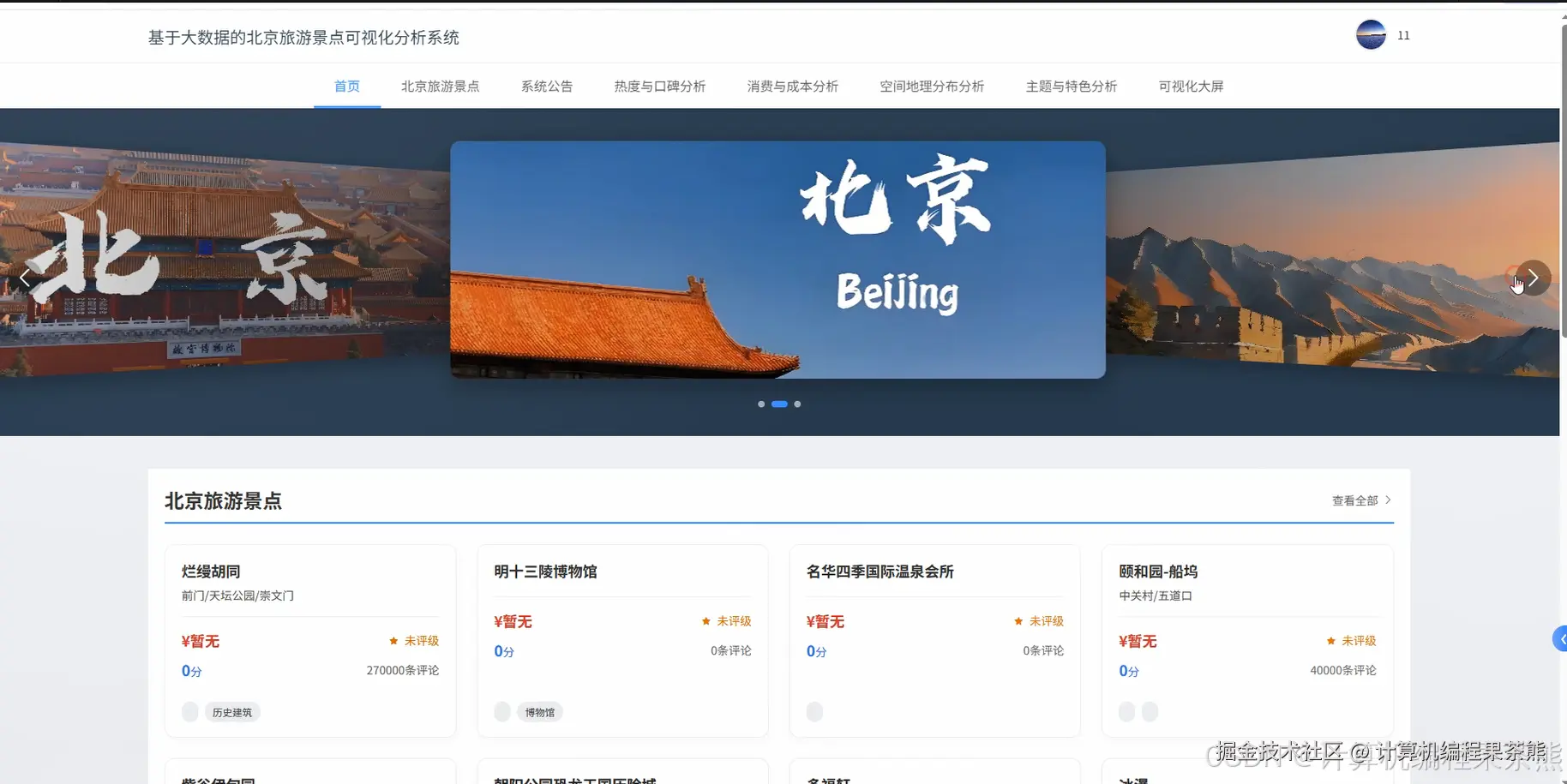

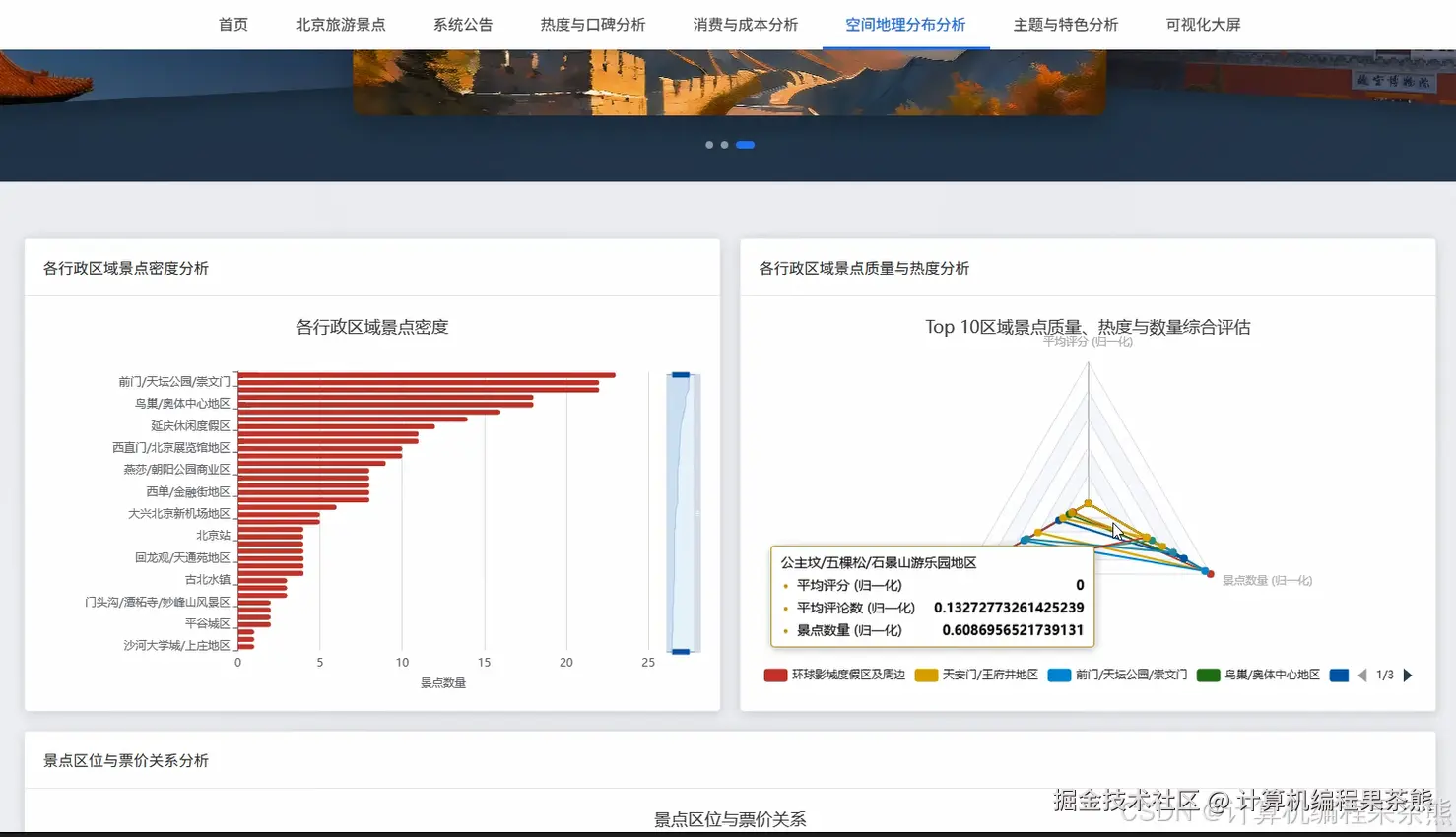

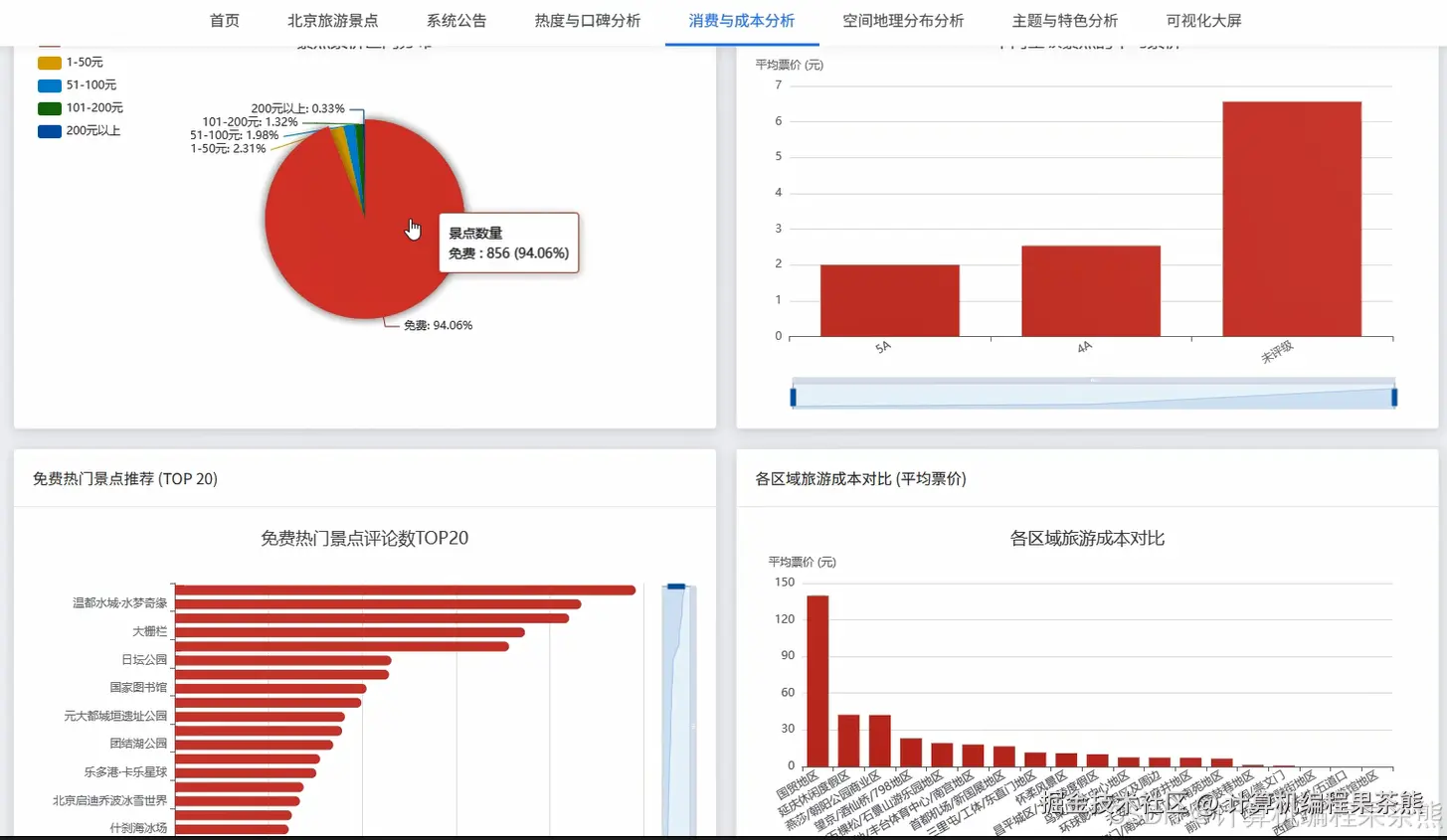

四、部分功能展示
五、部分代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, count, avg, sum, desc, when, regexp_replace, split
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import pandas as pd
import numpy as np
import json
spark = SparkSession.builder.appName("BeijingTourismAnalysis").config("spark.some.config.option", "some-value").getOrCreate()
def scenic_hotness_analysis(request):
scenic_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/tourism/scenic_data.csv")
comment_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/tourism/comment_data.csv")
scenic_df = scenic_df.withColumn("visit_count", col("visit_count").cast("integer"))
comment_df = comment_df.withColumn("rating", col("rating").cast("float"))
comment_df = comment_df.withColumn("scenic_id", col("scenic_id").cast("integer"))
hotness_score = scenic_df.join(comment_df, "scenic_id", "left") \
.groupBy("scenic_id", "scenic_name") \
.agg(count("comment_id").alias("comment_count"),
avg("rating").alias("avg_rating"),
sum("visit_count").alias("total_visits"))
hotness_score = hotness_score.withColumn("hotness_index",
(col("comment_count") * 0.3 + col("avg_rating") * 20 + col("total_visits") * 0.0001))
hotness_ranked = hotness_score.orderBy(desc("hotness_index")).limit(20)
result_pd = hotness_ranked.toPandas()
sentiment_analysis = comment_df.withColumn("sentiment_score",
when(col("rating") >= 4.0, 1)
.when(col("rating") >= 3.0, 0)
.otherwise(-1))
sentiment_summary = sentiment_analysis.groupBy("scenic_id") \
.agg(count(when(col("sentiment_score") == 1, 1)).alias("positive_count"),
count(when(col("sentiment_score") == 0, 1)).alias("neutral_count"),
count(when(col("sentiment_score") == -1, 1)).alias("negative_count"))
final_result = hotness_ranked.join(sentiment_summary, "scenic_id", "left")
analysis_data = final_result.toPandas().to_dict('records')
return JsonResponse({"status": "success", "data": analysis_data})
def consumption_cost_analysis(request):
ticket_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/tourism/ticket_data.csv")
expense_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/tourism/expense_data.csv")
ticket_df = ticket_df.withColumn("price", col("price").cast("float"))
ticket_df = ticket_df.withColumn("scenic_id", col("scenic_id").cast("integer"))
expense_df = expense_df.withColumn("amount", col("amount").cast("float"))
expense_df = expense_df.withColumn("scenic_id", col("scenic_id").cast("integer"))
price_stats = ticket_df.groupBy("scenic_id", "scenic_name") \
.agg(avg("price").alias("avg_ticket_price"),
count("*").alias("ticket_types"))
expense_stats = expense_df.groupBy("scenic_id", "expense_type") \
.agg(avg("amount").alias("avg_expense"),
sum("amount").alias("total_expense"))
expense_pivot = expense_stats.groupBy("scenic_id") \
.pivot("expense_type") \
.agg(avg("avg_expense"))
cost_analysis = price_stats.join(expense_pivot, "scenic_id", "left")
cost_analysis = cost_analysis.fillna(0)
total_cost_per_visitor = cost_analysis.withColumn("estimated_total_cost",
col("avg_ticket_price") +
col("food").cast("float") +
col("transport").cast("float") +
col("shopping").cast("float"))
cost_segments = total_cost_per_visitor.withColumn("cost_level",
when(col("estimated_total_cost") <= 100, "经济型")
.when(col("estimated_total_cost") <= 300, "中档型")
.otherwise("高端型"))
cost_distribution = cost_segments.groupBy("cost_level").count()
price_trends = ticket_df.groupBy("scenic_type") \
.agg(avg("price").alias("type_avg_price")) \
.orderBy(desc("type_avg_price"))
result_data = {
"cost_analysis": cost_analysis.toPandas().to_dict('records'),
"cost_distribution": cost_distribution.toPandas().to_dict('records'),
"price_trends": price_trends.toPandas().to_dict('records')
}
return JsonResponse({"status": "success", "data": result_data})
def spatial_geographic_analysis(request):
location_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/tourism/location_data.csv")
visitor_df = spark.read.option("header", "true").csv("hdfs://localhost:9000/tourism/visitor_flow.csv")
location_df = location_df.withColumn("latitude", col("latitude").cast("float"))
location_df = location_df.withColumn("longitude", col("longitude").cast("float"))
visitor_df = visitor_df.withColumn("visitor_count", col("visitor_count").cast("integer"))
visitor_df = visitor_df.withColumn("scenic_id", col("scenic_id").cast("integer"))
district_mapping = location_df.withColumn("district",
when((col("latitude") >= 39.9 & (col("latitude") <= 40.0)) &
(col("longitude") >= 116.3 & (col("longitude") <= 116.5)), "朝阳区")
.when((col("latitude") >= 39.8 & (col("latitude") <= 39.95)) &
(col("longitude") >= 116.2 & (col("longitude") <= 116.4)), "海淀区")
.when((col("latitude") >= 39.85 & (col("latitude") <= 39.95)) &
(col("longitude") >= 116.35 & (col("longitude") <= 116.45)), "东城区")
.otherwise("其他区域"))
geo_visitor_data = district_mapping.join(visitor_df, "scenic_id", "inner")
district_stats = geo_visitor_data.groupBy("district") \
.agg(count("scenic_id").alias("scenic_count"),
sum("visitor_count").alias("total_visitors"),
avg("visitor_count").alias("avg_visitors_per_scenic"))
density_analysis = district_stats.withColumn("visitor_density",
col("total_visitors") / col("scenic_count"))
hotspot_identification = geo_visitor_data.filter(col("visitor_count") > 10000) \
.select("scenic_name", "district", "latitude", "longitude", "visitor_count") \
.orderBy(desc("visitor_count"))
clustering_result = location_df.withColumn("cluster_id",
when((col("latitude") >= 39.9) & (col("longitude") >= 116.4), 1)
.when((col("latitude") >= 39.85) & (col("longitude") <= 116.35), 2)
.otherwise(3))
cluster_summary = clustering_result.groupBy("cluster_id") \
.agg(count("scenic_id").alias("cluster_size"),
avg("latitude").alias("center_lat"),
avg("longitude").alias("center_lng"))
geographic_data = {
"district_stats": district_stats.toPandas().to_dict('records'),
"density_analysis": density_analysis.toPandas().to_dict('records'),
"hotspots": hotspot_identification.toPandas().to_dict('records'),
"clusters": cluster_summary.toPandas().to_dict('records')
}
return JsonResponse({"status": "success", "data": geographic_data})

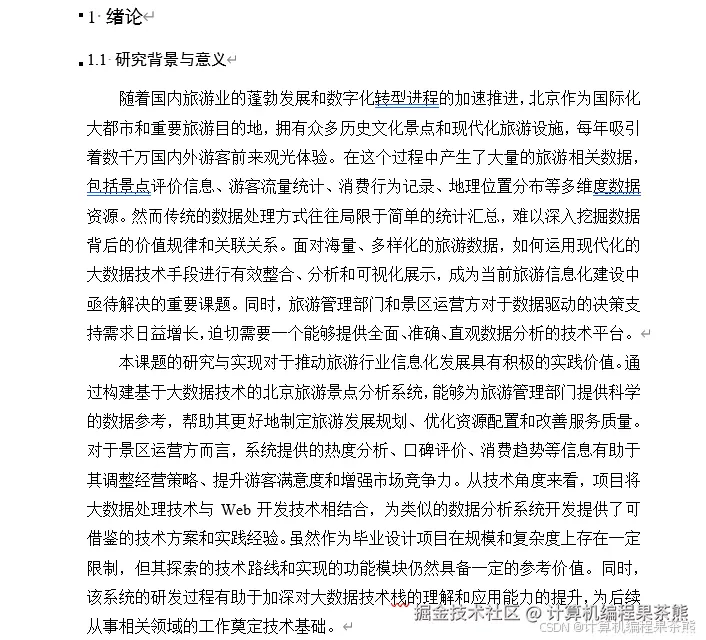

六、部分文档展示
