二、系统介绍
大数据框架：Hadoop+Spark（Hive需要定制修改） 开发语言：Java+Python（两个版本都支持） 数据库：MySQL 后端框架：SpringBoot(Spring+SpringMVC+Mybatis)+Django（两个版本都支持） 前端：Vue+Echarts+HTML+CSS+JavaScript+jQuery
农产品数据可视化分析系统是一套基于大数据技术构建的农业数据分析平台，采用Hadoop+Spark作为核心大数据处理框架，以Python为主要开发语言，后端使用Django框架提供API服务，前端通过Vue+ElementUI+Echarts技术栈实现交互式可视化界面。系统利用HDFS进行分布式数据存储，通过Spark SQL进行大规模数据查询和分析，结合Pandas、NumPy等数据处理库进行精细化数据操作，并将处理结果存储在MySQL数据库中。系统主要提供价格趋势分析、生产结构分析、宏观影响分析、综合关联分析以及可视化大屏五大核心功能模块，能够对农产品市场数据进行多维度分析和直观展示，帮助用户深入了解农产品市场动态和发展趋势，为农业决策提供数据支撑。
三、视频解说

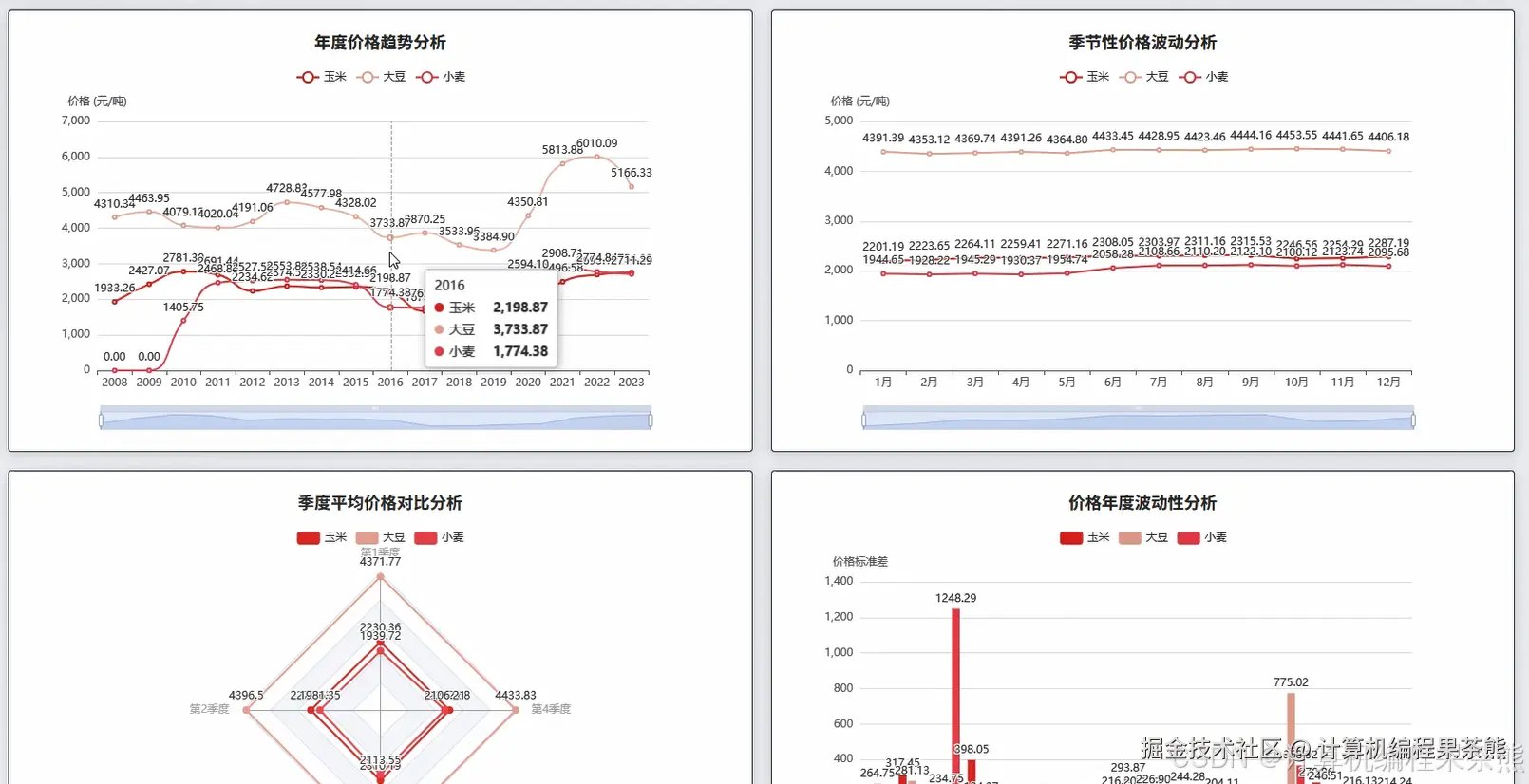

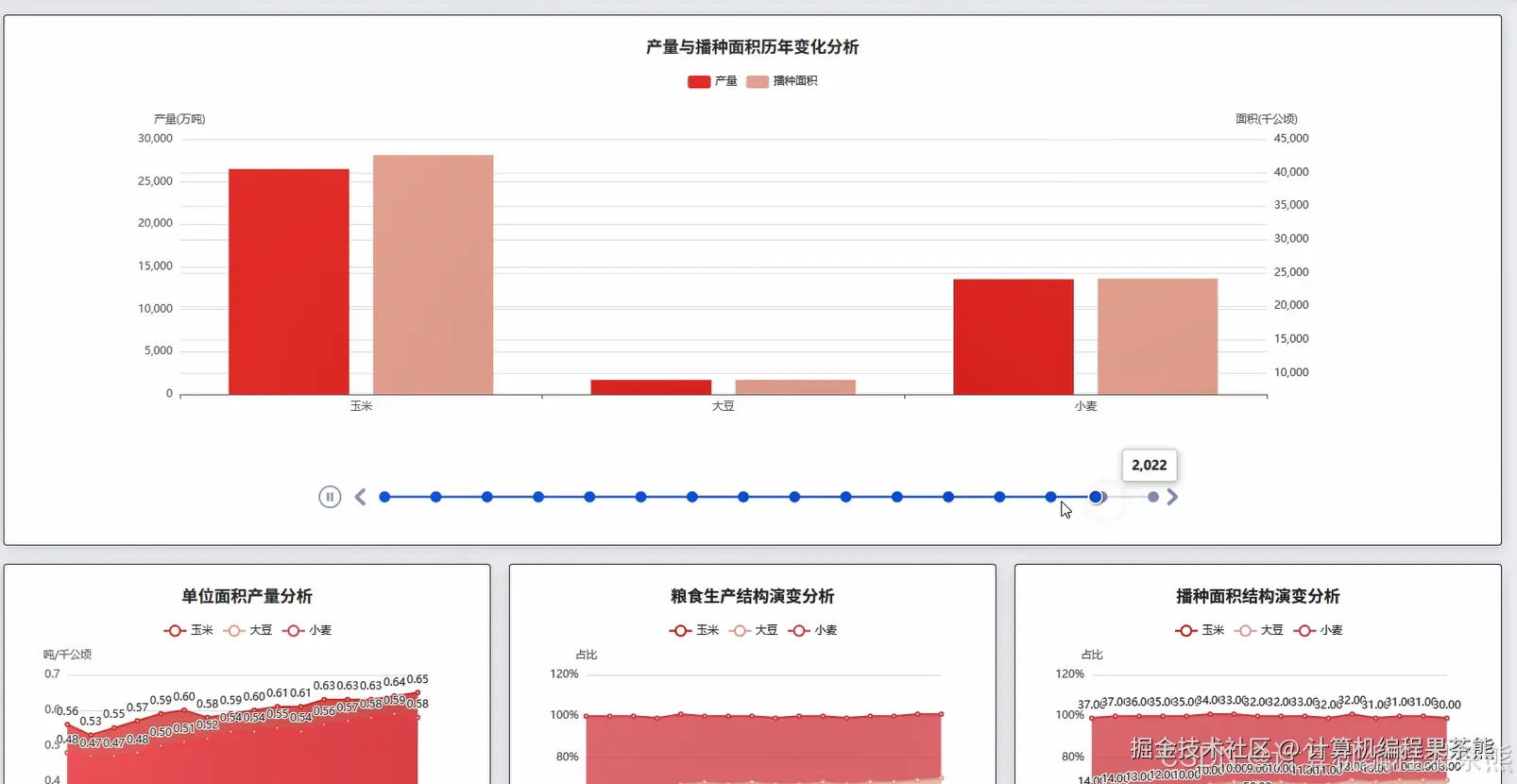

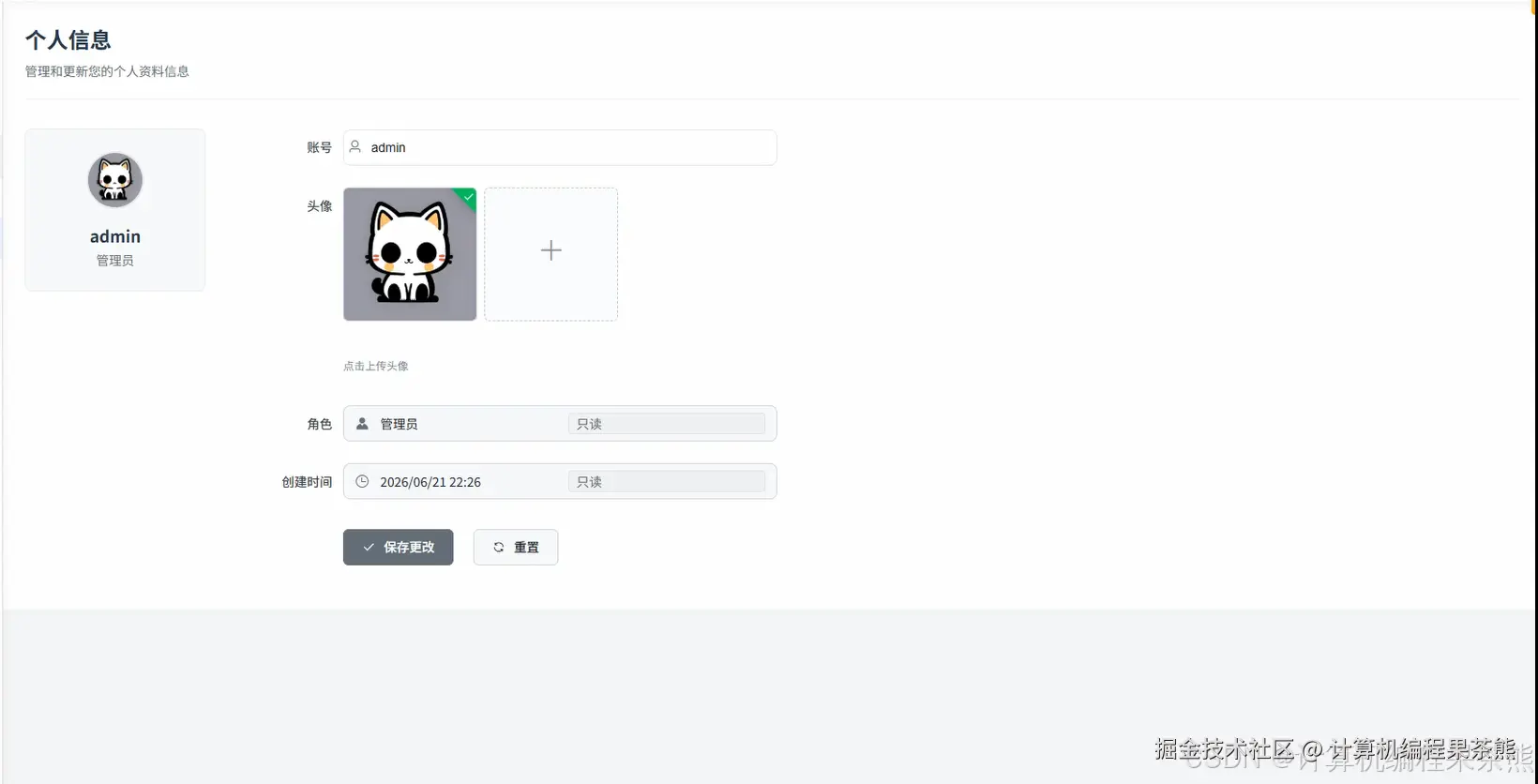

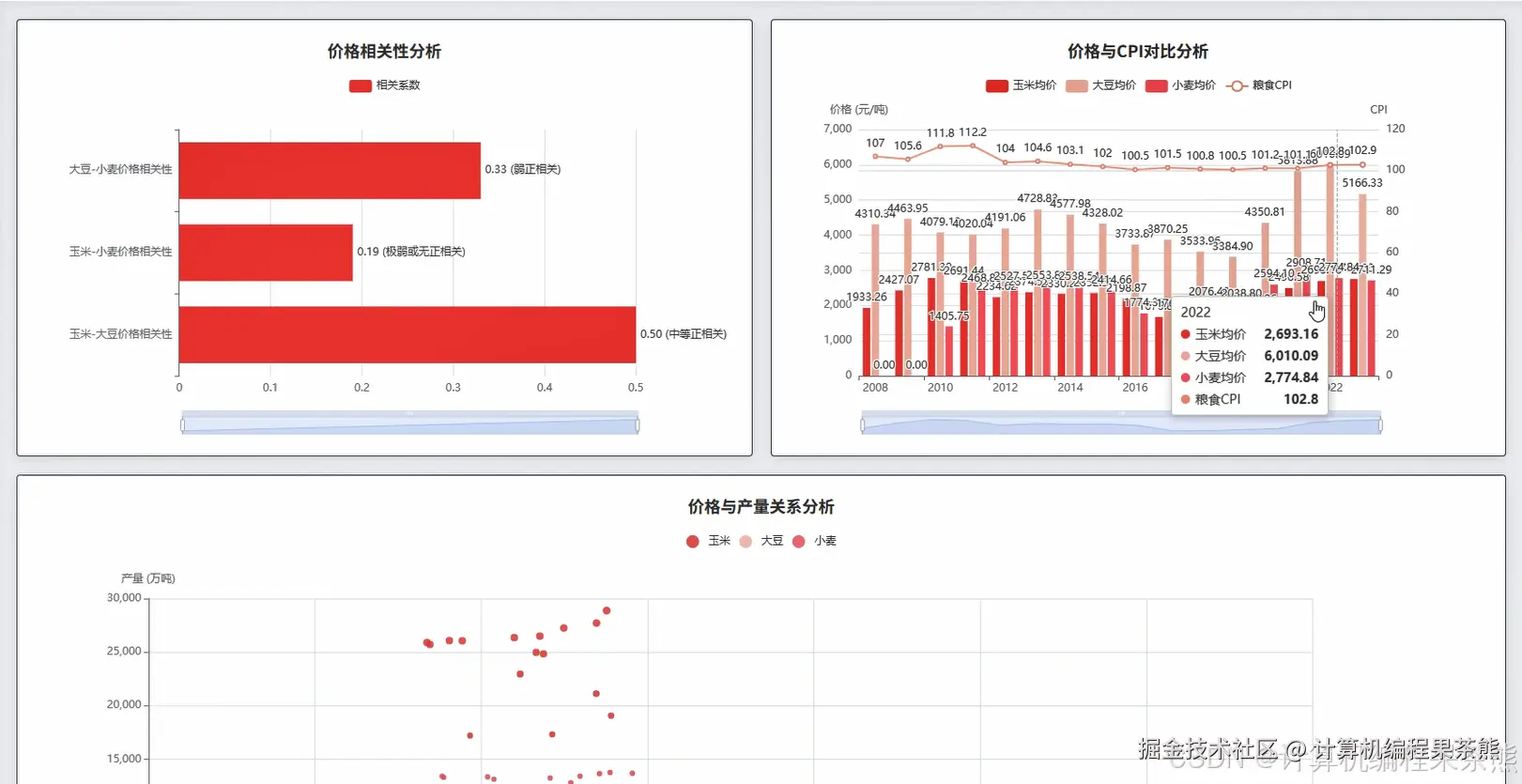

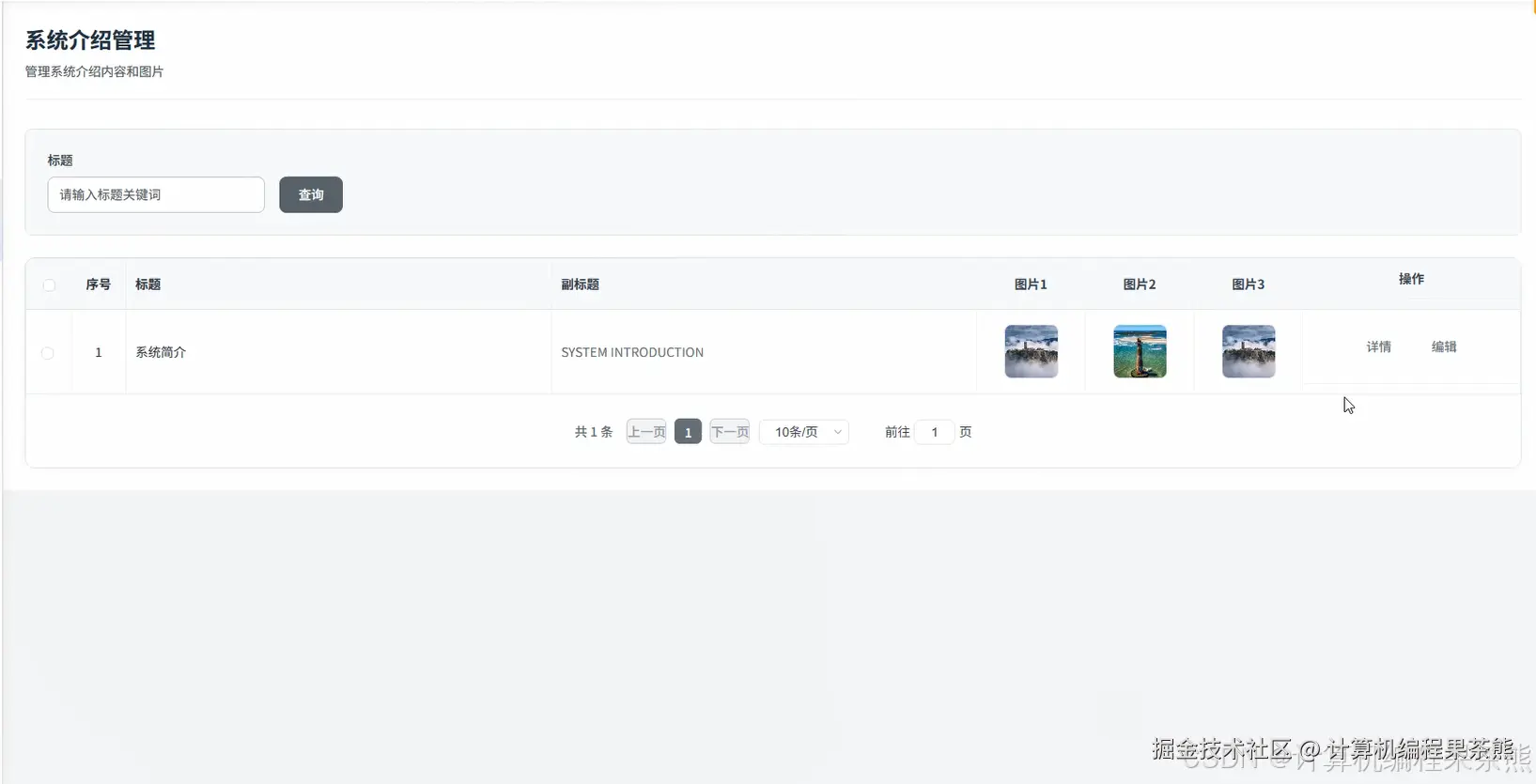

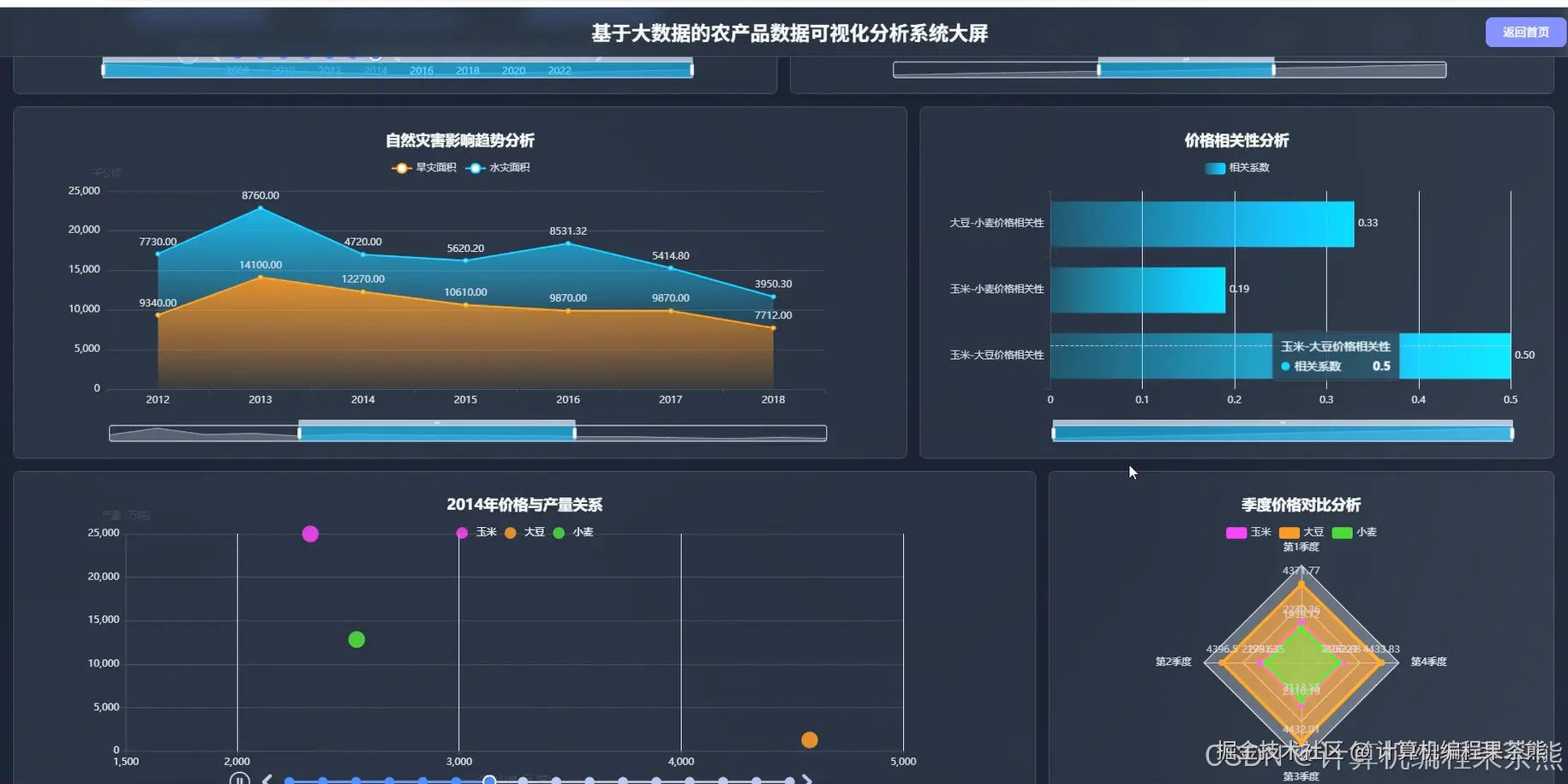

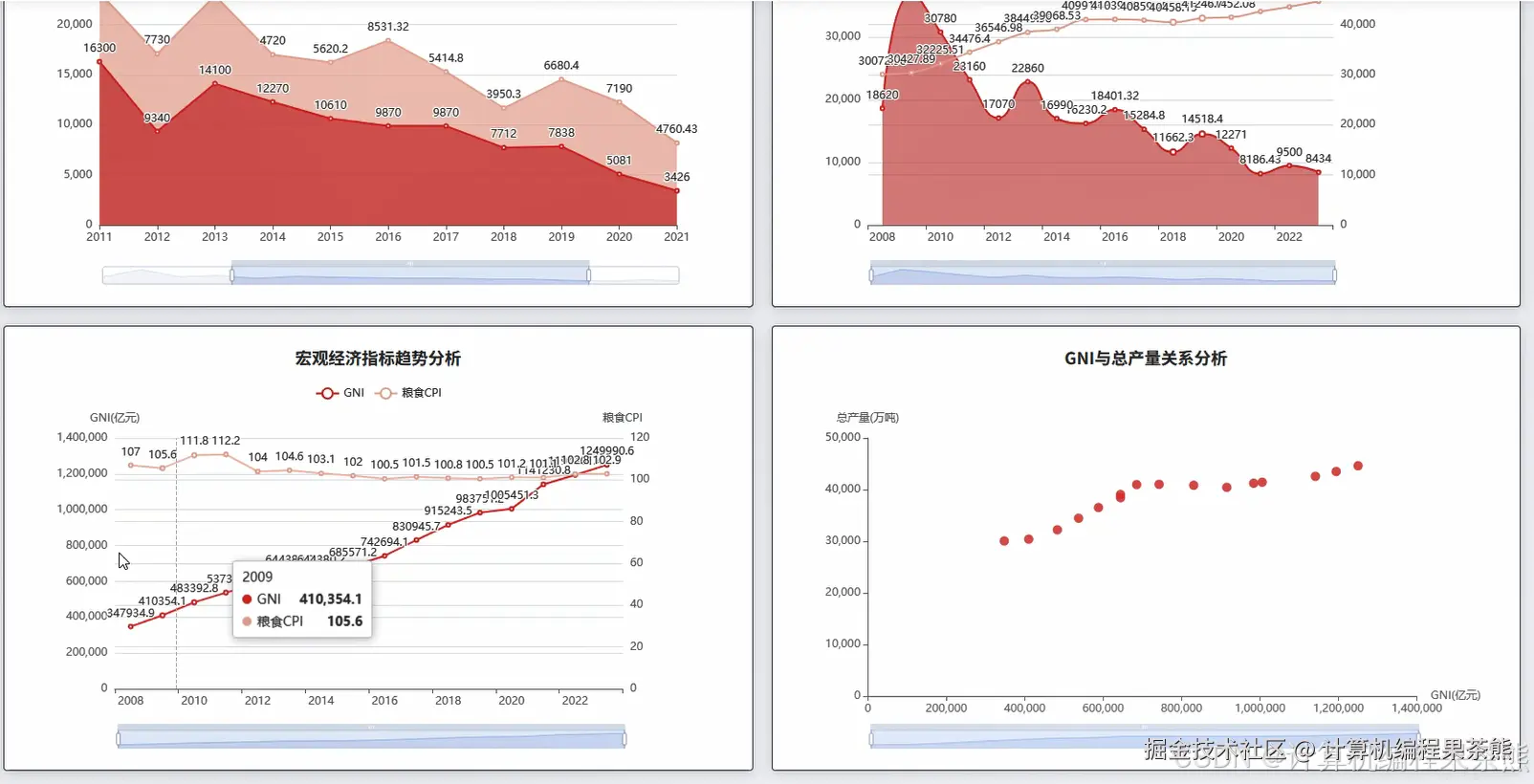

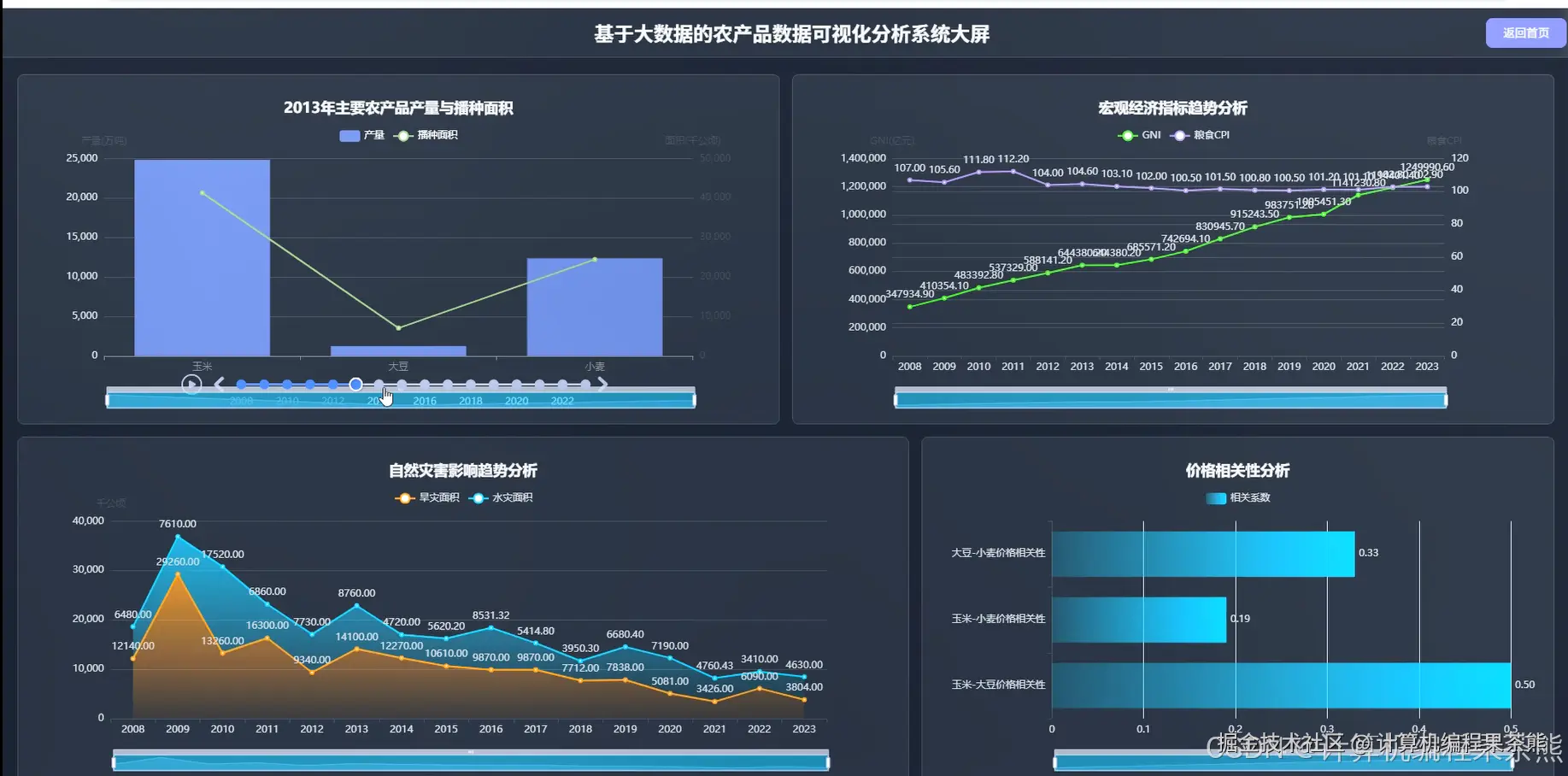

四、部分功能展示
五、部分代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import col, avg, sum, max, min, count, when, lag, desc, asc
from pyspark.sql.window import Window
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views import View
import json
from datetime import datetime, timedelta
def price_trend_analysis(request):
spark = SparkSession.builder.appName("PriceTrendAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agriculture_data").option("dbtable", "price_data").option("user", "root").option("password", "password").load()
product_type = request.GET.get('product_type', 'all')
time_range = int(request.GET.get('time_range', 30))
end_date = datetime.now()
start_date = end_date - timedelta(days=time_range)
filtered_df = df.filter((col("date") >= start_date) & (col("date") <= end_date))
if product_type != 'all':
filtered_df = filtered_df.filter(col("product_type") == product_type)
window_spec = Window.partitionBy("product_type").orderBy("date")
trend_df = filtered_df.withColumn("prev_price", lag("price", 1).over(window_spec))
trend_df = trend_df.withColumn("price_change", col("price") - col("prev_price"))
trend_df = trend_df.withColumn("change_rate", (col("price_change") / col("prev_price")) * 100)
daily_avg = trend_df.groupBy("date", "product_type").agg(avg("price").alias("avg_price"), avg("change_rate").alias("avg_change_rate"), count("*").alias("data_points"))
trend_analysis = daily_avg.groupBy("product_type").agg(avg("avg_price").alias("period_avg_price"), max("avg_price").alias("max_price"), min("avg_price").alias("min_price"), avg("avg_change_rate").alias("avg_volatility"))
volatility_df = trend_df.groupBy("product_type").agg((sum((col("change_rate") - avg("change_rate")) ** 2) / count("*")).alias("price_variance"))
result_df = trend_analysis.join(volatility_df, "product_type")
result_df = result_df.withColumn("volatility_level", when(col("price_variance") > 100, "High").when(col("price_variance") > 50, "Medium").otherwise("Low"))
pandas_result = result_df.toPandas()
spark.stop()
result_data = []
for _, row in pandas_result.iterrows():
result_data.append({"product_type": row["product_type"], "avg_price": float(row["period_avg_price"]), "max_price": float(row["max_price"]), "min_price": float(row["min_price"]), "volatility": float(row["avg_volatility"]), "volatility_level": row["volatility_level"], "price_variance": float(row["price_variance"])})
return JsonResponse({"status": "success", "data": result_data, "analysis_period": f"{time_range} days"})
def production_structure_analysis(request):
spark = SparkSession.builder.appName("ProductionStructureAnalysis").config("spark.sql.adaptive.enabled", "true").getOrCreate()
production_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agriculture_data").option("dbtable", "production_data").option("user", "root").option("password", "password").load()
region = request.GET.get('region', 'all')
year = request.GET.get('year', str(datetime.now().year))
filtered_df = production_df.filter(col("year") == int(year))
if region != 'all':
filtered_df = filtered_df.filter(col("region") == region)
total_production = filtered_df.agg(sum("production_volume").alias("total")).collect()[0]["total"]
structure_df = filtered_df.groupBy("product_type", "region").agg(sum("production_volume").alias("regional_production"), avg("yield_per_hectare").alias("avg_yield"), sum("planting_area").alias("total_area"))
structure_df = structure_df.withColumn("production_ratio", (col("regional_production") / total_production) * 100)
structure_df = structure_df.withColumn("productivity_index", col("avg_yield") / col("total_area"))
regional_summary = structure_df.groupBy("region").agg(sum("regional_production").alias("region_total"), avg("avg_yield").alias("region_avg_yield"), sum("total_area").alias("region_total_area"))
regional_summary = regional_summary.withColumn("region_contribution", (col("region_total") / total_production) * 100)
product_ranking = structure_df.groupBy("product_type").agg(sum("regional_production").alias("product_total")).orderBy(desc("product_total"))
top_products = product_ranking.limit(10)
efficiency_analysis = structure_df.withColumn("land_efficiency", col("regional_production") / col("total_area"))
efficiency_ranking = efficiency_analysis.groupBy("product_type").agg(avg("land_efficiency").alias("avg_efficiency")).orderBy(desc("avg_efficiency"))
concentration_df = structure_df.groupBy("product_type").agg(count("region").alias("production_regions"), max("production_ratio").alias("max_regional_share"))
concentration_df = concentration_df.withColumn("concentration_level", when(col("max_regional_share") > 50, "High").when(col("max_regional_share") > 30, "Medium").otherwise("Low"))
structure_pandas = structure_df.toPandas()
regional_pandas = regional_summary.toPandas()
efficiency_pandas = efficiency_ranking.toPandas()
concentration_pandas = concentration_df.toPandas()
spark.stop()
structure_result = []
for _, row in structure_pandas.iterrows():
structure_result.append({"product_type": row["product_type"], "region": row["region"], "production": int(row["regional_production"]), "ratio": float(row["production_ratio"]), "yield": float(row["avg_yield"]), "area": int(row["total_area"]), "productivity": float(row["productivity_index"])})
regional_result = [{"region": row["region"], "total_production": int(row["region_total"]), "contribution": float(row["region_contribution"]), "avg_yield": float(row["region_avg_yield"])} for _, row in regional_pandas.iterrows()]
return JsonResponse({"status": "success", "structure_data": structure_result, "regional_summary": regional_result, "total_production": int(total_production), "analysis_year": year})
def macro_impact_analysis(request):
spark = SparkSession.builder.appName("MacroImpactAnalysis").config("spark.sql.adaptive.enabled", "true").getOrCreate()
price_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agriculture_data").option("dbtable", "price_data").option("user", "root").option("password", "password").load()
macro_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agriculture_data").option("dbtable", "macro_indicators").option("user", "root").option("password", "password").load()
weather_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/agriculture_data").option("dbtable", "weather_data").option("user", "root").option("password", "password").load()
impact_factor = request.GET.get('impact_factor', 'gdp')
time_period = int(request.GET.get('time_period', 12))
end_date = datetime.now()
start_date = end_date - timedelta(days=time_period * 30)
price_filtered = price_df.filter((col("date") >= start_date) & (col("date") <= end_date))
macro_filtered = macro_df.filter((col("date") >= start_date) & (col("date") <= end_date))
weather_filtered = weather_df.filter((col("date") >= start_date) & (col("date") <= end_date))
monthly_price = price_filtered.groupBy("month", "product_type").agg(avg("price").alias("avg_monthly_price"), count("*").alias("price_records"))
monthly_macro = macro_filtered.groupBy("month").agg(avg("gdp_growth_rate").alias("avg_gdp"), avg("inflation_rate").alias("avg_inflation"), avg("exchange_rate").alias("avg_exchange"), avg("interest_rate").alias("avg_interest"))
monthly_weather = weather_filtered.groupBy("month", "region").agg(avg("temperature").alias("avg_temp"), sum("rainfall").alias("total_rainfall"), avg("humidity").alias("avg_humidity"))
regional_weather = monthly_weather.groupBy("month").agg(avg("avg_temp").alias("national_temp"), avg("total_rainfall").alias("national_rainfall"), avg("avg_humidity").alias("national_humidity"))
combined_df = monthly_price.join(monthly_macro, "month").join(regional_weather, "month")
if impact_factor == 'gdp':
correlation_df = combined_df.select("avg_monthly_price", "avg_gdp").toPandas()
correlation_value = correlation_df["avg_monthly_price"].corr(correlation_df["avg_gdp"])
impact_analysis = combined_df.withColumn("impact_score", when(col("avg_gdp") > 6.0, col("avg_monthly_price") * 1.1).when(col("avg_gdp") < 3.0, col("avg_monthly_price") * 0.9).otherwise(col("avg_monthly_price")))
elif impact_factor == 'weather':
correlation_df = combined_df.select("avg_monthly_price", "national_temp", "national_rainfall").toPandas()
temp_corr = correlation_df["avg_monthly_price"].corr(correlation_df["national_temp"])
rain_corr = correlation_df["avg_monthly_price"].corr(correlation_df["national_rainfall"])
correlation_value = (temp_corr + rain_corr) / 2
impact_analysis = combined_df.withColumn("impact_score", when((col("national_temp") > 35) | (col("national_rainfall") > 200), col("avg_monthly_price") * 1.2).when((col("national_temp") < 10) | (col("national_rainfall") < 50), col("avg_monthly_price") * 1.15).otherwise(col("avg_monthly_price")))
impact_summary = impact_analysis.groupBy("product_type").agg(avg("impact_score").alias("avg_impact"), max("impact_score").alias("max_impact"), min("impact_score").alias("min_impact"), count("*").alias("data_points"))
impact_summary = impact_summary.withColumn("impact_level", when(col("avg_impact") > col("min_impact") * 1.2, "High").when(col("avg_impact") > col("min_impact") * 1.1, "Medium").otherwise("Low"))
result_pandas = impact_summary.toPandas()
combined_pandas = combined_df.toPandas()
spark.stop()
impact_result = []
for _, row in result_pandas.iterrows():
impact_result.append({"product_type": row["product_type"], "avg_impact": float(row["avg_impact"]), "max_impact": float(row["max_impact"]), "min_impact": float(row["min_impact"]), "impact_level": row["impact_level"], "data_points": int(row["data_points"])})
trend_data = []
for _, row in combined_pandas.iterrows():
trend_data.append({"month": row["month"], "price": float(row["avg_monthly_price"]), "gdp": float(row["avg_gdp"]) if impact_factor == 'gdp' else None, "temperature": float(row["national_temp"]) if impact_factor == 'weather' else None, "rainfall": float(row["national_rainfall"]) if impact_factor == 'weather' else None})
return JsonResponse({"status": "success", "impact_analysis": impact_result, "correlation_value": float(correlation_value), "trend_data": trend_data, "analysis_factor": impact_factor, "time_period": f"{time_period} months"})

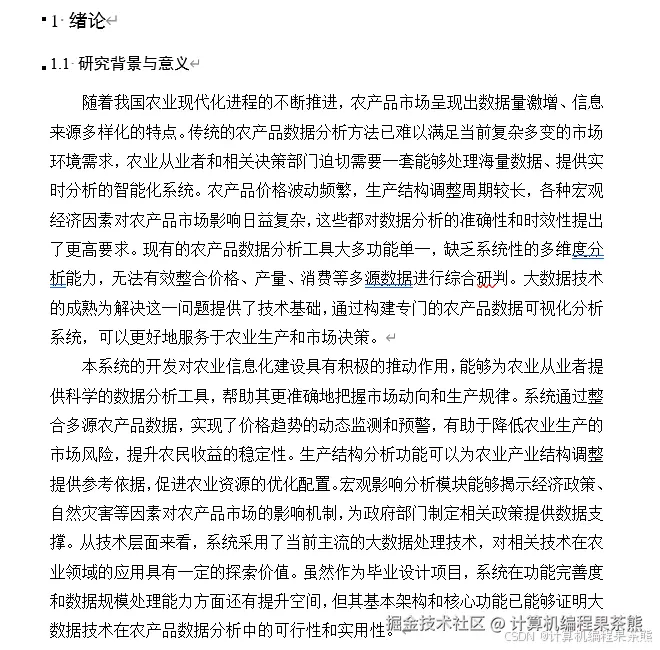

六、部分文档展示
