摘要
在前端工程化不断发展的今天，构建高效、稳定且可复用的发布流水线是保障项目快速迭代与高质量交付的关键。基于YAML（YAML Ain't Markup Language）的前端发布流水线，凭借其简洁的语法和强大的配置能力，成为众多团队的首选方案
本文将介绍基于YAML的前端发布流水线的设计思路和实践
背景
公司随着前端工程越来越多，出现了以下问题：
1、相同类型的脚本不一致，容易引发线上问题，例如Web的多个项目，都是使用Webpack构建工具，但部署脚本不一致，这里面还有历史的“隐藏逻辑”，这都可能直接导致线上问题
2、开发效率低下，当新应用创建时，没有标准，不知道用哪个发布模板，就会导致每个业务小组，一直有增量的部署脚本，去写逻辑适配各种项目，过程中也会有写死的变量或者配置
3、不具备灵活的配置能力，例如无法快速切换Node或者包管理工具（当前只能每次手动调整部署脚本）
为解决以上问题，我们借鉴GitLab的YAML流水线的设计思路，去做标准化发布模板，抽象分类为【Web】、【H5】、【NPM】、【Node】前端4大类标准发布模板
为什么使用YAML？
在设计和实现前端发布流水线时，配置语言的选择至关重要。主流选项包括YAML、JSON、XML和自定义DSL等，我们选择YAML基于以下考量：
- 可读性强：YAML的缩进格式和简洁语法，使流水线配置文件一目了然，开发人员能够快速理解整个发布流程
- 可复用性高：可以将通用的流水线配置提取成模板，不同项目只需根据自身需求进行少量修改，即可快速复用，减少重复开发工作
- 易于维护：当发布流程发生变化时，只需修改YAML文件中的相应配置，无需改动大量代码，降低了维护成本

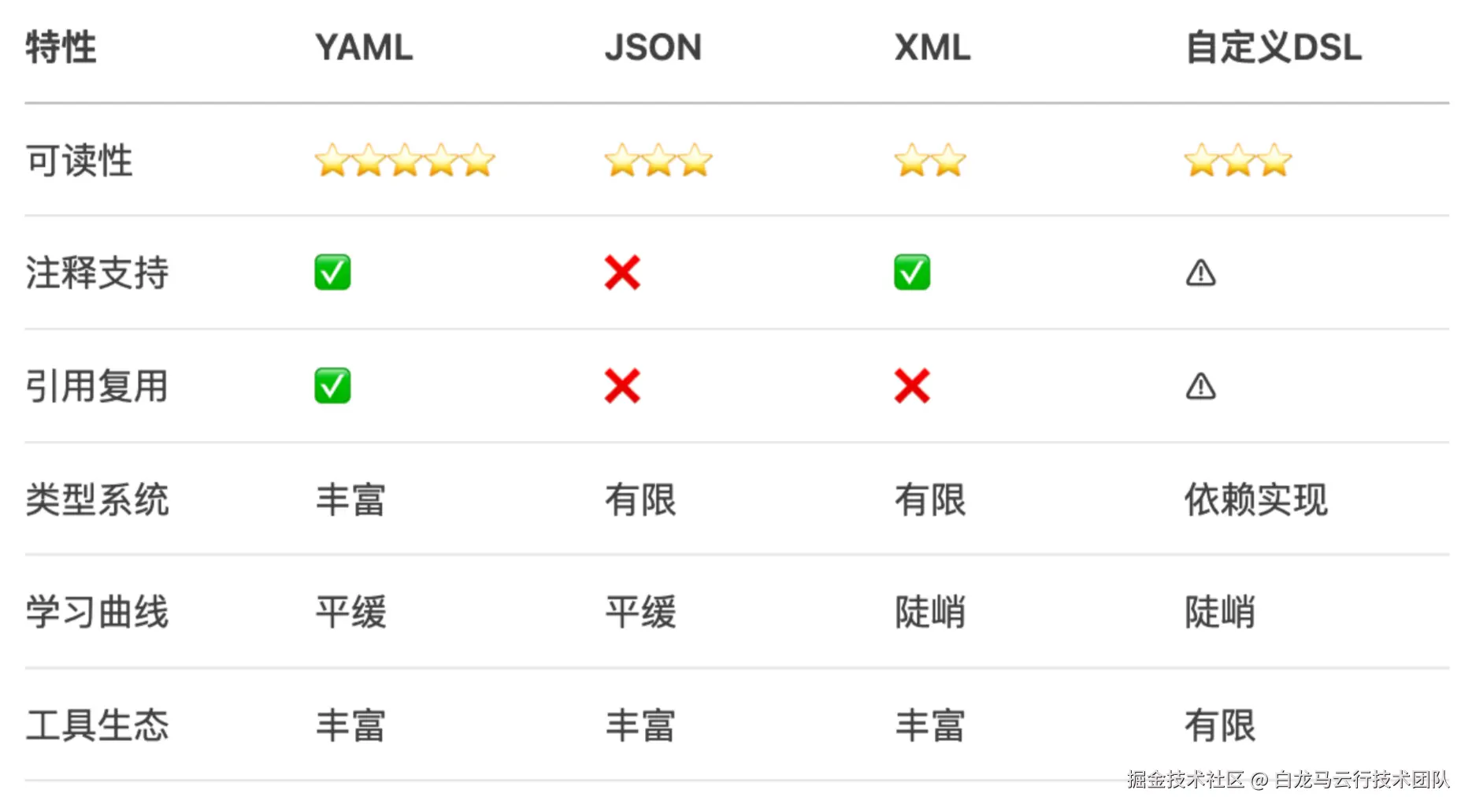

以下为详细对比：
前端发布流水线架构设计

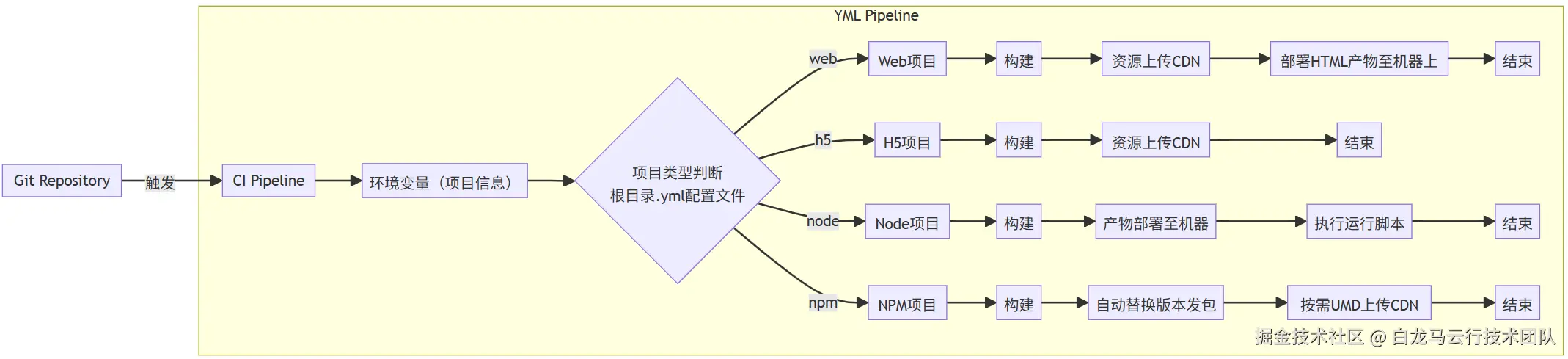

1.整体架构图
关键点：
- 首先我们会通过我们的CI环境，注入整体的环境变量，这里包含后面构建所需的全局信息，比如当前部署的分支、版本、人员等，后续任何流程都可以用到A
- 我们根据YAML配置好的项目类型，去执行对应的“标准发布流程”，以做到标准化
- 在“标准发布流程”基准上，我们也支持业务方定义自己的逻辑脚本，以做到差异化
- 最后备注，像代码的静态检查、发布后的健康检查，目前是集成到我们机器上的通用能力
2.核心阶段设计
以下就是1个自动化流程的示例，触发时机为：
- 推送到 main 或 develop 分支（比如合并代码）
- 创建pull request到main分支（代码审查时）
- 每天凌晨2点（自动巡检）
涵盖流程：
- 代码质量检查：ESLint、TypeScript、复杂度分析
- 自动化测试：输出测试报告
- 安全检查：依赖包、敏感信息
- 构建打包：分析包大小部署上线：云服务器、CDN部署后验证：健康检查、监控
name: Frontend Deployment Pipeline
on:
push:
branches: [main, develop]
pull_request:
branches: [main]
schedule:
- cron: '0 2 * * *' # 每日凌晨2点自动运行
env:
NODE_ENV: production
CI: true
jobs:
# 1. 代码质量检查阶段
code_quality:
name: "代码质量检查"
runs-on: ubuntu-latest
steps:
- name: Checkout code
uses: actions/checkout@v4
with:
fetch-depth: 0 # 全量历史记录，用于代码分析
- name: ESLint检查
run: npx eslint src/ --max-warnings=0
- name: TypeScript类型检查
run: npx tsc --noEmit --skipLibCheck
- name: 代码复杂度分析
run: npx complexity-report src/ --output complexity.json
- name: 上传检查结果
uses: actions/upload-artifact@v3
with:
name: code-quality-reports
path: |
complexity.json
eslint-report.html
# 2. 测试阶段
test_matrix:
name: "测试套件 - ${{ matrix.test-type }}"
runs-on: ubuntu-latest
needs: code_quality
strategy:
matrix:
test-type: [unit, integration, e2e, visual]
node-version: [16.x, 18.x]
steps:
- name: Checkout code
uses: actions/checkout@v4
- name: Setup Node.js ${{ matrix.node-version }}
uses: actions/setup-node@v3
with:
node-version: ${{ matrix.node-version }}
cache: 'npm'
- name: Install dependencies
run: npm ci
- name: Run ${{ matrix.test-type }} tests
run: npm run test:${{ matrix.test-type }} -- --ci --reporters=default --reporters=github-actions
- name: Upload test results
uses: actions/upload-artifact@v3
with:
name: test-results-${{ matrix.test-type }}
path: |
test-results/
coverage/
# 3. 安全扫描阶段
security_scan:
name: "安全扫描"
runs-on: ubuntu-latest
needs: test_matrix
steps:
- name: Checkout code
uses: actions/checkout@v4
- name: SCA软件成分分析
uses: shiftleftio/scan-action@master
with:
output: reports/
- name: 依赖漏洞扫描
run: npm audit --audit-level moderate --json > audit-report.json
- name: 敏感信息检测
uses: gitleaks/gitleaks-action@v2
with:
config-path: .gitleaks.toml
- name: 上传安全报告
uses: actions/upload-artifact@v3
with:
name: security-reports
path: |
reports/
audit-report.json
# 4. 构建阶段
build_optimized:
name: "构建"
runs-on: ubuntu-latest
needs: security_scan
steps:
- name: Checkout code
uses: actions/checkout@v4
- name: Setup Node.js
uses: actions/setup-node@v3
with:
node-version: '18.x'
cache: 'npm'
- name: Install dependencies
run: npm ci
- name: Build application
run: npm run build
env:
GENERATE_SOURCEMAP: false
- name: Bundle分析
run: npx webpack-bundle-analyzer build/static/js/*.js -m static -r report.html
- name: 性能预算检查
run: npx bundle-buddy build/static/js/*.js --budget 250kb
- name: 上传构建产物
uses: actions/upload-artifact@v3
with:
name: production-build
path: build/
retention-days: 7
# 5. 部署阶段
deploy_production:
name: "生产部署"
runs-on: ubuntu-latest
needs: build_optimized
if: github.ref == 'refs/heads/main'
environment: production
steps:
- name: Download build artifacts
uses: actions/download-artifact@v3
with:
name: production-build
- name: Configure AWS credentials
uses: aws-actions/configure-aws-credentials@v2
with:
aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
aws-region: us-east-1
- name: Deploy to S3
run: |
aws s3 sync ./build s3://${{ vars.PRODUCTION_BUCKET }} \
--acl public-read \
--cache-control "max-age=31536000" \
--delete
- name: Create CloudFront invalidation
run: |
aws cloudfront create-invalidation \
--distribution-id ${{ secrets.CLOUDFRONT_DISTRIBUTION_ID }} \
--paths "/*"
- name: Verify deployment
run: |
curl -sSf https://${{ vars.PRODUCTION_DOMAIN }}/health > /dev/null
echo "Deployment verified successfully"
# 6. 监控验证阶段
post_deployment:
name: "发布后验证"
runs-on: ubuntu-latest
needs: deploy_production
steps:
- name: Run synthetic monitoring
uses: checkly/checkly-actions@v2
with:
api-key: ${{ secrets.CHECKLY_API_KEY }}
directory: .checkly
- name: Performance testing
uses: treosh/lighthouse-ci-action@v10
with:
uploadArtifacts: true
temporaryPublicStorage: true
- name: Error tracking setup
run: |
npx @sentry/cli releases new ${{ github.sha }}
npx @sentry/cli releases set-commits ${{ github.sha }} --auto
- name: Notify team
uses: 8398a7/action-slack@v3
with:
status: ${{ job.status }}
channel: '#frontend-deploys'
webhook: ${{ secrets.SLACK_WEBHOOK_URL }}
多环境管理与策略配置
1.环境定义与策略
以下是一个定义了三个不同的部署环境（开发、预发布、生产），每个环境有不同的规则和权限控制的示例，整体区别为：
- 部署的环境不一致，例如域名、分支
- 审批的严格程度不一致，例如生产环境是最严格的，需要多方审批人
# 环境特定配置
environments:
development:
name: Development
url: https://dev.example.com
deployment-branch: develop
protection-rules:
- required_reviewers:
teams: [frontend-leads]
- required_status_checks:
strict: false
contexts: [ci-build, ci-test]
staging:
name: Staging
url: https://staging.example.com
deployment-branch: release/*
protection-rules:
- required_reviewers:
count: 2
teams: [qa-team, frontend-leads]
- required_status_checks:
strict: true
contexts: [ci-build, ci-test, security-scan]
production:
name: Production
url: https://example.com
deployment-branch: main
protection-rules:
- required_reviewers:
count: 3
teams: [engineering-managers, frontend-leads, product-owners]
- required_status_checks:
strict: true
contexts: [ci-build, ci-test, security-scan, performance-test]
secrets:
- AWS_PROD_ACCESS_KEY
- AWS_PROD_SECRET_KEY
# 环境感知的变量配置
jobs:
deploy:
environment: ${{ github.ref == 'refs/heads/main' && 'production' || 'staging' }}
steps:
- name: Inject environment variables
run: |
cat > .env << EOF
REACT_APP_API_URL=${{ vars.API_URL }}
REACT_APP_ENVIRONMENT=${{ github.ref == 'refs/heads/main' && 'production' || 'staging' }}
REACT_APP_VERSION=${{ github.sha }}
REACT_APP_BUILD_DATE=$(date -u +"%Y-%m-%dT%H:%M:%SZ")
EOF
2.蓝绿部署与金丝雀发布
以下是定义了两种不同的上线方式，根据commit信息自动选择用哪种方式部署，让上线更安全的示例
蓝绿部署 (Blue-Green) - 默认方式
就像有两条并行的公路：
- 蓝环境：当前正在服务的版本（用户正在使用的）
- 绿环境：准备上线的新版本
上线过程：
- 在绿环境部署新版本
- 全面测试绿环境是否正常
- 一键切换：把所有用户流量从蓝环境切换到绿环境
如果发现问题，秒级切回蓝环境
特点： ⚡ 快速安全，用户体验无感知
金丝雀发布 (Canary) - 渐进式上线
就像矿工带金丝鸟下矿探测毒气：
- 先让一小部分用户（比如10%）使用新版本
- 观察一段时间，确认没问题
- 逐步增加用户比例（5% → 10% → 20%...）
- 最终所有用户都用上新版本
deploy_strategy:
name: "蓝绿部署"
runs-on: ubuntu-latest
environment: production
steps:
- name: Determine deployment strategy
id: strategy
run: |
if [[ "${{ github.event.head_commit.message }}" =~ \[canary\] ]]; then
echo "strategy=canary" >> $GITHUB_OUTPUT
else
echo "strategy=blue-green" >> $GITHUB_OUTPUT
fi
- name: Blue-green deployment
if: steps.strategy.outputs.strategy == 'blue-green'
run: |
# 蓝绿部署逻辑
./scripts/blue-green-deploy.sh \
--new-version ${{ github.sha }} \
--traffic-shift 100 \
--health-check-timeout 300
- name: Canary deployment
if: steps.strategy.outputs.strategy == 'canary'
run: |
# 金丝雀发布逻辑
./scripts/canary-deploy.sh \
--new-version ${{ github.sha }} \
--initial-traffic 10 \
--increment 5 \
--interval 15m \
--max-time 2h
安全合规与最佳实践
1.安全扫描与合规检查
以下是一个全方位安全检查流程，确保代码和依赖包没有安全风险的示例
- 软件成本分析
- 依赖漏洞扫描
- 敏感信息检测
- 许可证回归检查
- 软件物料清单
security_compliance:
name: "安全合规检查"
runs-on: ubuntu-latest
steps:
- name: Checkout code
uses: actions/checkout@v4
- name: Software Composition Analysis
uses: shiftleftio/scan-action@master
with:
output: reports/sca/
- name: Dependency vulnerability scanning
run: |
npm audit --audit-level moderate --json > audit-report.json
npx audit-ci --moderate --report --config audit-ci.json
- name: Secrets detection
uses: gitleaks/gitleaks-action@v2
with:
config-path: .gitleaks.toml
redact: true
- name: License compliance check
run: |
npx license-checker --summary --excludePrivatePackages --onlyAllow "MIT;Apache-2.0;BSD-3-Clause"
- name: Generate SBOM
run: |
npx cyclonedx-bom -o bom.xml
npx spdx-sbom-generator -o spdx.json
- name: Upload security artifacts
uses: actions/upload-artifact@v3
with:
name: security-compliance-reports
path: |
reports/
audit-report.json
bom.xml
spdx.json
2.密钥管理与安全实践
以下是一个安全处理密码和密钥的流程，避免把敏感信息直接写在代码里，确保安全部署的示例
主要用于连接数据库、云服务等第三方的场景
secret_management:
name: "密钥管理"
runs-on: ubuntu-latest
environment: production
steps:
- name: Configure AWS credentials
uses: aws-actions/configure-aws-credentials@v2
with:
aws-access-key-id: ${{ secrets.AWS_ACCESS_KEY_ID }}
aws-secret-access-key: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
aws-region: ${{ vars.AWS_REGION }}
- name: Retrieve secrets from Parameter Store
run: |
aws ssm get-parameters \
--names /app/production/DATABASE_URL /app/production/API_KEY \
--with-decryption \
--query "Parameters[*].{Name:Name,Value:Value}" \
--output json > secrets.json
- name: Inject secrets as environment variables
run: |
jq -r '.[] | "export \(.Name | sub("/app/production/"; ""))=\"\(.Value)\""' secrets.json >> $GITHUB_ENV
- name: Deploy with secrets
env:
DATABASE_URL: ${{ env.DATABASE_URL }}
API_KEY: ${{ env.API_KEY }}
run: |
./deploy-with-secrets.sh
监控、可观测性与故障排除
1.全方位监控体系
以下是一个网站上线后的"体检和监控"系统，帮你实时监控网站是否健康，出现问题及时报警的示例，涵盖：
- 应用性能监控，例如服务器性能
- 用户监控，例如用户访问网站时的性能
- 错误监控，例如网站发生的错误
- 机器人模拟监控，用机器人模拟用户操作，日常监控主要功能模块是否正常运行
- 健康检查，检查服务器各项指标是否正常
- 性能监控，这部分主要使用lighthouse输出性能报告（首次加载时间、交互响应速度等）
monitoring_observability:
name: "监控与可观测性"
runs-on: ubuntu-latest
needs: deploy_production
steps:
- name: Configure application monitoring
run: |
npx init-app-monitoring \
--provider datadog \
--env production \
--api-key ${{ secrets.DATADOG_API_KEY }}
- name: Setup Real User Monitoring
run: |
npx inject-rum \
--provider newrelic \
--app-id ${{ secrets.NEW_RELIC_APP_ID }} \
--license-key ${{ secrets.NEW_RELIC_LICENSE_KEY }}
- name: Configure error tracking
run: |
npx setup-error-tracking \
--provider sentry \
--dsn ${{ secrets.SENTRY_DSN }} \
--release ${{ github.sha }}
- name: Setup synthetic monitoring
uses: checkly/checkly-actions@v2
with:
api-key: ${{ secrets.CHECKLY_API_KEY }}
directory: .checkly
- name: Generate health check endpoints
run: |
npx generate-health-check \
--path /health \
--timeout 5000 \
--checks database,redis,external-api
- name: Performance benchmarking
uses: treosh/lighthouse-ci-action@v10
with:
uploadArtifacts: true
temporaryPublicStorage: true
configPath: .lighthouseci.json
2.智能故障排除与自愈
以下是一个智能故障处理系统，当部署或测试失败时，自动诊断问题、尝试修复，甚至决定是否回滚的示例
troubleshooting_recovery:
name: "故障排除与自愈"
runs-on: ubuntu-latest
if: always()
steps:
- name: Run automated diagnostics
if: failure()
run: |
npx run-diagnostics --full --output diagnostics-report.json
- name: Auto-remediate common issues
if: failure()
run: |
npx auto-fix-common-issues --fix --report
- name: Performance bottleneck analysis
if: failure()
run: |
npx analyze-performance-bottlenecks --output bottlenecks.json
- name: Regression detection
if: failure()
run: |
npx detect-regressions \
--baseline baseline-metrics.json \
--current current-metrics.json
- name: Smart rollback decision
if: failure()
run: |
npx smart-rollback-decider \
--current ${{ github.sha }} \
--metrics current-metrics.json \
--baseline baseline-metrics.json \
--output rollback-decision.json
- name: Notify on failure
if: failure()
uses: 8398a7/action-slack@v3
with:
status: ${{ job.status }}
channel: '#frontend-alerts'
webhook: ${{ secrets.SLACK_WEBHOOK_URL }}
fields: job,message,commit,author
企业级案例：平台发布流水线
以下是一个为电商网站量身定制的智能发布系统，专门解决电商特有的业务问题，比如库存、支付、促销等的示例
这是一个"电商专属的智能发布管家"：
- 🛒 上线前检查 → 库存够吗？支付系统正常吗？是营业时间吗？
- 🚀 智能发布 → 选择合适的发布方式，保证用户购物车不丢
- ✅ 业务验证 → 真实测试购物流程，监控销售额影响
name: E-commerce Platform Pipeline
on:
workflow_dispatch:
inputs:
release-type:
description: '发布策略'
required: true
default: 'canary'
type: choice
options:
- canary
- blue-green
- rolling
traffic-percentage:
description: '流量百分比'
required: false
default: '10'
jobs:
pre_deployment_checks:
name: "预部署业务检查"
runs-on: ubuntu-latest
steps:
- name: Inventory availability check
run: npx inventory-check --seasonal --promotional --threshold 1000
- name: Third-party service health
run: npx check-third-party-services --critical payment,shipping,inventory --timeout 30000
- name: Business hours validation
run: npx validate-business-hours --timezone EST --start 9 --end 21 --exclude-weekends
- name: Campaign schedule check
run: npx check-campaign-schedule --exclude-overlap --min-interval 24h
deployment_orchestration:
name: "部署编排 - ${{ inputs.release-type }}"
runs-on: ubuntu-latest
needs: pre_deployment_checks
steps:
- name: Execute deployment strategy
run: |
case ${{ inputs.release-type }} in
canary)
npx deploy-canary --percentage ${{ inputs.traffic-percentage }} --duration 30m
;;
blue-green)
npx deploy-blue-green --switch-after 300 --drain-timeout 600
;;
rolling)
npx deploy-rolling --batch-size 20 --wait-time 60 --health-check-timeout 120
;;
esac
- name: Session affinity handling
run: npx handle-session-affinity --strategy sticky --timeout 3600 --cookie-name affinity
- name: Shopping cart migration
run: npx migrate-shopping-cart --strategy copy-on-write --validate --timeout 300
post_deployment_validation:
name: "发布后业务验证"
runs-on: ubuntu-latest
needs: deployment_orchestration
steps:
- name: Transaction flow test
run: npx test-transaction-flow --scenarios checkout,purchase,refund,guest-checkout --concurrency 10
- name: A/B testing configuration
run: npx configure-ab-test --variants control,variant --split ${{ inputs.traffic-percentage }} --metrics conversion-rate,revenue
- name: Personalization check
run: npx verify-personalization --user-segments new,returning,vip,abandoned-cart --sampling 0.1
- name: SEO metadata validation
run: npx validate-seo --meta-tags --structured-data --canonical --social-meta --output seo-report.json
- name: Performance impact assessment
run: npx assess-performance-impact --baseline baseline-metrics.json --current current-metrics.json --threshold 5%
落地结果
“基于YAML的前端发布流水线”已覆盖公司前端【Web】、【H5】、【NPM】、【Node】共百余+ 个项目，共上万次稳定发布，直接收益：
- 可快速切换Node版本 & Npm包管理，以支持项目迭代升级
- 通用能力统一建设，例如WEB的资源CDN上传，支持阿里云、腾讯云上传，以支持CDN多云容灾能力
- 同时支持业务自己定制化脚本
- 统一收敛后，共删除了每个业务自己维护的Jenkins Job 几十个，减少业务方自己的维护成本，专注业务开发
- 新建应用针对部署流程的改造时间由每次0.5人天左右缩减为0.1人天
