基于大数据的全球用水量数据可视化分析系统-功能介绍
本系统是一套基于大数据技术的全球用水量数据可视化分析平台，采用Hadoop+Spark分布式计算框架处理海量的全球水资源数据，结合Django后端框架和Vue前端技术栈，实现对全球各国用水数据的深度挖掘与智能分析。系统运用Spark SQL进行大规模数据查询与聚合计算，通过Pandas和NumPy进行数据预处理和统计分析，利用Echarts可视化组件将复杂的水资源数据转化为直观的图表展示。平台具备全球水资源消耗时序演变分析、各国用水特征横向对比、水资源稀缺性归因分析、重点国家深度剖析以及多维指标关联聚类等五大核心功能模块，能够从时间维度追踪全球用水量变化趋势，从空间维度对比不同国家的用水模式，从结构维度分析农业、工业、生活三大领域的用水占比演变，同时运用K-Means聚类算法识别相似用水模式的国家群体，为水资源管理决策提供科学的数据支撑，帮助用户深入理解全球水资源利用现状与发展趋势。
基于大数据的全球用水量数据可视化分析系统-选题背景意义
选题背景 随着全球人口持续增长和经济发展模式的深刻变化，水资源作为支撑人类社会可持续发展的基础要素，其供需矛盾日益凸显。当前世界各国在水资源利用效率、配置结构和管理水平方面存在显著差异，部分地区已经出现严重的水资源短缺问题，而另一些地区则面临水资源利用不合理的挑战。传统的水资源数据分析方法往往局限于单一国家或地区的小规模数据处理，难以从全球视角把握水资源利用的整体格局和演变规律。面对日益增长的海量水资源数据，传统的数据处理技术已无法满足大规模、多维度、实时性的分析需求。同时，气候变化、产业结构调整、城镇化进程等因素对全球水资源分配格局产生深刻影响，迫切需要运用先进的大数据技术构建全球性的水资源数据分析平台，实现对全球用水数据的高效采集、存储、处理和可视化展示，为全球水资源治理提供科学决策依据。 选题意义 本课题的研究具有重要的理论价值和实践意义。从技术层面来看，项目将大数据处理技术与水资源领域相结合，探索了Hadoop分布式存储和Spark内存计算在环境数据处理中的应用模式，为类似的大规模环境数据分析项目提供了技术参考。从应用角度而言，系统能够帮助研究人员、政策制定者和环保组织更好地理解全球水资源利用现状，识别不同国家和地区在水资源管理方面的经验与不足，促进国际间的水资源合作与交流。通过可视化展示复杂的水资源数据，系统降低了专业数据分析的技术门槛，使非专业用户也能够直观地获取有价值的信息。虽然作为毕业设计项目在规模和深度上有一定局限性，但其构建的分析框架和技术方案为后续更大规模的水资源数据平台开发奠定了基础。项目的完成过程也有助于提升大数据技术在实际问题解决中的应用能力，加深对分布式计算、数据可视化和机器学习算法的理解与掌握，为未来在相关领域的深入研究和职业发展提供宝贵的实践经验。
基于大数据的全球用水量数据可视化分析系统-技术选型
大数据框架：Hadoop+Spark（本次没用Hive，支持定制） 开发语言：Python+Java（两个版本都支持） 后端框架：Django+Spring Boot(Spring+SpringMVC+Mybatis)（两个版本都支持） 前端：Vue+ElementUI+Echarts+HTML+CSS+JavaScript+jQuery 详细技术点：Hadoop、HDFS、Spark、Spark SQL、Pandas、NumPy 数据库：MySQL
基于大数据的全球用水量数据可视化分析系统-视频展示

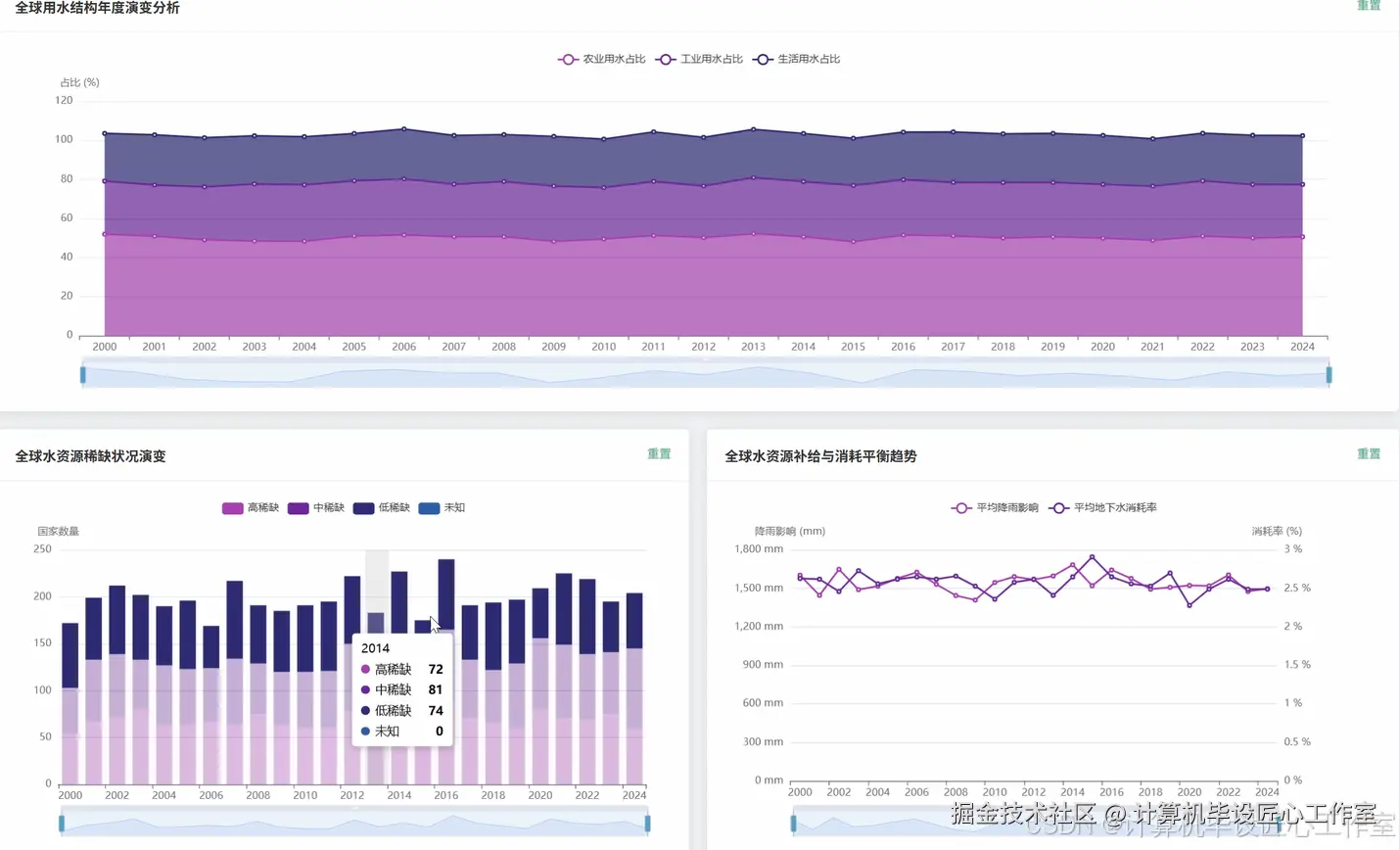

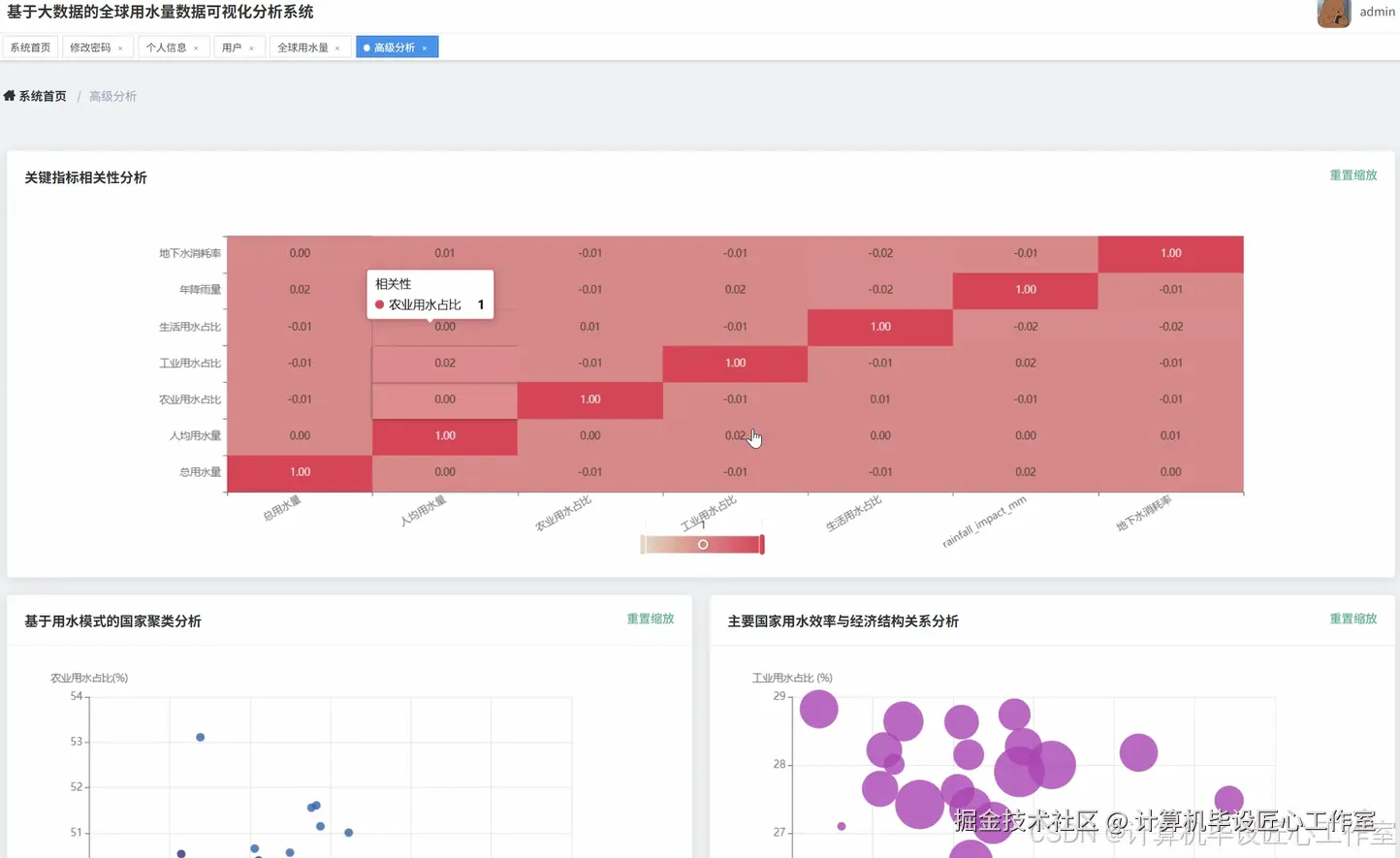

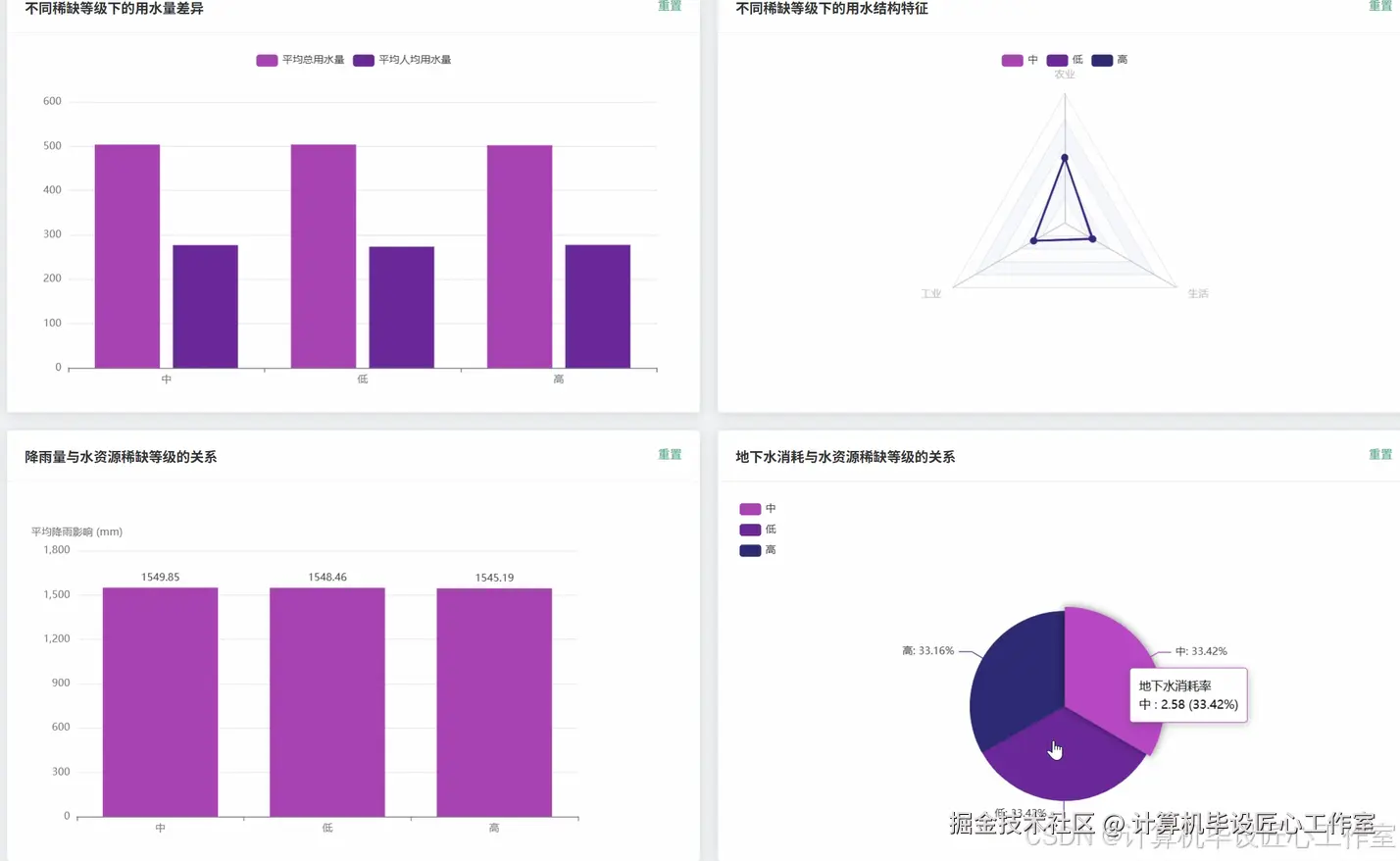

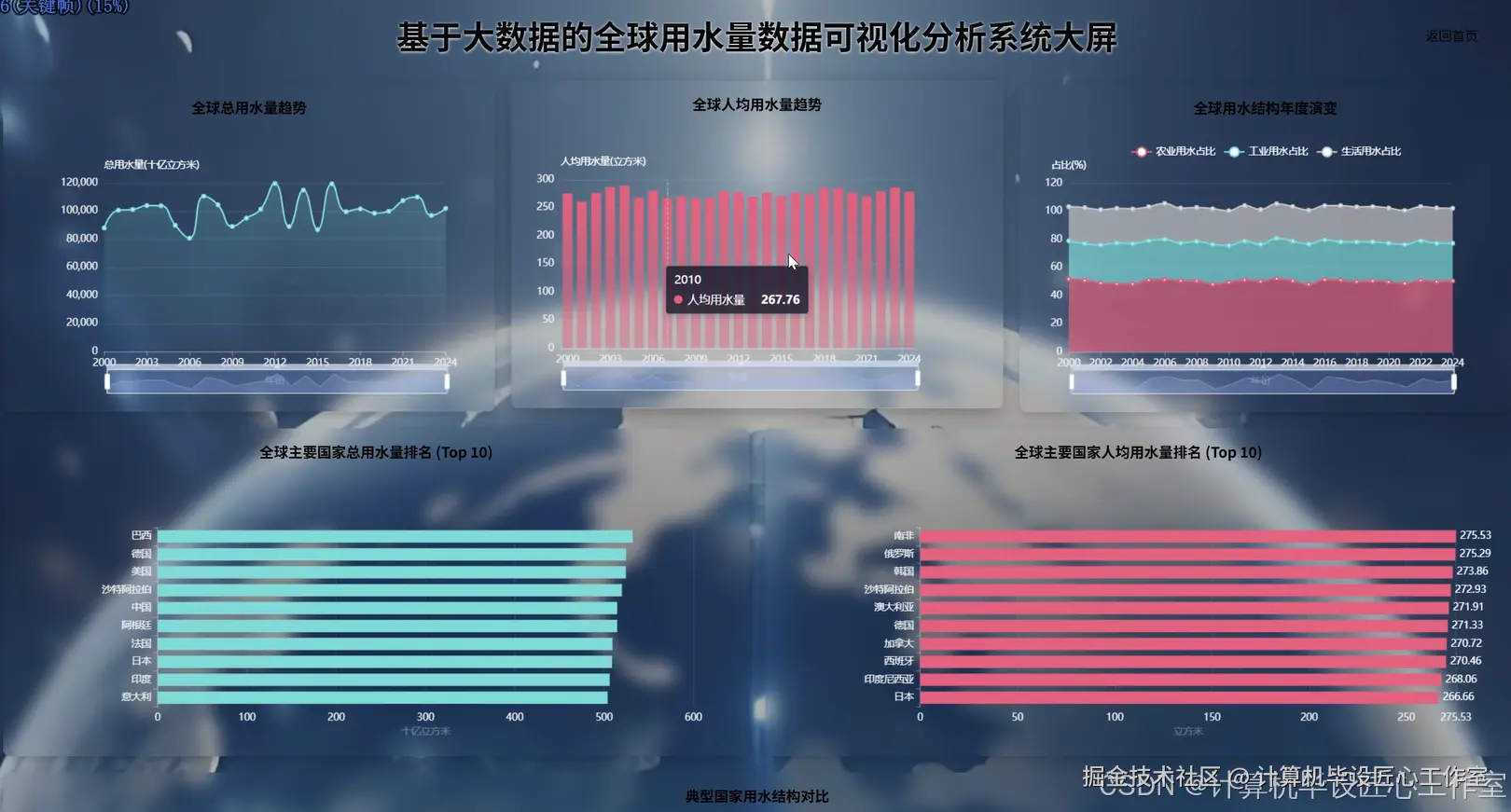

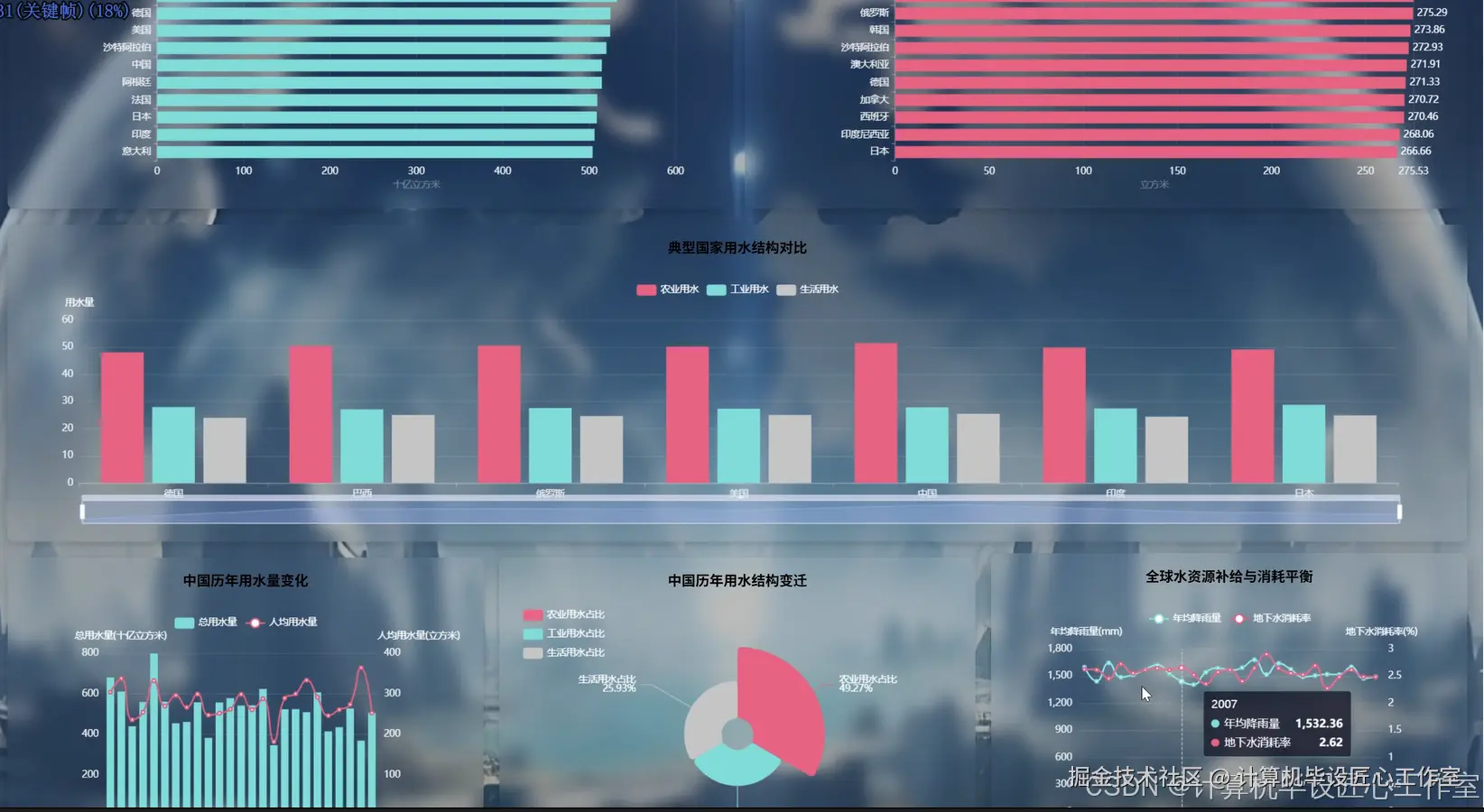

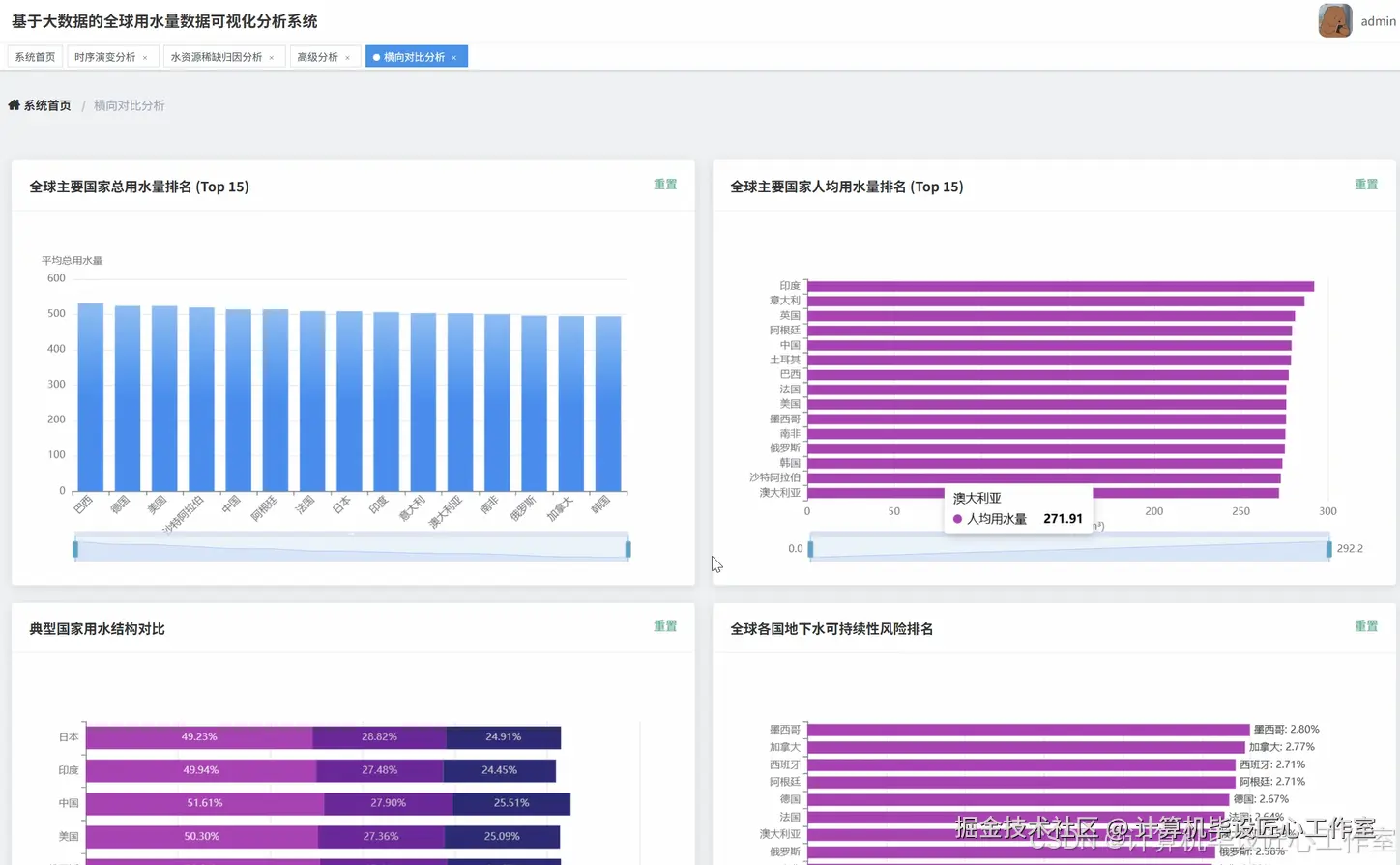

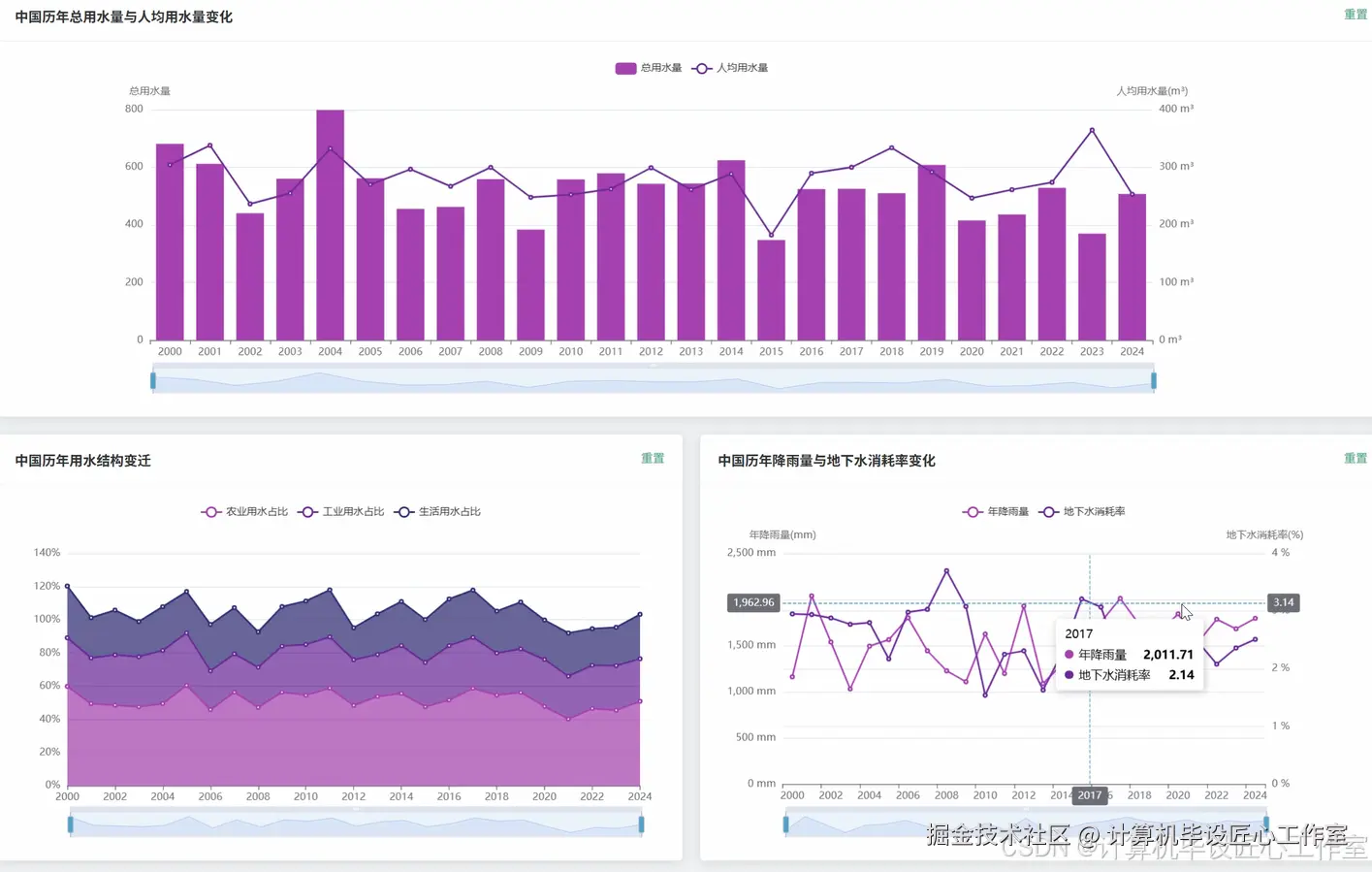

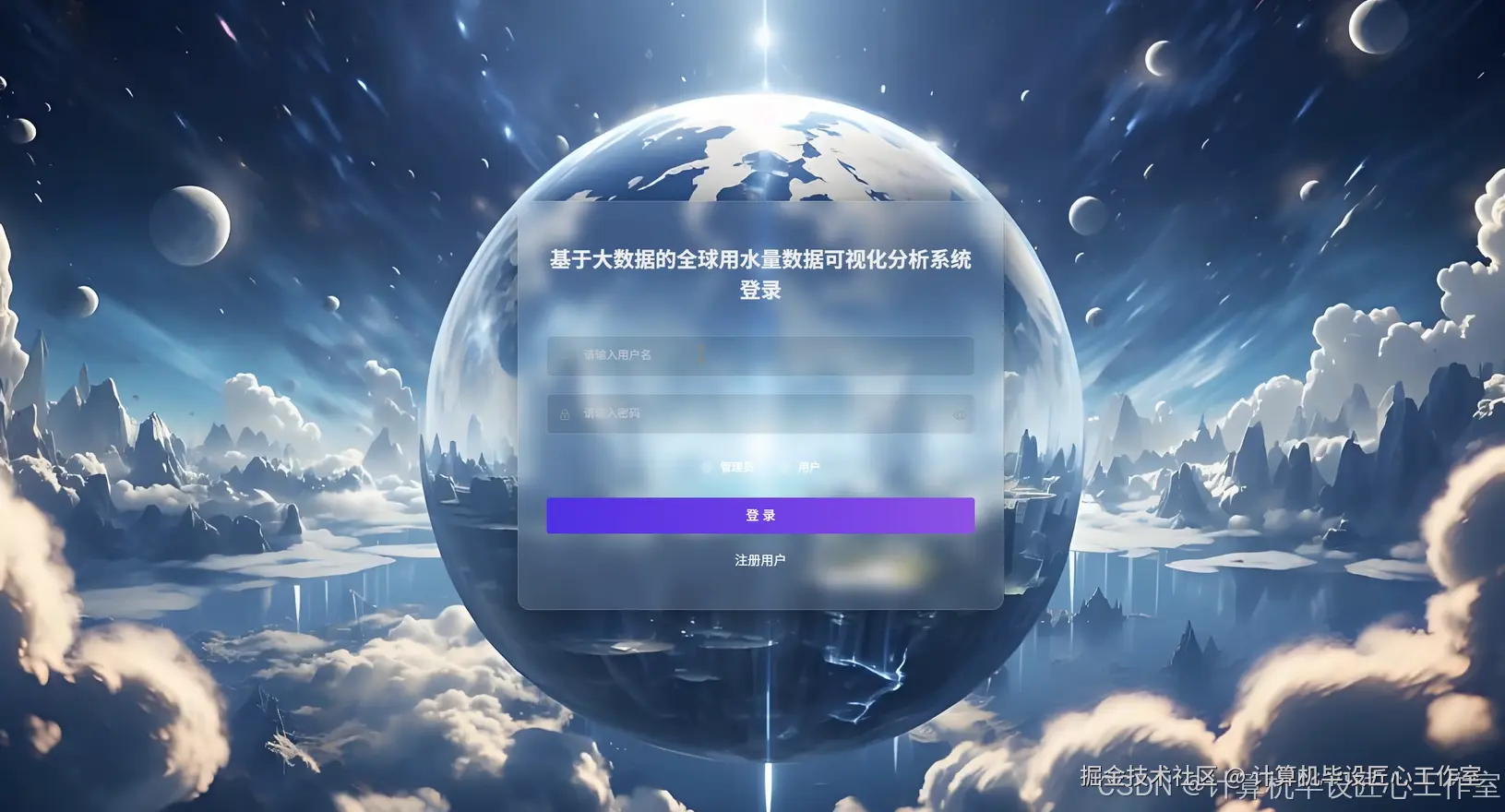

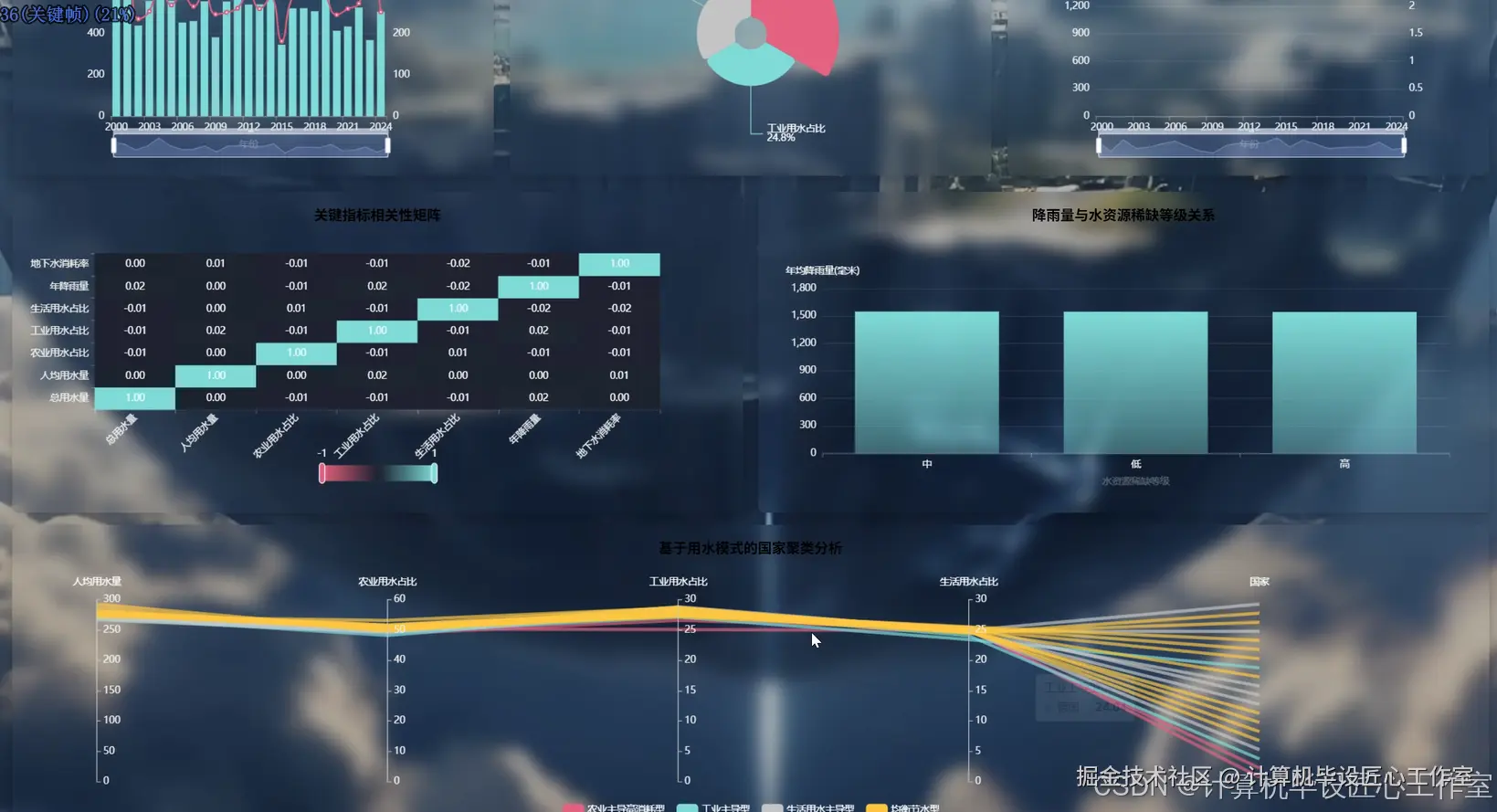

基于大数据的全球用水量数据可视化分析系统-图片展示
基于大数据的全球用水量数据可视化分析系统-代码展示
from pyspark.sql import SparkSession
from pyspark.sql.functions import *
from pyspark.ml.clustering import KMeans
from pyspark.ml.feature import VectorAssembler
import pandas as pd
import numpy as np
from django.http import JsonResponse
from django.views.decorators.csrf import csrf_exempt
import json
spark = SparkSession.builder.appName("GlobalWaterAnalysis").config("spark.sql.adaptive.enabled", "true").config("spark.sql.adaptive.coalescePartitions.enabled", "true").getOrCreate()
@csrf_exempt
def global_water_consumption_trend_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
start_year = data.get('start_year', 2000)
end_year = data.get('end_year', 2023)
water_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/water_db").option("dbtable", "global_water_data").option("user", "root").option("password", "password").load()
filtered_df = water_df.filter((col("Year") >= start_year) & (col("Year") <= end_year))
yearly_consumption = filtered_df.groupBy("Year").agg(sum("Total_Water_Consumption").alias("total_consumption"), avg("Per_Capita_Water_Use").alias("avg_per_capita"), avg("Agricultural_Water_Use_Percent").alias("avg_agricultural"), avg("Industrial_Water_Use_Percent").alias("avg_industrial"), avg("Household_Water_Use_Percent").alias("avg_household"))
trend_data = yearly_consumption.orderBy("Year").collect()
consumption_growth_rate = []
for i in range(1, len(trend_data)):
current_consumption = trend_data[i]['total_consumption']
previous_consumption = trend_data[i-1]['total_consumption']
growth_rate = ((current_consumption - previous_consumption) / previous_consumption) * 100
consumption_growth_rate.append({'year': trend_data[i]['Year'], 'growth_rate': round(growth_rate, 2)})
water_structure_evolution = []
for row in trend_data:
structure_data = {'year': row['Year'], 'agricultural': round(row['avg_agricultural'], 1), 'industrial': round(row['avg_industrial'], 1), 'household': round(row['avg_household'], 1)}
water_structure_evolution.append(structure_data)
sustainability_index = filtered_df.groupBy("Year").agg(avg("Groundwater_Depletion_Rate").alias("avg_depletion"), avg("Rainfall_Impact").alias("avg_rainfall"))
sustainability_data = []
for row in sustainability_index.collect():
sustainability_score = max(0, 100 - (row['avg_depletion'] * 2) + (row['avg_rainfall'] / 50))
sustainability_data.append({'year': row['Year'], 'sustainability_score': round(sustainability_score, 1), 'depletion_rate': round(row['avg_depletion'], 2), 'rainfall': round(row['avg_rainfall'], 1)})
result_data = {'yearly_trends': [{'year': row['Year'], 'total_consumption': row['total_consumption'], 'per_capita': round(row['avg_per_capita'], 1)} for row in trend_data], 'growth_rates': consumption_growth_rate, 'structure_evolution': water_structure_evolution, 'sustainability_trends': sustainability_data}
return JsonResponse({'status': 'success', 'data': result_data})
return JsonResponse({'status': 'error', 'message': 'Invalid request method'})
@csrf_exempt
def country_water_usage_comparison_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
comparison_type = data.get('comparison_type', 'total_consumption')
limit_count = data.get('limit', 20)
water_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/water_db").option("dbtable", "global_water_data").option("user", "root").option("password", "password").load()
country_aggregated = water_df.groupBy("Country").agg(avg("Total_Water_Consumption").alias("avg_total_consumption"), avg("Per_Capita_Water_Use").alias("avg_per_capita"), avg("Agricultural_Water_Use_Percent").alias("avg_agricultural"), avg("Industrial_Water_Use_Percent").alias("avg_industrial"), avg("Household_Water_Use_Percent").alias("avg_household"), avg("Groundwater_Depletion_Rate").alias("avg_depletion"), count("*").alias("data_points"))
if comparison_type == 'total_consumption':
ranked_countries = country_aggregated.orderBy(desc("avg_total_consumption")).limit(limit_count)
ranking_field = "avg_total_consumption"
elif comparison_type == 'per_capita':
ranked_countries = country_aggregated.orderBy(desc("avg_per_capita")).limit(limit_count)
ranking_field = "avg_per_capita"
elif comparison_type == 'sustainability_risk':
ranked_countries = country_aggregated.orderBy(desc("avg_depletion")).limit(limit_count)
ranking_field = "avg_depletion"
else:
ranked_countries = country_aggregated.orderBy(desc("avg_total_consumption")).limit(limit_count)
ranking_field = "avg_total_consumption"
ranking_results = []
rank = 1
for row in ranked_countries.collect():
country_data = {'rank': rank, 'country': row['Country'], 'metric_value': round(row[ranking_field], 2), 'total_consumption': round(row['avg_total_consumption'], 2), 'per_capita': round(row['avg_per_capita'], 1), 'agricultural_percent': round(row['avg_agricultural'], 1), 'industrial_percent': round(row['avg_industrial'], 1), 'household_percent': round(row['avg_household'], 1), 'depletion_rate': round(row['avg_depletion'], 2), 'data_reliability': row['data_points']}
ranking_results.append(country_data)
rank += 1
structure_comparison = country_aggregated.select("Country", "avg_agricultural", "avg_industrial", "avg_household").collect()
typical_countries = {"developed": [], "developing": [], "agricultural": []}
for row in structure_comparison:
if row['avg_industrial'] > 40:
typical_countries["developed"].append({'country': row['Country'], 'industrial': round(row['avg_industrial'], 1)})
elif row['avg_agricultural'] > 60:
typical_countries["agricultural"].append({'country': row['Country'], 'agricultural': round(row['avg_agricultural'], 1)})
else:
typical_countries["developing"].append({'country': row['Country'], 'balanced_use': round((row['avg_industrial'] + row['avg_household']), 1)})
return JsonResponse({'status': 'success', 'data': {'country_rankings': ranking_results, 'structure_patterns': typical_countries, 'comparison_type': comparison_type}})
return JsonResponse({'status': 'error', 'message': 'Invalid request method'})
@csrf_exempt
def water_scarcity_clustering_analysis(request):
if request.method == 'POST':
data = json.loads(request.body)
cluster_count = data.get('cluster_count', 4)
features = data.get('features', ['Per_Capita_Water_Use', 'Agricultural_Water_Use_Percent', 'Industrial_Water_Use_Percent', 'Household_Water_Use_Percent', 'Groundwater_Depletion_Rate'])
water_df = spark.read.format("jdbc").option("url", "jdbc:mysql://localhost:3306/water_db").option("dbtable", "global_water_data").option("user", "root").option("password", "password").load()
country_features = water_df.groupBy("Country").agg(avg("Per_Capita_Water_Use").alias("avg_per_capita"), avg("Agricultural_Water_Use_Percent").alias("avg_agricultural"), avg("Industrial_Water_Use_Percent").alias("avg_industrial"), avg("Household_Water_Use_Percent").alias("avg_household"), avg("Groundwater_Depletion_Rate").alias("avg_depletion"), avg("Rainfall_Impact").alias("avg_rainfall"))
feature_columns = ["avg_per_capita", "avg_agricultural", "avg_industrial", "avg_household", "avg_depletion"]
assembler = VectorAssembler(inputCols=feature_columns, outputCol="features")
feature_vector_df = assembler.transform(country_features).select("Country", "features", *feature_columns)
kmeans = KMeans(k=cluster_count, seed=42, featuresCol="features", predictionCol="cluster")
model = kmeans.fit(feature_vector_df)
clustered_df = model.transform(feature_vector_df)
cluster_results = []
for cluster_id in range(cluster_count):
cluster_countries = clustered_df.filter(col("cluster") == cluster_id)
cluster_stats = cluster_countries.agg(avg("avg_per_capita").alias("cluster_avg_per_capita"), avg("avg_agricultural").alias("cluster_avg_agricultural"), avg("avg_industrial").alias("cluster_avg_industrial"), avg("avg_household").alias("cluster_avg_household"), avg("avg_depletion").alias("cluster_avg_depletion"), count("*").alias("country_count")).collect()[0]
countries_in_cluster = [row['Country'] for row in cluster_countries.select("Country").collect()]
if cluster_stats['cluster_avg_agricultural'] > 50:
cluster_type = "农业主导型"
elif cluster_stats['cluster_avg_industrial'] > 30:
cluster_type = "工业发达型"
elif cluster_stats['cluster_avg_depletion'] > 5:
cluster_type = "资源紧张型"
else:
cluster_type = "均衡发展型"
cluster_info = {'cluster_id': cluster_id, 'cluster_type': cluster_type, 'country_count': cluster_stats['country_count'], 'countries': countries_in_cluster[:10], 'avg_per_capita': round(cluster_stats['cluster_avg_per_capita'], 1), 'avg_agricultural': round(cluster_stats['cluster_avg_agricultural'], 1), 'avg_industrial': round(cluster_stats['cluster_avg_industrial'], 1), 'avg_household': round(cluster_stats['cluster_avg_household'], 1), 'avg_depletion': round(cluster_stats['cluster_avg_depletion'], 2)}
cluster_results.append(cluster_info)
correlation_matrix = country_features.select(*feature_columns).toPandas().corr()
correlation_data = []
for i, col1 in enumerate(feature_columns):
for j, col2 in enumerate(feature_columns):
if i <= j:
correlation_data.append({'feature1': col1, 'feature2': col2, 'correlation': round(correlation_matrix.iloc[i, j], 3)})
scarcity_analysis = water_df.groupBy("Water_Scarcity_Level").agg(avg("Per_Capita_Water_Use").alias("scarcity_per_capita"), avg("Groundwater_Depletion_Rate").alias("scarcity_depletion"), count("*").alias("scarcity_count"))
scarcity_data = [{'scarcity_level': row['Water_Scarcity_Level'], 'avg_per_capita': round(row['scarcity_per_capita'], 1), 'avg_depletion': round(row['scarcity_depletion'], 2), 'country_count': row['scarcity_count']} for row in scarcity_analysis.collect()]
return JsonResponse({'status': 'success', 'data': {'clustering_results': cluster_results, 'correlation_analysis': correlation_data, 'scarcity_distribution': scarcity_data, 'model_centers': [center.toArray().tolist() for center in model.clusterCenters()]}})
return JsonResponse({'status': 'error', 'message': 'Invalid request method'})
基于大数据的全球用水量数据可视化分析系统-结语
